Model Whirlpool CRE8600ACW ELECTRIC RANGE – Common Parts & Diagrams

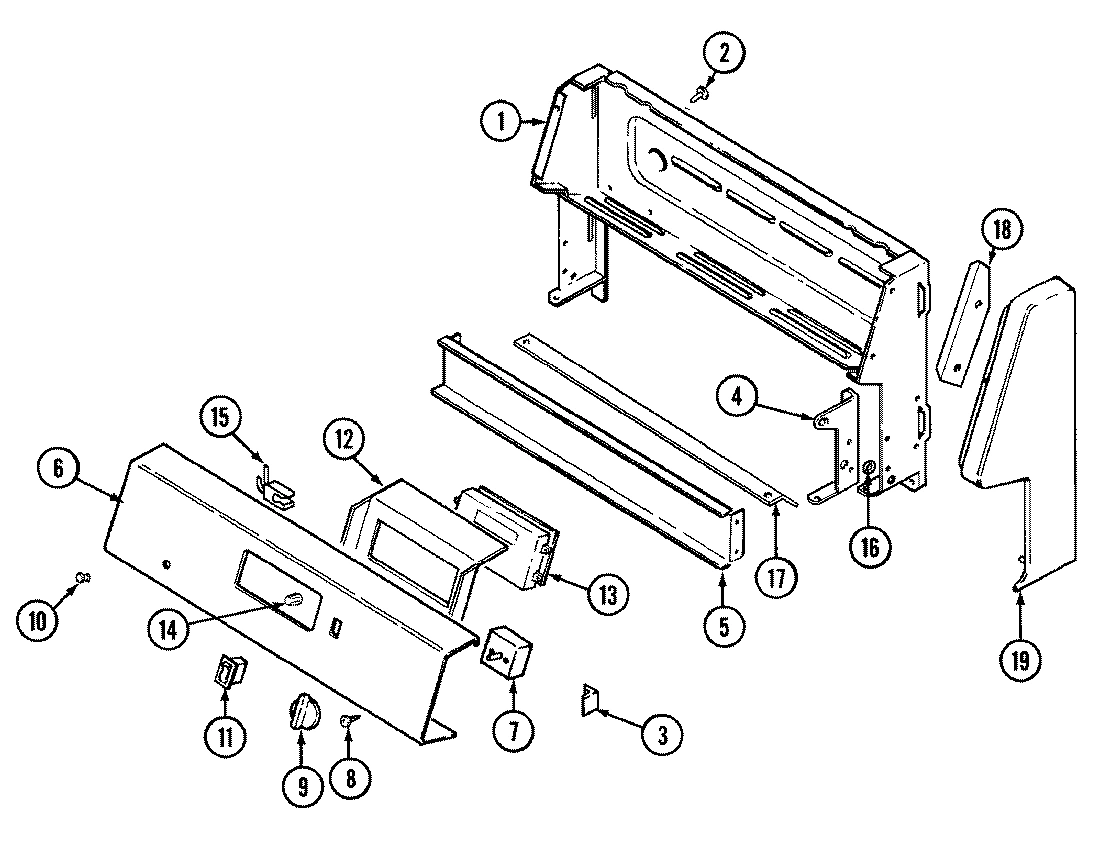

02 - CONTROL PANEL

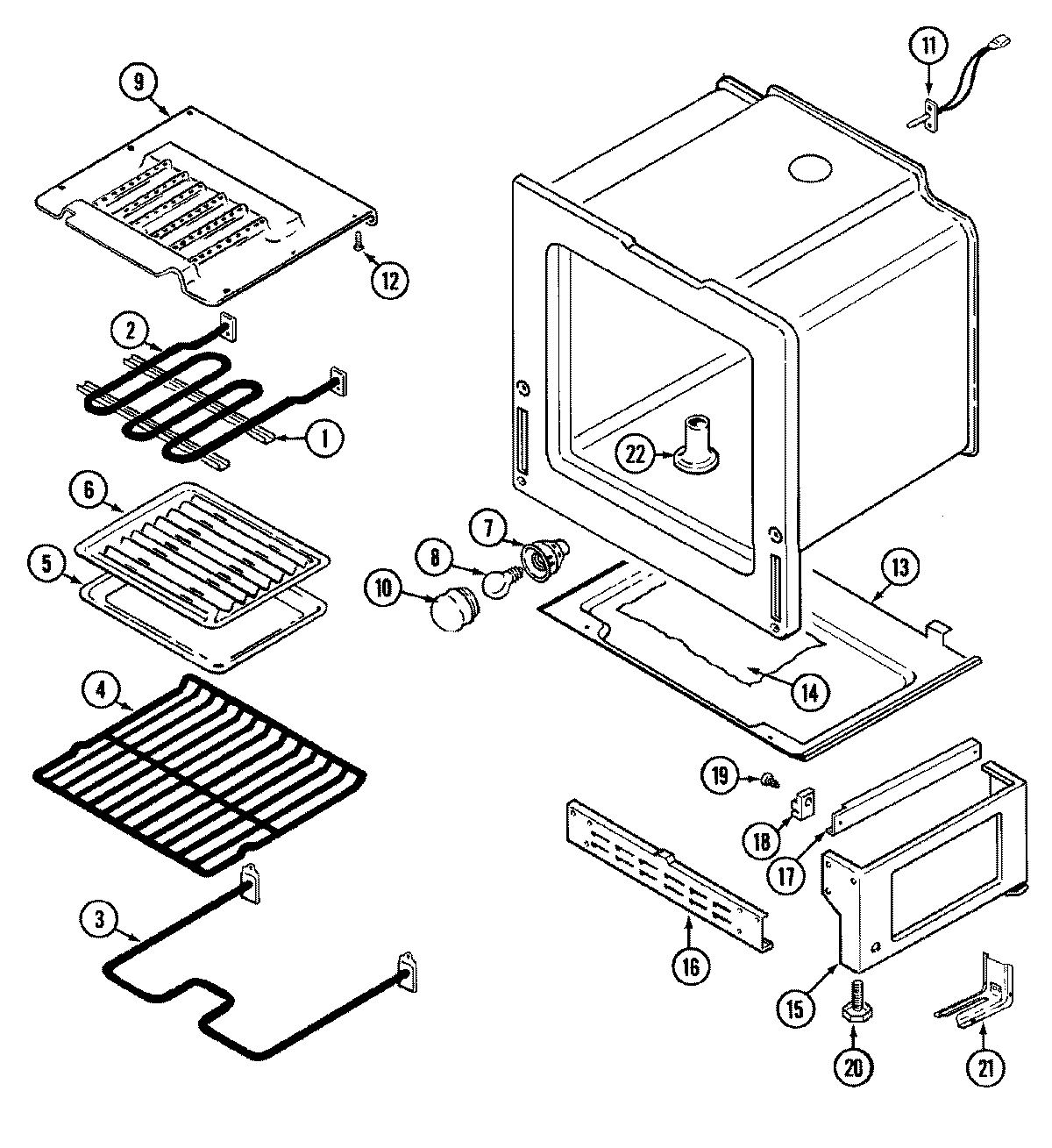

04 - OVEN/BASE

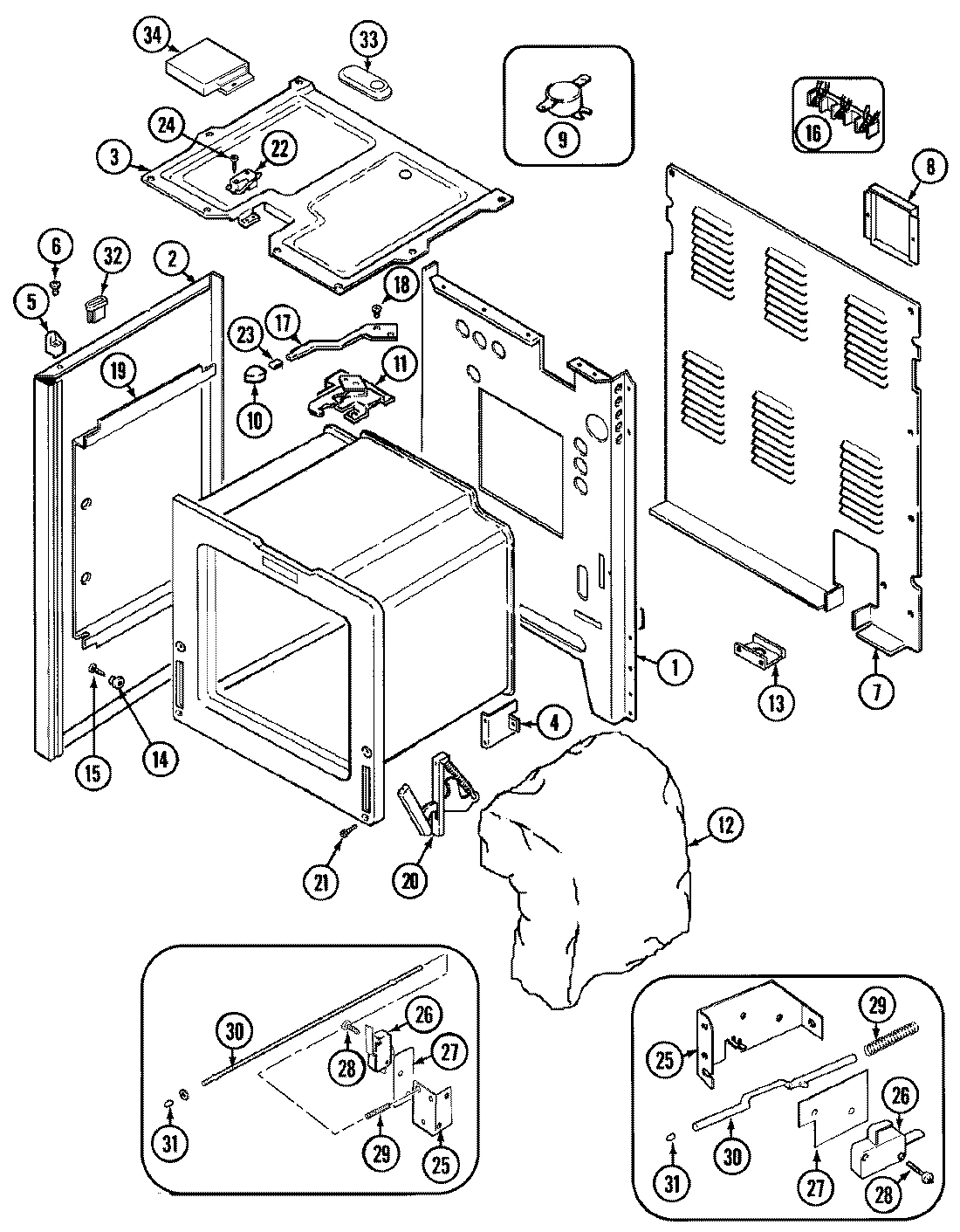

01 - BODY

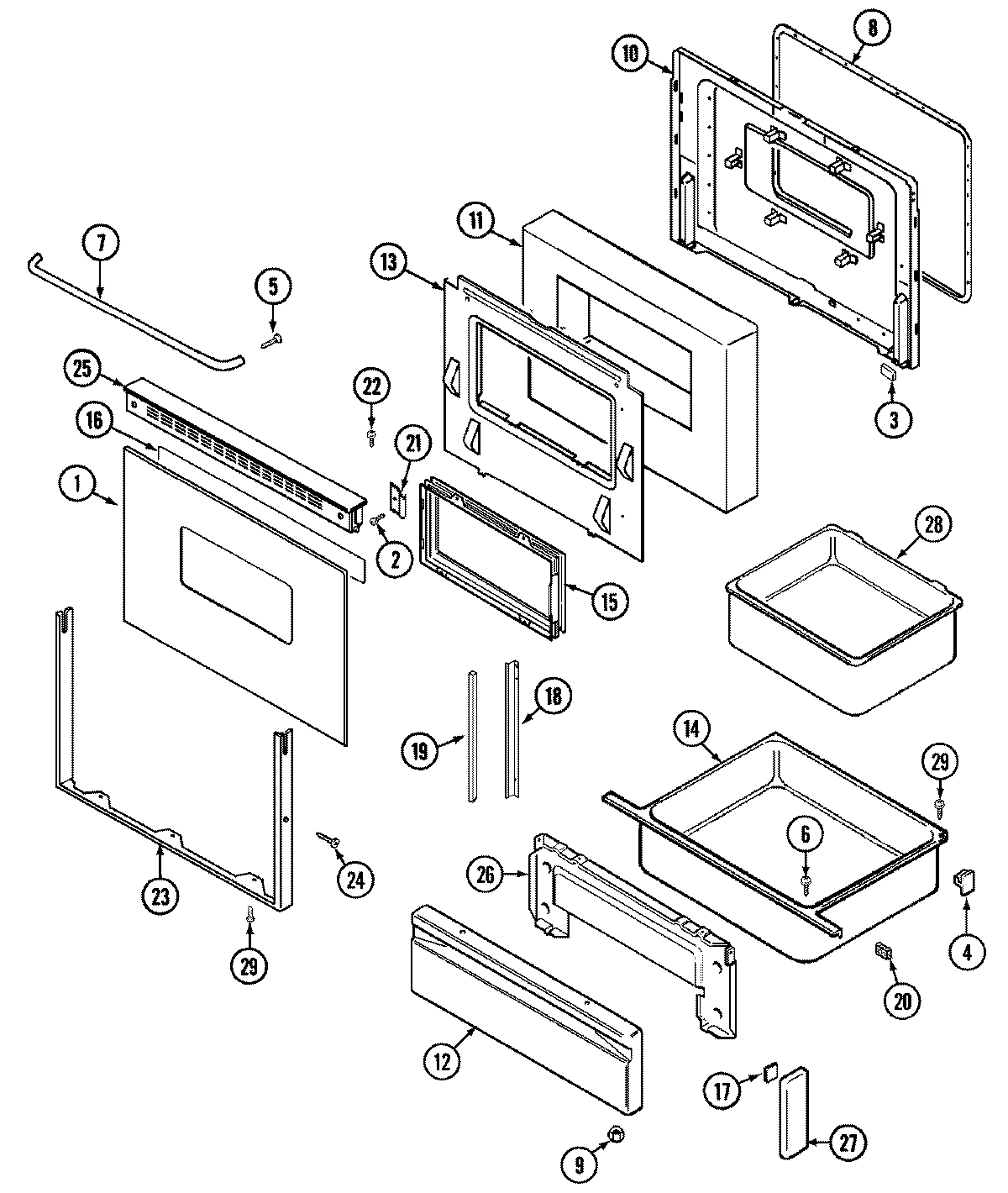

03 - DOOR/DRAWER

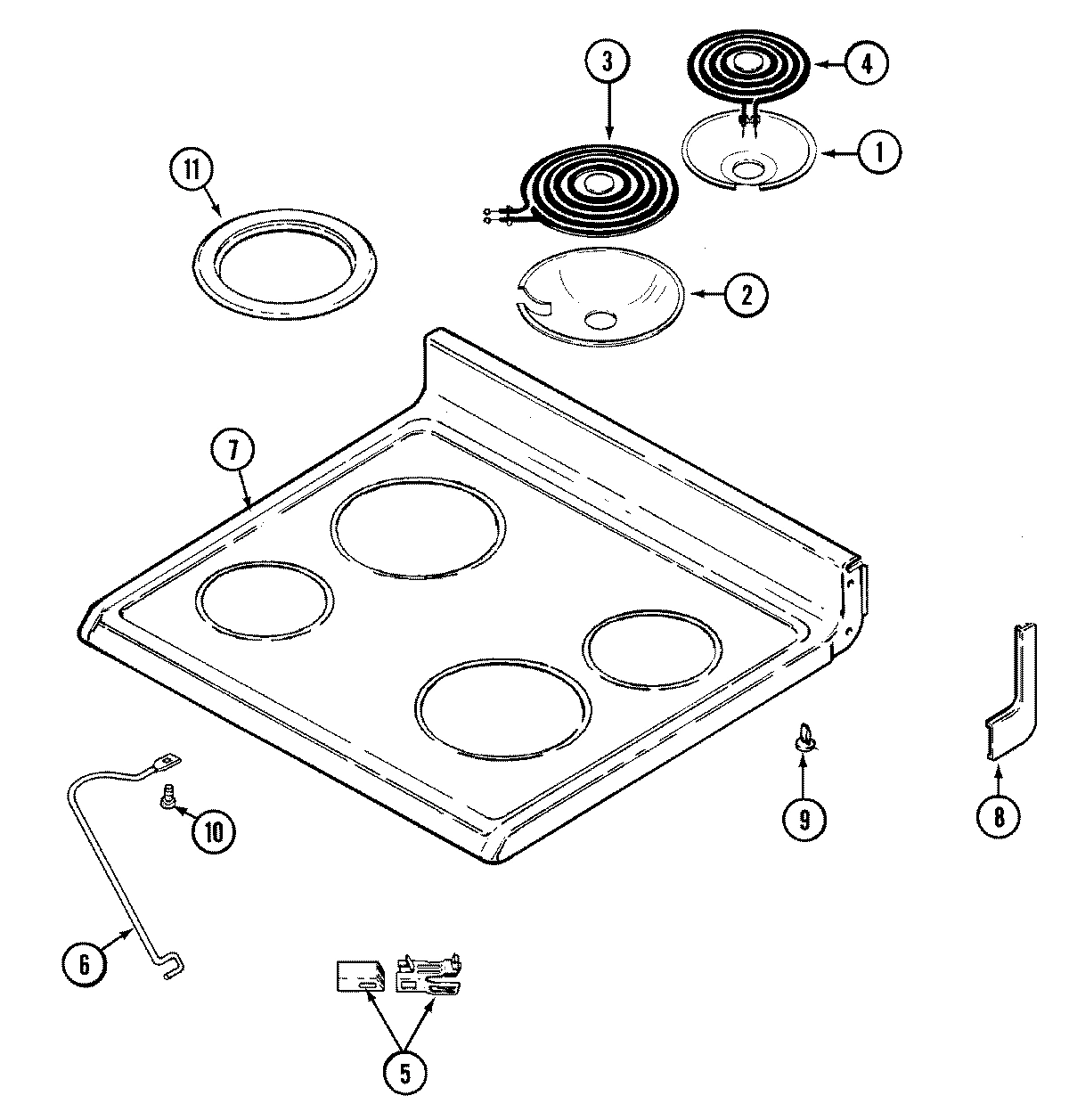

05 - TOP ASSEMBLY
Common parts from model Whirlpool CRE8600ACW ELECTRIC RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
BACK, MAIN WPL 4002F18960 Contact Us For Availability
1
GLASS, DOOR (OUTER/BLK) WPL 7902P36160 Contact Us For Availability
1
BOWL, DRIP (6`` W/HOLE)(BLK) WPL 7725P01360 Contact Us For Availability
1
BOWL, DRIP (6``SOLID)(BLK) WPL 7725P03860 Contact Us For Availability
2
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
2
BOWL, DRIP (8``)(BLK) WPL 7725P03960 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
3
SPACER WPL 8010P08360 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
BOX, BURNER WPL 4011F21919 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT (8``) WPL 7406P07060 Contact Us For Availability
3
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
4
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
4
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
4
RACK----NA WPL 7801P03960 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P06960 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
5
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
6
SCREW WPL 7118P01960 Contact Us For Availability
6
PANEL, BACKGUARD WPL 7703P55560 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SCREW WPL 7101P07260 Contact Us For Availability
6
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
7
HANDLE, OVEN DOOR (BLK) WPL 7701P12760 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07881 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
END CAP (RT-CHR)----NA WPL 7746P03460 Contact Us For Availability
8
END CAP (LT-CHR) WPL 7746P03560 Contact Us For Availability
9
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
10
LENS, INDICATOR LIGHT WPL 7730P01060 Contact Us For Availability
10
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
11
RING, TRIM (6``) WPL 7744P05360 Contact Us For Availability
11
RING, TRIM (8``) WPL 7744P05460 Contact Us For Availability
12
BRACKET, CLOCK WPL 3801F27545 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
12
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
12
PANEL, SERVICE DWR WPL 2416F04371 Contact Us For Availability
13
CLOCK WPL 7601P22460 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
14
KNOB, CLOCK (BLK) WPL 7711P47560 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P07760 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
15
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
15
SCREW WPL 7101P33460 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
17
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
17
TAPE WPL 8270P09860 Contact Us For Availability
18
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
18
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
19
END CAP (RT-CHR) WPL 7726P06360 Contact Us For Availability
19
END CAP (LT-CHR) WPL 7726P06460 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
SEAL WPL 7208P00260 Contact Us For Availability
20
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
SCREW WPL 7101P11560 Contact Us For Availability
21
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
22
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
23
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
23
FRAME, DOOR (STNLS) WPL 7706P29360 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
SCREW WPL 7101P31960 Contact Us For Availability
25
BRACKET, LIGHT SWITCH WPL 3801F31651 Contact Us For Availability
25
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
25
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
25
TRIM, TOP WPL 7744P08860 Contact Us For Availability
26
SWITCH, MICRO WPL 7403P28160 Contact Us For Availability
26
SWITCH, DOOR LIGHT WPL 7403P35760 Contact Us For Availability
26
LINING, DRAWER WPL 2404F03380 Contact Us For Availability
27
INSULATOR, SWITCH WPL 7003P04760 Contact Us For Availability
27
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
27
END CAP (WHT) WPL 7744P09360 Contact Us For Availability
28
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
28
BASKET, DRAWER WPL 8312P07360 Contact Us For Availability
29
SCREW WPL 7101P29060 Contact Us For Availability
29
SPRING WPL 7803P06760 Contact Us For Availability
30
ROD, LIGHT SWITCH WPL 7809P01760 Contact Us For Availability
30
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
31
BUMPER WPL 8003P01260 Contact Us For Availability
32
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
33
COVER, VENT WPL 4005F43245 Contact Us For Availability
34
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D15360 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P16160 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P00260 Contact Us For Availability
× ![]()
