Model Whirlpool CRE8400BCL ELECTRIC RANGE – Common Parts &amp; Diagrams

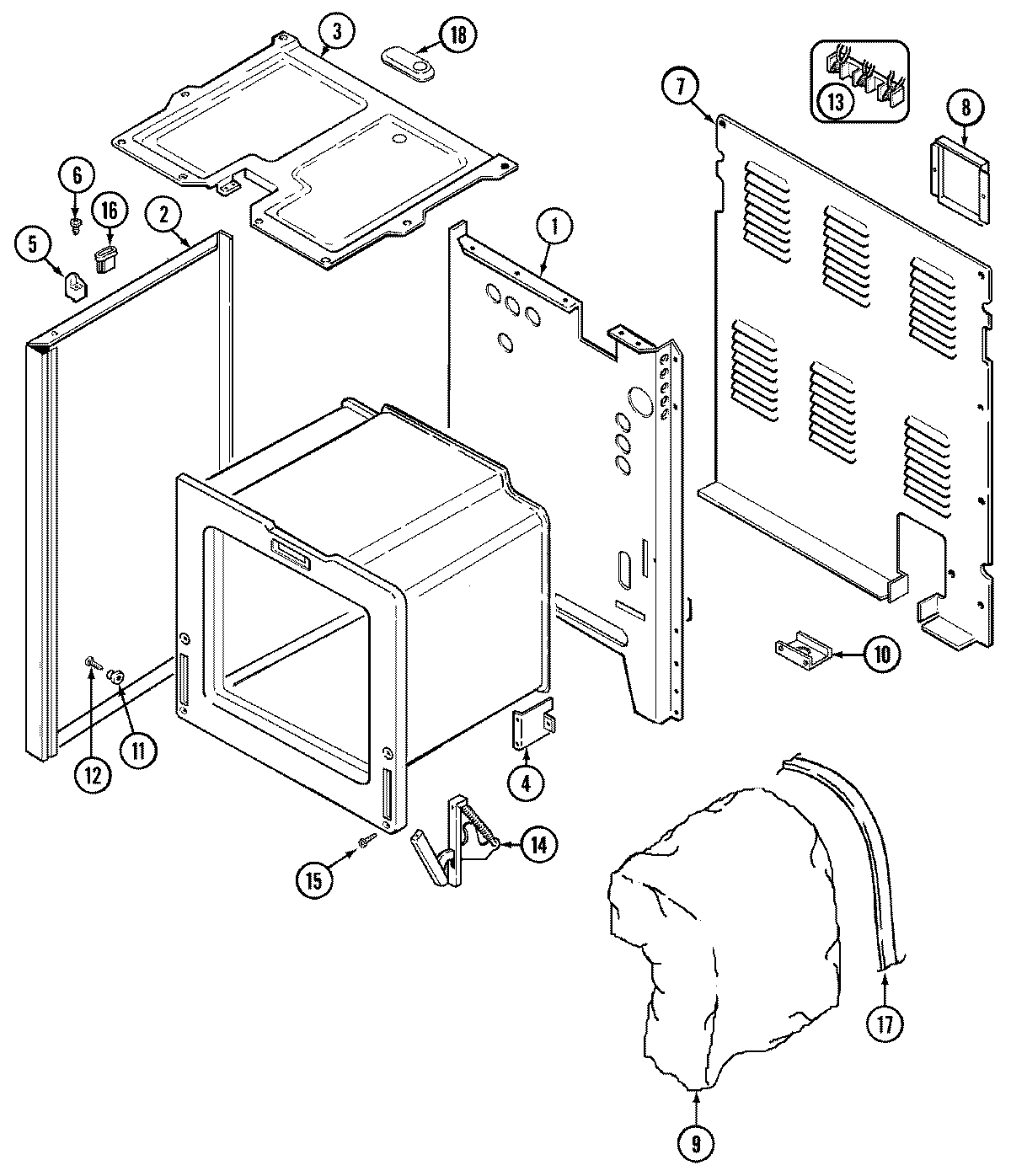

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

SHIELD, WIRE WPL 3604F21851 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability

1

GLASS, DOOR (OUTER/BLK) WPL 7902P36160 Contact Us For Availability

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.20

2

SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability

2

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

2

INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability

2

PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability

2

SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability

2

SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability

3

WPY04000059 Whirlpool Bake Element Backorder WPL WPY04000059 $98.31

3

SCREW WPL 7118P01360 Contact Us For Availability

3

BOX, BURNER WPL 4011F23919 Contact Us For Availability

3

SCREW, HOUSING WPL 7118P01560 Contact Us For Availability

3

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

4

WP12001560 Whirlpool Surface Element Backorder WPL WP12001560 $88.60

4

WP74003019 Whirlpool Oven Bake Element In Stock WPL WP74003019 $32.35

4

NUT WPL 7103P08260 Contact Us For Availability

4

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

4

ELEMENT (8``) (2600WATT) (BLK) WPL 74001781 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

SPACER WPL 8010P08360 Contact Us For Availability

4

SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability

5

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $78.23

5

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

5

ELEMENT (6``) (1500WATT) (BLK) WPL 74001780 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability

5

HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability

5

SCREW WPL 7101P32660 Contact Us For Availability

6

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $8.93

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $46.57

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

6

BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability

7

PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003016 Contact Us For Availability

7

TOP, MAIN (ALM) WPL 2002W10384 Contact Us For Availability

7

COVER, WIRE WPL 4005F45551 Contact Us For Availability

7

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

7

PANEL, CONTROL WPL 7703P67160 Contact Us For Availability

7

HANDLE, OVEN DOOR (BLK) WPL 7701P14960 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability

8

END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

8

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

8

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

9

SUPPORT, TOP WPL 74001170 Contact Us For Availability

9

INSULATION, WRAP WPL 4804F03660 Contact Us For Availability

9

INSULATION, BACK WPL 74001800 Contact Us For Availability

9

SCREW WPL 7101P30960 Contact Us For Availability

9

NUT, LOCK WPL 7103P13960 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.49

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.65

LEG, LEVELING WPL 74001311 Contact Us For Availability

SCREW 3/8`` WPL 7101P14160 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability

LINING, DOOR WPL 2402W21319 Contact Us For Availability

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

LINING, DOOR WPL 74002460 Contact Us For Availability

LINING, DOOR WPL 74003248 Contact Us For Availability

BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability

SCREW WPL 7101P34460 Contact Us For Availability

GLIDE WPL 8016P01560 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

INSULATION, DOOR WPL 7002P15860 Contact Us For Availability

INSULATION, DOOR WPL 74002458 Contact Us For Availability

12

RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability

12

SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability

12

PANEL, DRAWER (ALM) WPL 2416F05074 Contact Us For Availability

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

BRACKET WPL 3801F34651 Contact Us For Availability

BAFFLE, DOOR WPL 3601F24080 Contact Us For Availability

SCREW WPL 7101P29060 Contact Us For Availability

BAFFLE, DOOR WPL 74002461 Contact Us For Availability

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $84.42

RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability

HINGE WPL 7106P05560 Contact Us For Availability

SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability

CLOCK (BLK) WPL 7602P12160 Contact Us For Availability

DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

END CAP (RT-BLK) WPL 7726P06160 Contact Us For Availability

END CAP (LT-BLK) WPL 7726P06260 Contact Us For Availability

GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability

GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability

SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability

BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability

COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability

NUT, SPEED WPL 7103P04460 Contact Us For Availability

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

STRAP, RETAINER WPL 4820F00159 Contact Us For Availability

18

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

18

COVER, VENT WPL 4005F43245 Contact Us For Availability

18

SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability

19

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

19

THERMOSTAT WPL 7404P10560 Contact Us For Availability

19

FRAME, DOOR (BLK) WPL 7706P30960 Contact Us For Availability

WP7403P255-60 Whirlpool Selector Switch Backorder WPL WP7403P255-60 $76.91

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability

TRIM, DOOR (UPPER-BLK) WPL 7706P30560 Contact Us For Availability

21

RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability

21

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

21

LINING WPL 2404F04380 Contact Us For Availability

22

END CAP (ALM) WPL 7744P09460 Contact Us For Availability

23

TAPE WPL 8270P09860 Contact Us For Availability

24

SEAL, RUBBER WPL 7208P01160 Contact Us For Availability

25

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

26

BASKET, DRAWER WPL 8312P07960 Contact Us For Availability

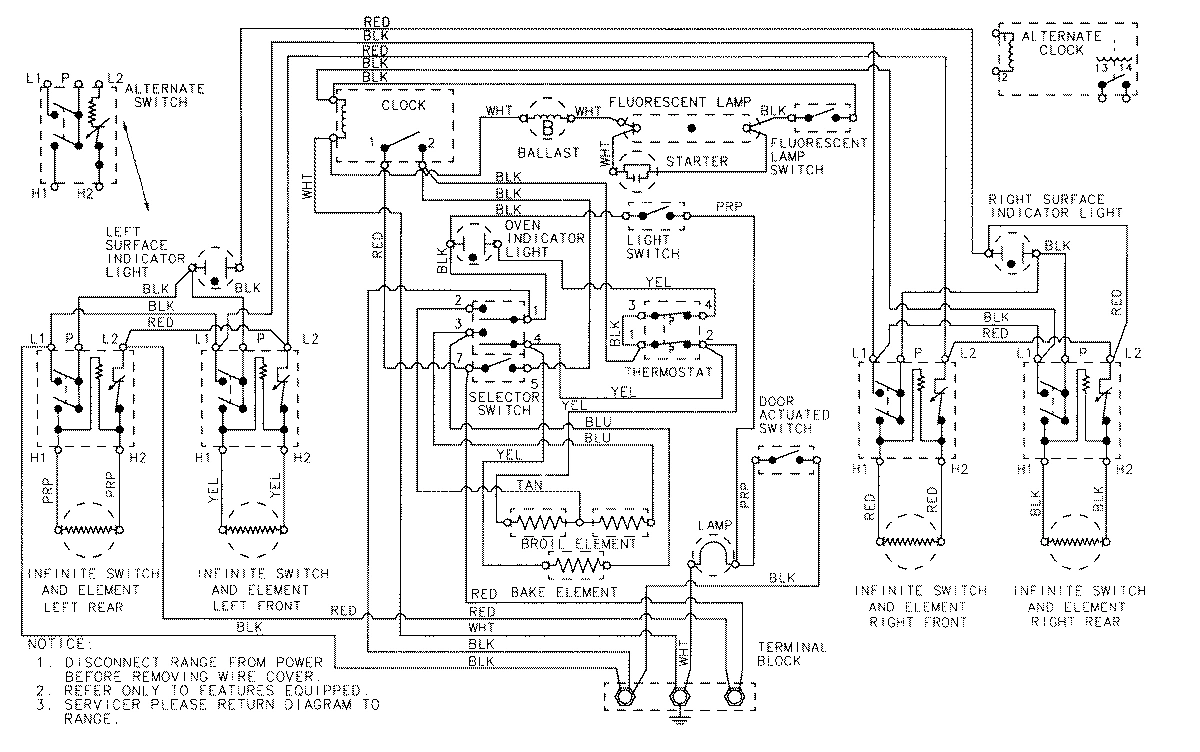

WIRING INFORMATION WPL 15001710 Contact Us For Availability

GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability

HARNESS, CONTROL PANEL WPL 74001334 Contact Us For Availability

MANUAL, USE & CARE WPL 74001335 Contact Us For Availability

HARNESS, WIRE CONTROL/TOP WPL 74001590 Contact Us For Availability
