Model Whirlpool CRE7600CDE ELECTRIC RANGE – Common Parts &amp; Diagrams

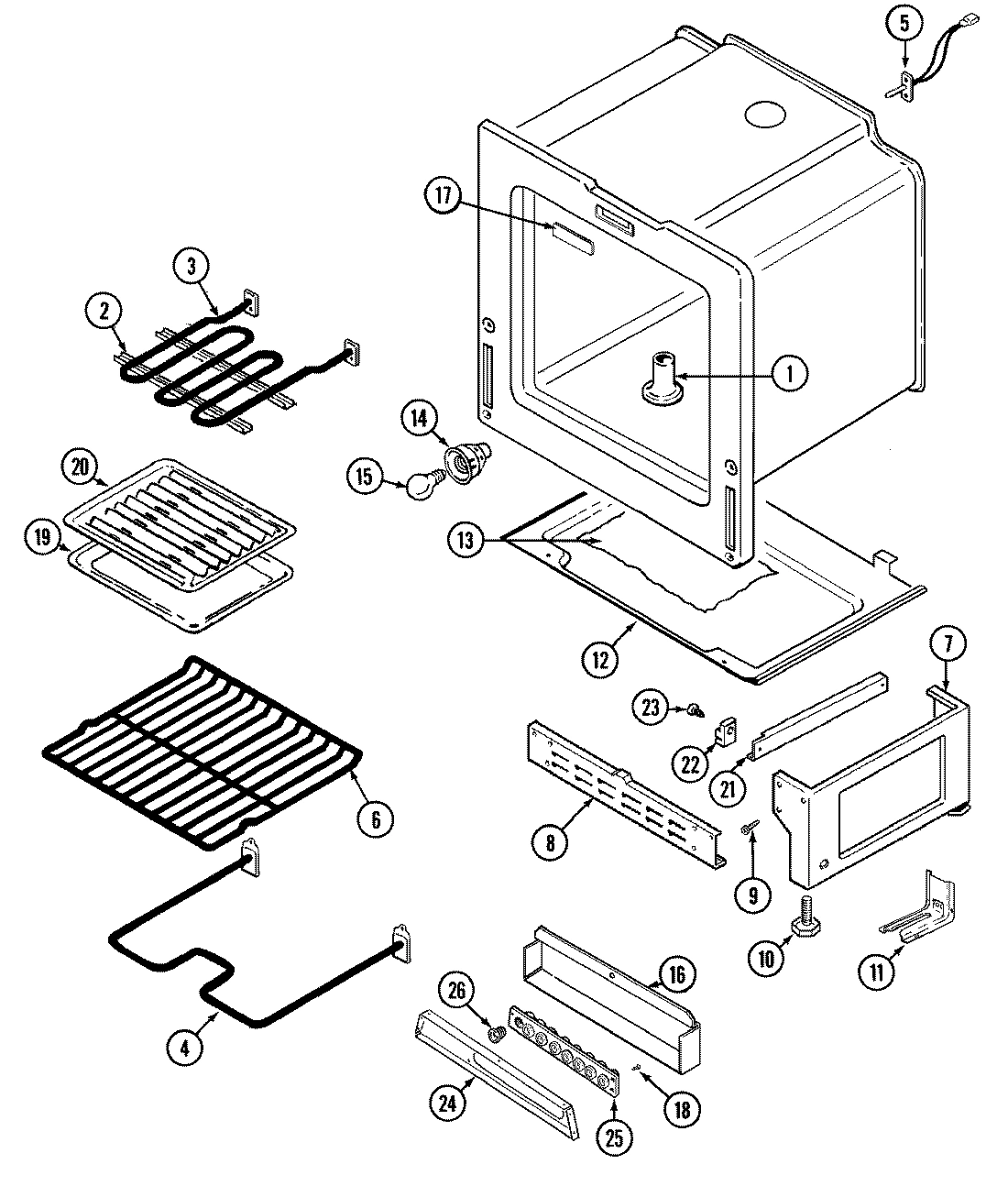

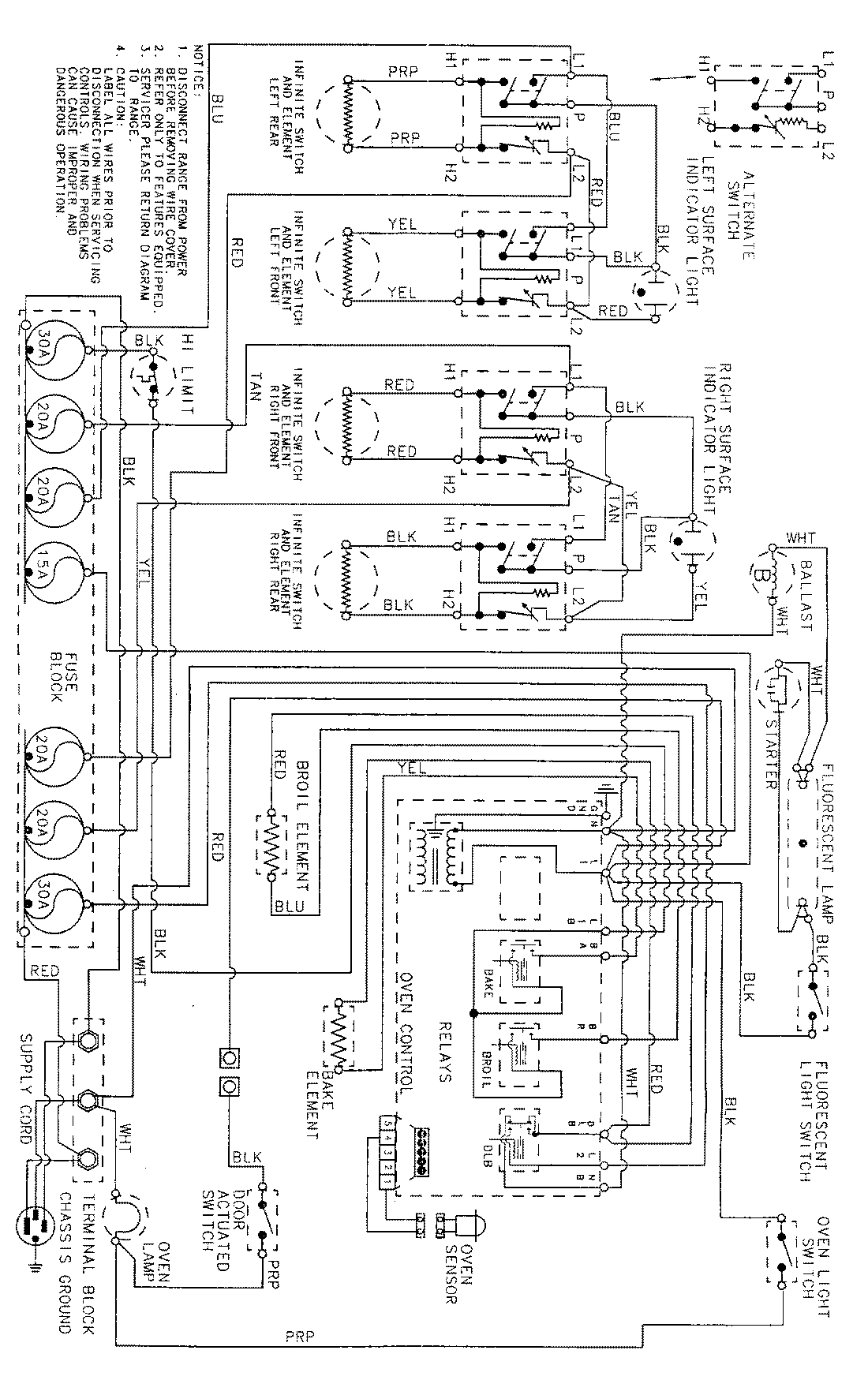

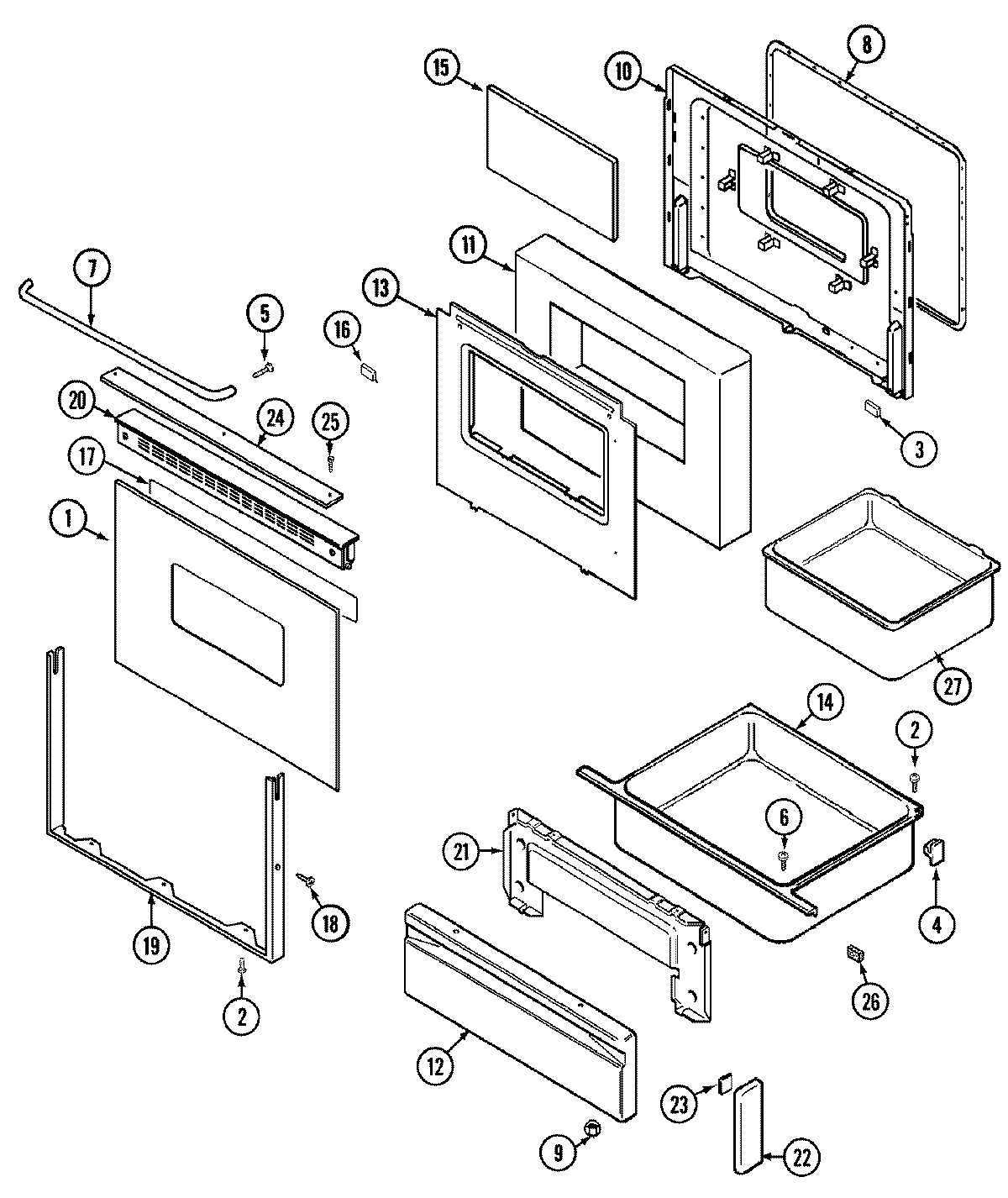

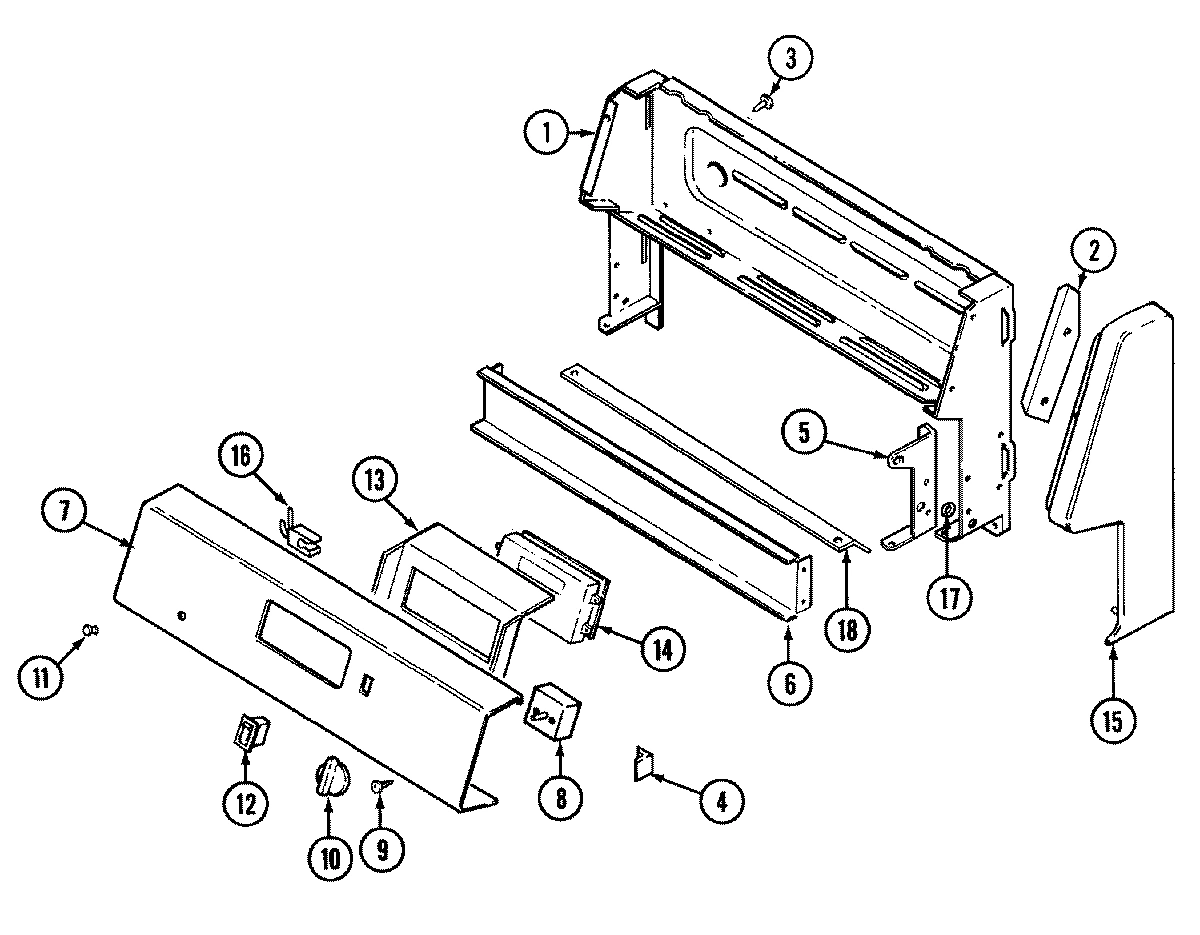

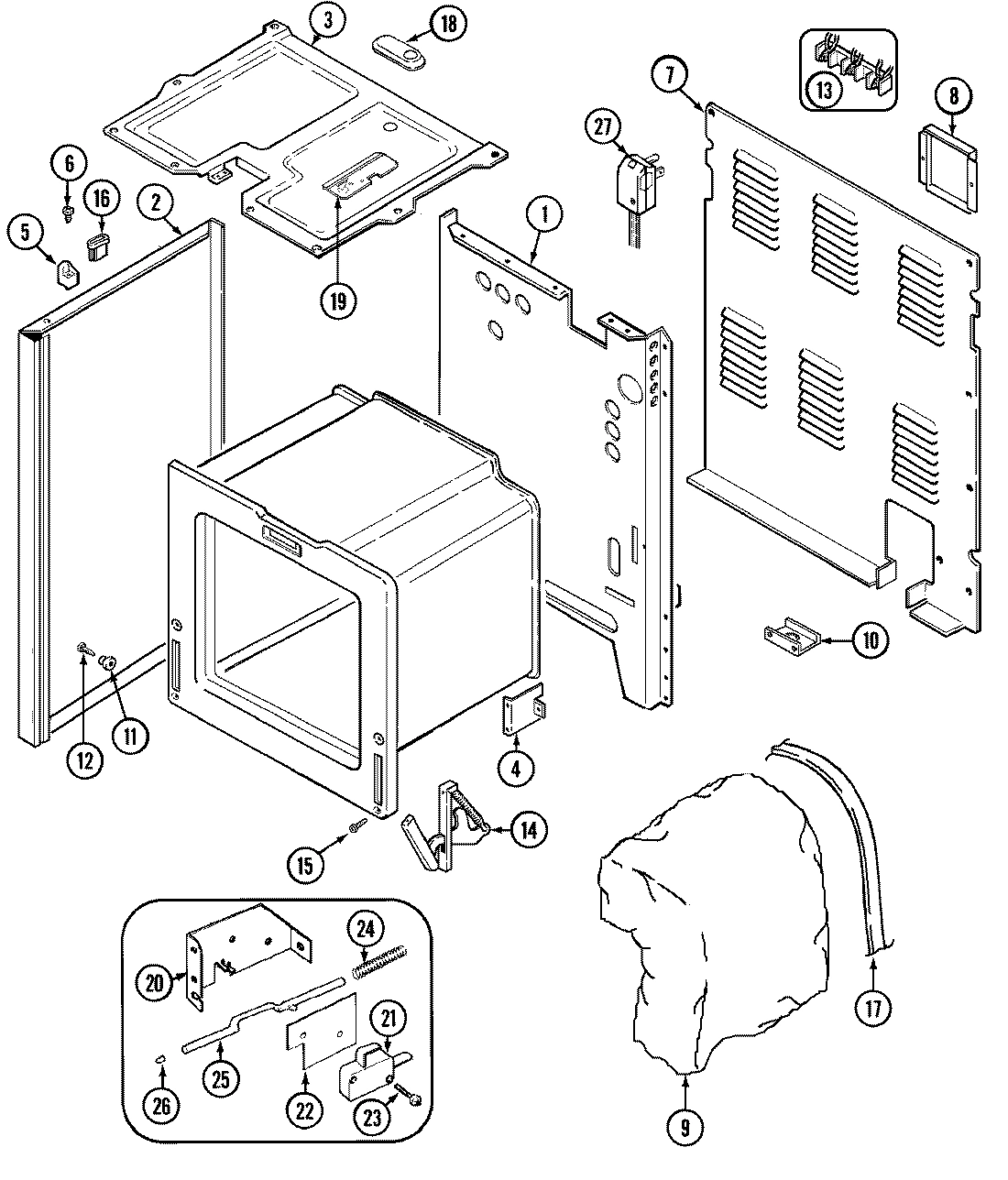

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

1

HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

GLASS, DOOR (WHT) WPL 7902P36060 Contact Us For Availability

2

INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability

2

SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability

2

SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability

2

SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability

3

WPY04000059 Whirlpool Bake Element Backorder WPL WPY04000059 $98.31

3

BOX, BURNER WPL 4011F23919 Contact Us For Availability

3

SCREW, HOUSING WPL 7118P01560 Contact Us For Availability

3

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

3

SCREW WPL 7118P01360 Contact Us For Availability

4

WP12001560 Whirlpool Surface Element Backorder WPL WP12001560 $88.60

4

WP74003019 Whirlpool Oven Bake Element In Stock WPL WP74003019 $32.35

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

SPACER WPL 8010P08360 Contact Us For Availability

4

NUT WPL 7103P08260 Contact Us For Availability

4

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

4

SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability

4

ELEMENT (8``) (2600WATT) (BLK) WPL 74001781 Contact Us For Availability

5

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $78.23

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability

5

HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability

5

SENSOR, OVEN WPL 7430P01060 Contact Us For Availability

5

SCREW WPL 7101P32660 Contact Us For Availability

5

ELEMENT (6``) (1500WATT) (BLK) WPL 74001780 Contact Us For Availability

6

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $8.93

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $46.57

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

6

BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability

7

COVER, WIRE WPL 4005F45551 Contact Us For Availability

7

SCREW (WHT) WPL 7101P34860 Contact Us For Availability

7

PANEL, CONTROL (WHT) WPL 74001224 Contact Us For Availability

7

PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003016 Contact Us For Availability

7

HANDLE, OVEN DOOR (WHT) WPL 7701P15060 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

8

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

8

NUT, SPEED WPL 7103P12960 Contact Us For Availability

8

END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability

8

END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability

9

INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability

9

INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability

9

SCREW WPL 7101P30960 Contact Us For Availability

9

NUT, LOCK WPL 7103P13960 Contact Us For Availability

9

SUPPORT, TOP WPL 74001170 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.49

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.65

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

KNOB, VALVE (WHT) WPL 7737P03760 Contact Us For Availability

LEG, LEVELING WPL 74001311 Contact Us For Availability

LINING, DOOR WPL 2402W21319 Contact Us For Availability

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

LINING, DOOR WPL 74002460 Contact Us For Availability

LINING, DOOR WPL 74003248 Contact Us For Availability

SCREW 3/8`` WPL 7101P14160 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.20

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

SCREW WPL 7101P34460 Contact Us For Availability

INSULATION, DOOR WPL 7002P15860 Contact Us For Availability

INSULATION, DOOR WPL 74002458 Contact Us For Availability

GLIDE WPL 8016P01560 Contact Us For Availability

12

SWITCH, ROCKER (WHT) WPL 7403P31060 Contact Us For Availability

12

RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability

12

PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability

BRACKET, CLOCK WPL 74001488 Contact Us For Availability

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

BAFFLE, DOOR WPL 3601F24080 Contact Us For Availability

SCREW WPL 7101P29060 Contact Us For Availability

BAFFLE, DOOR WPL 74002461 Contact Us For Availability

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $84.42

HINGE WPL 7106P05560 Contact Us For Availability

SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability

CLOCK (WHT) WPL 74002180 Contact Us For Availability

RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability

DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

END CAP, PANEL (RT-WHT) WPL 74001305 Contact Us For Availability

END CAP, PANEL (LT-WHT) WPL 74001306 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability

GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability

16

BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability

16

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

16

COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

STRAP, RETAINER WPL 4820F00159 Contact Us For Availability

NUT, SPEED WPL 7103P04460 Contact Us For Availability

COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability

COVER, VENT WPL 4005F43245 Contact Us For Availability

SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability

SCREW WPL 7101P06860 Contact Us For Availability

NUT WPL 7103P06460 Contact Us For Availability

19

SHIELD, DOOR LIGHT SWITCH WPL 74001598 Contact Us For Availability

19

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

19

FRAME, DOOR (WHT) WPL 7706P31060 Contact Us For Availability

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

TRIM, DOOR (UPPER-WHT) WPL 7706P30660 Contact Us For Availability

SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability

RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

LINING WPL 2404F04380 Contact Us For Availability

22

SUPPORT, DRAWER WPL 74002312 Contact Us For Availability

22

INSULATOR, SWITCH WPL 74001872 Contact Us For Availability

22

END CAP (WHT) WPL 7744P09360 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

TAPE WPL 8270P09860 Contact Us For Availability

24

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

24

BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability

24

INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability

ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability

BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

SCREW (WHT) WPL 74001278 Contact Us For Availability

BUMPER, ROD WPL 74001631 Contact Us For Availability

FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability

FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability

SEAL, RUBBER WPL 7208P01160 Contact Us For Availability

27

CORD, POWER WPL 7402P05060 Contact Us For Availability

27

BASKET, DRAWER WPL 8312P07960 Contact Us For Availability

CLAMP, WIRE WPL 7111P02060 Contact Us For Availability

GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability

MANUAL, USE & CARE WPL 74001354 Contact Us For Availability

HARNESS, WIRE CONTROL/TOP WPL 74001590 Contact Us For Availability

HARNESS, WIRE CONTROL PANEL WPL 74001618 Contact Us For Availability

MANUAL, USE & CARE (FCH) WPL 74002165 Contact Us For Availability

TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability

COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
