Model Whirlpool CR18PKXRS01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

1

Support, Crisper WPL 9791824 Contact Us For Availability

2

W10837901 Whirlpool Refrigerator Glass Shelf Backorder WPL W10837901 $100.31

2

WP2207942 Whirlpool Dairy Door In Stock WPL WP2207942 $39.35

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

3

2258681B Whirlpool Refrigerator Shim Backorder WPL 2258681B $26.43

3

W11595196 Whirlpool Cover In Stock WPL W11595196 $34.24

3

WP2264004 Whirlpool Refrigerator Condenser Backorder WPL WP2264004 $80.76

3

Cover, Air Diffuser WPL 2183061 Contact Us For Availability

4

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

4

WP2263749 Whirlpool Defrost Heater Assembly In Stock WPL WP2263749 $37.20

5

2266506 Whirlpool Refrigerator Spacer Backorder WPL 2266506 $8.40

5

WPW10171469 Whirlpool Refrigerator Screw In Stock WPL WPW10171469 $4.58

6

WP2156003 Whirlpool Refrigerator Door Shelf E In Stock WPL WP2156003 $4.50

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Holder, Meat Pan WPL 2262686 Contact Us For Availability

7

WP2210047 Whirlpool Glass Shelf In Stock WPL WP2210047 $107.80

7

Heat Shield WPL 2264762 Contact Us For Availability

8

Post, Crisper WPL 836410 Contact Us For Availability

8

Snap Rivet WPL 2264516 Contact Us For Availability

9

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

10

WP2263929 Whirlpool Refrigerator Air Baffle Backorder WPL WP2263929 $34.57

10

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

10

Fan Mounting Bracket WPL 2197405 Contact Us For Availability

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $44.36

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

12

2215210 Whirlpool Refrigerator Control Box Backorder WPL 2215210 $45.59

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $50.58

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

14

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

14

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

15

2264835 Whirlpool Clip Backorder WPL 2264835 $10.28

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

17

2215385 Whirlpool Refrigerator Shim Backorder WPL 2215385 $28.80

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

19

8201619 Whirlpool Refrigerator Support Assemb Backorder WPL 8201619 $57.45

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

Hinge-Pin, Bottom WPL 9791682 Contact Us For Availability

20

WP2263920 Whirlpool Refrigerator Evaporator Backorder WPL WP2263920 $138.89

20

WP3428970 Whirlpool Refrigerator Screw Backorder WPL WP3428970 $4.56

21

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

21

WP2201567 Whirlpool Hinge Shim In Stock WPL WP2201567 $3.70

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

22

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

23

Air Tower WPL 9790408 No Longer Available

24

2264129 Whirlpool Refrigerator Fan Blade Backorder WPL 2264129 $43.11

24

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

25

WP489489 Whirlpool Screw Backorder WPL WP489489 $2.38

25

Cover, Air Return WPL 2261978 Contact Us For Availability

26

W11500943 Whirlpool Refrigerator Filler Backorder WPL W11500943 $2.40

26

Air Diffuser WPL 2221992 Contact Us For Availability

26

CLIP, HARNESS WPL 2266467 Contact Us For Availability

27

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

28

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

28

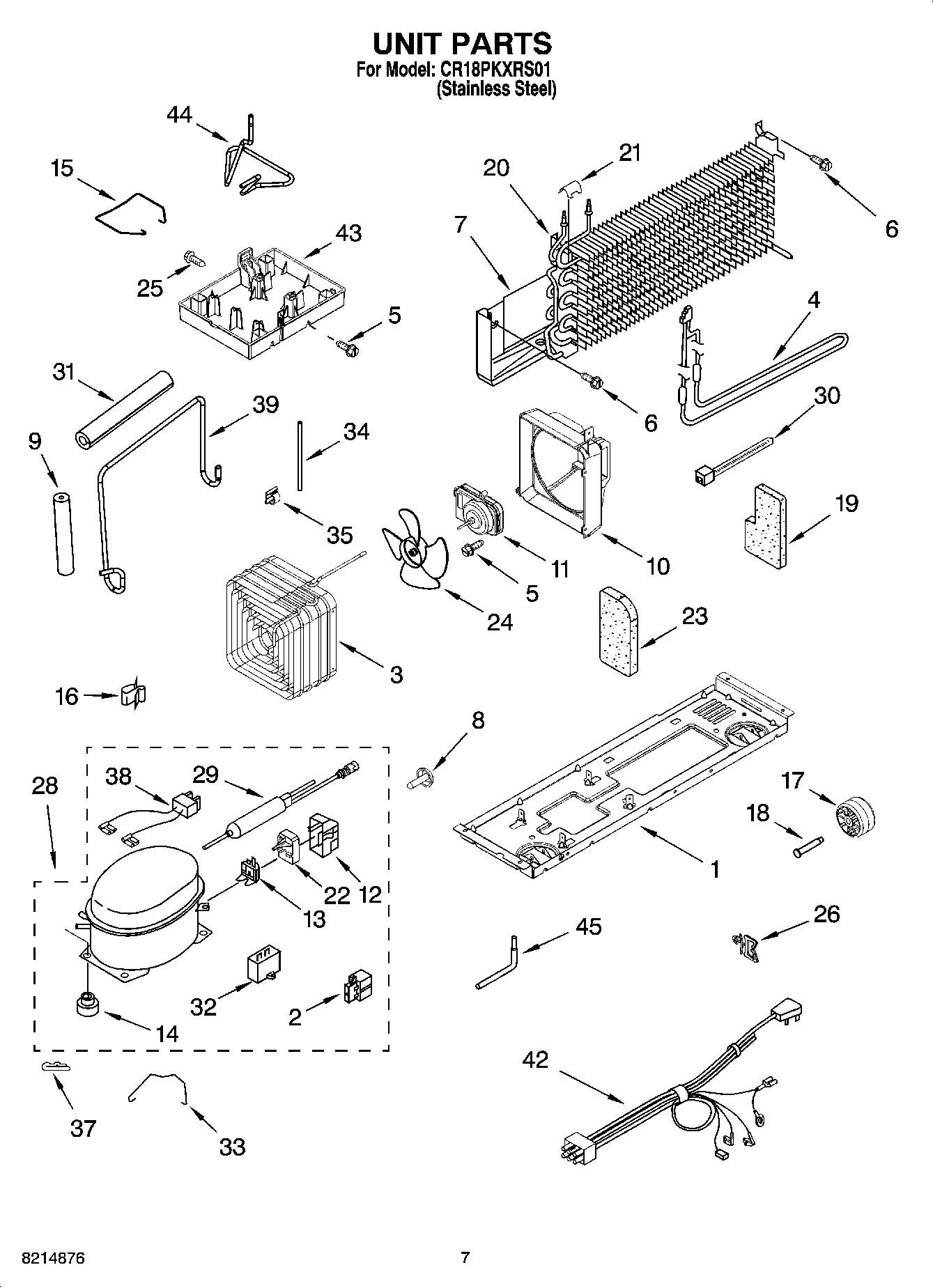

Compressor (Includes Items 2,12,13,14,29, 32 WPL 2217634 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

29

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

2264838 Whirlpool Refrigerator Sleeve Backorder WPL 2264838 $28.80

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

33

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

34

2264278 Whirlpool Refrigerator Extension Backorder WPL 2264278 $26.21

35

W11501419 Whirlpool Refrigerator Clip Backorder WPL W11501419 $4.19

37

Clip, Compressor WPL 24364001 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

2264131 Whirlpool Refrigerator Tube Extension Backorder WPL 2264131 $9.81

42

Wire Assy. Unit WPL 2263753 Contact Us For Availability

43

WP2263928 Whirlpool Refrigerator Evaporator T Backorder WPL WP2263928 $50.62

44

2316181 Whirlpool Tube Backorder WPL 2316181 $41.45

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11676464 Whirlpool Tube Backorder WPL W11676464 $37.81

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI21485A1 Contact Us For Availability

WPL ARI21486A9 WPL ARI21486A9 Contact Us For Availability
