Model Whirlpool CLY2260ADB RV GAS RANGE – Common Parts & Diagrams

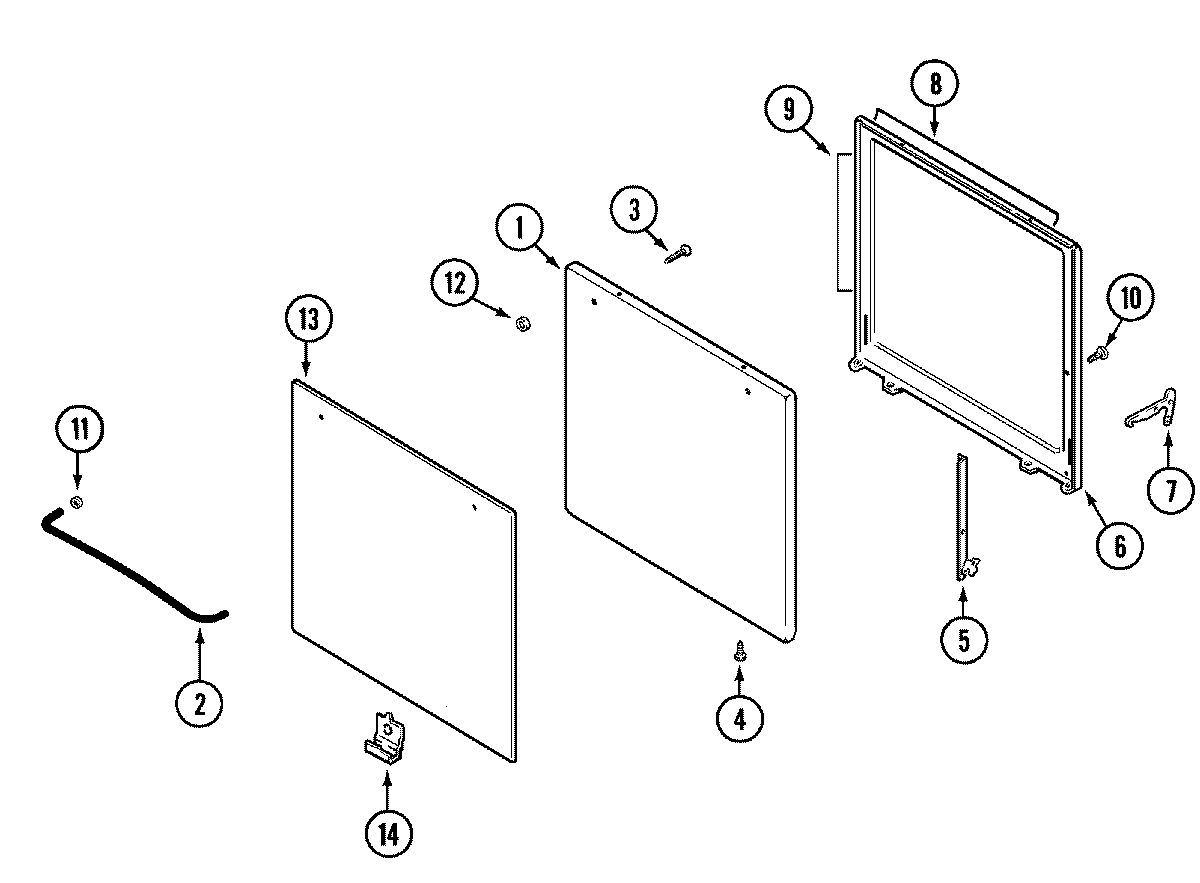

01 - DOOR

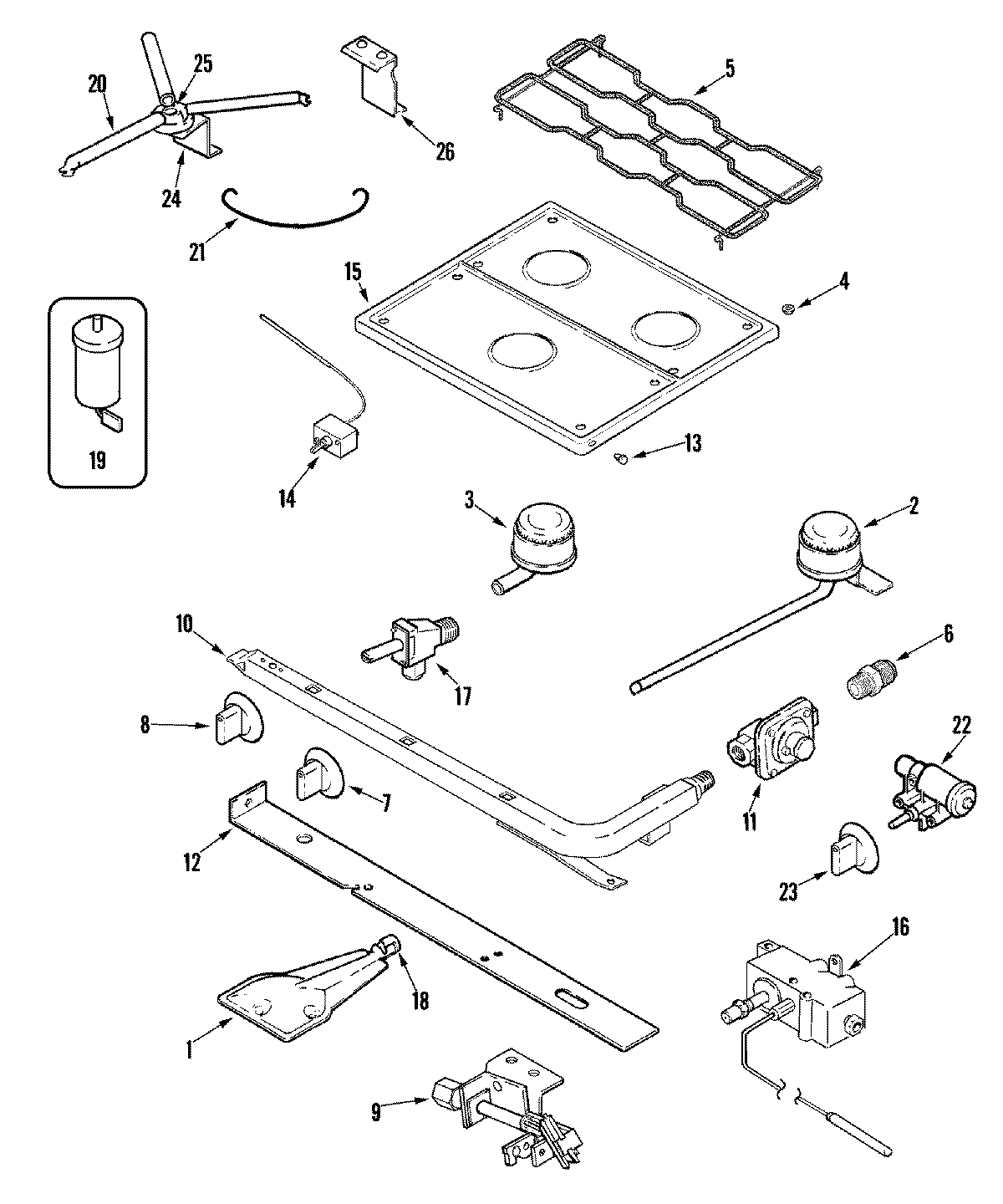

03 - TOP & GAS CONTROLS

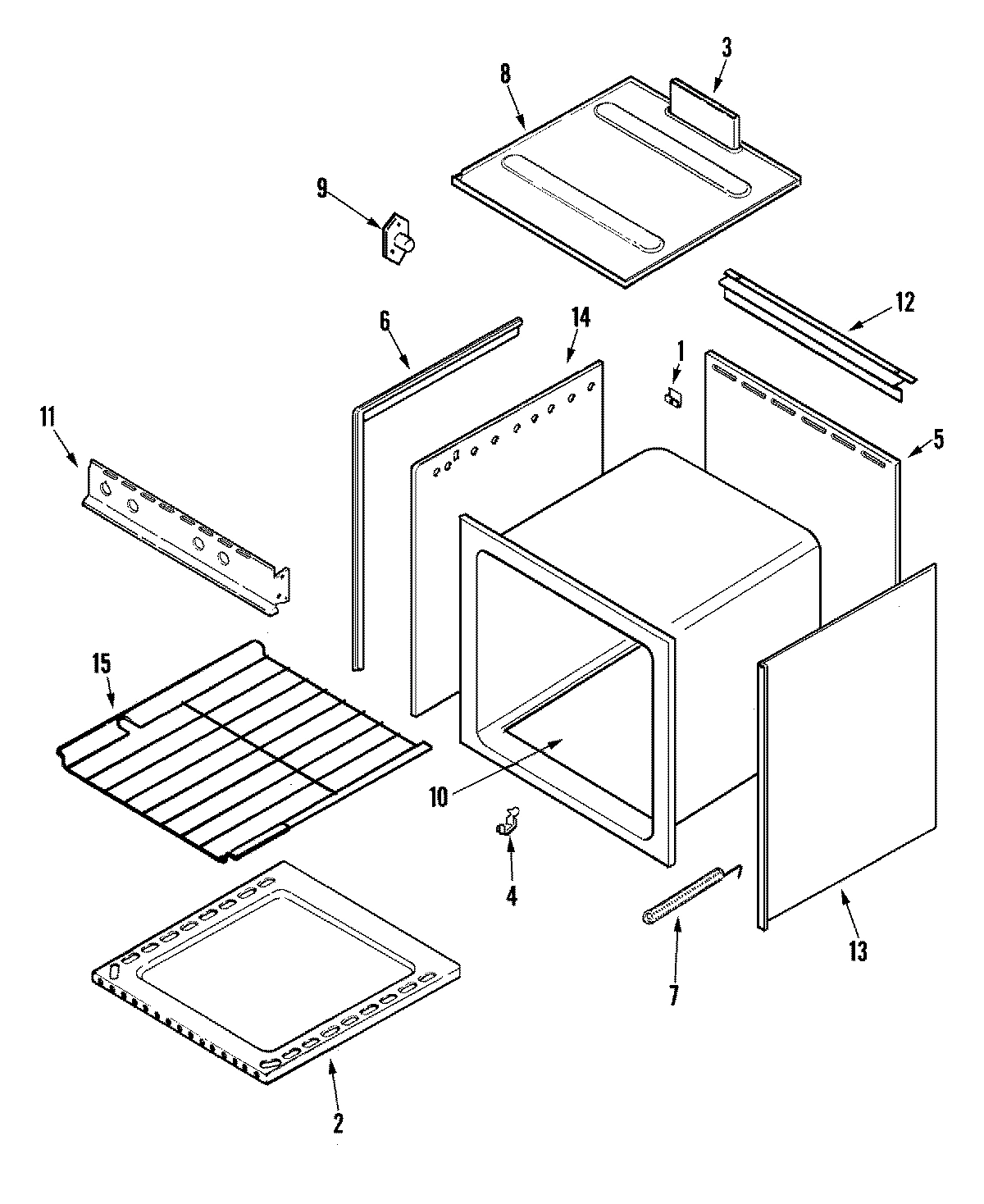

02 - OVEN
Common parts from model Whirlpool CLY2260ADB RV GAS RANGE
1
BURNER, OVEN WPL 74003343 Contact Us For Availability
1
CLIP, MAIN TOP WPL 74003998 Contact Us For Availability
2
BURNER, TOP (R.R.) WPL 74004583 Contact Us For Availability
2
BURNER, TOP (L.R.) WPL 74004584 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F01619 Contact Us For Availability
2
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
3
BURNER, TOP (FRT) WPL 74004582 Contact Us For Availability
3
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
4
GROMMET WPL Y8007P02060 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
HINGE KIT (RT) WPL 12400029 Contact Us For Availability
5
GRATE (BLK) WPL 74007277 Contact Us For Availability
5
BACK, MAIN WPL 74002417 Contact Us For Availability
6
FITTING, HALF UNION WPL 74004234 Contact Us For Availability
6
TRIM, SIDE (RT) WPL 74002827 Contact Us For Availability
6
TRIM, SIDE (LT) WPL 74002828 Contact Us For Availability
7
ARM, SPRING WPL 3423F00134 Contact Us For Availability
7
KNOB, BURNER (BLK) WPL 74003941 Contact Us For Availability
7
SPRING, OVEN DOOR WPL 74001835 Contact Us For Availability
8
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
8
KNOB, THERMOSTAT (BLK) WPL 74004645 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 74003934 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P03960 Contact Us For Availability
9
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
9
PILOT, OVEN WPL 74006334 Contact Us For Availability
9
SCREW No.6 X 1/2 WPL 7101P30160 Contact Us For Availability
9
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
10
PIPE, MANIFOLD WPL 74004360 Contact Us For Availability
10
BOTTOM, MAIN WPL 74003342 Contact Us For Availability
11
SPACER, HANDLE WPL 8010P07360 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 74004235 Contact Us For Availability
12
SPACER, NYLON (BLK) WPL 74003460 Contact Us For Availability
12
SUPPORT, OVEN BURNER WPL 74001834 Contact Us For Availability
12
SHIELD, DEFLECTOR FLUE (BLK) WPL 74002829 Contact Us For Availability
13
GLASS, DOOR WPL 7902P26660 Contact Us For Availability
13
BUMPER WPL 8003P00860 Contact Us For Availability
13
SIDE, BODY (RT) WPL 74005022 Contact Us For Availability
14
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
14
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
14
NUT & FERRULE 1/4`` KIT WPL 1555280K Contact Us For Availability
14
THERMOSTAT WPL 74006332 Contact Us For Availability
14
TUBING 3/16 WPL 74006335 Contact Us For Availability
14
TUBING 1/4 WPL 74006337 Contact Us For Availability
14
FLANGE, T STAT WPL 7507P04960 Contact Us For Availability
14
SCREW WPL 7101P35660 Contact Us For Availability
14
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
14
SIDE, BODY (LT) WPL 74005023 Contact Us For Availability
15
TOP, MAIN (BLK) WPL 74007287 Contact Us For Availability
15
RACK, OVEN WPL 74003106 Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
16
VALVE, OVEN WPL 74006333 Contact Us For Availability
17
KIT, VALVE & SCREW (MUELLER) WPL 12002245 Contact Us For Availability
17
KIT, VALVE & SCREW (MUELLER) WPL 12002246 Contact Us For Availability
17
SCREW, VALVE WPL 71003231 Contact Us For Availability
17
VALVE, BURNER (REAR) WPL 74004362 Contact Us For Availability
17
VALVE, BURNER (FRT) WPL 74004363 Contact Us For Availability
18
MIXER, AIR WPL 3411F00334 Contact Us For Availability
19
FASTENER, PUSH RING RV WPL 7104P00260 Contact Us For Availability
19
IGNITER, TOP WPL 7432P07760 Contact Us For Availability
20
EXTENSION, FLASHTUBE (REAR) WPL 74003326 Contact Us For Availability
20
EXTENSION, FLASHTUBE (FRT) WPL 74003327 Contact Us For Availability
21
CLIP WPL 7112P06860 Contact Us For Availability
22
WIRE, IGNITER WPL 5111A71960 Contact Us For Availability
24
SUPPORT, TOP BURNER WPL 3807F46245 Contact Us For Availability
26
SHIELD WPL 3604F21145 Contact Us For Availability
NI
INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74007269 Contact Us For Availability
× ![]()
