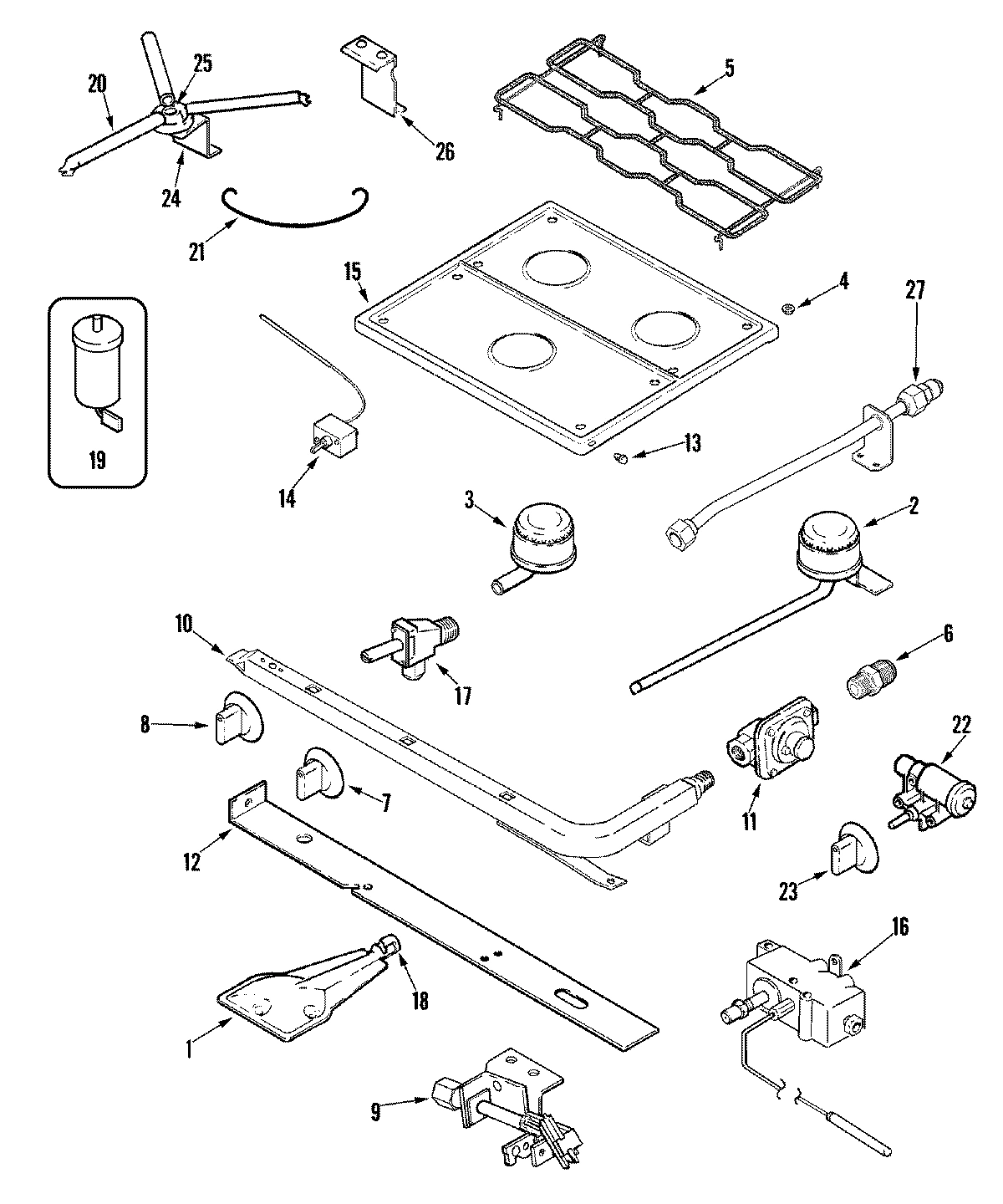

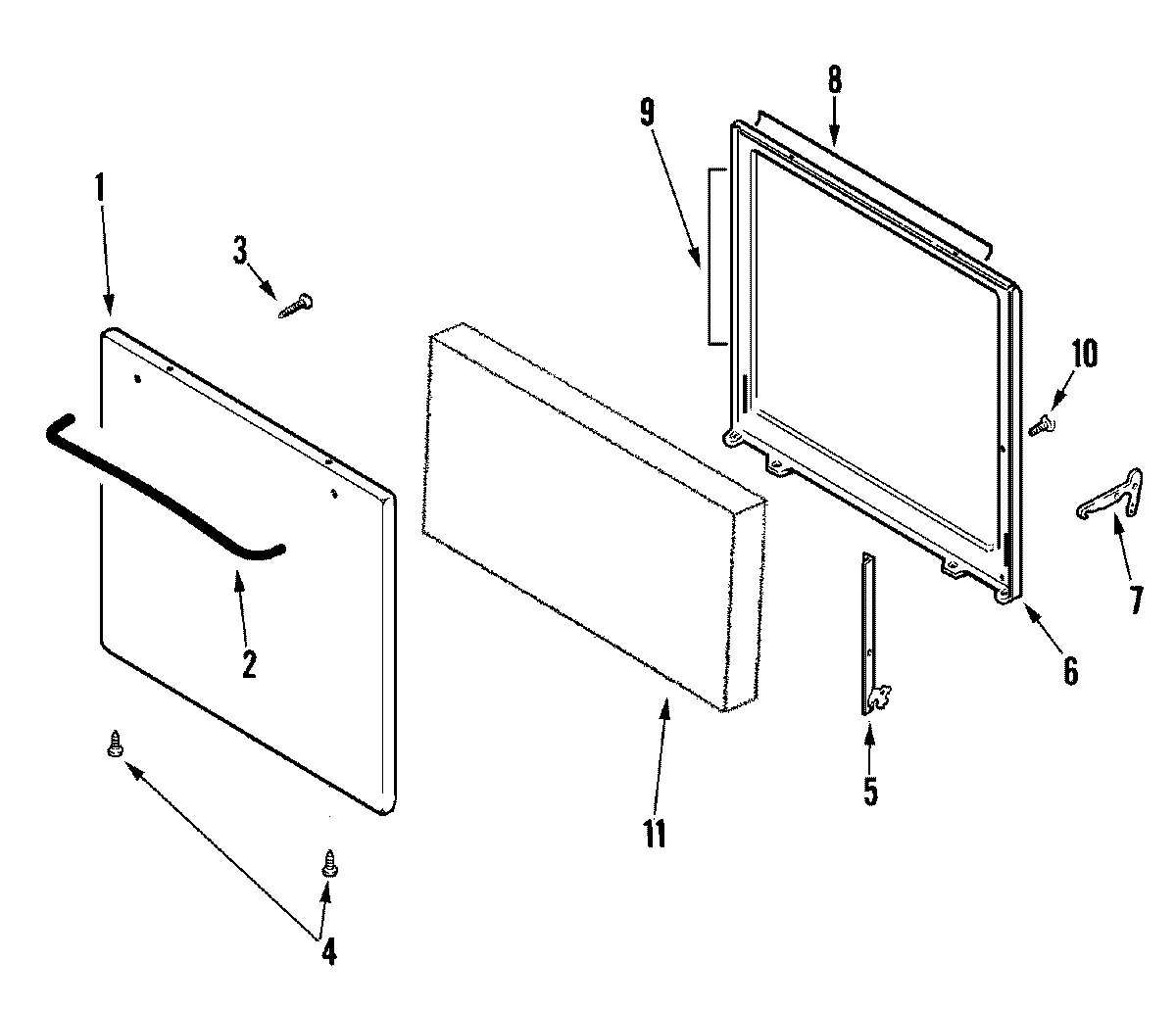

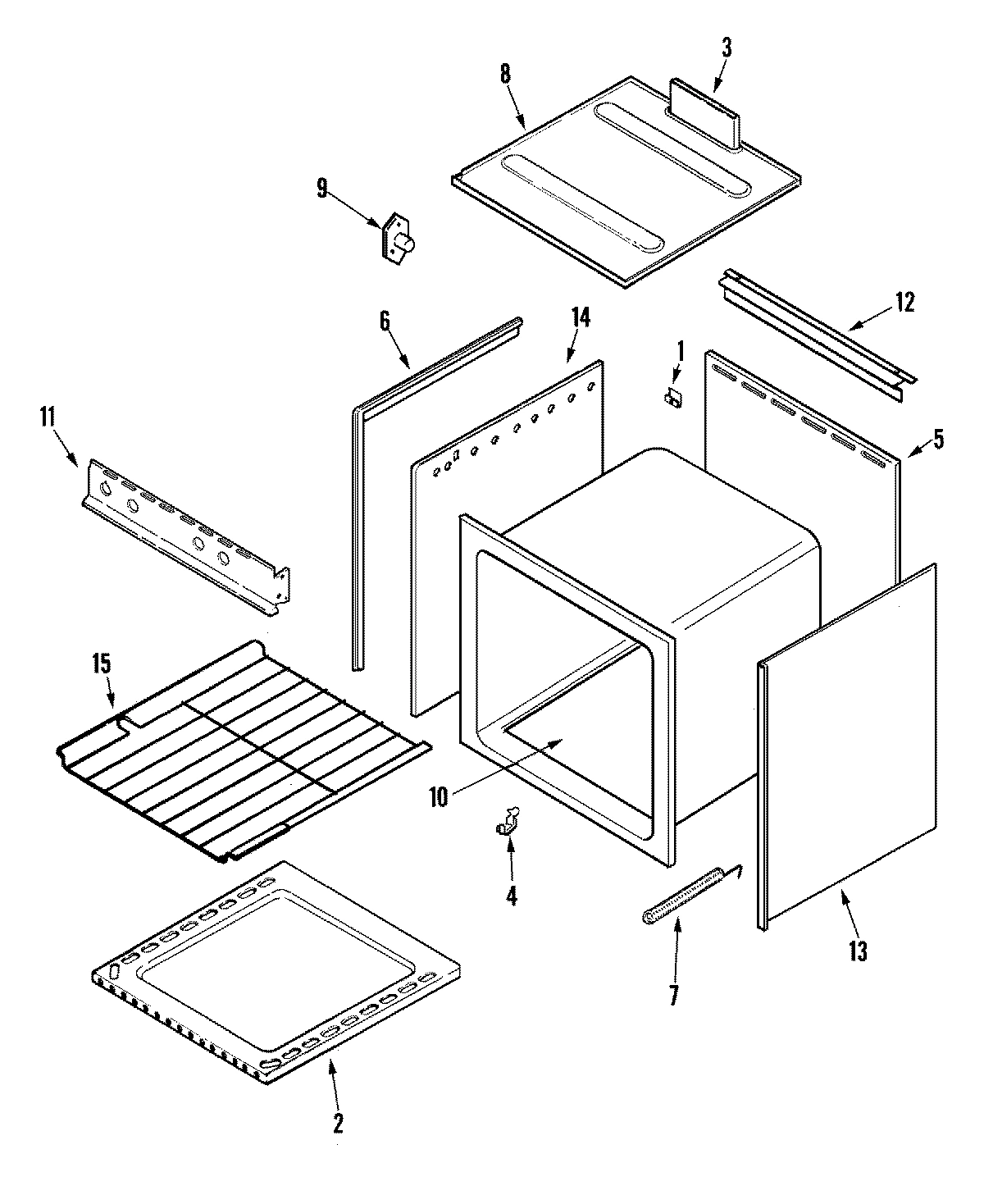

Model Whirlpool CLY1628ADB RV GAS RANGE – Common Parts & Diagrams

1
CLIP, MAIN TOP
CLIP, MAIN TOP WPL 74003998 Contact Us For Availability
View on Model
1
PANEL, DOOR (BLK)
PANEL, DOOR (BLK) WPL 2401F12670 Contact Us For Availability
View on Model
2
BOTTOM, OVEN
BOTTOM, OVEN WPL 2205F01619 Contact Us For Availability
View on Model
2
CLIP, OVEN BOTTOM
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
View on Model
2
HANDLE, DOOR (BLK)
HANDLE, DOOR (BLK) WPL 74003929 Contact Us For Availability
View on Model
3
SCREW W/WASHER
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
View on Model
3
FLUE BOX ASSY
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
View on Model
4
CLIP, THERMOSTAT
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
View on Model
5
GRATE (BLK)
GRATE (BLK) WPL 74007277 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 74001747 Contact Us For Availability
View on Model
5
BACK, MAIN
BACK, MAIN WPL 74002418 Contact Us For Availability
View on Model
5
HINGE KIT (LT)
HINGE KIT (LT) WPL 12400028 Contact Us For Availability
View on Model
5
HINGE KIT (RT)
HINGE KIT (RT) WPL 12400029 Contact Us For Availability
View on Model
6
FITTING, HALF UNION
FITTING, HALF UNION WPL 74004234 Contact Us For Availability
View on Model
6
NUT
NUT WPL 7103P08260 Contact Us For Availability
View on Model
6
TRIM, SIDE (BLK) (RT)
TRIM, SIDE (BLK) (RT) WPL 74002812 Contact Us For Availability
View on Model
6
TRIM, SIDE (BLK) (LT)
TRIM, SIDE (BLK) (LT) WPL 74002813 Contact Us For Availability
View on Model
6
LINING, DOOR
LINING, DOOR WPL 74004227 Contact Us For Availability
View on Model
7
KNOB, BURNER (BLK)
KNOB, BURNER (BLK) WPL 74003941 Contact Us For Availability
View on Model
7
SPRING, OVEN DOOR
SPRING, OVEN DOOR WPL 7803P05160 Contact Us For Availability
View on Model
7
ARM, SPRING
ARM, SPRING WPL 3423F00134 Contact Us For Availability
View on Model
8
KNOB, THERMOSTAT (BLK)
KNOB, THERMOSTAT (BLK) WPL 74004645 Contact Us For Availability
View on Model
8
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 74003934 Contact Us For Availability
View on Model
8
SEAL, DOOR (TOP)
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
View on Model
9
NUT & FERRULE (3/16``)
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
View on Model
9
PILOT, OVEN
PILOT, OVEN WPL 74006334 Contact Us For Availability
View on Model
9
SCREW No.6 X 1/2
SCREW No.6 X 1/2 WPL 7101P30160 Contact Us For Availability
View on Model
9
T-NUT (RV HINGE)
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
View on Model
9
SEAL, DOOR (SIDES)
SEAL, DOOR (SIDES) WPL 7212P03860 Contact Us For Availability
View on Model
10
PIPE, MANIFOLD
PIPE, MANIFOLD WPL 74004360 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 7101P35660 Contact Us For Availability
View on Model
10
BOTTOM, MAIN
BOTTOM, MAIN WPL 74003342 Contact Us For Availability
View on Model
10
SCREW 3/8``
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
View on Model
11
REGULATOR, PRESSURE
REGULATOR, PRESSURE WPL 74004235 Contact Us For Availability
View on Model
11
INSULATION, DOOR
INSULATION, DOOR WPL 74001092 Contact Us For Availability
View on Model
12
SUPPORT, OVEN BURNER
SUPPORT, OVEN BURNER WPL 74001834 Contact Us For Availability
View on Model
12
SHIELD, DEFLECTOR FLUE (BLK)
SHIELD, DEFLECTOR FLUE (BLK) WPL 74002809 Contact Us For Availability
View on Model
13
BUMPER
BUMPER WPL 8003P00860 Contact Us For Availability
View on Model
13
SIDE, BODY (RT)
SIDE, BODY (RT) WPL 74005020 Contact Us For Availability
View on Model
14
NUT, LOXIT (3/16``)
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
View on Model
14
NUT & FERRULE 1/4`` KIT
NUT & FERRULE 1/4`` KIT WPL 1555280K Contact Us For Availability
View on Model
14
THERMOSTAT
THERMOSTAT WPL 74006332 Contact Us For Availability
View on Model
14
TUBING 3/16
TUBING 3/16 WPL 74006335 Contact Us For Availability
View on Model
14
TUBING 1/4
TUBING 1/4 WPL 74006337 Contact Us For Availability
View on Model
14
FLANGE, T STAT
FLANGE, T STAT WPL 7507P04960 Contact Us For Availability
View on Model
14
SIDE, BODY (LT)
SIDE, BODY (LT) WPL 74005021 Contact Us For Availability
View on Model
15
TOP, MAIN (BLK)
TOP, MAIN (BLK) WPL 74003323 Contact Us For Availability
View on Model
15
RACK, OVEN
RACK, OVEN WPL 74003106 Contact Us For Availability
View on Model
16
NUT, 1/4`` LOXIT
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
View on Model
16
VALVE, OVEN
VALVE, OVEN WPL 74006333 Contact Us For Availability
View on Model
17
VALVE, TOP BURNER (6500)
VALVE, TOP BURNER (6500) WPL 74010756 Contact Us For Availability
View on Model
17
KIT, VALVE & SCREW (MUELLER)
KIT, VALVE & SCREW (MUELLER) WPL 12002245 Contact Us For Availability
View on Model
17
KIT, VALVE & SCREW (MUELLER)
KIT, VALVE & SCREW (MUELLER) WPL 12002246 Contact Us For Availability
View on Model
17
SCREW, VALVE
SCREW, VALVE WPL 71003231 Contact Us For Availability
View on Model
17
VALVE, BURNER (REAR)
VALVE, BURNER (REAR) WPL 74004362 Contact Us For Availability
View on Model
17
VALVE, BURNER (FRT)
VALVE, BURNER (FRT) WPL 74004363 Contact Us For Availability
View on Model
18
MIXER, AIR
MIXER, AIR WPL 3411F00334 Contact Us For Availability
View on Model
19
FASTENER, PUSH RING RV
FASTENER, PUSH RING RV WPL 7104P00260 Contact Us For Availability
View on Model
19
IGNITER, TOP
IGNITER, TOP WPL 7432P07760 Contact Us For Availability
View on Model
20
EXTENSION, FLASHTUBE (REAR)
EXTENSION, FLASHTUBE (REAR) WPL 74003326 Contact Us For Availability
View on Model
20
EXTENSION, FLASHTUBE (FRT)
EXTENSION, FLASHTUBE (FRT) WPL 74003327 Contact Us For Availability
View on Model
21
CLIP
CLIP WPL 7112P06860 Contact Us For Availability
View on Model
22
WIRE, IGNITER
WIRE, IGNITER WPL 5111A71960 Contact Us For Availability
View on Model
24
SUPPORT, TOP BURNER
SUPPORT, TOP BURNER WPL 3807F46245 Contact Us For Availability
View on Model
26
SHIELD
SHIELD WPL 3604F21145 Contact Us For Availability
View on Model
27
FITTING, COPPER TUBING
FITTING, COPPER TUBING WPL 74004641 Contact Us For Availability
View on Model
NI
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 74007269 Contact Us For Availability
