Model Electrolux CLEH3054UFC RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

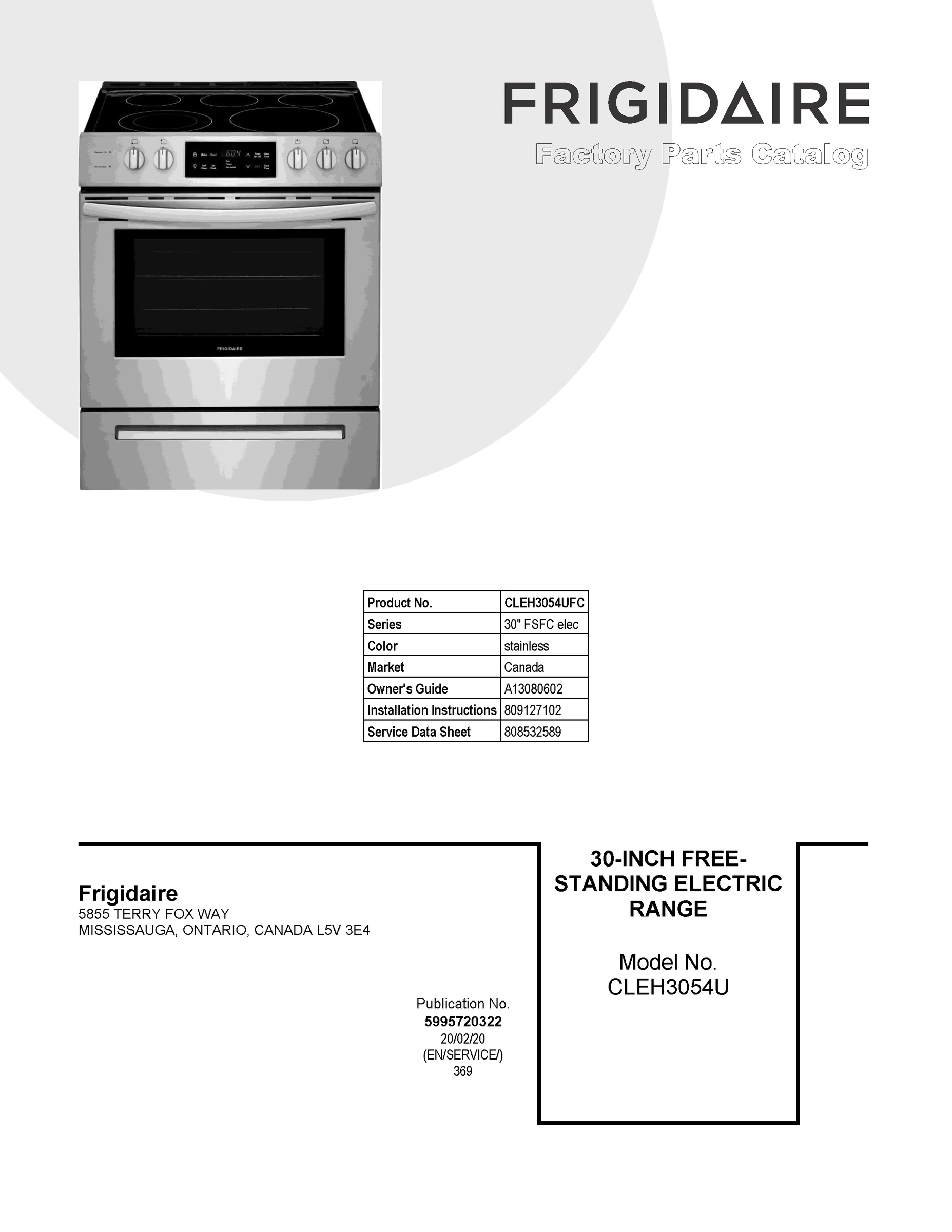

01 - COVER SHEET

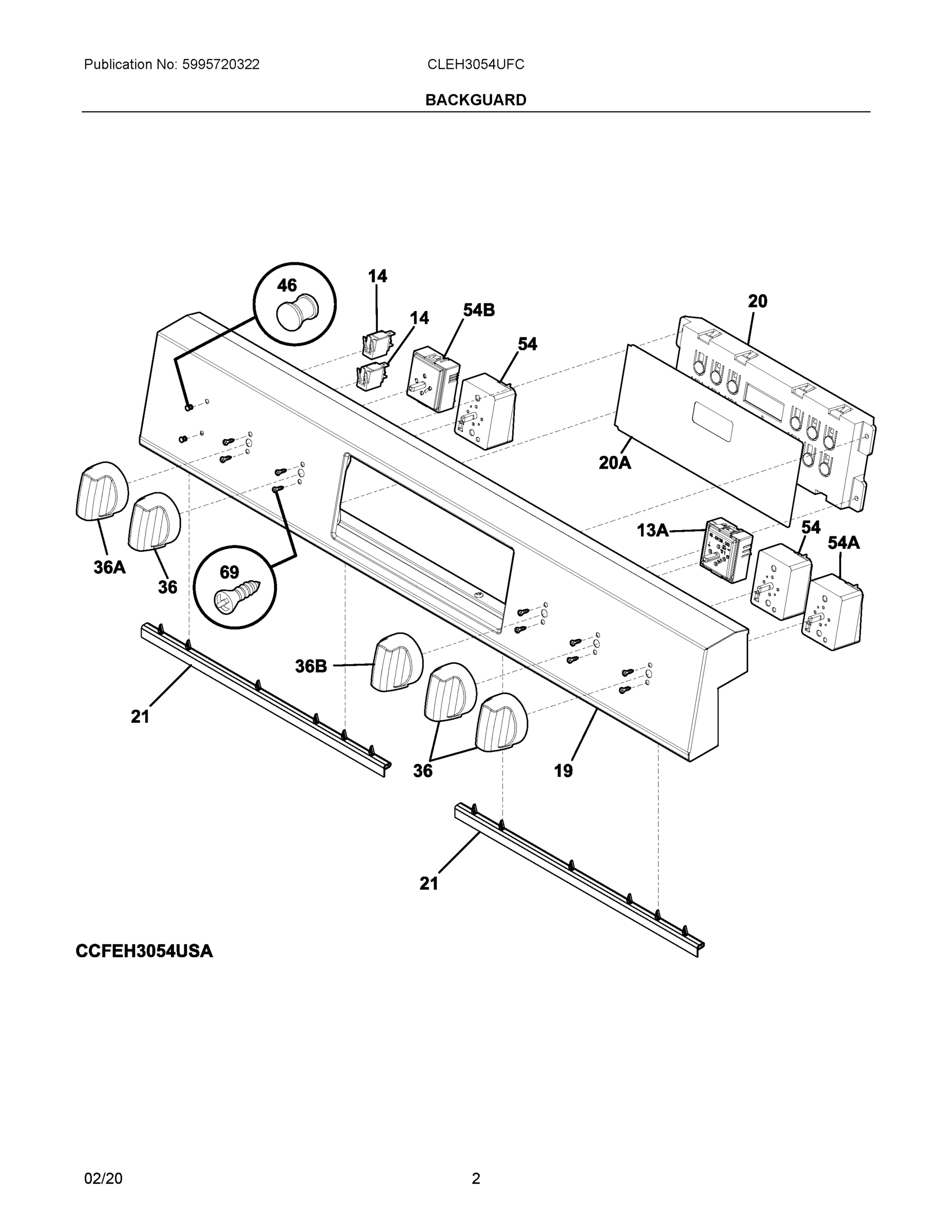

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux CLEH3054UFC RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
1
BACK, MAIN WCI 5304514161 Contact Us For Availability
3
SHIELD, REAR WALL, UPPER WCI 5304514133 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, W/FOIL WCI 316452762 Contact Us For Availability
4
PANEL, STAINLESS WCI 5304514335 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316403900 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400601 Contact Us For Availability
8A
BASE, BAKE ELEMENT WCI 316411106 Contact Us For Availability
9
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTI WCI 5304494997 Contact Us For Availability
9
LINER-OVEN DOOR WCI 316423807 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445501 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 5304498835 Contact Us For Availability
13
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
13A
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
13A
SWITCH, INFINITE, WARMER WCI 5304522964 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
14A
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
15B
ELEMENT, SURFACE, 12", 2700W WCI 316291200 Contact Us For Availability
15C
ELEMENT, WARMER, 100 W WCI 5304521951 Contact Us For Availability
16
SMOOTHTOP, ASSEMBLY, GLASS/STEEL, BLACK WCI 5304514197 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
19
CONTROL PANEL, STAINLESS WCI 5304514178 Contact Us For Availability
20
CONTROLLER, ELECTRONIC, OVEN, ES330 WCI 5304514108 Contact Us For Availability
20
SPACER, DOOR HANDLE, (2) WCI 316284102 Contact Us For Availability
20A
OVERLAY, EOC, BLACK, ES330 WCI 316419380 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
23
HINGE, OVEN DOOR, RED WCI 316575917 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
36
KNOB, INFINITE SWITCH, STAINLESS, SINGLE WCI 5304514116 Contact Us For Availability
36A
KNOB, INFINITE SWITCH, STAINLESS, DUAL WCI 5304514117 Contact Us For Availability
36B
KNOB, INFINITE SWITCH, STAINLESS, WARM WCI 5304514118 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
39
HANDLE INSERT, DRAWER WCI 5304511879 Contact Us For Availability
42
SHIELD, WOOL, LOWER WCI 316400701 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54B
SWITCH, INFINITE, RADIANT DUAL WCI 5304522918 Contact Us For Availability
55
DUCT, INLET AIR, FRONT WCI 5304514171 Contact Us For Availability
55
BRACKET, GLASS SUPPORT, (4) WCI 316408301 Contact Us For Availability
56
DUCT, INLET AIR, REAR WCI 5304514172 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58
INSULATION, OVEN SUMP WCI 316403802 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316403700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
60
DUCT ASSEMBLY, COOLING, TOGGLE LOCK WCI 5304522591 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203301 Contact Us For Availability
67
ELEMENT, BAKE, HIDDEN WCI 316413800 Contact Us For Availability
68
SUPPORT, ELEMENT, BROIL WCI 316429100 Contact Us For Availability
71
SHIELD, WIRE, REAR WCI 5304514174 Contact Us For Availability
72
SPACER, WIRE SHIELD, (2) WCI 5304514177 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
90
TRIM, VENT, BLACK, REAR WCI 5304514157 Contact Us For Availability
92
REAR FILLER KIT, FCFS RANGE, BLACK WCI 5304520261 Contact Us For Availability
108
FAN ASSEMBLY, COOLING WCI 5304514166 Contact Us For Availability
130
SEAL, MAINTOP, SILICONE, REAR WCI 808931802 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
WCI 316021105 WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
WCI 316089500 WCI 316089500 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
WCI 5304514142 WCI 5304514142 Contact Us For Availability
NI
WCI 5303271648 WCI 5303271648 Contact Us For Availability
NI
WCI 5303288566 WCI 5303288566 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
