Model GE CIP36NP2VDS1 Refrigerator – Common Parts & Diagrams
CAFE CUSTOMIZATION

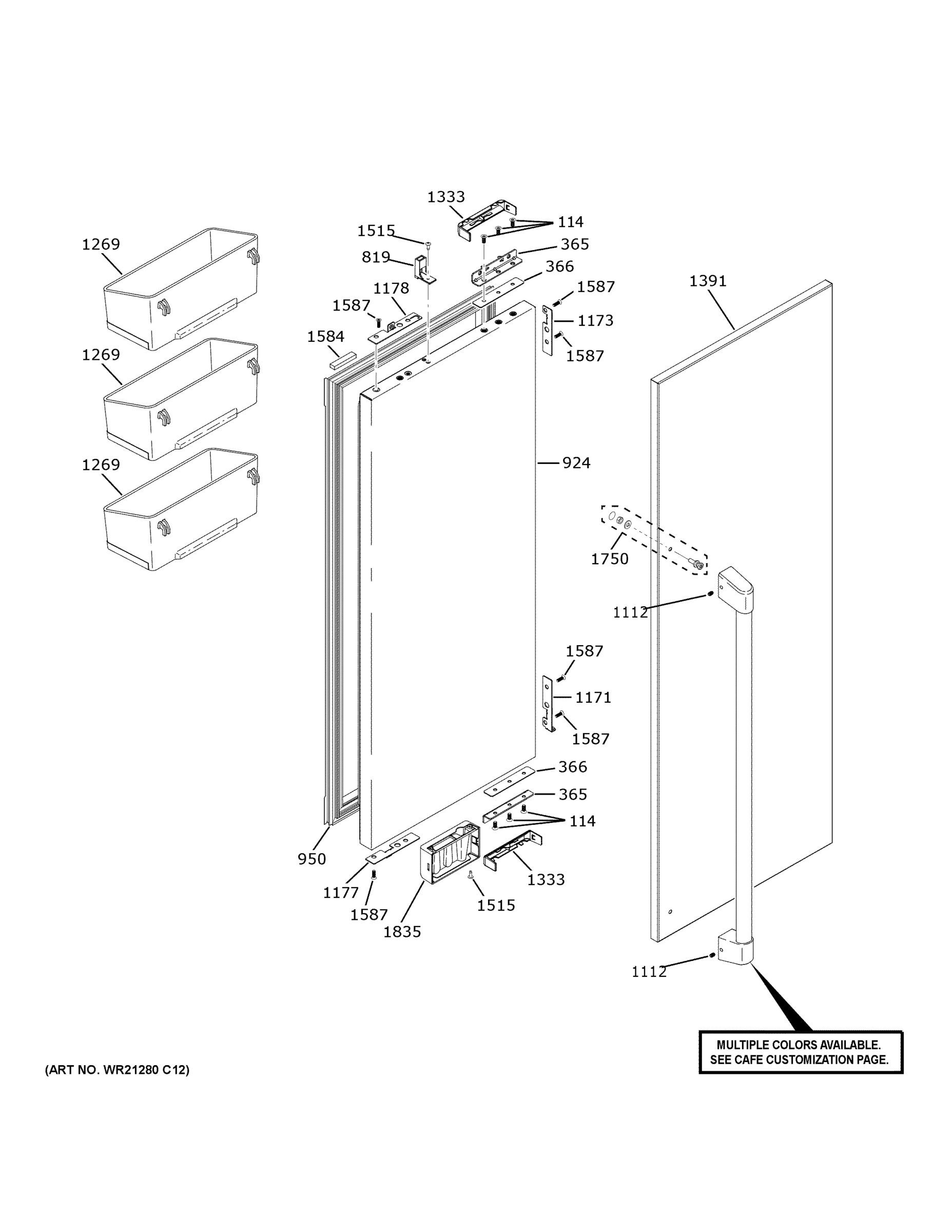

REFRIGERATOR DOOR - LH
REFRIGERATOR DOOR - RH

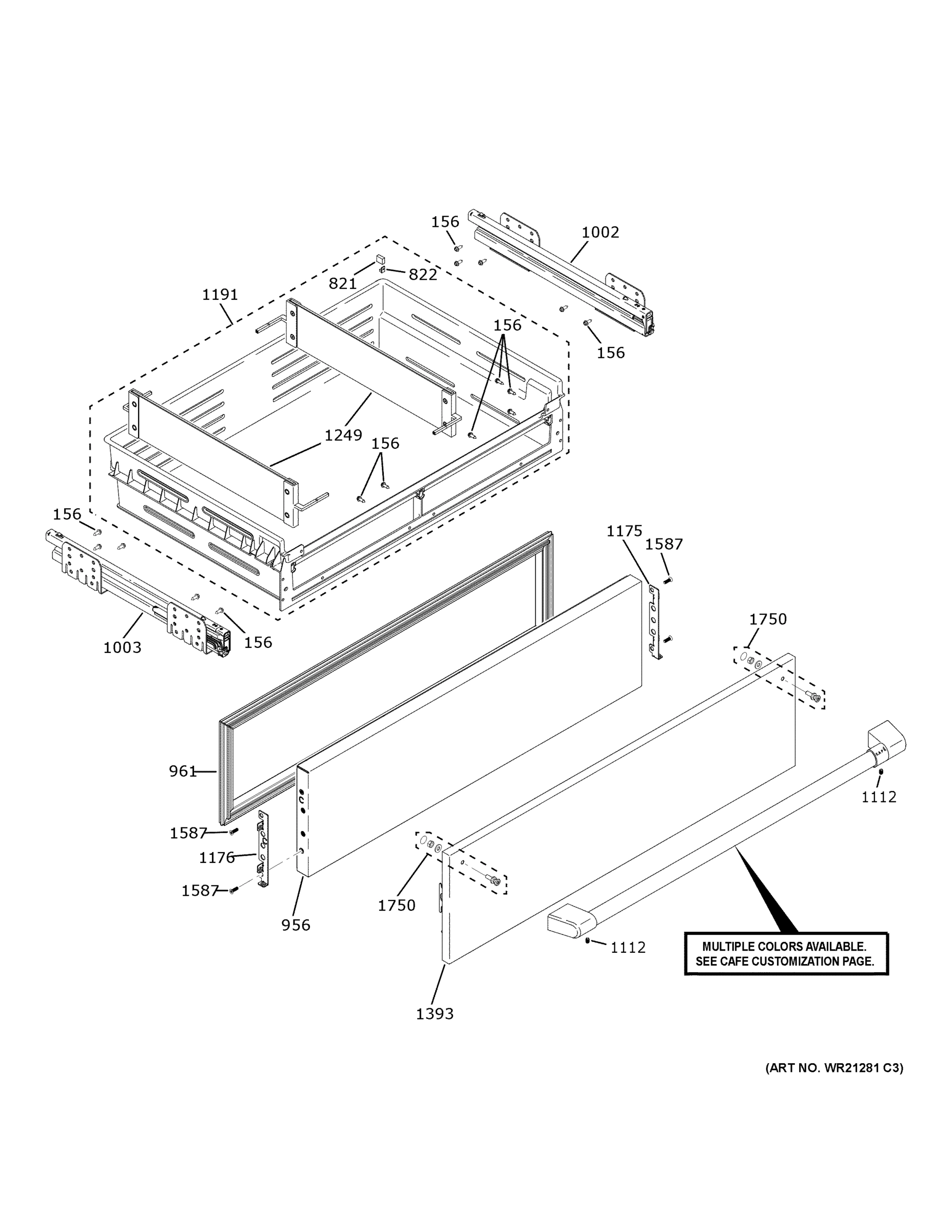

CAFE CONVERTIBLE DRAWER

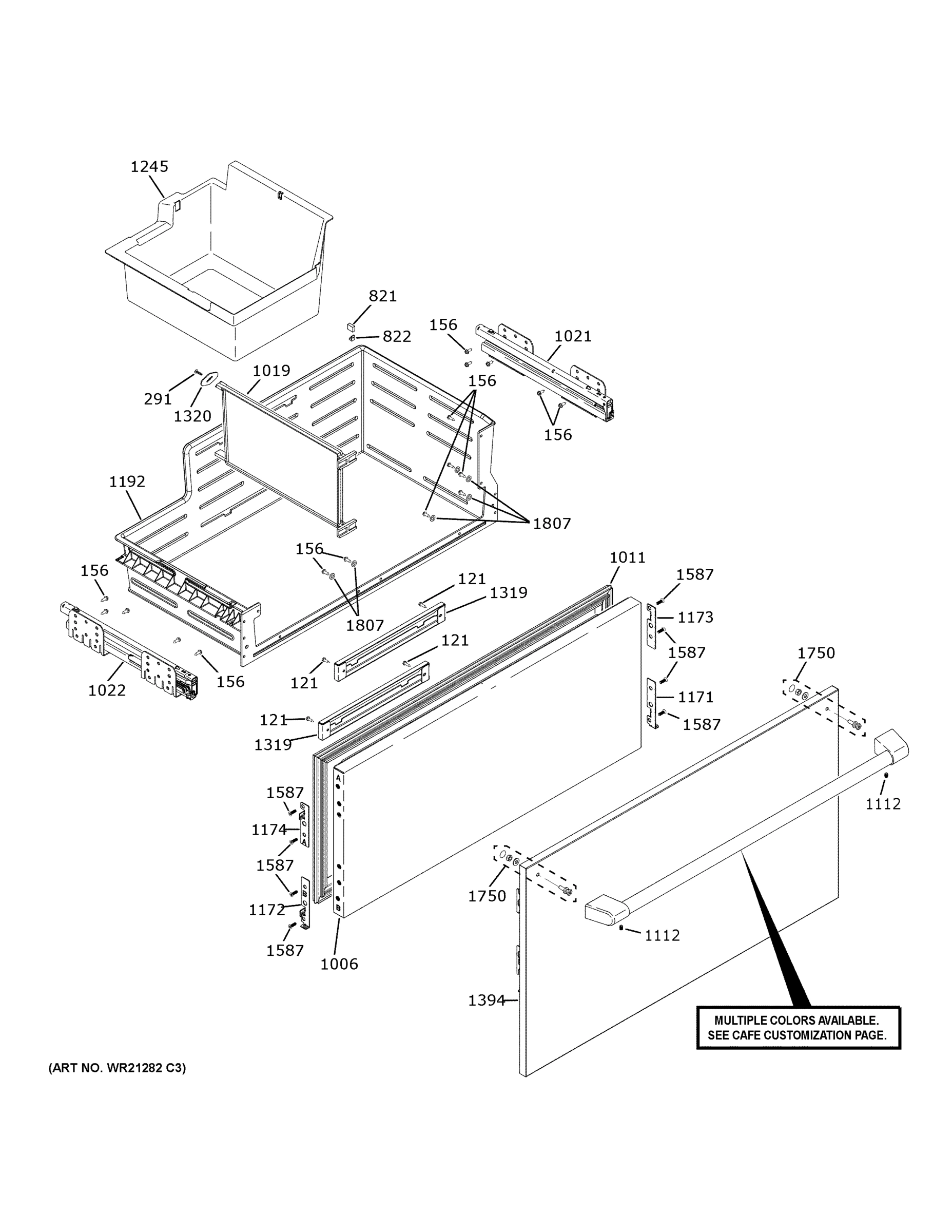

FREEZER DRAWER
FREEZER SECTION

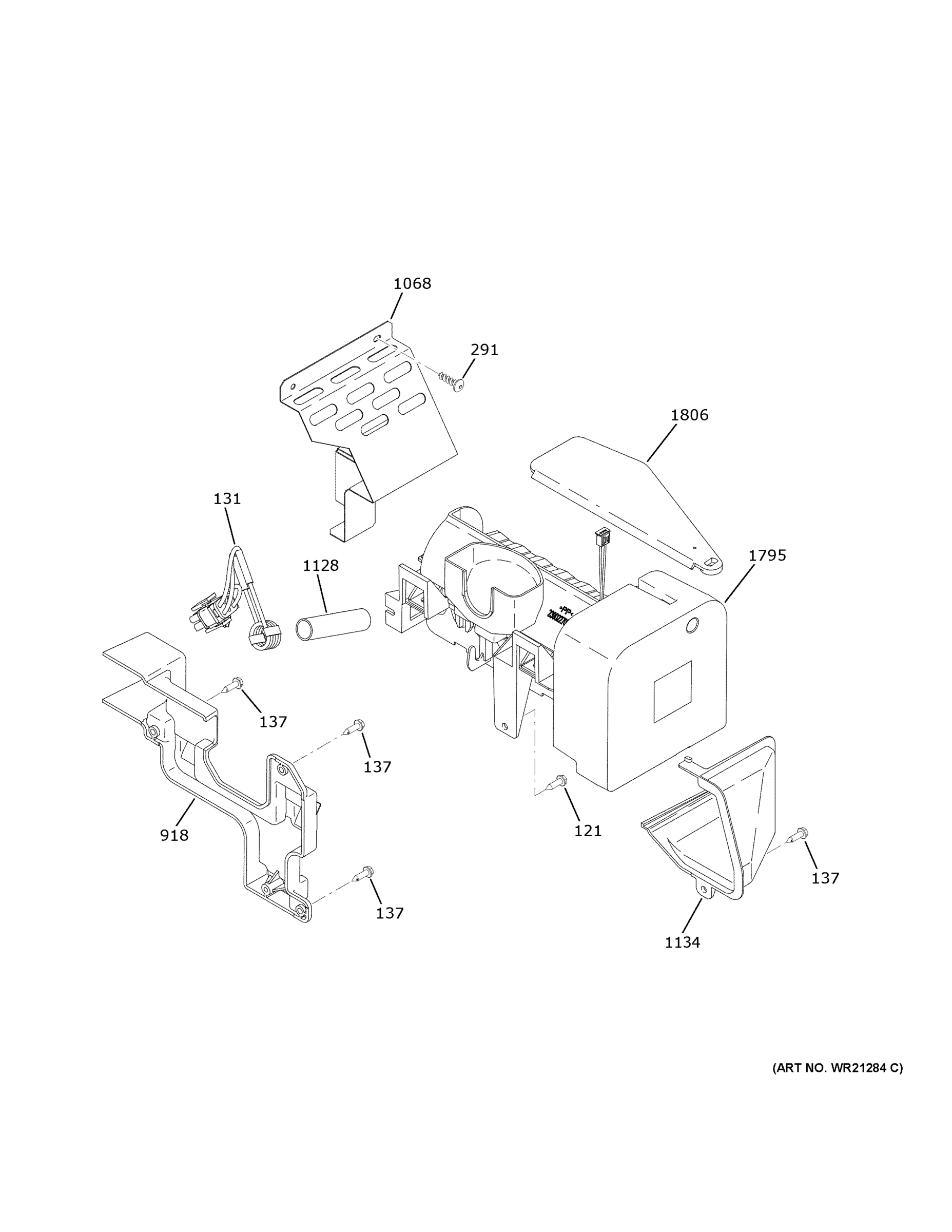

ICE MAKER & DISPENSER

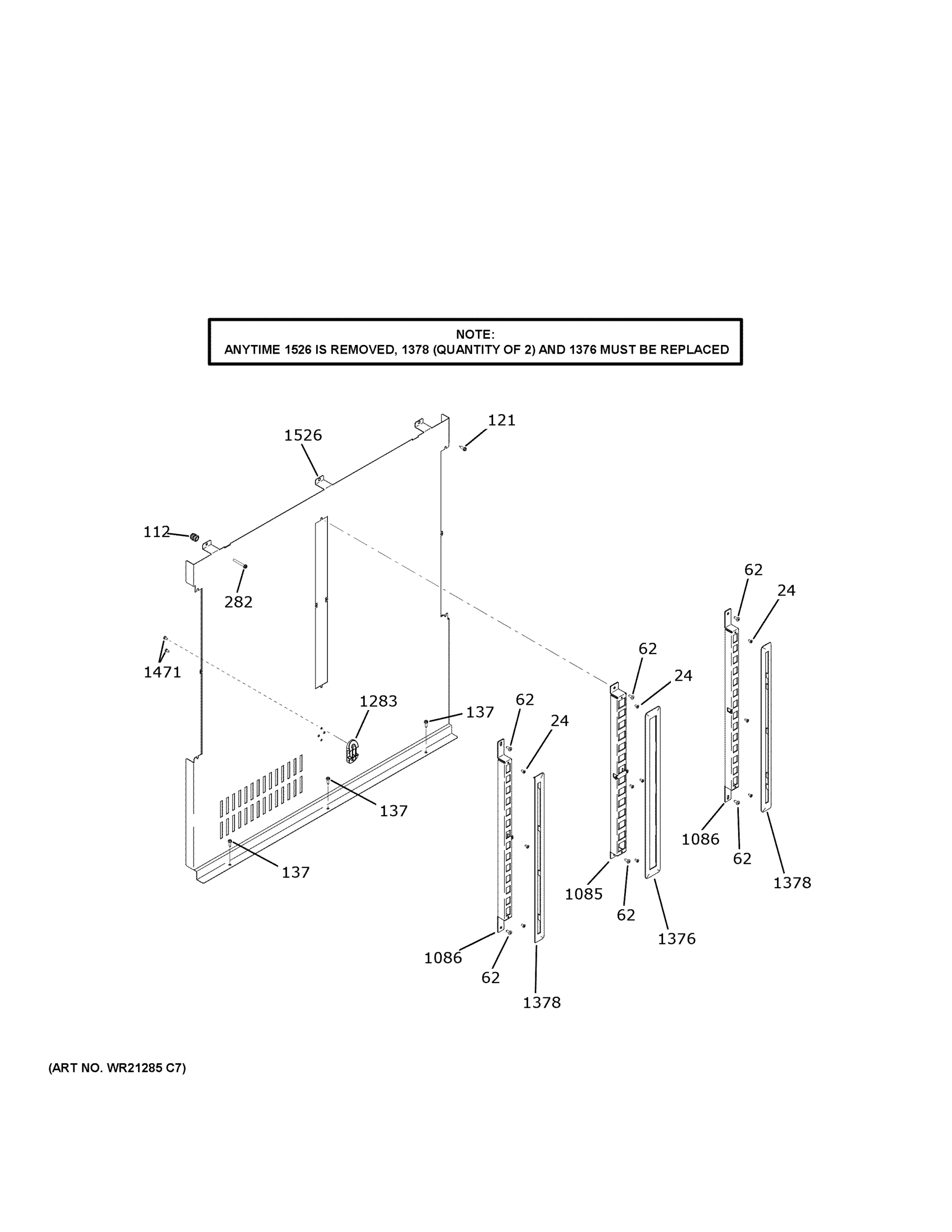

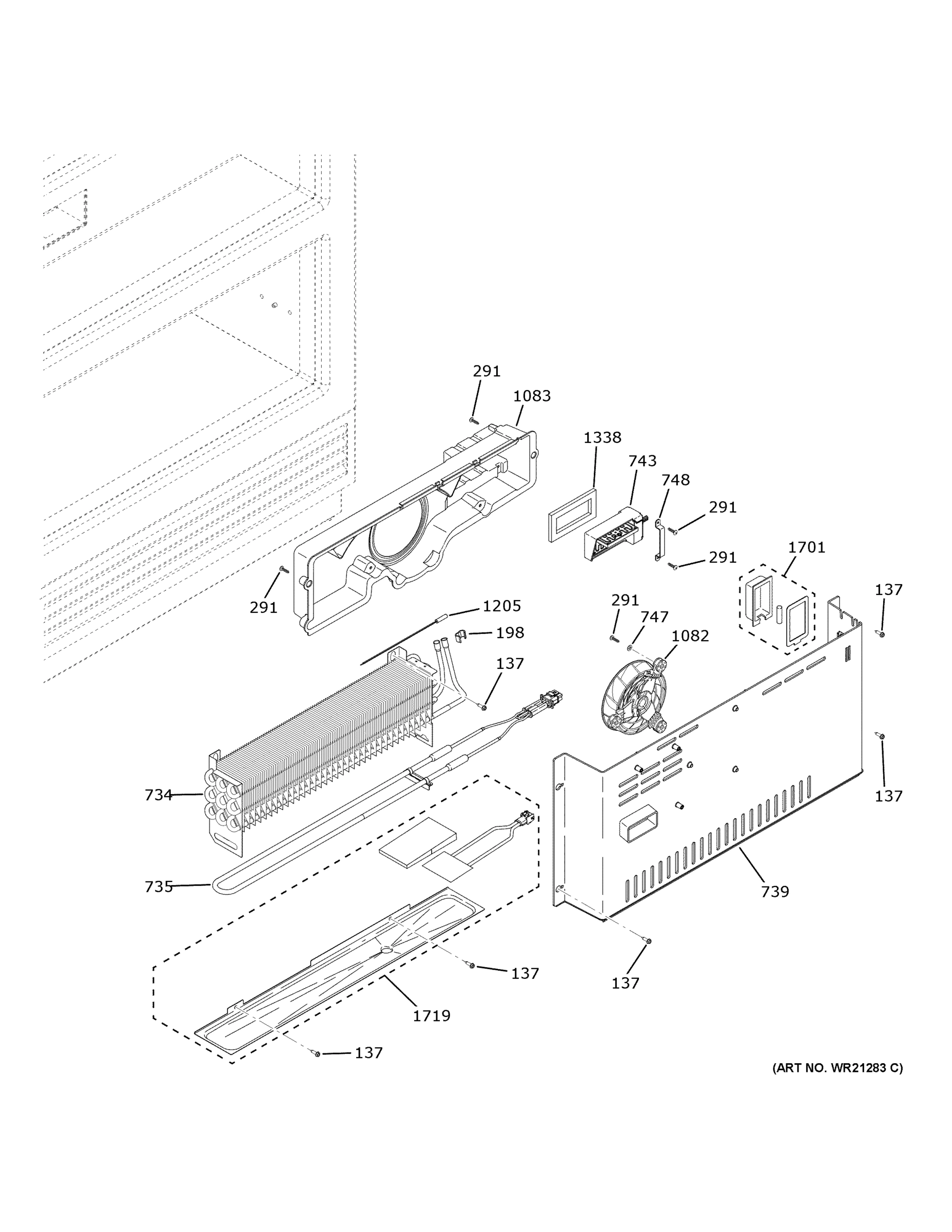

REFRIGERATOR EVAPORATOR COVER

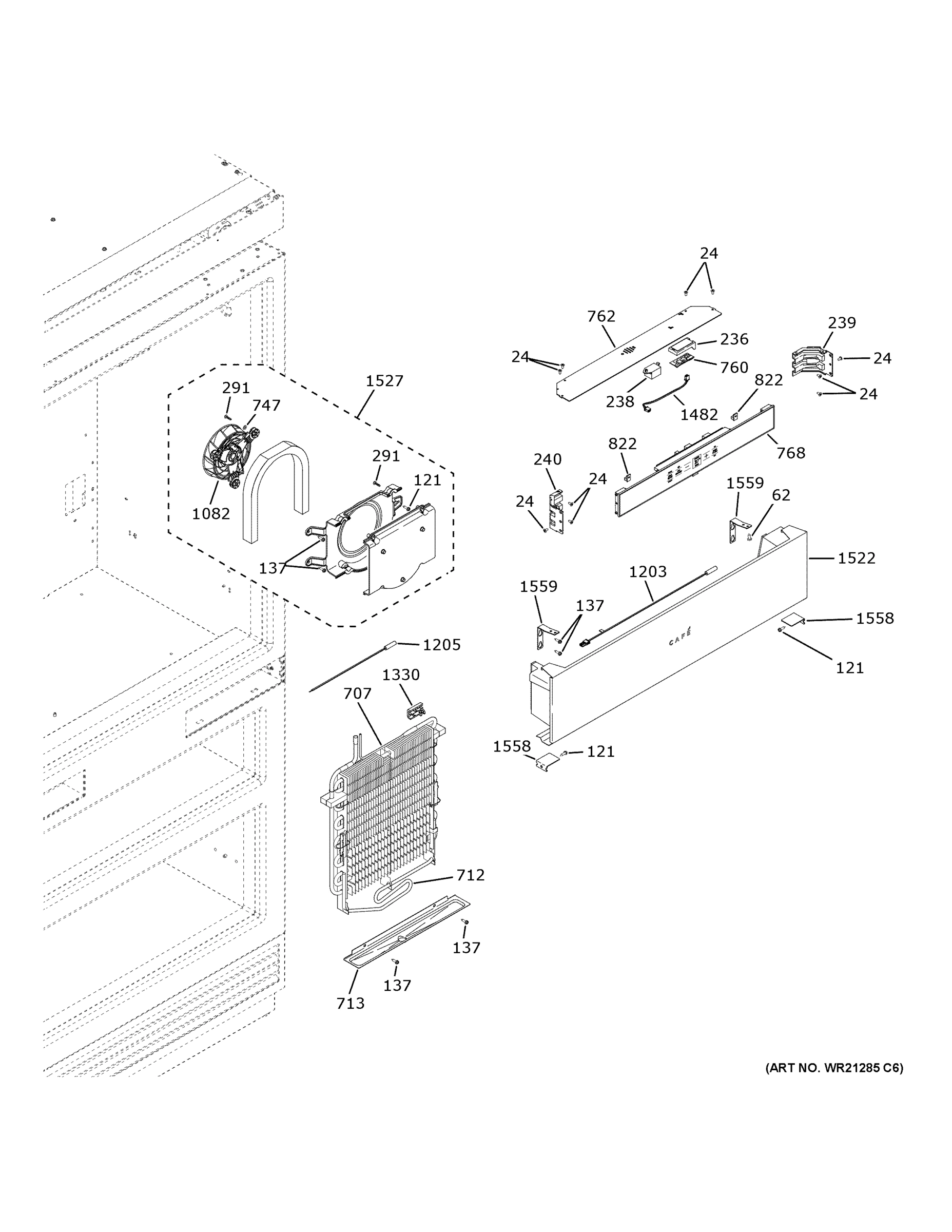

REFRIGERATOR SECTION

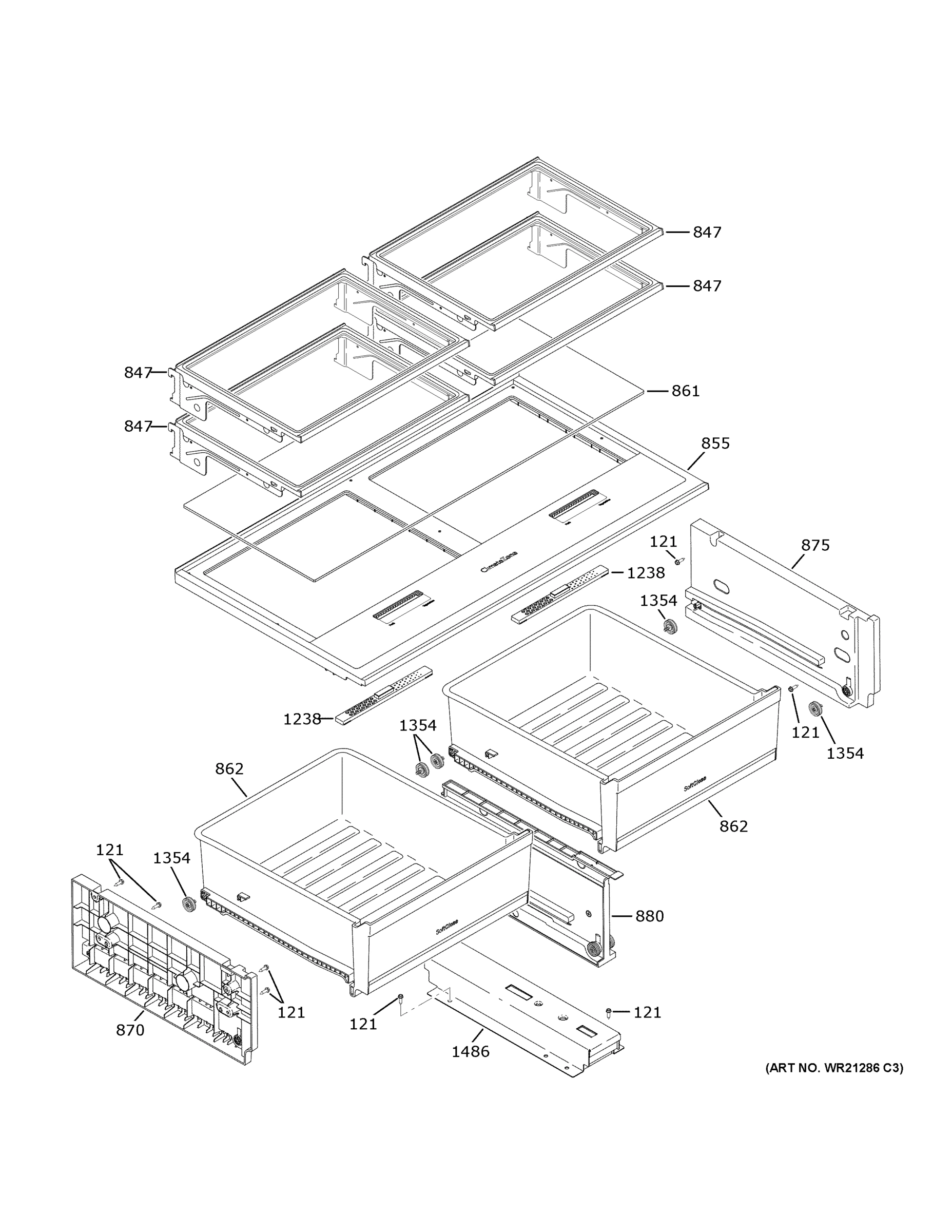

REFRIGERATOR SHELVES

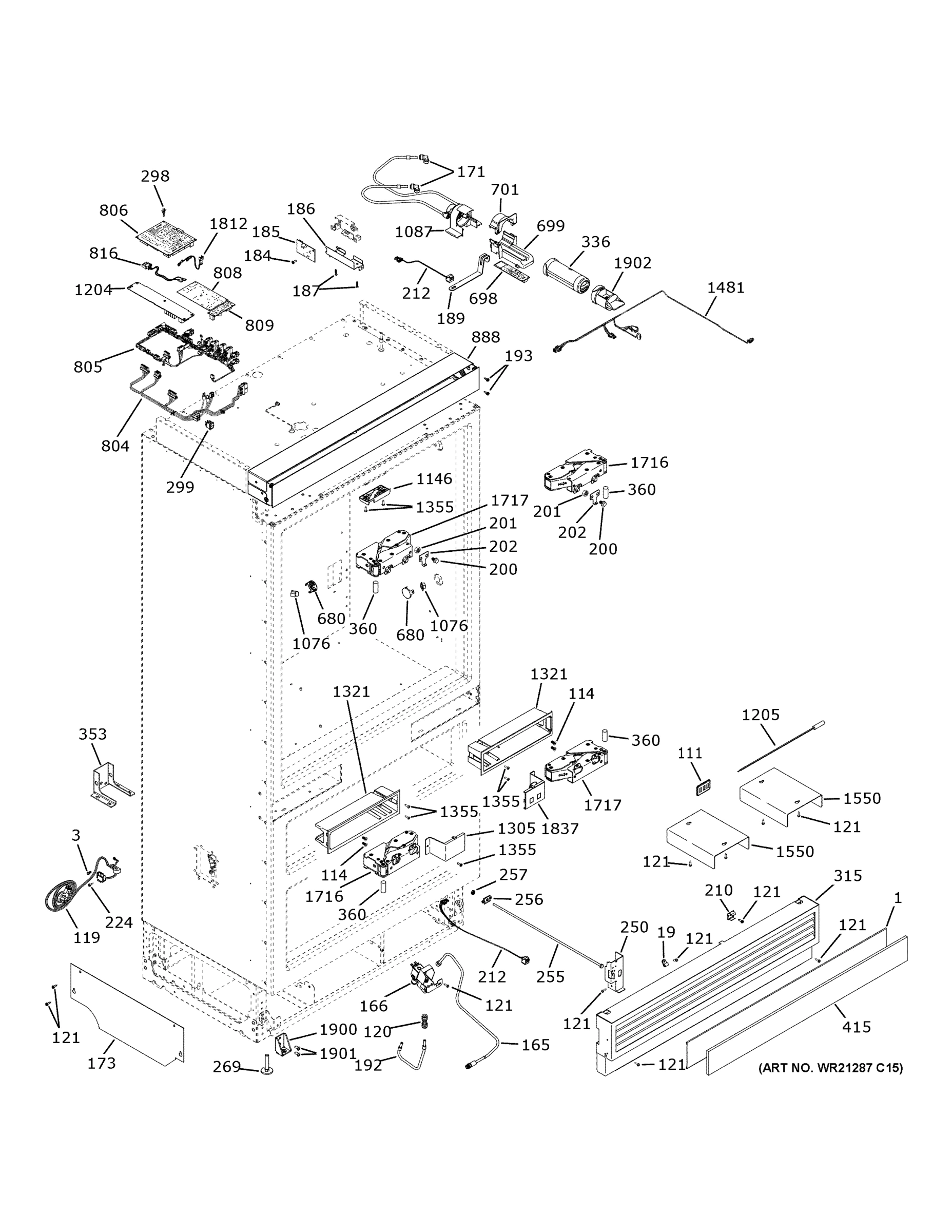

CASE PARTS

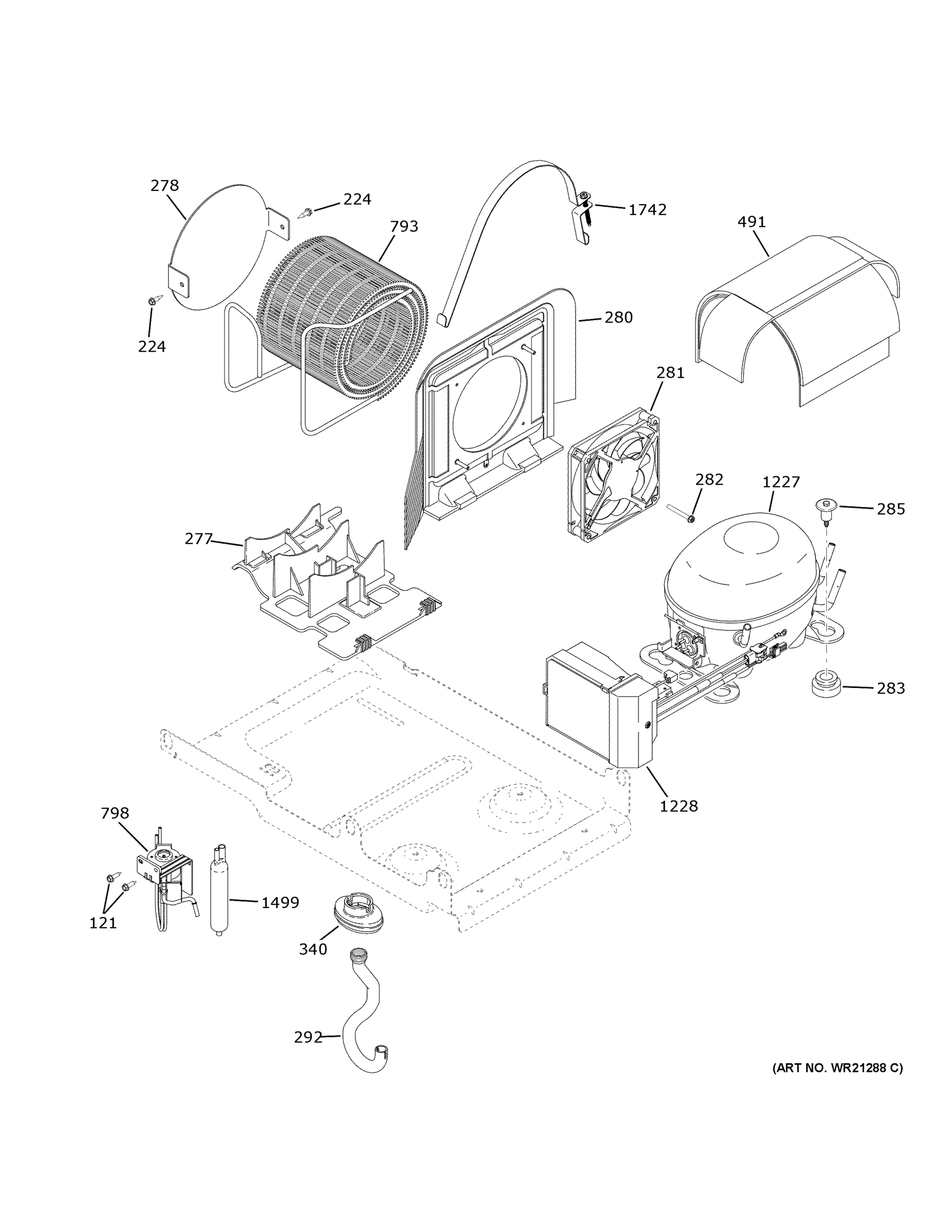

MACHINE COMPARTMENT

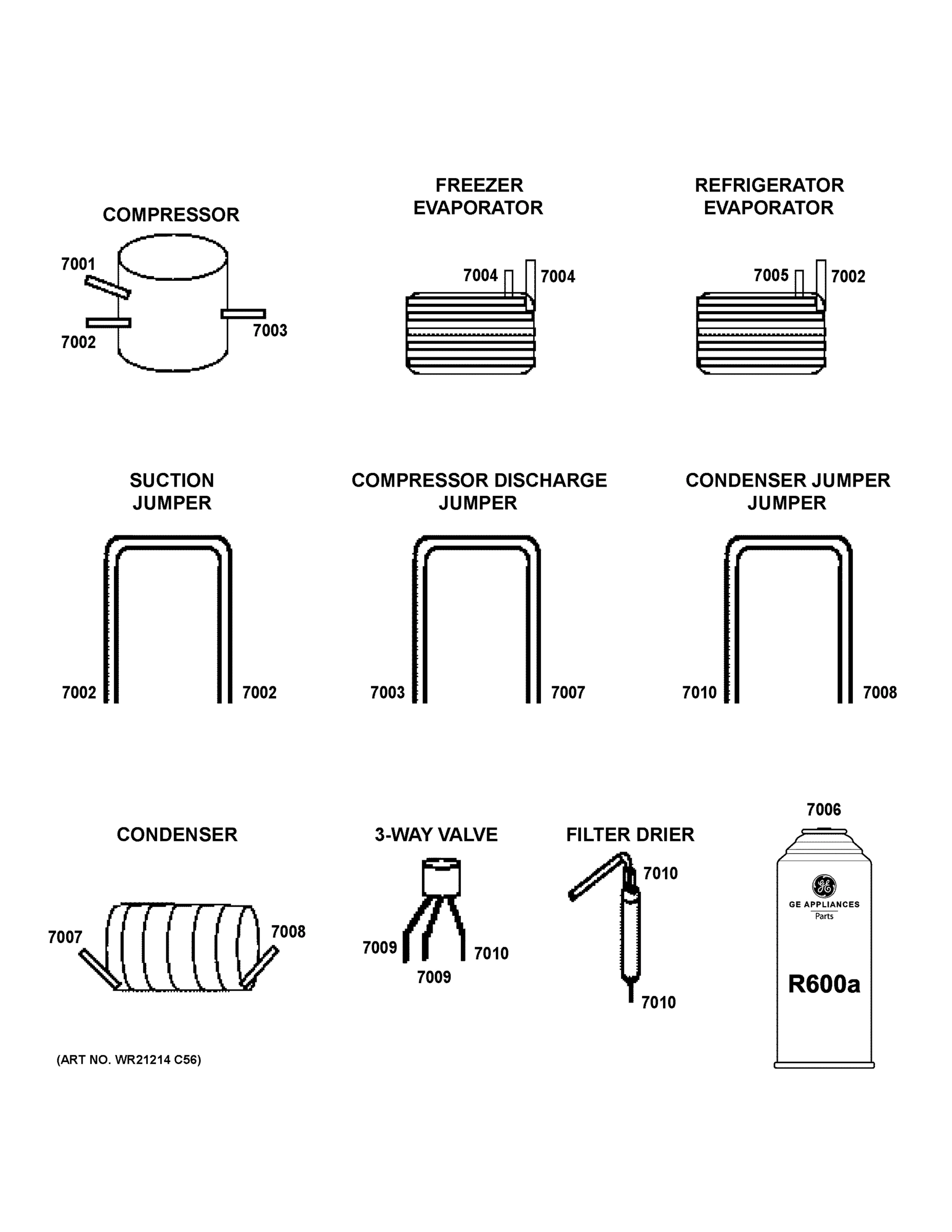

LOKRING CONNECTORS
Common parts from model GE CIP36NP2VDS1 Refrigerator
1
TOE KICK 36" BOTTOM FREEZER GEN WR74X44845 Contact Us For Availability
137
SCR 8-32 TTGX IHXW 5/8 S GEN WR01X45627 Contact Us For Availability
156
SCR 10-32 GEN WR01X10581 Contact Us For Availability
166
WATER VALVE WITH GUARD GEN WR57X33328 Contact Us For Availability
171
1/4" 90 DEGREE UNION GEN WR02X33286 Contact Us For Availability
173
LEFT SIDE ACCESS COVER GEN WR02X32849 Contact Us For Availability
186
HUMIDITY SENSOR BRACKET GEN WR02X32796 Contact Us For Availability
189
XWF FILTER REMOVAL TOOL GEN WR01X32861 Contact Us For Availability
192
FORMED WATER LINE GEN WR02X32776 Contact Us For Availability
198
EVAPORATOR THERMISTOR CLIP GEN WR02X32799 Contact Us For Availability
200
SCR 5/16-18 B IHXW 1/2 S GEN WR01X45645 Contact Us For Availability
201
NUT 5/16-18 THD GEN WR02X29060 Contact Us For Availability
202
BRACKET SLIDE GEN WR13X45605 Contact Us For Availability
210
FRONT ACCESS COVER CLIP GEN WR02X32779 Contact Us For Availability
212
RJ45 HARNESS GEN WR55X32815 Contact Us For Availability
239
USER INTERFACE RIGHT BRACKET GEN WR02X29046 Contact Us For Availability
240
USER INTERFACE LEFT BRACKET GEN WR02X29047 Contact Us For Availability
250
WATER VALVE BRACKET GEN WR02X32826 Contact Us For Availability
255
LEVELING SCREW GEN WR02X32747 Contact Us For Availability
257
NUT LOCK GEN WR01X45410 Contact Us For Availability
269
LEVELING LEG GEN WR02X39523 Contact Us For Availability
277
CONDENSER SUPPORT GEN WR02X32807 Contact Us For Availability
278
CONDENSER BAFFLE GEN WR02X32844 Contact Us For Availability
280
CONDENSER FAN HOUSING GEN WR02X32835 Contact Us For Availability
281
CONDENSER FAN GEN WR60X31633 Contact Us For Availability
282
SCREW 8-19 HI/LO PNP SS GEN WR01X31121 Contact Us For Availability
283
COMPRESSOR GROMMET GEN WR02X32859 Contact Us For Availability
285
COMPRESSOR MOUNTING BOLT GEN WR02X32757 Contact Us For Availability
291
HI-LO SCREW W/#6 HD GEN WR01X44007 Contact Us For Availability
292
DRAIN TUBE GEN WR02X39553 Contact Us For Availability
315
LOWERACCESSCOVER 36" GEN WR13X39526 Contact Us For Availability
340
DEFROST DRAIN VACUUM BREAK VALVE GEN WR01X39552 Contact Us For Availability
353
ANTI TIP BRACKET GEN WR02X32775 Contact Us For Availability
365
DOOR TO HINGE BRACKET GEN WR02X28999 Contact Us For Availability
366
DOOR HINGE SHIM GEN WR02X29029 Contact Us For Availability
680
LED LENS GEN WR02X43907 Contact Us For Availability
699
LEAK DETECT HOUSING GEN WR02X43908 Contact Us For Availability
701
LEAK DETECT COVER GEN WR02X43909 Contact Us For Availability
707
EVAPORATOR WITH BRACKETS GEN WR87X43910 Contact Us For Availability
713
REFRIGERATOR DRAIN PAN FF GEN WR17X43911 Contact Us For Availability
734
EVAPORATOR GEN WR87X44011 Contact Us For Availability
743
DAMPER VENT MOTOR ASSEMBLY GEN WR60X44308 Contact Us For Availability
747
FLAT WASHER GEN WR01X44367 Contact Us For Availability
748
MOUNTING STRAP DAMPER FZ EVAP GEN WR02X44012 Contact Us For Availability
760
WIFI BOARD GEN WR55X47027 Contact Us For Availability
762
USER INTERFACE TOP COVER 36" GEN WR02X44013 Contact Us For Availability
768
GLASS TOUCH TEMPERATURE CONTROL BOARD GEN WR55X44327 Contact Us For Availability
793
CONDENSER GEN WR87X41606 Contact Us For Availability
804
MAIN AC HARNESS GEN WR55X43914 Contact Us For Availability
805
MAIN DC HARNESS GEN WR55X43915 Contact Us For Availability
809
LED DRIVE BOARD PCBA GEN WR55X43916 Contact Us For Availability
816
PERSONALITY HARNESS GEN WR55X43923 Contact Us For Availability
819
MAGNET ASSEMBLY REFRIGERATOR DOOR GEN WR02X44368 Contact Us For Availability
821
MAGNET CONVERTIBLE DRAWER GEN WR02X44014 Contact Us For Availability
847
CAF SHELF WHITE 36" GEN WR71X44048 Contact Us For Availability
855
HUMIDITY COVER FRAME WHITE 36" GEN WR72X44049 Contact Us For Availability
861
HUMIDITY COVER GLASS 36" GEN WR72X44050 Contact Us For Availability
862
REFRIGERATOR VEGETABLE PAN GEN WR71X44369 Contact Us For Availability
870
LEFT SLIDE HUMIDITY CONTROL DRAWER GEN WR72X44370 Contact Us For Availability
875
RIGHT SLIDE HUMIDITY CONTROL DRAWER GEN WR72X44371 Contact Us For Availability
888
UPPER ACCESS COVER 36" GEN WR02X44051 Contact Us For Availability
918
ICEMAKER MOUNTING BRACKET GEN WR02X43917 Contact Us For Availability
924
REFRIGERATOR DOOR RIGHT HAND GEN WR78X44330 Contact Us For Availability
950
DOOR GASKET FRENCH DOOR GEN WR14X44056 Contact Us For Availability
956
CONVERTIBLE DRAWER FRONT GEN WR78X44332 Contact Us For Availability
961
GASKET CONVERTIBLE DRAWER GEN WR14X44058 Contact Us For Availability
1002
SLIDE CONVERTIBLE DRAWER - RIGHT GEN WR72X43924 Contact Us For Availability
1003
SLIDE CONVERTIBLE DRAWER - LEFT GEN WR72X43926 Contact Us For Availability
1006
FREEZER DRAWER FRONT GEN WR78X44333 Contact Us For Availability
1011
DOOR GASKET FREEZER GEN WR14X44060 Contact Us For Availability
1019
FREEZER DRAWER DIVIDER GEN WR71X44062 Contact Us For Availability
1021
SLIDE FREEZER DRAWER - RIGHT GEN WR72X43927 Contact Us For Availability
1022
SLIDE FREEZER DRAWER - LEFT GEN WR72X43928 Contact Us For Availability
1068
DEFLECTOR ICE GEN WR01X45345 Contact Us For Availability
1076
PCB ASM POINT LED LIGHT GEN WR01X45905 Contact Us For Availability
1082
FAN MOTOR-BLADE ASSEMBLY GEN WR60X43929 Contact Us For Availability
1083
FAN HOUSING GEN WR02X43930 Contact Us For Availability
1085
CENTER CANTILEVER SHELF TRACK GEN WR72X44063 Contact Us For Availability
1086
SIDE CANTILEVER SHELF TRACK GEN WR72X44064 Contact Us For Availability
1087
XWF FILTER MANIFOLD ASSEMBLY GEN WR02X43931 Contact Us For Availability
1128
FILL TUBE GEN WR02X44065 Contact Us For Availability
1134
ICEMAKER CONNECTOR COVER GEN WR02X43933 Contact Us For Availability
1146
STRIKER PLATE GEN WR02X44066 Contact Us For Availability
1171
RH DOOR PANEL BRACKET SINGLE DOOR GEN WR02X44374 Contact Us For Availability
1172
LH DOOR PANEL BRACKET SINGLE DOOR GEN WR02X44375 Contact Us For Availability
1173
RH DOOR PANEL BRACKET SINGLE & FRENCH DO GEN WR02X44376 Contact Us For Availability
1174
LH DOOR PANEL BRACKET SINGLE & FRENCH DO GEN WR02X44377 Contact Us For Availability
1175
RH DOOR PANEL BRACKET CAF DOOR GEN WR02X44378 Contact Us For Availability
1176
LH DOOR PANEL BRACKET CAF DOOR GEN WR02X44379 Contact Us For Availability
1177
RH DOOR PANEL BRACKET FRENCH DOOR GEN WR02X44380 Contact Us For Availability
1178
LH DOOR PANEL BRACKET FRENCH DOOR GEN WR02X44381 Contact Us For Availability
1191
CONVERTIBLE DRAWER BASKET W/ DIVIDER - C GEN WR71X44336 Contact Us For Availability
1192
FREEZER BASKET GEN WR71X44067 Contact Us For Availability
1203
THERMISTOR GEN WR55X43936 Contact Us For Availability
1227
COMPRESSOR SERVICE KIT - JIAXIPERA GEN WR87X44005 Contact Us For Availability
1238
VEG PAN DAMPER GEN WR01X44382 Contact Us For Availability
1245
ICE BUCKET GEN WR30X44070 Contact Us For Availability
1249
DRAWER DIVIDER CAF GEN WR02X44384 Contact Us For Availability
1269
CAF DOOR BIN FRENCH DOOR GEN WR71X44072 Contact Us For Availability
1283
CENTER SUPPORT LOCATOR GEN WR02X43944 Contact Us For Availability
1305
POCKET HINGE COVER GEN WR02X44073 Contact Us For Availability
1320
DIVIDER DRAWER REAR RETAINER GEN WR02X44075 Contact Us For Availability
1321
POCKET HINGE HOUSING GEN WR02X44076 Contact Us For Availability
1330
THERMISTOR CLIP GEN WR02X44077 Contact Us For Availability
1333
LOWER HINGE BRACKET GEN WR02X44079 Contact Us For Availability
1338
DAMPER GASKET GEN WR02X44548 Contact Us For Availability
1376
CENTER CANTILEVER TRACK TRIM WHITE GEN WR02X43946 Contact Us For Availability
1378
SIDE CANTILEVER TRACK TRIM WHITE GEN WR02X43947 Contact Us For Availability
1391
STAINLESS DOOR WRAP RIGHT SWING - FD FF GEN WR78X48126 Contact Us For Availability
1393
STAINLESS DOOR WRAP - CD FF GEN WR78X48125 Contact Us For Availability
1394
STAINLESS FREEZER DOOR WRAP GEN WR78X48129 Contact Us For Availability
1471
SCR 6-19 TT PNT15 1/4 S GEN WB01X40547 Contact Us For Availability
1481
HUMIDITY SENSOR JUMPER GEN WR55X44086 Contact Us For Availability
1482
HMI JUMPER GEN WR55X44087 Contact Us For Availability
1486
CENTER SUPPORT HUMIDITY CONTROL GEN WR72X44386 Contact Us For Availability
1522
TOP AIRFLOW COVER - CAFE GEN WR14X44338 Contact Us For Availability
1526
REFRIGERATOR EVAPORATOR COVER - WHITE GEN WR13X44341 Contact Us For Availability
1527
FAN HOUSING GEN WR60X44387 Contact Us For Availability
1550
U BRACKET GEN WR02X44390 Contact Us For Availability
1558
AIR HANDLER SIDE MOUNTING BRACKET GEN WR02X44342 Contact Us For Availability
1559
AIR HANDLER MOUNTING BRACKET GEN WR02X44089 Contact Us For Availability
1584
DOOR BUMPER GEN WR02X44346 Contact Us For Availability
1587
SCREW M5X.8 FLT25 0.63 SZN GEN WR01X44347 Contact Us For Availability
1663
ANTI TIP HARDWARE 36 GEN WR02X44745 Contact Us For Availability
1701
THERMISTOR SERVICE KIT GEN WR01X45485 Contact Us For Availability
1716
RIGHT ARTICULATING HINGE GEN WR13X29120 Contact Us For Availability
1717
LEFT ARTICULATING HINGE GEN WR13X29121 Contact Us For Availability
1719
SRV PAN DRAIN FZ GEN WR01X45525 Contact Us For Availability
1742
CONDENSER STRAP GEN WR02X42426 Contact Us For Availability
1750
HANDLE FASTENER KIT GEN WR01X45325 Contact Us For Availability
1795
ICEMAKER GEN WR30X44966 Contact Us For Availability
1806
FEELER ARM IM GEN WR01X45628 Contact Us For Availability
1807
WASHER GEN WR01X46245 Contact Us For Availability
1812
JUMPER DOOR HEATER GEN WR55X45165 Contact Us For Availability
1835
STRIKER HOUSING WITH PINS GEN WR02X44057 Contact Us For Availability
1837
STRIKER PLATE ASSEMBLY GEN WR02X44385 Contact Us For Availability
1884
KIT DOOR HARDWARE COVERS GEN WR02X46045 Contact Us For Availability
1900
LEVELER BRACKET GEN WR02X32831 Contact Us For Availability
1901
BRACKET LEVELER SCREW GEN WR55X47425 Contact Us For Availability
× ![]()
