Model Maytag CGR3520ADH GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

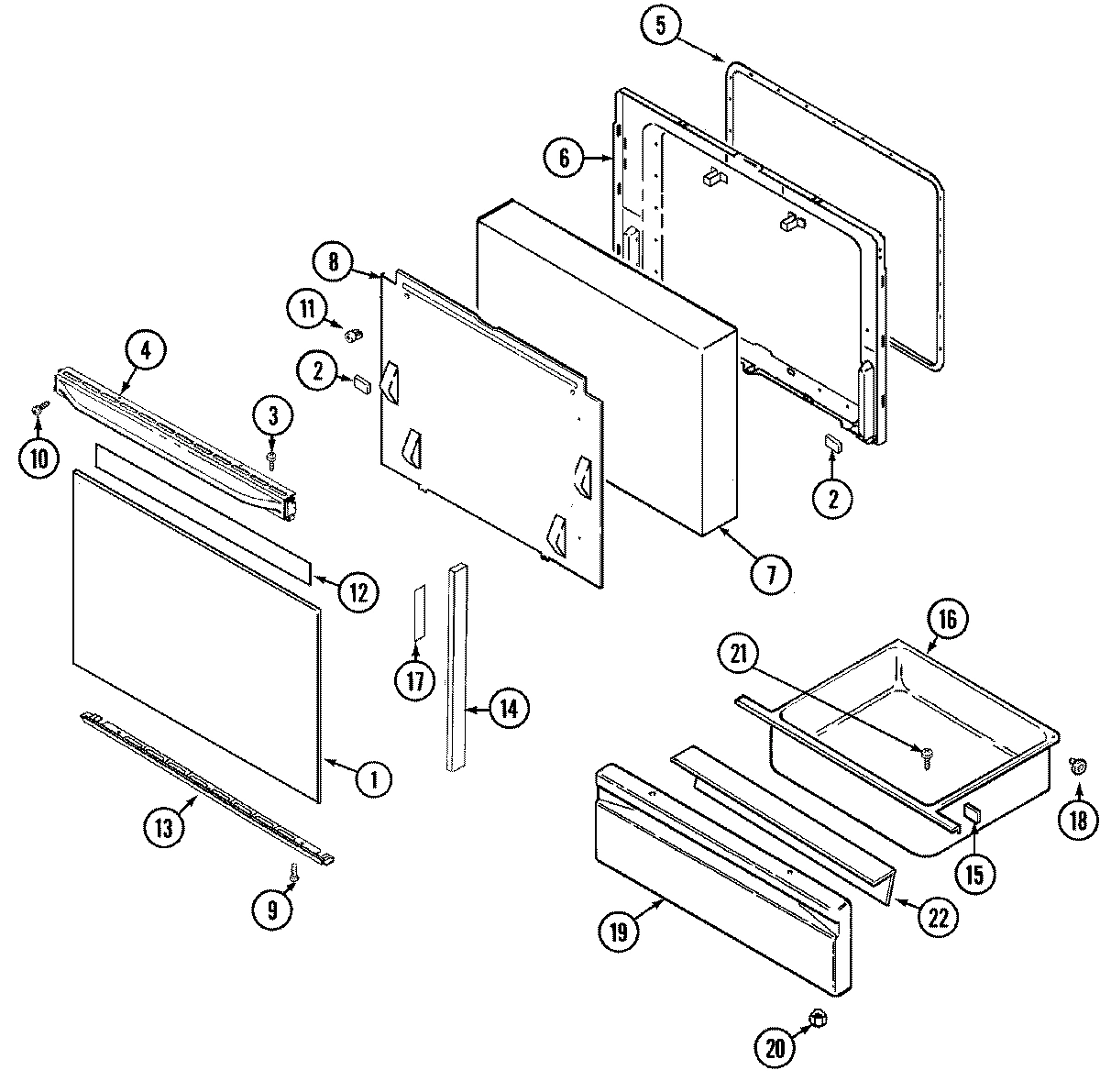

03 - DOOR/DRAWER

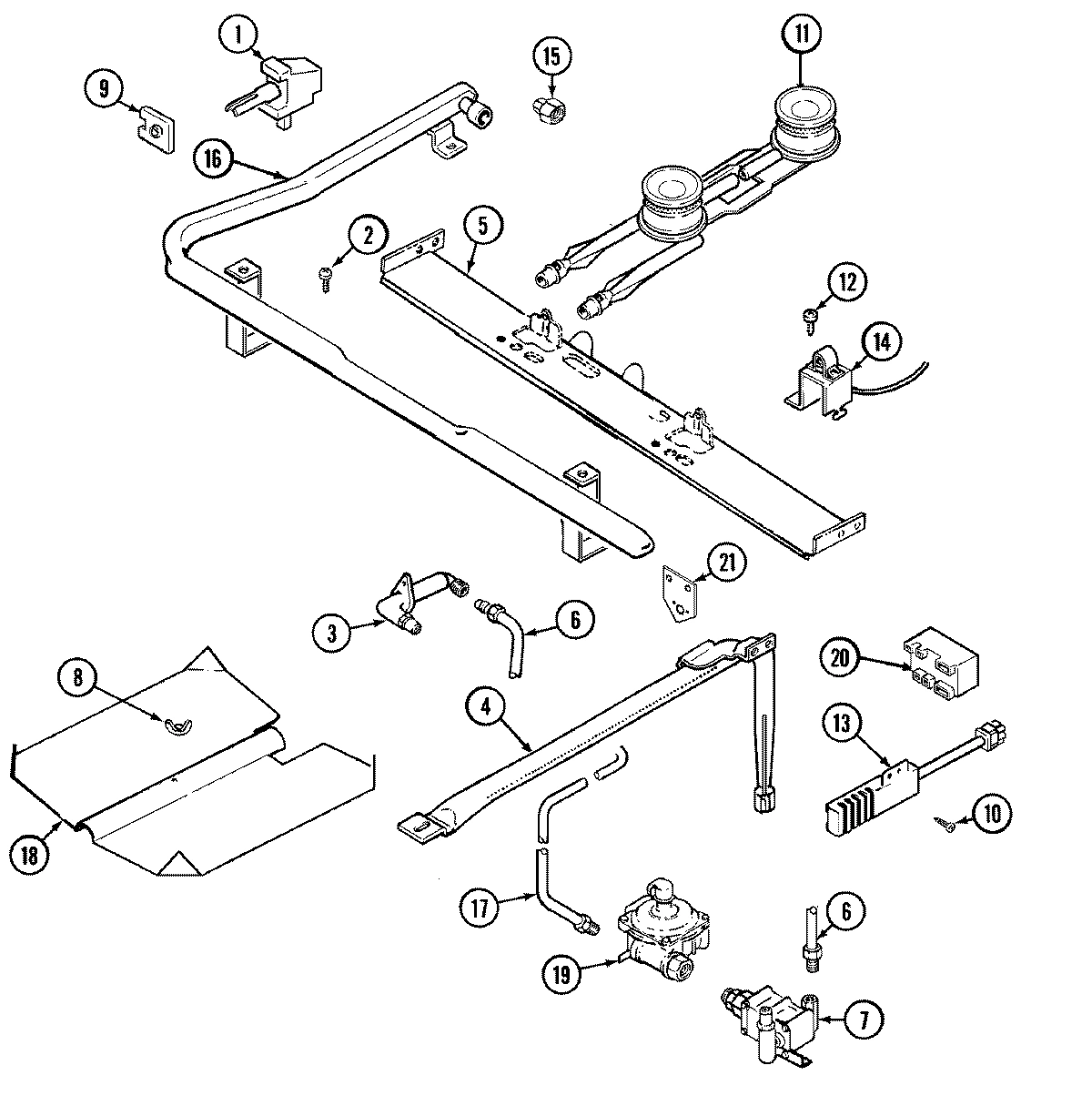

04 - GAS CONTROLS

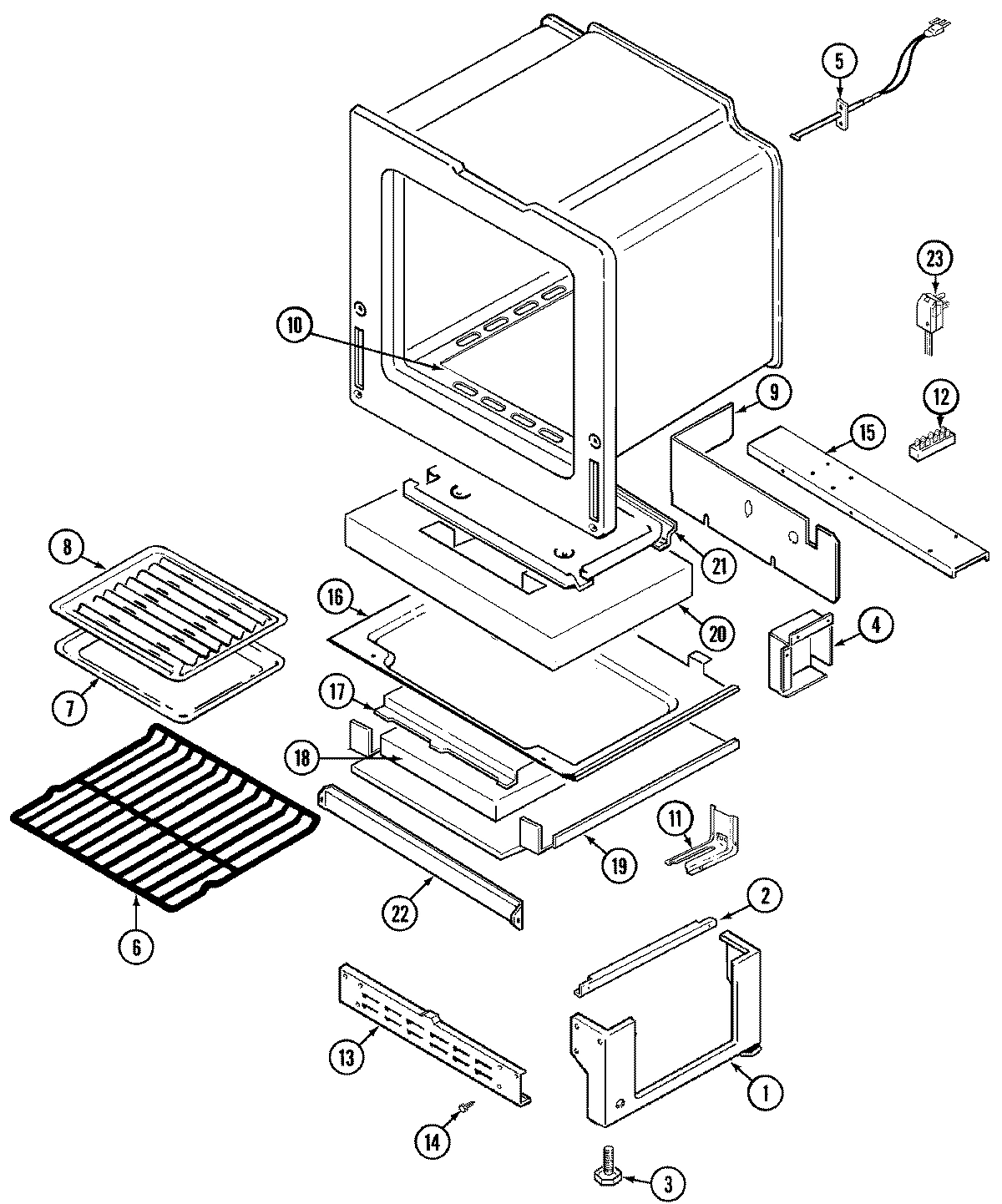

05 - OVEN/BASE

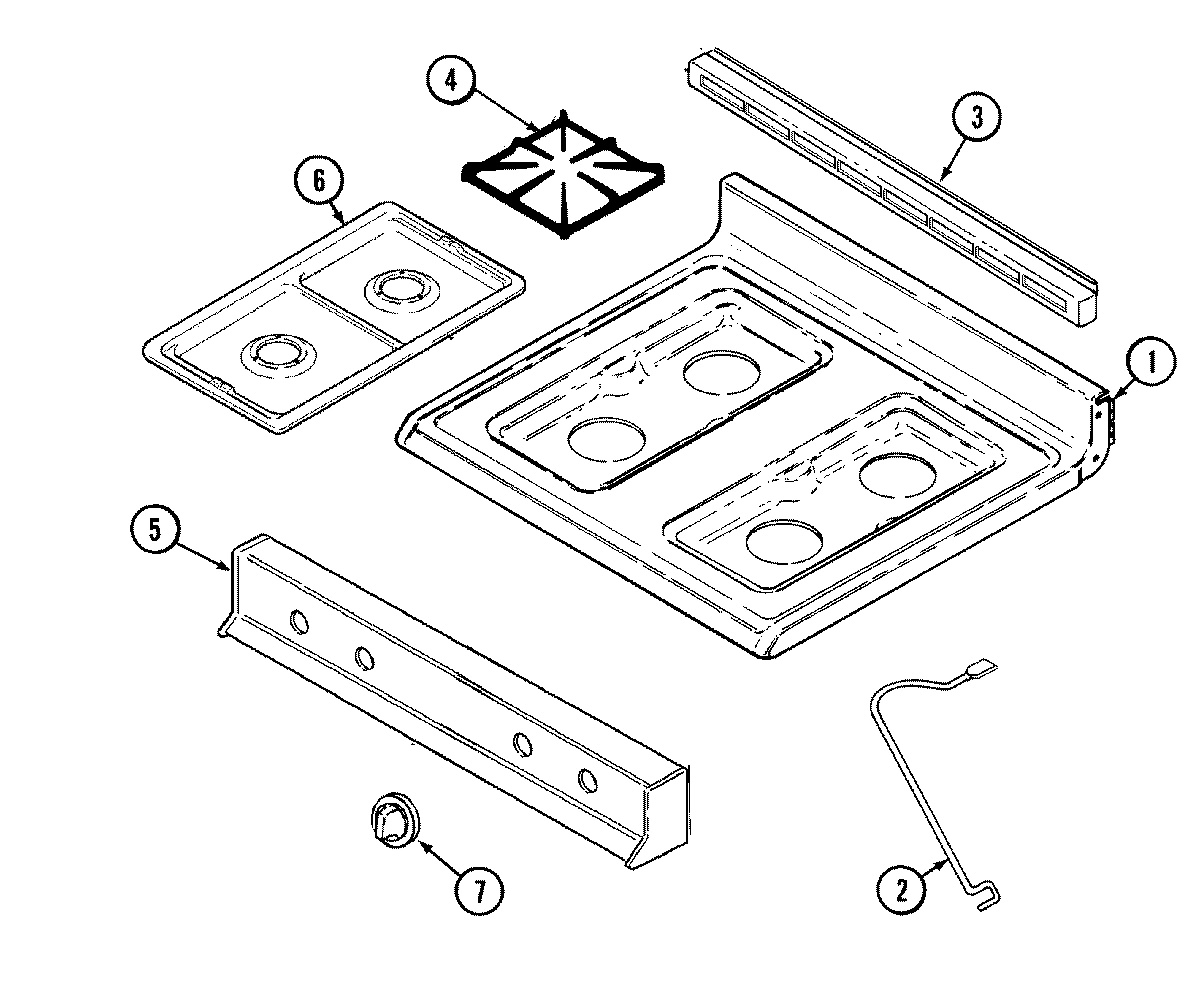

06 - TOP ASSEMBLY

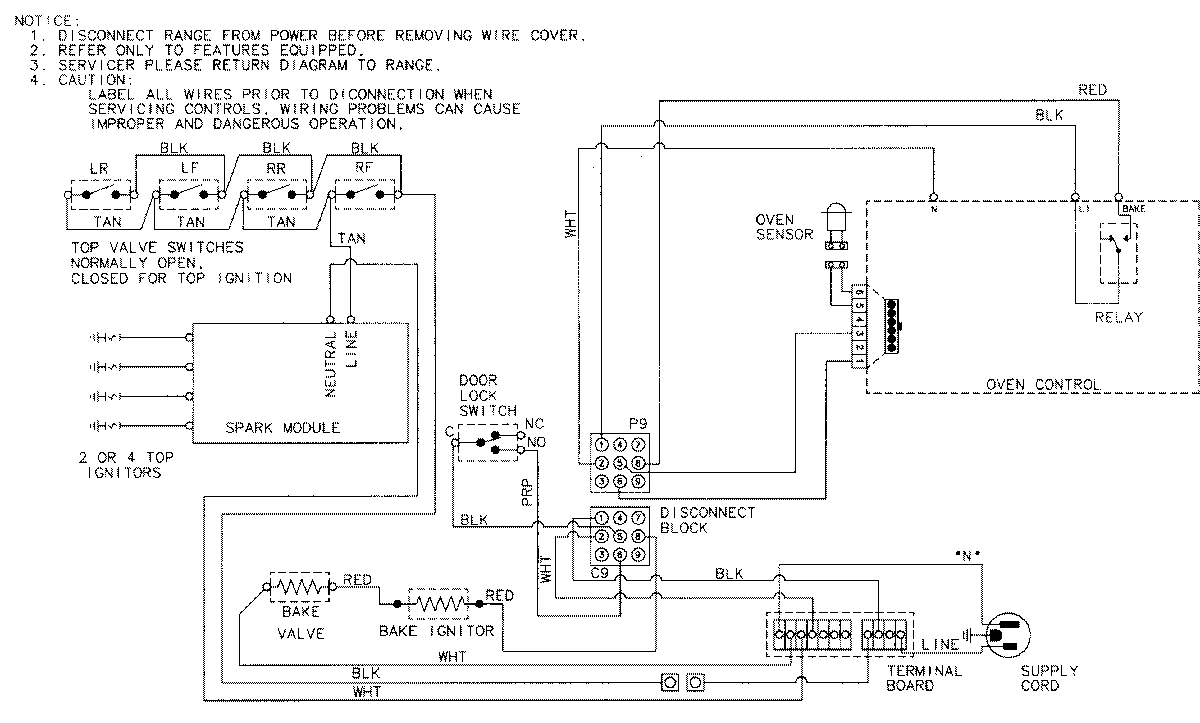

07 - WIRING INFORMATION
Common parts from model Maytag CGR3520ADH GAS RANGE
1
MAY 74003488 MAY 74003488 Contact Us For Availability
1
MAY 7902P325-60 MAY 7902P325-60 Contact Us For Availability
1
MAY 74002383 MAY 74002383 Contact Us For Availability
1
MAY 74003405 MAY 74003405 Contact Us For Availability
1
MAY 74003704 MAY 74003704 Contact Us For Availability
2
MAY 74003489 MAY 74003489 Contact Us For Availability
2
MAY 74003490 MAY 74003490 Contact Us For Availability
2
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
2
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
2
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
2
MAY 74001170 MAY 74001170 Contact Us For Availability
3
MAY 74003371 MAY 74003371 Contact Us For Availability
3
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
3
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
3
MAY 74003501 MAY 74003501 Contact Us For Availability
4
MAY 74003429 MAY 74003429 Contact Us For Availability
4
MAY 74003534 MAY 74003534 Contact Us For Availability
4
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
4
MAY 3807F473-51 MAY 3807F473-51 Contact Us For Availability
5
MAY 74002432 MAY 74002432 Contact Us For Availability
5
MAY 74003367 MAY 74003367 Contact Us For Availability
5
MAY 74003368 MAY 74003368 Contact Us For Availability
5
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
5
MAY 74003539 MAY 74003539 Contact Us For Availability
5
MAY 74003413 MAY 74003413 Contact Us For Availability
5
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
5
MAY 74002485 MAY 74002485 Contact Us For Availability
5
MAY 74004072 MAY 74004072 Contact Us For Availability
6
MAY 74003493 MAY 74003493 Contact Us For Availability
6
MAY 74003245 MAY 74003245 Contact Us For Availability
6
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
6
MAY 5401A433-60 MAY 5401A433-60 Contact Us For Availability
7
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
7
MAY 74003535 MAY 74003535 Contact Us For Availability
7
MAY 74001842 MAY 74001842 Contact Us For Availability
7
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
8
MAY 74001084 MAY 74001084 Contact Us For Availability
8
MAY 74003139 MAY 74003139 Contact Us For Availability
8
MAY 74003502 MAY 74003502 Contact Us For Availability
8
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
8
MAY 3601F218-51 MAY 3601F218-51 Contact Us For Availability
8
NUT, WING MAY 7103P030-60 Contact Us For Availability
8
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
9
MAY 4005F331-51 MAY 4005F331-51 Contact Us For Availability
9
MAY 74003362 MAY 74003362 Contact Us For Availability
9
MAY 74002384 MAY 74002384 Contact Us For Availability
9
MAY 74003329 MAY 74003329 Contact Us For Availability
10
MAY 7003P063-60 MAY 7003P063-60 Contact Us For Availability
10
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
10
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
11
MAY 74003332 MAY 74003332 Contact Us For Availability
11
LEVER, LATCH (BLK) MAY 74001075 Contact Us For Availability
11
MAY 74003005 MAY 74003005 Contact Us For Availability
11
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
11
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
11
MAY 74002311 MAY 74002311 Contact Us For Availability
12
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
12
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
12
MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability
12
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
13
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
13
MAY 74003432 MAY 74003432 Contact Us For Availability
13
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
13
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
13
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
14
MAY 74004482 MAY 74004482 Contact Us For Availability
14
MAY 74003430 MAY 74003430 Contact Us For Availability
14
MAY 74003381 MAY 74003381 Contact Us For Availability
14
MAY 74002386 MAY 74002386 Contact Us For Availability
14
MAY 74003538 MAY 74003538 Contact Us For Availability
14
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
15
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
15
MAY 74002593 MAY 74002593 Contact Us For Availability
16
MAY 3604F165-51 MAY 3604F165-51 Contact Us For Availability
16
MAY 71003042 MAY 71003042 Contact Us For Availability
16
MAY 74002487 MAY 74002487 Contact Us For Availability
16
MAY 74003242 MAY 74003242 Contact Us For Availability
17
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
17
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
17
MAY 1555258K MAY 1555258K Contact Us For Availability
17
MAY 74002553 MAY 74002553 Contact Us For Availability
17
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
18
MAY 74001449 MAY 74001449 Contact Us For Availability
18
MAY 74003462 MAY 74003462 Contact Us For Availability
18
MAY 3601F217-47 MAY 3601F217-47 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
19
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
19
PANEL, DRAWER (WHT) MAY 74003407 Contact Us For Availability
19
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
20
MAY 74004282 MAY 74004282 Contact Us For Availability
20
MAY 74002367 MAY 74002367 Contact Us For Availability
20
MAY 7431P006-60 MAY 7431P006-60 Contact Us For Availability
20
MAY 74003503 MAY 74003503 Contact Us For Availability
21
MAY 74003537 MAY 74003537 Contact Us For Availability
21
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
21
MAY 74001651 MAY 74001651 Contact Us For Availability
22
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
22
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
23
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
NI
MAY 12001323 MAY 12001323 Contact Us For Availability
NI
MAY 16000329 MAY 16000329 Contact Us For Availability
NI
MAY 16008701 MAY 16008701 Contact Us For Availability
NI
MAY 74003525 MAY 74003525 Contact Us For Availability
NI
MAY 74003869 MAY 74003869 Contact Us For Availability
NI
MAY 15002280 MAY 15002280 Contact Us For Availability
× ![]()
