Model Whirlpool CGR1330BDC GAS RANGE – Common Parts & Diagrams
01 - BODY
06 - TOP ASSEMBLY
07 - WIRING INFORMATION

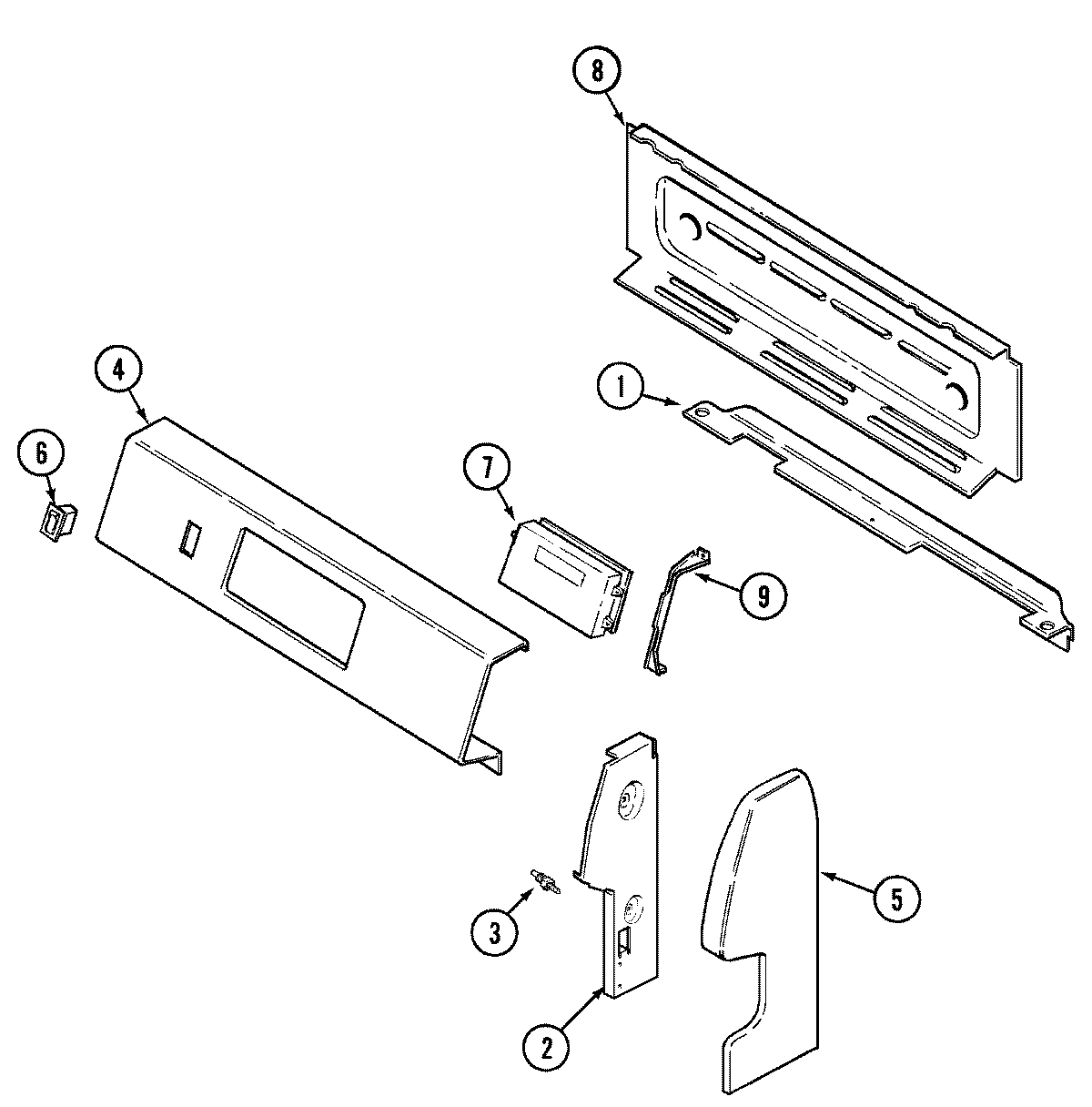

02 - CONTROL PANEL

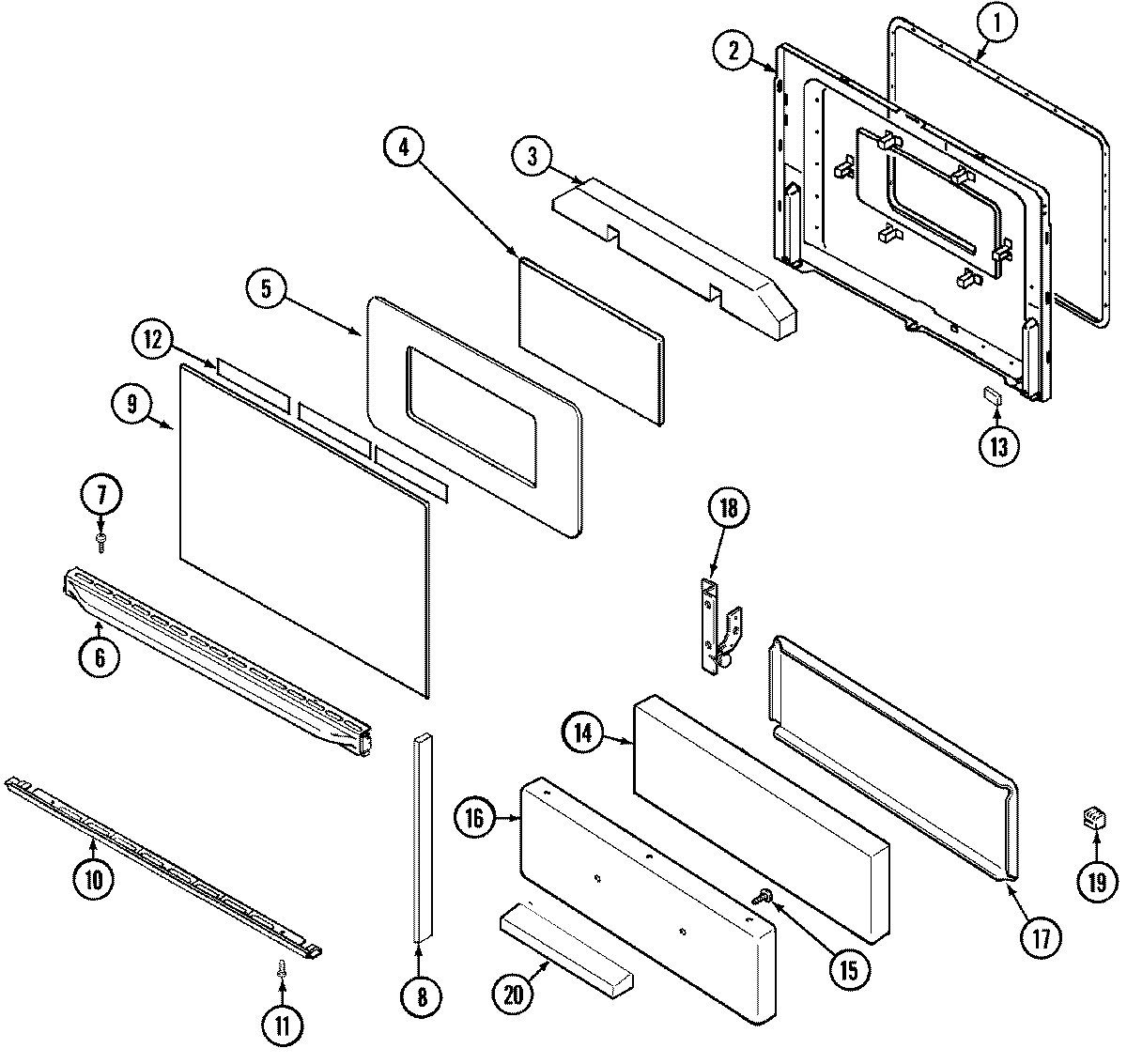

03 - DOOR/DRAWER

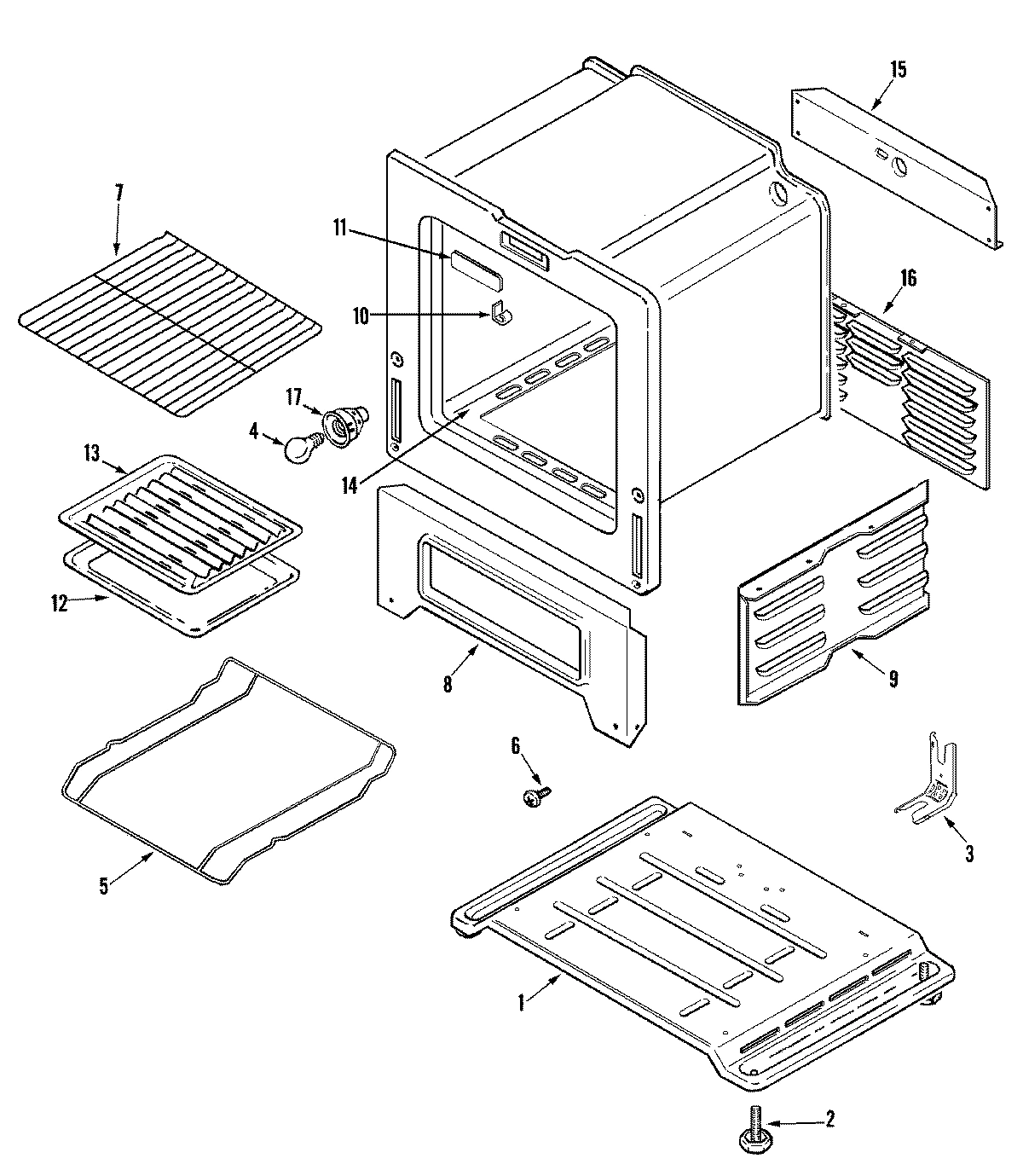

05 - OVEN/BASE

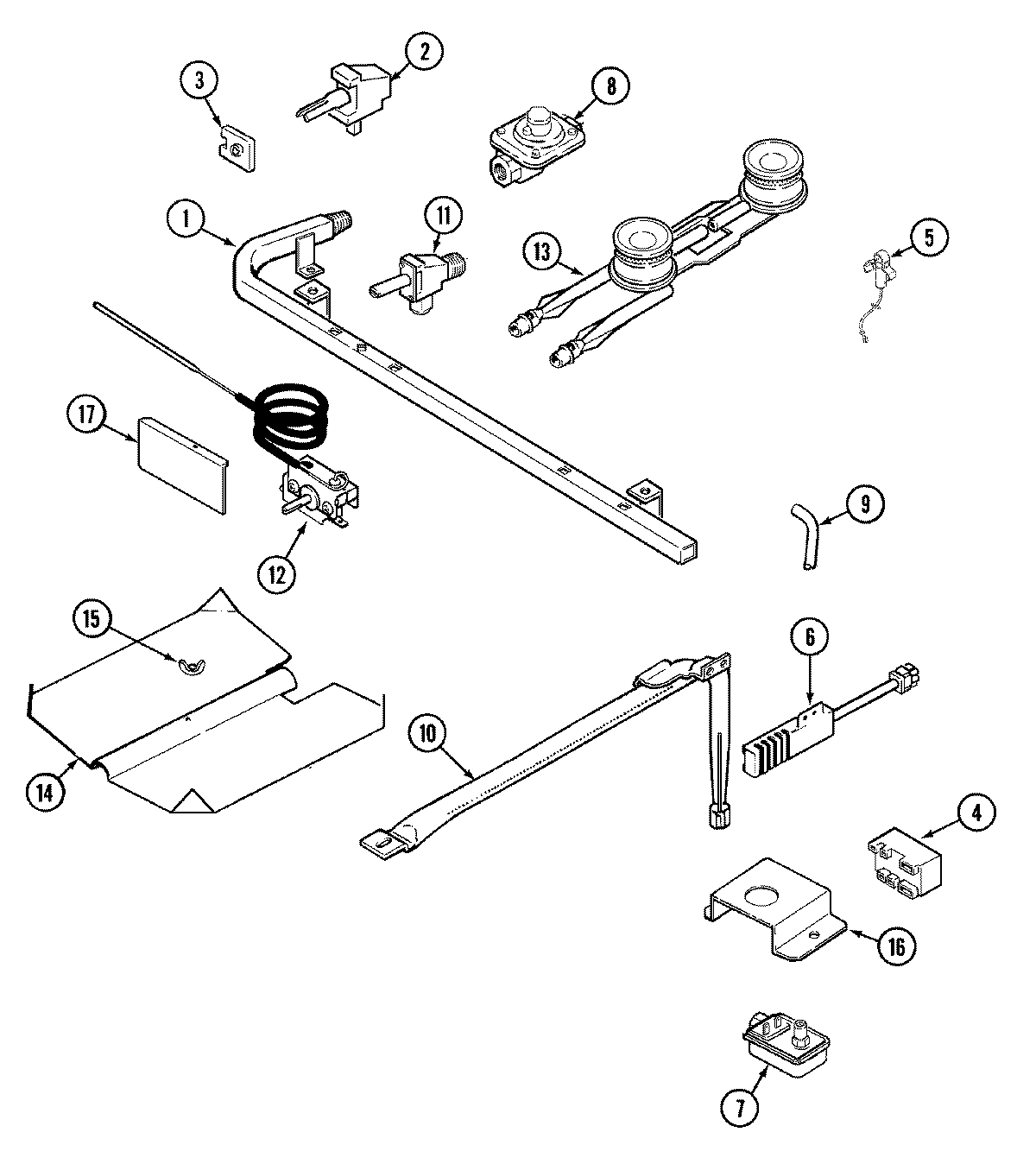

04 - GAS CONTROLS
Common parts from model Whirlpool CGR1330BDC GAS RANGE
1
BACK, MAIN WPL 74003451 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
TOP, MAIN (STLS) WPL 74002550 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74005047 Contact Us For Availability
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
1
BASE, MAIN WPL 74001064 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74003913 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 74003283 Contact Us For Availability
2
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
2
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
2
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
2
LINING, DOOR WPL 74005097 Contact Us For Availability
2
VALVE, BURNER WPL 74002383 Contact Us For Availability
3
BOX, BURNER WPL 74002357 Contact Us For Availability
3
PROP ROD WPL 74004084 Contact Us For Availability
3
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
3
INSULATION, DOOR WPL 74002458 Contact Us For Availability
3
SCREW WPL 7101P35260 Contact Us For Availability
3
SWITCH, IGNITER WPL 74002384 Contact Us For Availability
4
SUPPORT, TOP BURNER WPL 74002365 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 74005145 Contact Us For Availability
4
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
4
BULB-OVEN WPL 7407P10360 Contact Us For Availability
4
MODULE, SPARK (2+0) WPL 74004282 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
WASHER WPL 7109P01560 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 74002411 Contact Us For Availability
5
END CAP, PANEL (LT-BLK) WPL 74002406 Contact Us For Availability
5
END CAP, PANEL (RT-BLK) WPL 74002407 Contact Us For Availability
5
SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability
5
SCREW WPL 7101P20960 Contact Us For Availability
5
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
5
TOP IGNITER W/WIRES (LT) WPL 74002386 Contact Us For Availability
5
TOP IGNITER W/WIRES (RT) WPL 74004483 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
6
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P07560 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
7
VALVE, OVEN WPL 74002387 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
HOUSING, CONTROL PANEL WPL 74005146 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
8
OVEN FRONT, LOWER WPL 74003007 Contact Us For Availability
8
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
9
COVER, ACCESS WPL 74004591 Contact Us For Availability
9
BRACKET, CLOCK WPL 74002449 Contact Us For Availability
9
GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
TUBING, VALVE (3/8``) WPL 74002456 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability
11
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
12
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
13
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
13
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
BURNER, TOP WPL 74003332 Contact Us For Availability
14
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
14
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 74002634 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
15
NUT, WING WPL 7103P03060 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 74002551 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
16
BRACKET, OVEN VALVE WPL 74005051 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
LINING, DRAWER WPL 74002397 Contact Us For Availability
17
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
17
SHIELD, THERMOSTAT WPL 74002391 Contact Us For Availability
18
HINGE, DRAWER WPL 74002398 Contact Us For Availability
19
GLIDE WPL 8016P01560 Contact Us For Availability
20
HANDLE, DRAWER (BLK) WPL 2411F00370 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001767 Contact Us For Availability
NI
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004367 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 74005147 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE CONVERSION KIT WPL W10124350 Contact Us For Availability
× ![]()
