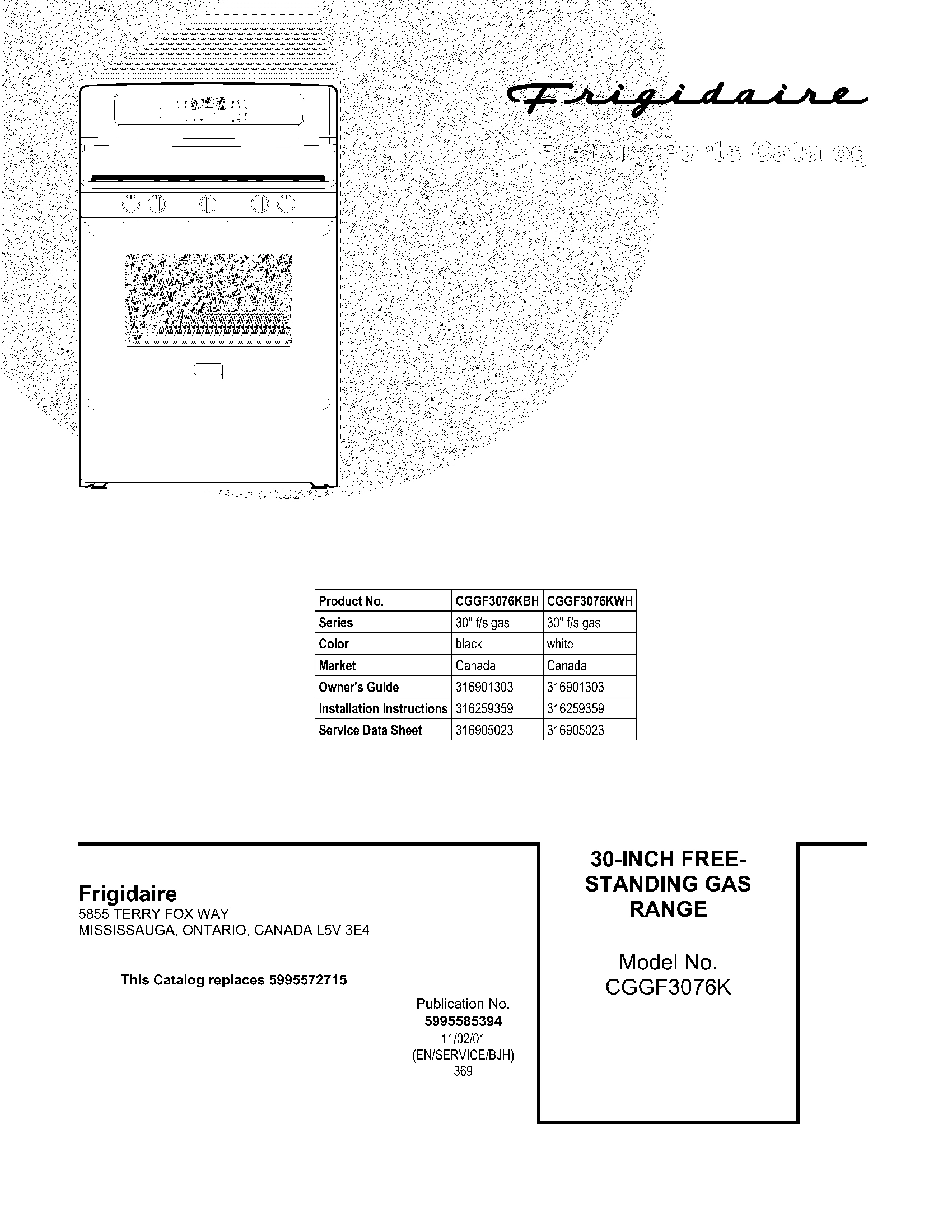

Model Electrolux CGGF3076KWH RANGE – Common Parts & Diagrams
01 - COVER

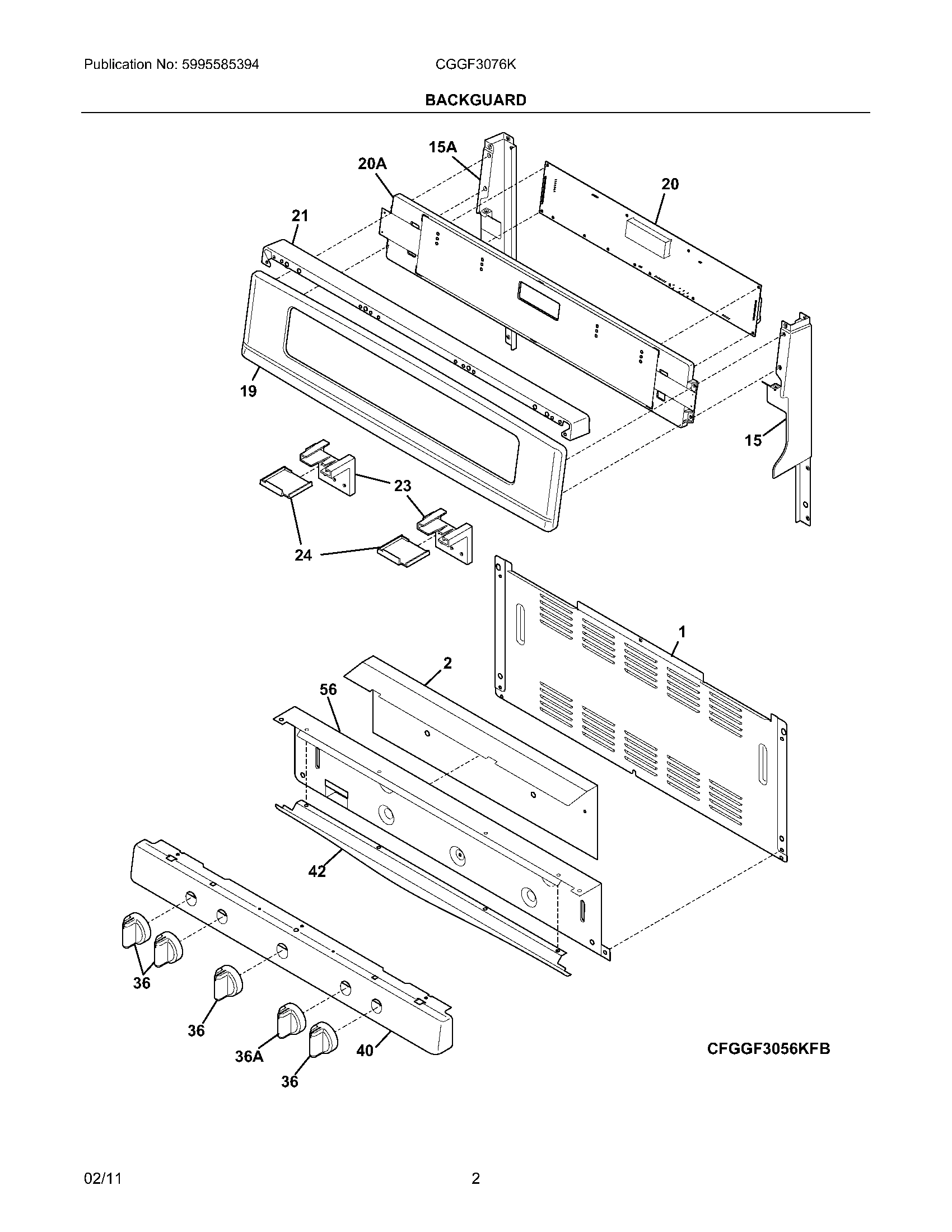

03 - BACKGUARD

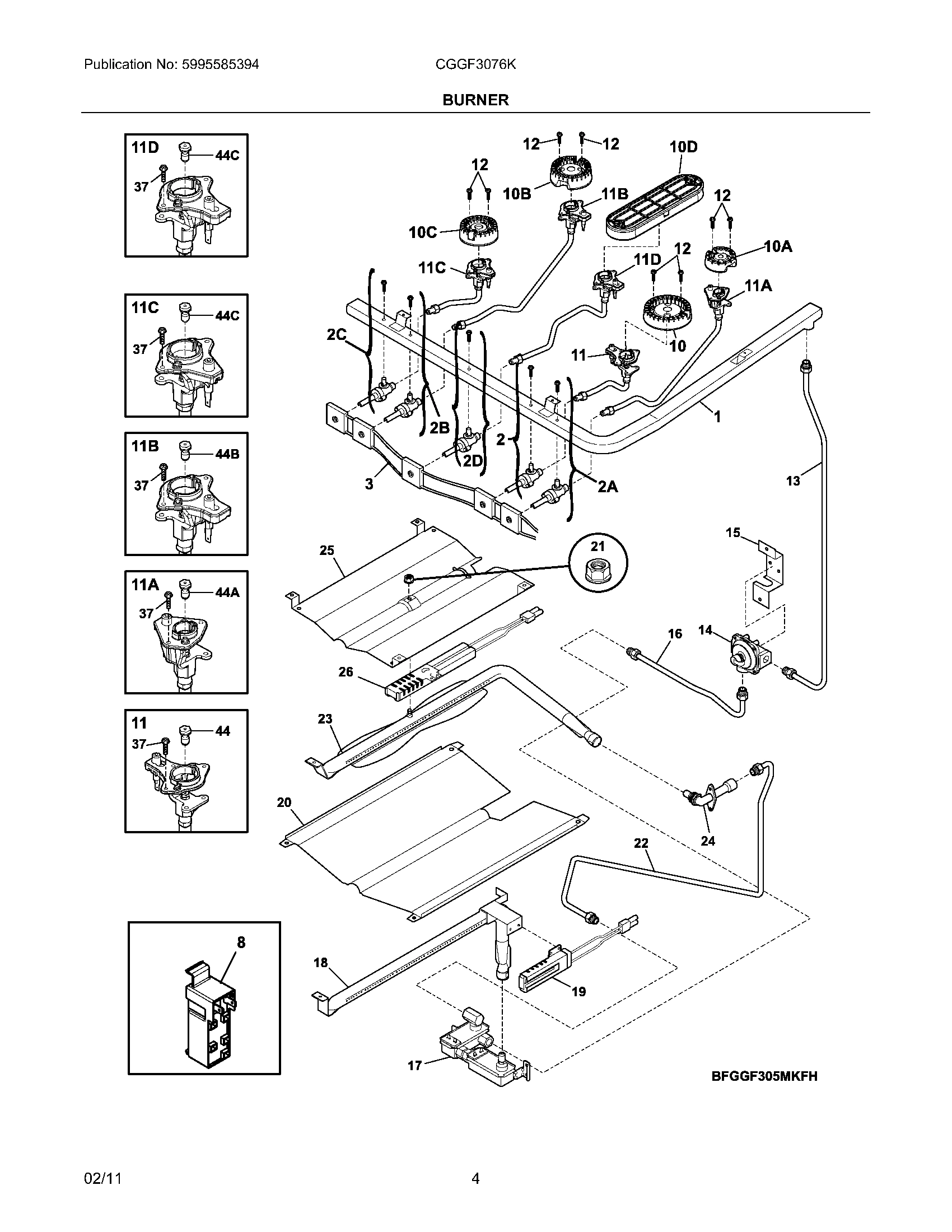

05 - BURNER

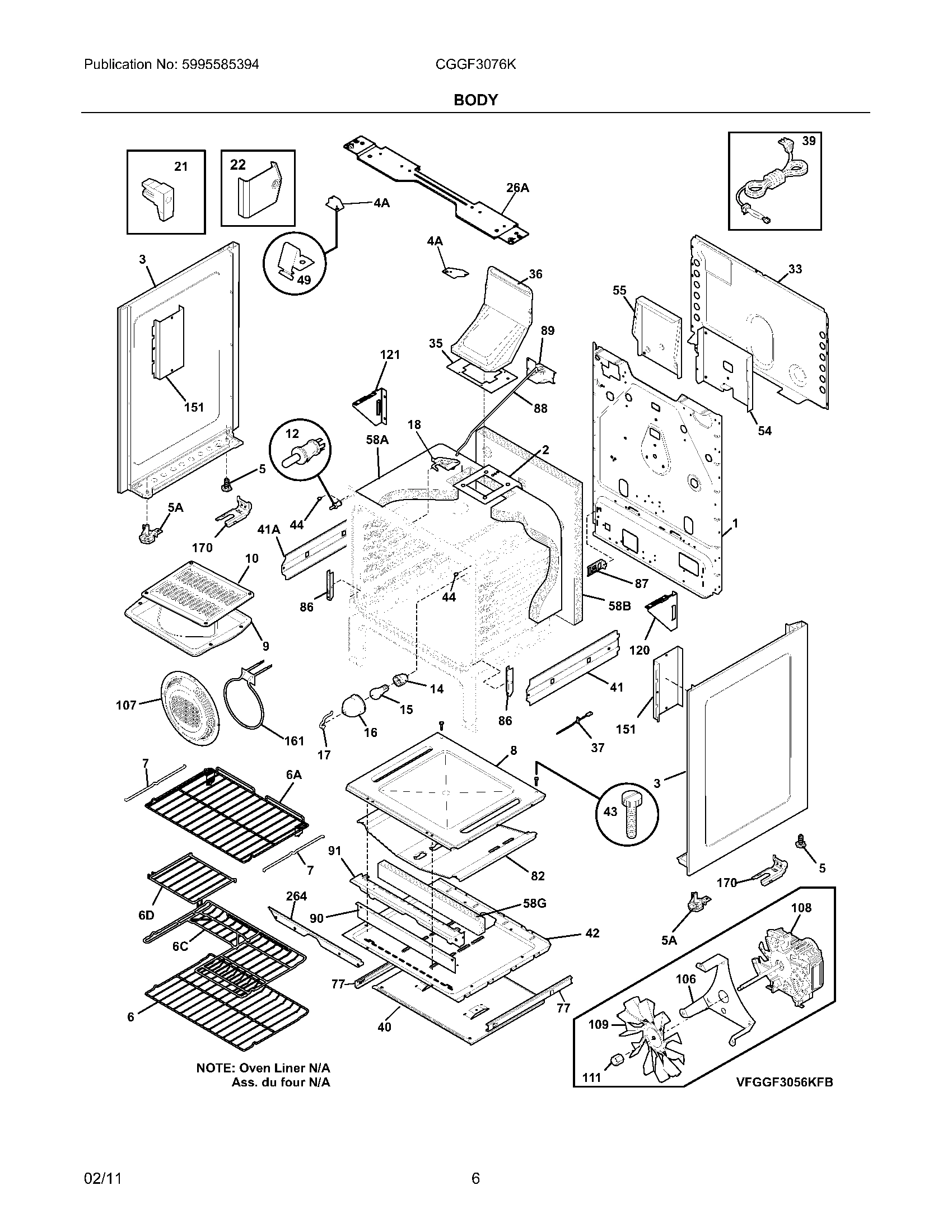

07 - BODY

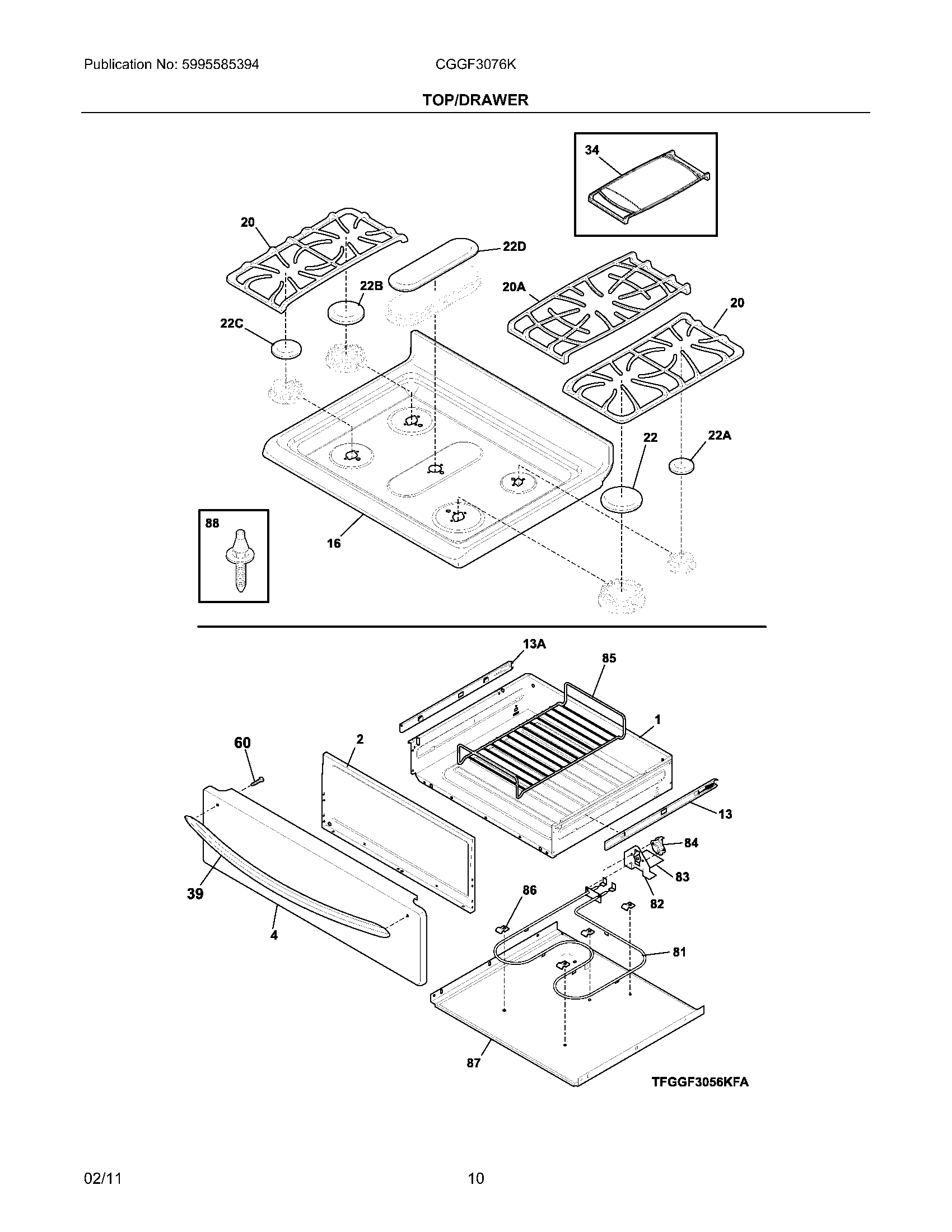

09 - TOP/DRAWER

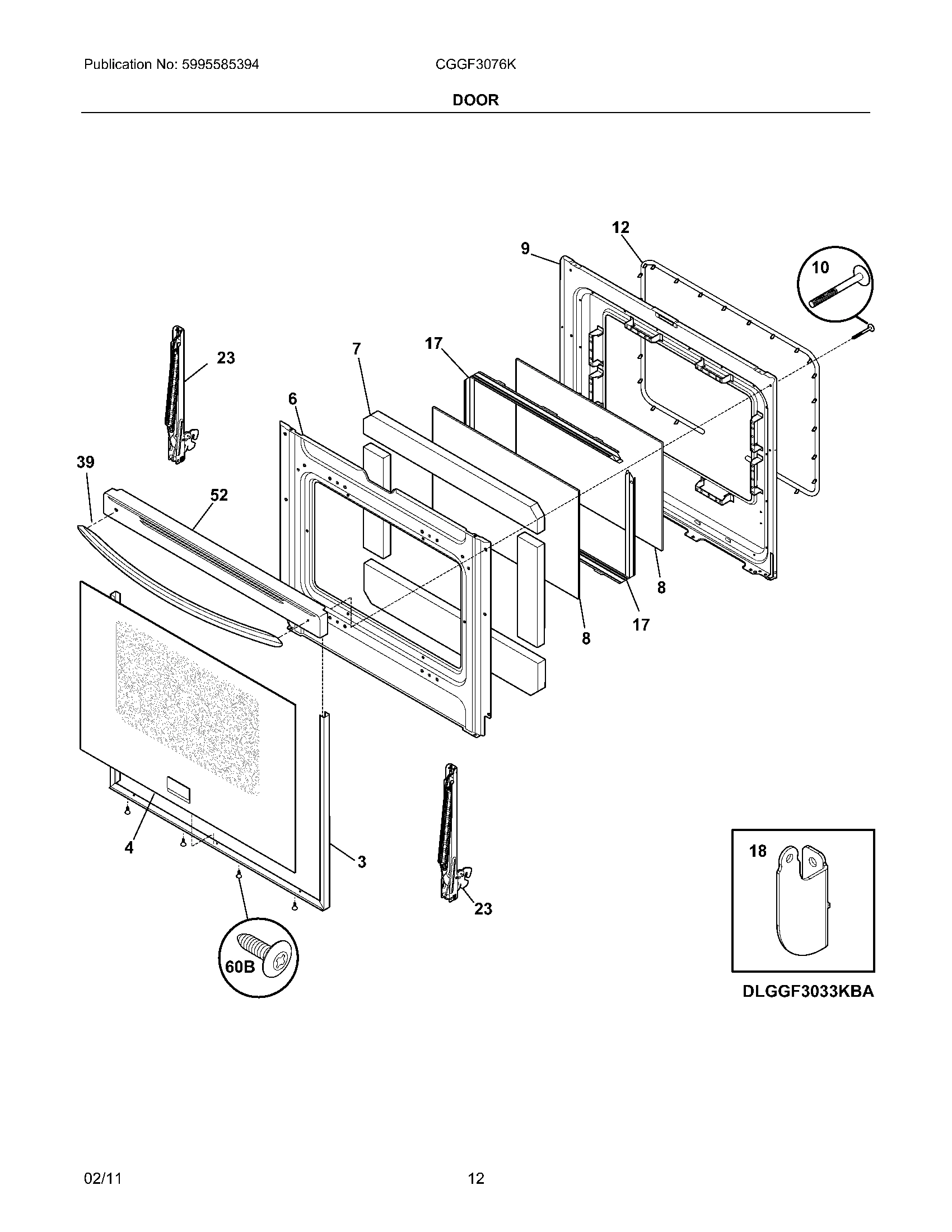

11 - DOOR
Common parts from model Electrolux CGGF3076KWH RANGE
1
WCI 316557600 WCI 316557600 Contact Us For Availability
2
WCI 5303935233 WCI 5303935233 Contact Us For Availability
2
WCI 316497600 WCI 316497600 Contact Us For Availability
2A
WCI 5303935308 WCI 5303935308 Contact Us For Availability
2B
WCI 5303935307 WCI 5303935307 Contact Us For Availability
2C
WCI 5303935305 WCI 5303935305 Contact Us For Availability
2D
WCI 5303935309 WCI 5303935309 Contact Us For Availability
3
Wiring Harness,w/ignitor swtch WCI 316580614 Contact Us For Availability
3
WCI 5303935326 WCI 5303935326 Contact Us For Availability
4
WCI 316566400 WCI 316566400 Contact Us For Availability
5
WCI 316272900 WCI 316272900 Contact Us For Availability
6C
WCI 316425600 WCI 316425600 Contact Us For Availability
6D
WCI 316419400 WCI 316419400 Contact Us For Availability
7
WCI 316546300 WCI 316546300 Contact Us For Availability
7
WCI 316403900 WCI 316403900 Contact Us For Availability
8
WCI 316400603 WCI 316400603 Contact Us For Availability
9
WCI 316081900 WCI 316081900 Contact Us For Availability
9
WCI 316423811 WCI 316423811 Contact Us For Availability
10
Burner,sealed ,17K WCI 316438400 Contact Us For Availability
10
Insert,broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10A
WCI 316438200 WCI 316438200 Contact Us For Availability
10B
WCI 316438600 WCI 316438600 Contact Us For Availability
10C
WCI 316558300 WCI 316558300 Contact Us For Availability
10D
WCI 316559300 WCI 316559300 Contact Us For Availability
11
WCI 316536622 WCI 316536622 Contact Us For Availability
11A
WCI 316536610 WCI 316536610 Contact Us For Availability
11B
WCI 316536618 WCI 316536618 Contact Us For Availability
11C
WCI 316536602 WCI 316536602 Contact Us For Availability
11D
WCI 316536623 WCI 316536623 Contact Us For Availability
12
WCI 316540900 WCI 316540900 Contact Us For Availability
12
WCI 316445500 WCI 316445500 Contact Us For Availability
13
WCI 316545700 WCI 316545700 Contact Us For Availability
13
WCI 316415000 WCI 316415000 Contact Us For Availability
13A
WCI 316415001 WCI 316415001 Contact Us For Availability
14
WCI 316116400 WCI 316116400 Contact Us For Availability
15
WCI 316091600 WCI 316091600 Contact Us For Availability
16
WCI 316469654 WCI 316469654 Contact Us For Availability
17
WCI 316404901 WCI 316404901 Contact Us For Availability
17
WCI 316087500 WCI 316087500 Contact Us For Availability
18
WCI 316405800 WCI 316405800 Contact Us For Availability
18
WCI 316404400 WCI 316404400 Contact Us For Availability
18
WCI 316547900 WCI 316547900 Contact Us For Availability
20
WCI 316499502 WCI 316499502 Contact Us For Availability
20
WCI 316562003 WCI 316562003 Contact Us For Availability
20A
WCI 316549116 WCI 316549116 Contact Us For Availability
20A
WCI 316551802 WCI 316551802 Contact Us For Availability
21
Nut,hex head sems WCI 5303013272 Contact Us For Availability
21
WCI 316408000 WCI 316408000 Contact Us For Availability
22D
WCI 316559604 WCI 316559604 Contact Us For Availability
23
WCI 316575902 WCI 316575902 Contact Us For Availability
23
WCI 316404304 WCI 316404304 Contact Us For Availability
25
WCI 316401301 WCI 316401301 Contact Us For Availability
26
Ignitor,bake burner WCI 316489403 Contact Us For Availability
26A
WCI 316498200 WCI 316498200 Contact Us For Availability
33
WCI 316402500 WCI 316402500 Contact Us For Availability
34
WCI 316499900 WCI 316499900 Contact Us For Availability
36
WCI 316564509 WCI 316564509 Contact Us For Availability
36A
WCI 316564506 WCI 316564506 Contact Us For Availability
37
WCI 316490000 WCI 316490000 Contact Us For Availability
37
WCI 316240600 WCI 316240600 Contact Us For Availability
44
WCI 316527509 WCI 316527509 Contact Us For Availability
44
WCI 316517600 WCI 316517600 Contact Us For Availability
44A
WCI 316527504 WCI 316527504 Contact Us For Availability
44B
WCI 316527513 WCI 316527513 Contact Us For Availability
44C
WCI 316527500 WCI 316527500 Contact Us For Availability
47
WCI GRLP3 WCI GRLP3 Contact Us For Availability
52
WCI 316575500 WCI 316575500 Contact Us For Availability
58A
WCI 316403700 WCI 316403700 Contact Us For Availability
58B
WCI 316403600 WCI 316403600 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
60
Screw,handle mtg. ,10-24 x 1.75`` ,(2) WCI 316439500 Contact Us For Availability
77
WCI 316456700 WCI 316456700 Contact Us For Availability
81
WCI 316437300 WCI 316437300 Contact Us For Availability
82
WCI 316400801 WCI 316400801 Contact Us For Availability
84
WCI 316093502 WCI 316093502 Contact Us For Availability
86
WCI 316441300 WCI 316441300 Contact Us For Availability
88
WCI 316099500 WCI 316099500 Contact Us For Availability
106
WCI 316404100 WCI 316404100 Contact Us For Availability
107
WCI 316026701 WCI 316026701 Contact Us For Availability
108
WCI 316256900 WCI 316256900 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
161
WCI 316211603 WCI 316211603 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
Screw,hex head cup pt ,8-18 x 0.375 ,black WCI 316021105 Contact Us For Availability
NI
Screw,wafer head `8-32T x 0.500 ,black WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
WCI 316215600 WCI 316215600 Contact Us For Availability
NI
WCI 316418900 WCI 316418900 Contact Us For Availability
NI
Screw,trilobe ,10-32 x 5/16`` ,black WCI 316418901 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
NI
WCI 316580301 WCI 316580301 Contact Us For Availability
NI
WCI 316401500 WCI 316401500 Contact Us For Availability
NI
Screw`hex ,8-18 x 3/8 `nick `(3) `regulator b WCI 316021104 Contact Us For Availability
× ![]()
