Model Electrolux CGEF3035RWD RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

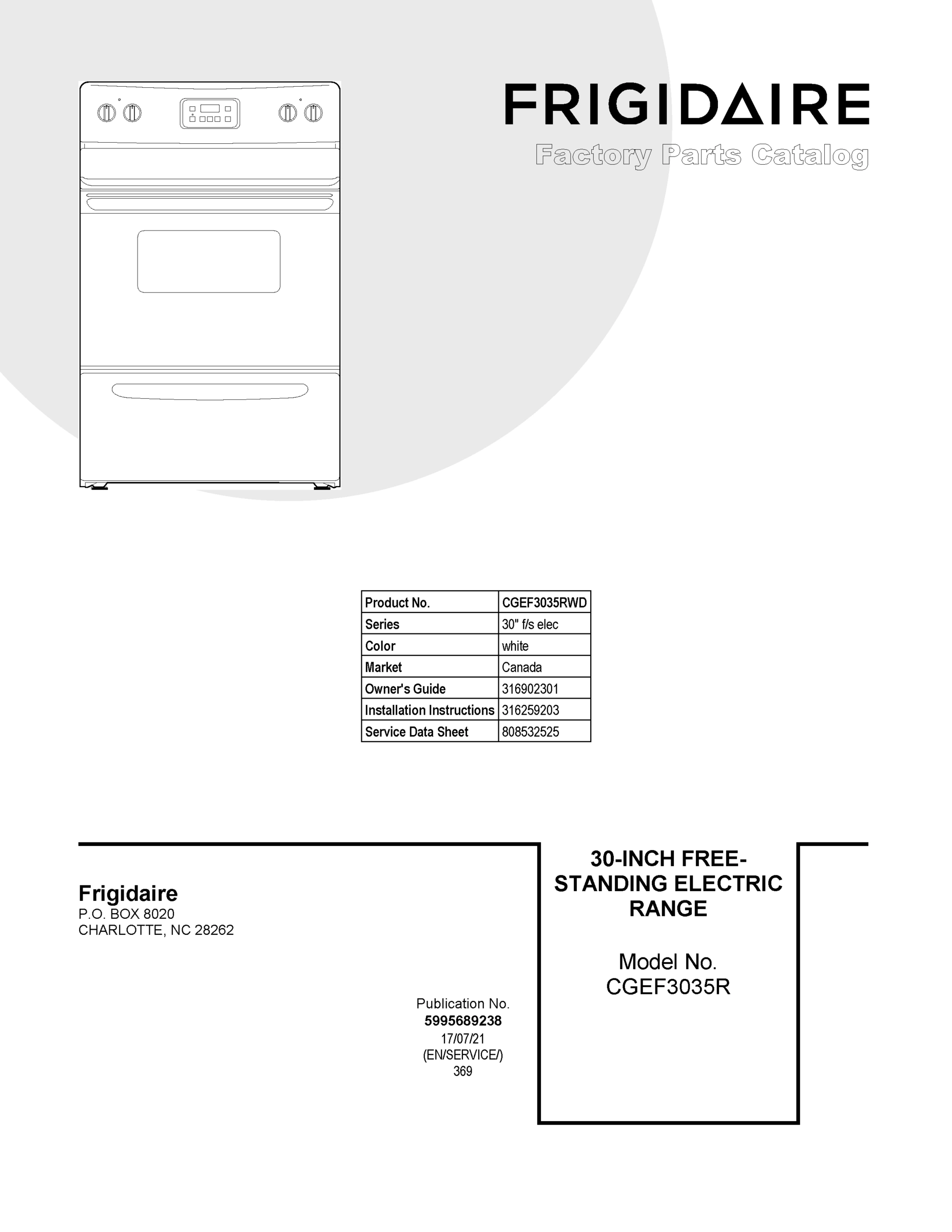

01 - COVER SHEET

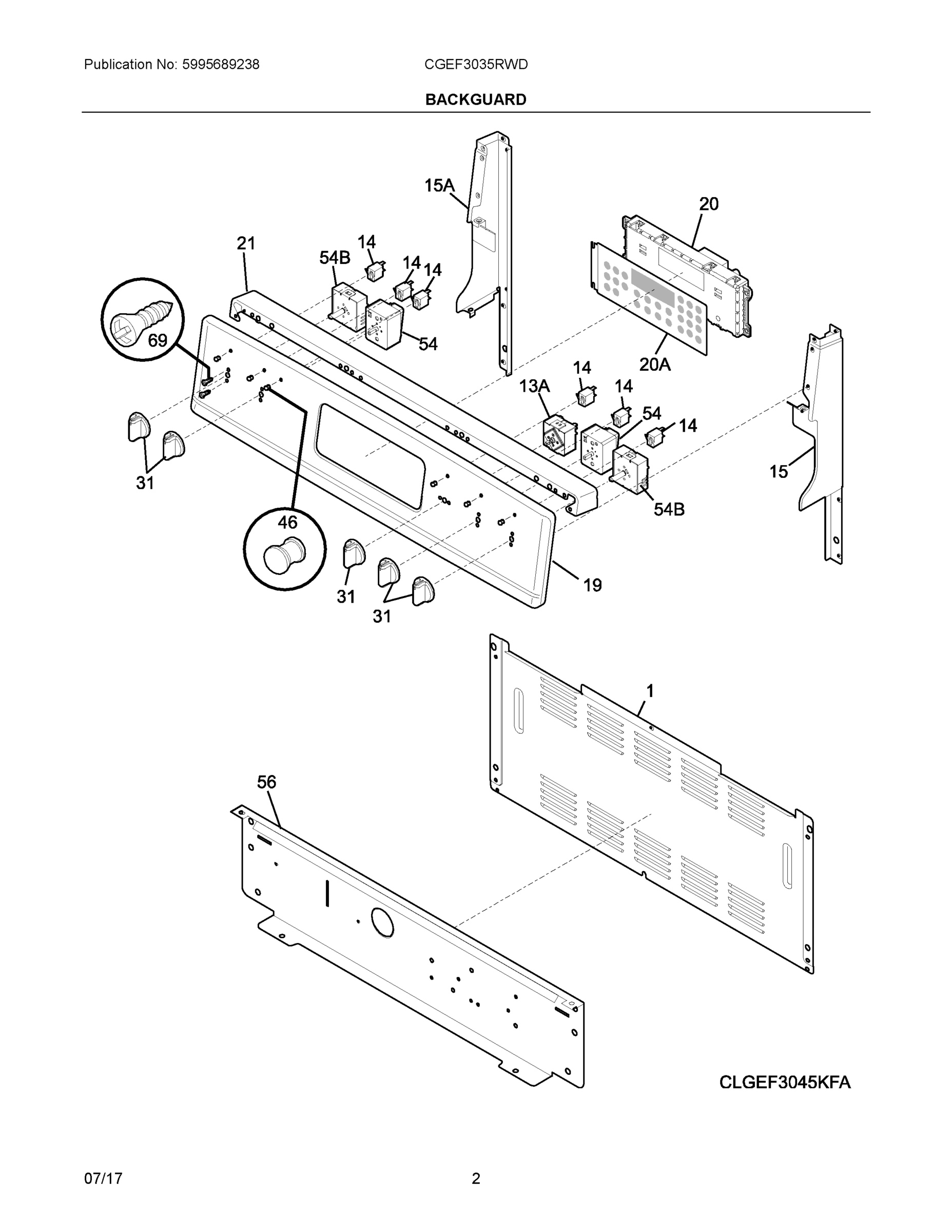

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux CGEF3035RWD RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
SHIELD, REAR WALL WCI 316557600 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316405600 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316505601 Contact Us For Availability
8
GLIDE, DRAWER, FRONT WCI 5304490938 Contact Us For Availability
8A
BASE, BAKE ELEMENT WCI 316505701 Contact Us For Availability
8B
BRACKET, SUPPORT, OVEN BOTTOM, (2) WCI 316506000 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316423707 Contact Us For Availability
10
SCREW, 10-14 X 2.125", HANDLE MTG. WCI 316433300 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316405000 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445500 Contact Us For Availability
13A
SWITCH, INFINITE, WARMER WCI 5304508926 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
NAMEPLATE WCI 316572700 Contact Us For Availability
15A
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15B
ELEMENT, DUAL, 9/12", SURFACE, 1700/2700W, DU WCI 316282101 Contact Us For Availability
16
MAINTOP, WHITE, W/BLACK GLASS WCI 807038639 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
19
PANEL, BACKGUARD, WHITE WCI 316572416 Contact Us For Availability
20
CLOCK, ES330I WCI 5304510064 Contact Us For Availability
20A
OVERLAY, CLOCK, WHITE, ES330ISB WCI 316419341 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
21
CAP, BACKGUARD, WHITE, TOP WCI 316546606 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR, BLACK WCI 316575909 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
29
GLIDE, DRAWER, FRONT WCI 807047102 Contact Us For Availability
31
KNOB, CONTROL, WHITE, (5) WCI 316544206 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
39
HANDLE, DOOR, WHITE WCI 316544501 Contact Us For Availability
42
SHIELD, WOOL, LOWER WCI 316400701 Contact Us For Availability
43
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK WCI 5303285179 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CAP, DOOR TRIM, WHITE WCI 316575500 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54B
SWITCH, INFINITE RADIAN, DUAL WCI 316238201 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
59
VENT TUBE, ASSEMBLY, W/CATALYST WCI 316208401 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
60
SCREW, HANDLE MTG., 10-24 X 1.75", (2) WCI 316439500 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203301 Contact Us For Availability
67
ELEMENT, BAKE, 3000W WCI 316505500 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
88
ROD, AUTO LATCH WCI 316203500 Contact Us For Availability
106
BRACKET, MOTOR MTG. WCI 316404100 Contact Us For Availability
107
COVER, FAN WCI 316026701 Contact Us For Availability
108
MOTOR-FAN WCI 316256100 Contact Us For Availability
109
FAN BLADE WCI 318398302 Contact Us For Availability
111
NUT, FAN RETAIN WCI 316136600 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 316089500 WCI 316089500 Contact Us For Availability
NI
WCI 316580280 WCI 316580280 Contact Us For Availability
NI
WCI 316282700 WCI 316282700 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
WCI 5308014215 WCI 5308014215 Contact Us For Availability
NI
HARNESS, WIRING, SURFACE UNITS WCI 316580474 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NI
WCI 316089501 WCI 316089501 Contact Us For Availability
NIA
WCI 316205500 WCI 316205500 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316247300 WCI 316247300 Contact Us For Availability
× ![]()
