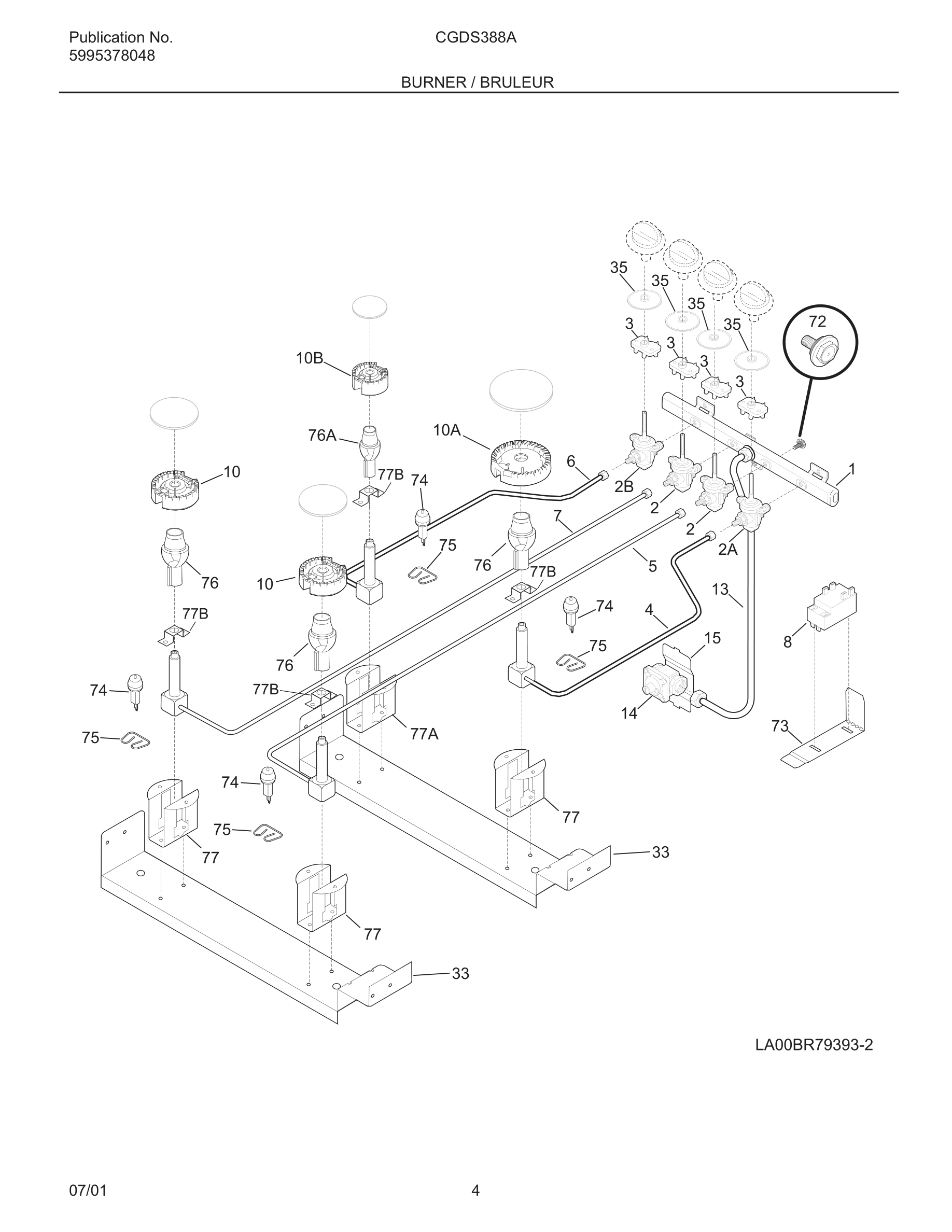

05 - BURNER / BRULEUR

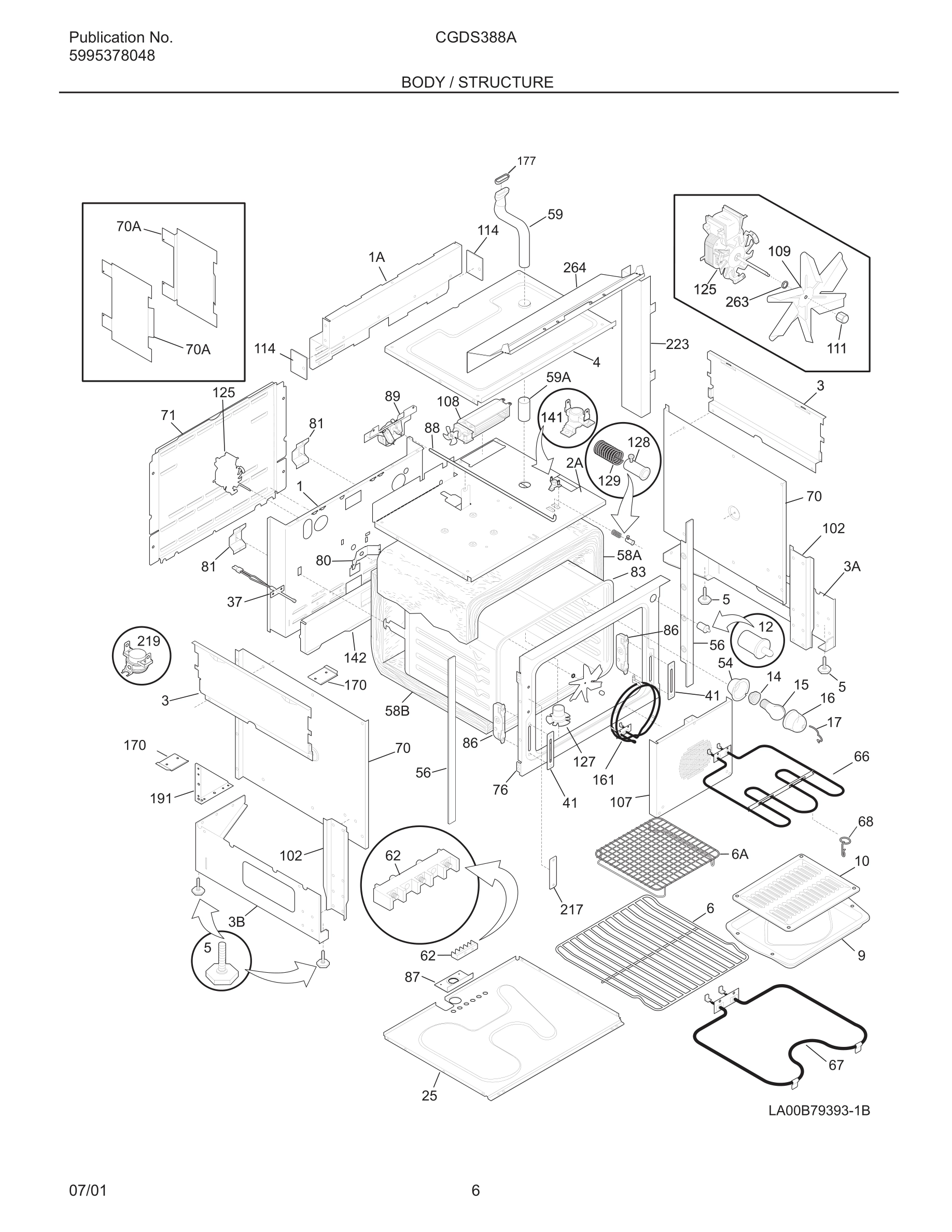

07 - BODY / STRUCTURE

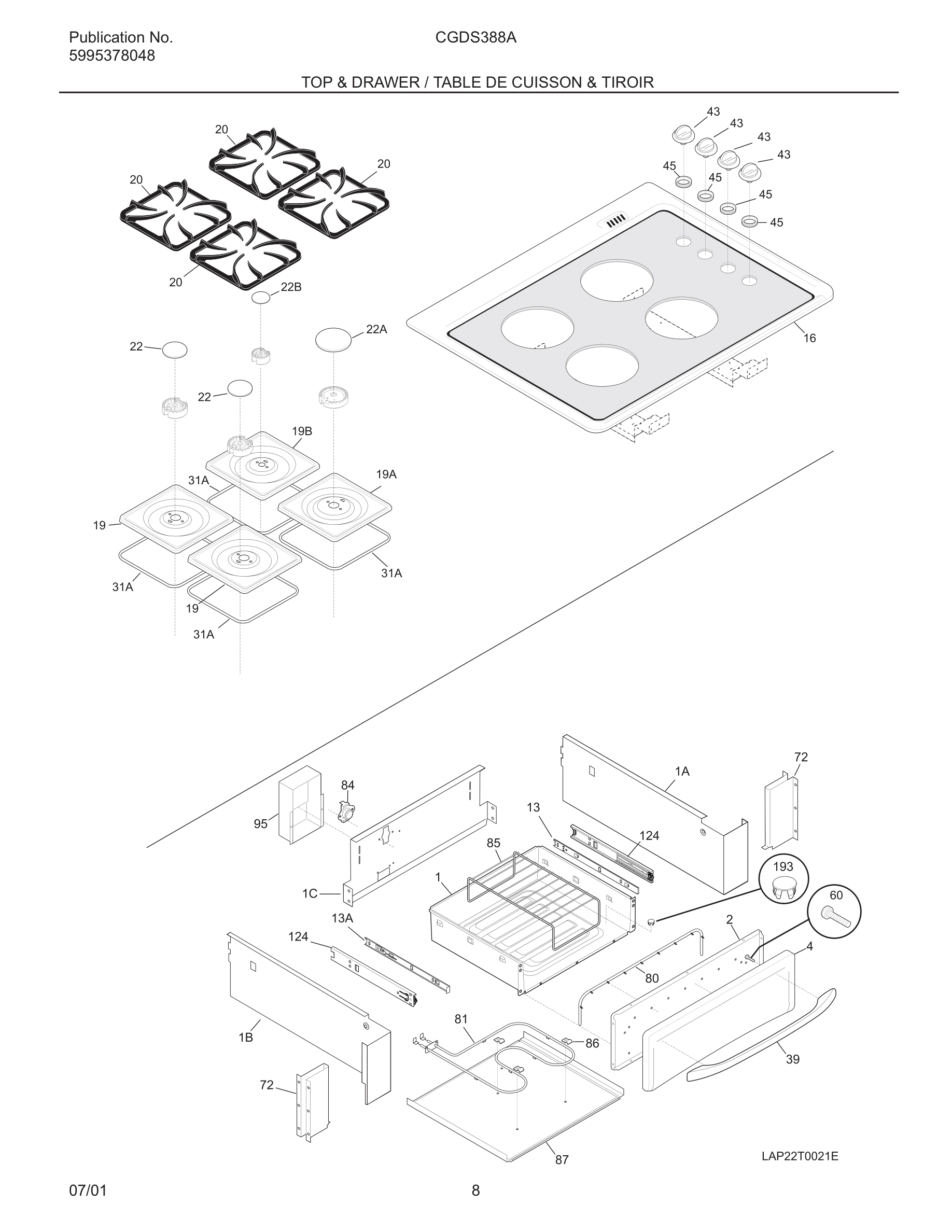

09 - TOP & DRAWER / TABLE DE CUISSON & TIROIR

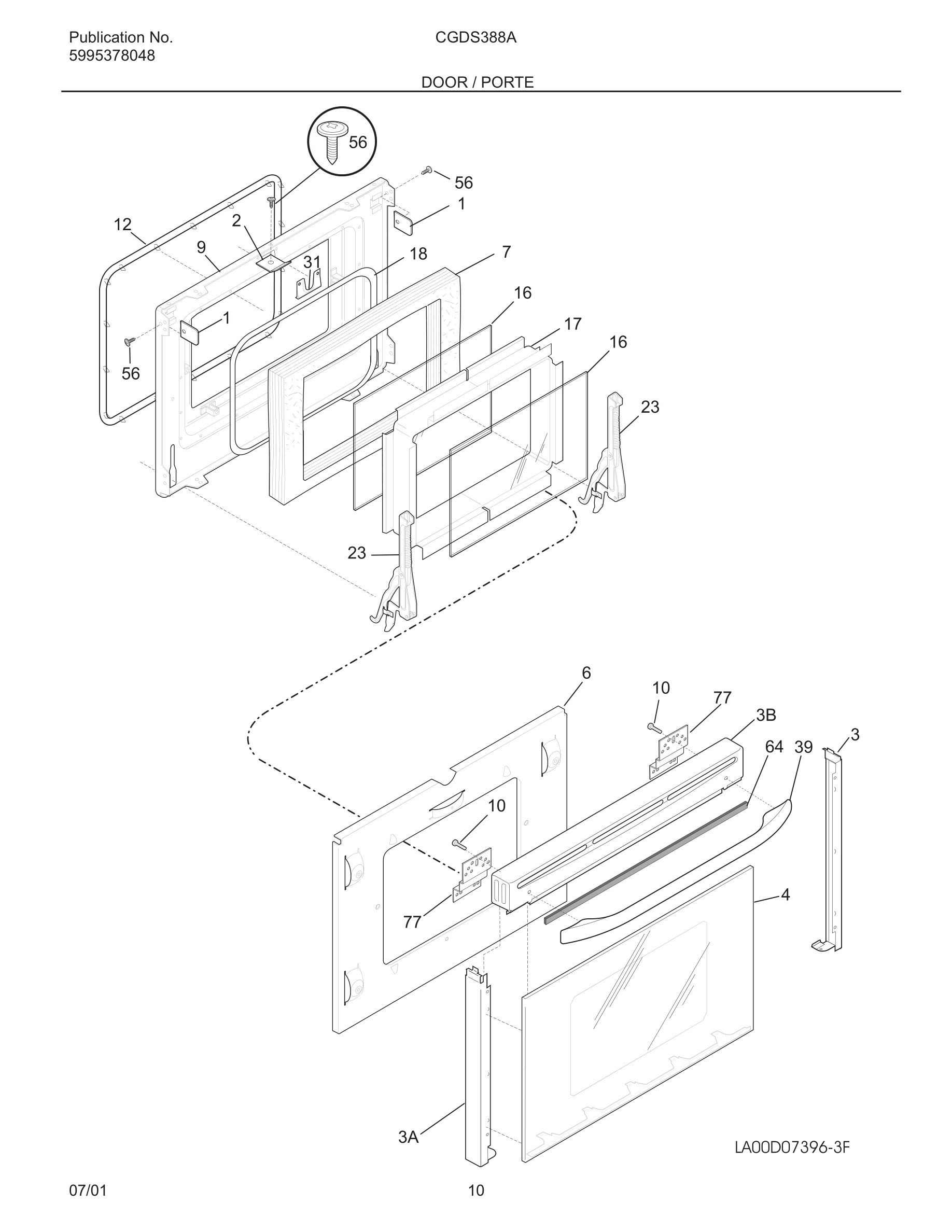

11 - DOOR / PORTE
12 - WIRING DIAGRAM
Common parts from model Electrolux CGDS388AB4 RANGE
*
Screw,10-24 x 0.500 ,probe,thrm brkt ,shield, WCI 08002868 Contact Us For Availability
*
Bushing,snap-in ,nylon WCI 5304400795 Contact Us For Availability
*
Washer,plastic WCI 5303325171 Contact Us For Availability
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
1
Drawer,warmer WCI 318142500 Contact Us For Availability
1
Bracket,trim mtg WCI 318180310 Contact Us For Availability
1A
Deflector,warmer drawer ,RH WCI 318143335 Contact Us For Availability
1B
Deflector,warmer drawer ,LH WCI 318143334 Contact Us For Availability
1C
Deflector,warmer drawer ,rear WCI 318143203 Contact Us For Availability
2
Liner,drawer WCI 318108021 Contact Us For Availability
2
Bracket,upper trim mtg WCI 318180312 Contact Us For Availability
2#
Valve,top burner ,2-position ,9100 BTU WCI 5303935042 Contact Us For Availability
2A#
Valve,top burner ,5000 BTU WCI 318087001 Contact Us For Availability
2B#
Valve,top burner ,13000 BTU WCI 318087040 Contact Us For Availability
3
Trim,door ,black ,RH side WCI 318187814 Contact Us For Availability
3#
Switch,ignitor WCI 316032002 Contact Us For Availability
3A
Trim,door ,black ,LH side WCI 318187815 Contact Us For Availability
3B
Trim,door ,black ,top WCI 318176647 Contact Us For Availability
4
Panel,drawer ,black ,front WCI 318134007 Contact Us For Availability
4
Panel,door front assy ,glass ,black ,with low WCI 318187714 Contact Us For Availability
5
Screw,leveling WCI 318175503 Contact Us For Availability
6
Shield,insulation WCI 318056802 Contact Us For Availability
6#
Tube,burner ,RR WCI 318167702 Contact Us For Availability
7
Insulation,oven door WCI 318133754 Contact Us For Availability
9
Liner,door WCI 318157011 Contact Us For Availability
10#
Burner,top ,9100 BTU ,medium LF & LR WCI 318148001 Contact Us For Availability
10A#
Burner,top ,13000 BTU ,large RF WCI 318148002 Contact Us For Availability
10B#
Burner,top ,5000 BTU ,small RR WCI 318148000 Contact Us For Availability
14#
Regulator,pressure WCI 318122700 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
16
Main Top,glass ,black WCI 318079223 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
19A
Pan,burner ,black ,large WCI 318168124 Contact Us For Availability
19B
Pan,burner ,black ,small WCI 318168104 No Longer Available
20
Grate,black ,(4) WCI 318120103 Contact Us For Availability
22A
Cap,burner ,black ,large RF WCI 318076420 Contact Us For Availability
22B
Cap,burner ,black ,small RR WCI 318076400 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
25
Shield,heat ,lower WCI 318179108 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
39
Handle,door ,black WCI 316203000 Contact Us For Availability
41
Cover,hinge cutout WCI 5303310526 Contact Us For Availability
43
Knob,control ,black WCI 318196141 Contact Us For Availability
45
Bushing WCI 318146210 Contact Us For Availability
54
Housing,oven light WCI 5303310514 Contact Us For Availability
56
Trim,oven ,black ,front WCI 318002611 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
59
Tube,oven vent ,upper WCI 318072519 Contact Us For Availability
59A
Tube,oven vent ,lower WCI 318072520 Contact Us For Availability
64
Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability
70
Shield,insulation WCI 318194400 Contact Us For Availability
70A
Deflector WCI 318199802 Contact Us For Availability
71
Panel,wiring cover ,rear WCI 5303310515 Contact Us For Availability
72
Bracket,slide ,(2) WCI 318113402 Contact Us For Availability
76
Front,oven WCI 318124100 Contact Us For Availability
76A
Tube,mixing ,small WCI 318167800 Contact Us For Availability
77
Bracket,burner mtg ,medium & large WCI 318112010 Contact Us For Availability
77
Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability
80
Plate,oven mtg WCI 5303320846 Contact Us For Availability
80
Gasket,warmer drawer WCI 318054300 Contact Us For Availability
81
Spring,oven WCI 318192400 Contact Us For Availability
83
Liner,oven WCI 318089609 Contact Us For Availability
84#
Thermostat,safety WCI 318005103 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
86
Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability
87
Plate,mounting WCI 318111801 Contact Us For Availability
87
Base,warmer WCI 318121503 Contact Us For Availability
88
Rod,latch WCI 318118904 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
95
Cover,wire WCI 318143702 Contact Us For Availability
102
Support,oven front WCI 5303311142 Contact Us For Availability
107
Cover,fan WCI 318119600 Contact Us For Availability
108#
Motor,blower WCI 318073012 Contact Us For Availability
114
Plate,filler WCI 318175100 Contact Us For Availability
125#
Motor,fan WCI 316234601 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141#
Switch,thermal cutout WCI 318005201 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
161#
Element,convection ,2500 W WCI 318050710 Contact Us For Availability
170
Anti-tip & accessories WCI 5304405244 Contact Us For Availability
177
Gasket,vent WCI 5303324040 Contact Us For Availability
191
Bracket,angle ,corner WCI 5303304030 Contact Us For Availability
193
Cap,plug WCI 5303325173 Contact Us For Availability
217
Warning plate WCI 5303325528 Contact Us For Availability
223
Cover,tube WCI 318038400 Contact Us For Availability
264
Cover,wire WCI 318077602 Contact Us For Availability
× ![]()
