Model Whirlpool CG205W GAS COOK-TOP – Common Parts &amp; Diagrams

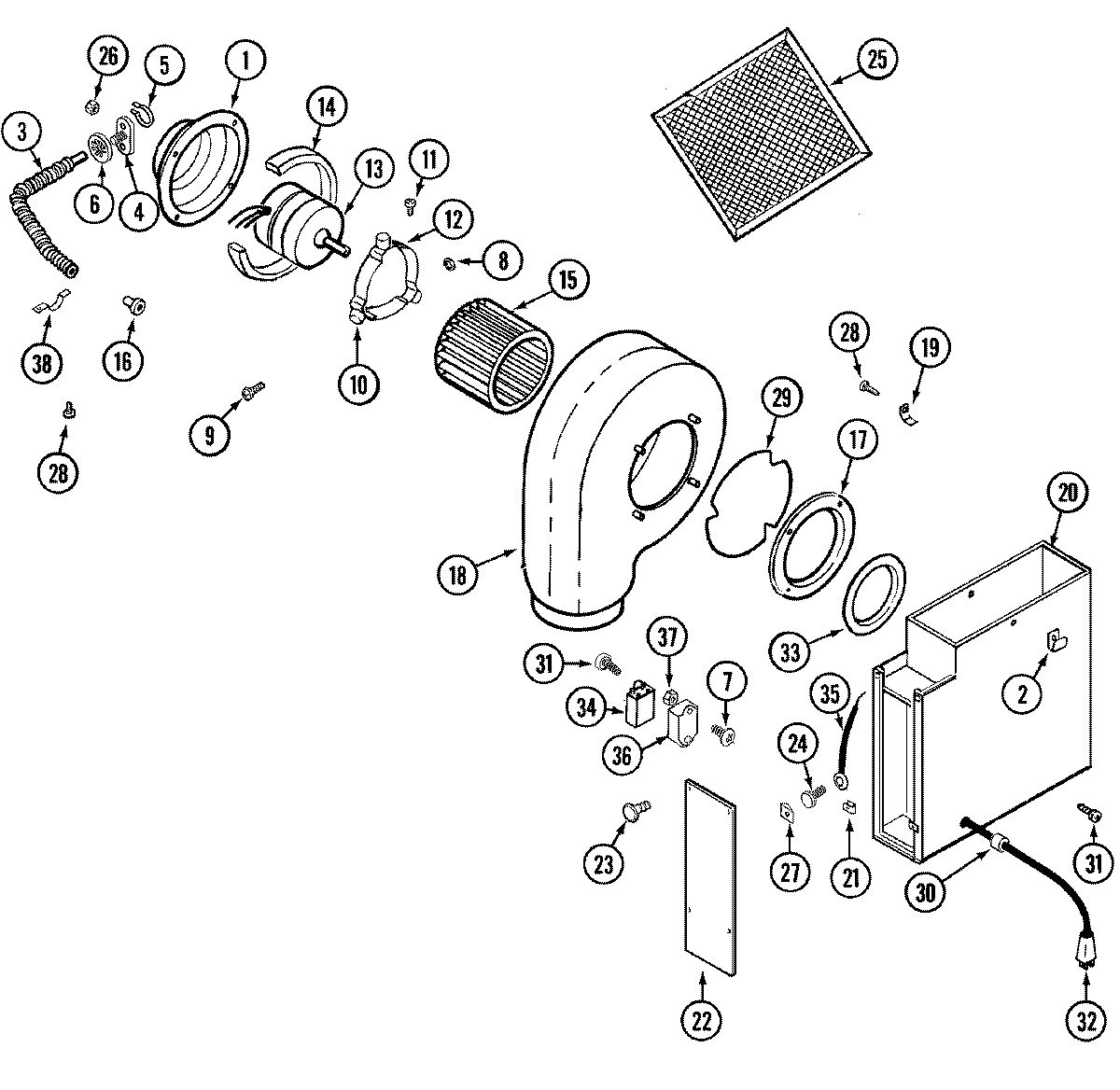

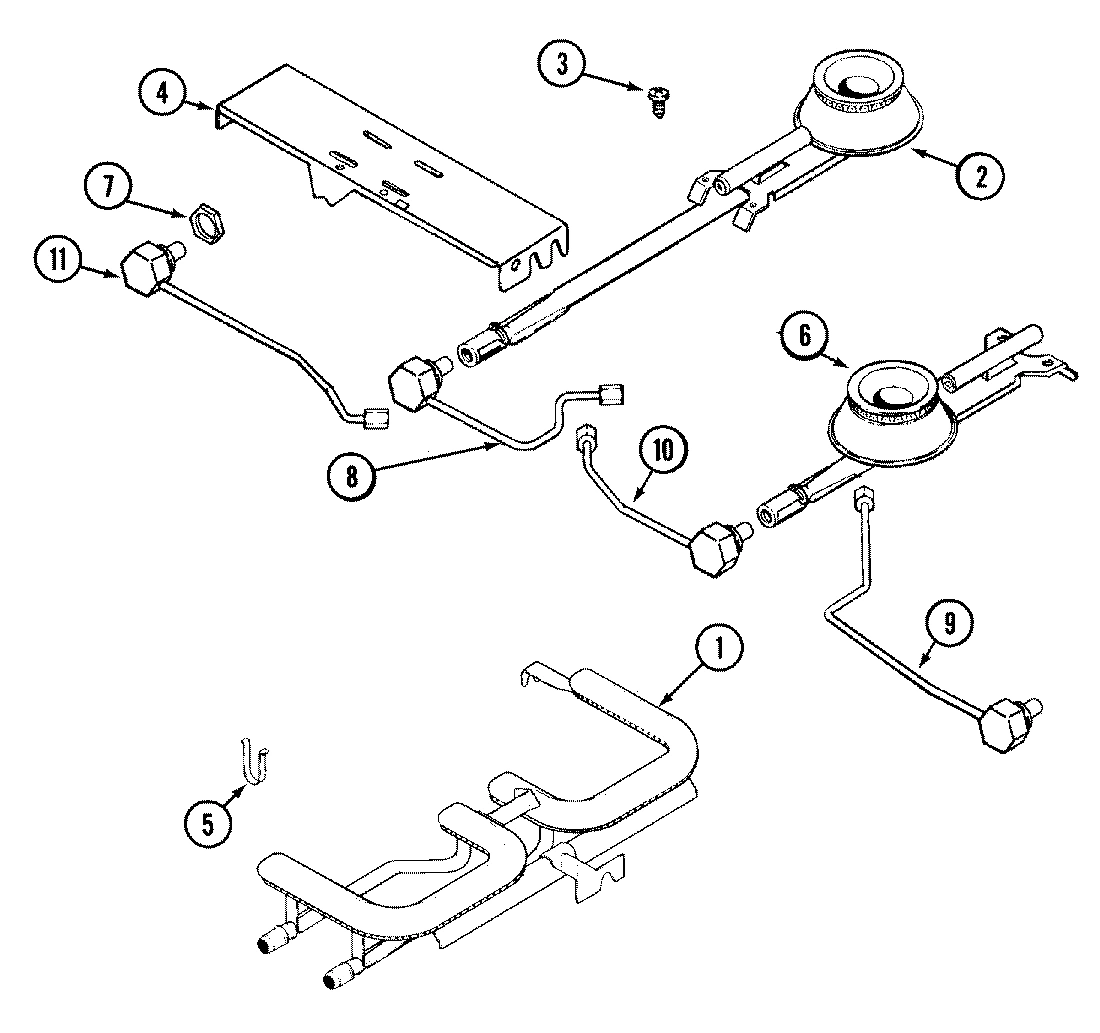

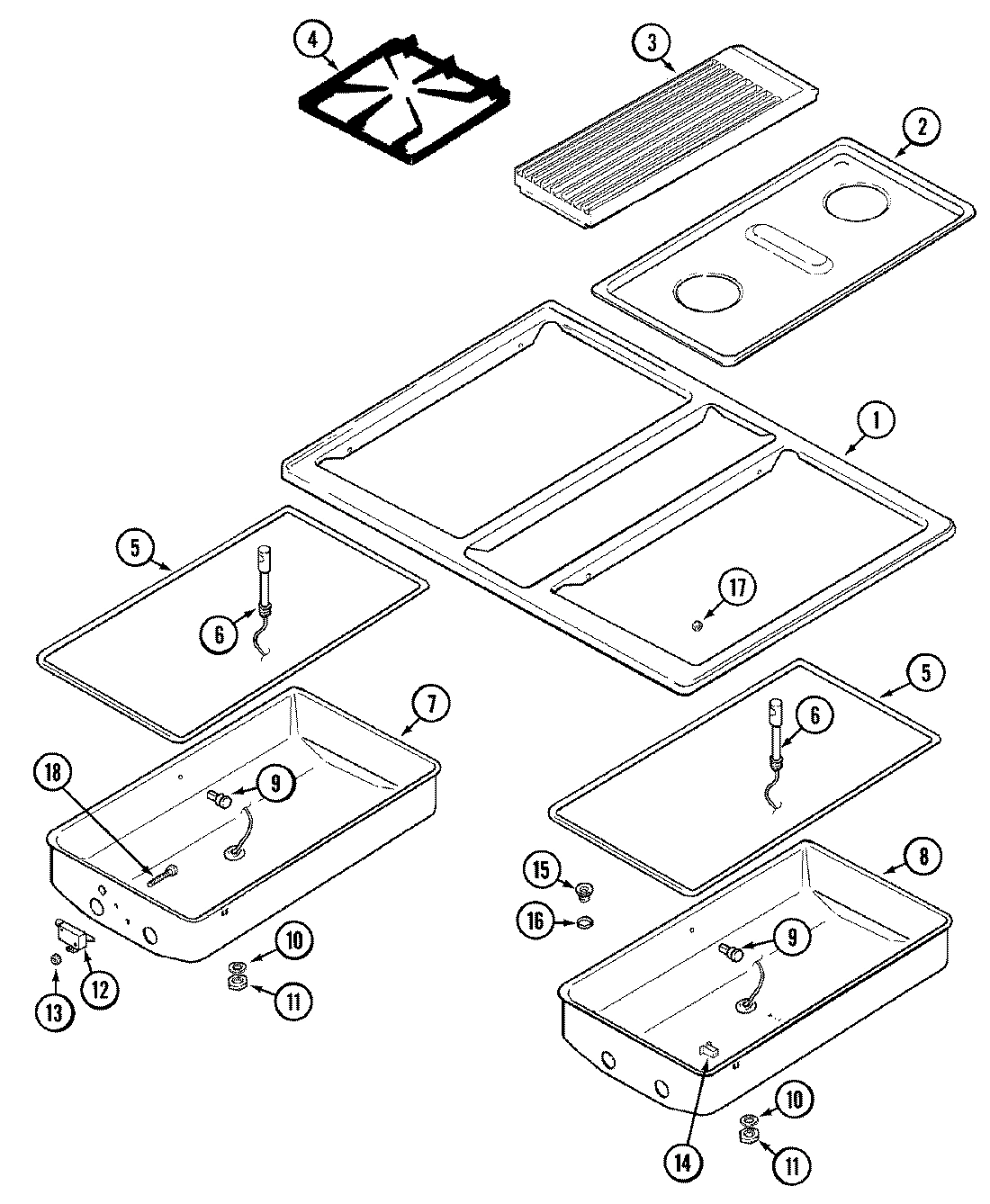

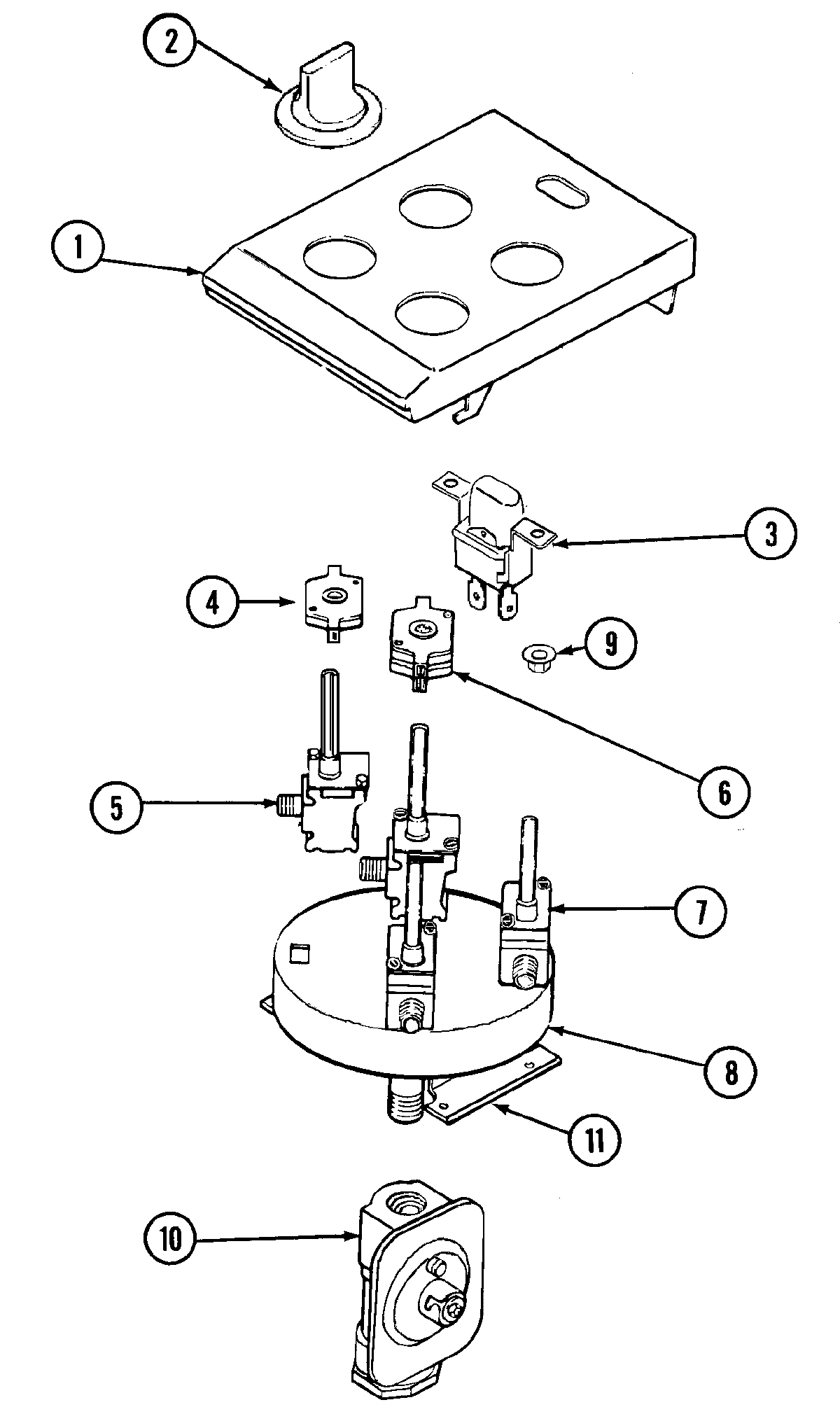

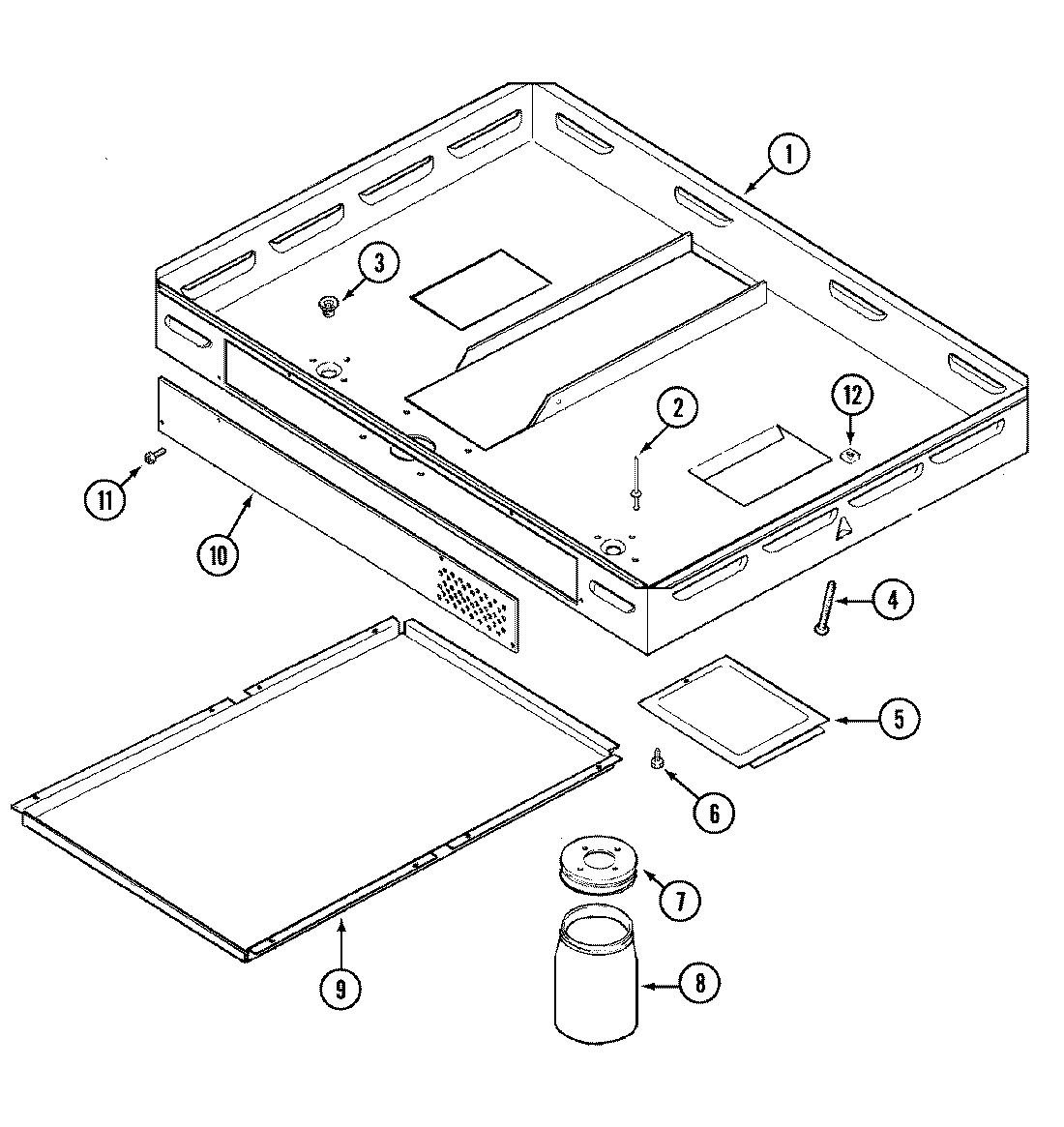

1

COVER, MOTOR WPL Y704968 Contact Us For Availability

1

MOTOR COVER ASSY WPL Y712550 Contact Us For Availability

1

TOP WPL Y704985 Contact Us For Availability

1

BOX, BURNER WPL Y712275 Contact Us For Availability

2

74005189 Whirlpool Rear Burner Backorder WPL 74005189 $157.53

2

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.75

2

WP71001653 Whirlpool Control Knob In Stock WPL WP71001653 $12.06

2

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

2

TINNERMAN WPL 712310 Contact Us For Availability

2

PAN, AERATION (WHT) WPL Y704510 Contact Us For Availability

3

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

SWITCH, FAN WPL Y704605 Contact Us For Availability

3

CONDUIT WPL Y707758 Contact Us For Availability

3

GRILL, AIR WPL Y705316 Contact Us For Availability

3

TUBE, DRAIN WPL 704546 Contact Us For Availability

4

WP3801F403-80 Whirlpool Bracket Backorder WPL WP3801F403-80 $32.79

4

WPY704512 Whirlpool VA Switch In Stock WPL WPY704512 $49.72

4

CONNECTOR WPL 707766 Contact Us For Availability

4

GRATE, BURNER WPL Y04100335 Contact Us For Availability

4

SCREW WPL Y707121 Contact Us For Availability

5

WP7502P382-60 Whirlpool Burner Valve Backorder WPL WP7502P382-60 $124.06

5

VALVE (RT) WPL 704504 Contact Us For Availability

5

SEAL, PAN WPL Y704979 Contact Us For Availability

5

COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability

5

CLIP, SPRING WPL 704549 Contact Us For Availability

6

WP71002179 Whirlpool Surface Igniter Backorder WPL WP71002179 $164.12

6

WPY704513 Whirlpool Oven Igniter Switch Backorder WPL WPY704513 $89.31

6

BURNER, FRONT WPL Y705318 Contact Us For Availability

7

WPY04100188 Whirlpool Burner Valve In Stock WPL WPY04100188 $127.04

7

VALVE (LT) WPL Y704505 Contact Us For Availability

7

SCREW WPL Y707150 Contact Us For Availability

7

PAN, GRILL WPL Y704924 Contact Us For Availability

7

LID, JAR WPL Y707870 Contact Us For Availability

7

WASHER WPL Y704947 Contact Us For Availability

7

NUT, 5/8`` HEX WPL Y704977 Contact Us For Availability

8

WPY707869 Whirlpool Drain Jar Backorder WPL WPY707869 $35.95

8

HARNESS, WIRE WPL 704556 Contact Us For Availability

8

MANIFOLD WPL Y712273 Contact Us For Availability

8

CLIP WPL Y707335 Contact Us For Availability

8

NUT WPL 707161 Contact Us For Availability

8

PAN, GRILL (RT) WPL 704925 Contact Us For Availability

8

TUBE (RR) WPL Y04100208 Contact Us For Availability

8

TUBE, RIGHT REAR WPL Y705164 Contact Us For Availability

9

PALNUT WPL Y705023 Contact Us For Availability

9

SCREW WPL Y707402 Contact Us For Availability

9

PIN, LOCATOR WPL 704536 Contact Us For Availability

9

BAFFLE, BOTTOM (LT) WPL 704527 Contact Us For Availability

9

TUBE (RR) WPL Y04100206 Contact Us For Availability

9

TUBE, REAR WPL Y705162 Contact Us For Availability

W11106948 Whirlpool Pressure Regulator In Stock WPL W11106948 $118.64

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $5.32

LOCKWASHER WPL 704568 Contact Us For Availability

COVER, FRONT WPL Y704538 Contact Us For Availability

TUBE (LF) WPL Y04100207 Contact Us For Availability

TUBE, FRONT WPL Y705163 Contact Us For Availability

12001809 Whirlpool Oven LP Conversion Kit Backorder WPL 12001809 $29.30

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

BRACKET, MANIFOLD WPL 71001642 Contact Us For Availability

SCREW WPL 707407 Contact Us For Availability

TUBE (RF) WPL Y04100209 Contact Us For Availability

TUBE, RIGHT FRONT WPL Y705165 Contact Us For Availability

7403P620-60 Whirlpool Switch Backorder WPL 7403P620-60 $61.62

M0282009 Whirlpool Air Conditioner Nut Backorder WPL M0282009 $9.75

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.51

BAND, MOTOR WPL Y707393 Contact Us For Availability

13

MOTOR, BLOWER WPL Y705032 Contact Us For Availability

13

NUT WPL Y704522 Contact Us For Availability

13

INSULATOR, SWITCH WPL Y704534 Contact Us For Availability

14

FOAM, URETHANE WPL Y715957 Contact Us For Availability

14

CLIP, RETAINER WPL Y700503 Contact Us For Availability

15

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $84.38

15

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

16

BUSHING WPL 712311 Contact Us For Availability

16

WASHER (TEFLON) WPL 715617 Contact Us For Availability

17

Y052721 Whirlpool Nut Backorder WPL Y052721 $14.77

17

RING, INLET WPL Y704758 Contact Us For Availability

18

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

18

SCREW WPL 702380 Contact Us For Availability

19

RETAINER, FILTER WPL Y707688 Contact Us For Availability

20

LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability

20

PLENUM WPL 712312 Contact Us For Availability

22

PLATE, COVER WPL 704547 Contact Us For Availability

23

CLIP WPL 705463 Contact Us For Availability

25

WP707929 Whirlpool Grease Filter In Stock WPL WP707929 $14.27

26

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $2.55

27

CLIP, TINNERMAN WPL 701958 Contact Us For Availability

28

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.55

30

RELIEF, STRAIN WPL 704554 Contact Us For Availability

32

CORD, POWER WPL 704548 Contact Us For Availability

33

CLIP, J WPL Y700556 Contact Us For Availability

33

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

34

CLIP, J WPL Y704423 Contact Us For Availability

34

RELAY WPL Y704541 Contact Us For Availability

35

WIRE, GREEN WPL 704514 Contact Us For Availability

35

PLUG, MALE LOAD WPL 704542 Contact Us For Availability

36

MODULE, SPARK WPL Y704540 Contact Us For Availability

37

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

38

CLAMP, CABLE WPL 715780 Contact Us For Availability
