Model Electrolux CFEF3054TDD RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

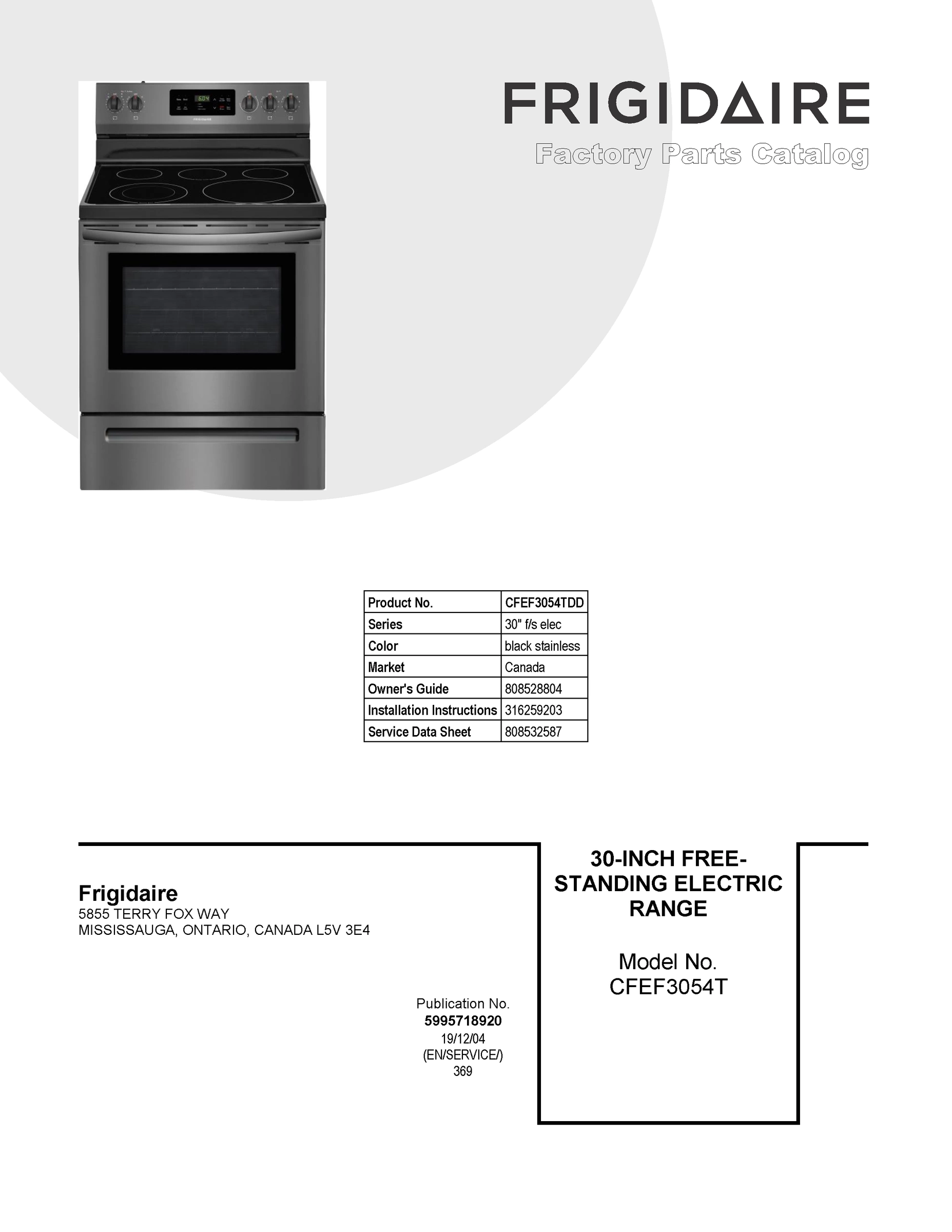

01 - COVER SHEET
02 - BACKGUARD

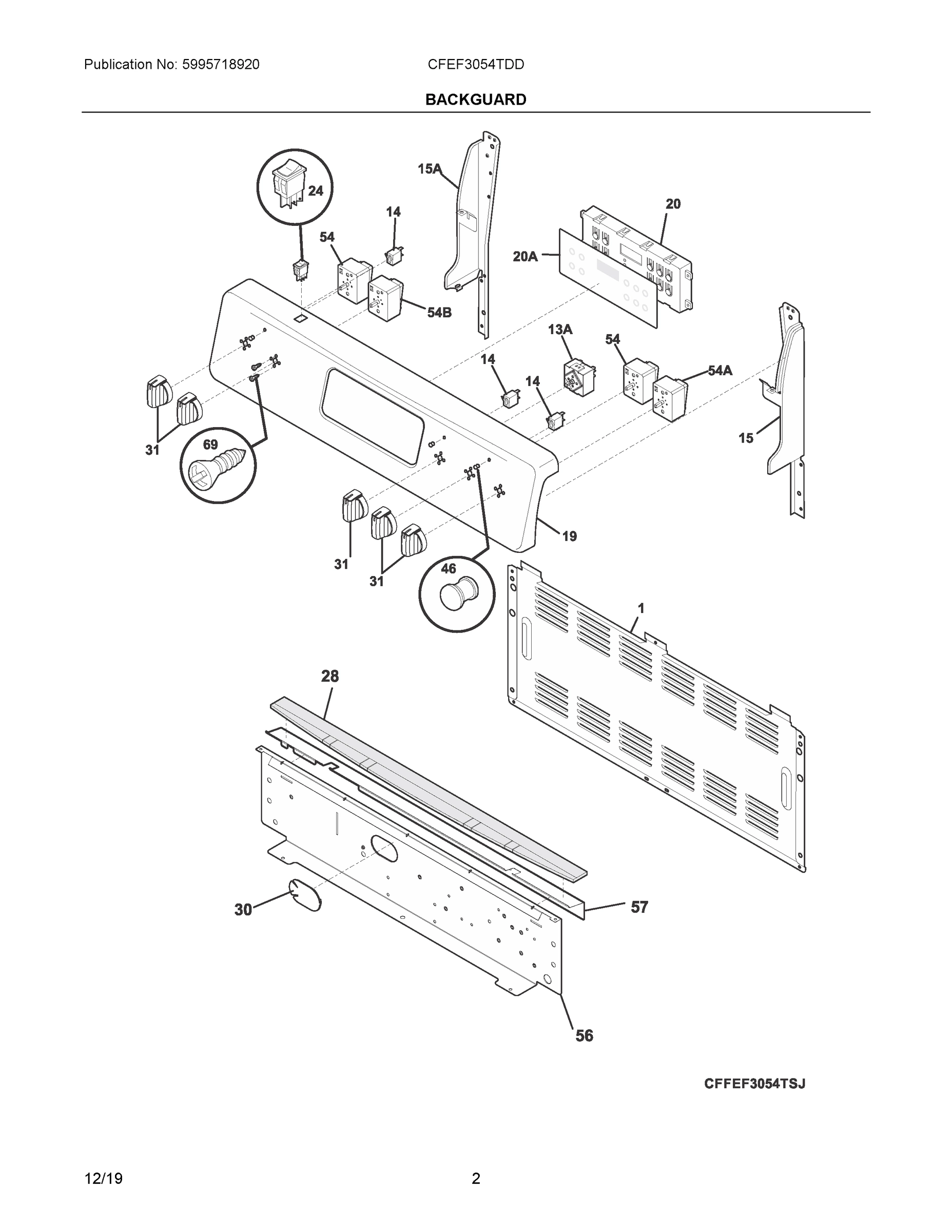

03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux CFEF3054TDD RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
1
WCI 316281802 WCI 316281802 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, W/FOIL WCI 316452758 Contact Us For Availability
4
PANEL, DRAWER, BLACK STAINLESS, W/INTEGRTD HO WCI 5304510526 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316405600 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400601 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316423707 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
SCREW, HANDLE MTG., 10-24 X 1.75", (2) WCI 316439500 Contact Us For Availability
10
INSERT, BROILER PANOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
11
BRACKET, REAR SUPPORT, (2) WCI 5304517906 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316405000 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445501 Contact Us For Availability
13
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
13A
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
13A
WCI 5304522964 WCI 5304522964 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
14A
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
15
CAP, END, BLACK, RH WCI 5304493644 Contact Us For Availability
15A
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15A
CAP, END, BLACK, LH WCI 5304493646 Contact Us For Availability
15B
ELEMENT, SURFACE, 12", 2700W WCI 316291200 Contact Us For Availability
15C
WCI 5304521951 WCI 5304521951 Contact Us For Availability
16
SMOOTHTOP, ASSEMBLY, GLASS/STEEL, BLACK/WHITE WCI 5304513244 Contact Us For Availability
16
GLASS, DOOR, AIRWASH WCI 316552801 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
19
PANEL, BACKGUARD, BLACK STAINLESS WCI 5304509212 Contact Us For Availability
20
SPACER, DOOR HANDLE, (2) WCI 316284100 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK, ES300 WCI 316419145 Contact Us For Availability
21
PLATE, DISTRIBUTION, LOAD WCI 316533801 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR, BROWN WCI 316575911 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
28
INSULATION, MANIFOLD PANEL WCI 316528700 Contact Us For Availability
31
KNOB, CONTROL, BLACK WCI 5304508956 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
39
HANDLE, DOOR, BLACK STAINLESS WCI 5304509119 Contact Us For Availability
40
BRACKET, AIRWASH GLASS, (2) WCI 316552401 Contact Us For Availability
42
SHIELD, WOOL, LOWER WCI 316400701 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54B
WCI 5304522918 WCI 5304522918 Contact Us For Availability
55
BRACKET, GLASS SUPPORT, (4) WCI 316408300 Contact Us For Availability
56
SHIELD, BACKGUARD, BLACK, INNER WCI 316234045 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
57
WCI 808950202 WCI 808950202 Contact Us For Availability
58
INSULATION, OVEN BOTTOM WCI 316403803 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316406500 Contact Us For Availability
59
VENT TUBE, ASSEMBLY, W/CATALYST WCI 316208401 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
60B
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
66
ELEMENT, BROIL, 4 PASS WCI 316203200 Contact Us For Availability
68
WCI 316404002 WCI 316404002 Contact Us For Availability
71
SHIELD, REAR WALL WCI 316283204 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
88
ROD, AUTO LATCH WCI 316203500 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
WCI 5304516199 WCI 5304516199 Contact Us For Availability
NI
WCI 316282700 WCI 316282700 Contact Us For Availability
NI
SCREW, TRILOBE, 10-32 X 5/16", BLACK WCI 316418901 Contact Us For Availability
NI
WCI 316506000 WCI 316506000 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NIA
WCI 316205500 WCI 316205500 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NIA
WCI 316247300 WCI 316247300 Contact Us For Availability
× ![]()
