Model Electrolux CFEF3024RSC RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

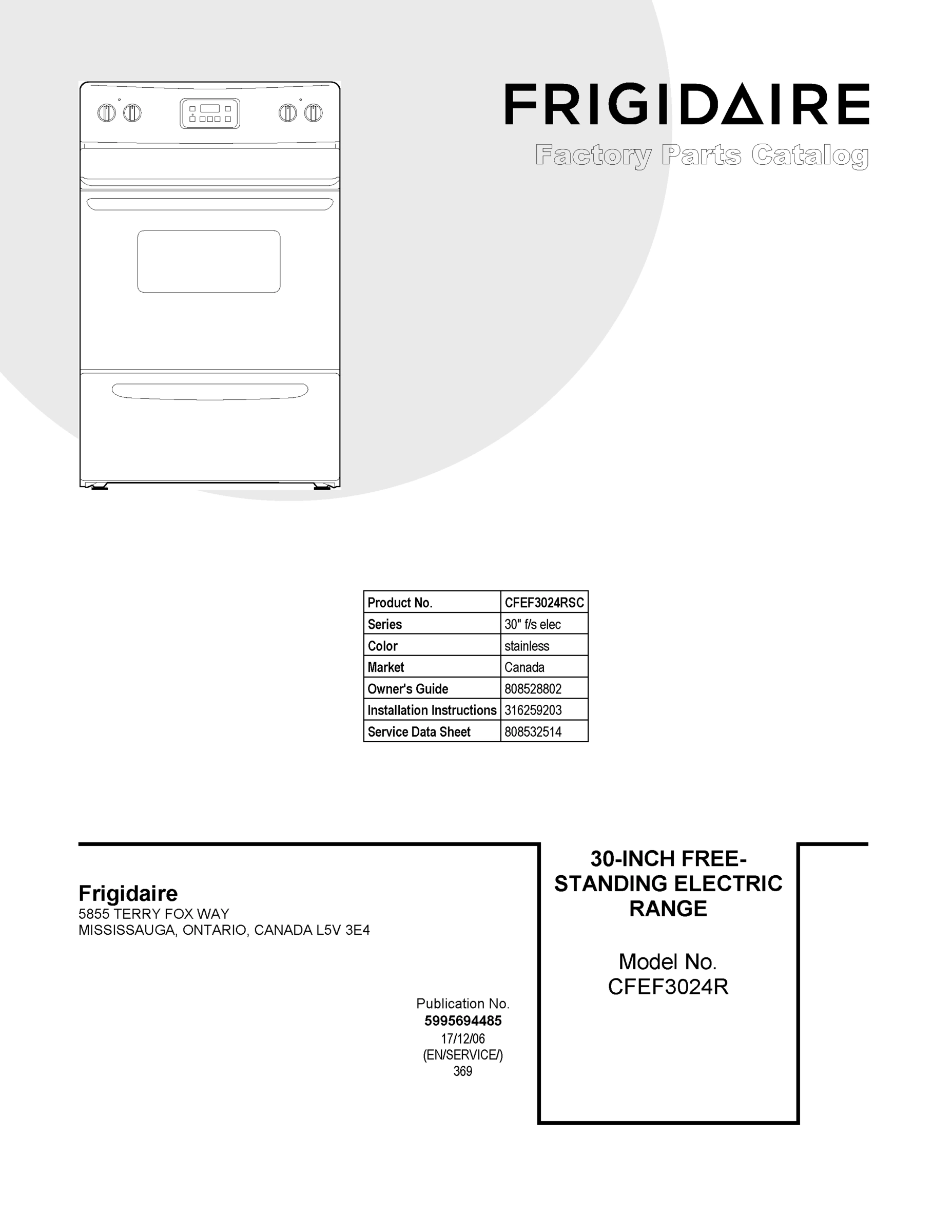

01 - COVER SHEET

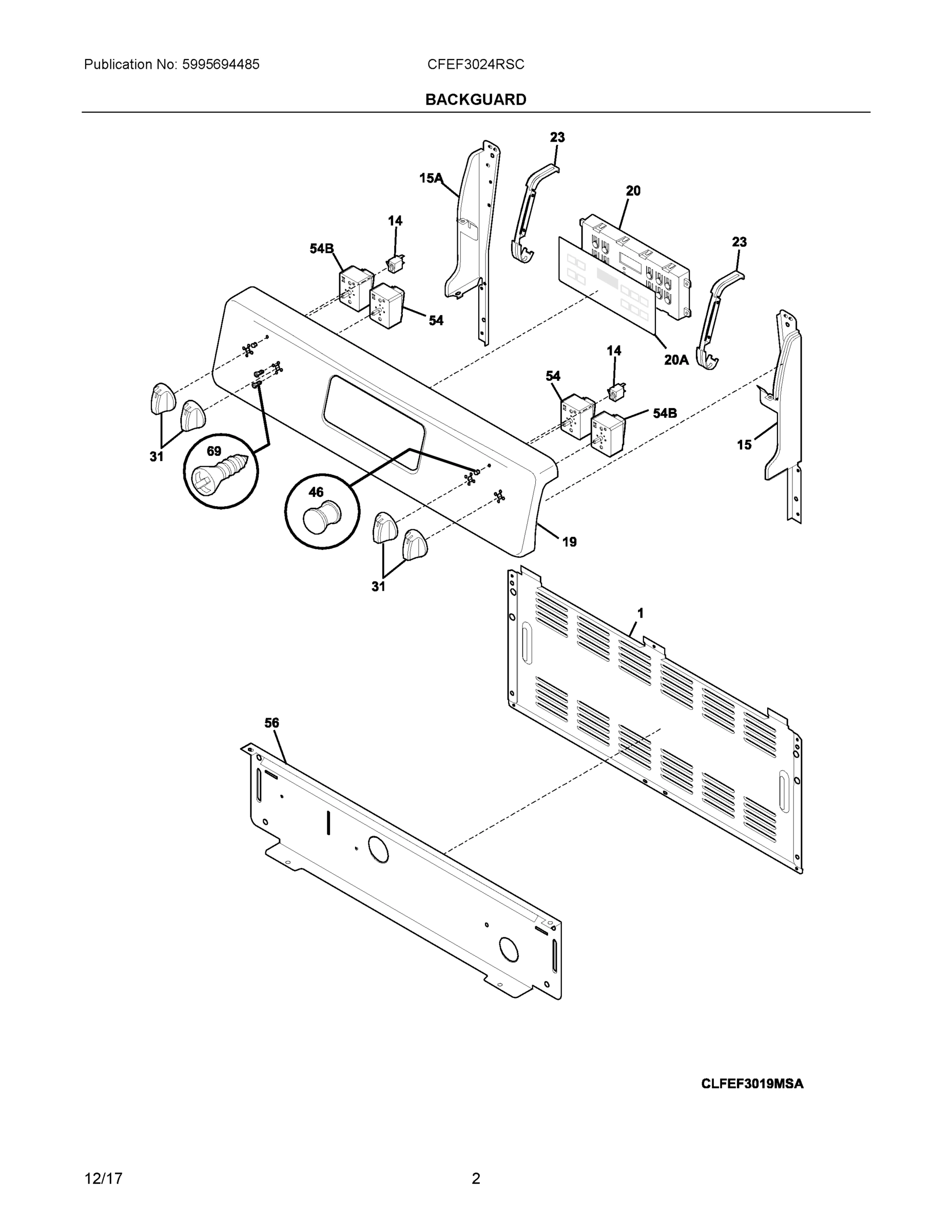

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux CFEF3024RSC RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
3
TRIM KIT-DOOR, 3 SIDED, BLACK, W/TAPE WCI 5303935377 Contact Us For Availability
4
GLASS ASSEMBLY, OVEN DOOR, W/TAPE, OUTER WCI 316453030 Contact Us For Availability
4
PANEL, DRAWER FRONT, BLACK WCI 316403525 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316405600 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400601 Contact Us For Availability
8A
BASE, BAKE ELEMENT WCI 316411106 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316423707 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
INSERT, BROILER PANOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316405000 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445500 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
SUPPORT, BACKGUARD, BLACK, RH WCI 316411405 Contact Us For Availability
15A
ELEMENT, DUAL, 9"/6", SURFACE, 1300W/1200W, ( WCI 316555800 Contact Us For Availability
15A
SUPPORT, BACKGUARD, BLACK, LH WCI 316411404 Contact Us For Availability
16
MAINTOP ASSEMBLY, GLASS/SMOOTHTOP, BLACK WCI 316282951 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
20
CLOCK, ES330I WCI 5304510064 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK, ES330I WCI 316419353 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
BRACKET-CLOCK MTG, BLACK WCI 316441600 Contact Us For Availability
23
HINGE, OVEN DOOR, BROWN WCI 316575911 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
26B
BRACKET, CHASSIS SUPPORT, FRONT WCI 316214202 Contact Us For Availability
31
KNOB, CONTROL, BLACK WCI 316543801 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
46
LENS, INDICATOR LIGHT WCI 316437900 Contact Us For Availability
52
CAP, DOOR TRIM, BLACK WCI 316575501 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54B
SWITCH, INFINITE RADIAN, DUAL WCI 316238201 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58
INSULATION, OVEN SUMP WCI 316403802 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316406500 Contact Us For Availability
59
VENT TUBE, ASSEMBLY, W/CATALYST WCI 316208401 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203301 Contact Us For Availability
67
ELEMENT, BAKE, HIDDEN WCI 316413800 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
88
ROD, AUTO LATCH WCI 316203500 Contact Us For Availability
106
BRACKET, MOTOR MTG. WCI 316404100 Contact Us For Availability
107
COVER, FAN WCI 316026701 Contact Us For Availability
108
MOTOR-FAN WCI 316256100 Contact Us For Availability
109
FAN BLAD WCI 318398302 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
WCI 316205500 WCI 316205500 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
WCI 316580297 WCI 316580297 Contact Us For Availability
NI
WCI 316089501 WCI 316089501 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316247300 WCI 316247300 Contact Us For Availability
× ![]()
