Model Electrolux CFEF3016VWC RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

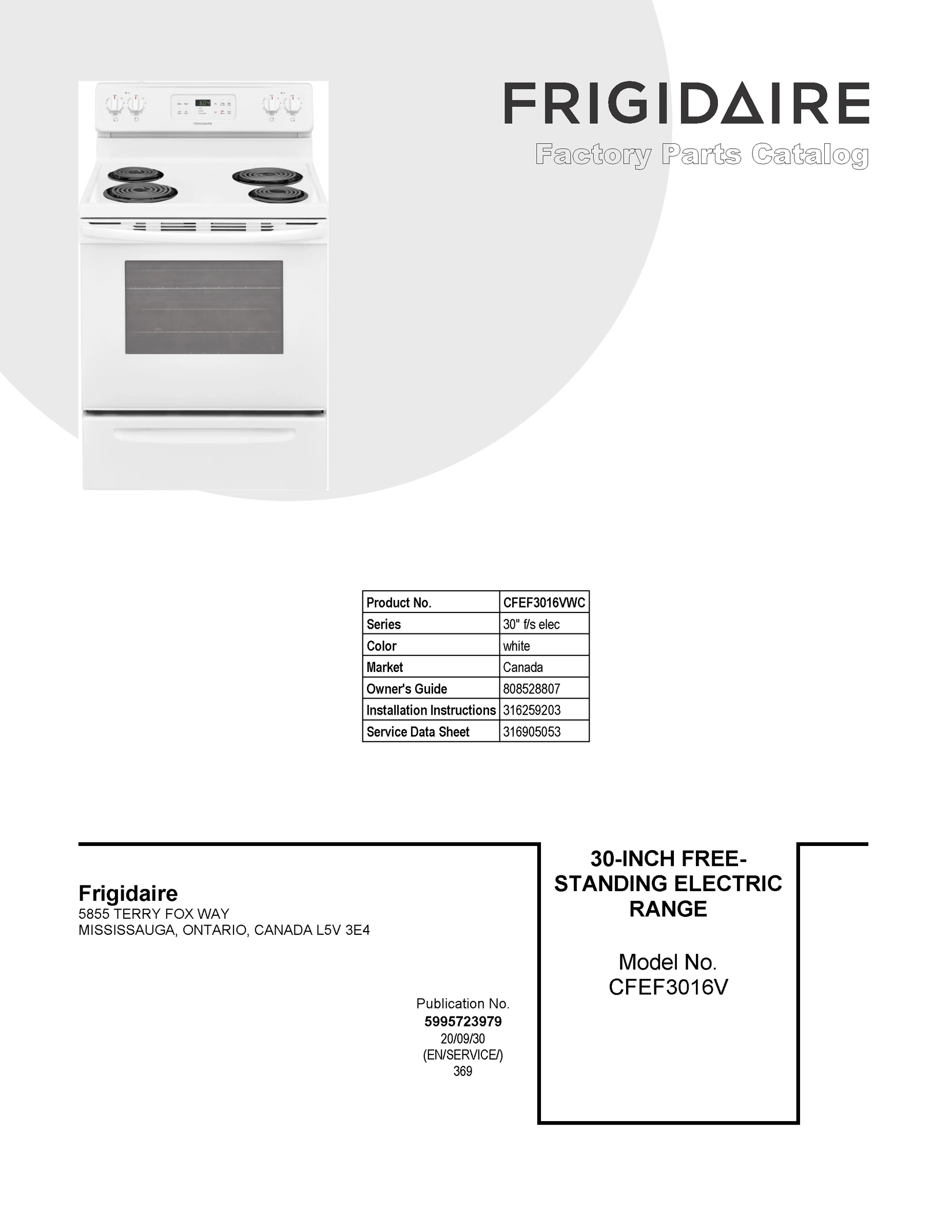

01 - COVER SHEET

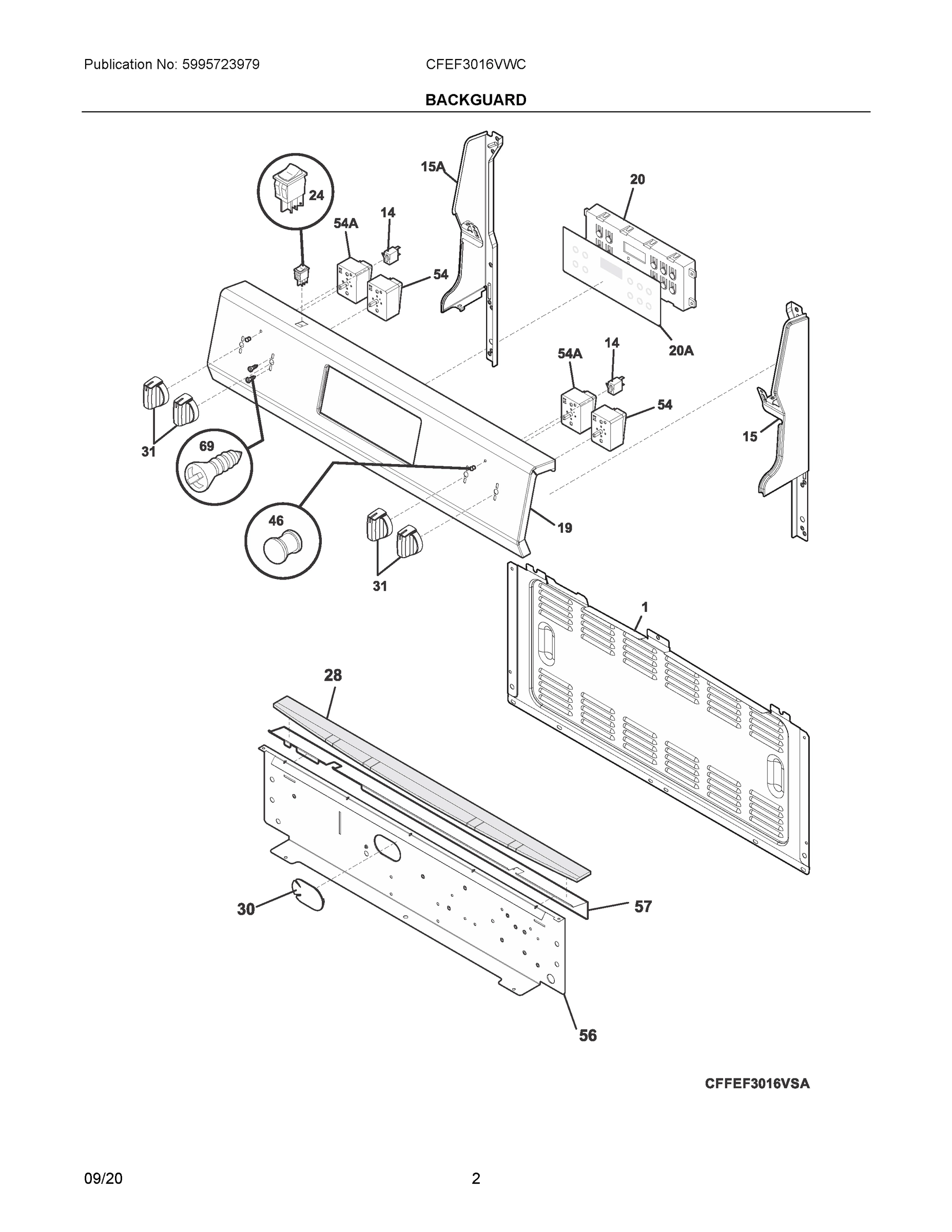

02 - BACKGUARD

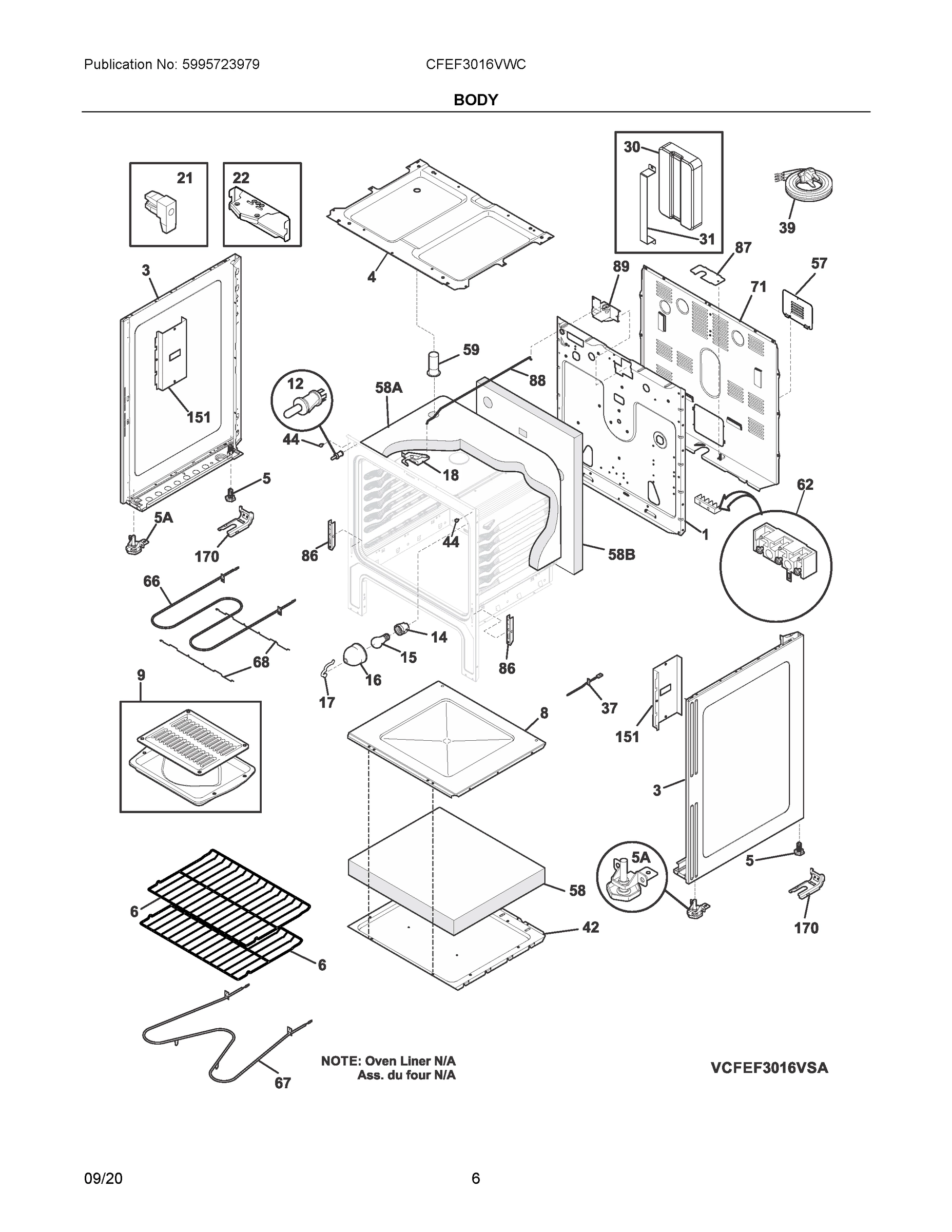

03 - BODY

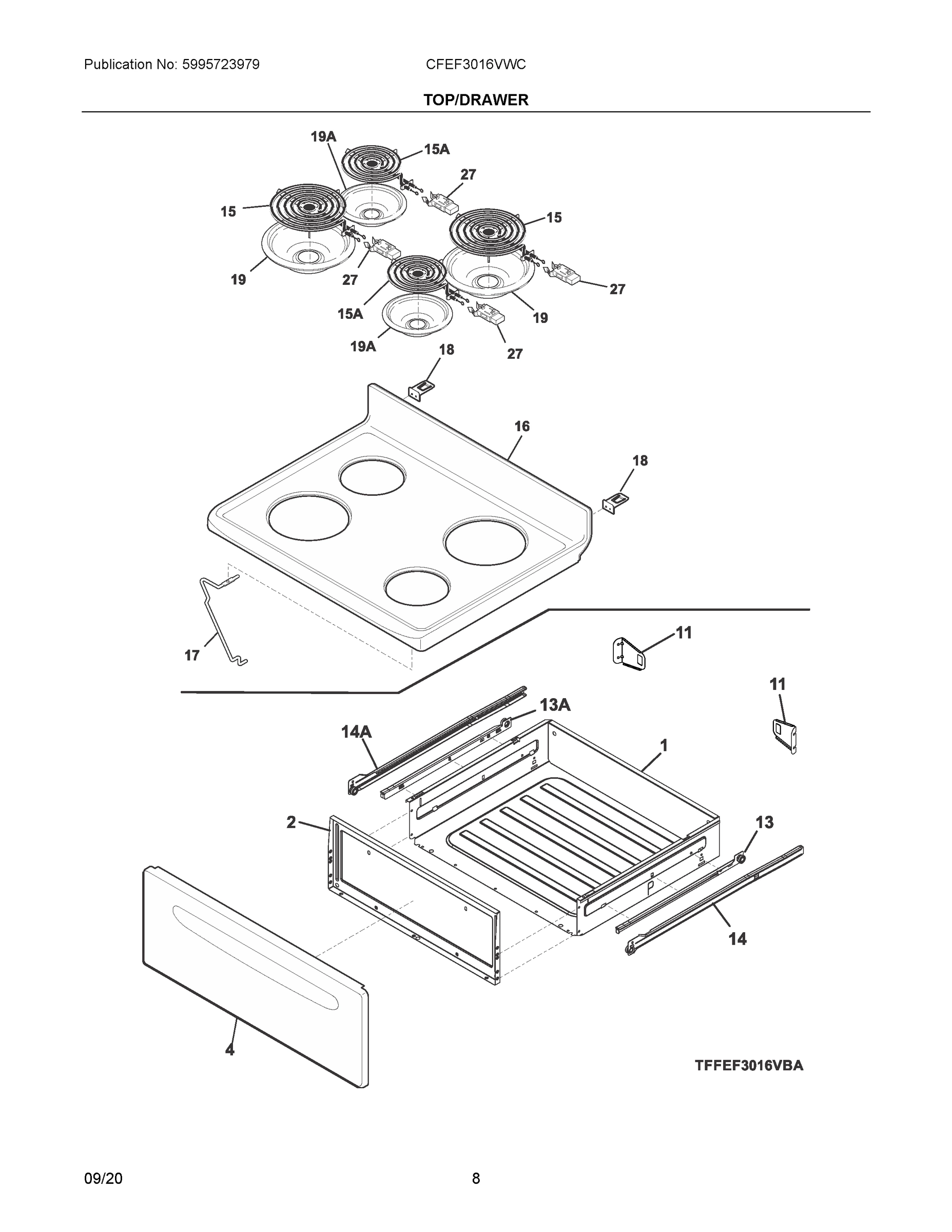

04 - TOP/DRAWER

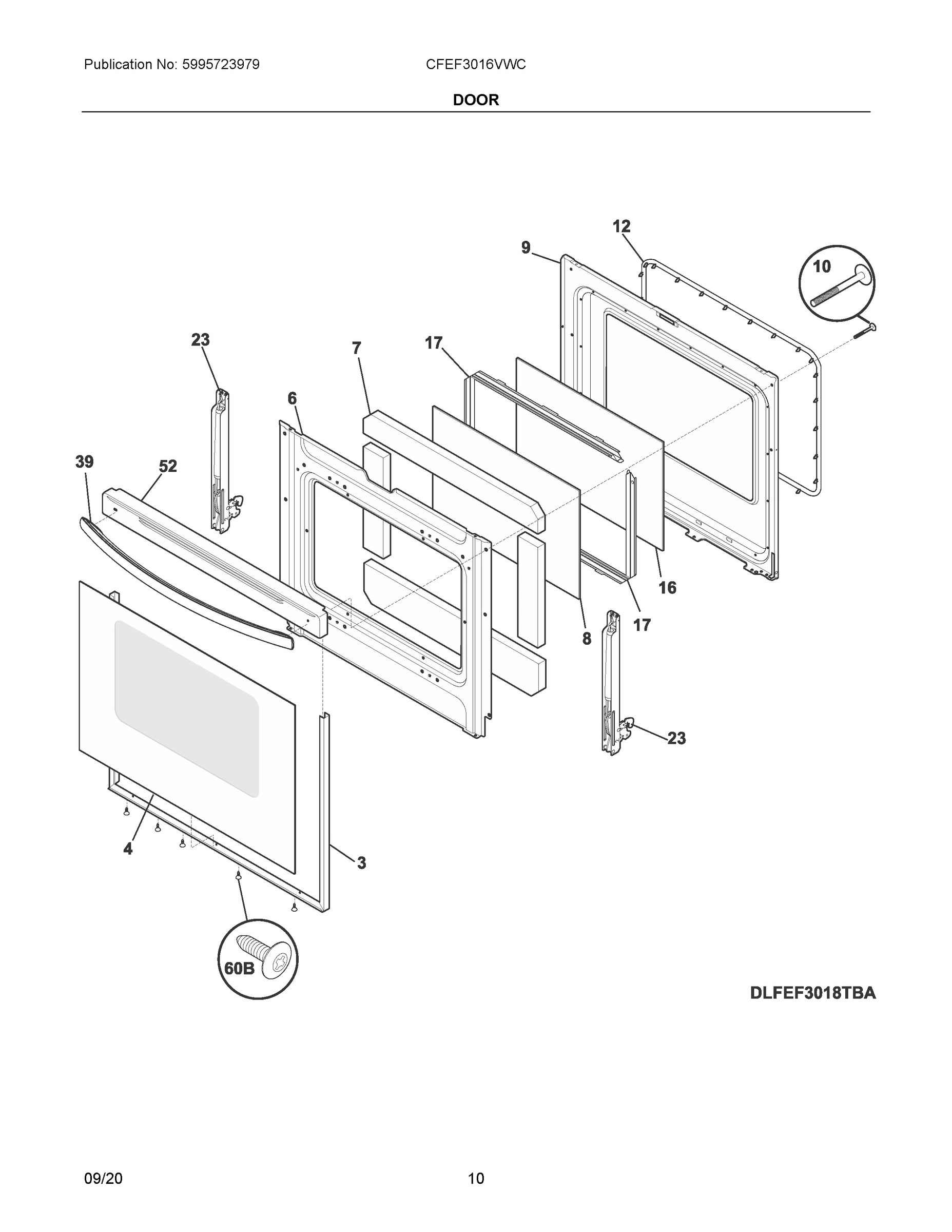

05 - DOOR
Common parts from model Electrolux CFEF3016VWC RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
1
SHIELD, BACKGUARD, REAR WALL WCI 316281802 Contact Us For Availability
3
PANEL, BODYSIDE, WHITE, RH WCI 316400142 Contact Us For Availability
3A
PANEL, BODYSIDE, WHITE, LH WCI 316400143 Contact Us For Availability
4
BURNERBOX WCI 5304522901 Contact Us For Availability
4
GLASS ASSEMBLY, OUTER, WHITE WCI 316559108 Contact Us For Availability
4
PANEL, DRAWER, WHITE, OUTER, W/INTGR HANDLE WCI 5304511973 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
SHIELD, WOOL WCI 316406328 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316405600 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400601 Contact Us For Availability
9
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTI WCI 5304494997 Contact Us For Availability
10
SCREW, 10-14 X 2.125", HANDLE MTG. WCI 316433300 Contact Us For Availability
11
BRACKET, REAR SUPPORT, (2) WCI 5304517906 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445501 Contact Us For Availability
13
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
13A
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
14A
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
15
ELEMENT, SURFACE, 8", W/LIMITER WCI 5304516159 Contact Us For Availability
15
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
15
CAP, END, WHITE, RH WCI 808754505 Contact Us For Availability
15A
ELEMENT, SURFACE, 6", W/LIMITER WCI 5304516160 Contact Us For Availability
15A
CAP, END, WHITE, LH WCI 808754506 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
17
ROD, SUPPORT, MAIN TOP WCI 316057601 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
19
PANEL, BACKGUARD, WHITE WCI 5304519438 Contact Us For Availability
20A
OVERLAY, CLOCK, WHITE, ES300 WCI 316419144 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
27
WIRING HARNESS, W/RECEPTICAL, SURFACE WCI 5304516152 Contact Us For Availability
28
INSULATION, MANIFOLD PANEL WCI 316528700 Contact Us For Availability
31
KNOB, CONTROL, WHITE WCI 5304508957 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
39
HANDLE, DOOR WCI 5304522047 Contact Us For Availability
42
SHIELD, WOOL, LOWER WCI 316400701 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CAP, DOOR TRIM, WHITE WCI 316575500 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
56
SHIELD, BACKGUARD, WHITE, INNER WCI 316234029 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
57
SHIELD, STEAM WCI 808950202 Contact Us For Availability
58
INSULATION, OVEN BOTTOM WCI 316403803 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316406500 Contact Us For Availability
59
TUBE, OVEN VENT WCI 316073606 Contact Us For Availability
66
ELEMENT, BROIL, 4 PASS WCI 316203200 Contact Us For Availability
68
SUPPORT, ELEMENT, BROIL WCI 316404002 Contact Us For Availability
71
SHIELD, REAR WALL WCI 316283204 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
88
ROD, AUTO LATCH WCI 316203500 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
WCI 316089500 WCI 316089500 Contact Us For Availability
NI
WCI 316282700 WCI 316282700 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
WCI 316506000 WCI 316506000 Contact Us For Availability
NI
WCI 5304516158 WCI 5304516158 Contact Us For Availability
NI
WCI 5303271648 WCI 5303271648 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
NIC
WCI 5303289910 WCI 5303289910 Contact Us For Availability
× ![]()
