Model Whirlpool CES3540AAW ELECTRIC RANGE – Common Parts & Diagrams

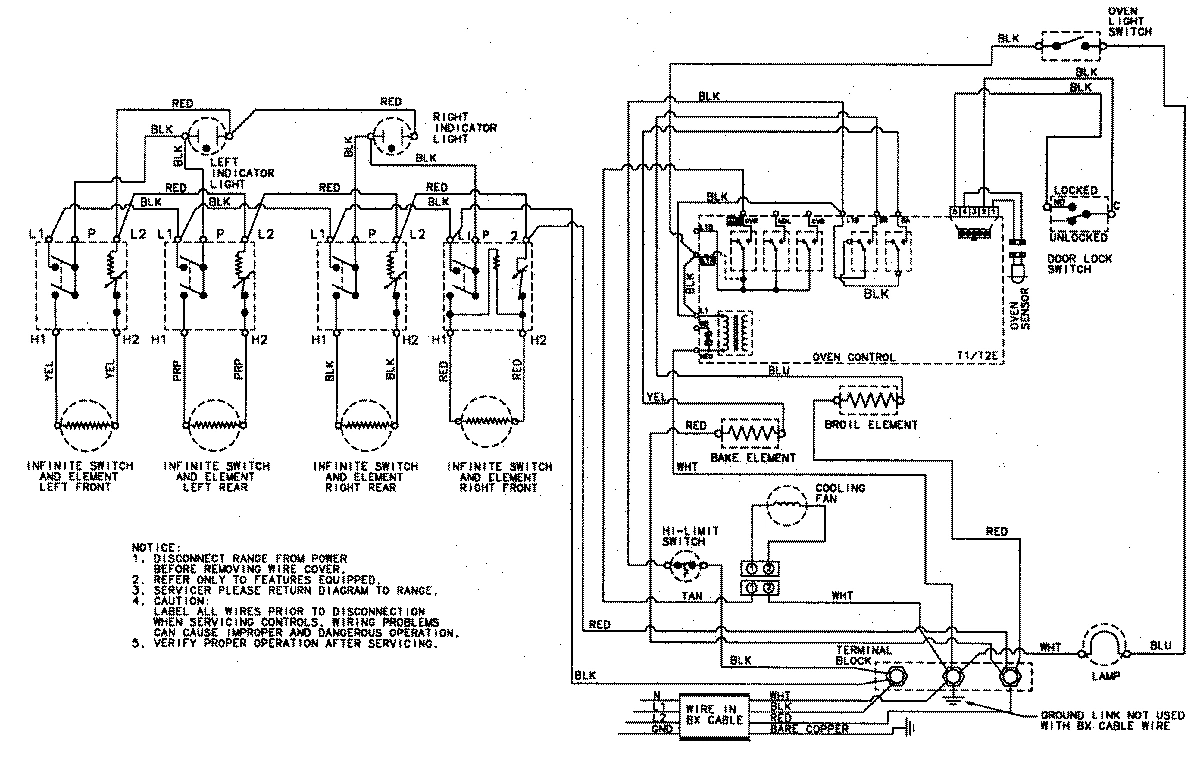

05 - WIRING INFORMATION

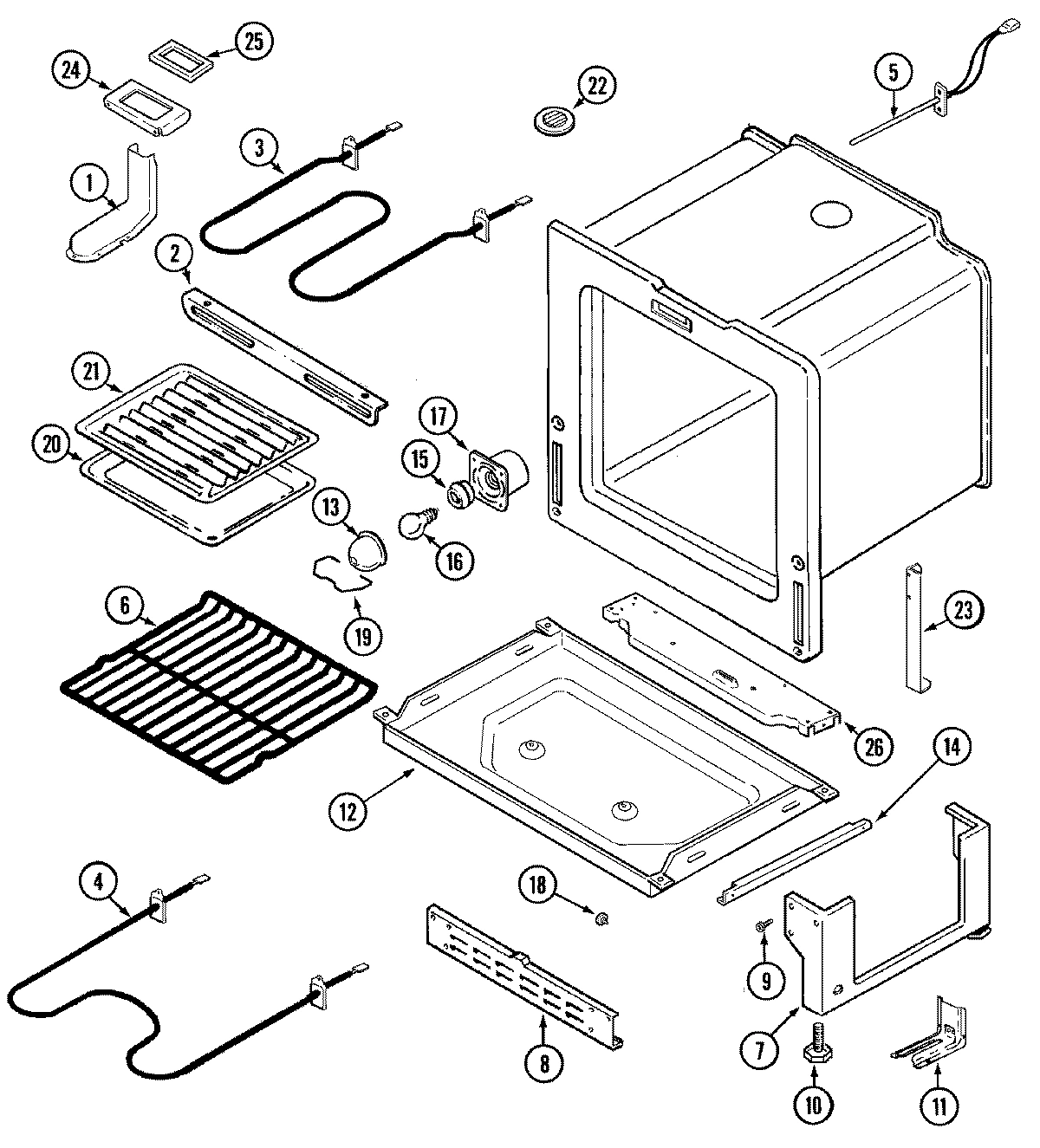

03 - OVEN/BASE

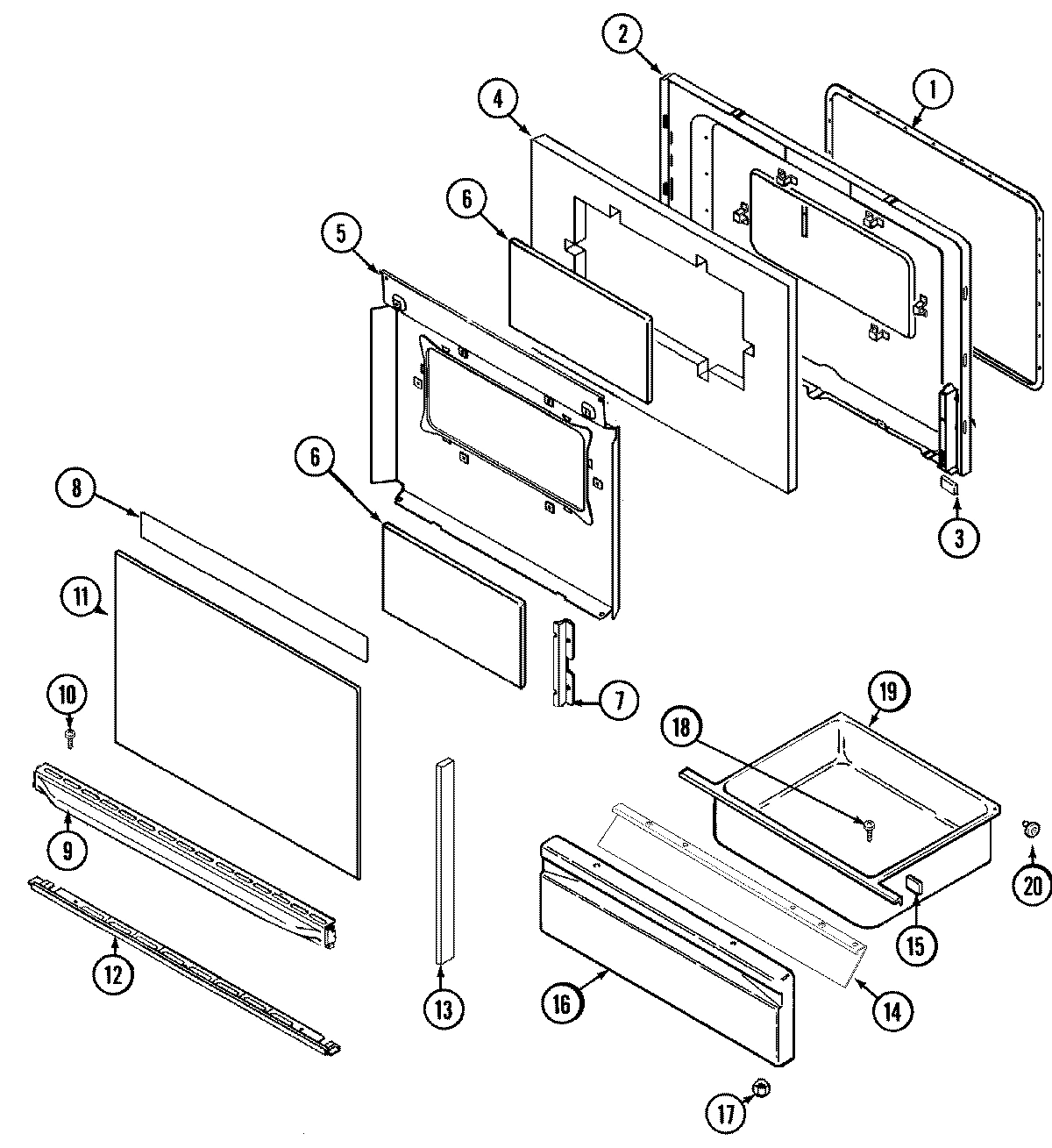

02 - DOOR/DRAWER

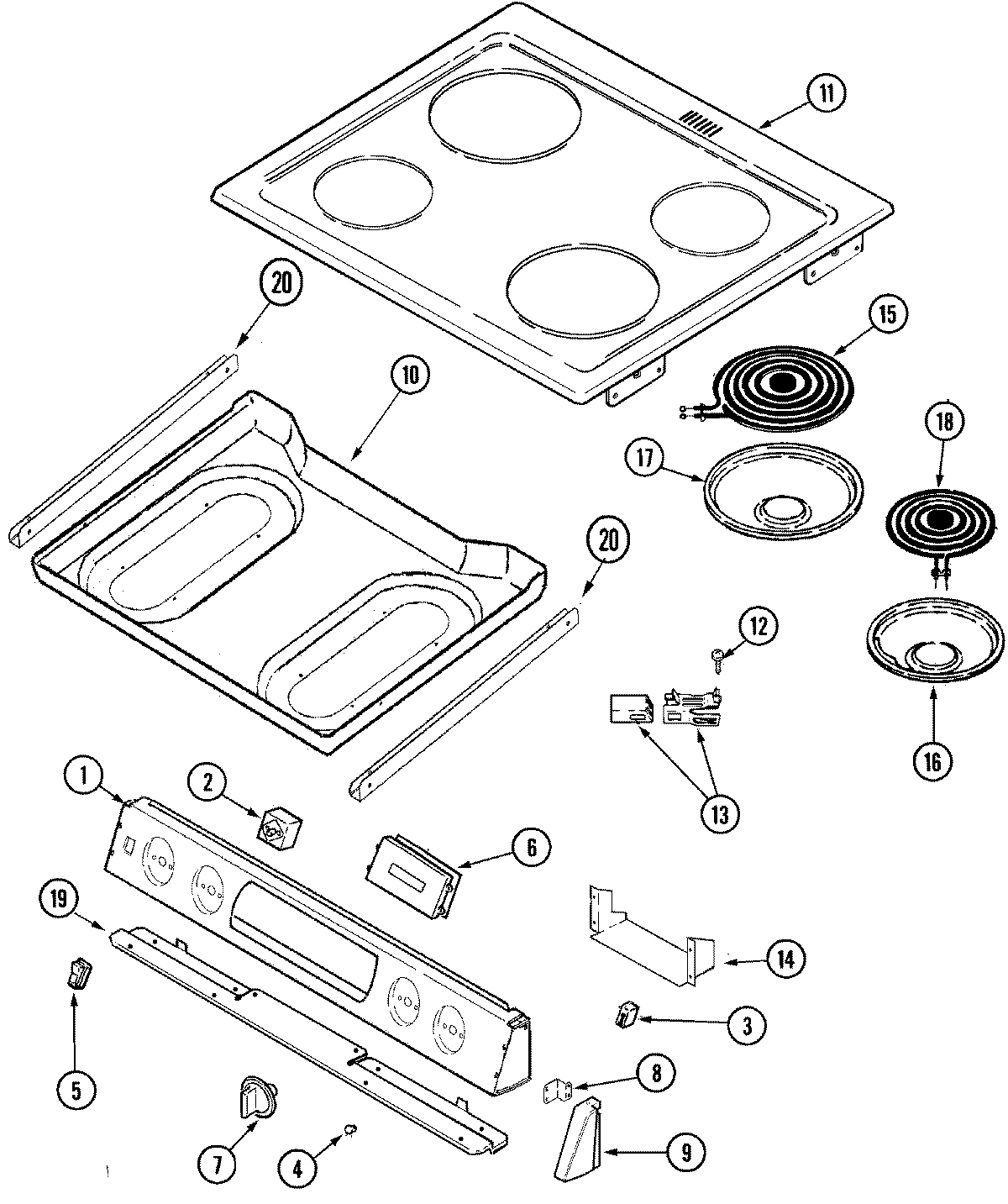

04 - TOP ASSEMBLY

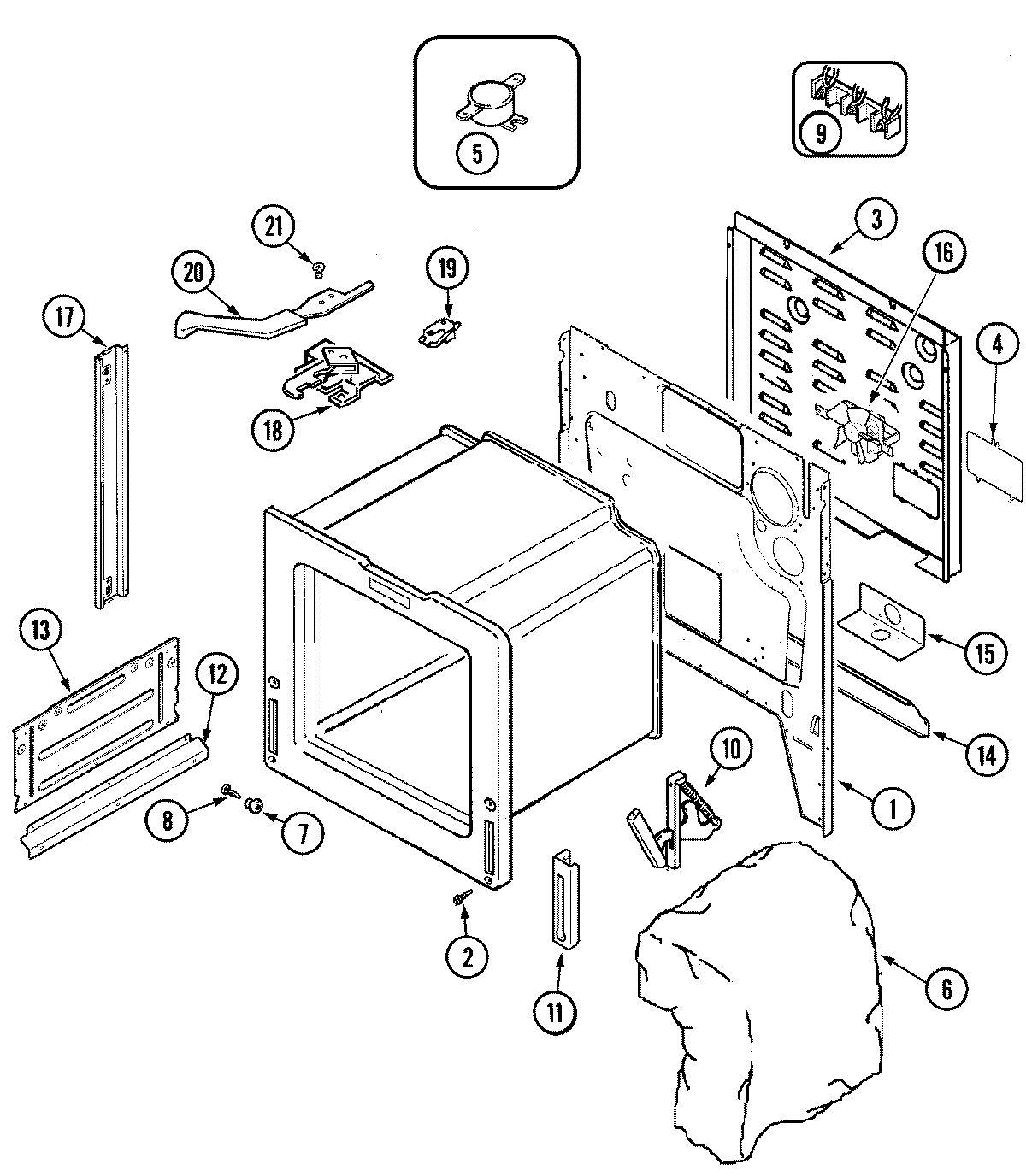

01 - BODY
Common parts from model Whirlpool CES3540AAW ELECTRIC RANGE
1
BOX, VENT WPL 74004170 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 74004240 Contact Us For Availability
1
BACK, MAIN WPL 74004174 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74004184 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
OVERLAY, CLOCK (WHT) WPL 74004102 Contact Us For Availability
6
CLOCK (WHT) WPL 74004253 Contact Us For Availability
6
CLOCK W/OVERLAY (WHT) WPL 74009302 Contact Us For Availability
6
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
6
INSULATION, OVEN WPL 74003503 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003405 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
BRACKET, END CAP WPL 74004186 Contact Us For Availability
8
BRACKET, END CAP WPL 74005671 Contact Us For Availability
8
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
9
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
9
HANDLE, DOOR (WHT) WPL 74003396 Contact Us For Availability
9
SCREW WPL 74004208 Contact Us For Availability
9
CAP, END (RT-WHT) WPL 74004198 Contact Us For Availability
9
CAP, END (LT-WHT) WPL 74004199 Contact Us For Availability
9
CAP, END (WHT-RT) WPL 74004821 Contact Us For Availability
9
CAP, END (WHT-LT) WPL 74004822 Contact Us For Availability
9
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
10
NUT WPL 7103P12560 Contact Us For Availability
10
BOTTOM, BURNER BOX WPL 74004251 Contact Us For Availability
10
BOTTOM, BURNER BOX WPL 74006046 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE NUT NOT REQUIRE WPL W10124350 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
11
GLASS, OUTER (WHT) WPL 74003395 Contact Us For Availability
11
TOP, MAIN (WHT) WPL 74004248 Contact Us For Availability
11
TOP, MAIN (WHT) WPL 74007600 Contact Us For Availability
11
PLATE, HINGE WPL 74004173 Contact Us For Availability
12
RETAINER, INSULATION (LOWER) WPL 74004169 Contact Us For Availability
12
TRIM, DOOR (BTM-WHT)----NA WPL 74003397 Contact Us For Availability
12
SCREW WPL 7118P01360 Contact Us For Availability
12
EXTENSION, HEAT SHIELD WPL 74004176 Contact Us For Availability
13
COVER, BULB WPL 74003389 Contact Us For Availability
13
END CAP, DOOR (WHT) WPL 74003398 Contact Us For Availability
13
TAPE WPL 74004075 Contact Us For Availability
13
SHIELD, HEAT WPL 74004177 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
14
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
14
INSULATOR, FIBER BOARD WPL 74004246 Contact Us For Availability
14
EXTENSION, MAIN BACK WPL 74004175 Contact Us For Availability
15
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
15
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 74003407 Contact Us For Availability
16
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
16
FAN MOTOR ASY. WPL 74004947 Contact Us For Availability
17
HOUSING, BULB WPL 74003388 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
TRIM, SIDE (WHT) WPL 74004182 Contact Us For Availability
18
SHAFT, ROLLER WPL 74004079 Contact Us For Availability
18
DOOR LATCH KIT WPL 12001943 Contact Us For Availability
18
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
18
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
18
LATCH, DOOR WPL 74003380 Contact Us For Availability
19
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
19
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
19
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
19
SUPPORT, CONTROL PANEL WPL 74004185 Contact Us For Availability
19
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
19
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
19
INSULATOR, SWITCH WPL 74003630 Contact Us For Availability
20
NUT WPL 7103P08260 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
20
HARNESS, RELAY WPL 74004786 Contact Us For Availability
20
BRACKET, SUPPORT WPL 74005822 Contact Us For Availability
20
HARNESS, MAIN WPL 74009284 Contact Us For Availability
20
LEVER, LATCH (GRY) WPL 74002974 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
22
SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability
23
SUPPORT, OVEN WPL 74004171 Contact Us For Availability
24
PLATE, VENT WPL 74004178 Contact Us For Availability
25
GASKET, VENT WPL 74004179 Contact Us For Availability
26
SUPPORT WPL 74004167 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002527 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003354 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004247 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 74004250 Contact Us For Availability
× ![]()
