Model Whirlpool CEL1115AAH ELECTRIC RANGE – Common Parts &amp; Diagrams

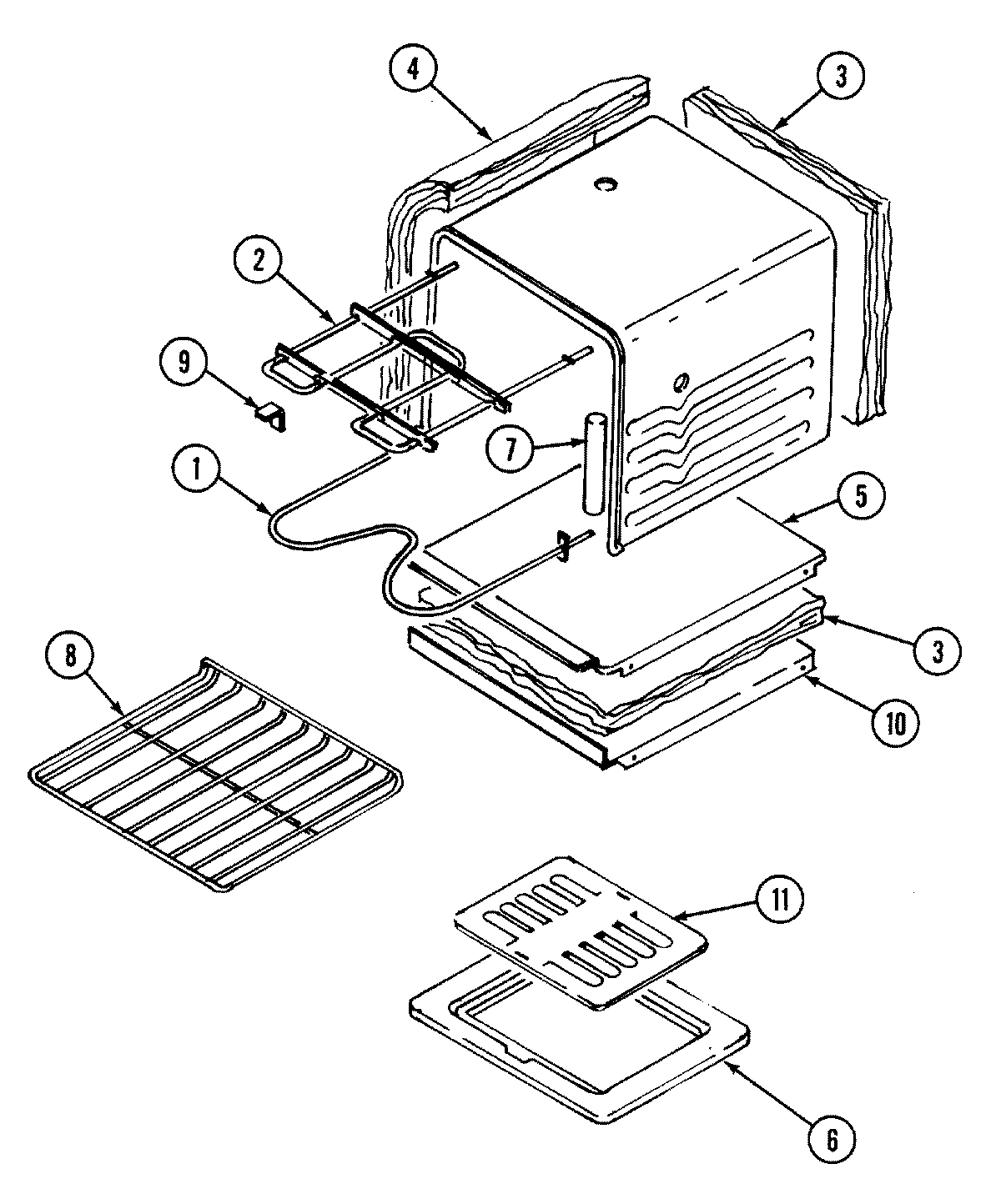

1

BACK, MAIN WPL 74003104 Contact Us For Availability

1

SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability

1

ELEMENT, BAKE WPL 7406P04160 Contact Us For Availability

1

HANDLE, DOOR (CHR)----NA WPL 74001871 Contact Us For Availability

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.33

2

BOX, BURNER WPL 74003818 Contact Us For Availability

2

BOX, BURNER WPL 74009272 Contact Us For Availability

2

ELEMENT, BROIL WPL 74003274 Contact Us For Availability

2

HINGE, DOOR (LT) WPL 3418A04634 Contact Us For Availability

2

HINGE, DOOR (RT) WPL 3418A04734 Contact Us For Availability

2

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

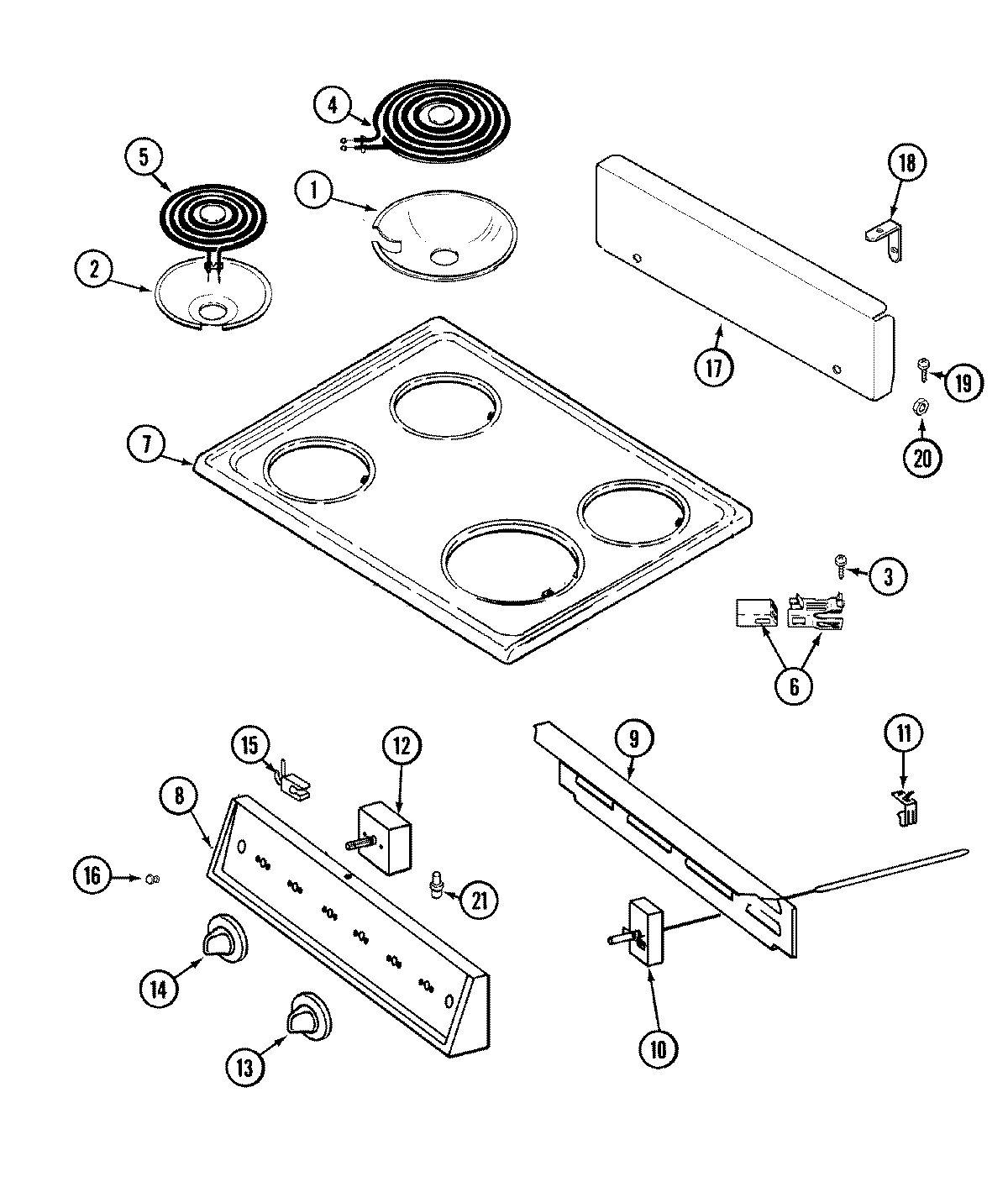

3

CHANNEL, AIR CHUTE WPL 3818F04151 Contact Us For Availability

3

SCREW WPL 7101P35660 Contact Us For Availability

3

SHIELD, HEAT (SIDE) WPL 74009270 Contact Us For Availability

3

INSULATION, OVEN BACK WPL 7002P09160 Contact Us For Availability

3

LINING, DOOR WPL 2402W10219 Contact Us For Availability

3

SCREW WPL 7118P01360 Contact Us For Availability

4

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $73.58

4

WPY04000035 Whirlpool Surface Element In Stock WPL WPY04000035 $65.33

4

NUT, EXPANSION WPL 7103P08060 Contact Us For Availability

4

PANEL, SIDE (WHT) WPL 74003185 Contact Us For Availability

4

INSULATION, WRAP WPL 7002P11960 Contact Us For Availability

4

INSULATION, OVEN WRAP WPL 74009273 Contact Us For Availability

4

PANEL, OVEN DOOR (WHT) WPL 2401W05971 Contact Us For Availability

5

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 $45.23

5

WPY04000036 Whirlpool Surface Element Backorder WPL WPY04000036 $58.71

5

SHIELD, BURNER BOX WIRE WPL 3604F14551 Contact Us For Availability

5

BOTTOM, OVEN WPL 2205F01319 Contact Us For Availability

5

SPACER, DOOR HANDLE WPL 8010P02960 Contact Us For Availability

6

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $9.27

6

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.89

6

LEG, LEVELING WPL 74001311 Contact Us For Availability

6

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

6

BOLT, SHOULDER WPL 7118P00960 Contact Us For Availability

7

SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability

7

TUBE, VENT WPL 3414F08445 Contact Us For Availability

7

NUT LOCK WPL 7103P07260 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 2002F06581 Contact Us For Availability

7

BRACKET, TOP ANCHOR WPL 3801F18751 Contact Us For Availability

8

SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability

8

SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability

8

RACK, OVEN WPL 7801P01960 Contact Us For Availability

8

NUT, TINNERMAN WPL 7103P10060 Contact Us For Availability

8

PANEL, CONTROL (BLK) WPL 74003279 Contact Us For Availability

9

SHIELD, BACK WIRE WPL 3604F14451 Contact Us For Availability

9

SCREW, FRAME WPL 7101P12660 Contact Us For Availability

9

SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability

9

SHIELD, CONTROL WPL 3604F13951 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.33

WP74009277 Whirlpool Thermostat Assembly In Stock WPL WP74009277 $146.45

SCREW WPL 7101P35260 Contact Us For Availability

SUPPORT, INSULATION WPL 3807F28551 Contact Us For Availability

SCREW, HANDLE WPL 7101P24860 Contact Us For Availability

THERMOSTAT WPL 74003267 Contact Us For Availability

11

SPRING, OVEN DOOR WPL 7803P03260 Contact Us For Availability

11

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

11

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

WP74002328 Whirlpool Surface Element Switch In Stock WPL WP74002328 $129.04

SCREW, W/WASHER WPL 7101P18860 Contact Us For Availability

SUPPORT, HINGE (LT) WPL 74003819 Contact Us For Availability

SUPPORT, HINGE (RT) WPL 74003820 Contact Us For Availability

INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability

SCREW WPL 7101P30960 Contact Us For Availability

SWITCH, INFINITE (2400W) WPL 7403P28960 Contact Us For Availability

KNOB, THERMOSTAT WPL WP74003280 No Longer Available

NUT 10-24 WPL 7103P07160 Contact Us For Availability

FRONT, OVEN WPL 74003273 Contact Us For Availability

PANEL (WHT) WPL 74003275 Contact Us For Availability

BASE, MAIN WPL 4003D03180 Contact Us For Availability

BASE, MAIN WPL 74003973 Contact Us For Availability

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

KNOB, SWITCH WPL 7737P03060 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

BRACKET, PANEL WPL 74003277 Contact Us For Availability

LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability

16

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

16

LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability

17

SCREW WPL 257715 Contact Us For Availability

17

COVER, ACCESS WPL 4005F28651 Contact Us For Availability

17

PANEL, BACKSPLASH (BLK) WPL 74003269 Contact Us For Availability

18

NUT WPL 256124 Contact Us For Availability

18

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

18

BRACKET, SUPPORT WPL 74003271 Contact Us For Availability

19

SCREW WPL 7101P07260 Contact Us For Availability

20

NUT WPL 7103P03460 Contact Us For Availability

21

NUT, STRIKE WPL 7103P10560 Contact Us For Availability

21

STRIKE, MAIN TOP WPL 8024P00360 Contact Us For Availability

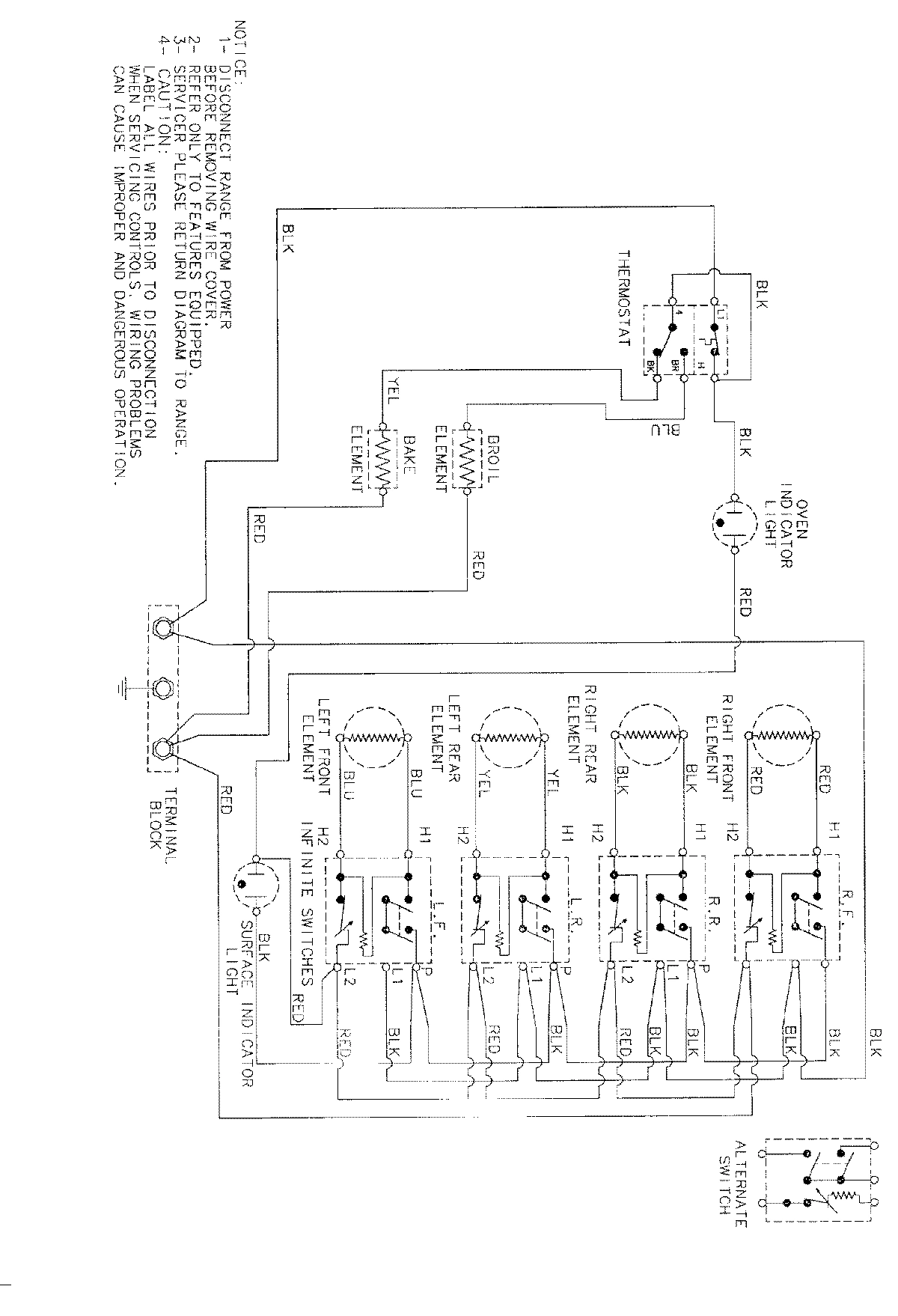

WIRING INFORMATION WPL 15002164 Contact Us For Availability

WIRING INFORMATION WPL 15003351 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability

MANUAL, USE & CARE WPL 74003270 Contact Us For Availability
