Model Electrolux CEC4S8DXC RANGE – Common Parts & Diagrams

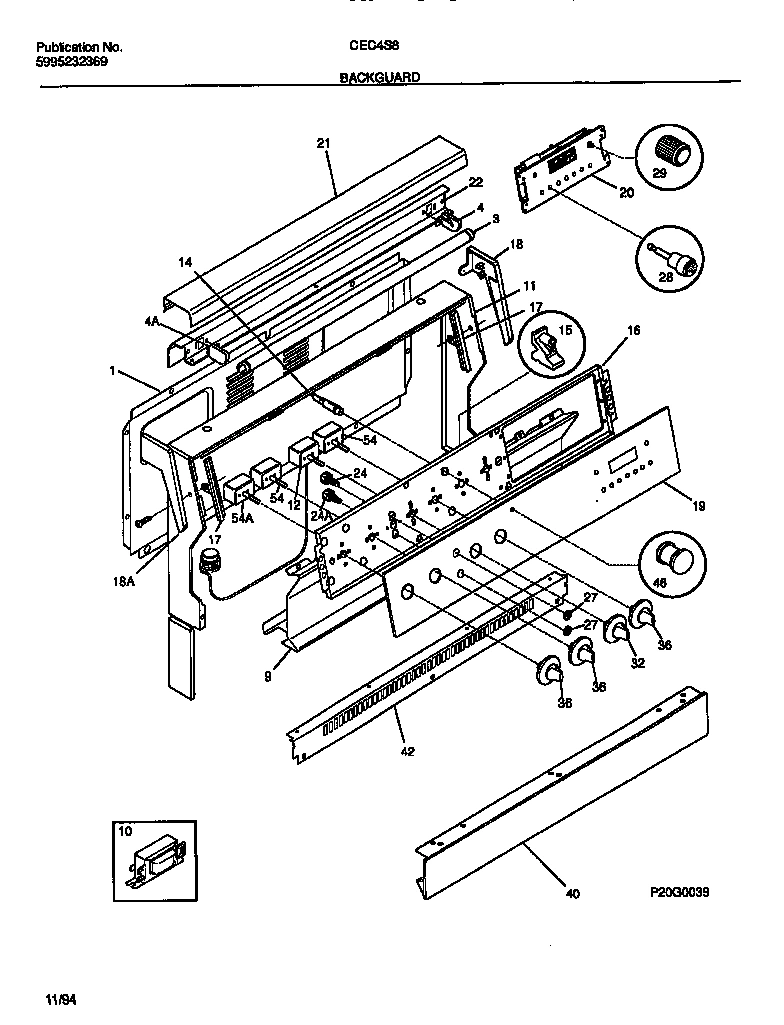

02 - BACKGUARD

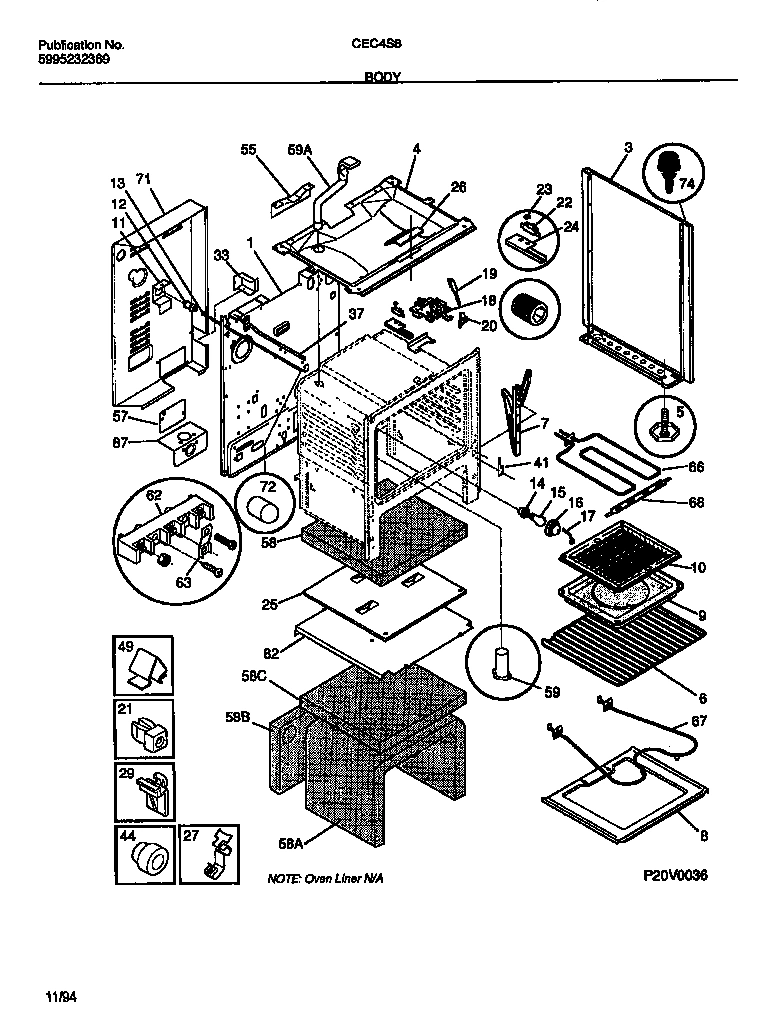

03 - BODY

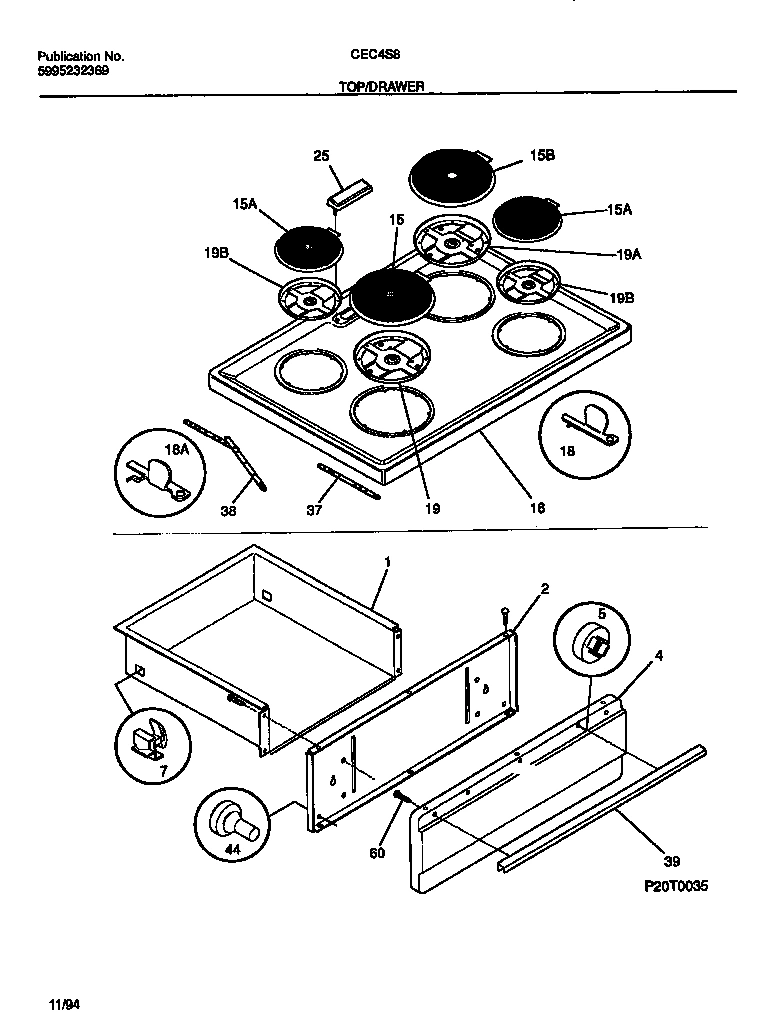

05 - TOP/DRAWER

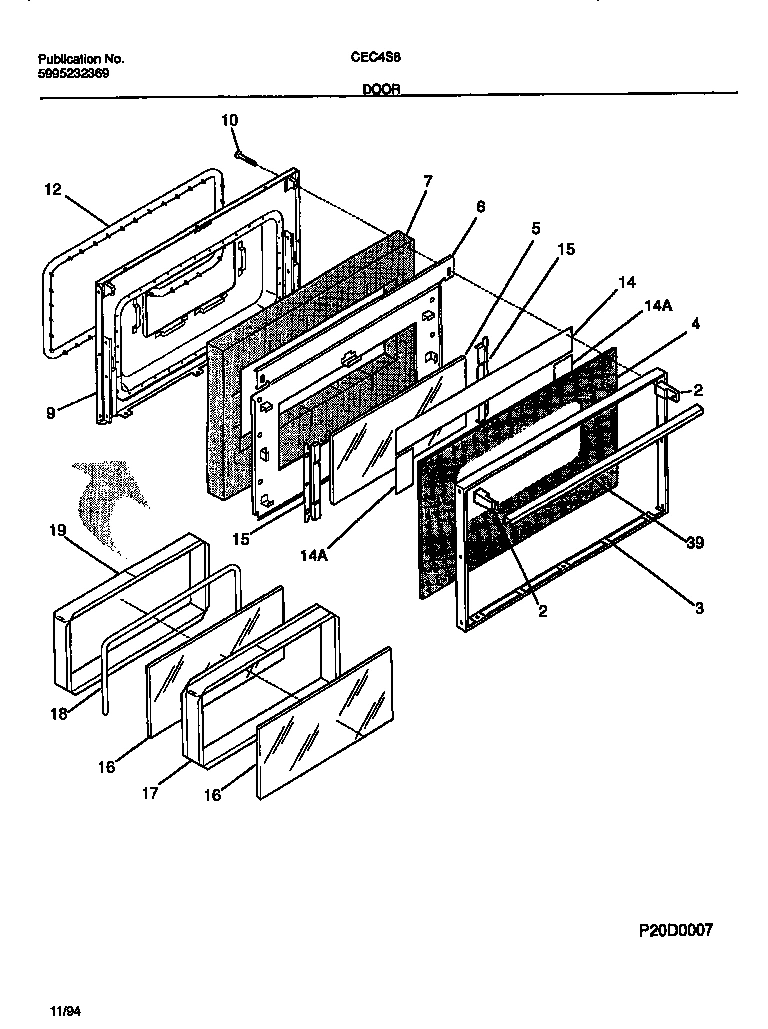

06 - DOOR

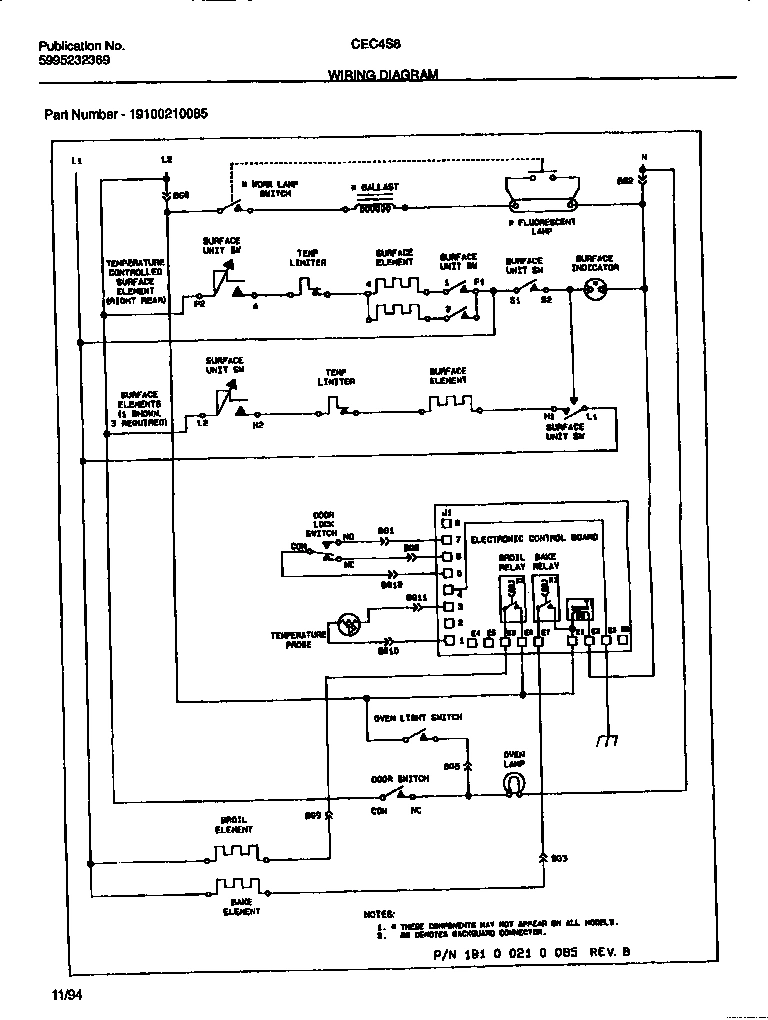

07 - WIRING DIAGRAM
Common parts from model Electrolux CEC4S8DXC RANGE
*00881
WCI 3200834 WCI 3200834 Contact Us For Availability
*00882
WCI 3200846 WCI 3200846 Contact Us For Availability
*00883
WCI 5303271873 WCI 5303271873 Contact Us For Availability
*00884
WCI 5303271916 WCI 5303271916 Contact Us For Availability
*00885
WCI 3051195 WCI 3051195 Contact Us For Availability
*00886
NUT, 6,M ELEMENT MTG WCI 3051196 Contact Us For Availability
*00887
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*00891
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*00893
WCI 5303305325 WCI 5303305325 Contact Us For Availability
*00895
WCI 08067961 WCI 08067961 Contact Us For Availability
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
TRIM-OVEN DOOR (BLACK) WCI 5303209518 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8, 18(AB) X 1/2 (NON WCI 08067785 Contact Us For Availability
4
WCI 5303271899 WCI 5303271899 Contact Us For Availability
4
WCI 3131134 WCI 3131134 Contact Us For Availability
4
WCI 316019706 WCI 316019706 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5
WCI 5303288460 WCI 5303288460 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303211084 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 5303202622 Contact Us For Availability
13
WCI 5303269501 WCI 5303269501 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 5303271910 WCI 5303271910 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability
15A
ELEMENT, SURFACE, SOLID, SMALL/6 INCH WCI 5303271867 Contact Us For Availability
15B
ELEMENT, SURFACE, SOLID W/OPENING, 8 INCH, AU WCI 5308014251 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
CHANNEL, TOP STIFFNER (NON-ILLUSTRATED) WCI 5303271890 Contact Us For Availability
16
WCI 5303271891 WCI 5303271891 Contact Us For Availability
16
WCI 5303271892 WCI 5303271892 Contact Us For Availability
16
WCI 5303271909 WCI 5303271909 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
WCI 5303209517 WCI 5303209517 Contact Us For Availability
18
SHIELD-LATCH, TOP (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
18
LATCH-DOOR, BIMETAL WCI 5303015361 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18
SEAL, ROP, 0.25 DIA WCI 5303211085 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
19
WCI 5303271911 WCI 5303271911 Contact Us For Availability
19
COLLAR-GLASS MTG WCI 5303209511 Contact Us For Availability
19A
WCI 5303271912 WCI 5303271912 Contact Us For Availability
19B
PAN, ELEMENT SHIELD, SM 6/INCH WCI 5303271880 Contact Us For Availability
20
WCI 08013188 WCI 08013188 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22
WCI 08067978 WCI 08067978 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
24A
SWITCH-OVEN LIGHT, PUSH BUTTON WCI 5303200479 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
25
COVER, VENT TRIM WCI 08014262 Contact Us For Availability
25
GASKET, VENT TRIM (NON-ILLUSTRATED) WCI 3051666 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
BUTTON-CLOCK, BLACK WCI 3204586 Contact Us For Availability
29
KNOB-EOC CONTROL, BLACK WCI 3204590 Contact Us For Availability
32
WCI 5303271894 WCI 5303271894 Contact Us For Availability
33
WCI 3203582 WCI 3203582 Contact Us For Availability
36
KNOB-CONTROL, INFINITE SW WCI 5303212659 Contact Us For Availability
37
STRAP, ELEMENT MTG WCI 5303271888 Contact Us For Availability
38
WCI 5303271915 WCI 5303271915 Contact Us For Availability
39
HANDLE-DRAWER/DOOR, BRUSHED CHROME WCI 5303280334 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303285070 Contact Us For Availability
40
WCI 5303212672 WCI 5303212672 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303211001 WCI 5303211001 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 5303271905 WCI 5303271905 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 5303271872 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 3203549 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
× ![]()
