Model Electrolux CEC4S7DTAA RANGE – Common Parts & Diagrams

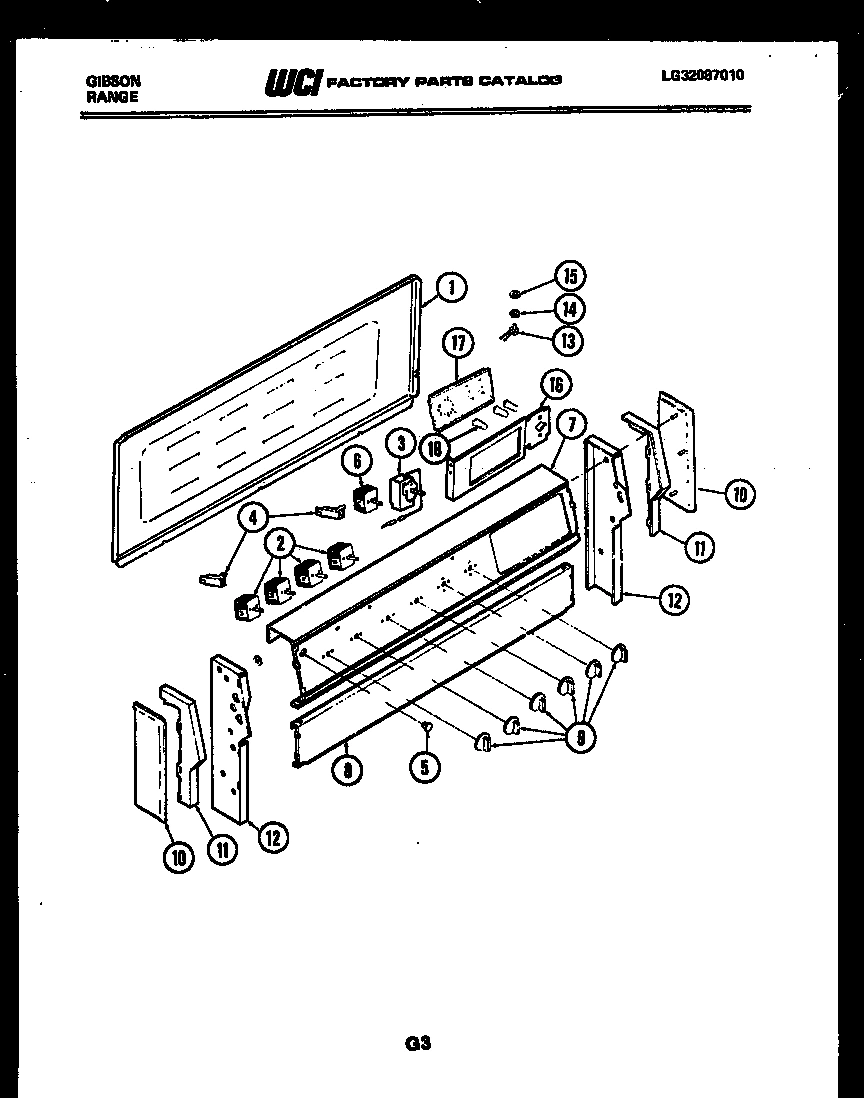

02 - BACKGUARD

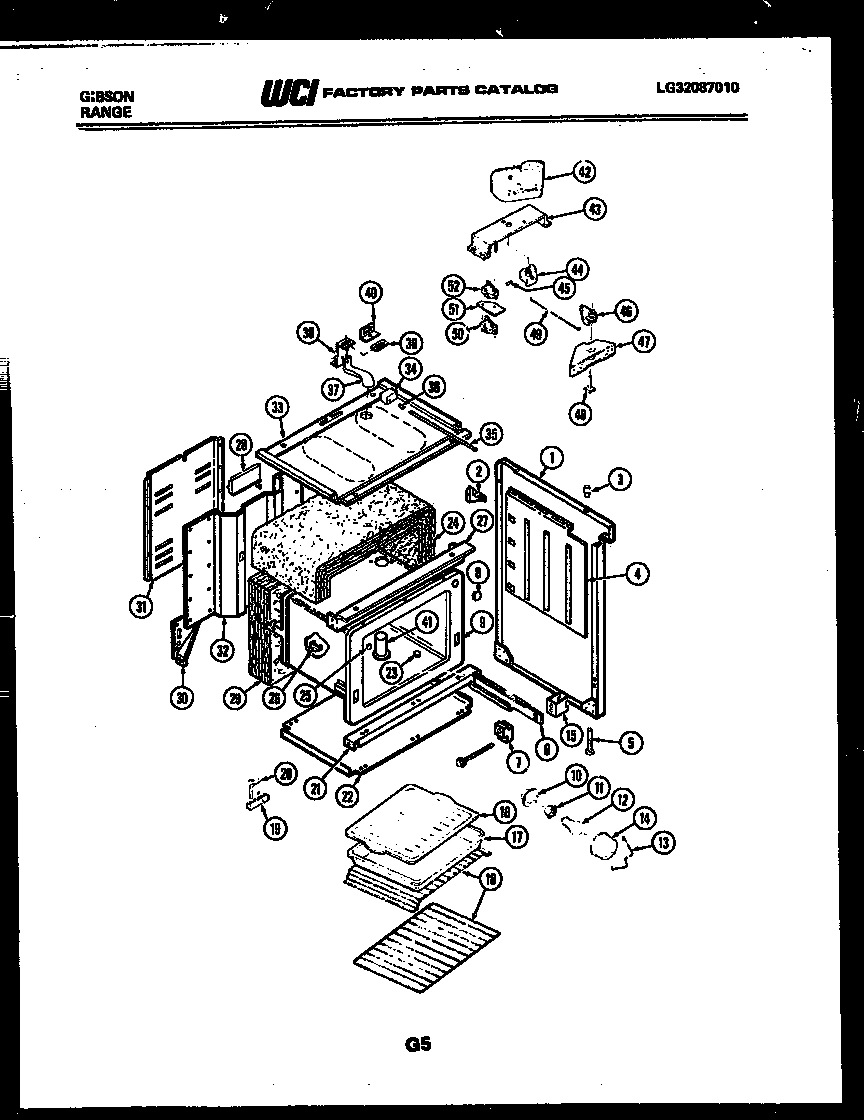

03 - BODY PARTS

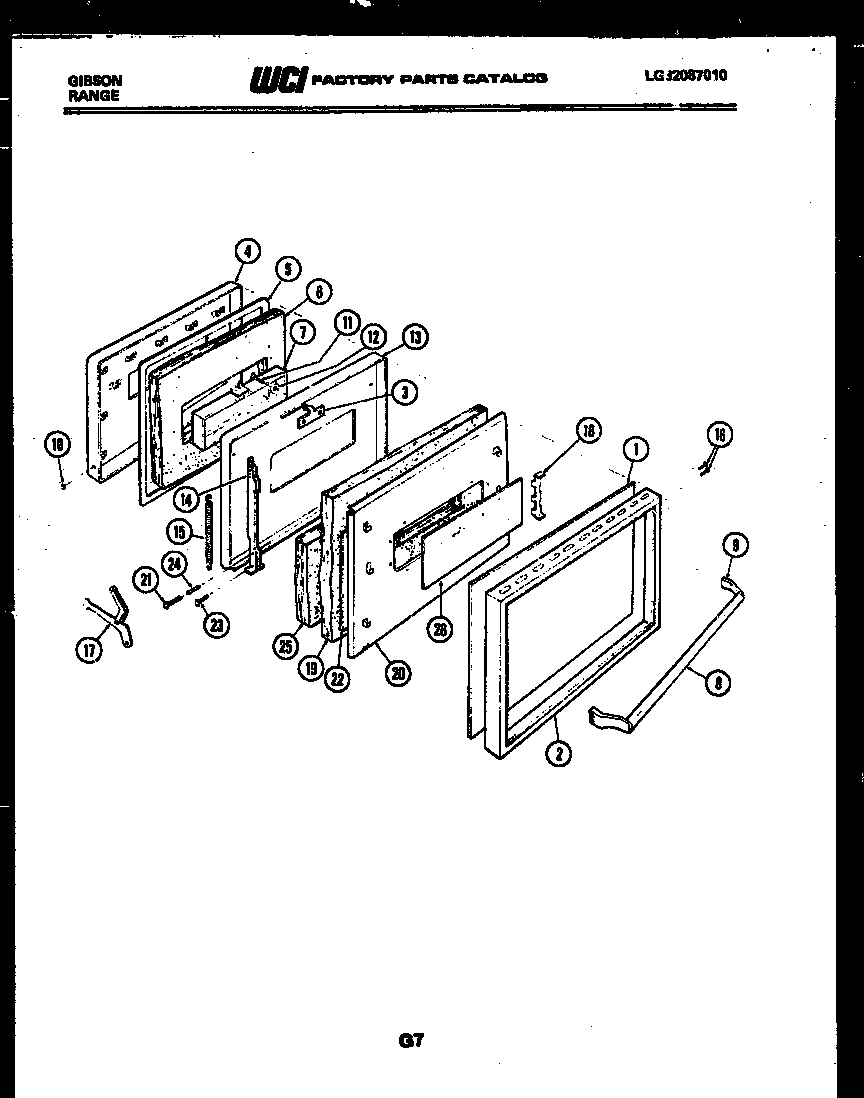

04 - DOOR PARTS

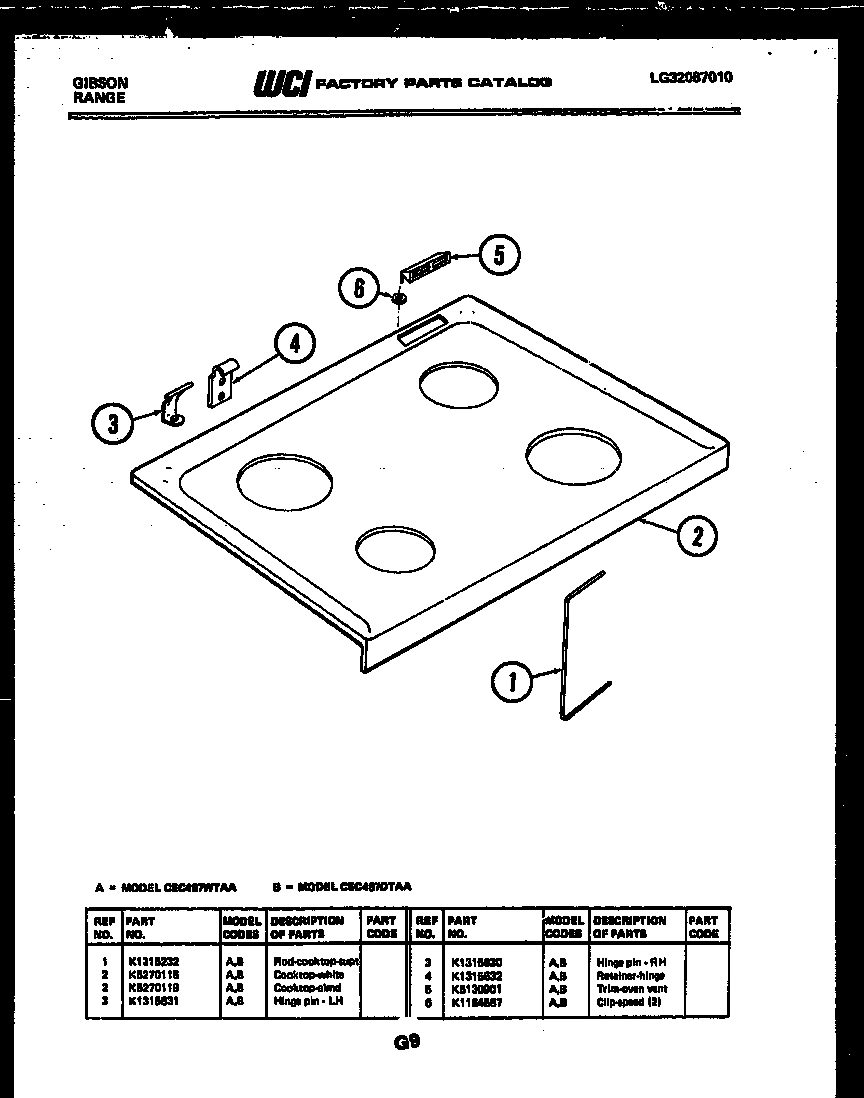

05 - COOKTOP PARTS
06 - DRAWER PARTS

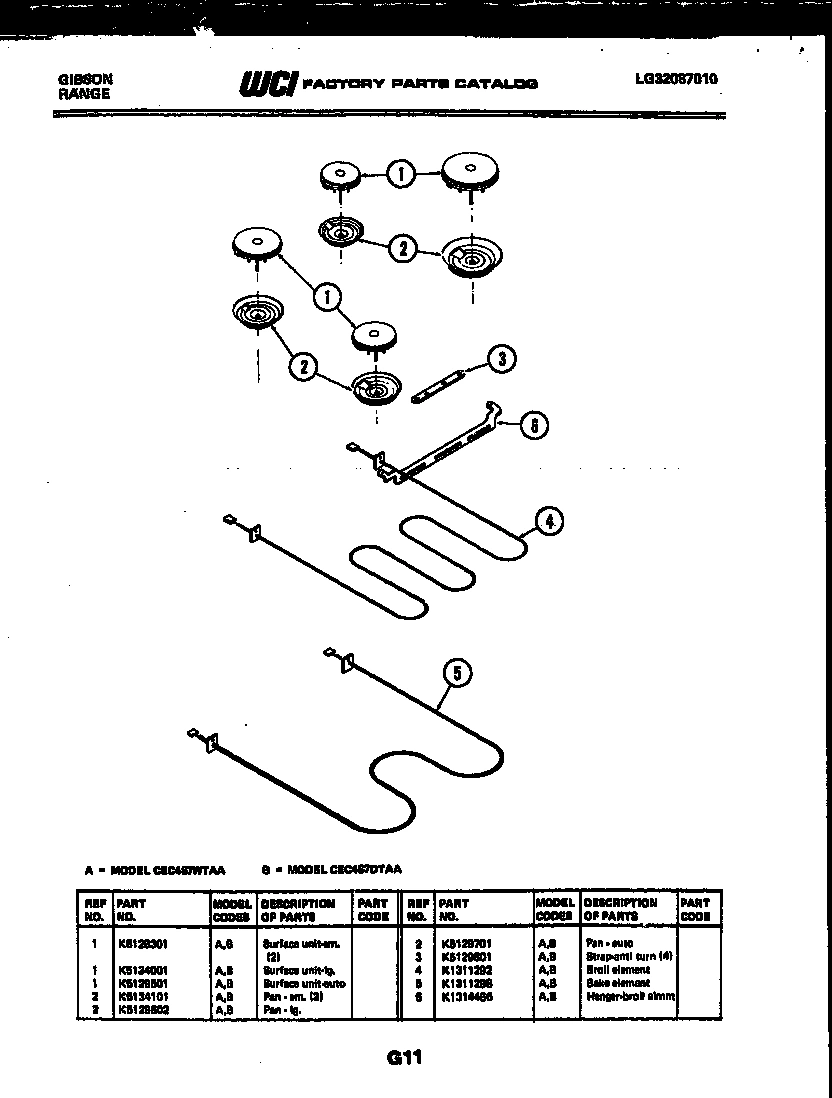

07 - BROILER PARTS
Common parts from model Electrolux CEC4S7DTAA RANGE
1
COVER, WIRE WCI K1315111 Contact Us For Availability
1
SIDE PNL - RH (ALMD) WCI K5024603 Contact Us For Availability
1
SIDE PNL-LH-ALMD WCI K5024604 Contact Us For Availability
1
GLASS, OUTER WCI K5027201 Contact Us For Availability
1
ROD, COOKTOP SUPT. WCI K1315232 Contact Us For Availability
1
WCI K1324095 WCI K1324095 Contact Us For Availability
1
WCI K5129301 WCI K5129301 Contact Us For Availability
1
WCI K5129501 WCI K5129501 Contact Us For Availability
1
WCI K5134001 WCI K5134001 Contact Us For Availability
2
SW.-SURFACE UNIT SMALL (3) WCI K1311753 Contact Us For Availability
2
WCI K5130501 WCI K5130501 Contact Us For Availability
2
GUSSET, BACKGRD (2) WCI K1315230 Contact Us For Availability
2
FRAME-DOOR WCI K5276801 Contact Us For Availability
2
WCI K5270115 WCI K5270115 Contact Us For Availability
2
WCI K5270119 WCI K5270119 Contact Us For Availability
2
PANEL-DRAWR-WHTE WCI K1325096 Contact Us For Availability
2
PANEL-DRAWR-ALMD WCI K1325100 Contact Us For Availability
2
WCI K5129602 WCI K5129602 Contact Us For Availability
2
WCI K5129701 WCI K5129701 Contact Us For Availability
2
WCI K5134101 WCI K5134101 Contact Us For Availability
3
THERMOSTAT WCI K1325331 Contact Us For Availability
3
BUMPR-COOKTOP (4) WCI K5106901 Contact Us For Availability
3
WCI K1167830 WCI K1167830 Contact Us For Availability
3
WCI K1315630 WCI K1315630 Contact Us For Availability
3
WCI K1315631 WCI K1315631 Contact Us For Availability
3
HANDLE-DRAWER WCI K1317835 Contact Us For Availability
3
STRAP, ANTI-TURN (4) WCI K5129801 Contact Us For Availability
4
SIGNAL LIGHT-SURFACE UNIT-AUTO WCI K5138901 Contact Us For Availability
4
SIGNAL LIGHT-SURFACE UNIT & CLEAN (2) WCI K5138903 Contact Us For Availability
4
SIGNAL LIGHT, OVEN WCI K5138904 Contact Us For Availability
4
RETAINR-INSUL. (2) WCI K1325388 Contact Us For Availability
4
WCI K1323751 WCI K1323751 Contact Us For Availability
4
RETAINER, HINGE WCI K1315632 Contact Us For Availability
4
END CAP - RH WCI K1309054 Contact Us For Availability
4
END CAP - LH WCI K1309055 Contact Us For Availability
5
LENS-SIGNAL LITE (4) WCI K5139001 Contact Us For Availability
5
LEG-LEVELLER (4) WCI K1322905 Contact Us For Availability
5
WCI K1323811 WCI K1323811 Contact Us For Availability
5
WCI K5130901 WCI K5130901 Contact Us For Availability
5
GUIDE-DRAWR (2) WCI K1324091 Contact Us For Availability
6
SWITCH-OV. SEL. WCI K5099601 Contact Us For Availability
6
RAIL-DRAWR RH WCI K5269901 Contact Us For Availability
6
RAIL-DRAWR LH WCI K5269902 Contact Us For Availability
6
WCI K1322622 WCI K1322622 Contact Us For Availability
6
WCI K1164567 WCI K1164567 Contact Us For Availability
6
HANGER-BROIL ELMNT WCI K1314456 Contact Us For Availability
7
WCI K5312701 WCI K5312701 Contact Us For Availability
7
GUIDE-DRAWR FRNT (2) WCI K1315216 Contact Us For Availability
7
WINDOW ASSY. WCI K1322068 Contact Us For Availability
8
PANEL - BACKSPLASH (WHITE) WCI K5137610 Contact Us For Availability
8
PANEL-BACKSPLASH-ALMD WCI K5137614 Contact Us For Availability
8
HANDLE WCI K5026807 Contact Us For Availability
9
KNOB-SEL. SW. WCI K5159303 Contact Us For Availability
9
WCI K5159306 WCI K5159306 Contact Us For Availability
9
WCI K5159402 WCI K5159402 Contact Us For Availability
9
OVEN LINER WCI K1325538 Contact Us For Availability
9
WCI K5132701 WCI K5132701 Contact Us For Availability
10
WCI K5128001 WCI K5128001 Contact Us For Availability
10
WCI K5128002 WCI K5128002 Contact Us For Availability
10
WCI K1325530 WCI K1325530 Contact Us For Availability
10
WCI GM142001 WCI GM142001 Contact Us For Availability
11
WCI K5128105 WCI K5128105 Contact Us For Availability
11
WCI K5128106 WCI K5128106 Contact Us For Availability
11
WCI K1164550 WCI K1164550 Contact Us For Availability
12
SUPT-BACKGRD LH WCI K5127701 Contact Us For Availability
12
SUPT-BACKGRD RH WCI K5127702 Contact Us For Availability
12
WASHER, PADDED WCI K1313226 Contact Us For Availability
13
SWITCH-OV. LT. WCI K1312868 Contact Us For Availability
13
WCI K1325529 WCI K1325529 Contact Us For Availability
13
DOOR LINER WCI K1324720 Contact Us For Availability
14
WCI K1186512 WCI K1186512 Contact Us For Availability
14
CHANNEL (2) WCI K1311514 Contact Us For Availability
15
WCI K5051701 WCI K5051701 Contact Us For Availability
15
SPACER-DRAWR RAIL (2) WCI K1324860 Contact Us For Availability
15
DOOR SPRING WCI K1302501 Contact Us For Availability
16
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
16
GRILLE, BROILER WCI K1313049 Contact Us For Availability
16
SCREW-HANDLE (4) WCI K5046501 Contact Us For Availability
17
WCI K5141601 WCI K5141601 Contact Us For Availability
17
DOOR HINGE ARM WCI K1310065 Contact Us For Availability
18
KNOB-CLOCK WCI K5159301 Contact Us For Availability
18
WCI K1311570 WCI K1311570 Contact Us For Availability
18
WCI K5133501 WCI K5133501 Contact Us For Availability
18
RETAINER, GLASS (2) WCI K1317628 Contact Us For Availability
19
WCI K1322652 WCI K1322652 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
20
WCI K5276901 WCI K5276901 Contact Us For Availability
21
CHANNEL-OVEN SUPT LOWER WCI K1315108 Contact Us For Availability
21
WCI K1100733 WCI K1100733 Contact Us For Availability
22
WCI K5276502 WCI K5276502 Contact Us For Availability
22
WCI K1318825 WCI K1318825 Contact Us For Availability
23
PLUG-BUTTN 3/4`` WCI KGM142025 Contact Us For Availability
23
AXLE, HINGE (2) WCI K5038501 Contact Us For Availability
24
INSUL.-OVEN WRAP WCI K1311331 Contact Us For Availability
24
ROLLER PKG - OVEN DOOR (2) WCI K1309794 Contact Us For Availability
25
PLUG-BUTTN-THERMO BULB HOLE WCI KGM142017 Contact Us For Availability
25
WCI K1322651 WCI K1322651 Contact Us For Availability
26
BRACKT-THERMOS. BULB WCI K1311369 Contact Us For Availability
26
WCI K1317924 WCI K1317924 Contact Us For Availability
27
CHANNL-OVN SUPT-UPPER WCI K1325635 Contact Us For Availability
28
WCI K5134501 WCI K5134501 Contact Us For Availability
29
INSUL.-OVEN BACK WCI K5056901 Contact Us For Availability
30
GUSSET REAR, RH WCI K5285802 Contact Us For Availability
30
GUSSET REAR, LH WCI K5285804 Contact Us For Availability
31
WCI K1315110 WCI K1315110 Contact Us For Availability
32
WCI K5275802 WCI K5275802 Contact Us For Availability
33
WCI K5025704 WCI K5025704 Contact Us For Availability
34
SWITCH-DOOR WCI K1310199 Contact Us For Availability
35
WCI K1322683 WCI K1322683 Contact Us For Availability
36
WCI K1322682 WCI K1322682 Contact Us For Availability
37
WCI K5130601 WCI K5130601 Contact Us For Availability
38
BRACKT- VENT TUBE WCI K5130701 Contact Us For Availability
39
GASKET OV. VENT TUBE WCI K5130801 Contact Us For Availability
40
WCI K1311371 WCI K1311371 Contact Us For Availability
41
WCI K5055201 WCI K5055201 Contact Us For Availability
42
LATCH-MOTOR WCI K5151601 Contact Us For Availability
43
WCI K5151613 WCI K5151613 Contact Us For Availability
44
CAM - DOOR LATCH WCI K5151605 Contact Us For Availability
45
PIN WCI K5151606 Contact Us For Availability
46
WCI K5260202 WCI K5260202 Contact Us For Availability
47
HOUSING-DR LATCH WCI K1324830 Contact Us For Availability
49
WCI K5271201 WCI K5271201 Contact Us For Availability
50
SWITCH-LOWER WCI K1315370 Contact Us For Availability
51
INSULATOR WCI K1308690 Contact Us For Availability
52
WCI K1167190 WCI K1167190 Contact Us For Availability
× ![]()
