Model Electrolux CEC4S6WXA RANGE – Common Parts & Diagrams

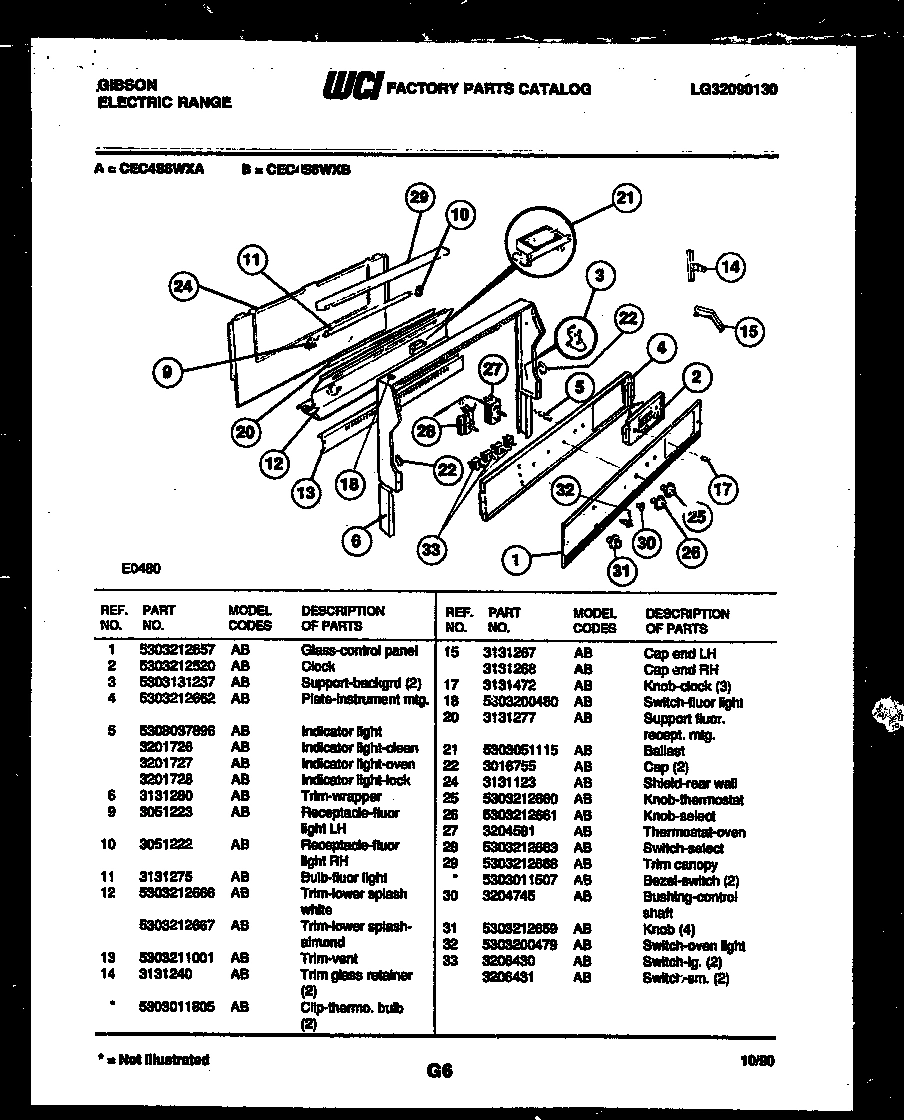

02 - BACKGUARD

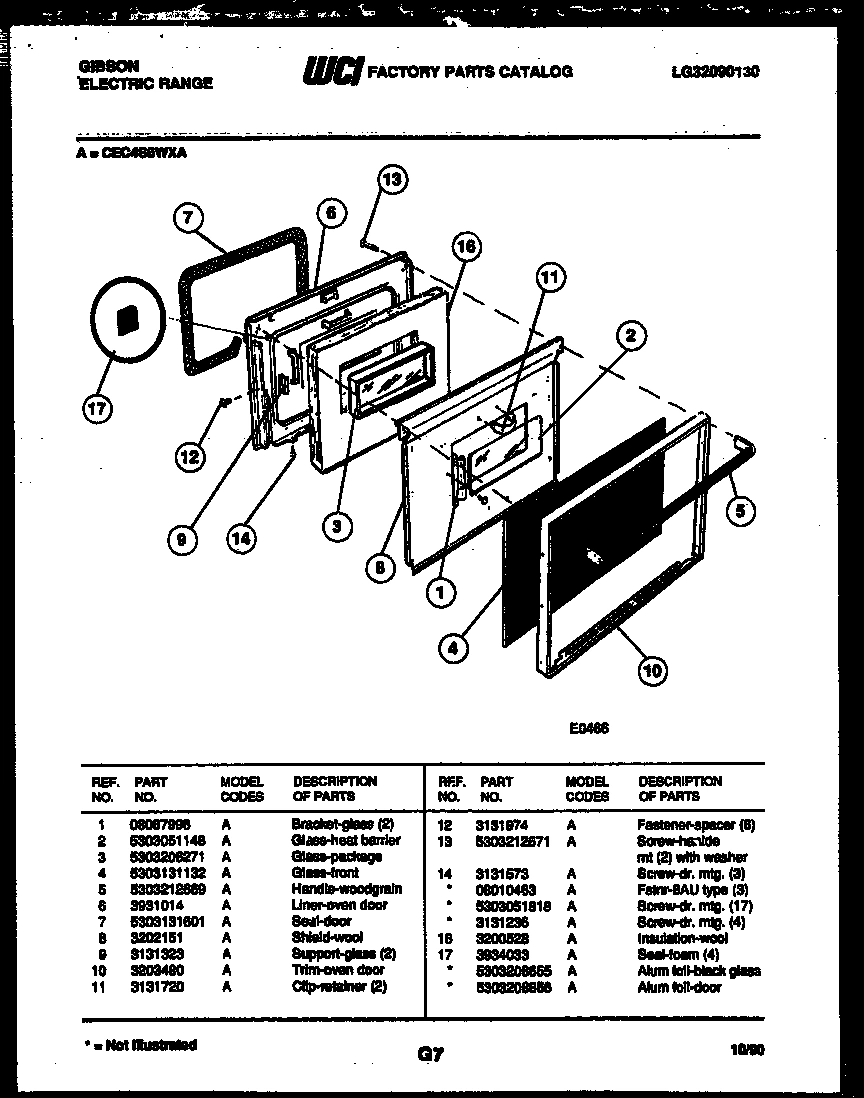

03 - DOOR PARTS
05 - DRAWER PARTS
06 - BODY PARTS
07 - COOKTOP PARTS
08 - BROILER PARTS
Common parts from model Electrolux CEC4S6WXA RANGE
*28174
ALUM FOIL-DOOR WCI 5303208656 Contact Us For Availability
*28180
SCREW-HEX (4) WCI 08067785 Contact Us For Availability
*28180
WCI 3013964 WCI 3013964 Contact Us For Availability
*28190
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
*28191
SHIELD HEAT B/S (2) WCI 3200834 Contact Us For Availability
*28191
FSTNR - EDGE MT (2) WCI 3200846 Contact Us For Availability
*28191
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*28191
BRKT-CABLE MTG WCI 5303206618 Contact Us For Availability
*28192
WCI 3131252 WCI 3131252 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
BRACKET-GLASS (2) WCI 08067996 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
TOP-ALMOND WCI 3013512 Contact Us For Availability
1
TOP (WHITE) WCI 3051284 Contact Us For Availability
2
HINGE LH WCI 08067746 Contact Us For Availability
2
WCI 5303051148 WCI 5303051148 Contact Us For Availability
2A
HINGE RH WCI 08067747 Contact Us For Availability
3
GLASS PACKAGE WCI 5303206271 Contact Us For Availability
3
PANEL-WHITE WCI 3131117 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
3
PANEL-B/S LH (WHITE) WCI 3205620 Contact Us For Availability
3
PANEL-B/S LH (ALMD) WCI 3205621 Contact Us For Availability
3
ROD-TOP SUPPORT (2) WCI 3013818 Contact Us For Availability
3
WCI 3017810 WCI 3017810 Contact Us For Availability
3A
PANEL-B/S RH (WHITE) WCI 3205623 Contact Us For Availability
3A
PANEL-B/S RH (ALMD) WCI 3205624 Contact Us For Availability
4
GLASS, FRONT WCI 5303131132 Contact Us For Availability
4
HANDLE-CHROME WCI 3131125 Contact Us For Availability
4
WCI 08067749 WCI 08067749 Contact Us For Availability
4
WCI 5303212672 WCI 5303212672 Contact Us For Availability
5
WCI 5303212669 WCI 5303212669 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 08067757 WCI 08067757 Contact Us For Availability
6
WCI 3931014 WCI 3931014 Contact Us For Availability
6
FSTNR - SPCR NYLON (2) WCI 3131387 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 3203480 WCI 3203480 Contact Us For Availability
11
BULB-FLUOR LIGHT WCI 3131275 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
13
SCREW-HANDLE MT (2) WITH WASHER WCI 5303212671 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
CHANNEL-DOOR HINGE (2) WCI 316007002 No Longer Available
14
TRIM-GLASS RETAINER, (2) WCI 3131240 Contact Us For Availability
14
SCREW-DR. MTG. (3) WCI 3131573 Contact Us For Availability
14A
WCI 08010463 WCI 08010463 Contact Us For Availability
14C
SCREW-DR MTG (4) (NON-ILLUSTRATED) WCI 3131236 Contact Us For Availability
15
CAP-END LH WCI 3131267 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15A
CAP-END RH WCI 3131268 Contact Us For Availability
16
INSULATION-WOOL WCI 3200528 Contact Us For Availability
17
WCI 3131472 WCI 3131472 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
SWITCH-FLUOR LIGHT WCI 5303200480 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
20
SUPPORT FLUOR. RECEPT. MTG. WCI 3131277 Contact Us For Availability
20
WCI 08011708 WCI 08011708 Contact Us For Availability
21
WCI 5303051115 WCI 5303051115 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
25
WCI 5303212660 WCI 5303212660 Contact Us For Availability
26
KNOB-SELECT WCI 5303212661 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
THERMOSTAT-OVEN WCI 3204581 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
WCI 3204582 WCI 3204582 Contact Us For Availability
27C
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
28
SWITCH-SELECT WCI 5303212663 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
29
WCI 5303212668 WCI 5303212668 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29A
BEZEL-SWITCH (2) (NON-ILLUSTRATED) WCI 5303011507 Contact Us For Availability
30
BUSHING, CONTROL SHAFT WCI 3204745 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
KNOB (4) WCI 5303212659 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
WCI 5303200479 WCI 5303200479 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FSTNR., PUSH ON (3) WCI 08067776 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
35
WCI 3203582 WCI 3203582 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
41
WCI 5303131289 WCI 5303131289 Contact Us For Availability
42
ROD LIGHT WCI 5303209316 Contact Us For Availability
43
WCI 08067758 WCI 08067758 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
× ![]()
