Model Electrolux CEC4M6WXD RANGE – Common Parts & Diagrams

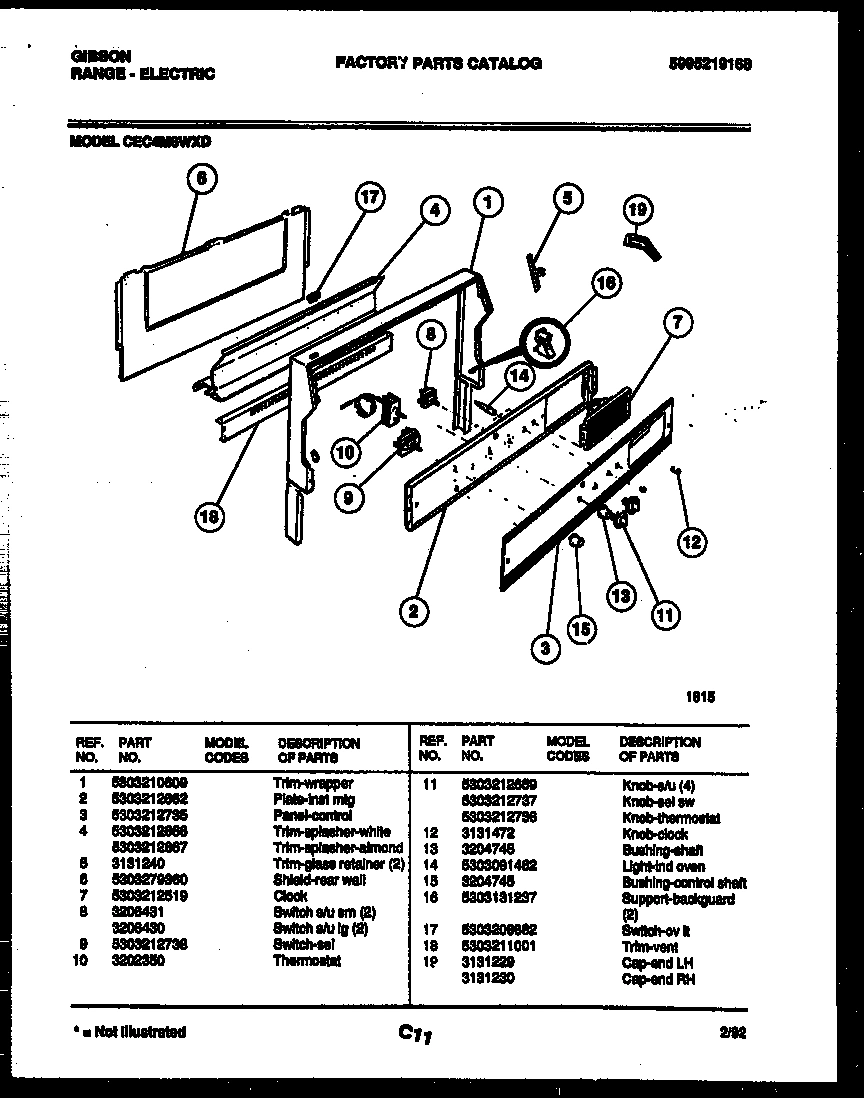

02 - BACKGUARD

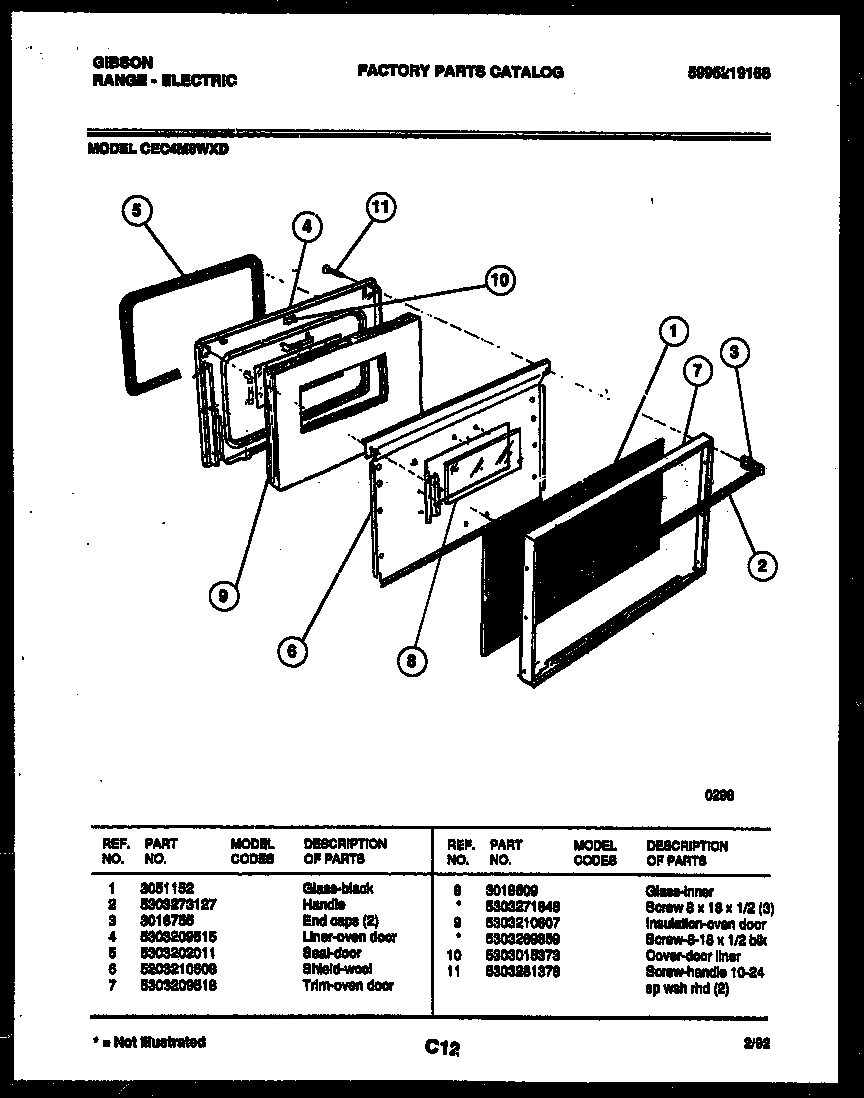

03 - DOOR PARTS

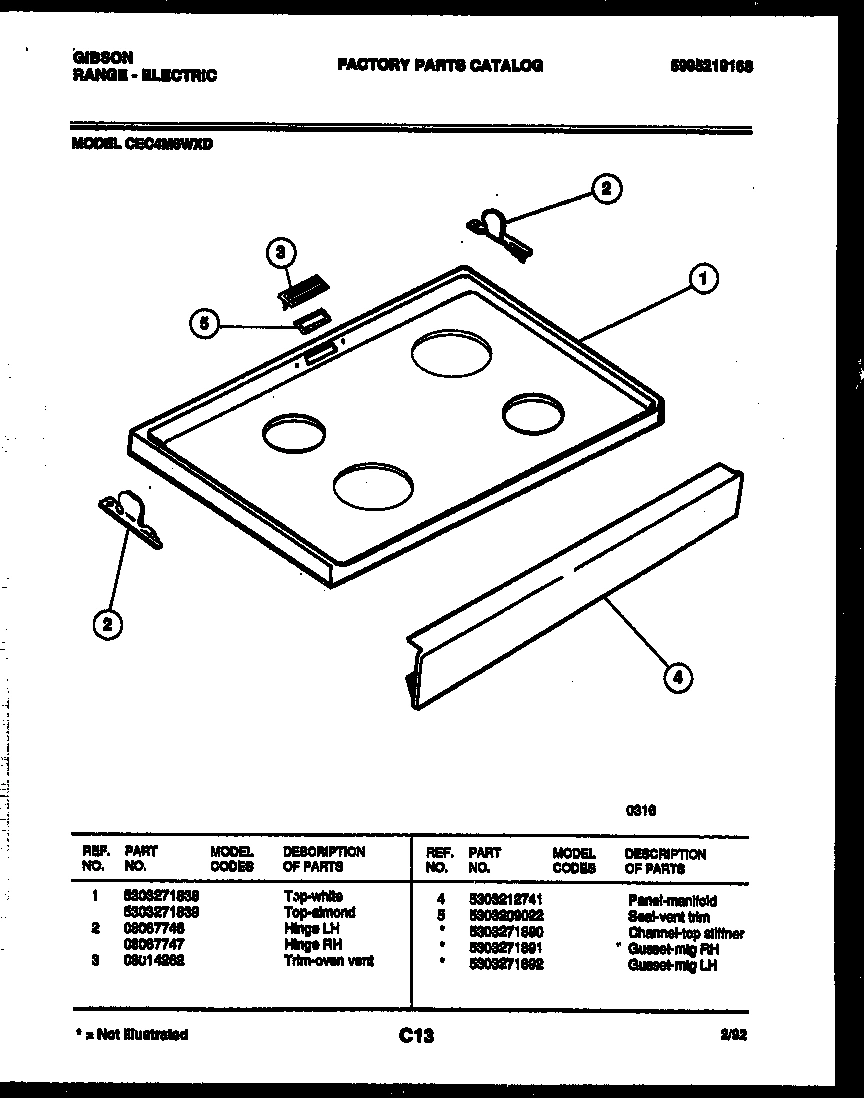

04 - COOKTOP PARTS

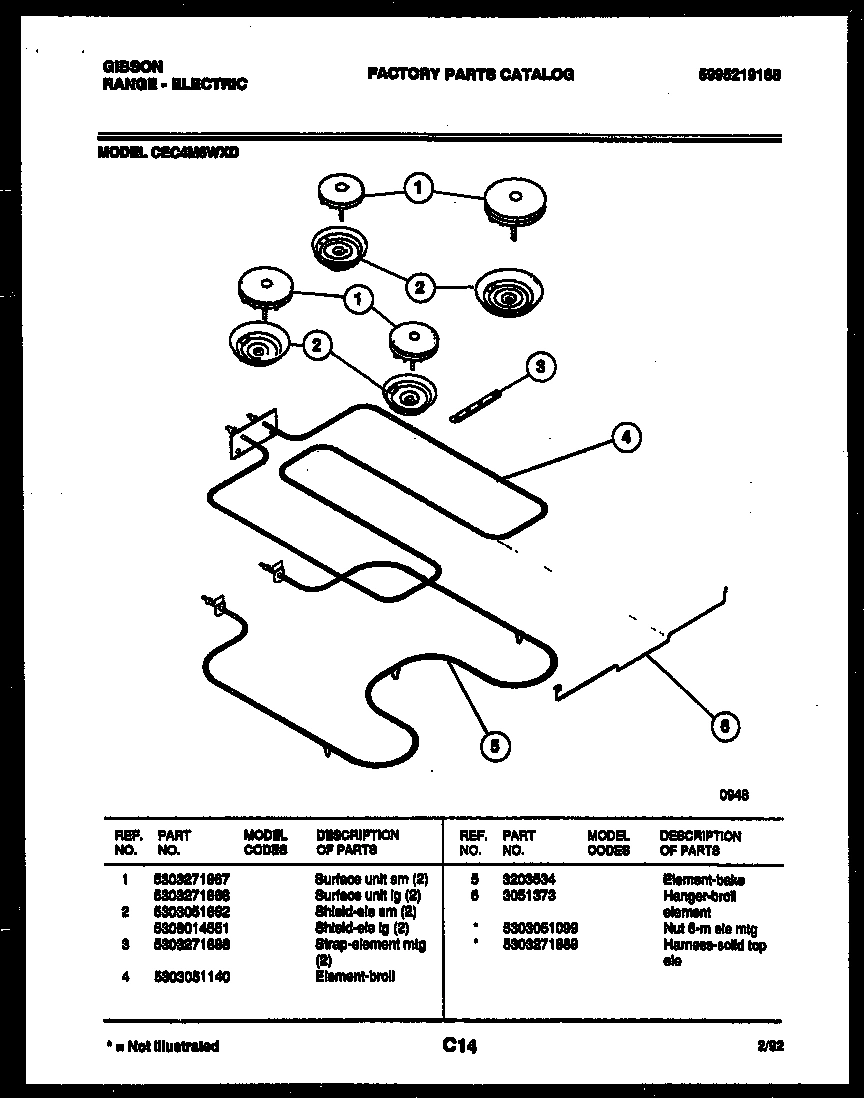

05 - BROILER PARTS

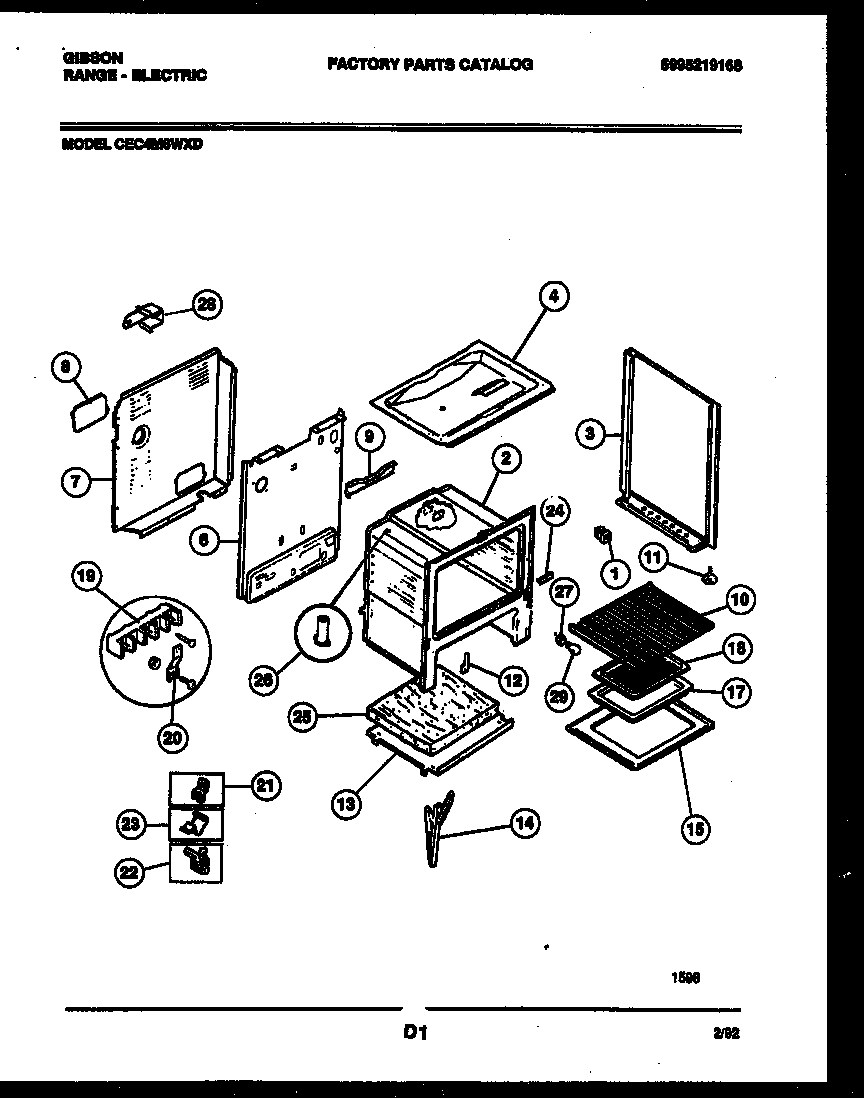

06 - BODY PARTS

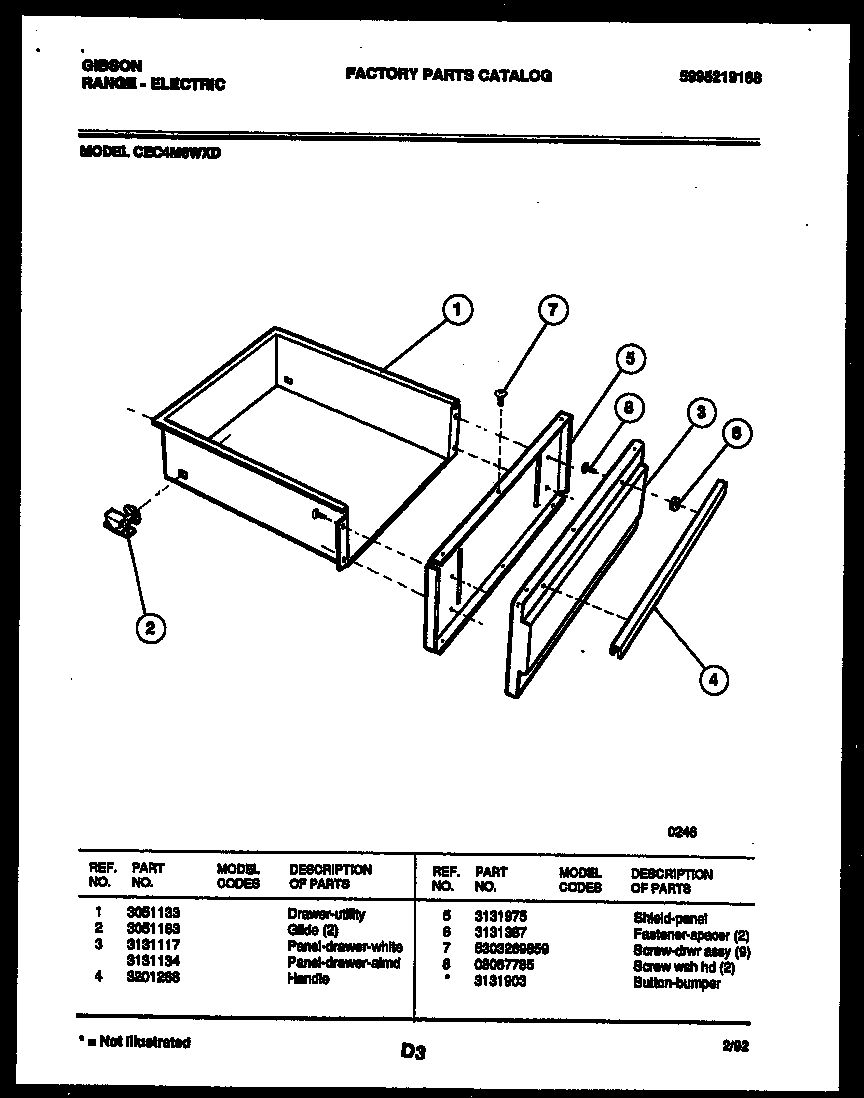

07 - DRAWER PARTS
Common parts from model Electrolux CEC4M6WXD RANGE
*58199
WCI 5303271890 WCI 5303271890 Contact Us For Availability
*58199
GUSSET-MTG RH WCI 5303271891 Contact Us For Availability
*58200
GUSSET-MTG LH WCI 5303271892 Contact Us For Availability
*58201
WCI 5303271889 WCI 5303271889 Contact Us For Availability
*58206
INSULATION-WRAP WCI 3017142 Contact Us For Availability
*58206
SCREW-HINGE WCI 5303280311 Contact Us For Availability
*58206
INSULATION-BACK WCI 3203541 Contact Us For Availability
*58207
WIRING DIAGRAM-(NOT FOR PURCHASE.) WCI 19100210071 Contact Us For Availability
*58207
WCI 3131252 WCI 3131252 Contact Us For Availability
*58207
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*58207
WCI 5303206618 WCI 5303206618 Contact Us For Availability
*58207
WCI 5303271872 WCI 5303271872 Contact Us For Availability
*58207
WCI 5303271873 WCI 5303271873 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 5303271867 WCI 5303271867 Contact Us For Availability
1
GLASS-BLACK WCI 3051152 Contact Us For Availability
1
WCI 5303271838 WCI 5303271838 Contact Us For Availability
1
WCI 5303271839 WCI 5303271839 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1A
WCI 5303271868 WCI 5303271868 Contact Us For Availability
2
HINGE LH WCI 08067746 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
2
SHIELD-ELE SM (2) WCI 5303051662 Contact Us For Availability
2A
HINGE RH WCI 08067747 Contact Us For Availability
2A
SHIELD-ELE LG (2) WCI 5308014551 Contact Us For Availability
3
WCI 08014262 WCI 08014262 Contact Us For Availability
3
WCI 5303271888 WCI 5303271888 Contact Us For Availability
3
PANEL-SIDE LH-WHITE WCI 5303269519 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
PANEL, DRAWER, (ALMD) WCI 3131134 Contact Us For Availability
3A
PANEL-SIDE RH-WHITE WCI 5303269518 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 5303209515 WCI 5303209515 Contact Us For Availability
4
WCI 5303212741 WCI 5303212741 Contact Us For Availability
4
WCI 5303271899 WCI 5303271899 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
5
SEAL-VENT TRIM WCI 5303209022 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 5303210608 WCI 5303210608 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
WCI 5303209518 WCI 5303209518 Contact Us For Availability
7
SCREW-DRWR ASSY (9) WCI 5303269859 Contact Us For Availability
7
SHIELD-LOW WALL WCI 3203549 Contact Us For Availability
8
SCREW WSH HD (2) WCI 08067785 Contact Us For Availability
8
GLASS-INNER WCI 3018609 Contact Us For Availability
8
COVER-LOW ACCESS WCI 3203405 Contact Us For Availability
9
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11
SCREW-HANDLE 10-24 SP WSH RHD (2) WCI 5303281378 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 3206285 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131570 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
CHANNEL-HINGE (2) WCI 316007001 Contact Us For Availability
15
BUSHING, CONTROL SHAFT WCI 3204745 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
SUPPORT-BACKGUARD,(2) WCI 5303131237 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5303211001 WCI 5303211001 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
19
WCI 3131229 WCI 3131229 Contact Us For Availability
19A
WCI 3131230 WCI 3131230 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
24
COVER-FRONT WCI 5303015372 Contact Us For Availability
26
TUBE-OVEN VENT WCI 5303271871 Contact Us For Availability
28
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
