Model Electrolux CEC4M4WXA RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - DOOR PARTS

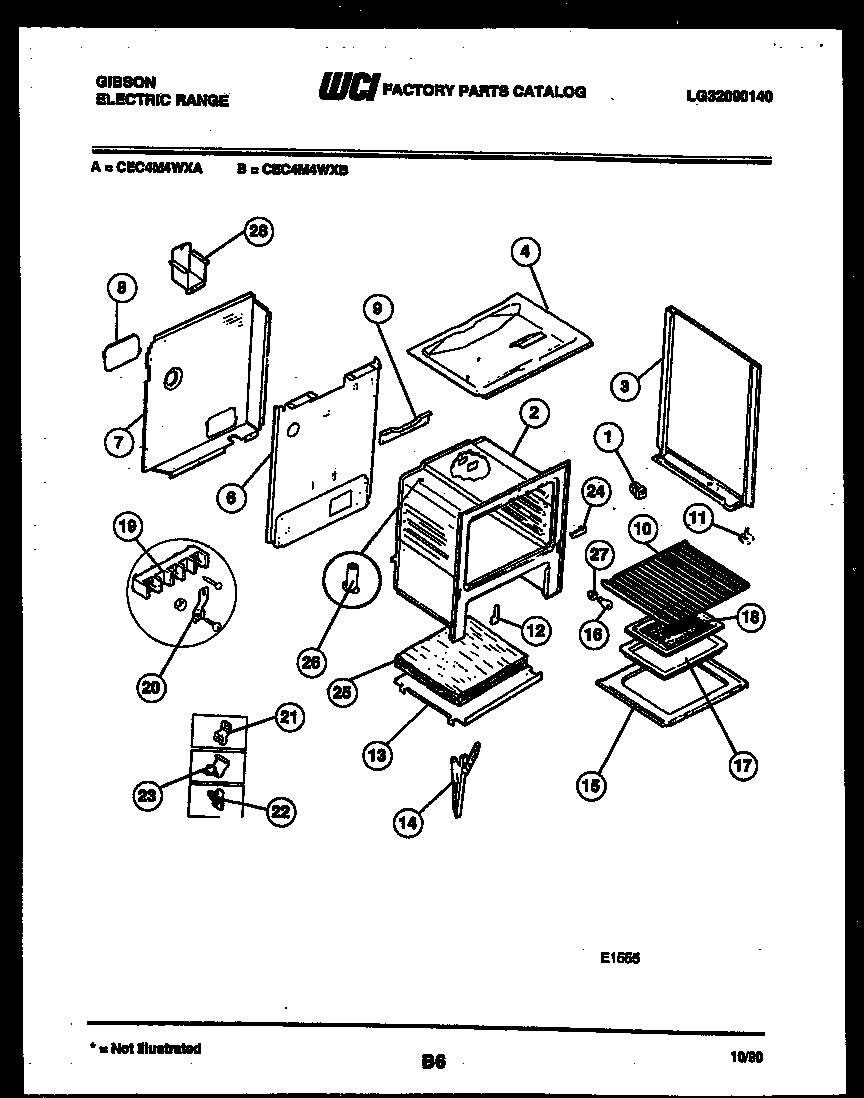

04 - BODY PARTS

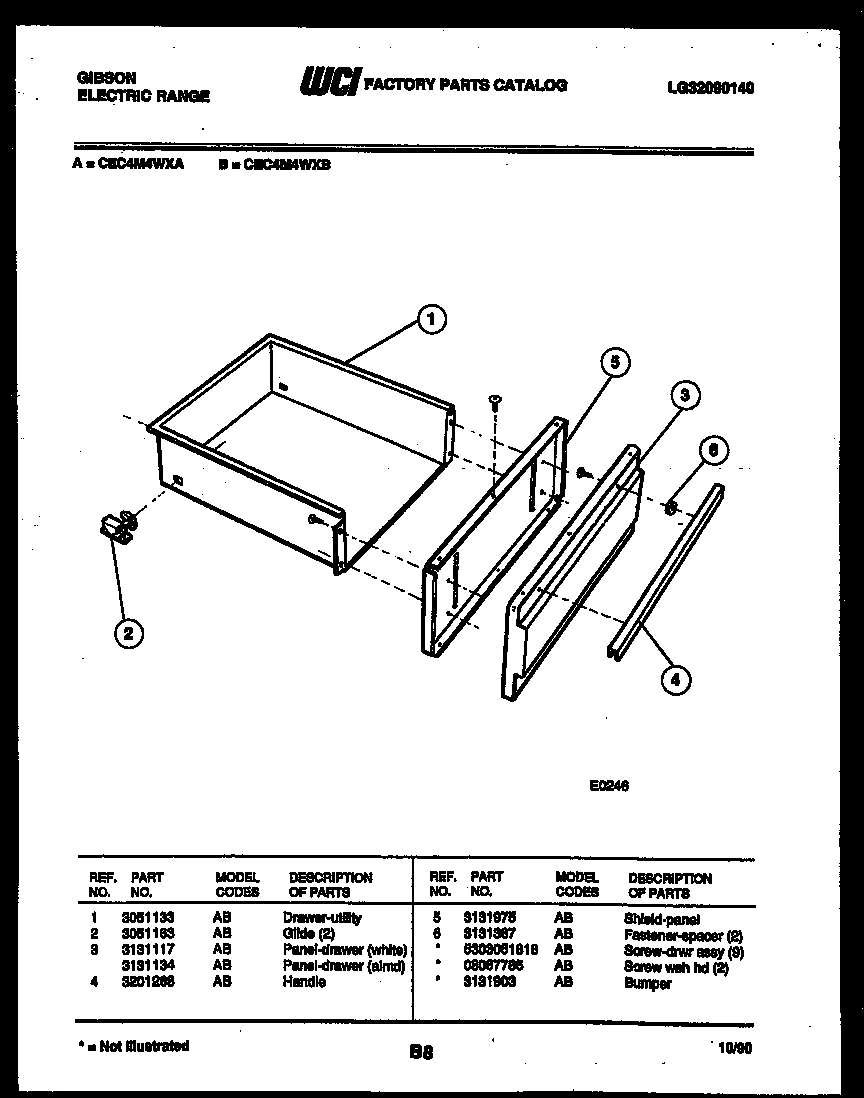

05 - DRAWER PARTS

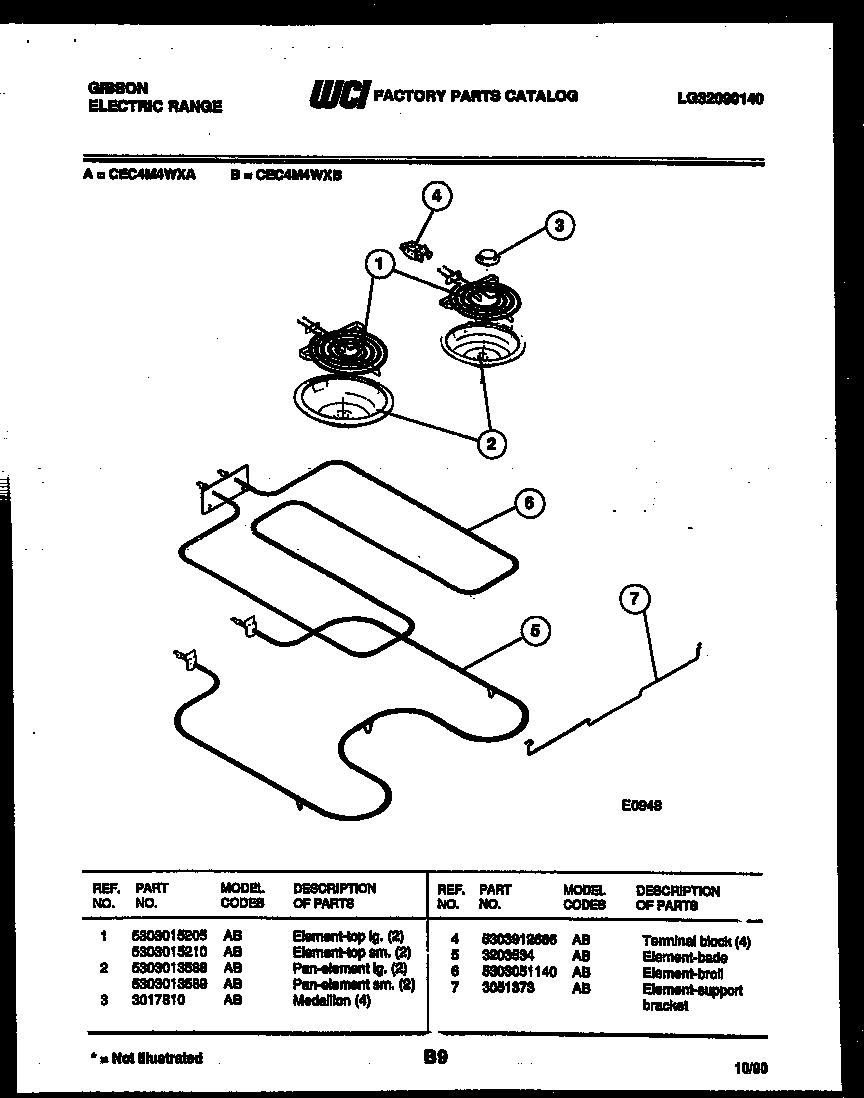

06 - BROILER PARTS

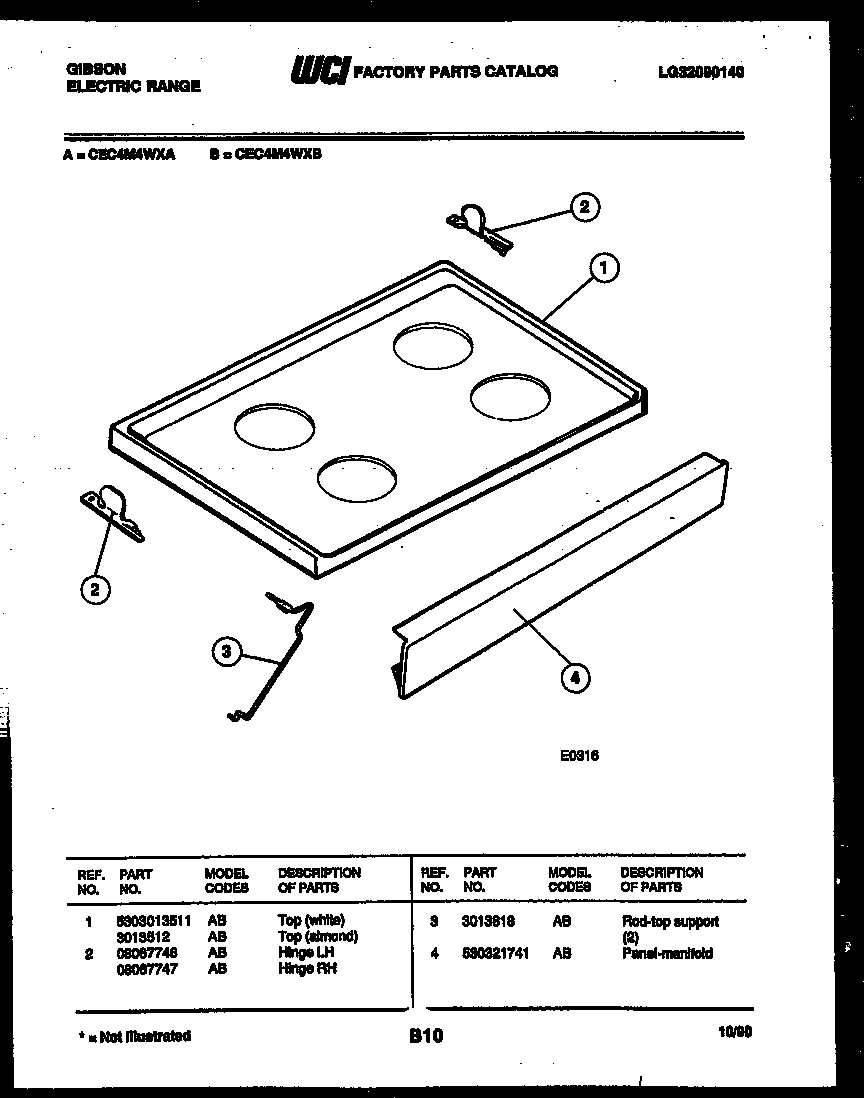

07 - COOKTOP PARTS
Common parts from model Electrolux CEC4M4WXA RANGE
*22049
INSULATION-WRAP WCI 3017142 Contact Us For Availability
*22049
WCI 3131252 WCI 3131252 Contact Us For Availability
*22049
INSULATION-BACK WCI 3203541 Contact Us For Availability
*22049
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*22049
WCI 5303206618 WCI 5303206618 Contact Us For Availability
*22049
SCREW-HINGE (6) WCI 5303212740 Contact Us For Availability
*22051
SCREW WSH HD (2) WCI 08067785 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
GLASS-BLACK WCI 3051152 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
TOP-ALMOND WCI 3013512 Contact Us For Availability
1
TOP-WHITE WCI 5303013511 Contact Us For Availability
2
HINGE LH WCI 08067746 Contact Us For Availability
2
WCI 3200887 WCI 3200887 Contact Us For Availability
2A
HINGE RH WCI 08067747 Contact Us For Availability
3
PANEL-SIDE LH (WHITE) WCI 3205620 Contact Us For Availability
3
PANEL-SIDE LH (ALMOND) WCI 3205621 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
PANEL, DRAWER, (ALMD) WCI 3131134 Contact Us For Availability
3
WCI 3017810 WCI 3017810 Contact Us For Availability
3
ROD-TOP SUPPORT (2) WCI 3013818 Contact Us For Availability
3A
PANEL-SIDE RH (WHITE) WCI 3205623 Contact Us For Availability
3A
PANEL-SIDE RH (ALMOND) WCI 3205624 Contact Us For Availability
4
WCI 3931014 WCI 3931014 Contact Us For Availability
4
WCI 3017926 WCI 3017926 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
4
WCI 530321741 WCI 530321741 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 3202148 WCI 3202148 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
7
SHIELD-LOW WALL WCI 3203549 Contact Us For Availability
8
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
8
COVER-LOW ACCESS WCI 3203405 Contact Us For Availability
9
WCI 3203480 WCI 3203480 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
11
SCREW-LEVE (4) WCI 5303203397 Contact Us For Availability
11
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131570 Contact Us For Availability
12
GLASS-INNER WCI 3018609 Contact Us For Availability
13
WCI 3202350 WCI 3202350 Contact Us For Availability
13
FASTENER-NYLON WCI 5303131254 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13A
SCREW, 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
14
WCI 5303212659 WCI 5303212659 Contact Us For Availability
14
INSULATION-OVEN DOOR WCI 3205524 Contact Us For Availability
14
CHANNEL - HINGE (2) WCI 3131569 Contact Us For Availability
14A
WCI 5303212737 WCI 5303212737 Contact Us For Availability
14B
WCI 5303212736 WCI 5303212736 Contact Us For Availability
15
KNOB-CLOCK WCI 3131472 Contact Us For Availability
15
WCI 5303015373 WCI 5303015373 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
IND. LIGHT (2) WCI 5303091462 Contact Us For Availability
16
SCREW-HANDLE 10-24 SP WSH RHD (2) WCI 3016420 Contact Us For Availability
16A
WCI 19100210071 WCI 19100210071 Contact Us For Availability
17
WCI 5303211001 WCI 5303211001 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
BUSHING, CONTROL SHAFT WCI 3204745 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
19
SPRT-BACKGUARD (2) WCI 5303131237 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT WCI 5303015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
28
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
