Model Electrolux CEC3M5WSAB RANGE – Common Parts & Diagrams

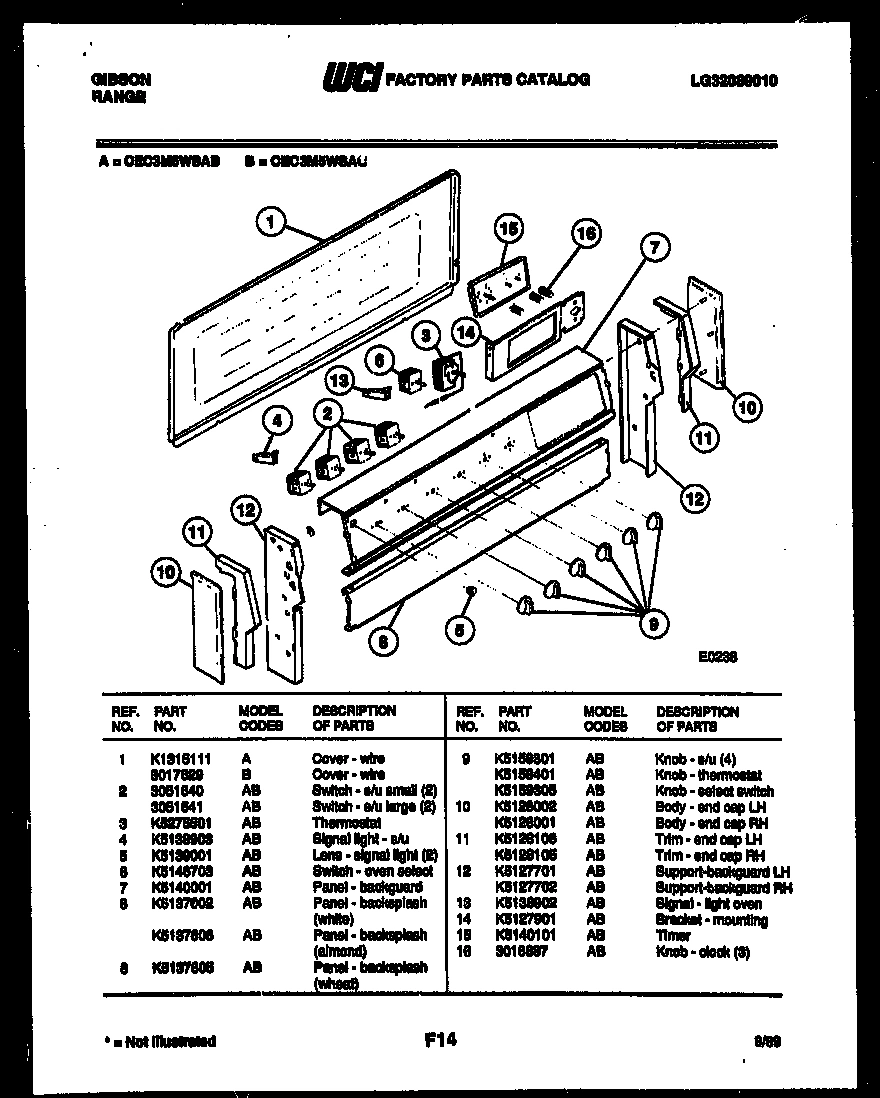

02 - BACKGUARD

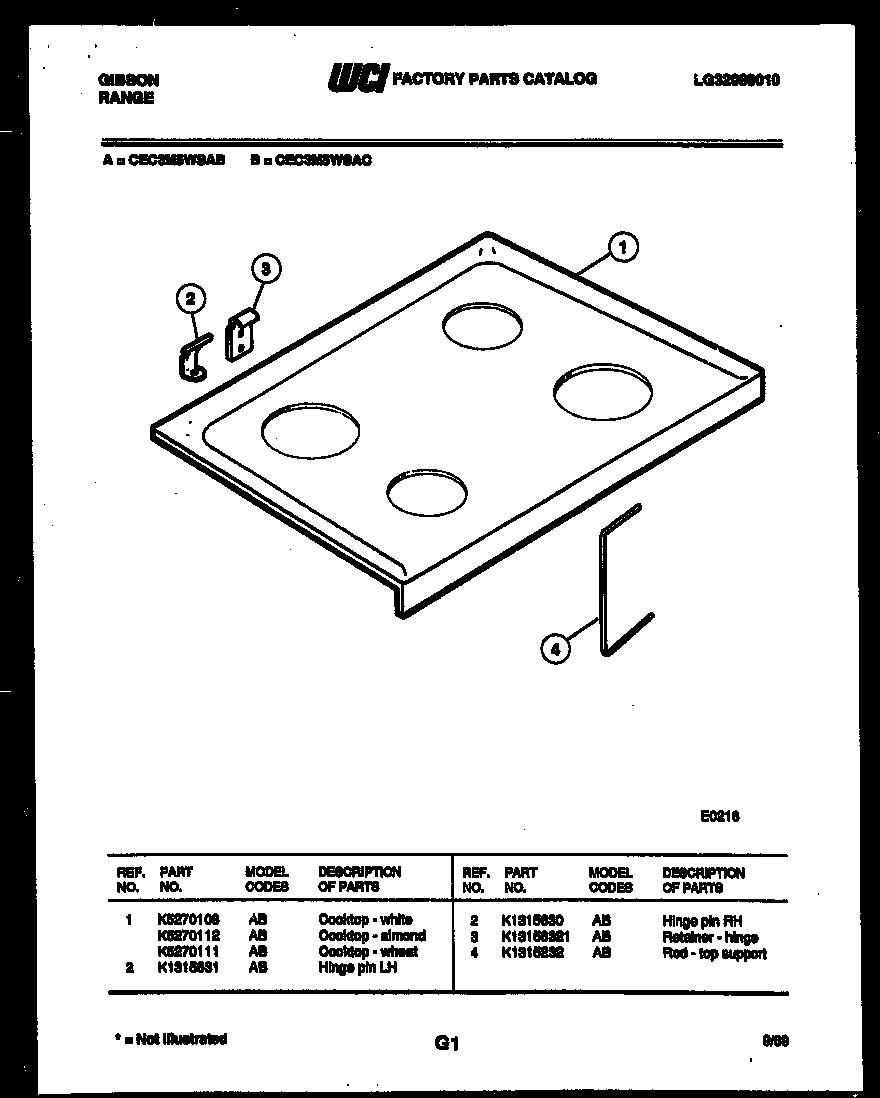

03 - COOKTOP PARTS

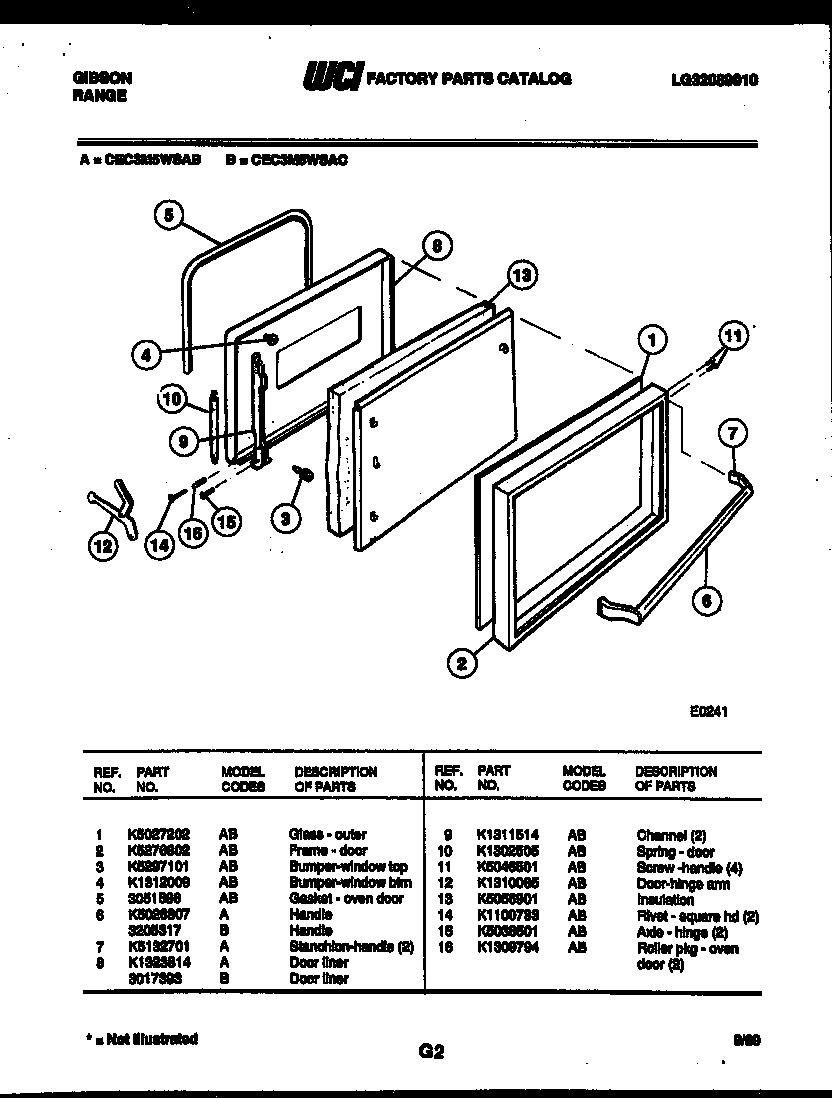

04 - DOOR PARTS

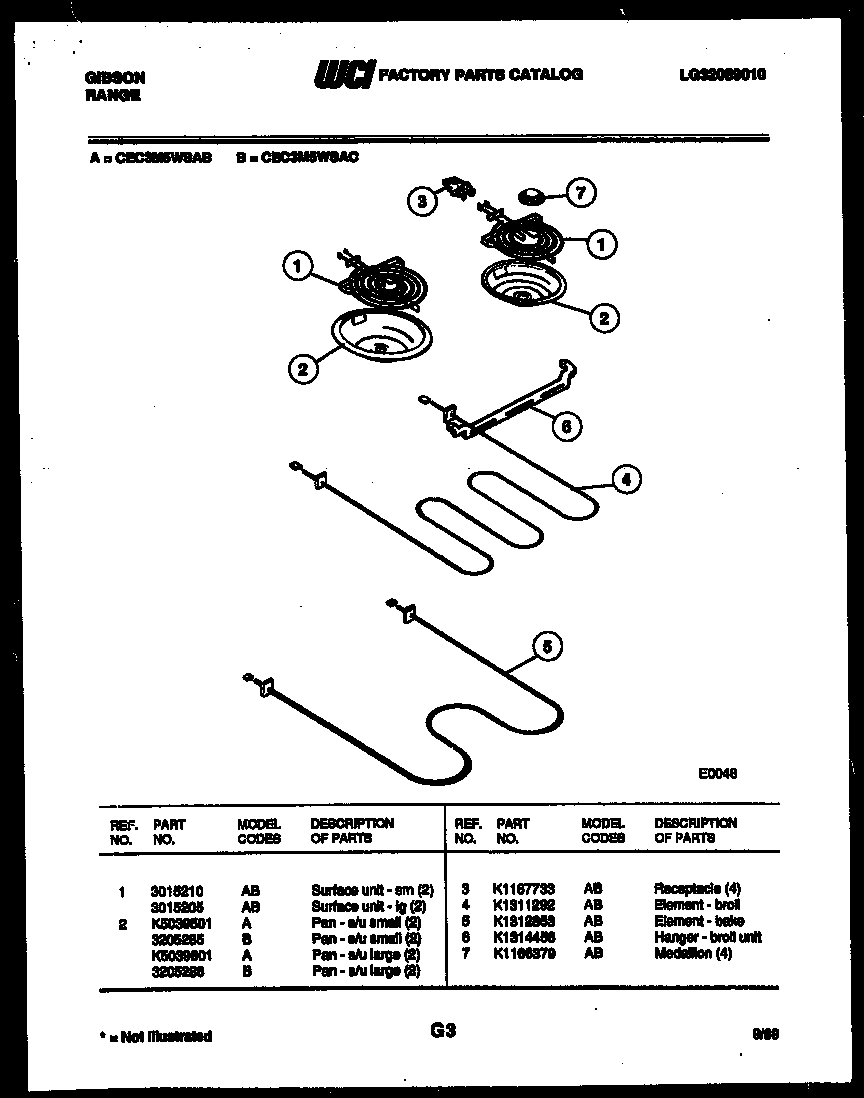

05 - BROILER PARTS

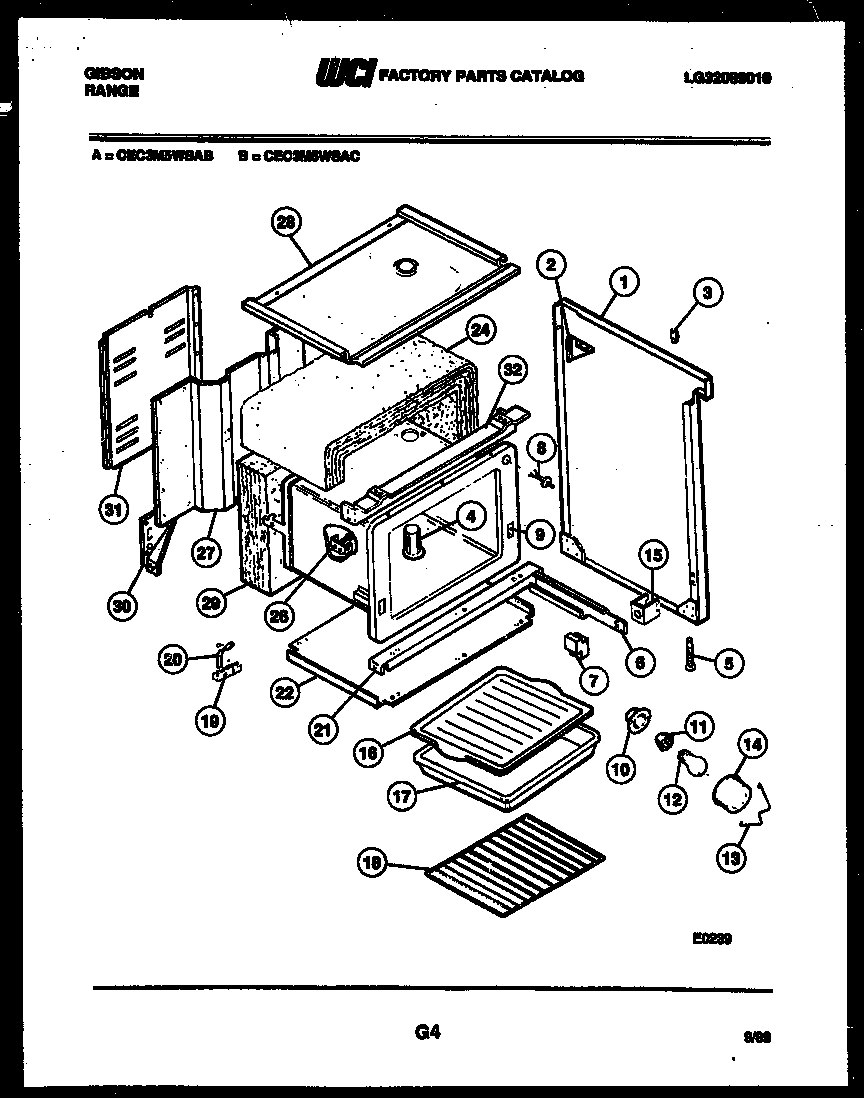

06 - BODY PARTS

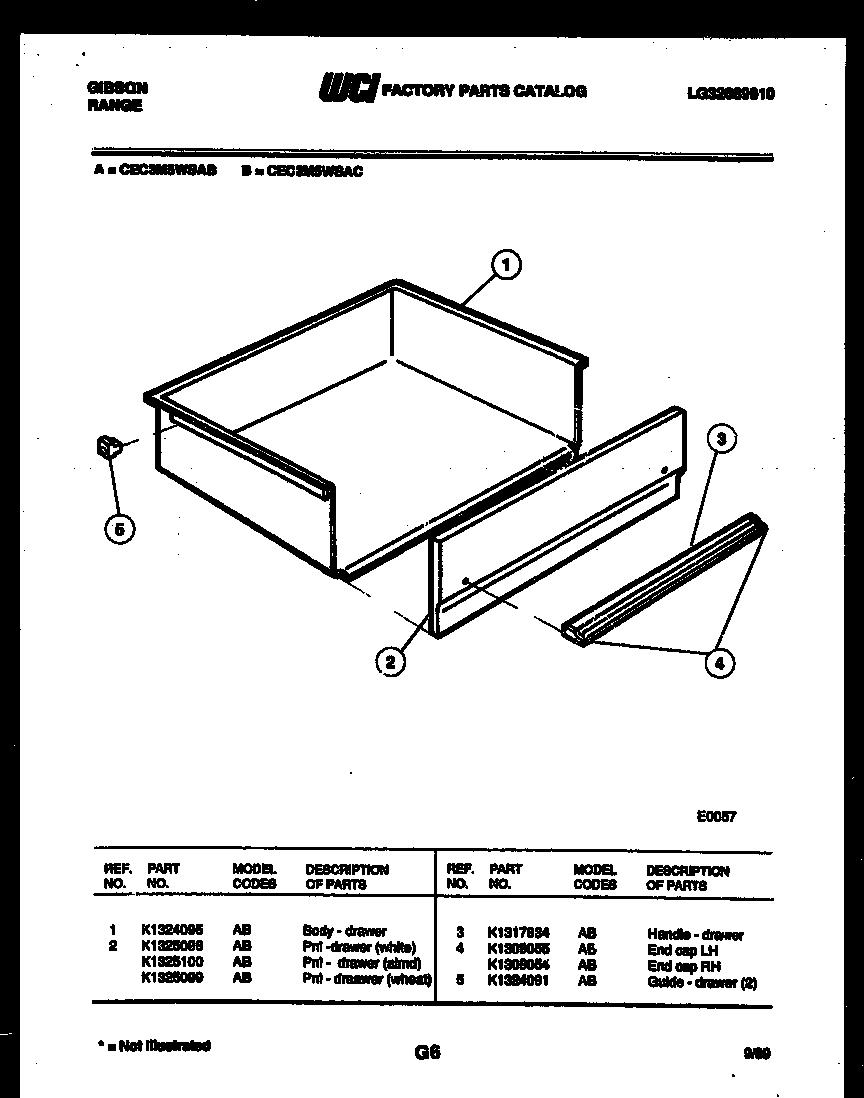

07 - DRAWER PARTS
Common parts from model Electrolux CEC3M5WSAB RANGE
1
COVER, WIRE WCI K1315111 Contact Us For Availability
1
WCI K5270108 WCI K5270108 Contact Us For Availability
1
WCI K5270111 WCI K5270111 Contact Us For Availability
1
COOKTOP, ALMOND WCI K5270112 Contact Us For Availability
1
GLASS, OUTER WCI K5027202 Contact Us For Availability
1
SIDE PNL - RH (WHITE) WCI K5024601 Contact Us For Availability
1
SIDE PNL - RH (ALMD) WCI K5024603 Contact Us For Availability
1
SIDE PNL RH - WHEAT WCI K5024609 Contact Us For Availability
1
WCI K1324095 WCI K1324095 Contact Us For Availability
1A
SIDE PNL LH - WHITE WCI K5024602 Contact Us For Availability
1A
SIDE PNL-LH-ALMD WCI K5024604 Contact Us For Availability
1A
SIDE PNL - LH WHEAT WCI K5024610 Contact Us For Availability
2
WCI K1315630 WCI K1315630 Contact Us For Availability
2
WCI K1315631 WCI K1315631 Contact Us For Availability
2
WCI K5276802 WCI K5276802 Contact Us For Availability
2
GUSSET-BACKGUARD (2) WCI K1315230 Contact Us For Availability
2
PNL - DRAWER (WHITE) WCI K1325096 Contact Us For Availability
2
PNL - DRAWER (WHEAT) WCI K1325099 Contact Us For Availability
2
PNL - DRAWER (ALMD) WCI K1325100 Contact Us For Availability
3
THERMOSTAT WCI K5275501 Contact Us For Availability
3
WCI K13156321 WCI K13156321 Contact Us For Availability
3
WCI K5297101 WCI K5297101 Contact Us For Availability
3
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
3
HANDLE-DRAWER WCI K1317834 Contact Us For Availability
4
SIGNAL LIGHT - S/U WCI K5138903 Contact Us For Availability
4
ROD - TOP SUPPORT WCI K1315232 Contact Us For Availability
4
BUMPER-WINDOW BTM WCI K1312009 Contact Us For Availability
4
VENT TUBE WCI K5025501 Contact Us For Availability
4
END CAP - LH WCI K1309055 Contact Us For Availability
4A
END CAP - RH WCI K1309054 Contact Us For Availability
5
LENS - SIGNAL LIGHT (2) WCI K5139001 Contact Us For Availability
5
WCI 3051586 WCI 3051586 Contact Us For Availability
5
LEG-LEVELLER (4) WCI K1322905 Contact Us For Availability
5
GUIDE-DRAWER (2) WCI K1324091 Contact Us For Availability
6
SWITCH - OVEN SELECT WCI K5146703 Contact Us For Availability
6
HANDLE WCI K5026807 Contact Us For Availability
6
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
6
WCI K5269901 WCI K5269901 Contact Us For Availability
6A
WCI K5269902 WCI K5269902 Contact Us For Availability
7
WCI K5140001 WCI K5140001 Contact Us For Availability
7
STANCHION-HANDLE (2) WCI K5132701 Contact Us For Availability
7
WCI K1166379 WCI K1166379 Contact Us For Availability
7
GUIDE-DRAWER FR (2) WCI K1315216 Contact Us For Availability
8
PANEL BACKSPLASH, WHITE WCI K5137602 Contact Us For Availability
8
PANEL BACKSPLASH, WHEAT WCI K5137605 Contact Us For Availability
8
PANEL BACKSPLASH, ALMOND WCI K5137606 Contact Us For Availability
8
DOOR LINER WCI K1323814 Contact Us For Availability
8
SWITCH, OVEN LIGHT WCI K1314211 Contact Us For Availability
9
KNOB-S/U (4) WCI K5159301 Contact Us For Availability
9
CHANNEL (2) WCI K1311514 Contact Us For Availability
9
OVEN LINER WCI K1325538 Contact Us For Availability
9A
WCI K5159401 WCI K5159401 Contact Us For Availability
9B
KNOB - SELECT SWITCH WCI K5159305 Contact Us For Availability
10
WCI K5128002 WCI K5128002 Contact Us For Availability
10
SPRING - DOOR WCI K1302505 Contact Us For Availability
10
WCI K1325530 WCI K1325530 Contact Us For Availability
10A
WCI K5128001 WCI K5128001 Contact Us For Availability
11
WCI K5128106 WCI K5128106 Contact Us For Availability
11
SCREW-HANDLE (4) WCI K5046501 Contact Us For Availability
11A
WCI K5128105 WCI K5128105 Contact Us For Availability
12
SUPPORT-BACKGUARD LH WCI K5127701 Contact Us For Availability
12
DOOR HINGE ARM WCI K1310065 Contact Us For Availability
12A
SUPPORT-BACKGUARD RH WCI K5127702 Contact Us For Availability
13
SIGNAL LIGHT-OVEN WCI K5138902 Contact Us For Availability
13
WCI K1325529 WCI K1325529 Contact Us For Availability
14
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
14
WCI K1100733 WCI K1100733 Contact Us For Availability
15
TIMER WCI K5140101 Contact Us For Availability
15
AXLE, HINGE (2) WCI K5038501 Contact Us For Availability
15
SPACER-DRAWER RAIL (2) WCI K1324860 Contact Us For Availability
16
WCI 3016387 WCI 3016387 Contact Us For Availability
16
ROLLER PKG - OVEN DOOR (2) WCI K1309794 Contact Us For Availability
16
GRILLE, BROILER WCI K1313049 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
21
CHANNEL, OVEN SUPPORT, LOWER WCI K1315108 Contact Us For Availability
22
WCI K5276504 WCI K5276504 Contact Us For Availability
24
INSULATION, WRAP WCI K1311329 Contact Us For Availability
26
BRKT, THERMOBULB WCI K1311369 Contact Us For Availability
27
WCI K5275802 WCI K5275802 Contact Us For Availability
28
WCI K5025802 WCI K5025802 Contact Us For Availability
29
INSULATION-OVEN BACK WCI K5056901 Contact Us For Availability
30
GUSSET REAR, RH WCI K5285802 Contact Us For Availability
30A
GUSSET REAR, LH WCI K5285804 Contact Us For Availability
31
WCI 3051856 WCI 3051856 Contact Us For Availability
31A
WASKER - PADDED (3) (NON-ILLUSTRATED) WCI K1313226 Contact Us For Availability
32
CHANNEL-OVEN SPRT WCI K1325635 Contact Us For Availability
× ![]()
