Model Electrolux CEC1M1WTAB RANGE – Common Parts & Diagrams

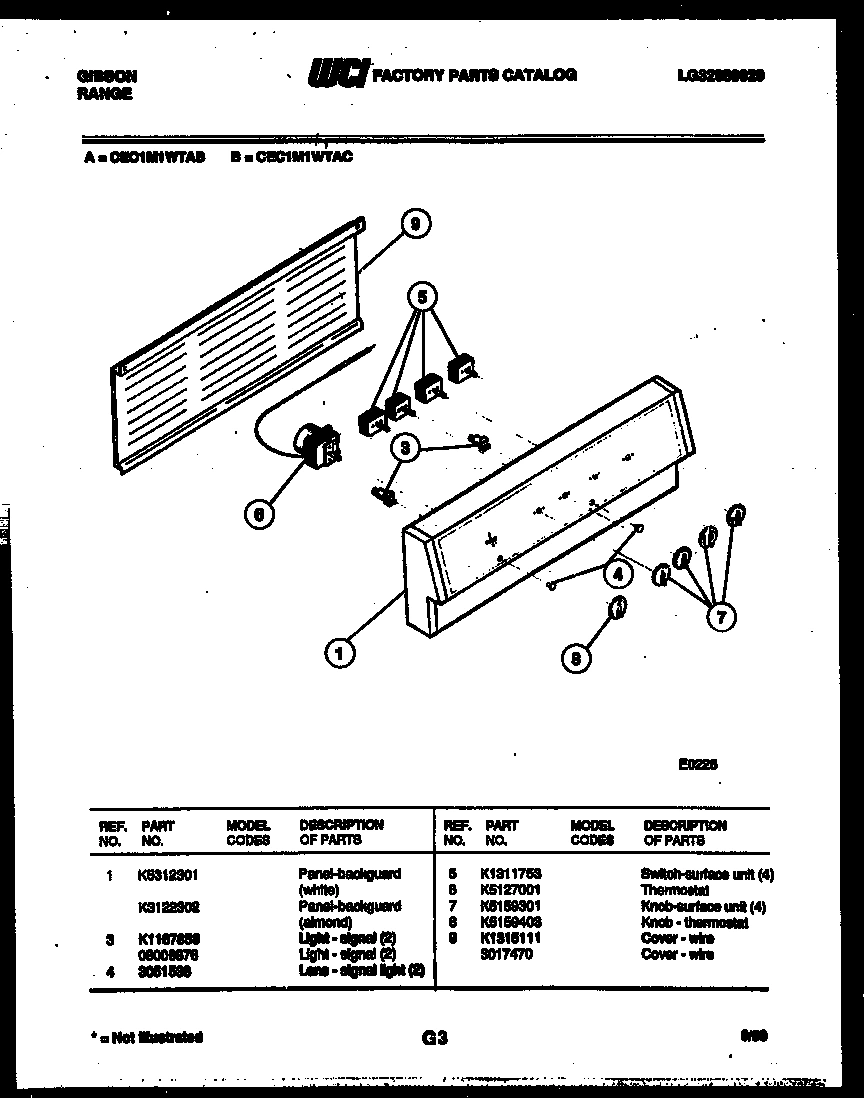

02 - BACKGUARD
03 - DRAWER PARTS

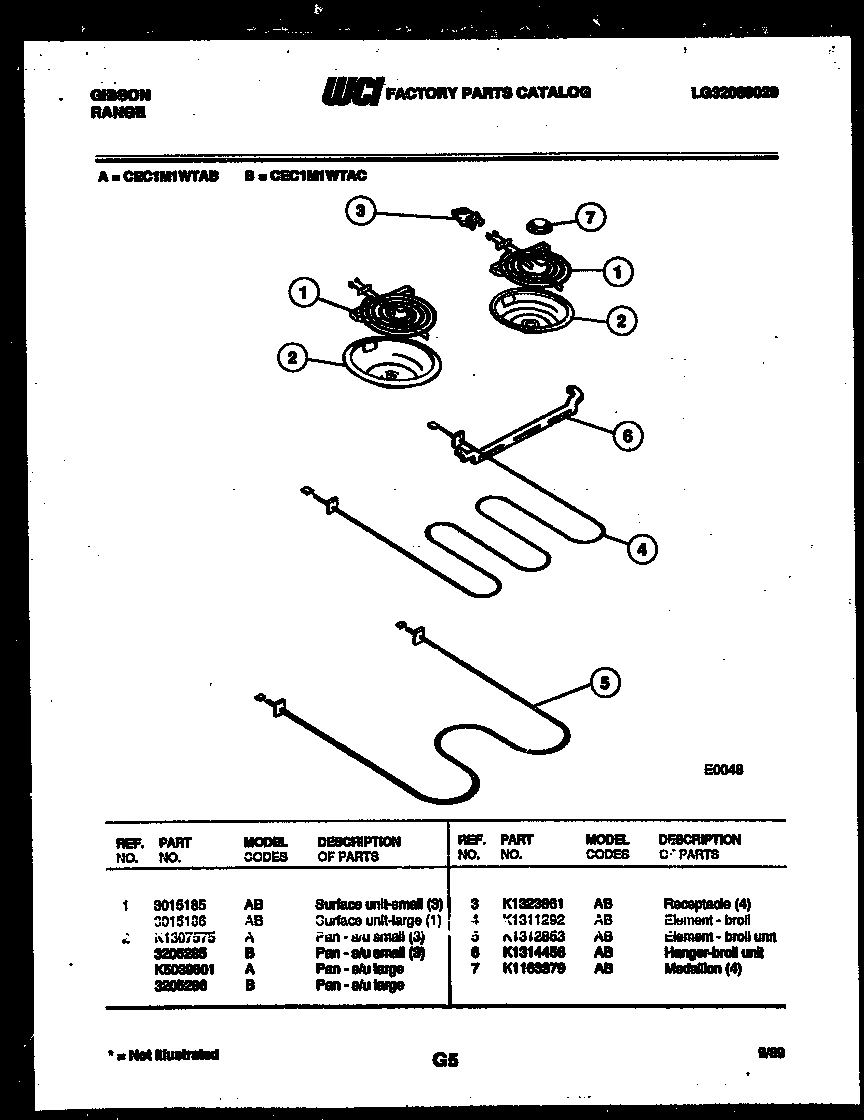

04 - BROILER PARTS

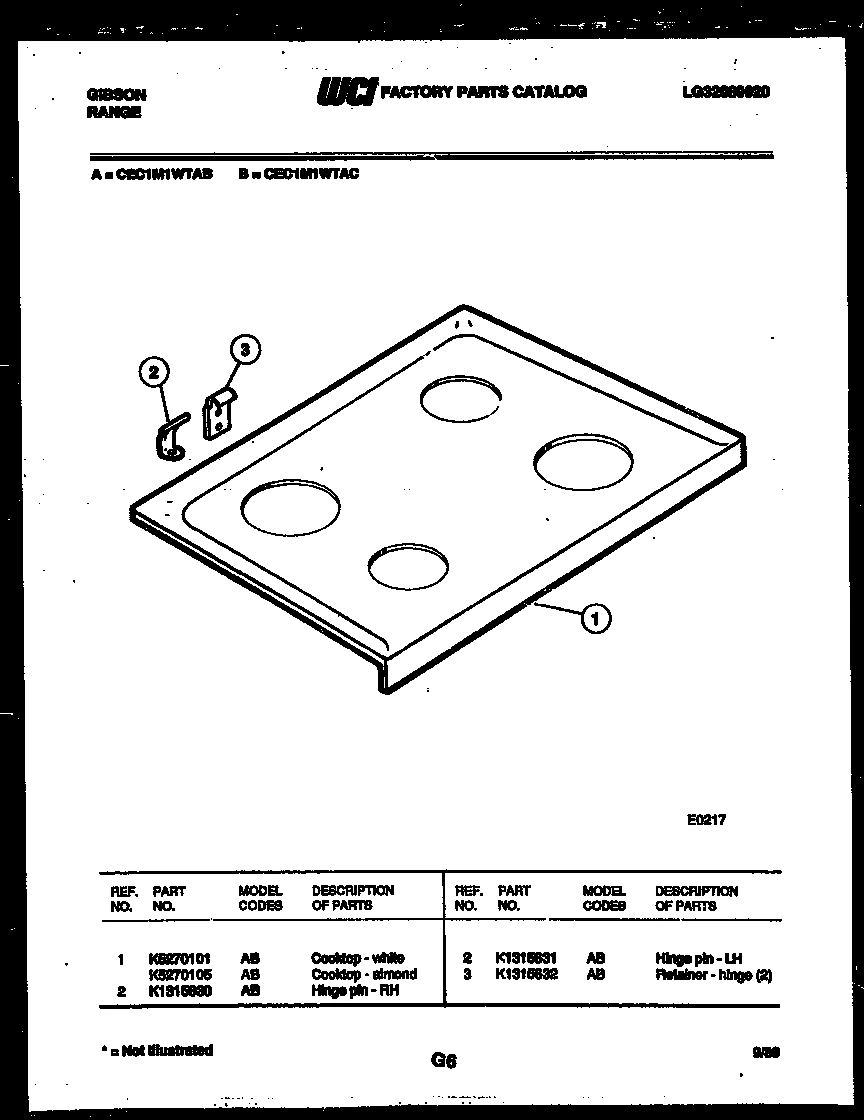

05 - COOKTOP PARTS

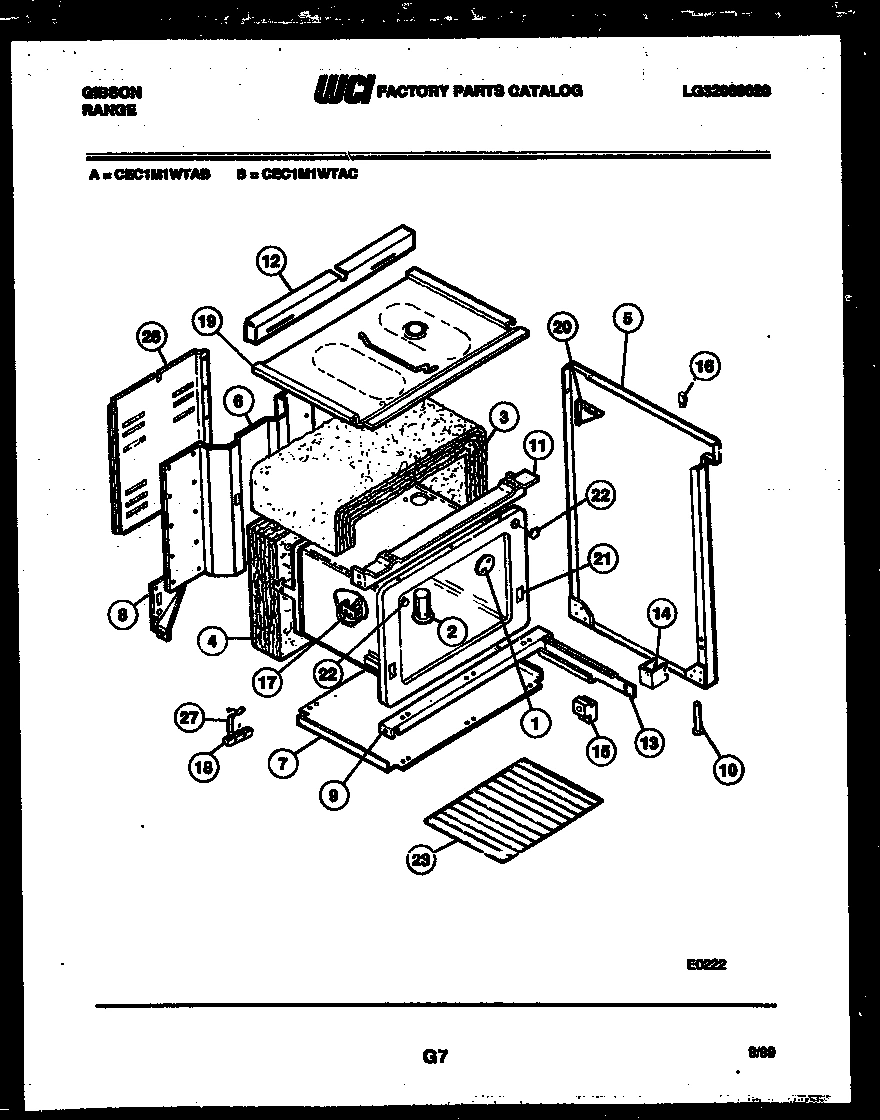

06 - BODY PARTS

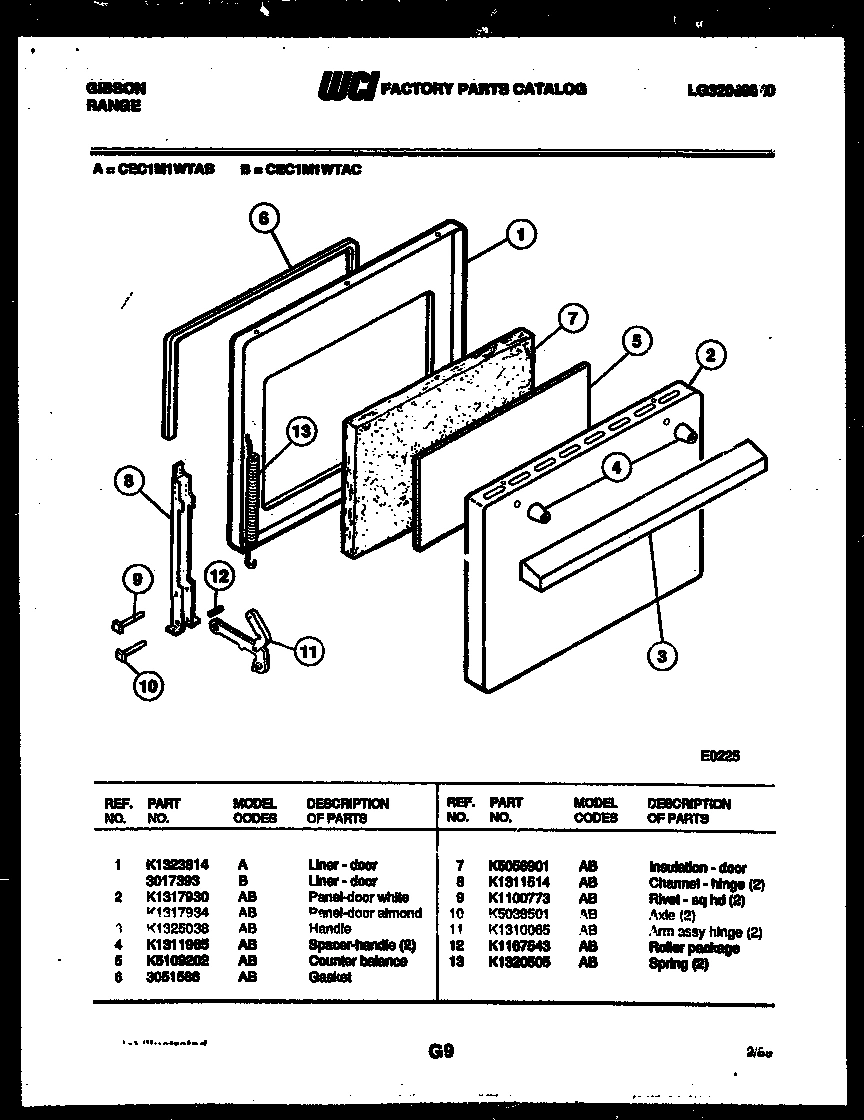

07 - DOOR PARTS
Common parts from model Electrolux CEC1M1WTAB RANGE
*17153
WCI 3934063 WCI 3934063 Contact Us For Availability
1
PANEL-BACKGUARD (ALMOND) WCI K3122302 Contact Us For Availability
1
WCI K5312301 WCI K5312301 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1
WCI K5270101 WCI K5270101 Contact Us For Availability
1
COOKTOP, ALMOND WCI K5270105 Contact Us For Availability
1
WCI K1325524 WCI K1325524 Contact Us For Availability
1
WCI K1323814 WCI K1323814 Contact Us For Availability
2
GUIDE - DRAWER REAR (2) WCI K1324091 Contact Us For Availability
2
WCI K1307575 WCI K1307575 Contact Us For Availability
2
WCI K1315630 WCI K1315630 Contact Us For Availability
2
WCI K1315631 WCI K1315631 Contact Us For Availability
2
TUBE-OVEN VENT WCI K5025501 Contact Us For Availability
2
PANEL-DOOR WHITE WCI K1317930 Contact Us For Availability
2
PANEL DOOR - ALMOND WCI K1317934 Contact Us For Availability
3
WCI 08008876 WCI 08008876 Contact Us For Availability
3
WCI K1167858 WCI K1167858 Contact Us For Availability
3
PANEL, WHITE WCI K1325096 Contact Us For Availability
3
WCI K1325100 WCI K1325100 Contact Us For Availability
3
HANDLE WCI K1325038 Contact Us For Availability
3
RETAINER HINGE (2) WCI K1315632 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI K1311329 Contact Us For Availability
4
LENS - SIGNAL LIGHT (2) WCI 3051538 Contact Us For Availability
4
SPACER HANDLE (2) WCI K1311965 Contact Us For Availability
5
SWITCH-SURFACE UNIT (4) WCI K1311753 Contact Us For Availability
5
PANEL-SIDE RH WHITE WCI K5024601 Contact Us For Availability
5
PANEL-SIDE RH ALMD WCI K5024603 Contact Us For Availability
5
COUNTER BALANCE WCI K5109202 Contact Us For Availability
5A
PANEL-SIDE LH WHITE WCI K5024602 Contact Us For Availability
5A
PANEL-SIDE LH ALMD WCI K5024604 Contact Us For Availability
6
WCI K5127001 WCI K5127001 Contact Us For Availability
6
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
6
WCI K5275802 WCI K5275802 Contact Us For Availability
6
GASKET WCI 3051586 Contact Us For Availability
7
KNOB-SURFACE UNIT (4) WCI K5159301 Contact Us For Availability
7
WCI K1163379 WCI K1163379 Contact Us For Availability
7
WCI K5056901 WCI K5056901 Contact Us For Availability
7
WCI K5276504 WCI K5276504 Contact Us For Availability
8
WCI K5159403 WCI K5159403 Contact Us For Availability
8
GUSSET REAR, RH WCI K5285802 Contact Us For Availability
8
CHANNEL-HINGE (2) WCI K1311514 Contact Us For Availability
8A
GUSSET REAR, LH WCI K5285804 Contact Us For Availability
9
WCI 3017470 WCI 3017470 Contact Us For Availability
9
COVER, WIRE WCI K1315111 Contact Us For Availability
9
CHANNEL-OVEN SUPT WCI K1315108 Contact Us For Availability
9
RIVET-S/Q HD (2) WCI K1100773 Contact Us For Availability
10
SCREW-LEVELING (4) WCI K1322905 Contact Us For Availability
10
AXLE (2) WCI K5038501 Contact Us For Availability
11
CHANNEL-OVEN SUPT WCI K1325635 Contact Us For Availability
11
ARM ASSY HINGE (2) WCI K1310065 Contact Us For Availability
12
WCI K5287902 WCI K5287902 Contact Us For Availability
12
ROLLER PACKAGE WCI K1167543 Contact Us For Availability
13
WCI K5269901 WCI K5269901 Contact Us For Availability
13
WCI K1320505 WCI K1320505 Contact Us For Availability
13A
WCI K5269902 WCI K5269902 Contact Us For Availability
14
SPACER-DRWR RAIL (2) WCI K1324860 Contact Us For Availability
15
GUIDE - DRWR FRONT (2) WCI K1315216 Contact Us For Availability
16
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
17
BRACKET - THRM BL (2) WCI K1321147 Contact Us For Availability
19
WCI K5025704 WCI K5025704 Contact Us For Availability
20
GUSSET-BACKGUARD (2) WCI K1315230 Contact Us For Availability
21
WCI K1325538 WCI K1325538 Contact Us For Availability
22
WCI 3051784 WCI 3051784 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
26
WCI K1315110 WCI K1315110 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
× ![]()
