Model Whirlpool CEC1536AAW ELECTRIC COOK-TOP – Common Parts & Diagrams

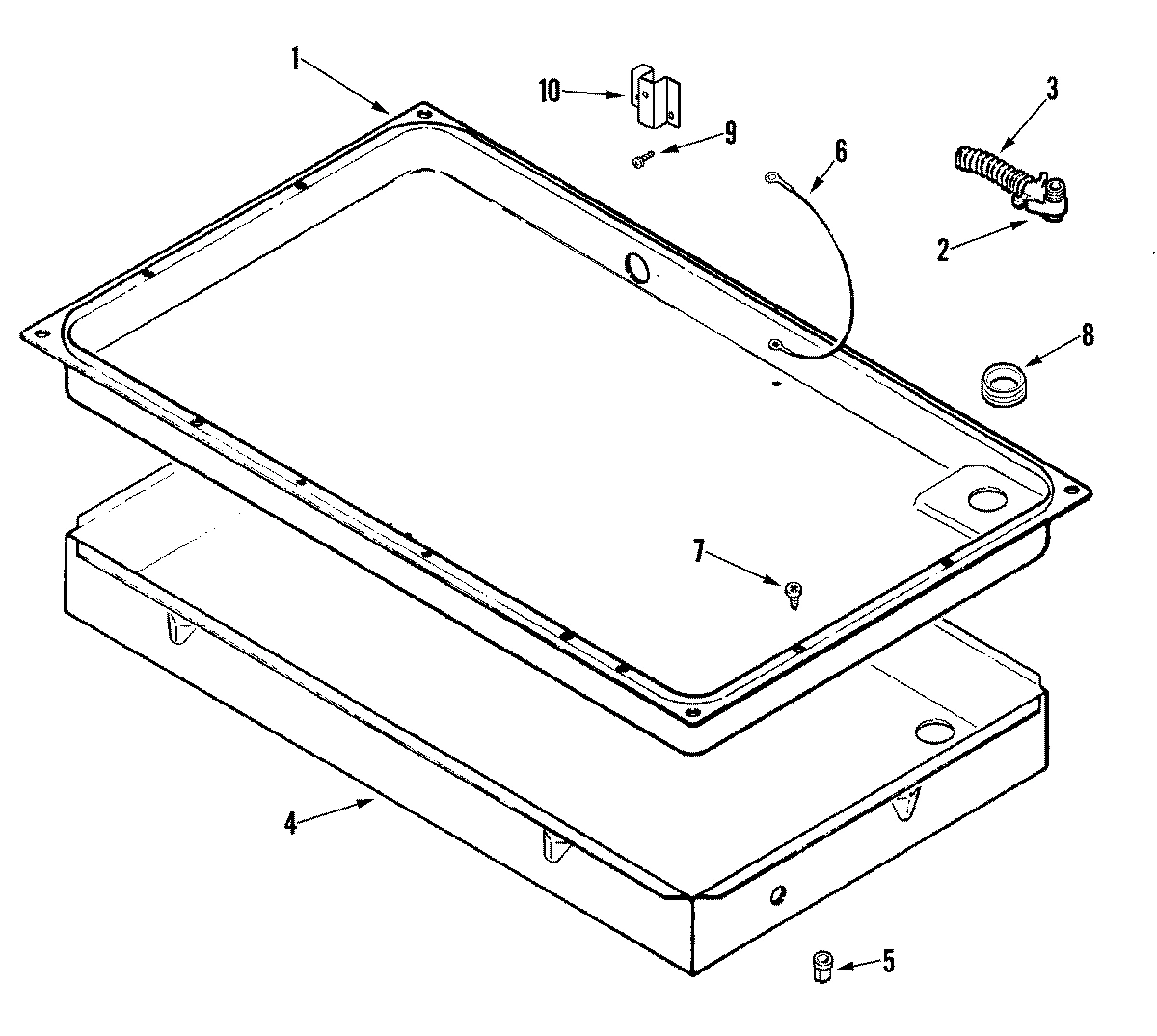

Common parts from model Whirlpool CEC1536AAW ELECTRIC COOK-TOP

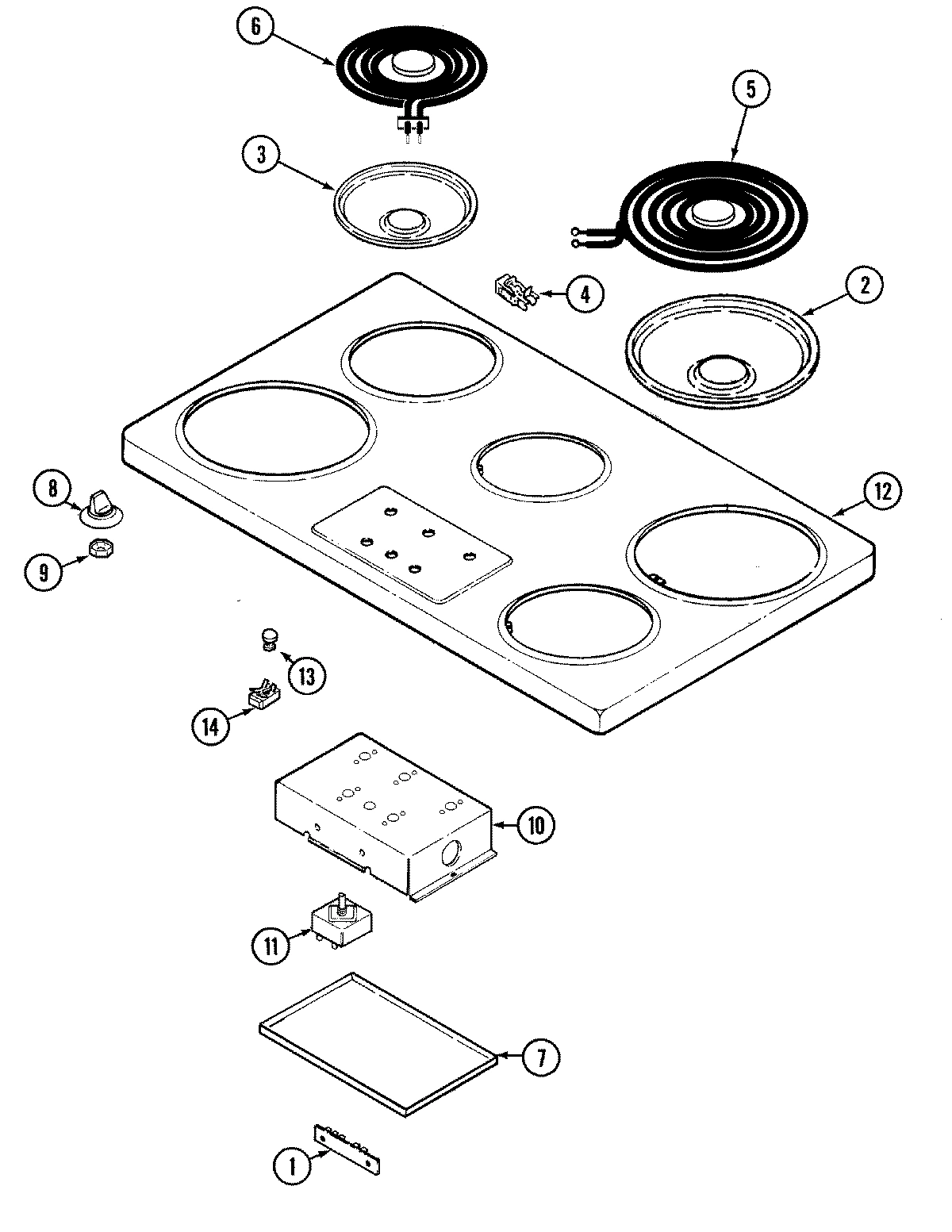

03 - TOP ASSEMBLY

Print

• This Diagram
• All Diagrams

1

BOTTOM, BURNER BOX WPL 74002074 Contact Us For Availability

View on Model

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 View Details $4.48

View on Model

2

CONNECTOR, TUBING WPL 74003068 Contact Us For Availability

View on Model

3

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 View Details $3.20

View on Model

3

GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability

View on Model

3

BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability

View on Model

3

TUBING, FLEX WPL 74004221 Contact Us For Availability

View on Model

3

WIRE, CONDUIT (BLK) WPL 74008028 Contact Us For Availability

View on Model

3

WIRE, CONDUIT (RED) WPL 74008029 Contact Us For Availability

View on Model

3

WIRE, CONDUIT (GRN) WPL 74008030 Contact Us For Availability

View on Model

3

SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability

View on Model

4

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 View Details $8.93

View on Model

4

HOUSING, UNIT WPL 74005303 Contact Us For Availability

View on Model

5

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 View Details $14.22

View on Model

5

ELEMENT, SURFACE (4 COIL) WPL 74004011 Contact Us For Availability

View on Model

5

NUT, SNAP WPL 7103P01660 Contact Us For Availability

View on Model

6

WP3191454 Whirlpool Surface Element Backorder WPL WP3191454 View Details $84.82

View on Model

6

ELEMENT, SURFACE (8``) WPL 74005229 Contact Us For Availability

View on Model

6

BRACKET, MAIN TOP SUPPORT WPL 3801F18345 Contact Us For Availability

View on Model

7

COVER, HOUSING WPL 4005F08651 Contact Us For Availability

View on Model

7

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

View on Model

8

WP74003373 Whirlpool Knob Switch Backorder WPL WP74003373 View Details $9.62

View on Model

8

GROMMET, NYLON WPL 8008P01460 Contact Us For Availability

View on Model

9

NUT, SWITCH WPL 7103P02160 Contact Us For Availability

View on Model

9

SCREW WPL 7118P00460 Contact Us For Availability

View on Model

10

HOUSING, SWITCH WPL 74002068 Contact Us For Availability

View on Model

11

SWITCH, INFINITE (1400W) WPL 74002069 Contact Us For Availability

View on Model

12

TOP, MAIN (WHT) WPL 74007993 Contact Us For Availability

View on Model

13

LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability

View on Model

14

LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability

View on Model

NI

5175P373-60 Whirlpool Wire Harness Backorder WPL 5175P373-60 View Details $110.46

View on Model

NI

5175P374-60 Whirlpool Wire Harness Backorder WPL 5175P374-60 View Details $134.57

View on Model

NI

5195P141-60 Whirlpool Wire Harness Backorder WPL 5195P141-60 View Details $93.42

View on Model

NI

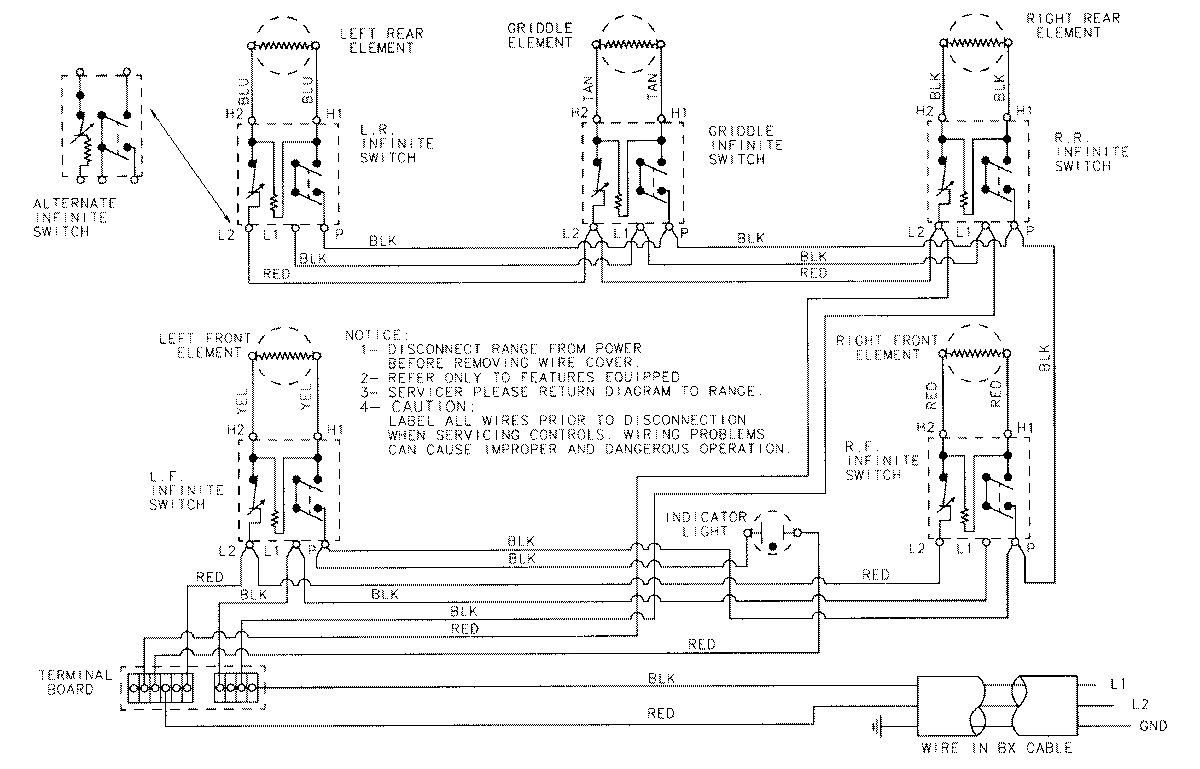

WIRING INFORMATION WPL 15001543 Contact Us For Availability

View on Model

NI

MANUAL, USE & CARE WPL 8111P43560 Contact Us For Availability

View on Model

NI

MANUAL, USE & CARE WPL 8111P47060 Contact Us For Availability

View on Model

NI

Manual, Use & Care WPL 8111P52160 Contact Us For Availability
