Model Electrolux CEA3M2WSTD RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - DOOR PARTS

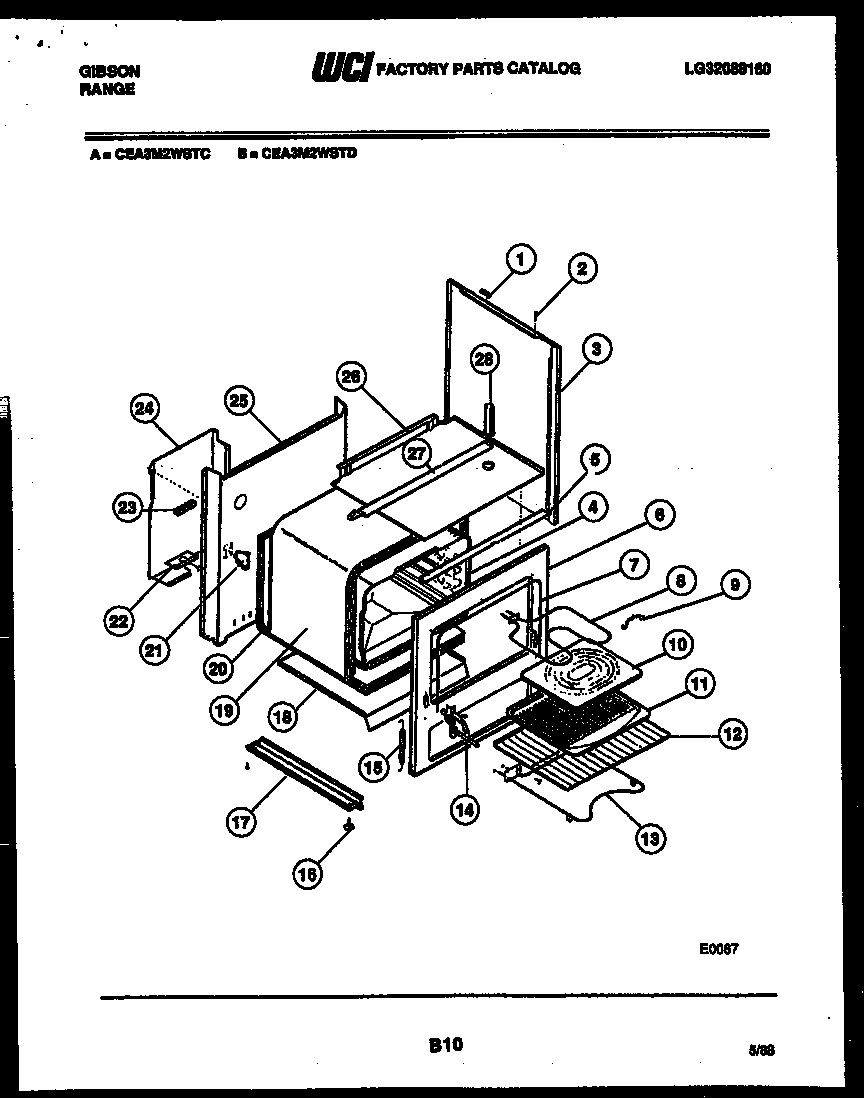

04 - BODY PARTS

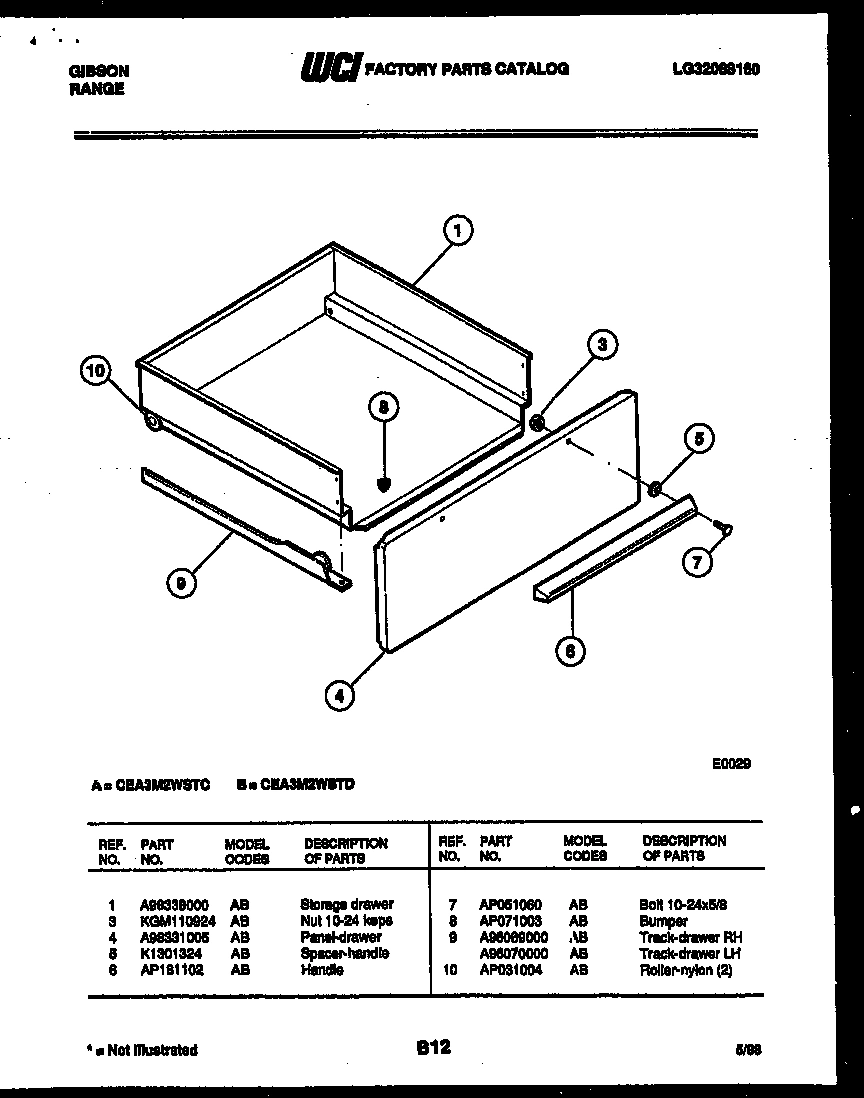

05 - DRAWER PARTS
Common parts from model Electrolux CEA3M2WSTD RANGE
*12079
CLIP BACKSPLASH CORNER WCI 3009582 Contact Us For Availability
*12079
STRAP-GROUND WCI K1145190 Contact Us For Availability
1
MEDALLION WCI 3013243 Contact Us For Availability
1
WCI AP347009 WCI AP347009 Contact Us For Availability
1
GROMMET-MAIN TOP (2) WCI 3016129 Contact Us For Availability
1
STORAGE DRAWER WCI A98338000 Contact Us For Availability
2
BUMPER (2) WCI AP071004 Contact Us For Availability
2
GROMMET (2) WCI AP172002 Contact Us For Availability
3
SCREW 6-32 X 3/8 (2) WCI AP057025 Contact Us For Availability
3
PANEL-BODYSIDE WHITE WCI A64013000 Contact Us For Availability
3
NUT 10-24 KEPS WCI KGM110924 Contact Us For Availability
4
TOP-MAIN WHITE WCI A76096000 Contact Us For Availability
4
PANEL-DRAWER WCI A98331005 Contact Us For Availability
4A
LINER RH OVEN BZ WCI 3016533 Contact Us For Availability
4C
LINER LH OVEN BZ WCI 3017599 Contact Us For Availability
4E
LINER TOP OVEN BZ WCI 3017708 Contact Us For Availability
4G
LINER BACK OVEN BZ WCI 3017710 Contact Us For Availability
4I
LINER-BOTTOM OVEN BZ WCI 3017720 Contact Us For Availability
5
WCI AP181098 WCI AP181098 Contact Us For Availability
5
WCI A74062000 WCI A74062000 Contact Us For Availability
5
WCI K1301324 WCI K1301324 Contact Us For Availability
6
PILOT LIGHT (2) WCI AP287029 Contact Us For Availability
6
FRAME-DOOR WCI AP375477 Contact Us For Availability
6
HANDLE WCI AP181102 Contact Us For Availability
6A
FRAME-FRONT BZ WCI 3017713 Contact Us For Availability
7
GLASS-OUTER WCI AP161339 Contact Us For Availability
7
SEAL-DOOR WCI AP326050 Contact Us For Availability
8
INSULATION WCI AP207039 Contact Us For Availability
8
WCI 3051071 WCI 3051071 Contact Us For Availability
8
WCI AP071003 WCI AP071003 Contact Us For Availability
9
KNOB SURFACE UNIT (4) WCI AP227501 Contact Us For Availability
9
PANEL-INNER WCI 3017711 Contact Us For Availability
9
SUPPORT-BROIL WCI AP347006 Contact Us For Availability
9
TRACK-DRAWER RH WCI A96069000 Contact Us For Availability
9A
TRACK-DRAWER LH WCI A96070000 Contact Us For Availability
10
WCI AP234001 WCI AP234001 Contact Us For Availability
10
BUTTON-PLUG WCI AP075019 Contact Us For Availability
10
WCI AP031004 WCI AP031004 Contact Us For Availability
10A
GRID BROILER (BZ) WCI 3017712 Contact Us For Availability
11
KNOB-THERMOSTAT WCI AP227503 Contact Us For Availability
11A
PAN-BROILER BZ WCI 3016973 Contact Us For Availability
12
PANEL-SWITCH WCI 3016155 Contact Us For Availability
12
WCI 3016158 WCI 3016158 Contact Us For Availability
13
WCI 3015723 WCI 3015723 Contact Us For Availability
13
ELEMENT-BAKE WCI AP141037 Contact Us For Availability
14
BACKGUARD PANEL WH WCI A96063065 Contact Us For Availability
14
HINGE, RH WCI A96068000 Contact Us For Availability
15
WCI A54217000 WCI A54217000 Contact Us For Availability
15
SPRING OVEN DOOR (2) WCI AP339053 Contact Us For Availability
16
LEG LEVELING (4) WCI AP059009 Contact Us For Availability
17
RAIL-BASE WCI A98373000 Contact Us For Availability
18
INSULATION PAN WCI A53019000 Contact Us For Availability
19
INSULATION WRAPPER WCI AP207045 Contact Us For Availability
20
WCI AP207042 WCI AP207042 Contact Us For Availability
21
SUPPORT-OVEN REAR WCI A74060000 Contact Us For Availability
22
WCI A74083000 WCI A74083000 Contact Us For Availability
24
WCI A32140000 WCI A32140000 Contact Us For Availability
25
WCI A05082000 WCI A05082000 Contact Us For Availability
26A
BURNER-BOX BOTTOM BRONZE WCI 3017015 Contact Us For Availability
27
WCI A61083000 WCI A61083000 Contact Us For Availability
28
TUBE-VENT WCI A84024000 Contact Us For Availability
× ![]()
