Model Whirlpool CE3531WRA ELECTRIC RANGE – Common Parts & Diagrams

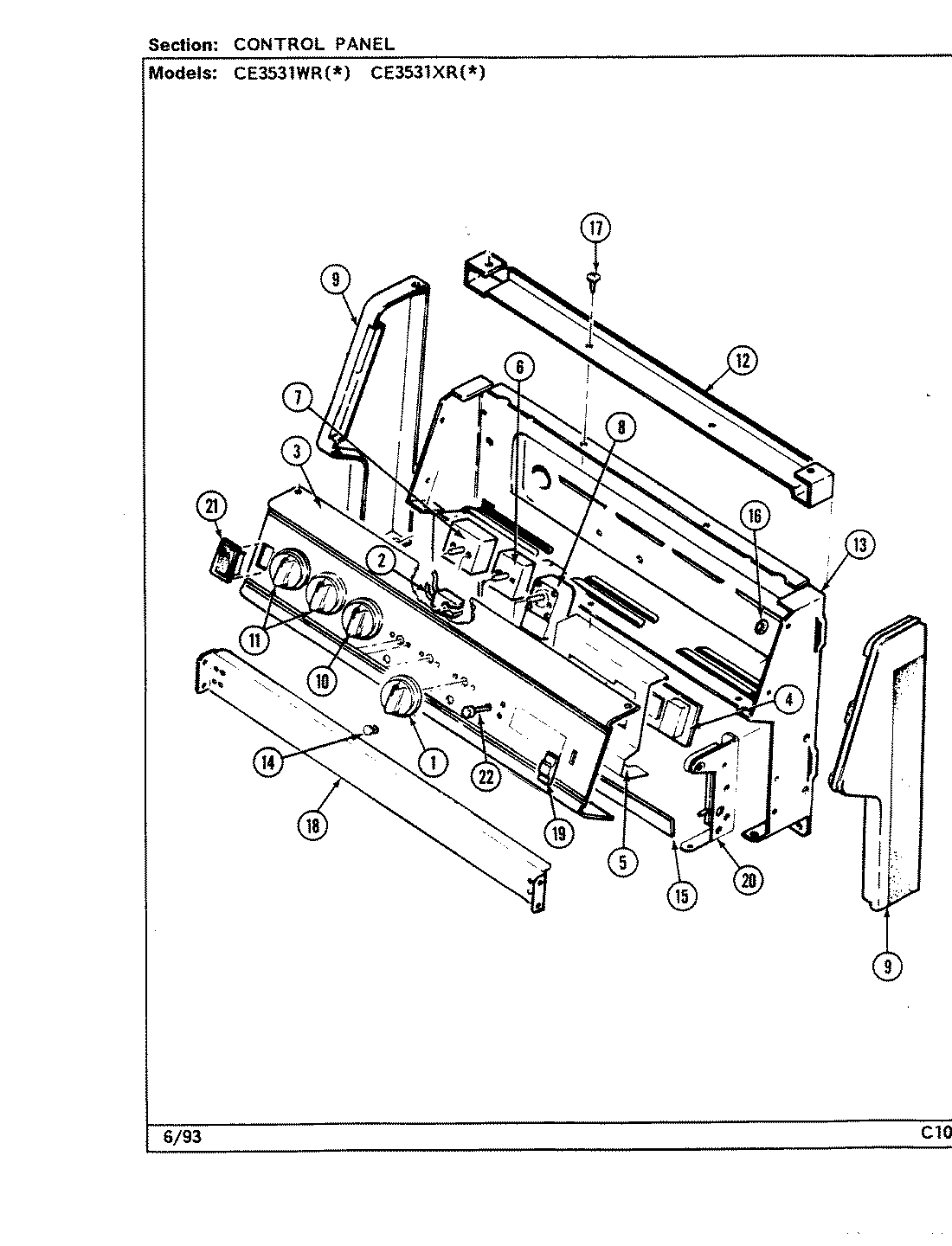

03 - CONTROL PANEL (CE3531WRx, CE3531XRx)

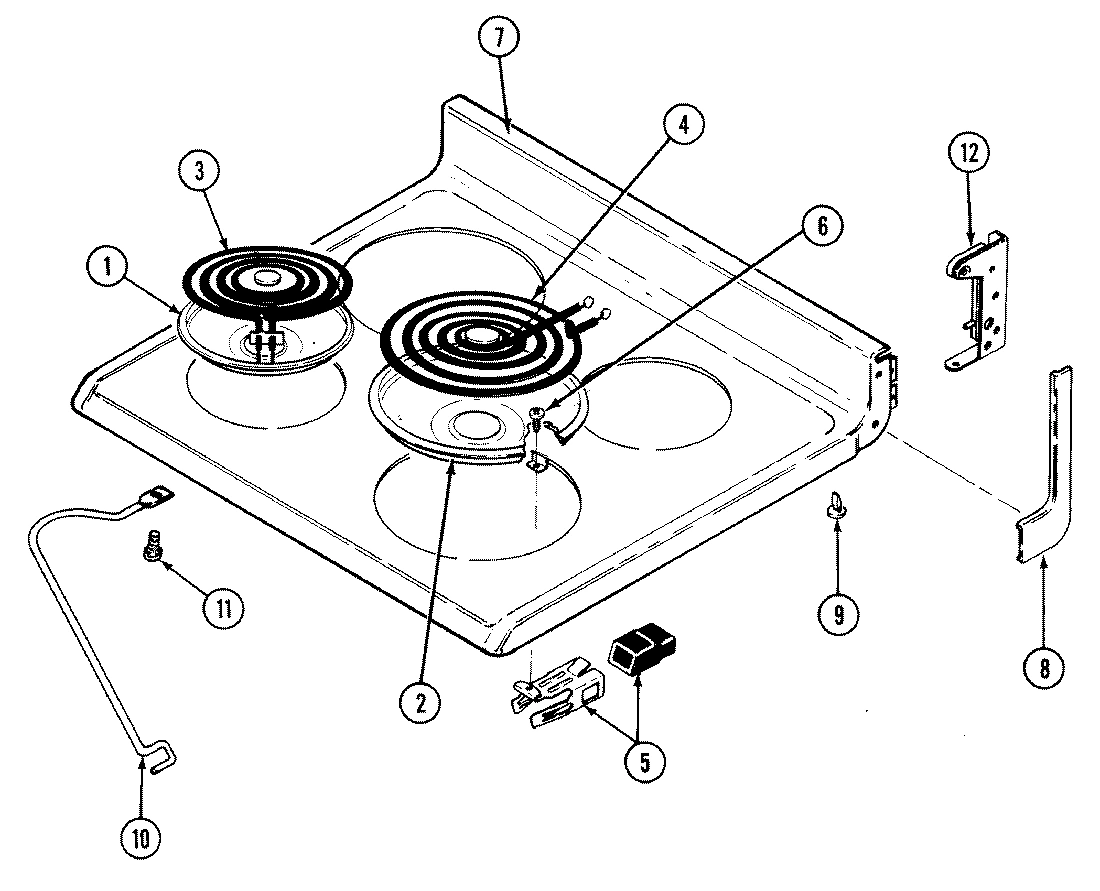

05 - TOP ASSY.(CE3531WR, CE3531XR, CE3531WRV)
02 - BODY (CE3552XR)

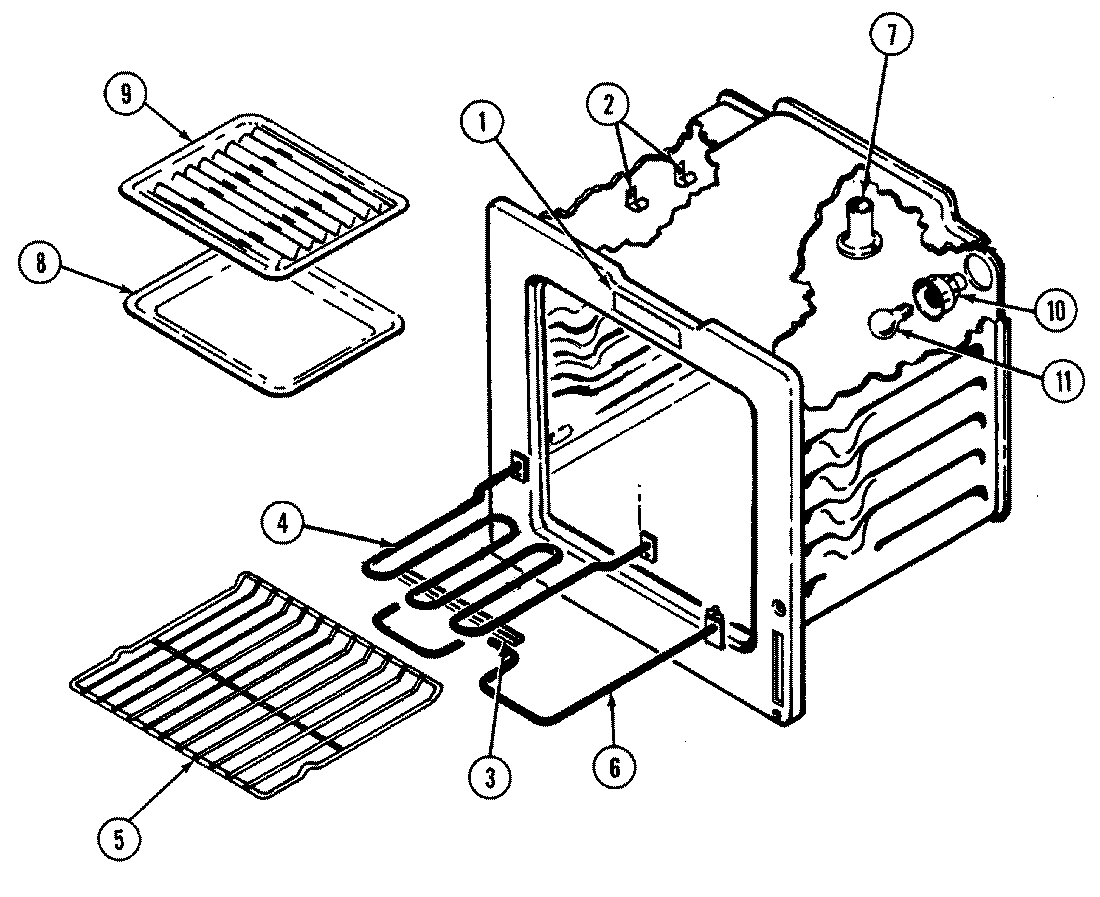

04 - OVEN (CE3531WR, CE3531XR, CE3531WRV)

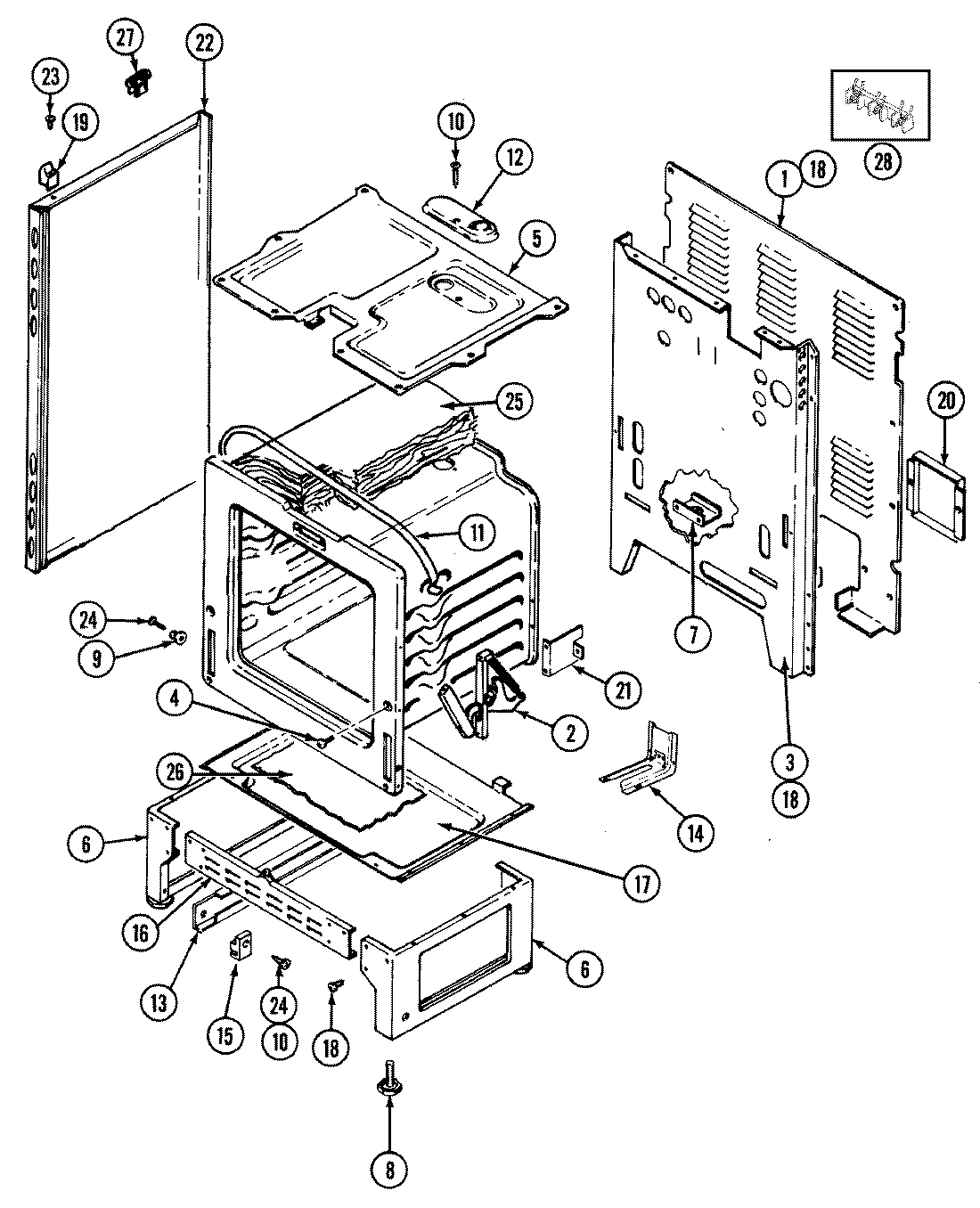

01 - BODY (CE3531WR, CE3531XR, CE3531WRV)
Common parts from model Whirlpool CE3531WRA ELECTRIC RANGE
1
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
1
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
3
PANEL, CONTROL WPL 4876S07159 Contact Us For Availability
3
SCREW WPL 7118P01860 Contact Us For Availability
3
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
3
BACK, MAIN WPL 4002F18480 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
4
SCREW WPL 7101P29360 Contact Us For Availability
4
CLOCK WPL 7602P10460 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
4
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
4
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
5
BRACKET CLOCK SUPPORT WPL 3801F26645 Contact Us For Availability
5
WASHER WPL 7109P02060 Contact Us For Availability
5
SCREW WPL 7118P01960 Contact Us For Availability
5
BOX, BURNER WPL 4011F20819 Contact Us For Availability
5
RACK, OVEN WPL 7801P03660 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
6
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W07884 Contact Us For Availability
7
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
7
TUBE, VENT WPL 8026P01960 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
10
SCREW WPL 7101P10360 Contact Us For Availability
10
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
11
KNOB WPL 7735P03960 Contact Us For Availability
11
SCREW WPL 7101P30960 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
11
BULB, OVEN WPL 7407P02660 Contact Us For Availability
12
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
12
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
12
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
12
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
12
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
12
COVER VENT WPL 4005F35045 Contact Us For Availability
13
HOUSING, BACKGUARD WPL 4001F08951 Contact Us For Availability
13
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
14
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
14
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
15
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
15
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
18
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
18
SCREW WPL 7101P29060 Contact Us For Availability
19
BUTTON, SLIDE (BLK) WPL 7711P46960 Contact Us For Availability
19
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
19
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
20
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
21
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
21
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
22
HARNESS, LOOSE WIRE WPL 5125A31560 Contact Us For Availability
22
HARNESS, CONTROL PANEL WPL 5170D11860 Contact Us For Availability
22
BUTTON, SET (BLK) WPL 7711P46860 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
23
SCREW WPL 7118P01360 Contact Us For Availability
24
SCREW WPL 7101P30060 Contact Us For Availability
25
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
25
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
26
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
27
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
28
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
× ![]()
