Model Maytag CE3510PRV ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY (CE3500PPx)
02 - BODY (CE3510PRx)

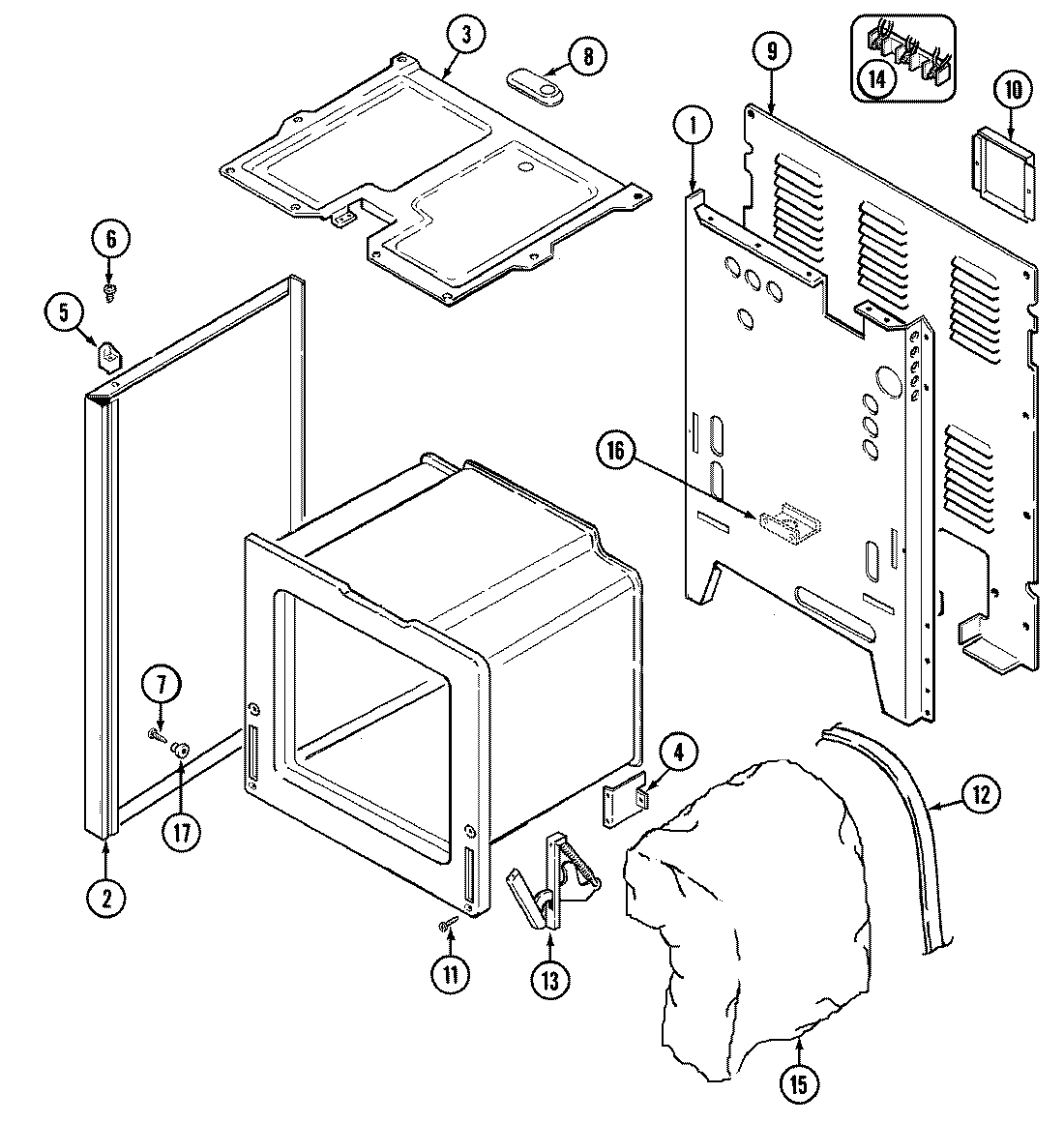

03 - BODY (CE3520SRx)
04 - CONTROL PANEL (CE3510PRx)

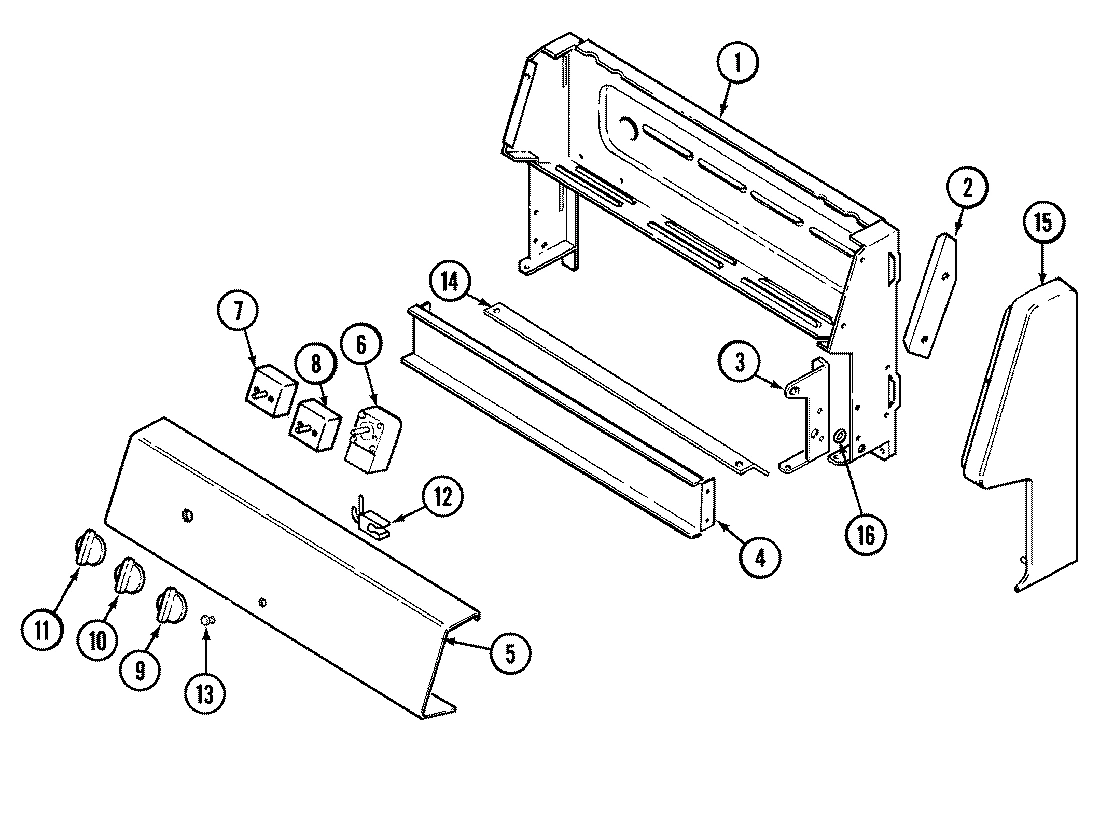

05 - CONTROL PANEL (CE3520SRx)

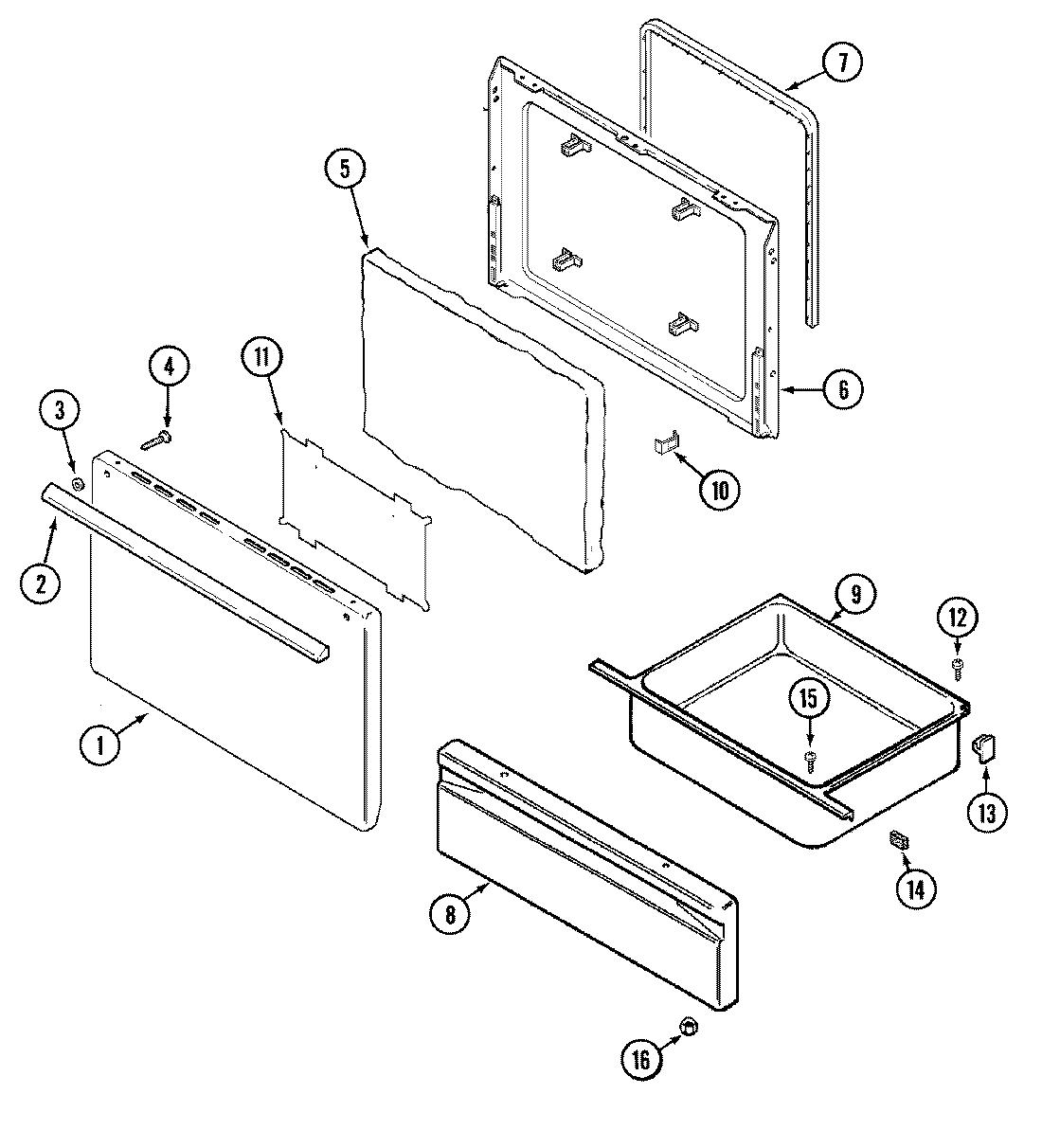

06 - DOOR/DRAWER (CE3510PRx)

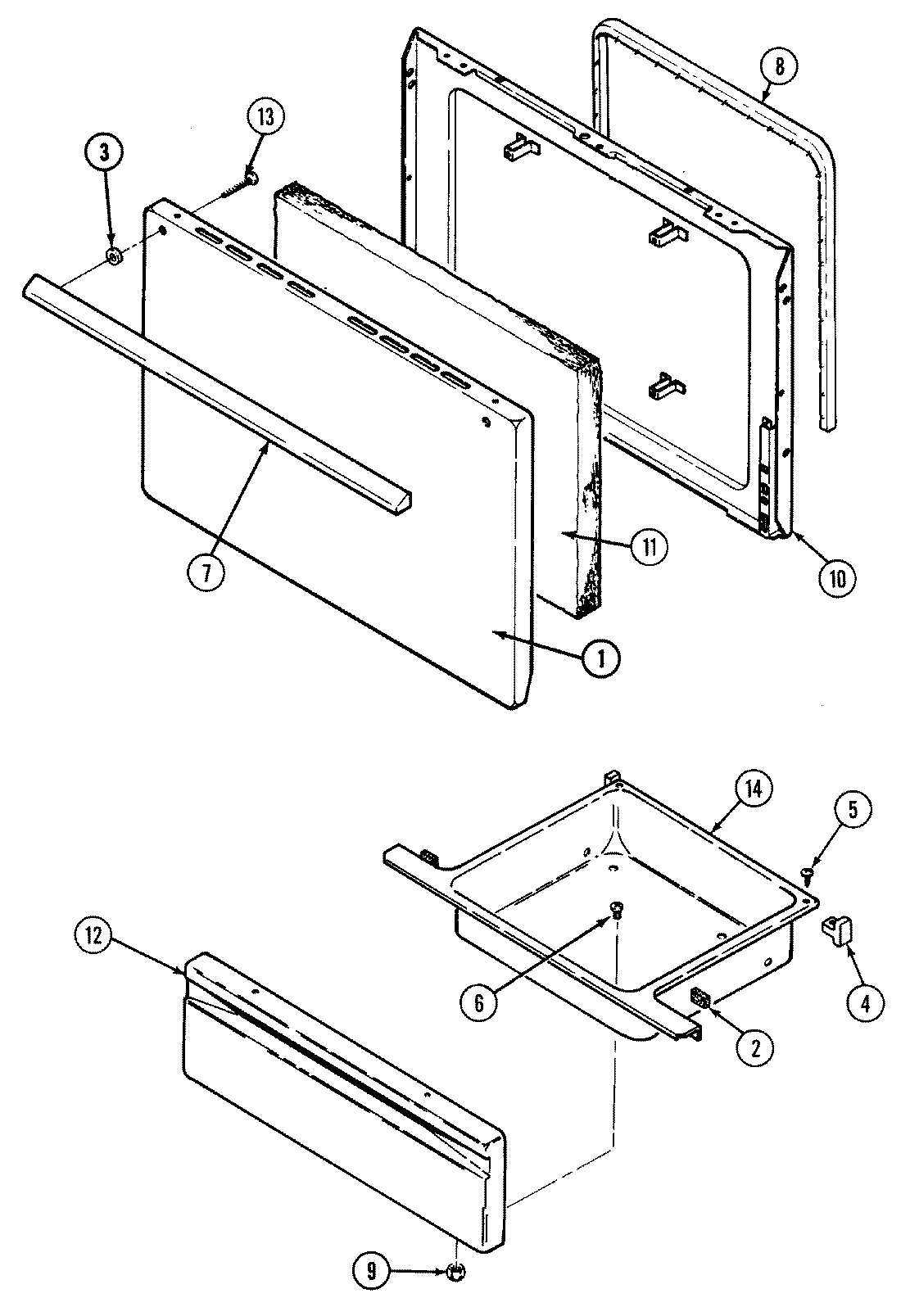

07 - DOOR/DRAWER (CE3510PRx)

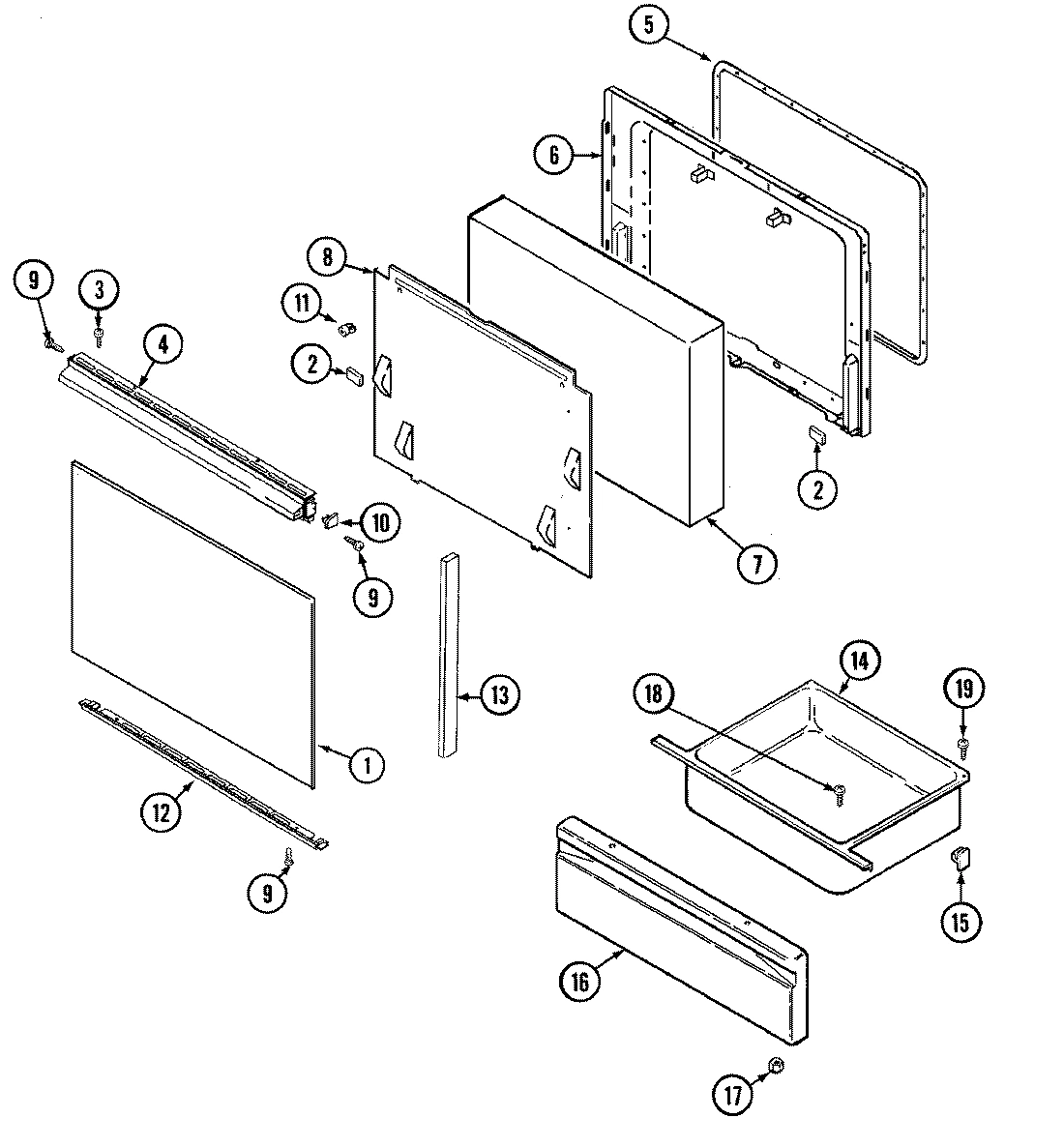

08 - DOOR/DRAWER (CE3520SRx SERIES 01)

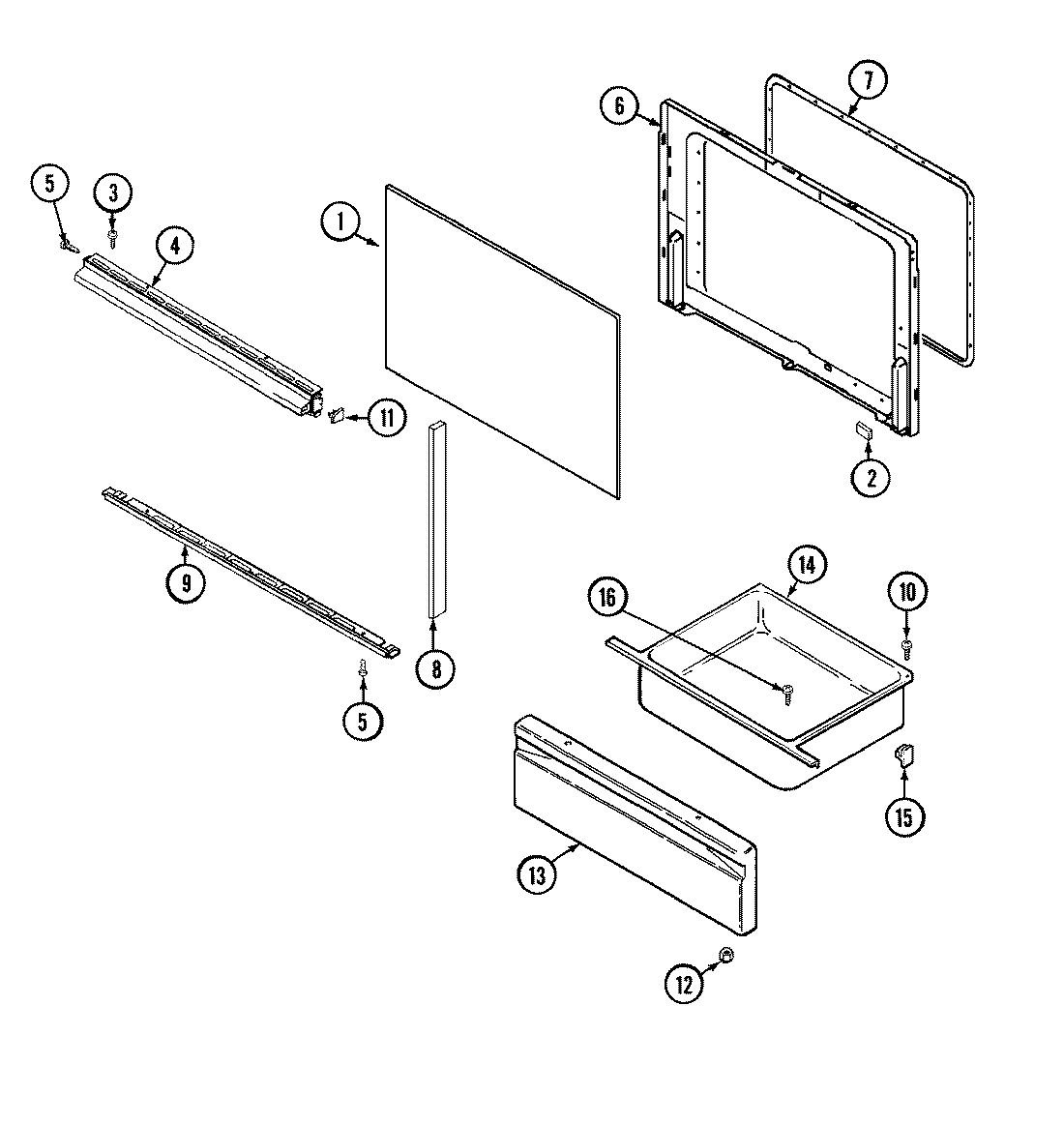

09 - DOOR/DRAWER (CE3520SRx SERIES 45)

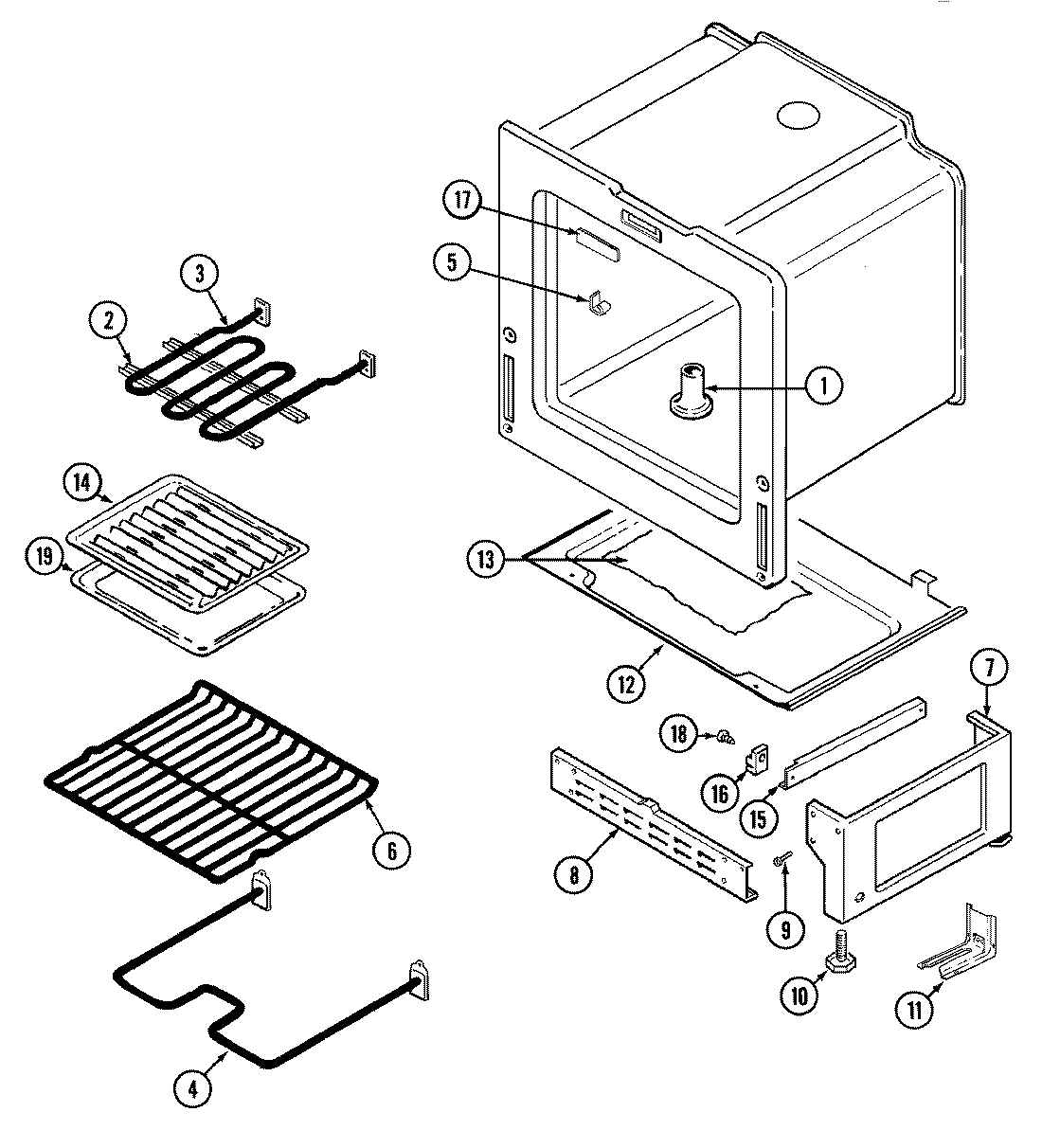

10 - OVEN/BASE (CE3500PPx)
11 - OVEN/BASE (CE3510PRx)
12 - OVEN/BASE (CE3520SRx)
13 - TOP ASSEMBLY (CE3510PRx)

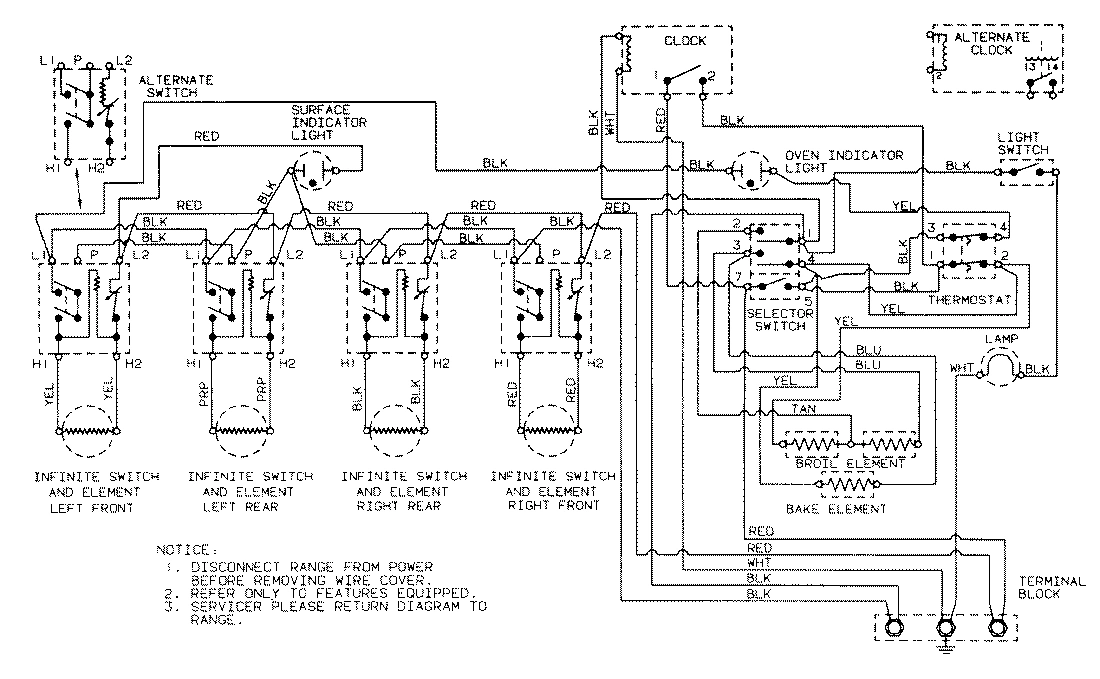

14 - WIRING INFORMATION
Common parts from model Maytag CE3510PRV ELECTRIC RANGE
1
MAY 8026P019-60 MAY 8026P019-60 Contact Us For Availability
1
MAY 4002F189-80 MAY 4002F189-80 Contact Us For Availability
1
MAY 4001F089-51 MAY 4001F089-51 Contact Us For Availability
1
PANEL, DOOR (WHT) MAY 2401F096-71 Contact Us For Availability
1
MAY 7902P325-60 MAY 7902P325-60 Contact Us For Availability
1
MAY 8026P020-60 MAY 8026P020-60 Contact Us For Availability
1
MAY 7725P008-60 MAY 7725P008-60 Contact Us For Availability
2
MAY 3807F435-45 MAY 3807F435-45 Contact Us For Availability
2
MAY 3807F436-45 MAY 3807F436-45 Contact Us For Availability
2
MAY 8010P086-60 MAY 8010P086-60 Contact Us For Availability
2
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
2
MAY 3807F389-45 MAY 3807F389-45 Contact Us For Availability
2
MAY 7725P009-60 MAY 7725P009-60 Contact Us For Availability
3
MAY 4011F208-19 MAY 4011F208-19 Contact Us For Availability
3
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
3
MAY 3418A087-34 MAY 3418A087-34 Contact Us For Availability
3
MAY 3418A088-34 MAY 3418A088-34 Contact Us For Availability
3
MAY Y04000057 MAY Y04000057 Contact Us For Availability
4
MAY 74003429 MAY 74003429 Contact Us For Availability
4
SUPPORT,OVEN REAR MAY 3807F400-51 Contact Us For Availability
4
MAY 3802F087-51 MAY 3802F087-51 Contact Us For Availability
4
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
4
MAY 7701P144-60 MAY 7701P144-60 Contact Us For Availability
4
MAY Y04000058 MAY Y04000058 Contact Us For Availability
5
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
5
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
5
MAY 2601F396-71 MAY 2601F396-71 Contact Us For Availability
5
MAY 7101P291-60 MAY 7101P291-60 Contact Us For Availability
6
MAY 7404P081-60 MAY 7404P081-60 Contact Us For Availability
6
MAY 2402W201-19 MAY 2402W201-19 Contact Us For Availability
6
MAY 74003240 MAY 74003240 Contact Us For Availability
6
MAY 74002396 MAY 74002396 Contact Us For Availability
6
MAY 7801P040-60 MAY 7801P040-60 Contact Us For Availability
6
MAY 1430306K MAY 1430306K Contact Us For Availability
7
MAY 2411F003-71 MAY 2411F003-71 Contact Us For Availability
7
MAY 4804F011-60 MAY 4804F011-60 Contact Us For Availability
7
MAY 4020W011-80 MAY 4020W011-80 Contact Us For Availability
7
MAY 74003003 MAY 74003003 Contact Us For Availability
7
MAY 4020W007-80 MAY 4020W007-80 Contact Us For Availability
7
MAY 74003016 MAY 74003016 Contact Us For Availability
7
MAY 2002W079-81 MAY 2002W079-81 Contact Us For Availability
8
MAY 74003430 MAY 74003430 Contact Us For Availability
8
MAY 4005F350-45 MAY 4005F350-45 Contact Us For Availability
8
MAY 7212P034-60 MAY 7212P034-60 Contact Us For Availability
8
MAY 3601F218-45 MAY 3601F218-45 Contact Us For Availability
8
MAY 74002084 MAY 74002084 Contact Us For Availability
8
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
8
MAY 7746P032-60 MAY 7746P032-60 Contact Us For Availability
8
MAY 7746P033-60 MAY 7746P033-60 Contact Us For Availability
9
MAY 7735P041-60 MAY 7735P041-60 Contact Us For Availability
9
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
9
MAY 74003432 MAY 74003432 Contact Us For Availability
9
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
9
MAY 7809P014-60 MAY 7809P014-60 Contact Us For Availability
10
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
10
MAY 7739P048-60 MAY 7739P048-60 Contact Us For Availability
10
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
10
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
10
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
10
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
10
MAY 7101P141-60 MAY 7101P141-60 Contact Us For Availability
11
MAY 7737P041-60 MAY 7737P041-60 Contact Us For Availability
11
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
11
MAY 3601F250-51 MAY 3601F250-51 Contact Us For Availability
11
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
11
MAY 74002539 MAY 74002539 Contact Us For Availability
11
MAY 74002540 MAY 74002540 Contact Us For Availability
11
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
11
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
11
MAY 8016P013-60 MAY 8016P013-60 Contact Us For Availability
12
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
12
MAY 7407P081-60 MAY 7407P081-60 Contact Us For Availability
12
MAY 2416F039-62 MAY 2416F039-62 Contact Us For Availability
12
MAY 7744P078-60 MAY 7744P078-60 Contact Us For Availability
12
MAY 3804F109-51 MAY 3804F109-51 Contact Us For Availability
13
MAY 7106P055-60 MAY 7106P055-60 Contact Us For Availability
13
MAY 12400042 MAY 12400042 Contact Us For Availability
13
MAY 7101P080-60 MAY 7101P080-60 Contact Us For Availability
13
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
13
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
14
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
14
MAY 3405F015-80 MAY 3405F015-80 Contact Us For Availability
14
MAY 74003618 MAY 74003618 Contact Us For Availability
14
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
14
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
14
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
15
MAY 4804F017-60 MAY 4804F017-60 Contact Us For Availability
15
MAY 4804F018-60 MAY 4804F018-60 Contact Us For Availability
15
MAY 7726P089-60 MAY 7726P089-60 Contact Us For Availability
15
MAY 7726P090-60 MAY 7726P090-60 Contact Us For Availability
15
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
15
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
16
MAY 74002312 MAY 74002312 Contact Us For Availability
16
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
16
MAY 74003566 MAY 74003566 Contact Us For Availability
16
MAY 8004P025-60 MAY 8004P025-60 Contact Us For Availability
17
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
17
MAY 8114P335-60 MAY 8114P335-60 Contact Us For Availability
18
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
18
MAY W10124350 MAY W10124350 Contact Us For Availability
19
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
NI
MAY 16002080 MAY 16002080 Contact Us For Availability
NI
MAY 5125A316-60 MAY 5125A316-60 Contact Us For Availability
NI
MAY 5170D119-60 MAY 5170D119-60 Contact Us For Availability
NI
MAY 5175D049-60 MAY 5175D049-60 Contact Us For Availability
NI
MAY 8113P023-60 MAY 8113P023-60 Contact Us For Availability
NI
MAY 15001468 MAY 15001468 Contact Us For Availability
× ![]()
