Model Electrolux CE303VC3D1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BODY PARTS

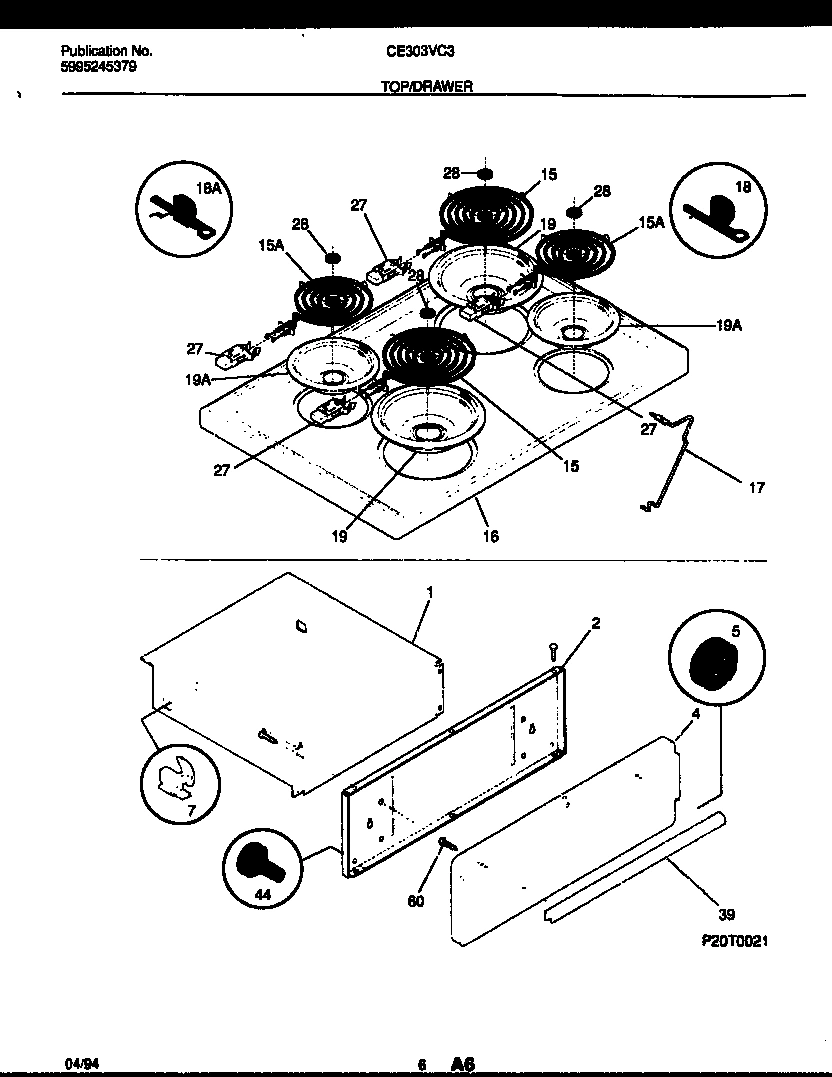

04 - COOKTOP AND DRAWER PARTS

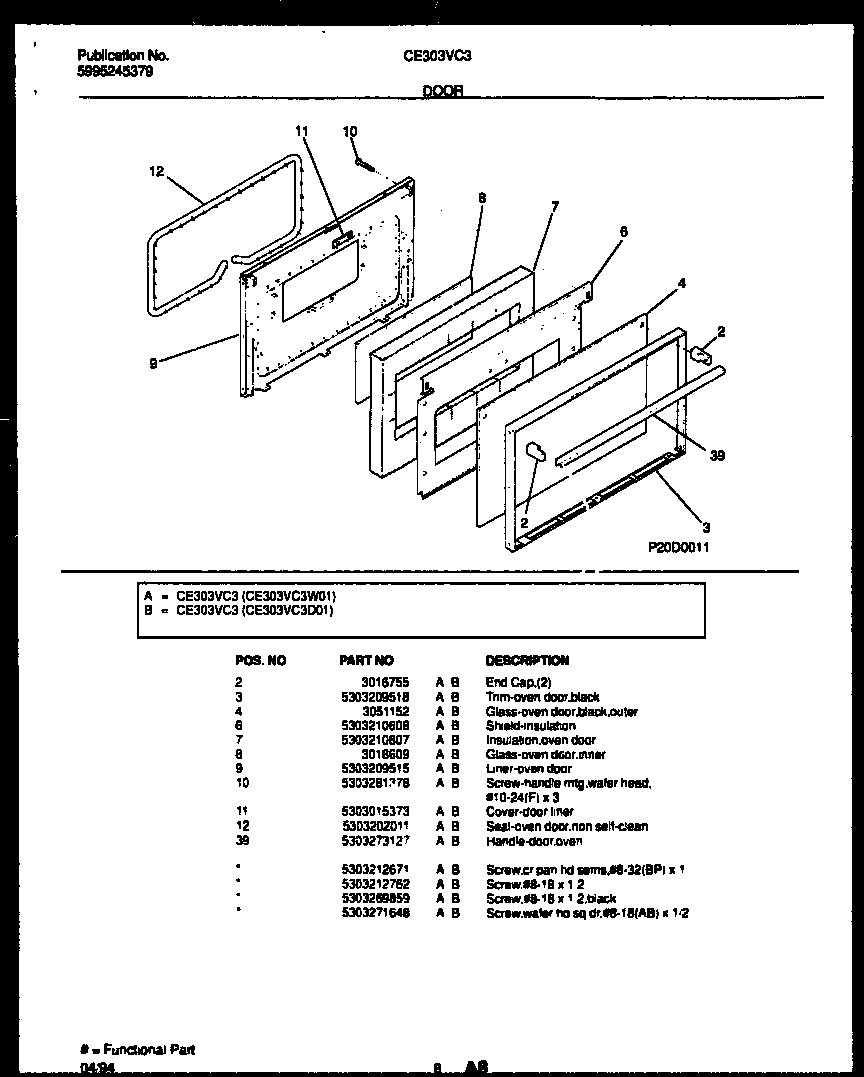

05 - DOOR PARTS
Common parts from model Electrolux CE303VC3D1 RANGE
*96981
WCI 08067961 WCI 08067961 Contact Us For Availability
*96982
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*96983
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*96983
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
TRIM-OVEN DOOR (BLACK) WCI 5303209518 Contact Us For Availability
3A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 3131134 WCI 3131134 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303210608 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
8
GLASS-OVEN DOOR, INNER WCI 3018609 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
12
WCI 5303212745 WCI 5303212745 Contact Us For Availability
16
WCI 3013512 WCI 3013512 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28A
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
29
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
33
WCI 3203582 WCI 3203582 Contact Us For Availability
36
WCI 316016902 WCI 316016902 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
40
WCI 316009222 WCI 316009222 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
WCI 3131468 WCI 3131468 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, AMBER WCI 5308037703 Contact Us For Availability
50
WCI 316052100 WCI 316052100 Contact Us For Availability
52
NUT, TWIST WCI 5303131215 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
59
WCI 5303283907 WCI 5303283907 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
SCREW-END CAP WCI 5303293427 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 3203549 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
× ![]()
