Model Whirlpool CE1500PAW ELECTRIC RANGE – Common Parts & Diagrams

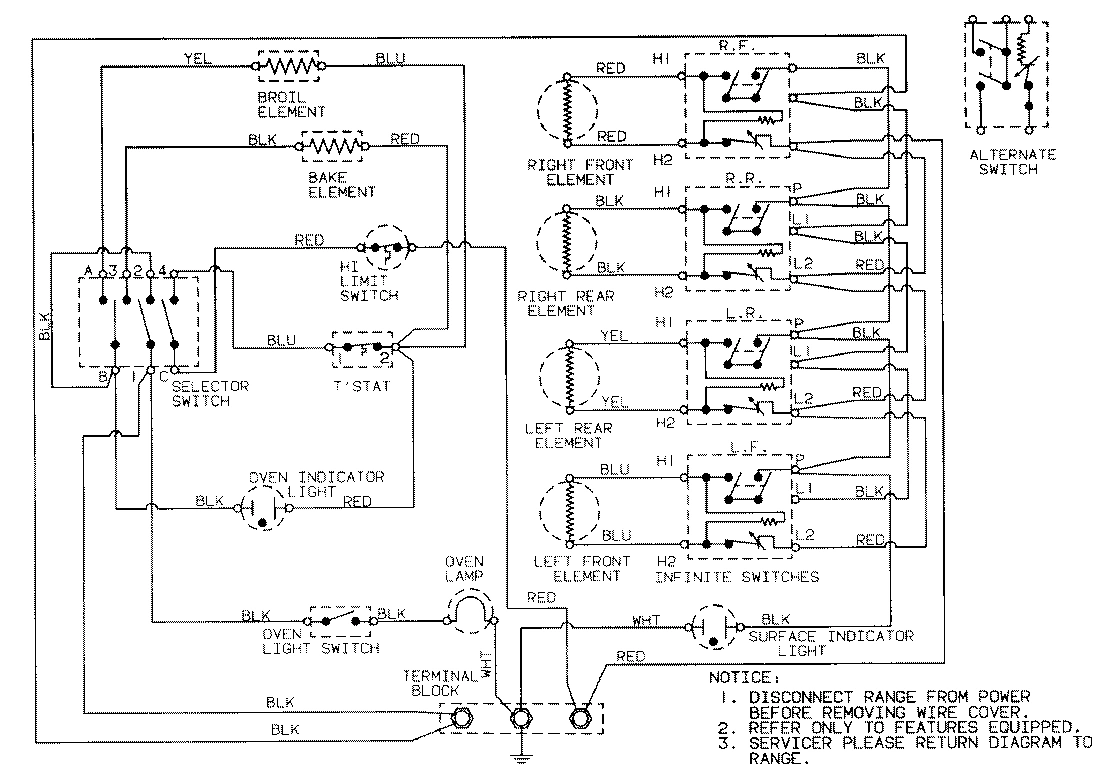

05 - WIRING INFORMATION

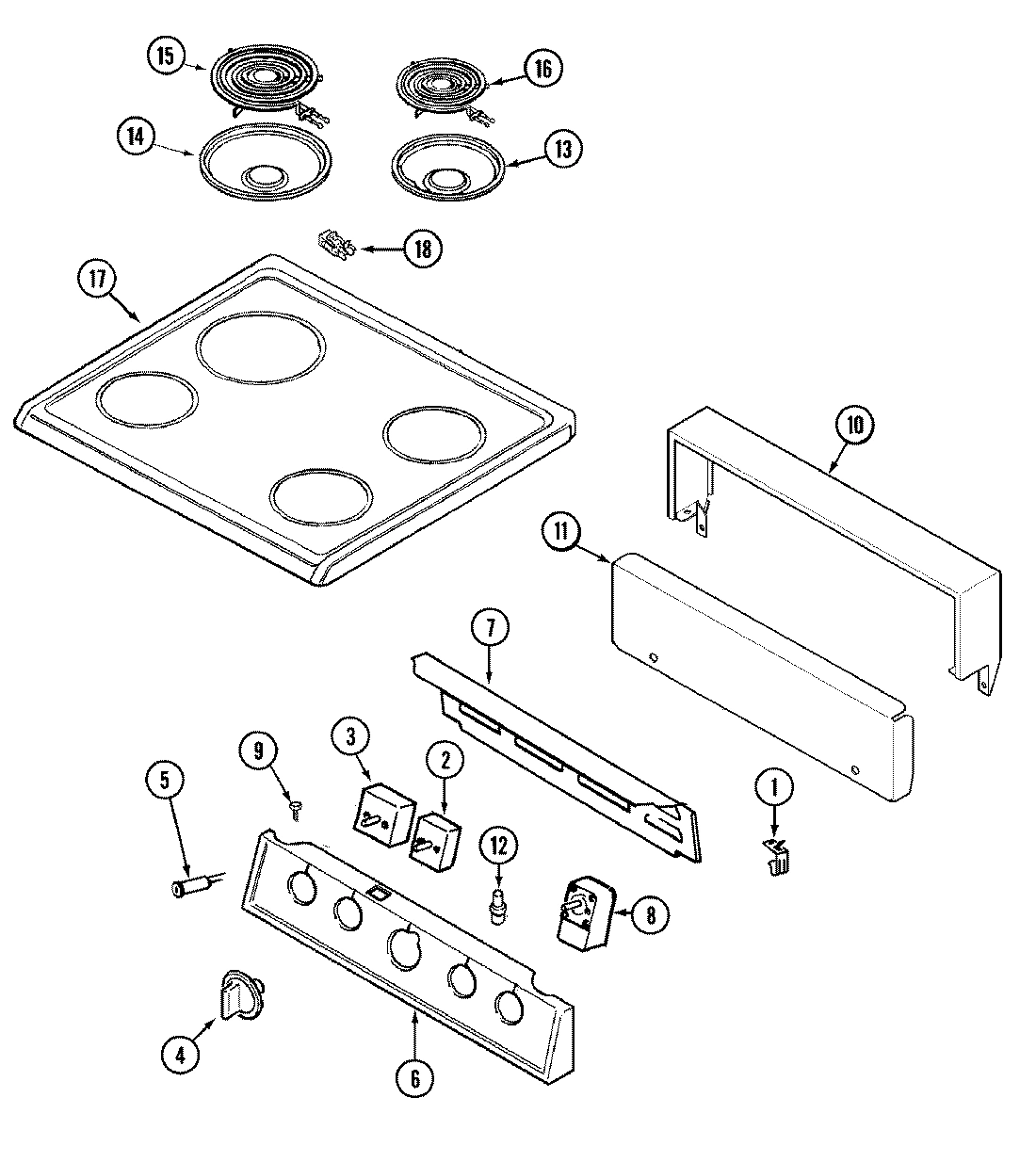

02 - CONTROL PANEL/TOP ASSEMBLY

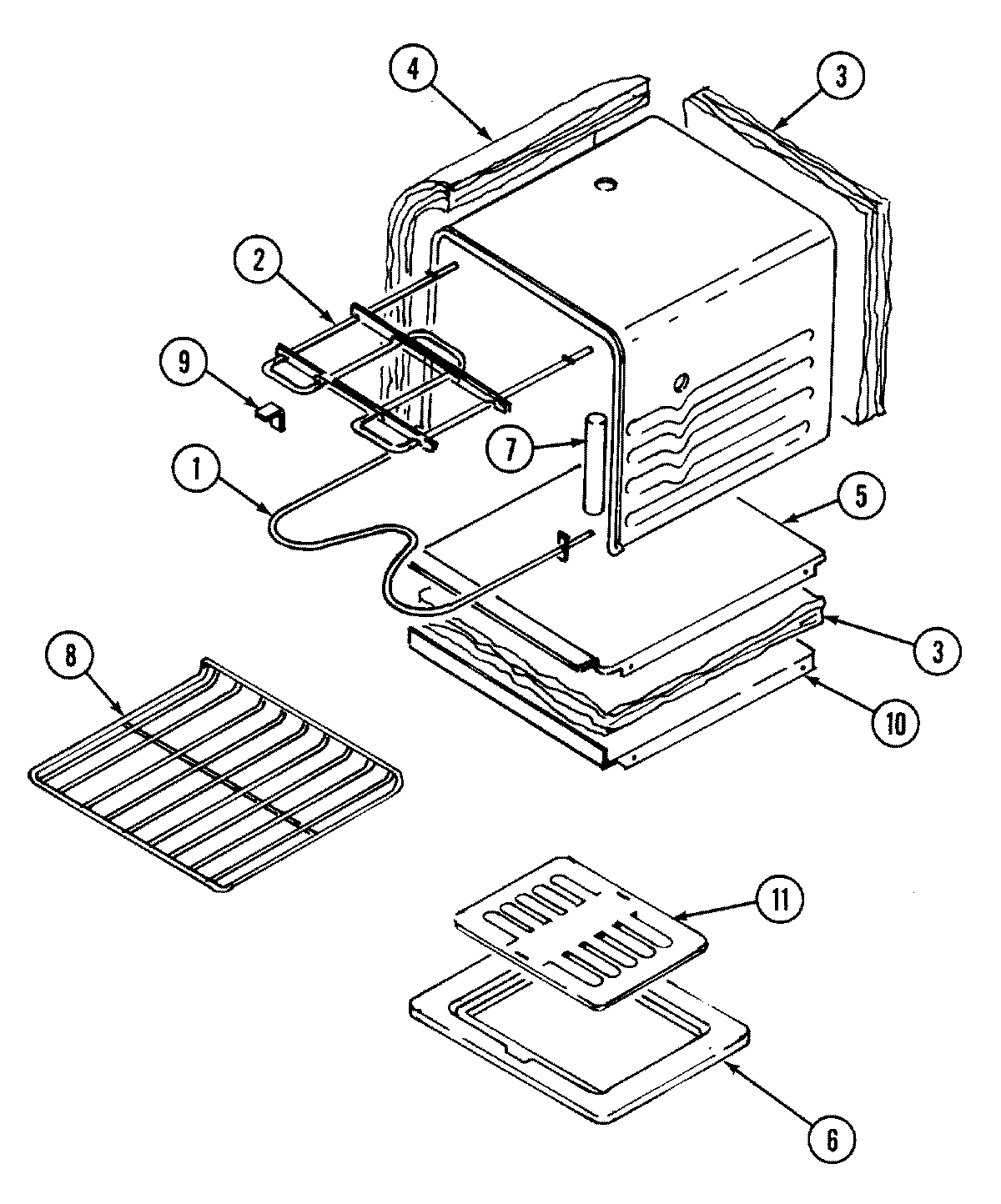

04 - OVEN

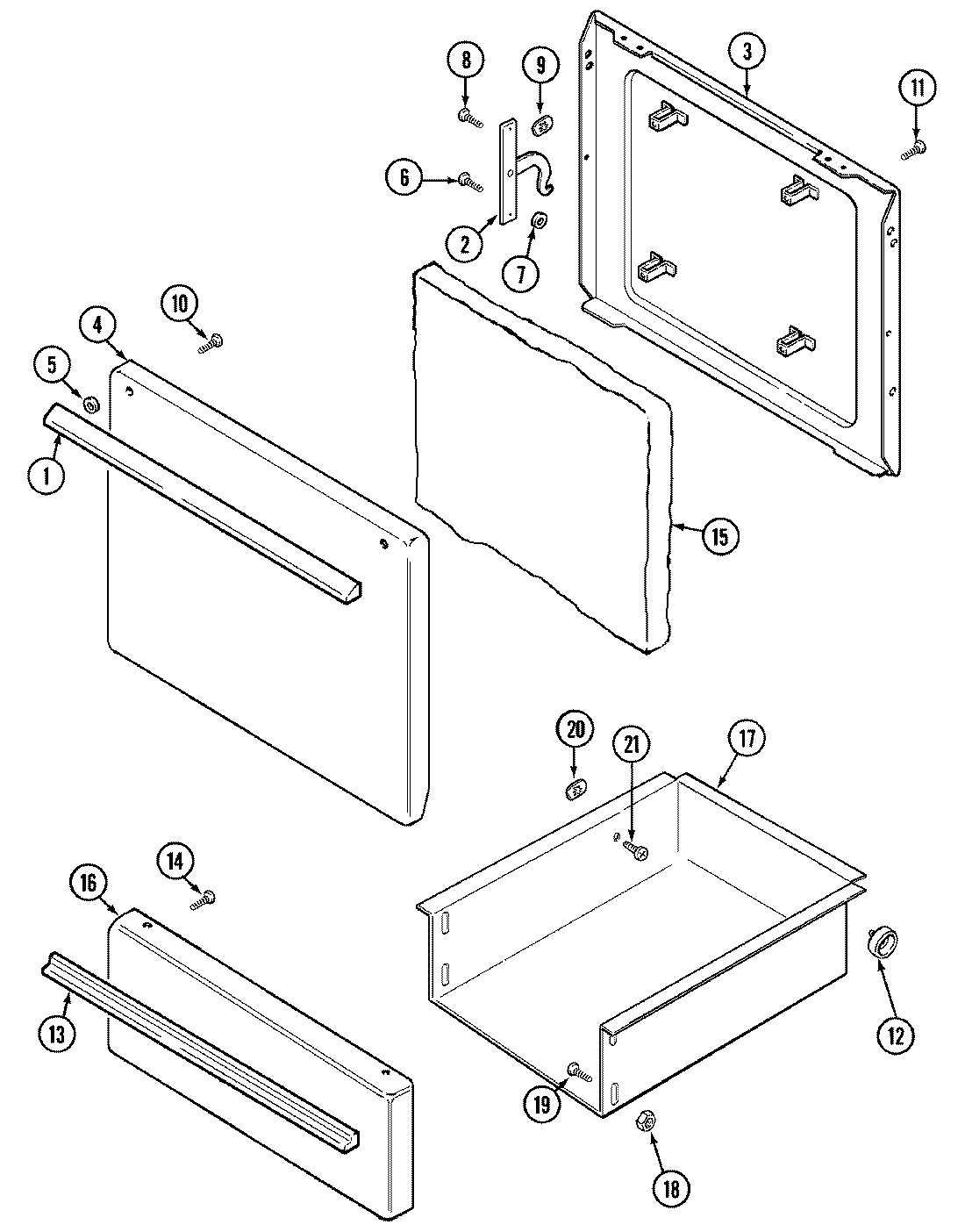

03 - DOOR/DRAWER

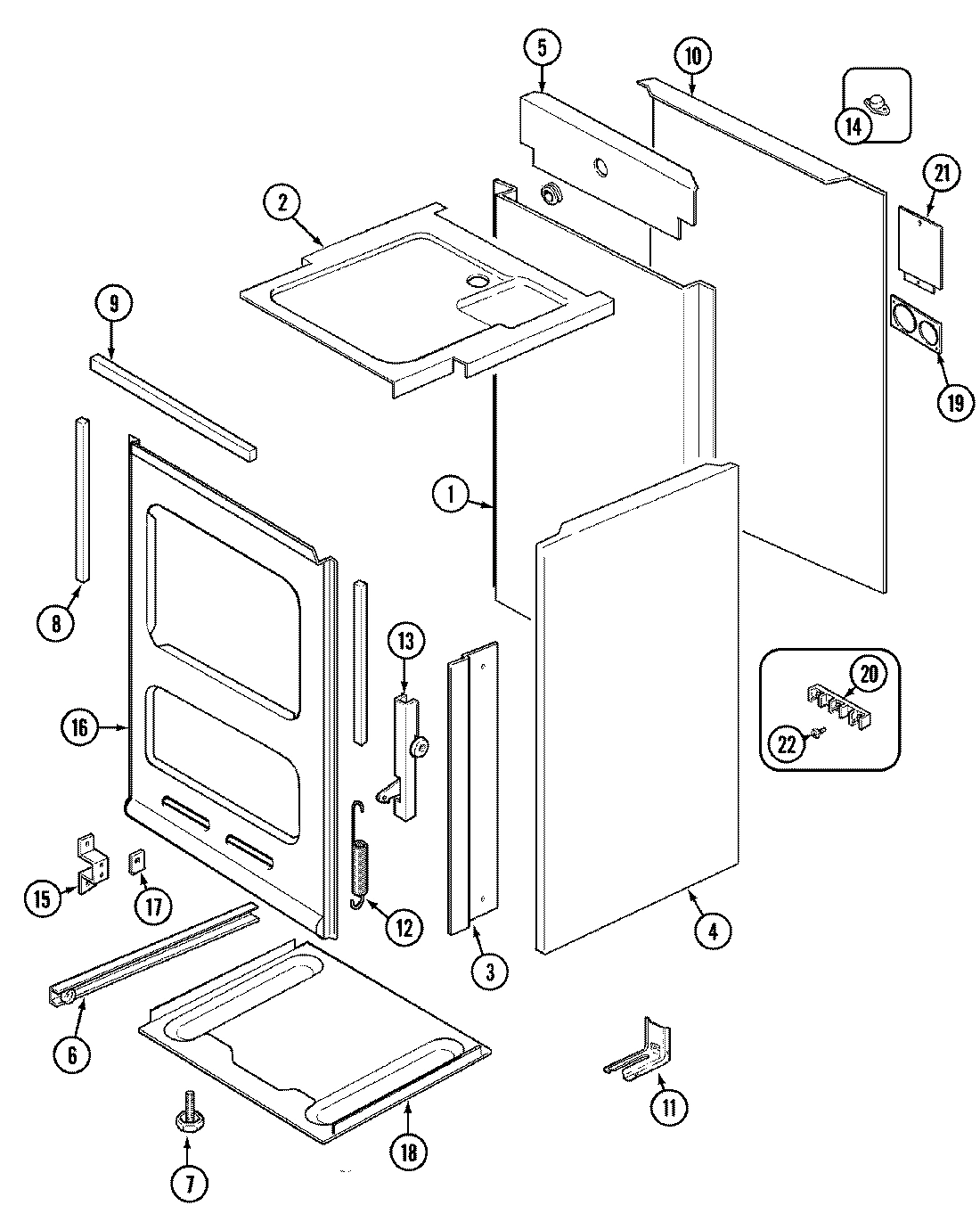

01 - BODY
Common parts from model Whirlpool CE1500PAW ELECTRIC RANGE
1
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
1
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
1
ELEMENT, BAKE WPL 7406P04160 Contact Us For Availability
1
HANDLE, DOOR (CHR)----NA WPL 74001871 Contact Us For Availability
1
BACK MAIN WPL 4002F12080 Contact Us For Availability
2
SCREW, THERMOSTAT WPL 7101P12560 Contact Us For Availability
2
THERMOSTAT WPL 7404P05660 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P04460 Contact Us For Availability
2
HINGE, DOOR (LT) WPL 3418A04634 Contact Us For Availability
2
HINGE, DOOR (RT) WPL 3418A04734 Contact Us For Availability
2
BOTTOM BURNER BOX WPL 4011F15080 Contact Us For Availability
3
SWITCH, INFINITE (2400W) WPL 7403P28960 Contact Us For Availability
3
INSULATION, OVEN BACK WPL 7002P09160 Contact Us For Availability
3
LINING, DOOR WPL 2402W10219 Contact Us For Availability
3
CHANNEL, AIR CHUTE WPL 3818F04151 Contact Us For Availability
4
KNOB, THERMOSTAT WPL 7735P01060 Contact Us For Availability
4
KNOB, INF. WPL 7737P00660 Contact Us For Availability
4
KNOB, SELECTOR SWITC WPL 7739P01460 Contact Us For Availability
4
INSULATION, WRAP WPL 7002P11960 Contact Us For Availability
4
PANEL, OVEN DOOR (WHT) WPL 2401W05971 Contact Us For Availability
4
PANEL, SIDE WPL 2618F07071 Contact Us For Availability
4
PANEL, SIDE (WHT) WPL 74003185 Contact Us For Availability
5
LIGHT, INDICATOR WPL 7407P07160 Contact Us For Availability
5
LIGHT, INDICATOR WPL 7407P07260 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01319 Contact Us For Availability
5
SPACER, DOOR HANDLE WPL 8010P02960 Contact Us For Availability
5
SHIELD, BURNER BOX WIRE WPL 3604F14551 Contact Us For Availability
6
PANEL CONTROL WHT WPL 2614F06471 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
BOLT, SHOULDER WPL 7118P00960 Contact Us For Availability
6
RUNNER UTL. DRAWER WPL 3404A00951 Contact Us For Availability
6
RUNNER UTL. DRAWER WPL 3404A01051 Contact Us For Availability
7
SHIELD, CONTROL WPL 3604F13951 Contact Us For Availability
7
TUBE, VENT WPL 3414F08445 Contact Us For Availability
7
NUT LOCK WPL 7103P07260 Contact Us For Availability
7
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P20760 Contact Us For Availability
8
RACK, OVEN WPL 7801P01960 Contact Us For Availability
8
SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability
9
SUPPORT WPL 3807F37545 Contact Us For Availability
9
NUT WPL 7103P03460 Contact Us For Availability
9
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
10
FRAME, BACKGUARD WPL 3603F01750 Contact Us For Availability
10
SUPPORT, INSULATION WPL 3807F28551 Contact Us For Availability
10
SCREW, HANDLE WPL 7101P24860 Contact Us For Availability
10
SHIELD, BACK WIRE WPL 3604F14451 Contact Us For Availability
11
PANEL, BKGD WPL 2601F30671 Contact Us For Availability
11
NAMEPLATE WPL 7719P06060 Contact Us For Availability
11
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
11
SCREW WPL 7101P34460 Contact Us For Availability
12
STRIKE, MAIN TOP WPL 8024P00360 Contact Us For Availability
12
BEARING, BROILER ROL WPL 8014P00960 Contact Us For Availability
12
SPRING, OVEN DOOR WPL 7803P03260 Contact Us For Availability
13
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
13
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
13
SUPPORT, HINGE (LT) WPL 3807F29034 Contact Us For Availability
13
SUPPORT, HINGE (RT) WPL 3807F29134 Contact Us For Availability
14
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
15
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
15
INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability
15
SUPPORT, DRAWER TRACK WPL 3807F28180 Contact Us For Availability
16
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2403W01771 Contact Us For Availability
16
NUT 10-24 WPL 7103P07160 Contact Us For Availability
16
SCREW WPL 7101P07260 Contact Us For Availability
16
FRONT, MAIN WPL 74001332 Contact Us For Availability
17
TOP, MAIN (WHT) WPL 2002F06581 Contact Us For Availability
17
DRAWER, UTILITY WPL 3405W01080 Contact Us For Availability
17
NUT WPL 7103P06460 Contact Us For Availability
18
SCREW WPL 7101P35660 Contact Us For Availability
18
BASE, MAIN WPL 4003A01480 Contact Us For Availability
19
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
19
SCREW WPL 7118P00460 Contact Us For Availability
20
NUT WPL 7103P11860 Contact Us For Availability
20
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
20
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
21
SCREW WPL 7101P11560 Contact Us For Availability
21
COVER, ACCESS WPL 4005F28651 Contact Us For Availability
22
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001413 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5125A20060 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74002468 Contact Us For Availability
× ![]()
