Model Whirlpool CE11000VAV0 20`` ELECTRIC FREESTANDING RANGE STANDARD CLEAN OV – Common Parts & Diagrams

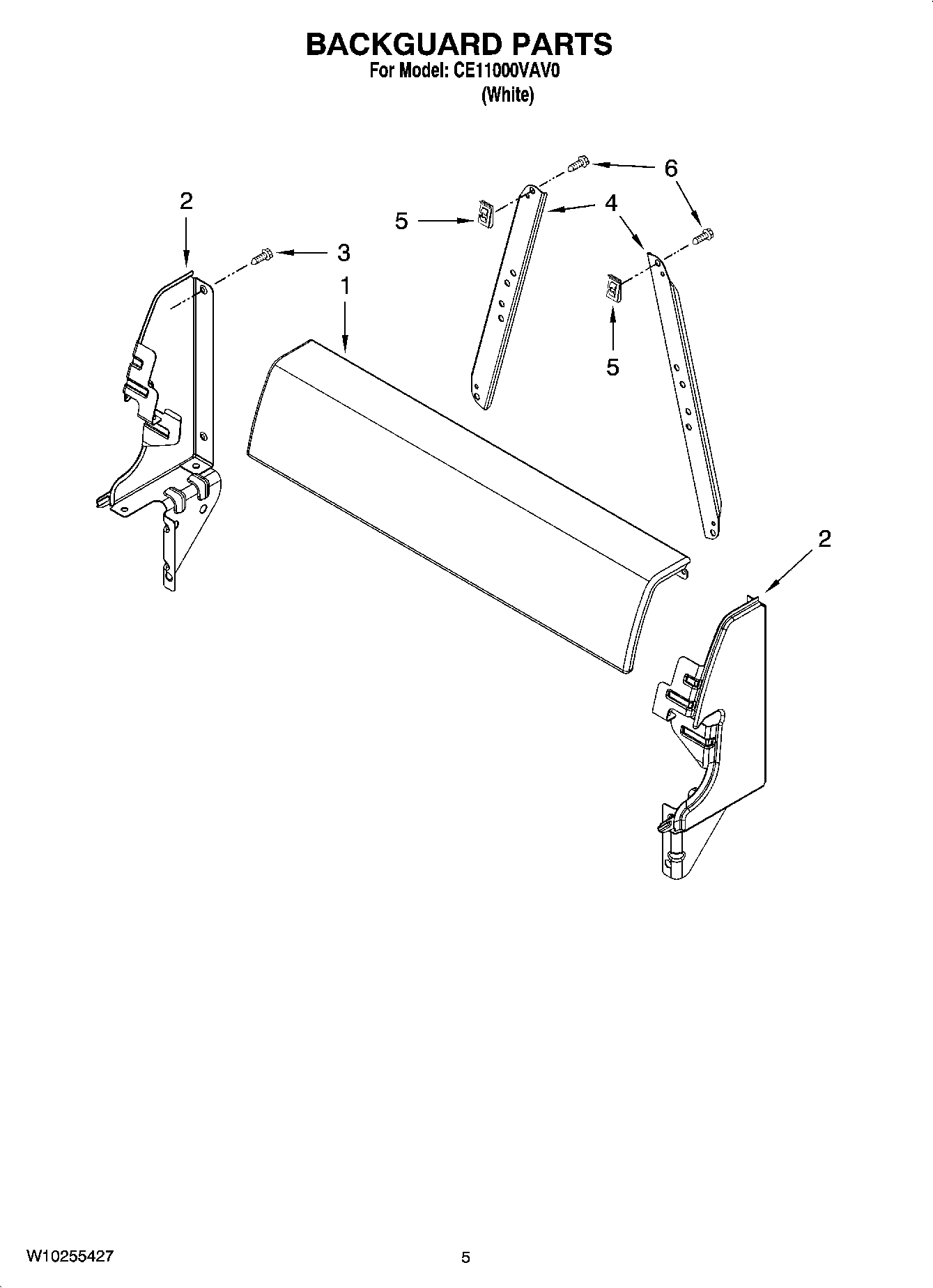

04 - BACKGUARD PARTS, OPTIONAL PARTS

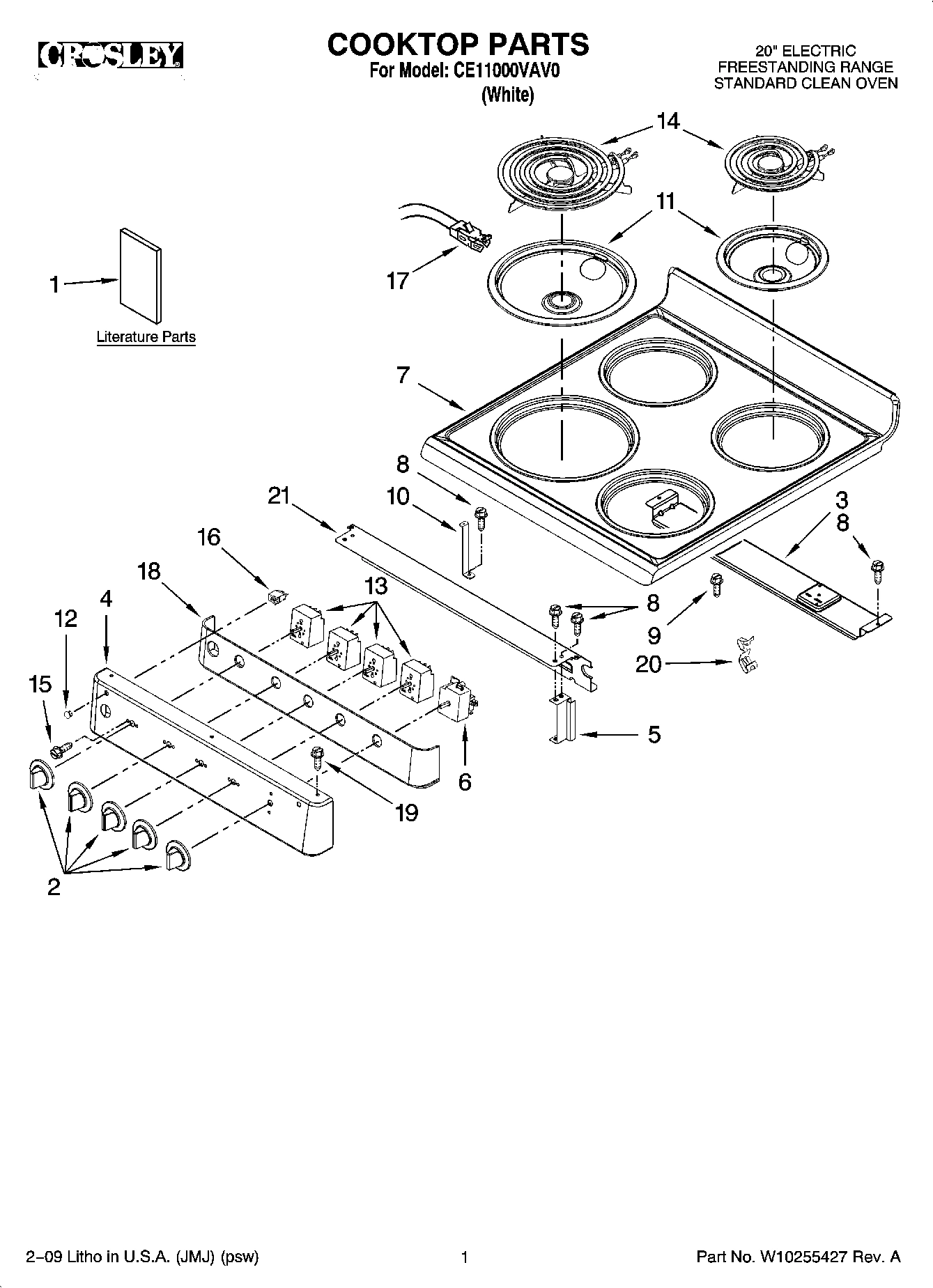

01 - COOKTOP PARTS
02 - OVEN DOOR AND DRAWER PARTS
03 - CHASSIS PARTS
Common parts from model Whirlpool CE11000VAV0 20`` ELECTRIC FREESTANDING RANGE STANDARD CLEAN OV
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL W10177729 WPL W10177729 Contact Us For Availability
Wire, Tstat (4) To Tstat (2) (Black) WPL W10177719 Contact Us For Availability
Wire, Infinite To Indicator Light (Bla WPL W10177720 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Kit, Door Pin Removal WPL 98012220 Contact Us For Availability
Wire Tie, Insulation (2) WPL 98004294 Contact Us For Availability
Insulation WPL ARI21249A3 Contact Us For Availability
1
Trim, Top WPL 98009821 Contact Us For Availability
1
Liner, Door WPL 98010414 Contact Us For Availability
1
Cover, Flue Box WPL W10176276 Contact Us For Availability
2
Retainer, Insulation (7) WPL W10157839 Contact Us For Availability
2
Counter Weight (3) WPL W10185442 Contact Us For Availability
3
Panel, Oven Door WPL 98009525 Contact Us For Availability
3
Support, Burner WPL W10168363 Contact Us For Availability
4
Seal, Oven Door WPL W10205601 Contact Us For Availability
4
Support, Oven WPL 98012912 Contact Us For Availability
5
Retainer (Left) WPL 98004629 Contact Us For Availability
5
Retainer (Right) WPL 98004564 Contact Us For Availability
5
Side, Oven (Left Side) WPL 98004451 Contact Us For Availability
5
Side, Oven (Right Side) WPL 98004452 Contact Us For Availability
6
Top, Oven WPL 98004448 Contact Us For Availability
7
COOKTOP WPL W10175582 Contact Us For Availability
7
Insulation, Door WPL W10208853 Contact Us For Availability
7
Clip, Oven Botton WPL 98005502 Contact Us For Availability
8
Cover, Rear WPL W10175662 Contact Us For Availability
10
SCREW WPL 8533842 Contact Us For Availability
10
Back, Main WPL W10166296 Contact Us For Availability
11
Diverter, Heat WPL 98015099 Contact Us For Availability
12
Door, Broil WPL 98009307 Contact Us For Availability
12
Bumper, Cooktop WPL W10207167 Contact Us For Availability
13
Bracket, Panel WPL W10208117 Contact Us For Availability
13
Shield, Heat (Lower) WPL 98007191 Contact Us For Availability
15
Clip, Door WPL 6610364 Contact Us For Availability
16
Spring, Torsion (Flue Box) WPL 98013690 Contact Us For Availability
17
RECEPTACLE, ELMNT WPL 814399 Contact Us For Availability
17
Seal, Door WPL W10170595 Contact Us For Availability
17
Washer (2) WPL W10216805 Contact Us For Availability
18
Box, Burner WPL W10208539 Contact Us For Availability
19
Hinge, Oven Door WPL 98017873 Contact Us For Availability
19
Frame, Front WPL 98006752 Contact Us For Availability
20
Clip, Therm Bulb WPL 98005642 Contact Us For Availability
21
Shield, Control WPL W10159818 Contact Us For Availability
21
Bottom, Oven WPL W10192836 Contact Us For Availability
22
Element, Broil WPL W10170571 Contact Us For Availability
25
Baffle, Base WPL 98003945 Contact Us For Availability
26
Rail, Base WPL 98003830 Contact Us For Availability
27
Support, Foot WPL 98007126 Contact Us For Availability
28
Clip, Cooktop WPL 98004722 Contact Us For Availability
29
Support, Rear WPL 98010054 Contact Us For Availability
30
Screw (5) WPL 98006634 Contact Us For Availability
31
U - NUT WPL 98009179 Contact Us For Availability
36
Baffle, Side WPL 98017387 Contact Us For Availability
37
Support, Element WPL 98004973 Contact Us For Availability
38
Block, Terminal WPL W10181453 Contact Us For Availability
41
Cover, Terminal Block WPL W10209692 Contact Us For Availability
42
Cover, Main Rear WPL W10208152 Contact Us For Availability
43
Plate, Conduit WPL W10180177 Contact Us For Availability
× ![]()
