Model Maytag CDU2406-1 DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - DETERGENT CUP

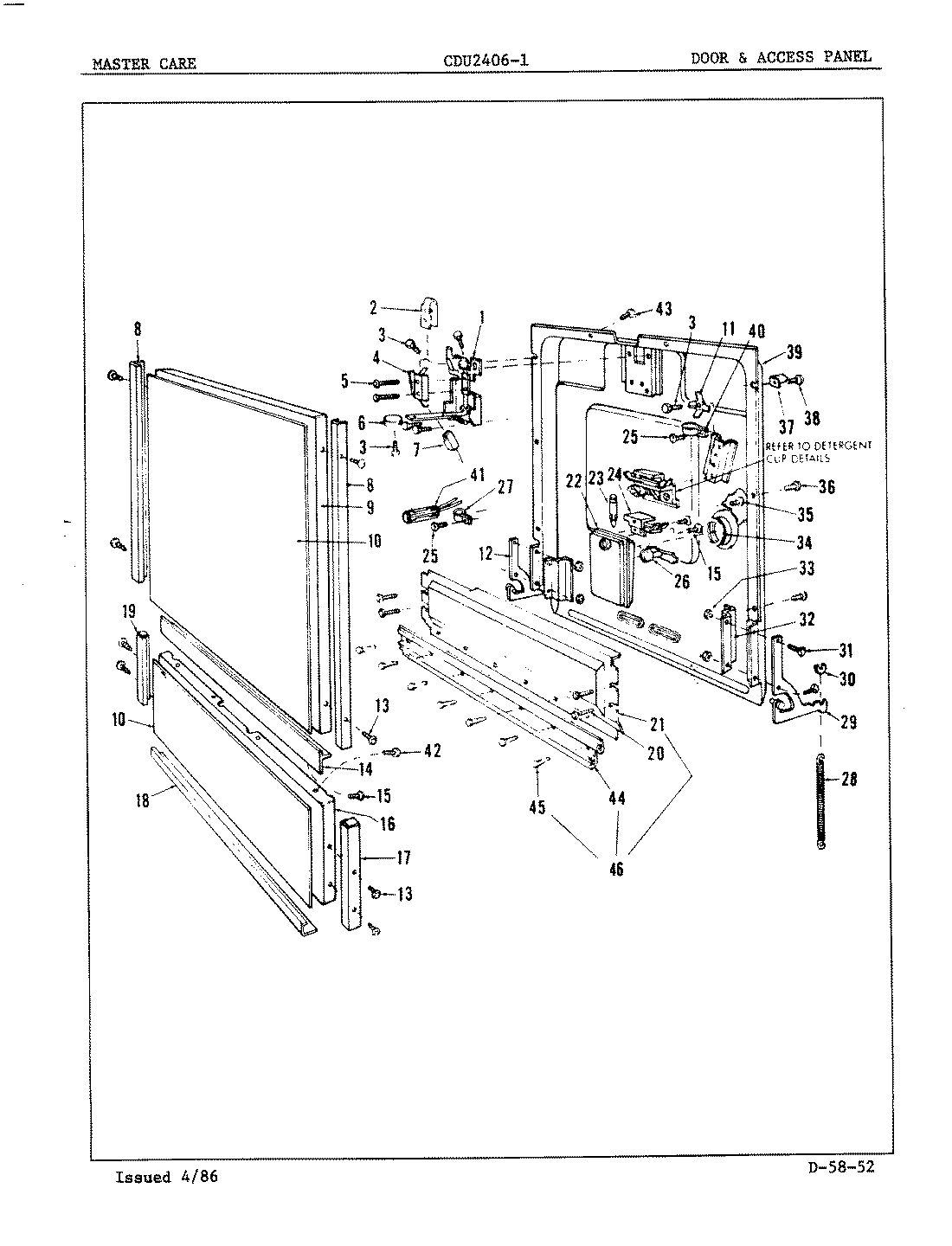

03 - DOOR & ACCESS PANEL

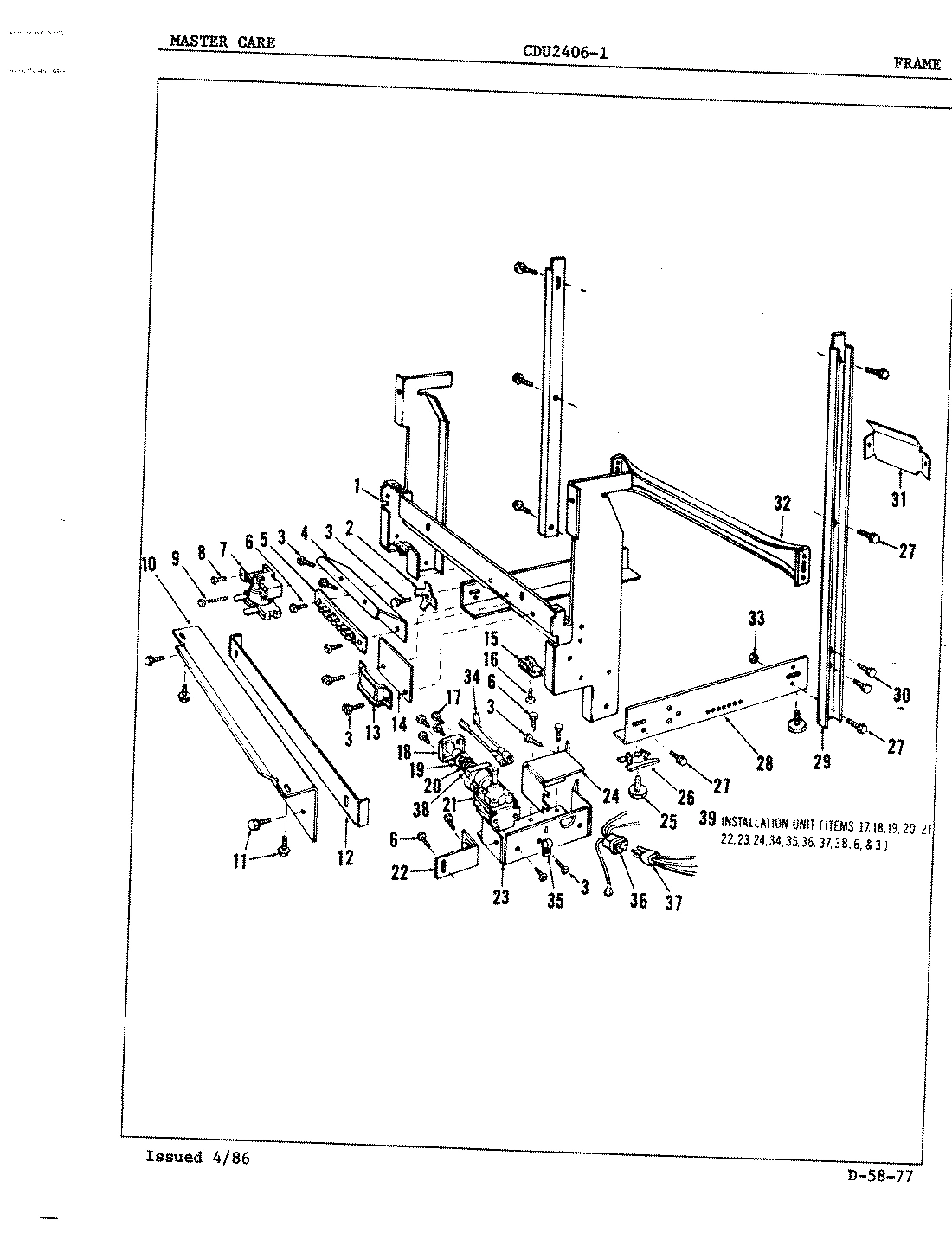

04 - FRAME

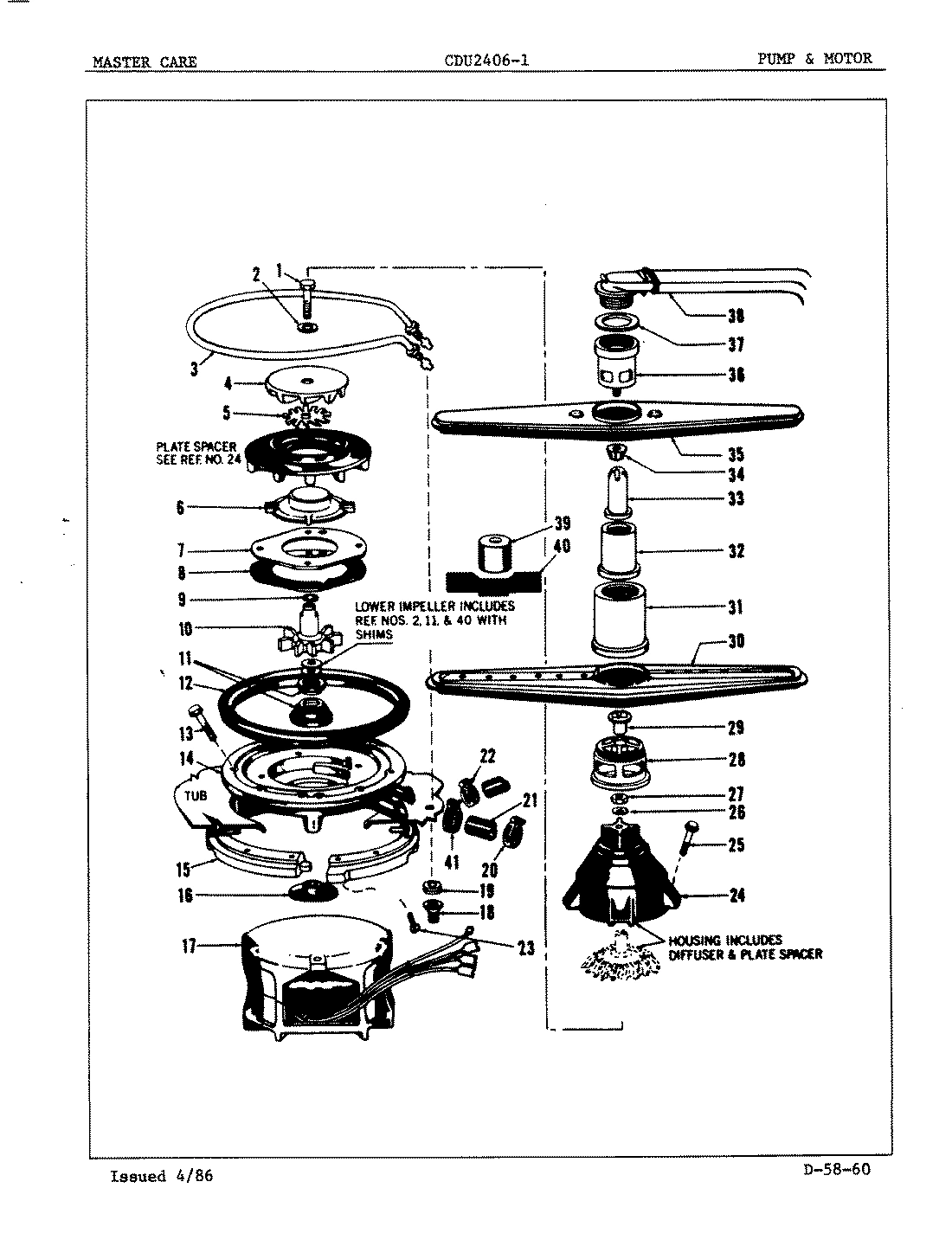

05 - PUMP & MOTOR

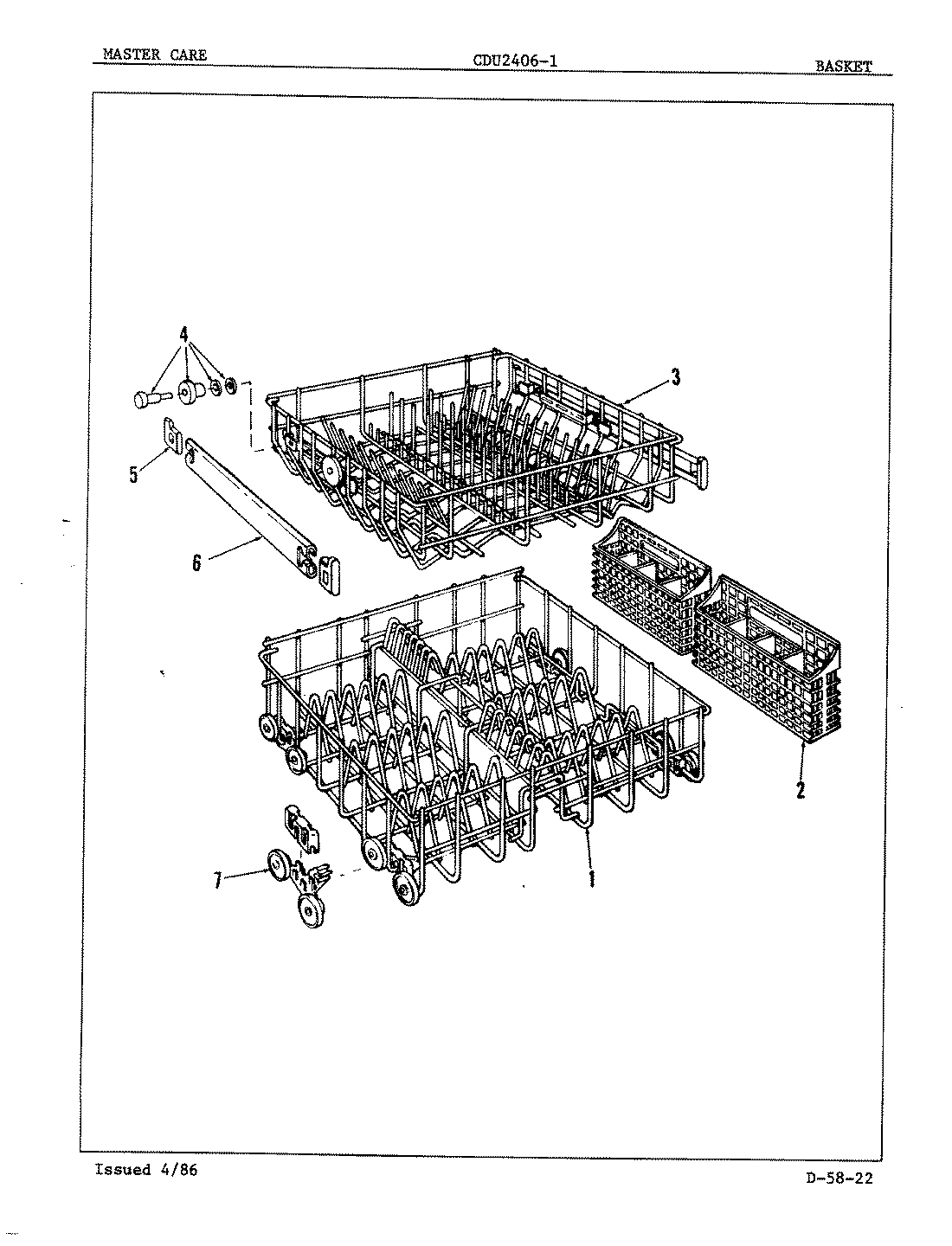

06 - RACKS

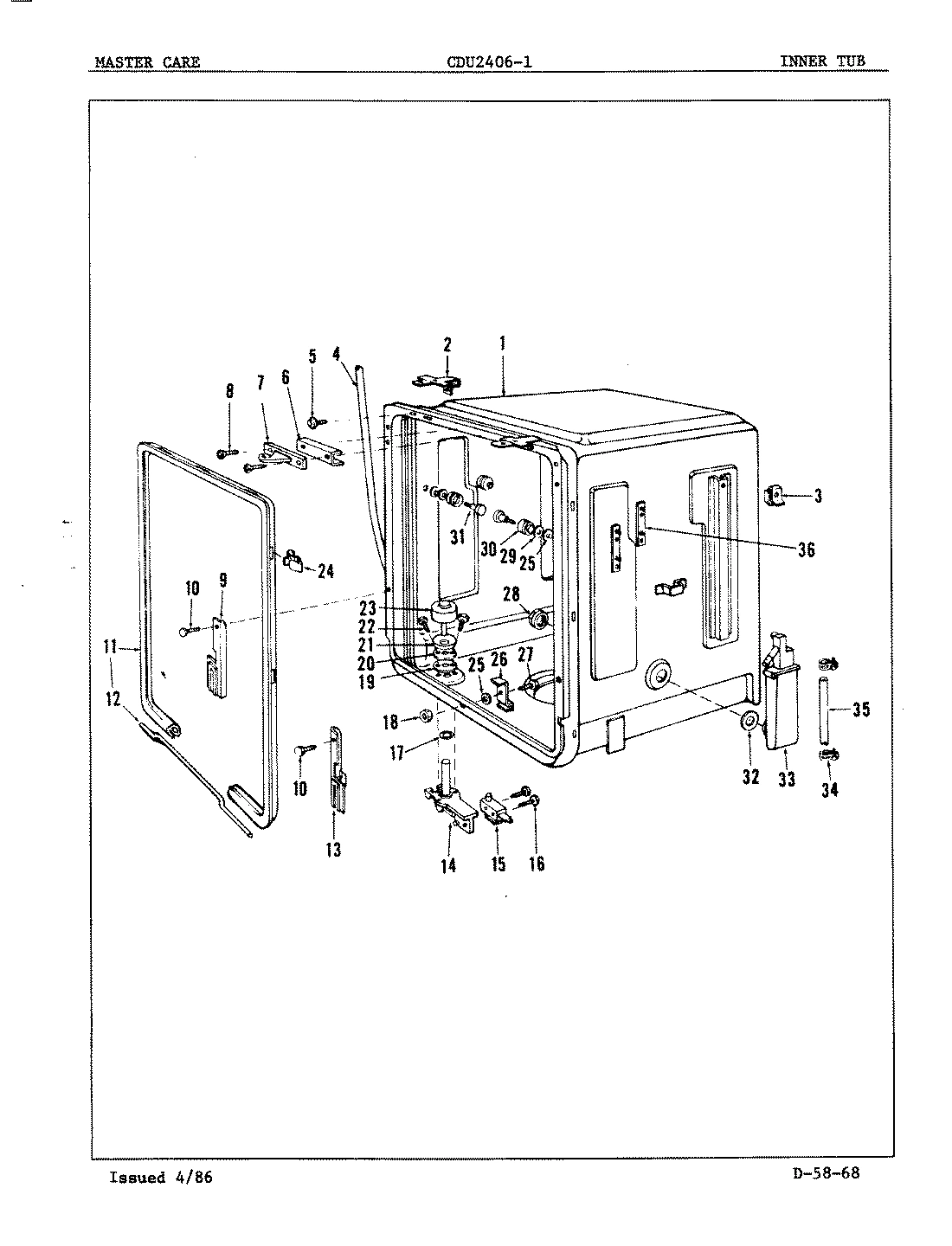

07 - TUB (INNER)
Common parts from model Maytag CDU2406-1 DISHWASHER
1
SCREW MAY 806943 Contact Us For Availability
1
MAY 806564 MAY 806564 Contact Us For Availability
1
LATCH ASM MAY 807016 Contact Us For Availability
1
MAY 807848 MAY 807848 Contact Us For Availability
1
MAY 806353 MAY 806353 Contact Us For Availability
1
MAY 808189 MAY 808189 Contact Us For Availability
1
MAY 808187 MAY 808187 Contact Us For Availability
2
LH END CAP MAY 806407 Contact Us For Availability
2
MAY 807421 MAY 807421 Contact Us For Availability
2
SWITCH COVER MAY 807450 Contact Us For Availability
2
GROUND TERMINAL MAY 807213 Contact Us For Availability
2
SILVRWR BASKET MAY 807512 Contact Us For Availability
2
CLIP MAY 808289 Contact Us For Availability
3
PUSH BUTTON MAY 807091 Contact Us For Availability
3
SCREW MAY 808209 Contact Us For Availability
3
SCREW MAY 806830 Contact Us For Availability
3
HEATER KIT MAY 806836 Contact Us For Availability
3
UPPER RACK MAY 807902 Contact Us For Availability
3
MAY 806291 MAY 806291 Contact Us For Availability
4
RED LENS MAY 805664 Contact Us For Availability
4
ROLLPIN MAY 804734 Contact Us For Availability
4
MAY 807043 MAY 807043 Contact Us For Availability
4
MAY 807849 MAY 807849 Contact Us For Availability
4
UPPER IMPELLER MAY 808041 Contact Us For Availability
4
WHEEL ASM MAY 807957 Contact Us For Availability
4
MAY 806089 MAY 806089 Contact Us For Availability
5
MAY 807094 MAY 807094 Contact Us For Availability
5
MAY 806566 MAY 806566 Contact Us For Availability
5
MAY 803051 MAY 803051 Contact Us For Availability
5
MAY 807486 MAY 807486 Contact Us For Availability
5
MACERATOR BLADE MAY 808075 Contact Us For Availability
5
END CAP MAY 807853 Contact Us For Availability
5
SCREW MAY 807036 Contact Us For Availability
6
MAY 805324 MAY 805324 Contact Us For Availability
6
SPRING MAY 805227 Contact Us For Availability
6
MAY 806398 MAY 806398 Contact Us For Availability
6
MAY 807501 MAY 807501 Contact Us For Availability
6
SHROUD MAY 806267 Contact Us For Availability
6
MAY 807854 MAY 807854 Contact Us For Availability
6
STRIKE SHIM MAY 807073 Contact Us For Availability
7
MAY 807665 MAY 807665 Contact Us For Availability
7
SPRING MAY 806567 Contact Us For Availability
7
INSULATOR MAY 806846 Contact Us For Availability
7
SUB 805255 MAY 806121 Contact Us For Availability
7
PUMP PLATE MAY 807884 Contact Us For Availability
7
WHEEL ASM MAY 807008 Contact Us For Availability
7
STRIKE MAY 807015 Contact Us For Availability
8
MAY 808172 MAY 808172 Contact Us For Availability
8
NUT MAY 806568 Contact Us For Availability
8
DOOR TRIM MAY 808026 Contact Us For Availability
8
MAY 806593 MAY 806593 Contact Us For Availability
8
GASKET MAY 807709 Contact Us For Availability
8
MAY 806890 MAY 806890 Contact Us For Availability
9
RH END CAP MAY 806406 Contact Us For Availability
9
MAY 806569 MAY 806569 Contact Us For Availability
9
OUTER PANEL MAY 807262 Contact Us For Availability
9
MAY 804672 MAY 804672 Contact Us For Availability
9
O RING MAY 806521 Contact Us For Availability
9
LH GUIDE MAY 807470 Contact Us For Availability
10
LIGHT ASM MAY 805866 Contact Us For Availability
10
GASKET MAY 802836 Contact Us For Availability
10
INSERT, DOOR PANEL MAY 807645 Contact Us For Availability
10
TOE PLATE MAY 807850 Contact Us For Availability
10
IMPELLER KIT MAY 808042 Contact Us For Availability
10
MAY 806539 MAY 806539 Contact Us For Availability
11
MAY 805323 MAY 805323 Contact Us For Availability
11
MAY 805626 MAY 805626 Contact Us For Availability
11
SCREW MAY 807001 Contact Us For Availability
11
GASKET MAY 803903 Contact Us For Availability
11
DOOR GASKET MAY 808345 Contact Us For Availability
12
MAY 808128 MAY 808128 Contact Us For Availability
12
O RING MAY 806647 Contact Us For Availability
12
LH ARM MAY 805682 Contact Us For Availability
12
TOE PLATE MAY 806295 Contact Us For Availability
12
MAY 807710 MAY 807710 Contact Us For Availability
12
WIRE,GASKT JUNC MAY 808344 Contact Us For Availability
13
MAY 806912 MAY 806912 Contact Us For Availability
13
MAY 806648 MAY 806648 Contact Us For Availability
13
MAY 807293 MAY 807293 Contact Us For Availability
13
CLAMP MAY 806723 Contact Us For Availability
13
RH GUIDE MAY 807471 Contact Us For Availability
14
DETRG CUP KIT MAY 807261 Contact Us For Availability
14
DOOR TRIM MAY 807347 Contact Us For Availability
14
WIRE SHIELD MAY 808013 Contact Us For Availability
14
PUMP HOUSING MAY 807711 Contact Us For Availability
14
FLOAT ASM MAY 807677 Contact Us For Availability
15
SHAFT KIT MAY 806674 Contact Us For Availability
15
O RING MAY 808210 Contact Us For Availability
15
MAY 808170 MAY 808170 Contact Us For Availability
15
CLAMP RING MAY 807712 Contact Us For Availability
15
FLOAT SWITCH MAY 807680 Contact Us For Availability
16
MAY 807425 MAY 807425 Contact Us For Availability
16
PANEL MAY 807257 Contact Us For Availability
16
MAY 807784 MAY 807784 Contact Us For Availability
16
MAY D800062 MAY D800062 Contact Us For Availability
16
BOLT MAY 804594 Contact Us For Availability
17
MAY 808171 MAY 808171 Contact Us For Availability
17
RH TRIM MAY 808028 Contact Us For Availability
17
MAY 805286 MAY 805286 Contact Us For Availability
17
MOTOR MAY 806300 Contact Us For Availability
17
O RING MAY 807759 Contact Us For Availability
18
MAY 807221 MAY 807221 Contact Us For Availability
18
BOTTOM TRIM MAY 808027 Contact Us For Availability
18
FITTING RETAINR MAY 808336 Contact Us For Availability
18
NUT MAY 806834 Contact Us For Availability
18
MAY 803346 MAY 803346 Contact Us For Availability
19
MAY 806594 MAY 806594 Contact Us For Availability
19
LH TRIM MAY 808029 Contact Us For Availability
19
FITTING MAY 808337 Contact Us For Availability
19
GROMMET MAY 806833 Contact Us For Availability
19
GASKET MAY 808063 Contact Us For Availability
20
MAY 807141 MAY 807141 Contact Us For Availability
20
SCREW MAY 806810 Contact Us For Availability
20
CLAMP MAY 805495 Contact Us For Availability
20
PLATE, FLOAT TUBE MAY 808064 Contact Us For Availability
21
MAY 808329 MAY 808329 Contact Us For Availability
21
MAY 808338 MAY 808338 Contact Us For Availability
21
HOSE CONNECTOR MAY 808174 Contact Us For Availability
21
MAY 804149 MAY 804149 Contact Us For Availability
22
DISPENSER MAY 806753 Contact Us For Availability
22
MAY 808339 MAY 808339 Contact Us For Availability
22
MAY 807268 MAY 807268 Contact Us For Availability
22
CLAMP MAY 806090 Contact Us For Availability
23
MAY 806757 MAY 806757 Contact Us For Availability
23
MAY 808340 MAY 808340 Contact Us For Availability
23
MAY 806945 MAY 806945 Contact Us For Availability
23
MAY 804630 MAY 804630 Contact Us For Availability
24
BRACKET MAY 806756 Contact Us For Availability
24
MAY 808341 MAY 808341 Contact Us For Availability
24
PUMPHOUSING KIT MAY 806978 Contact Us For Availability
24
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
25
SCREW MAY 803416 Contact Us For Availability
25
MAY 807672 MAY 807672 Contact Us For Availability
25
SCREW MAY 807359 Contact Us For Availability
25
SEALER MAY 805776 Contact Us For Availability
26
MAY 806843 MAY 806843 Contact Us For Availability
26
TEENUT MAY 807671 Contact Us For Availability
26
MAY 804526 MAY 804526 Contact Us For Availability
26
MAY 808115 MAY 808115 Contact Us For Availability
27
MAY 805340 MAY 805340 Contact Us For Availability
27
MAY 806889 MAY 806889 Contact Us For Availability
27
MAY 804527 MAY 804527 Contact Us For Availability
27
MAY 803319 MAY 803319 Contact Us For Availability
28
DOOR SPRING MAY 805683 Contact Us For Availability
28
SIDE CHANNEL MAY 807851 Contact Us For Availability
28
LOWER BEARING MAY 808175 Contact Us For Availability
28
MAY 805669 MAY 805669 Contact Us For Availability
29
RH ARM MAY 805681 Contact Us For Availability
29
CHANNEL MAY 806290 Contact Us For Availability
29
MAY 803367 MAY 803367 Contact Us For Availability
29
NUT MAY 808176 Contact Us For Availability
30
SPRING PAD MAY 805884 Contact Us For Availability
30
MAY 807950 MAY 807950 Contact Us For Availability
30
MAY 808177 MAY 808177 Contact Us For Availability
30
ROLLER MAY 807180 Contact Us For Availability
31
MAY 803311 MAY 803311 Contact Us For Availability
31
MAY 808342 MAY 808342 Contact Us For Availability
31
TOWER BASE MAY 808178 Contact Us For Availability
31
SCREW MAY 807181 Contact Us For Availability
32
ARM BRACKET MAY 806717 Contact Us For Availability
32
MAY 807852 MAY 807852 Contact Us For Availability
32
MAY 808179 MAY 808179 Contact Us For Availability
32
WASHER MAY 803573 Contact Us For Availability
33
MAY 800928 MAY 800928 Contact Us For Availability
33
MAY 804619 MAY 804619 Contact Us For Availability
33
MAY 808180 MAY 808180 Contact Us For Availability
33
MAY 806470 MAY 806470 Contact Us For Availability
34
GROMMET MAY 805631 Contact Us For Availability
34
MAY 808354 MAY 808354 Contact Us For Availability
34
MAY 808181 MAY 808181 Contact Us For Availability
34
MAY 807813 MAY 807813 Contact Us For Availability
35
SCREW MAY 806863 Contact Us For Availability
35
MAY 805584 MAY 805584 Contact Us For Availability
35
MAY 808182 MAY 808182 Contact Us For Availability
35
INLET TUBE MAY 807891 Contact Us For Availability
36
SCREW MAY 806967 Contact Us For Availability
36
MAY 808358 MAY 808358 Contact Us For Availability
36
MAY 808183 MAY 808183 Contact Us For Availability
36
TAPPING PLATE MAY 807038 Contact Us For Availability
37
DOOR GUIDE MAY 807449 Contact Us For Availability
37
MAY 808356 MAY 808356 Contact Us For Availability
37
MAY 808184 MAY 808184 Contact Us For Availability
38
MAY 806976 MAY 806976 Contact Us For Availability
38
MAY 807609 MAY 807609 Contact Us For Availability
38
ELBOW & TUBE MAY 808185 Contact Us For Availability
39
INNER PANEL MAY 807194 Contact Us For Availability
39
MAY 808360 MAY 808360 Contact Us For Availability
39
SEAL TOOL MAY 803923 Contact Us For Availability
40
MAY 807212 MAY 807212 Contact Us For Availability
40
SHIM GAUGE MAY 807077 Contact Us For Availability
41
MAY 807462 MAY 807462 Contact Us For Availability
41
MAY 808186 MAY 808186 Contact Us For Availability
43
SCREW MAY 806894 Contact Us For Availability
44
MAY 808331 MAY 808331 Contact Us For Availability
45
MAY 808330 MAY 808330 Contact Us For Availability
46
VENT BAFFLE MAY 808369 Contact Us For Availability
× ![]()
