Model Whirlpool CDG22B6M GAS DRYER – Common Parts & Diagrams

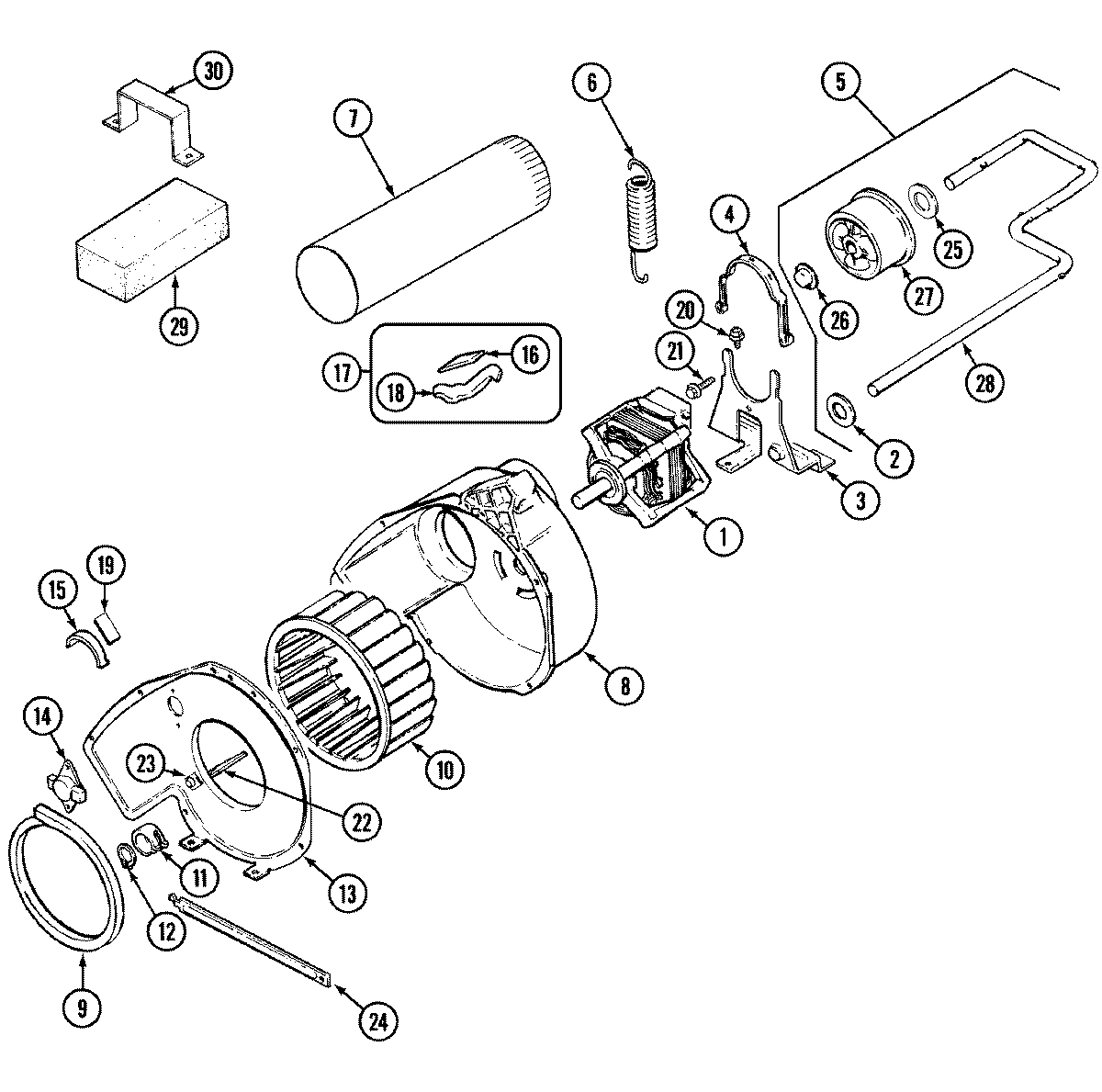

02 - MOTOR & DRIVE

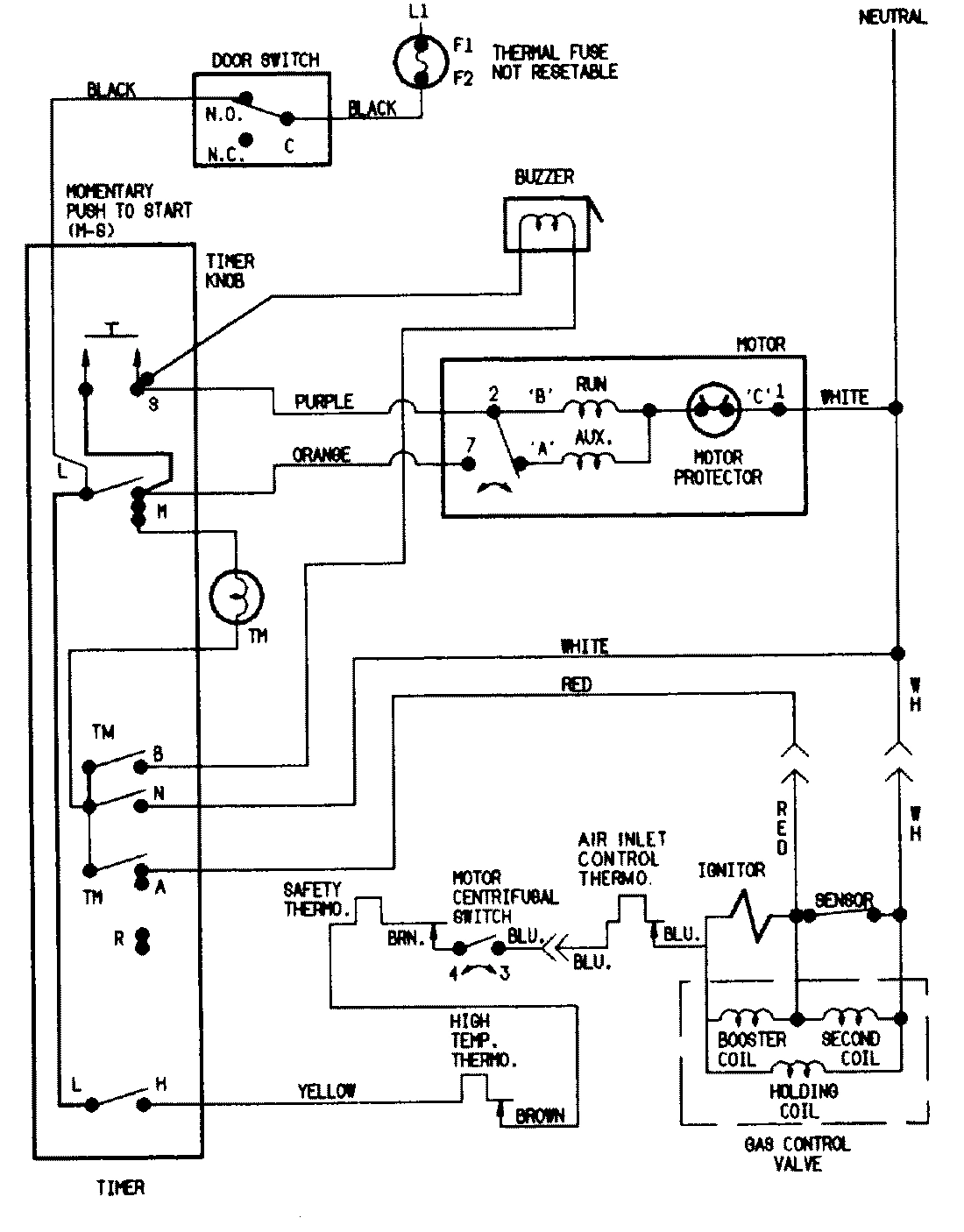

04 - WIRING INFORMATION

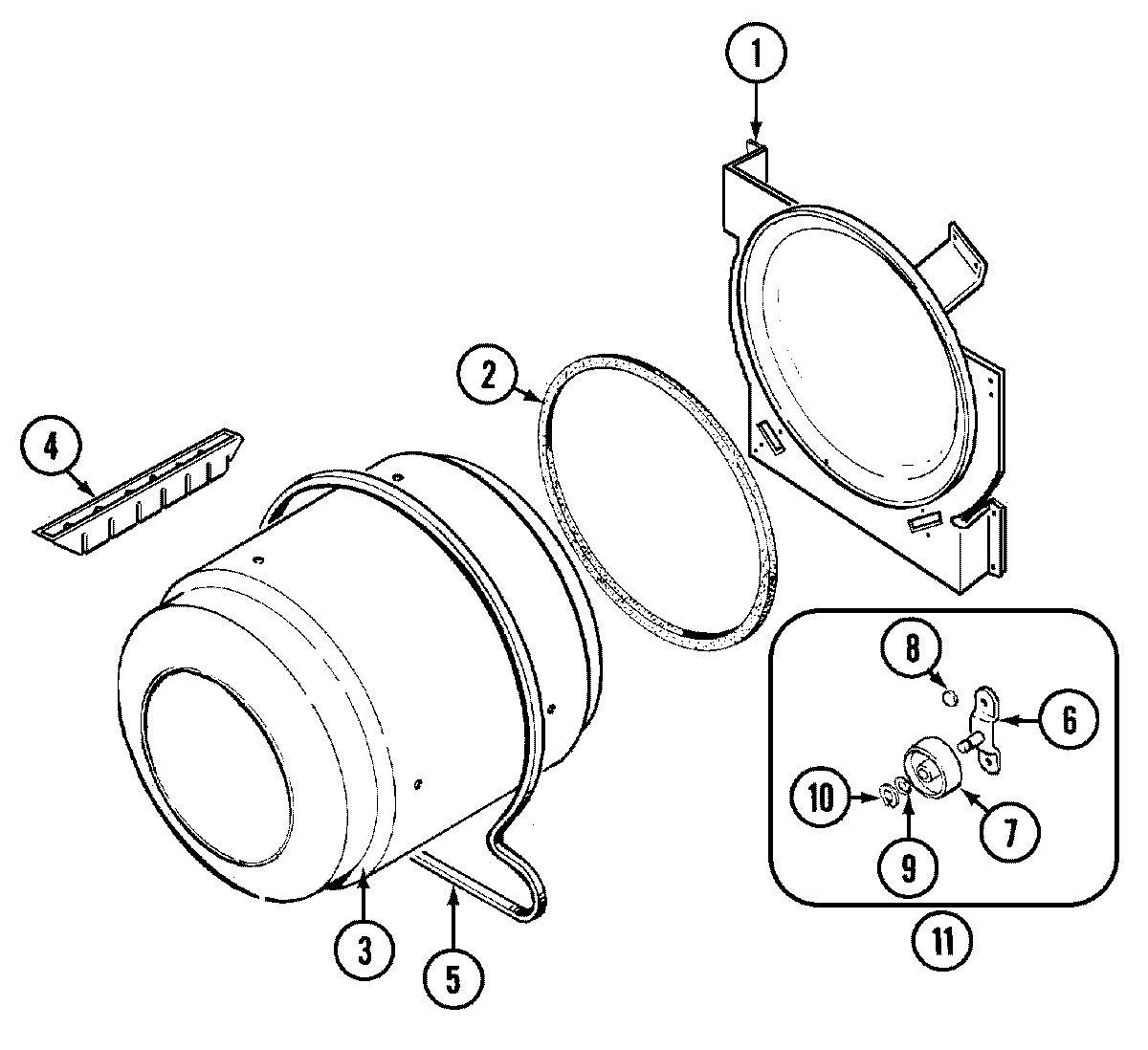

03 - TUMBLER

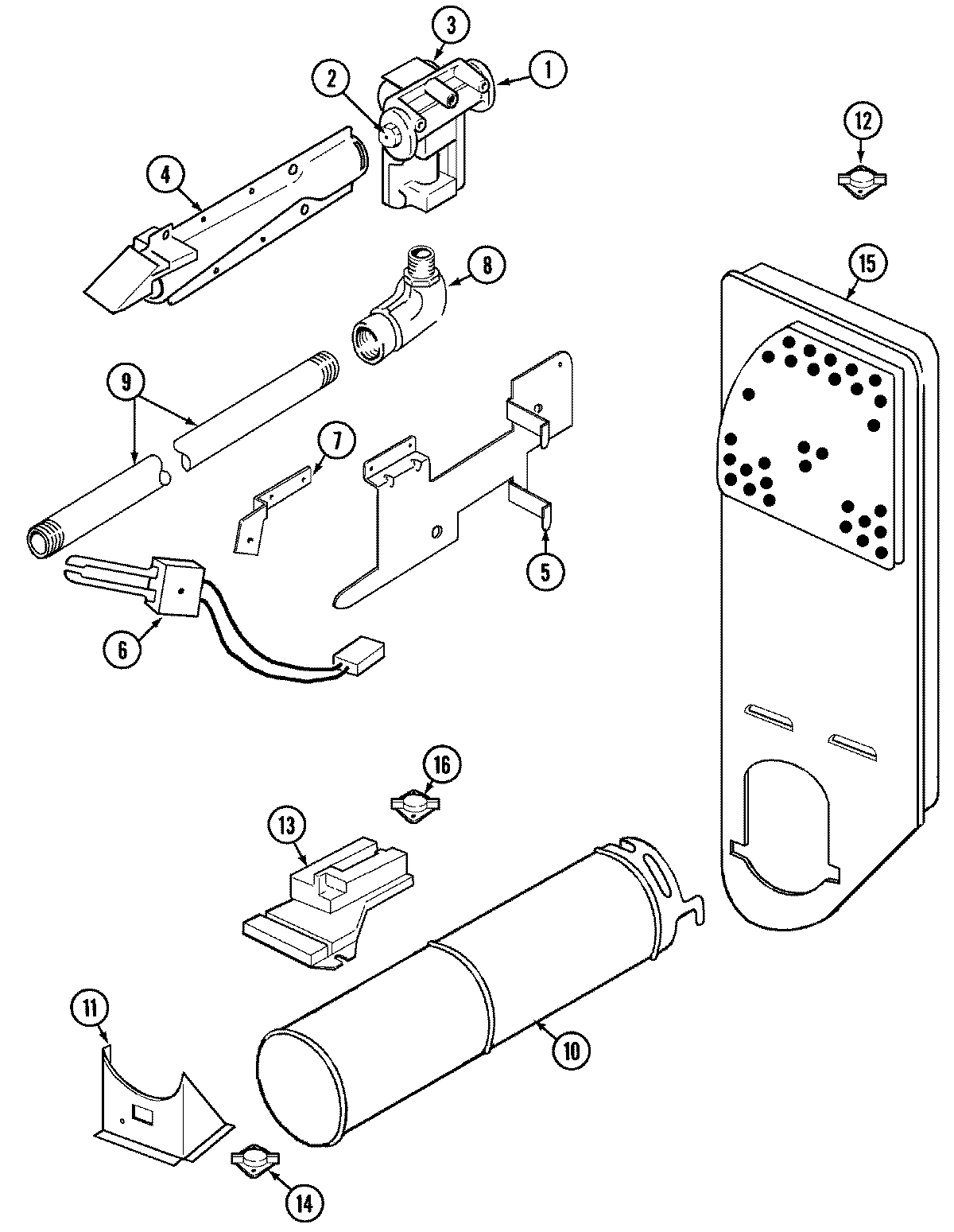

01 - GAS CARRYING
Common parts from model Whirlpool CDG22B6M GAS DRYER
1
SCREW WPL 257733 Contact Us For Availability
1
DRYER BULKHEAD KIT WPL LA1054 Contact Us For Availability
1
TAIL PIECE WPL 31001368 Contact Us For Availability
1
VALVE, GAS (WITH ORIFICE) WPL 31001485 Contact Us For Availability
1
UNION NUT WPL 606846 Contact Us For Availability
2
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
2
BURNER ORIFICE WPL 633570 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
3
SECONDARY COIL WPL 636614 Contact Us For Availability
3
DUAL COIL WPL 636615 Contact Us For Availability
4
CLAMP, MOTOR WPL 530214 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE (WHT) WPL Y02100002 Contact Us For Availability
4
BURNER ASM WPL 636682 Contact Us For Availability
5
IDLER ASSY. WPL 532287 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
5
MTG BRACKET WPL 530140 Contact Us For Availability
6
SPRING, IDLER WPL 532209 Contact Us For Availability
6
SCREW WPL 257101 Contact Us For Availability
6
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
6
SCREW WPL 257744 Contact Us For Availability
6
IGNITER WPL 530689 Contact Us For Availability
7
DUCT, EXHAUST WPL 530134 Contact Us For Availability
7
ROLLER (REAR) WPL 31001096 Contact Us For Availability
7
BRACKET WPL 530686 Contact Us For Availability
8
HOUSING, BLOWER WPL 531801 Contact Us For Availability
8
SPACER WPL 257813 Contact Us For Availability
8
SHUTOFF VALVE WPL 530101 Contact Us For Availability
9
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
9
WASHER WPL 257814 Contact Us For Availability
9
MAIN GAS LINE ASSY WPL 532362 Contact Us For Availability
10
RING, RETAINING WPL 257854 Contact Us For Availability
10
HOUSING, HEATER WPL 531884 Contact Us For Availability
11
CLAMP WPL 257823 Contact Us For Availability
11
ROLLER WPL LA1008 Contact Us For Availability
11
SCREW WPL 253092 Contact Us For Availability
11
SUPPORT, HEATER HOUSING WPL 532363 Contact Us For Availability
12
RING, RETAINING WPL 257855 Contact Us For Availability
12
HI LMT TSTAT WPL 530143 Contact Us For Availability
13
SCREW WPL 257435 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
13
SCREW WPL 252134 Contact Us For Availability
13
SENSOR WPL 635013 Contact Us For Availability
14
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
14
SCREW WPL 250168 Contact Us For Availability
14
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
15
GLIDE, TUMBLER (LT) WPL 532273 Contact Us For Availability
15
SCREW WPL 257741 Contact Us For Availability
15
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
15
INLET AIR DUCT ASSY WPL 531706 Contact Us For Availability
16
RH GLD CUSHION WPL 530724 Contact Us For Availability
16
THRMST-FIX WPL 531096 Contact Us For Availability
18
GLIDE, TUMBLER (RT) WPL 532272 Contact Us For Availability
19
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
20
SCREW WPL 257963 Contact Us For Availability
21
SCREW WPL 257674 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
23
SCREW, SEMS WPL 253457 Contact Us For Availability
24
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
25
WASHER WPL 257815 Contact Us For Availability
26
PUSHNUT WPL 257957 Contact Us For Availability
27
PULLEY, IDLER WPL 531628 Contact Us For Availability
28
ARM, IDLER WPL 532250 Contact Us For Availability
29
COUNTERWEIGHT WPL 530645 Contact Us For Availability
30
SCREW WPL 257732 Contact Us For Availability
30
BRACKET WPL 530644 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001203 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002520 Contact Us For Availability
NI
CONVERSION KIT (LP-NAT) WPL 12001031 Contact Us For Availability
NI
CONVERSION KIT (NAT-LP) WPL 636766 Contact Us For Availability
× ![]()
