Model Whirlpool CDE6500W ELECTRIC DRYER – Common Parts &amp; Diagrams

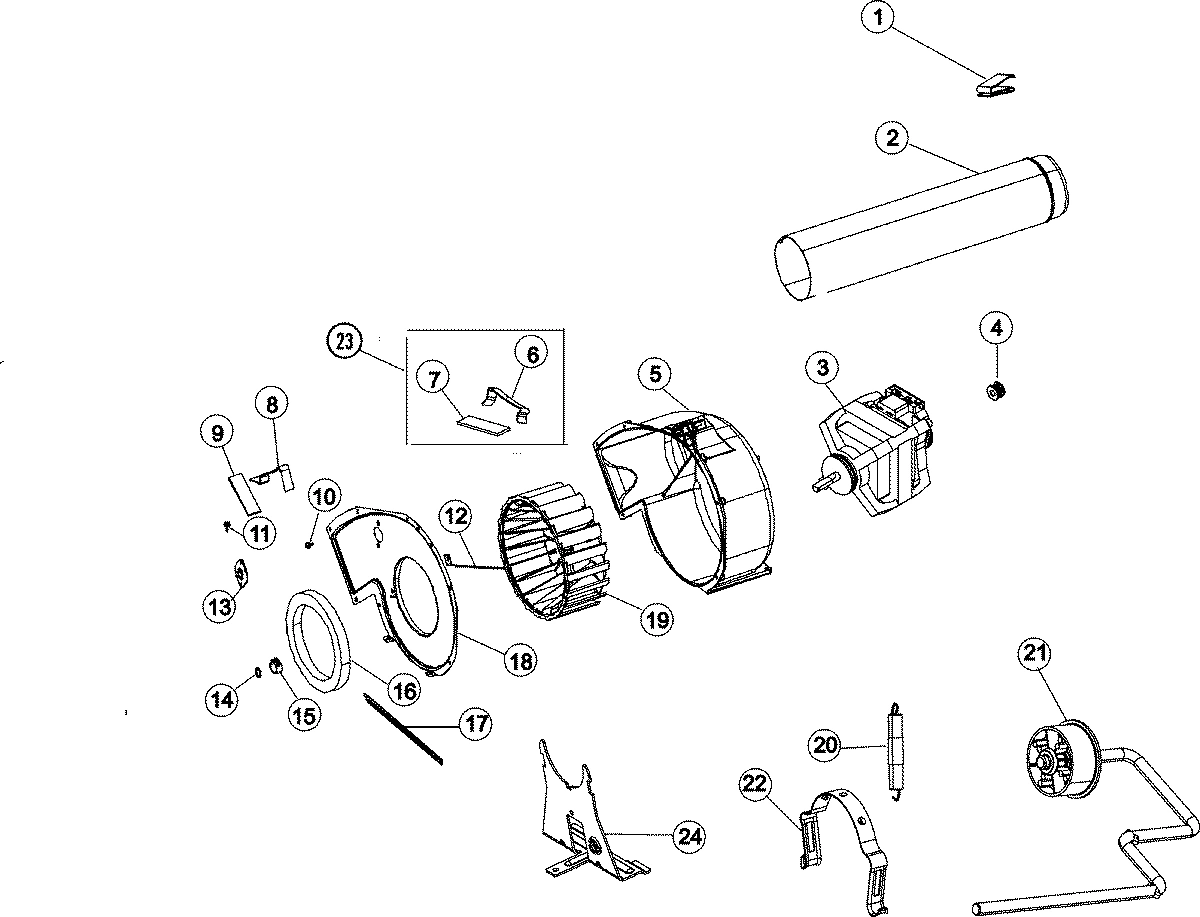

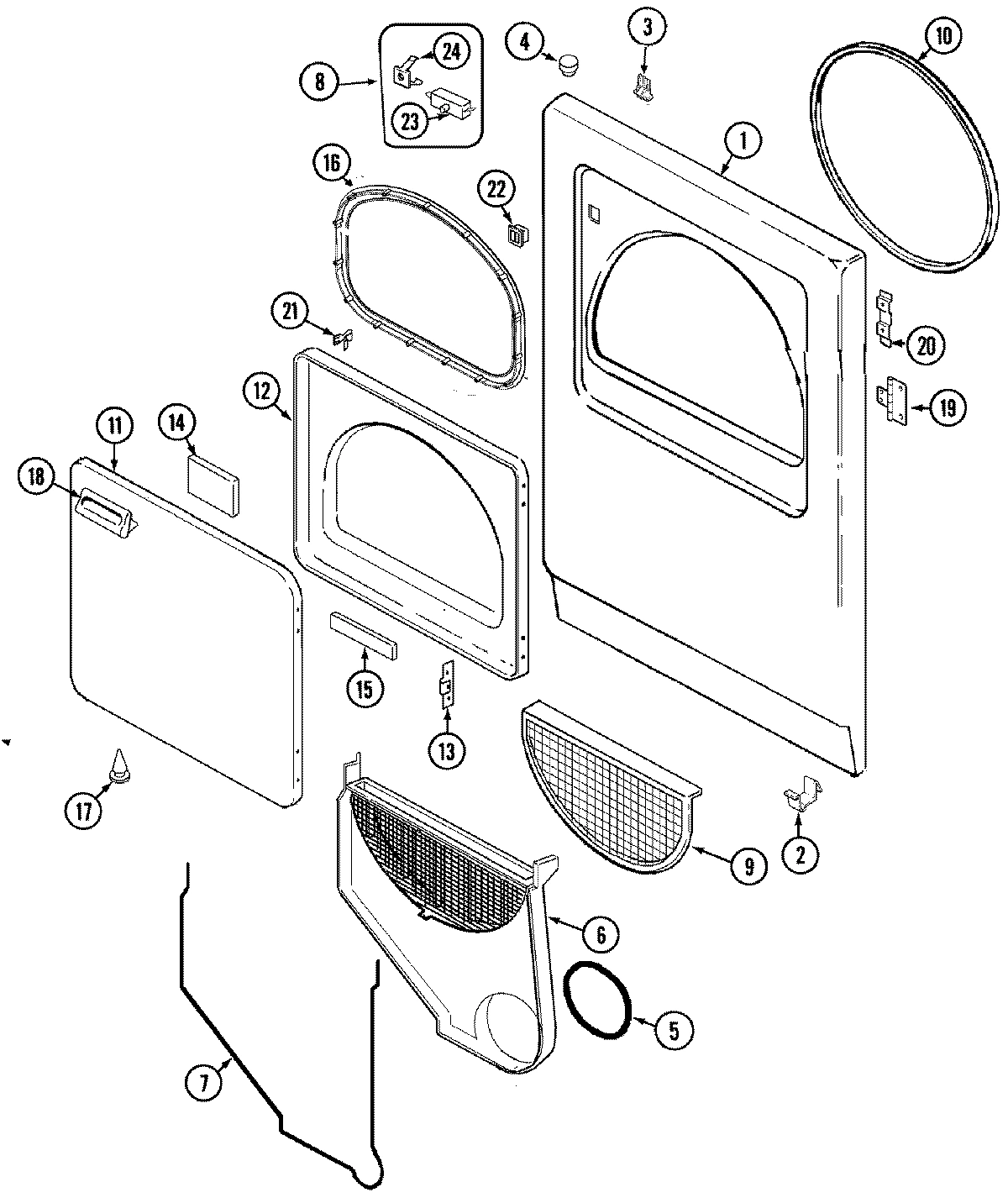

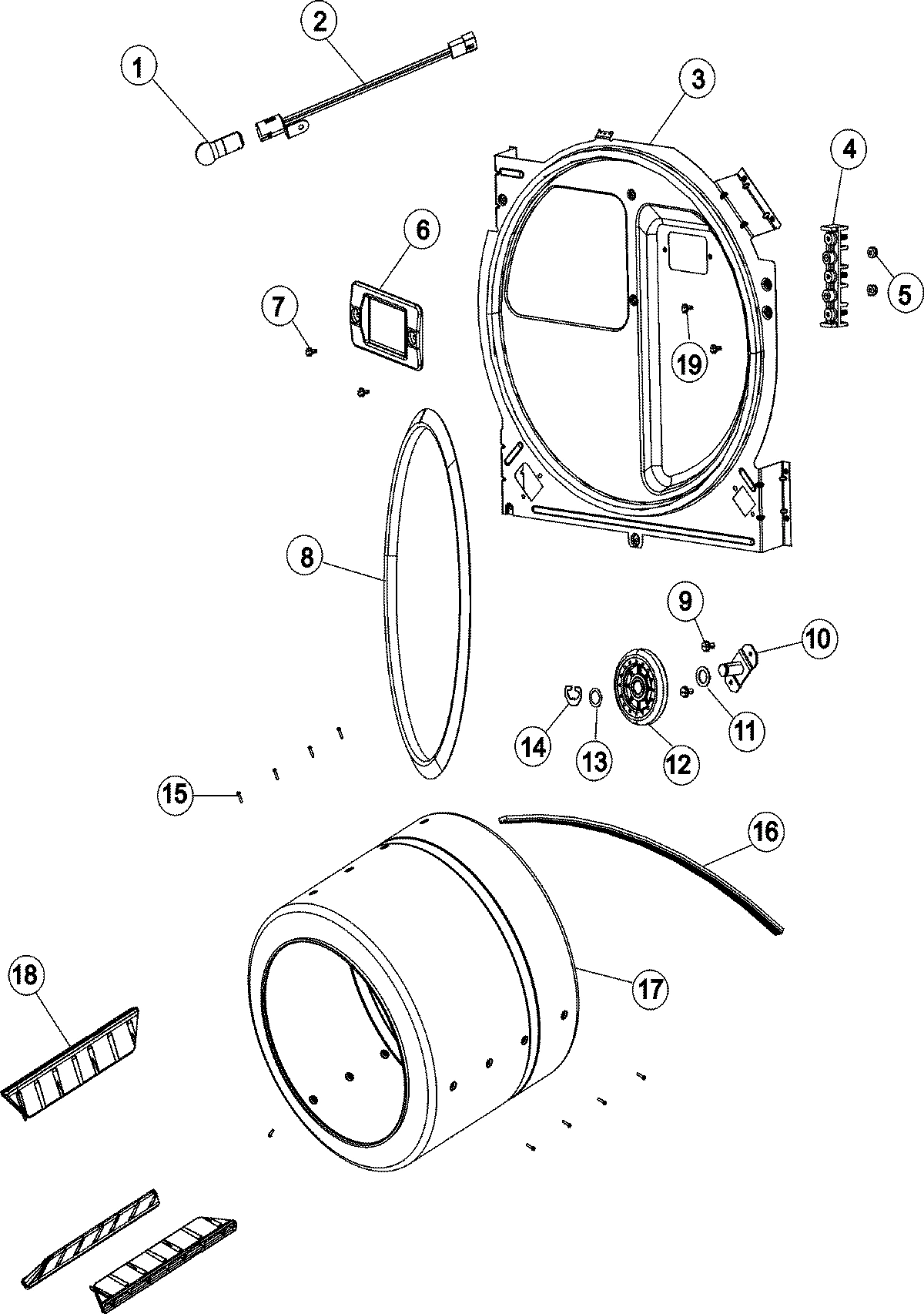

1

BULB, CYLINDER LIGHT WPL 31001575 Contact Us For Availability

1

TOP, CABINET (WHT) WPL 31001423 Contact Us For Availability

1

PANEL, FRONT (WHT) WPL 530726 Contact Us For Availability

1

SCREW WPL 257863 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 31001735 Contact Us For Availability

1

CLIP, VENT PIPE GROUND WPL 31001572 Contact Us For Availability

2

RECEPTACLE ASM, CLYINDER LIGHT WPL 31001579 Contact Us For Availability

2

CABINET & BASE ASM (WHT) WPL 31001714 Contact Us For Availability

2

CLIP, FRONT PANEL WPL 530120 Contact Us For Availability

2

HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability

2

ENDCAP, PANEL (LT-WHT) WPL 21001546 Contact Us For Availability

2

DUCT, EXHAUST WPL 530134 Contact Us For Availability

3

W10410996 Whirlpool Dryer Drive Motor In Stock WPL W10410996 $220.24

3

LOCK, TOP WPL 31001526 Contact Us For Availability

3

BULKHEAD WITH SEAL WPL 31001581 Contact Us For Availability

3

SCREW WPL 253092 Contact Us For Availability

3

PAD, HINGE WPL 354128 Contact Us For Availability

3

HINGE, CABINET TOP WPL 635712 Contact Us For Availability

3

SCREW WPL 253083 Contact Us For Availability

3

THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability

3

ENDCAP, PANEL (RT-WHT) WPL 21001547 Contact Us For Availability

4

12002126 Whirlpool Dryer Reinforcement Brace Backorder WPL 12002126 $57.06

4

WP31001535 Whirlpool Pulley Motor In Stock WPL WP31001535 $53.10

4

BLOCK, TERMINAL WPL 531518 Contact Us For Availability

4

BUMPER, CABINET WPL 332653 Contact Us For Availability

4

SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability

4

BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability

4

BUZZER WPL 31001397 Contact Us For Availability

5

NUT (No.10-32) WPL 250027 Contact Us For Availability

5

WASHER, FLAT WPL 253122 Contact Us For Availability

5

CLIP, WIRING WPL 253034 Contact Us For Availability

5

FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability

5

KNOB/SKIRT, TIMER (WHT) WPL 31001388 Contact Us For Availability

5

HOUSING, BLOWER WPL 531801 Contact Us For Availability

6

12001324 Whirlpool Collector Duct Backorder WPL 12001324 $110.88

6

WP31001470 Whirlpool Glide Assembly Backorder WPL WP31001470 $35.80

6

LENS, CYLINDER LIGHT WPL 31001585 Contact Us For Availability

6

BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability

6

SWITCH, SELECTOR WPL 31001449 Contact Us For Availability

6

SWITCH, TEMPERATURE WPL 534394 Contact Us For Availability

7

SCREW, 6-32 HEX WASHER HEAD WPL 31001580 Contact Us For Availability

7

POST, LOCATING WPL 21001829 Contact Us For Availability

7

SEAL WPL 530204 Contact Us For Availability

7

FRAME (WHT), CONTROL PANEL WPL 21001552 Contact Us For Availability

8

WP31001469 Whirlpool Glide Assembly Backorder WPL WP31001469 $36.92

8

WP31001747 Whirlpool Seal Assembly Backorder WPL WP31001747 $16.07

8

SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability

8

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

8

SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability

9

WP31001356 Whirlpool Glide Pad Backorder WPL WP31001356 $35.11

9

SCREW WPL 257101 Contact Us For Availability

9

SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability

9

SUPPORT, POWER CORD WPL 530135 Contact Us For Availability

9

FILTER, LINT WPL 530918 Contact Us For Availability

9

RESISTOR ASM (DOMESTIC/TIMER) WPL 31001484 Contact Us For Availability

9

TIMER WPL 531810 Contact Us For Availability

WP31001637 Whirlpool Seal Assembly Backorder WPL WP31001637 $15.07

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability

SCREW WPL 257857 Contact Us For Availability

COVER, TERMINAL WPL 530284 Contact Us For Availability

SHIELD, CONTROL (1 POS.) WPL 21001517 Contact Us For Availability

SPACER, ROLLER WPL 31001583 Contact Us For Availability

LEG, LEVELING WPL 635519 Contact Us For Availability

SCREW, 8-18X3/8 TYAB BUT WPL 257752 Contact Us For Availability

PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability

KNOB, SELECTOR (WHT) WPL 21001544 Contact Us For Availability

SCREW WPL 257890 Contact Us For Availability

12

ROLLER (REAR) WPL 31001096 Contact Us For Availability

12

PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability

12

GUIDE, VANE INLET WPL 531026 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $12.07

WP31001192 Whirlpool Thermostat Backorder WPL WP31001192 $69.84

WASHER WPL 257814 Contact Us For Availability

CLIP, HINGE WPL 530119 Contact Us For Availability

THERMOSTAT, CONTROL WPL 31001088 Contact Us For Availability

RING, RETAINING WPL 257854 Contact Us For Availability

SCREW WPL 257733 Contact Us For Availability

SHIELD, WIRING WPL 531921 Contact Us For Availability

DOOR PAD WPL 531490 Contact Us For Availability

RING, RETAINING WPL 257855 Contact Us For Availability

SCREW WPL 257759 Contact Us For Availability

SCREW, SEMS WPL 253457 Contact Us For Availability

SHIELD, HEAT WPL 530133 Contact Us For Availability

DOOR PAD WPL 531491 Contact Us For Availability

CLAMP WPL 257823 Contact Us For Availability

16

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.23

16

WP31001529 Whirlpool Door Seal Backorder WPL WP31001529 $61.02

16

SEAL, BLOWER/COLLECTOR DUCT WPL 31001541 Contact Us For Availability

17

CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability

17

BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability

17

PLUG BUTTON WPL 257889 Contact Us For Availability

BAFFLE, WHITE WPL 531249 Contact Us For Availability

SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability

HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability

COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability

W11497304 Whirlpool Blower Wheel In Stock WPL W11497304 $47.33

SCREW WPL 257952 Contact Us For Availability

SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability

HINGE, DRYER DOOR WPL 531492 Contact Us For Availability

20

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $2.60

20

TWIN NUT WPL 530121 Contact Us For Availability

20

SPRING, IDLER WPL 31001465 Contact Us For Availability

21

STRIKE, DOOR WPL 532364 Contact Us For Availability

21

IDLER ARM ASSEMBLY WPL 31001710 Contact Us For Availability

22

CATCH, DOOR WPL 530187 Contact Us For Availability

22

CLAMP, MOTOR WPL 530214 Contact Us For Availability

23

LA-1006 Whirlpool Dryer Right Hand Glide Kit In Stock WPL LA-1006 $10.39

23

SWITCH, DOOR WPL 31001732 Contact Us For Availability

23

SWITCH, DOOR WPL 530148 Contact Us For Availability

24

WP31001319 Whirlpool Clip Backorder WPL WP31001319 $0.49

24

CLIP, SWITCH WPL 31001733 Contact Us For Availability

24

BRACKET, MOTOR WPL 31001570 Contact Us For Availability

CONVERSION KIT (NAT-LP) WPL 636766 Contact Us For Availability

LEAD ASSEMBLY (GROUND) WPL 21001978 Contact Us For Availability

HARNESS, WIRE WPL 31001488 Contact Us For Availability

LEAD ASSEMBLY (HEAT) WPL 31001740 Contact Us For Availability

LEAD ASSEMBLY (BUZZER) WPL 31001741 Contact Us For Availability

HARNESS, WIRING WPL 534450 Contact Us For Availability

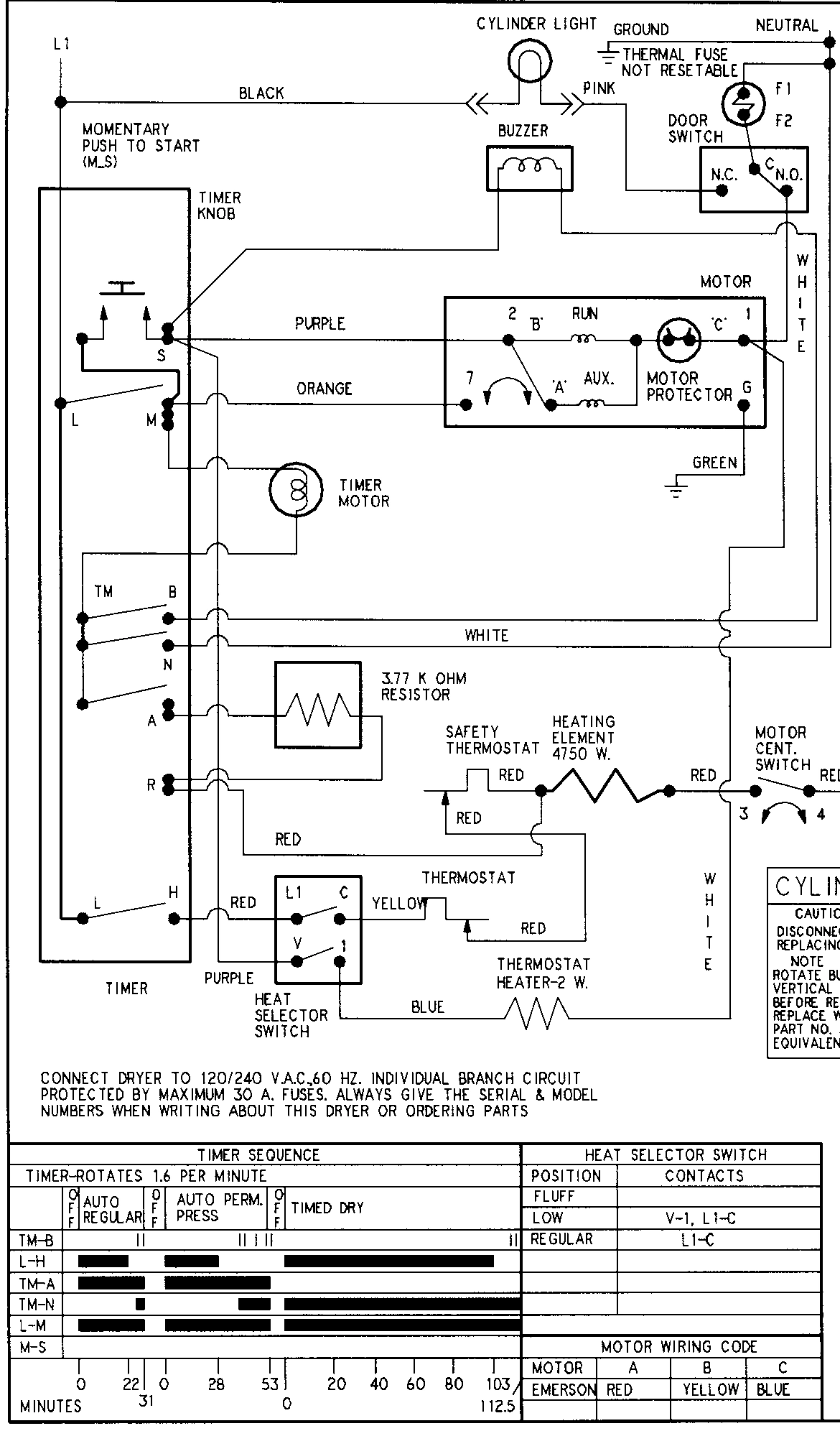

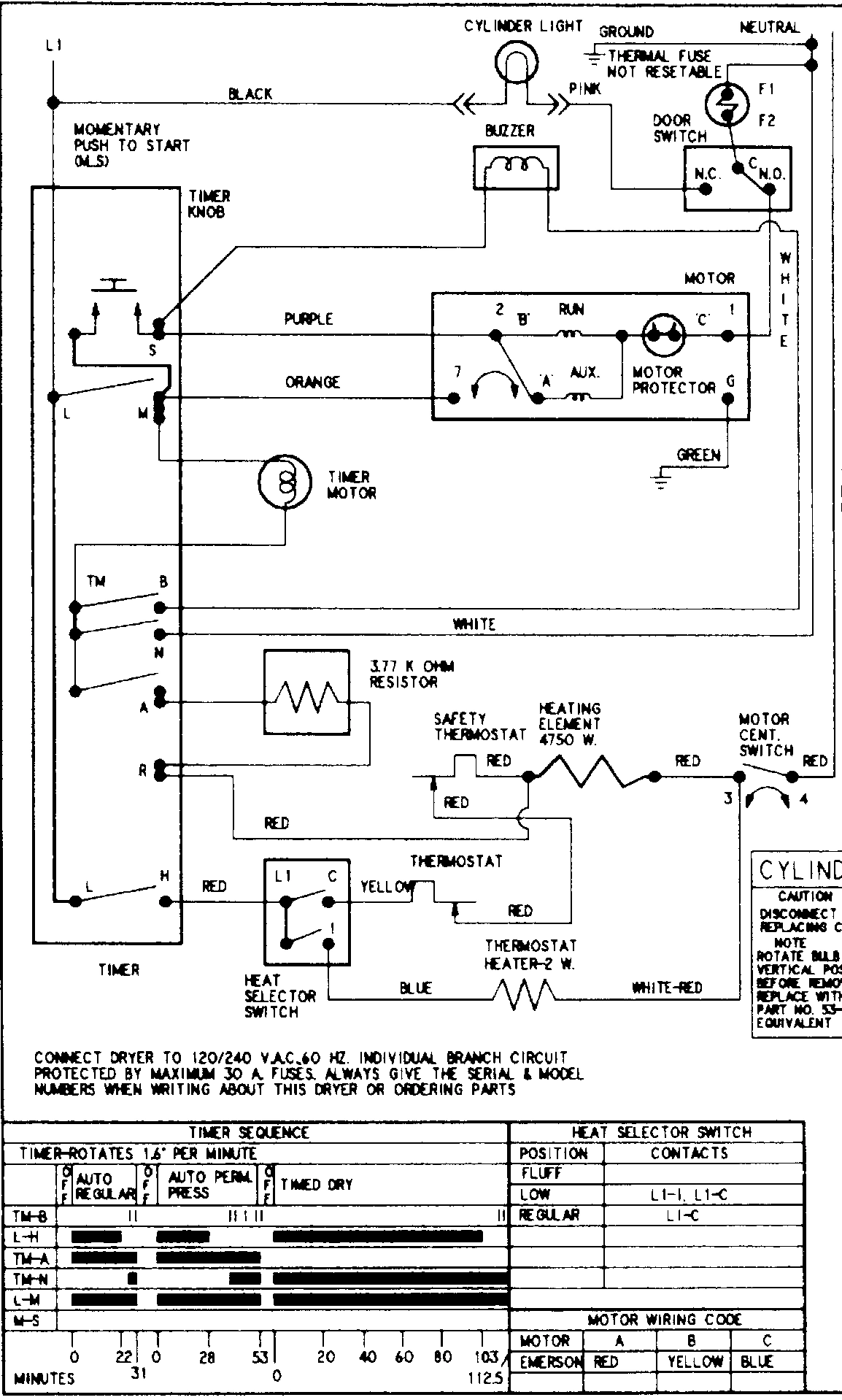

WIRING INFORMATION WPL 15003460 Contact Us For Availability

WIRING INFORMATION WPL 15003587 Contact Us For Availability
