Model Maytag CDE20P6W ELECTRIC DRYER – Common Parts & Diagrams
01 - CABINET (REV. E-F)
02 - CONTROL PANEL (ORIG. REV. A-D)

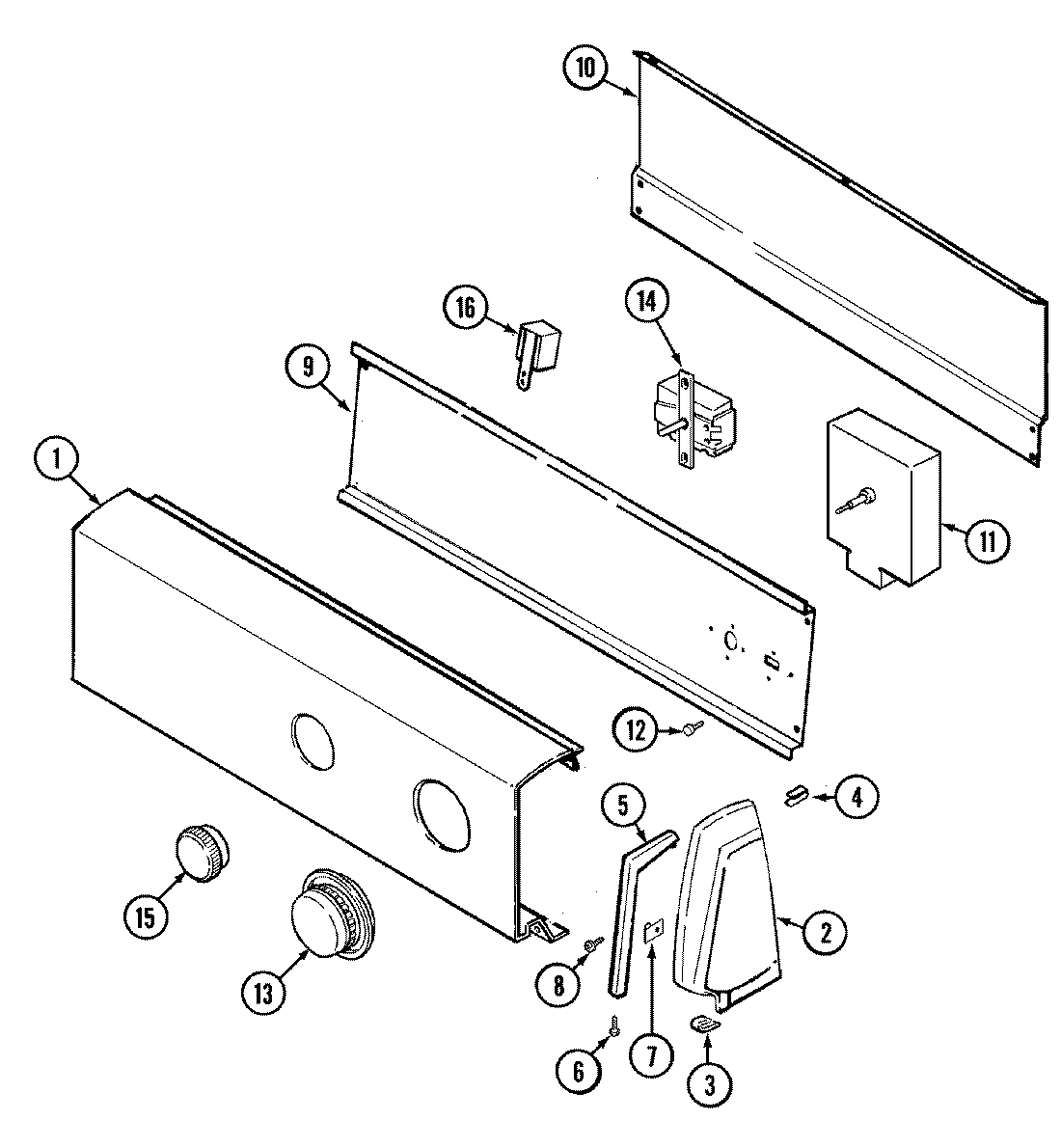

03 - CONTROL PANEL (REV. E-F)

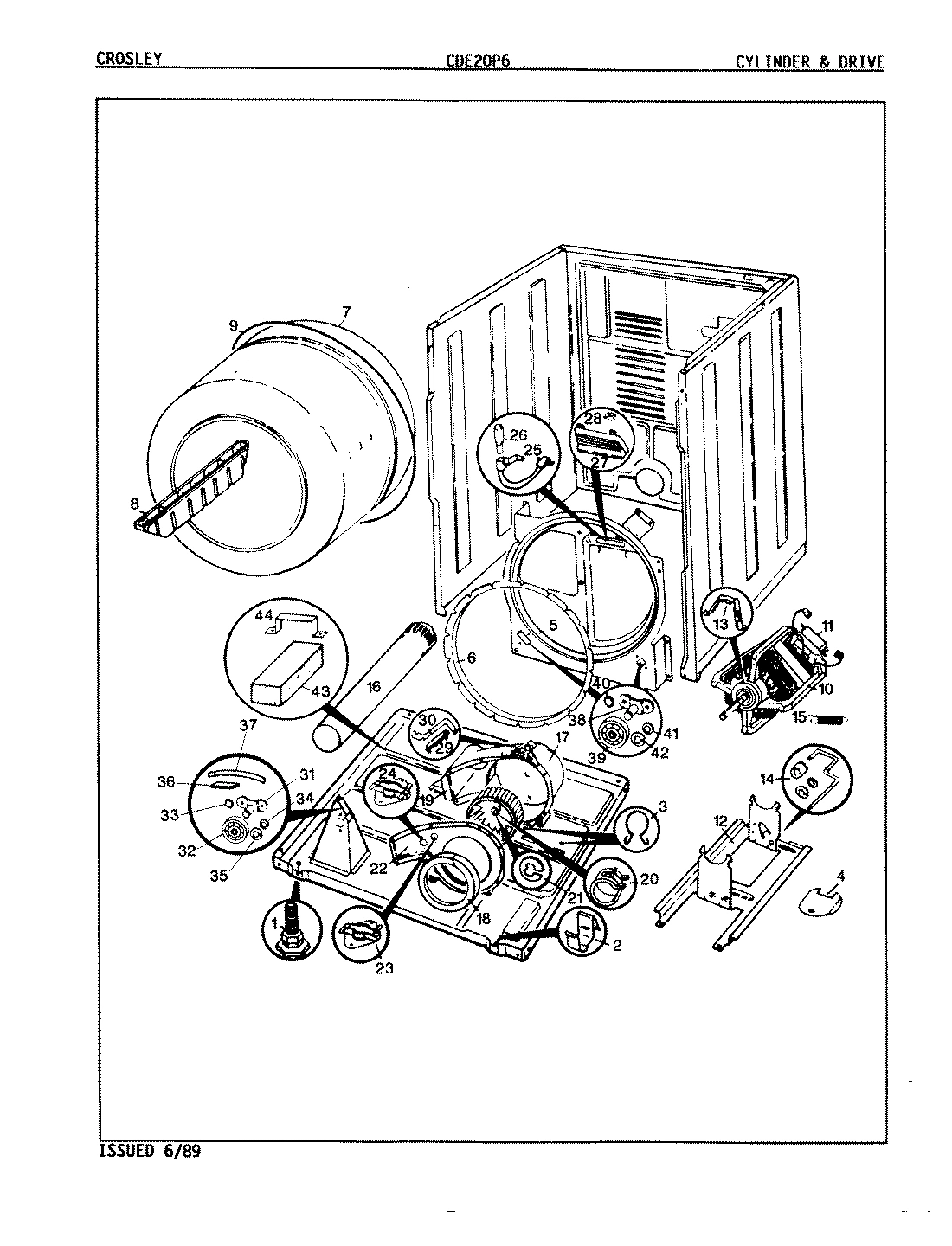

04 - CYLINDER & DRIVE (ORIG.-REV. A-D)

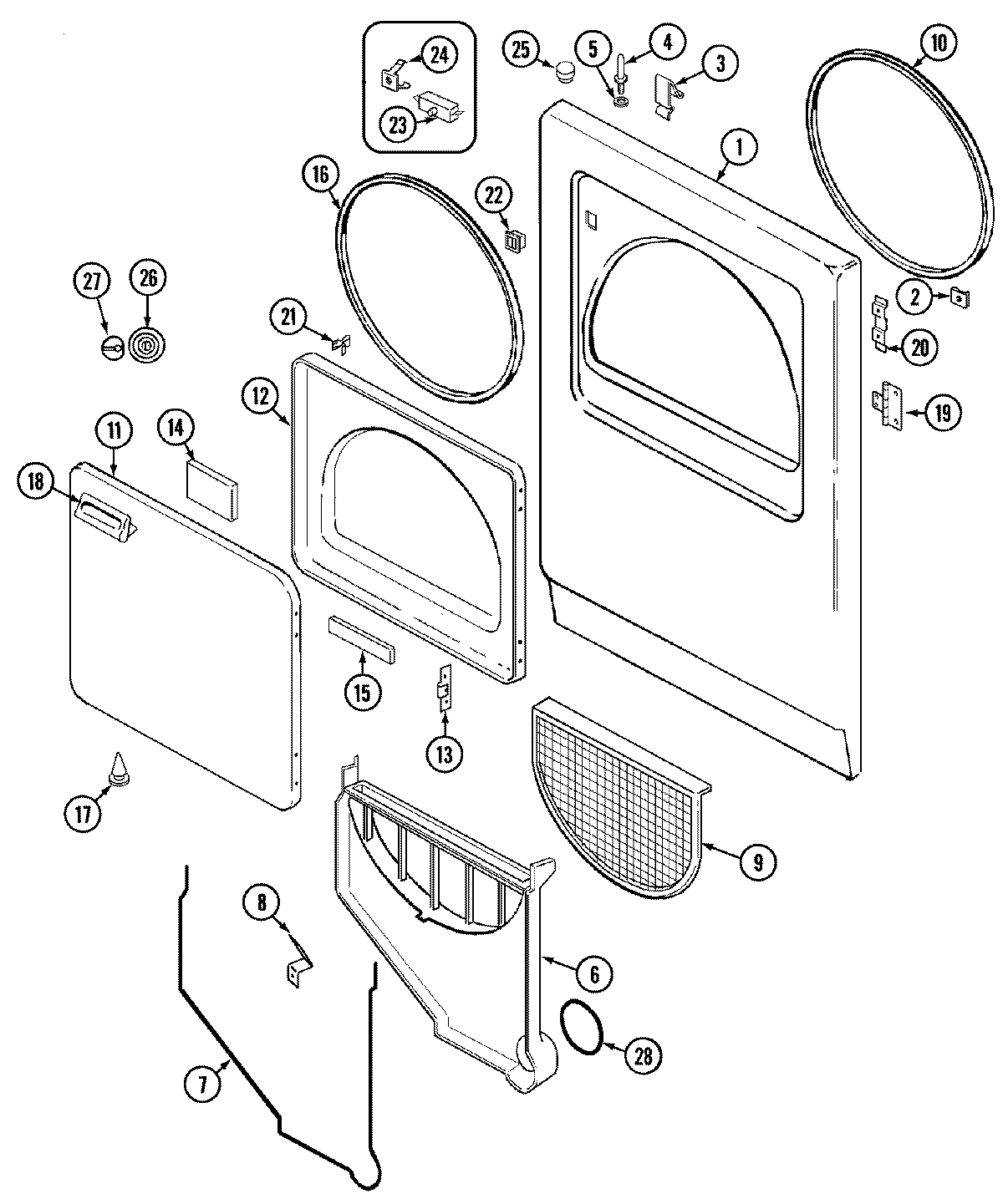

05 - DOOR (REV. E-F)

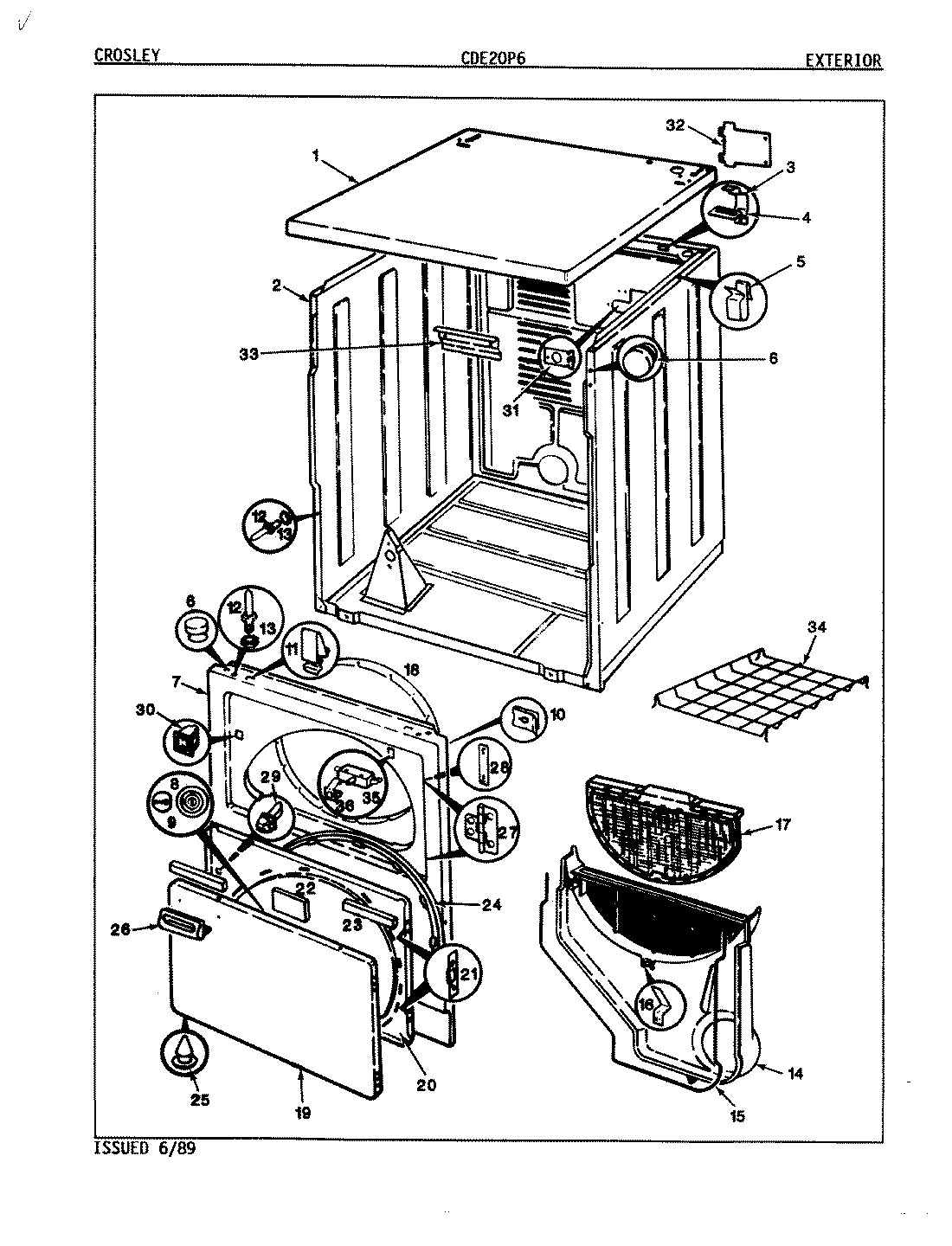

06 - EXTERIOR (ORIG. REV. A-D)

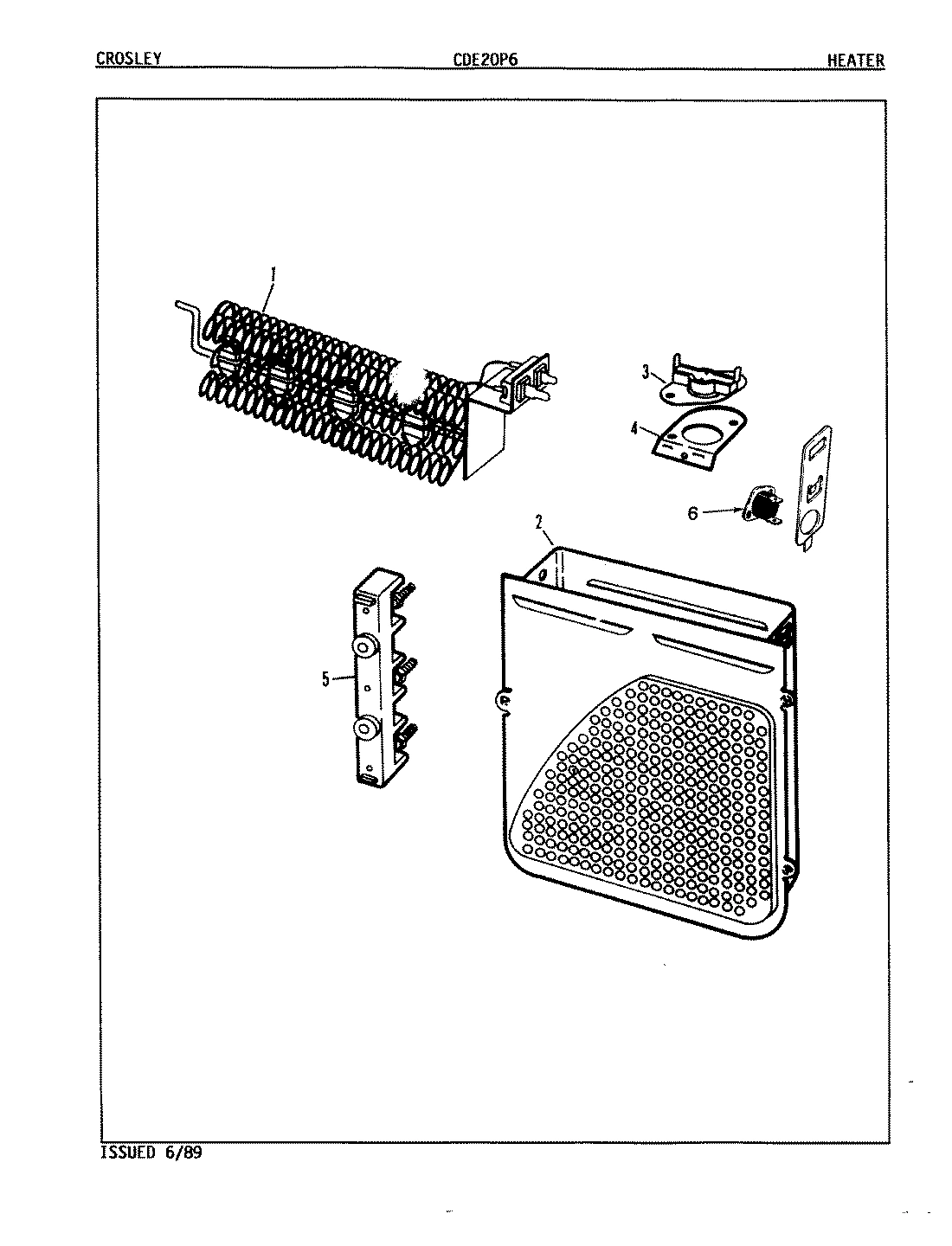

07 - HEATER (ORIG. REV. A-D)

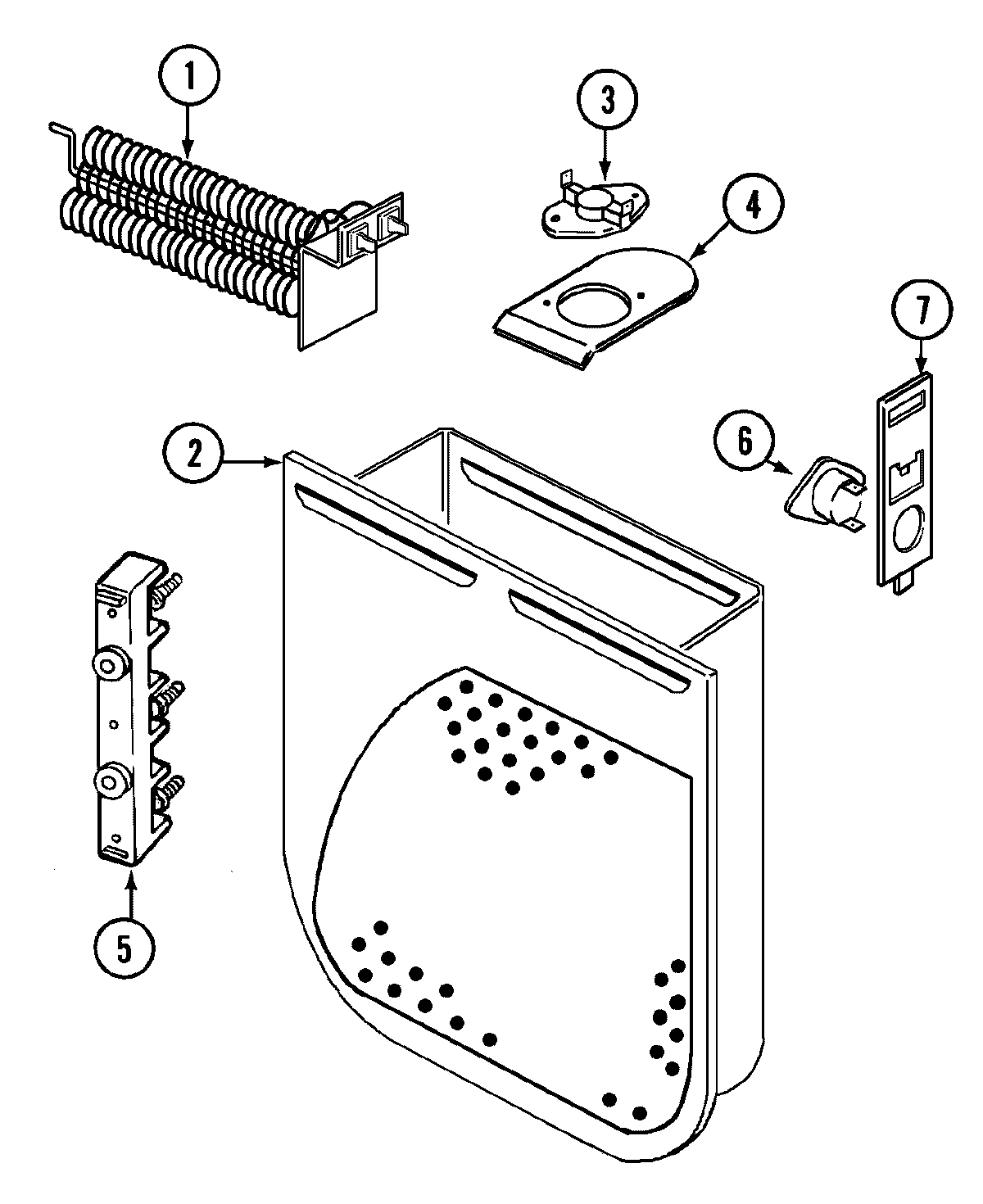

08 - HEATER (REV. E-F)

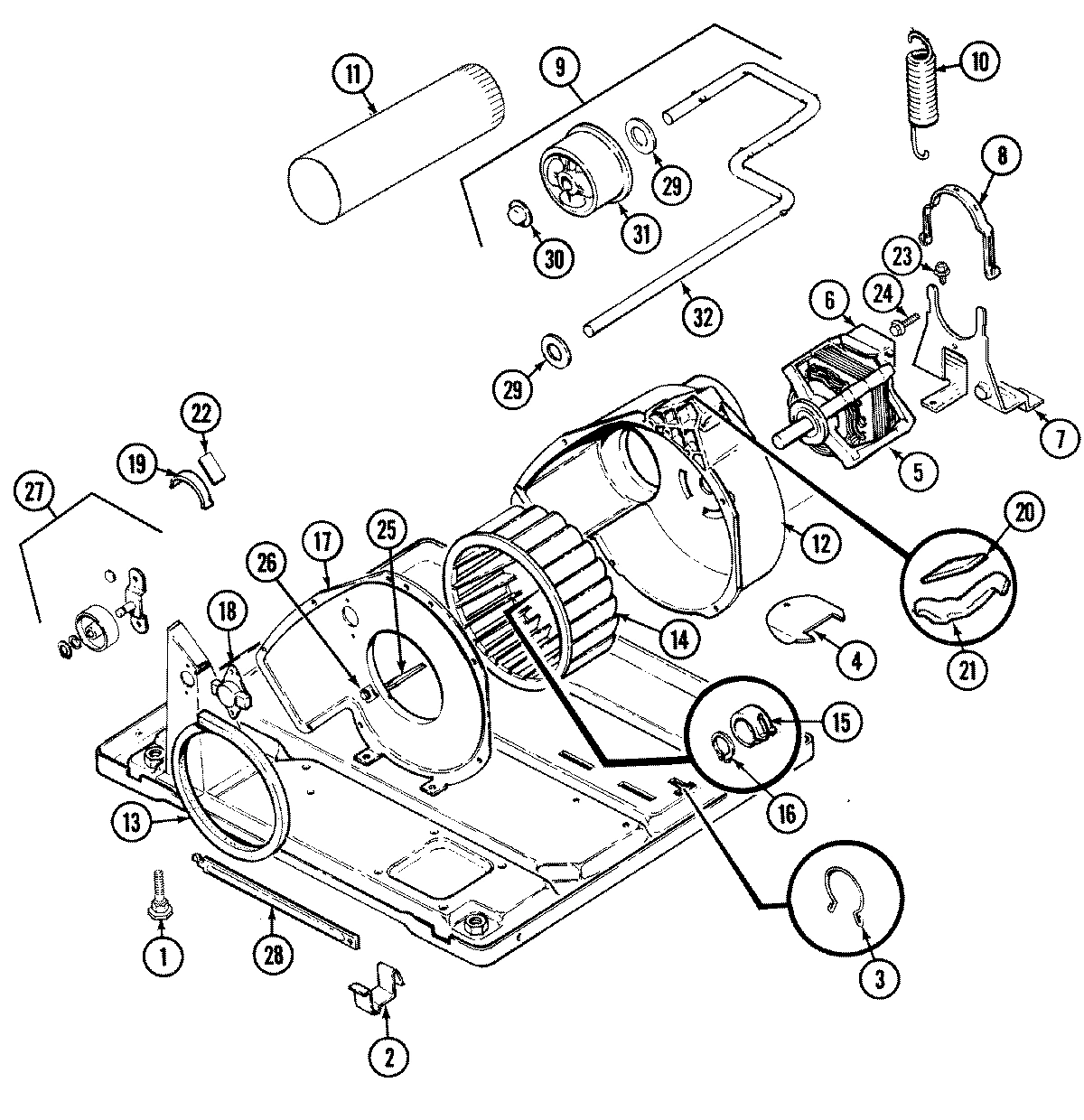

09 - MOTOR & DRIVE (REV. E-F)

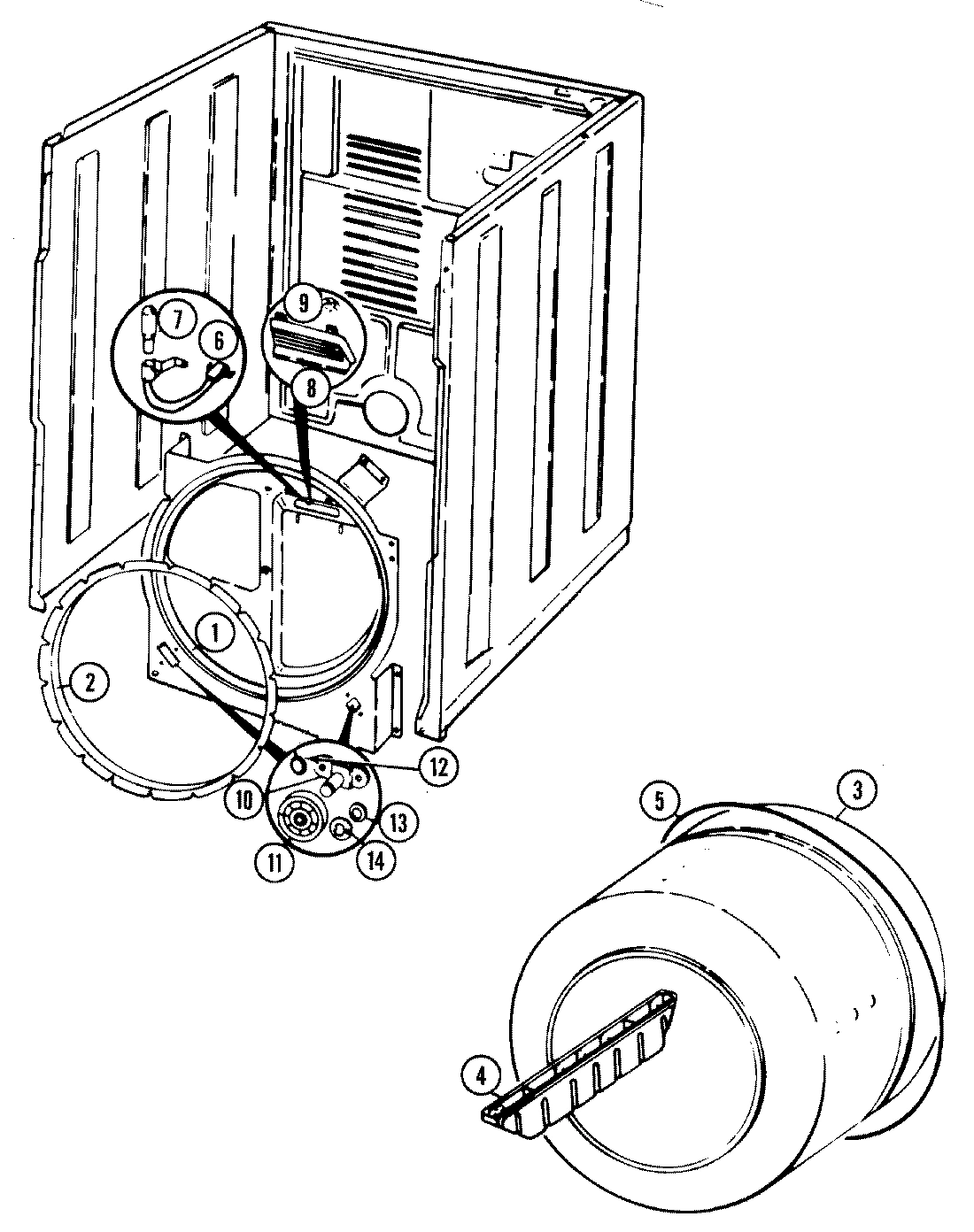

10 - TUMBLER (REV. E-F)
Common parts from model Maytag CDE20P6W ELECTRIC DRYER
1
MAY 53-1287 MAY 53-1287 Contact Us For Availability
1
MAY 25-7733 MAY 25-7733 Contact Us For Availability
1
MAY 53-0314 MAY 53-0314 Contact Us For Availability
1
MAY 53-1711 MAY 53-1711 Contact Us For Availability
1
MAY 53-0919 MAY 53-0919 Contact Us For Availability
1
MAY 53-0920 MAY 53-0920 Contact Us For Availability
1
MAY Y02100001 MAY Y02100001 Contact Us For Availability
2
MAY 25-7697 MAY 25-7697 Contact Us For Availability
2
MAY 25-7649 MAY 25-7649 Contact Us For Availability
2
MAY 35-2487 MAY 35-2487 Contact Us For Availability
2
MAY 35-2488 MAY 35-2488 Contact Us For Availability
2
MAY 53-0282 MAY 53-0282 Contact Us For Availability
2
MAY 53-0667 MAY 53-0667 Contact Us For Availability
2
MAY 25-7819 MAY 25-7819 Contact Us For Availability
2
MAY 53-0191 MAY 53-0191 Contact Us For Availability
2
MAY 53-1232 MAY 53-1232 Contact Us For Availability
3
MAY 25-7851 MAY 25-7851 Contact Us For Availability
3
MAY 25-7691 MAY 25-7691 Contact Us For Availability
3
MAY 25-7027 MAY 25-7027 Contact Us For Availability
3
MAY 53-1250 MAY 53-1250 Contact Us For Availability
3
MAY 63-5712 MAY 63-5712 Contact Us For Availability
3
MAY 25-3083 MAY 25-3083 Contact Us For Availability
4
MAY 25-7435 MAY 25-7435 Contact Us For Availability
4
MAY 25-7852 MAY 25-7852 Contact Us For Availability
4
MAY 25-7741 MAY 25-7741 Contact Us For Availability
4
MAY 53-0153 MAY 53-0153 Contact Us For Availability
4
MAY 25-7759 MAY 25-7759 Contact Us For Availability
4
MAY Y02100002 MAY Y02100002 Contact Us For Availability
4
MAY 33-0930 MAY 33-0930 Contact Us For Availability
4
MAY 53-0285 MAY 53-0285 Contact Us For Availability
5
MAY LA-1004 MAY LA-1004 Contact Us For Availability
5
MAY 53-0277 MAY 53-0277 Contact Us For Availability
5
MAY 53-0278 MAY 53-0278 Contact Us For Availability
5
MAY LA-1054 MAY LA-1054 Contact Us For Availability
5
MAY 53-1080 MAY 53-1080 Contact Us For Availability
5
MAY 53-0189 MAY 53-0189 Contact Us For Availability
5
MAY 25-3034 MAY 25-3034 Contact Us For Availability
5
MAY 25-0027 MAY 25-0027 Contact Us For Availability
5
MAY 25-3122 MAY 25-3122 Contact Us For Availability
5
MAY 25-3123 MAY 25-3123 Contact Us For Availability
5
MAY 25-6124 MAY 25-6124 Contact Us For Availability
5
MAY 25-7803 MAY 25-7803 Contact Us For Availability
5
MAY 53-0166 MAY 53-0166 Contact Us For Availability
5
MAY 53-2275 MAY 53-2275 Contact Us For Availability
6
MAY 25-7760 MAY 25-7760 Contact Us For Availability
6
MAY 25-3457 MAY 25-3457 Contact Us For Availability
6
MAY 33-2653 MAY 33-2653 Contact Us For Availability
6
MAY 53-0693 MAY 53-0693 Contact Us For Availability
6
MAY 53-1580 MAY 53-1580 Contact Us For Availability
7
MAY 25-7702 MAY 25-7702 Contact Us For Availability
7
MAY 25-7811 MAY 25-7811 Contact Us For Availability
7
MAY 53-0105 MAY 53-0105 Contact Us For Availability
7
MAY 53-0570 MAY 53-0570 Contact Us For Availability
7
MAY 53-0726 MAY 53-0726 Contact Us For Availability
7
MAY 53-1181 MAY 53-1181 Contact Us For Availability
7
MAY 53-1932 MAY 53-1932 Contact Us For Availability
8
MAY 53-0635 MAY 53-0635 Contact Us For Availability
8
MAY 53-1302 MAY 53-1302 Contact Us For Availability
8
MAY 53-0174 MAY 53-0174 Contact Us For Availability
9
MAY 25-6044 MAY 25-6044 Contact Us For Availability
9
MAY 53-1676 MAY 53-1676 Contact Us For Availability
9
MAY 53-1650 MAY 53-1650 Contact Us For Availability
10
MAY 35-2688 MAY 35-2688 Contact Us For Availability
10
MAY 25-7817 MAY 25-7817 Contact Us For Availability
10
MAY 53-1648 MAY 53-1648 Contact Us For Availability
11
MAY 53-1548 MAY 53-1548 Contact Us For Availability
11
MAY 53-1804 MAY 53-1804 Contact Us For Availability
11
MAY 63-6743 MAY 63-6743 Contact Us For Availability
11
MAY 53-0936 MAY 53-0936 Contact Us For Availability
11
MAY 53-0134 MAY 53-0134 Contact Us For Availability
11
MAY 53-1578 MAY 53-1578 Contact Us For Availability
12
MAY 53-0268 MAY 53-0268 Contact Us For Availability
12
MAY 25-0205 MAY 25-0205 Contact Us For Availability
12
MAY 53-0774 MAY 53-0774 Contact Us For Availability
12
MAY 25-7813 MAY 25-7813 Contact Us For Availability
12
MAY 63-6148 MAY 63-6148 Contact Us For Availability
12
MAY 53-1801 MAY 53-1801 Contact Us For Availability
13
MAY 53-0653 MAY 53-0653 Contact Us For Availability
13
MAY 25-7814 MAY 25-7814 Contact Us For Availability
13
MAY 25-0224 MAY 25-0224 Contact Us For Availability
13
MAY 53-0200 MAY 53-0200 Contact Us For Availability
14
MAY LA-1008 MAY LA-1008 Contact Us For Availability
14
MAY 53-0106 MAY 53-0106 Contact Us For Availability
14
MAY 53-1265 MAY 53-1265 Contact Us For Availability
14
MAY 53-0199 MAY 53-0199 Contact Us For Availability
14
MAY 53-1299 MAY 53-1299 Contact Us For Availability
14
MAY 53-0917 MAY 53-0917 Contact Us For Availability
15
MAY 35-2256 MAY 35-2256 Contact Us For Availability
15
MAY 53-0207 MAY 53-0207 Contact Us For Availability
15
MAY 25-7823 MAY 25-7823 Contact Us For Availability
16
MAY 25-7855 MAY 25-7855 Contact Us For Availability
16
MAY 63-6731 MAY 63-6731 Contact Us For Availability
16
MAY 53-0123 MAY 53-0123 Contact Us For Availability
17
MAY 53-1024 MAY 53-1024 Contact Us For Availability
17
MAY 25-7807 MAY 25-7807 Contact Us For Availability
17
MAY 53-1933 MAY 53-1933 Contact Us For Availability
18
MAY 25-2134 MAY 25-2134 Contact Us For Availability
18
MAY 53-0170 MAY 53-0170 Contact Us For Availability
19
MAY 53-0185 MAY 53-0185 Contact Us For Availability
19
MAY 53-0154 MAY 53-0154 Contact Us For Availability
20
MAY 53-0912 MAY 53-0912 Contact Us For Availability
21
MAY 25-7812 MAY 25-7812 Contact Us For Availability
21
MAY 53-0183 MAY 53-0183 Contact Us For Availability
21
MAY 53-0119 MAY 53-0119 Contact Us For Availability
22
MAY 53-0251 MAY 53-0251 Contact Us For Availability
22
MAY 53-1684 MAY 53-1684 Contact Us For Availability
23
MAY 53-0148 MAY 53-0148 Contact Us For Availability
23
MAY 53-0252 MAY 53-0252 Contact Us For Availability
23
MAY 25-7699 MAY 25-7699 Contact Us For Availability
24
MAY 25-7770 MAY 25-7770 Contact Us For Availability
24
MAY 25-7674 MAY 25-7674 Contact Us For Availability
25
MAY 53-1026 MAY 53-1026 Contact Us For Availability
25
MAY 53-0152 MAY 53-0152 Contact Us For Availability
25
MAY 25-3534 MAY 25-3534 Contact Us For Availability
26
MAY 25-7810 MAY 25-7810 Contact Us For Availability
26
MAY 53-0928 MAY 53-0928 Contact Us For Availability
27
MAY 53-0122 MAY 53-0122 Contact Us For Availability
28
MAY 53-0121 MAY 53-0121 Contact Us For Availability
28
MAY LA-2010 MAY LA-2010 Contact Us For Availability
29
MAY 53-0182 MAY 53-0182 Contact Us For Availability
29
MAY 73-0033 MAY 73-0033 Contact Us For Availability
29
MAY 25-7815 MAY 25-7815 Contact Us For Availability
30
MAY 25-7957 MAY 25-7957 Contact Us For Availability
30
MAY 53-0882 MAY 53-0882 Contact Us For Availability
31
MAY 53-0198 MAY 53-0198 Contact Us For Availability
31
MAY 53-0135 MAY 53-0135 Contact Us For Availability
31
MAY 53-1628 MAY 53-1628 Contact Us For Availability
32
MAY 53-0136 MAY 53-0136 Contact Us For Availability
33
MAY 53-0133 MAY 53-0133 Contact Us For Availability
34
MAY LA-1005 MAY LA-1005 Contact Us For Availability
34
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED MAY W10124350 Contact Us For Availability
35
MAY 53-0147 MAY 53-0147 Contact Us For Availability
36
MAY 53-0184 MAY 53-0184 Contact Us For Availability
36
MAY 63-5990 MAY 63-5990 Contact Us For Availability
39
MAY 53-0163 MAY 53-0163 Contact Us For Availability
42
MAY 25-7574 MAY 25-7574 Contact Us For Availability
43
MAY 53-0645 MAY 53-0645 Contact Us For Availability
44
MAY 53-0644 MAY 53-0644 Contact Us For Availability
NI
MAY 16000329 MAY 16000329 Contact Us For Availability
NI
MAY 53-1442 MAY 53-1442 Contact Us For Availability
NI
MAY 63-5577 MAY 63-5577 Contact Us For Availability
× ![]()
