Model Whirlpool CDB1500AWW3 DISHWASHER – Common Parts & Diagrams

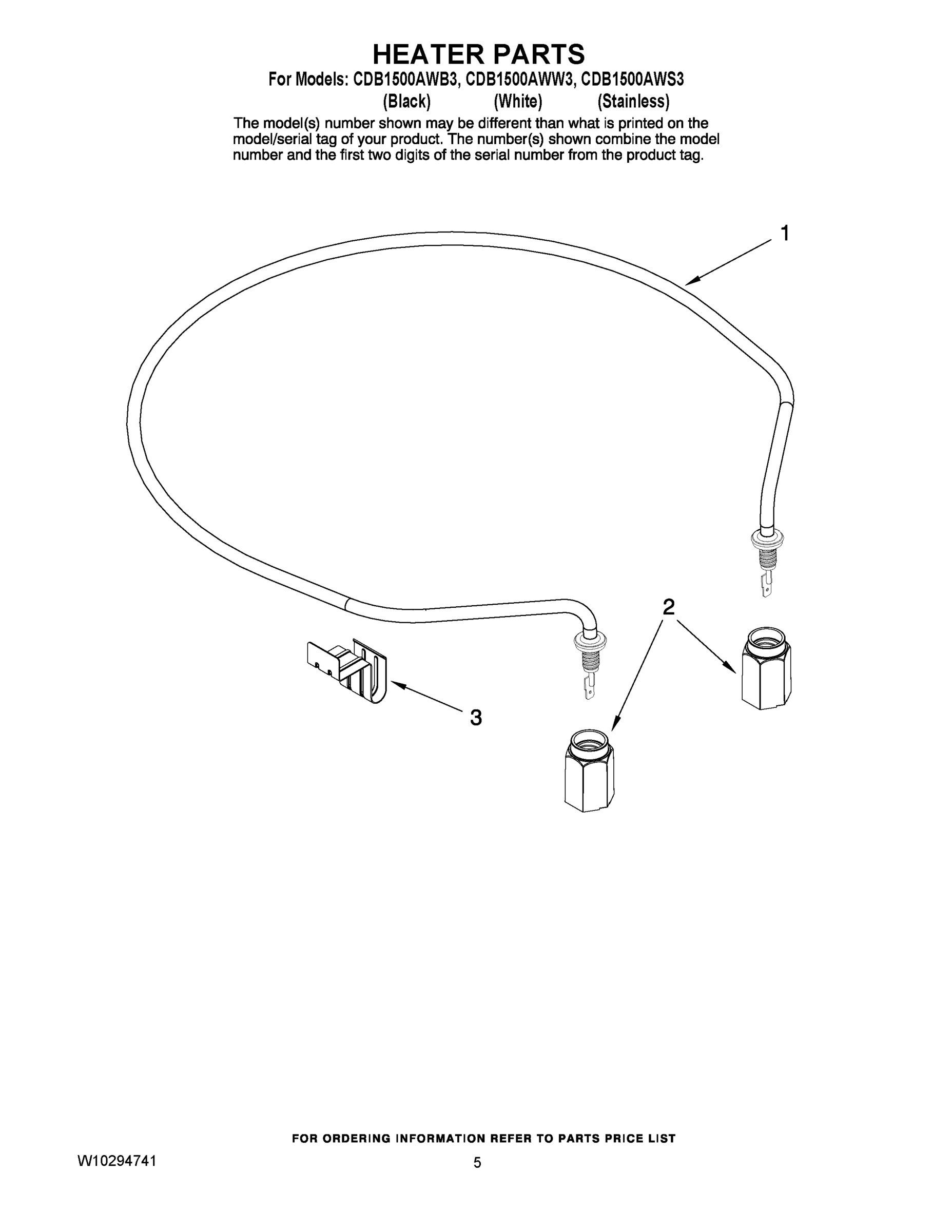

05 - HEATER PARTS

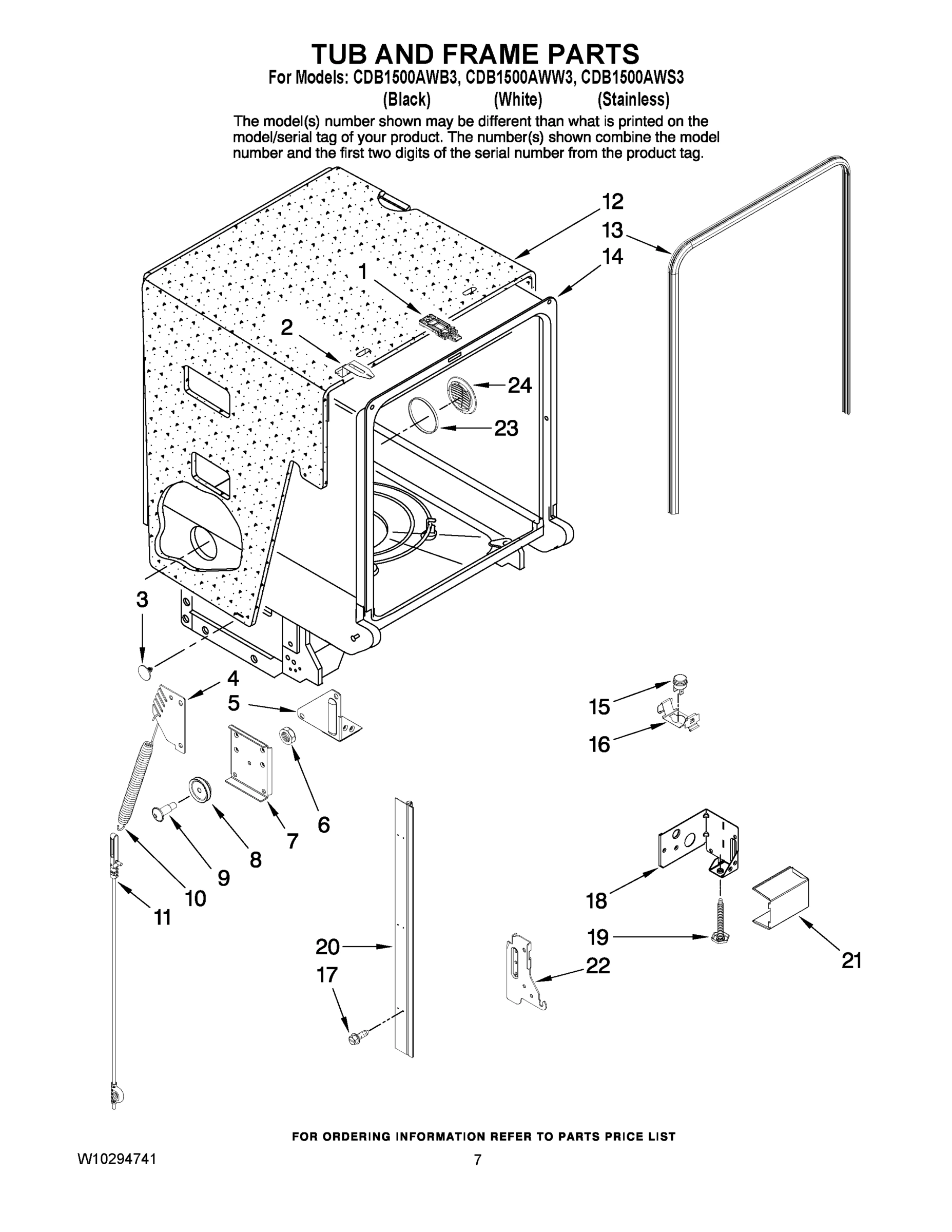

07 - TUB AND FRAME PARTS

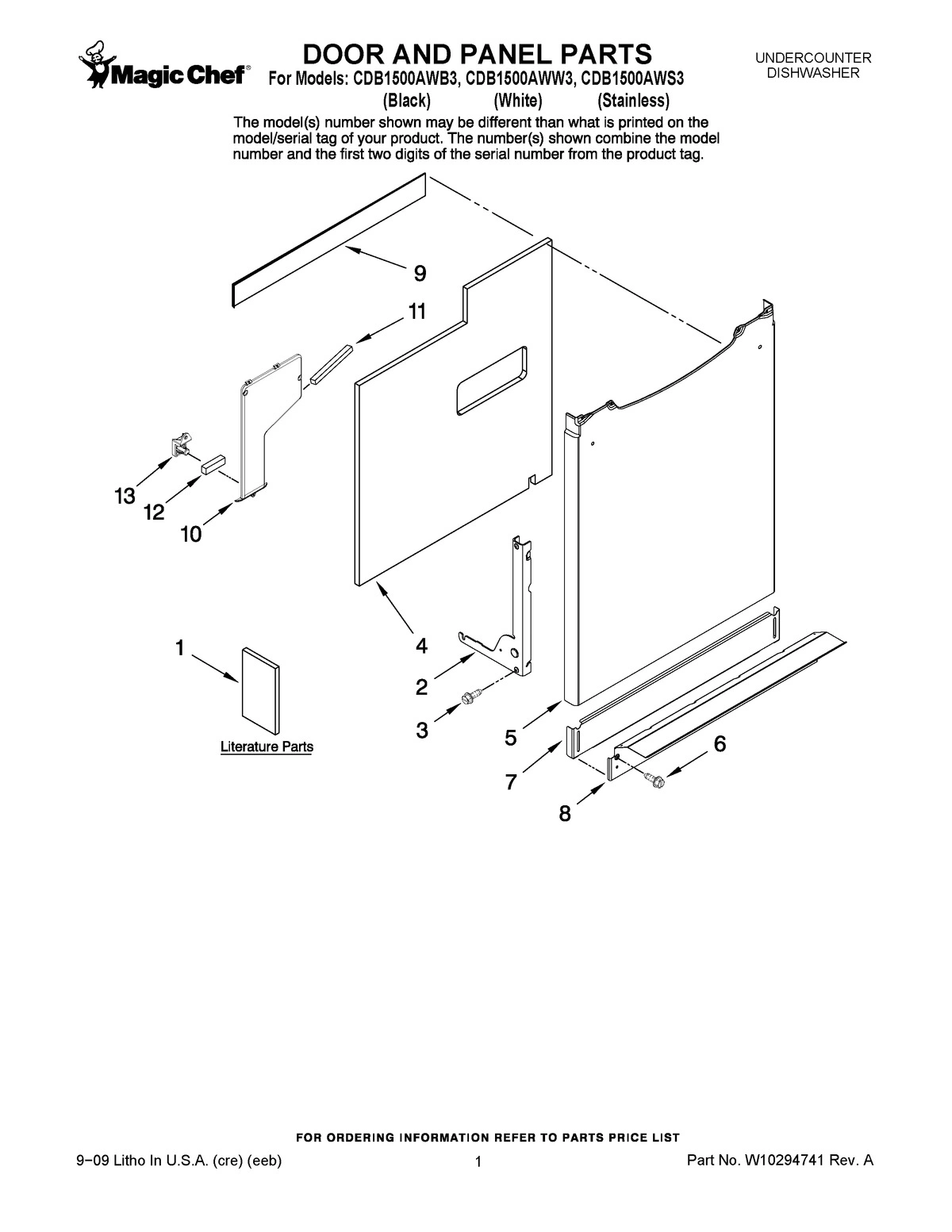

01 - DOOR AND PANEL PARTS

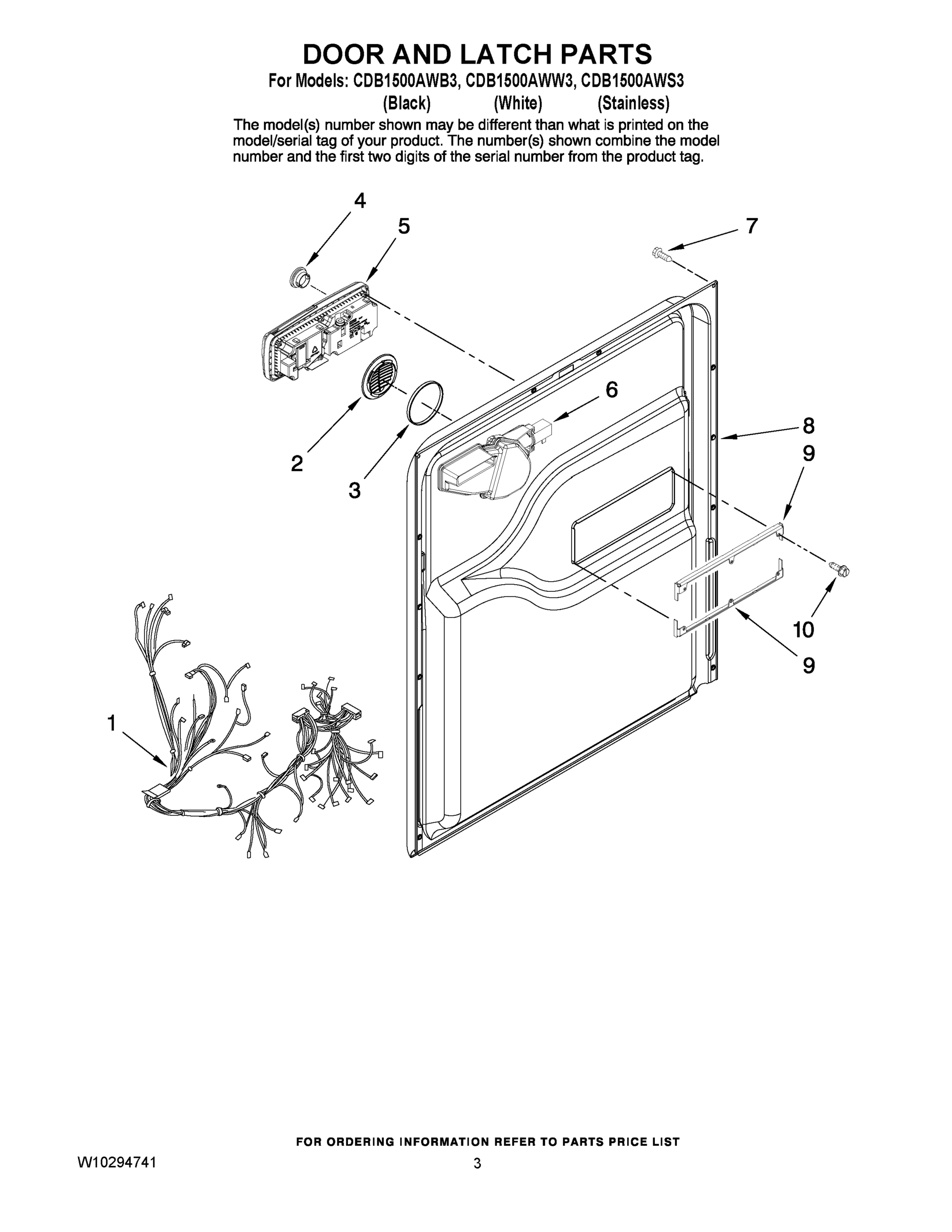

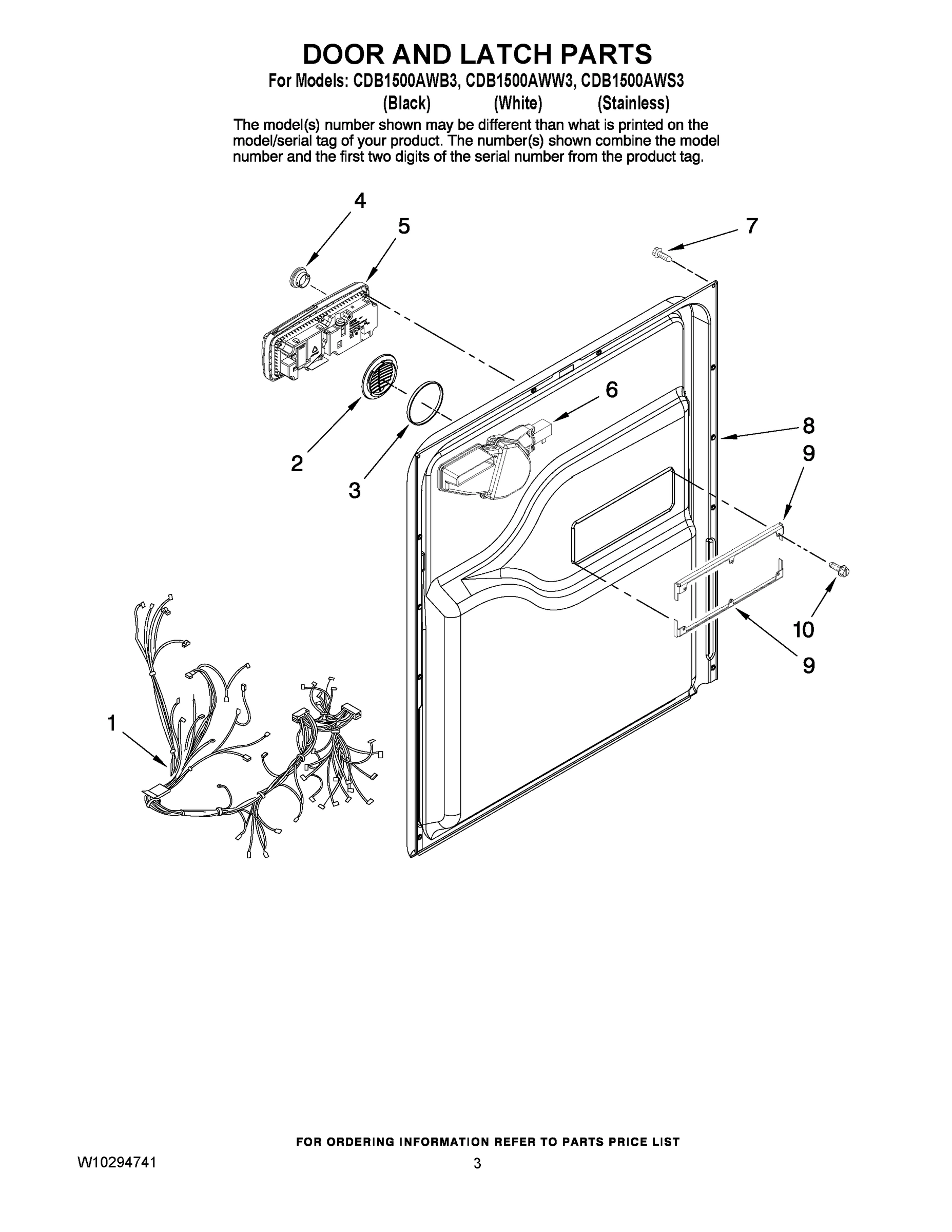

03 - DOOR AND LATCH PARTS

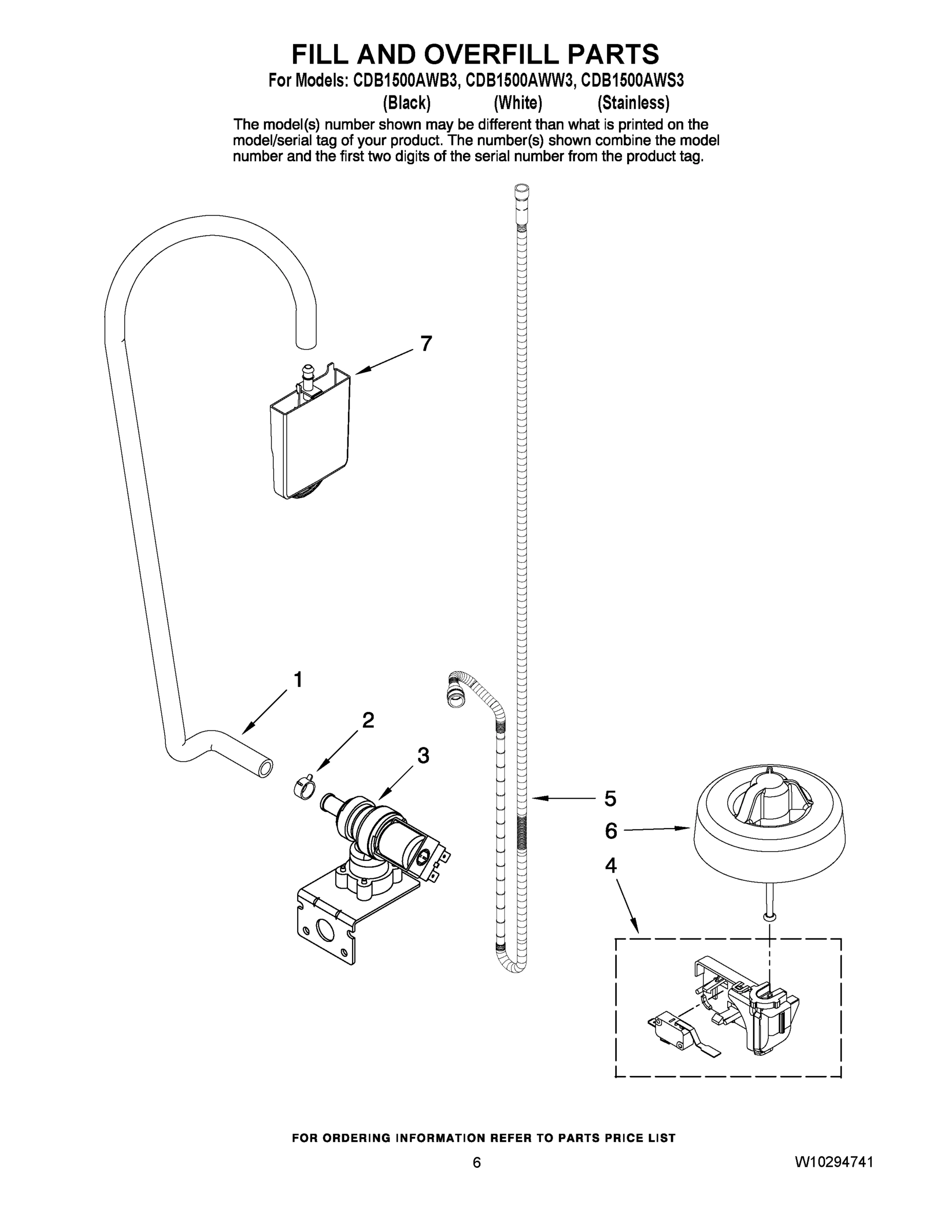

06 - FILL AND OVERFILL PARTS

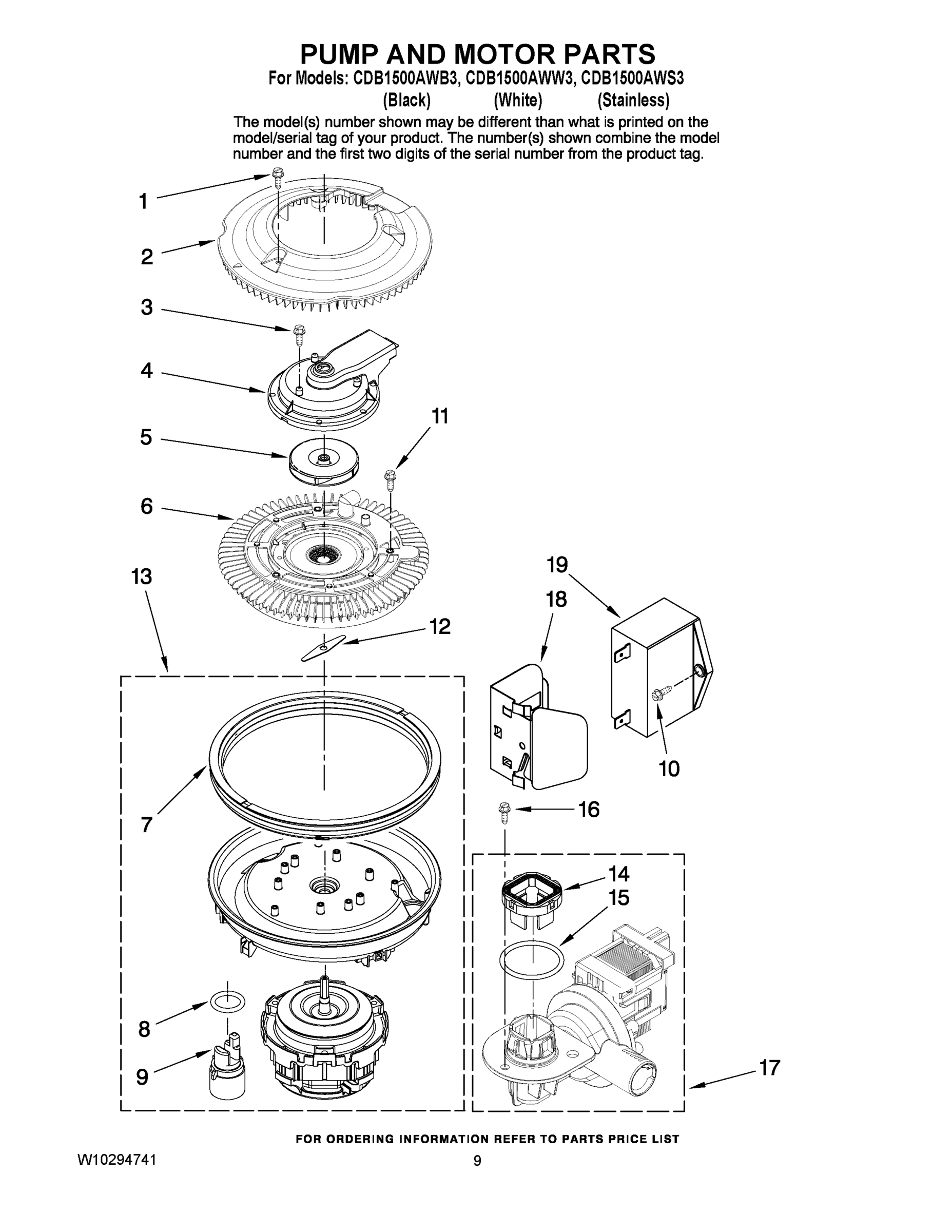

08 - PUMP AND MOTOR PARTS

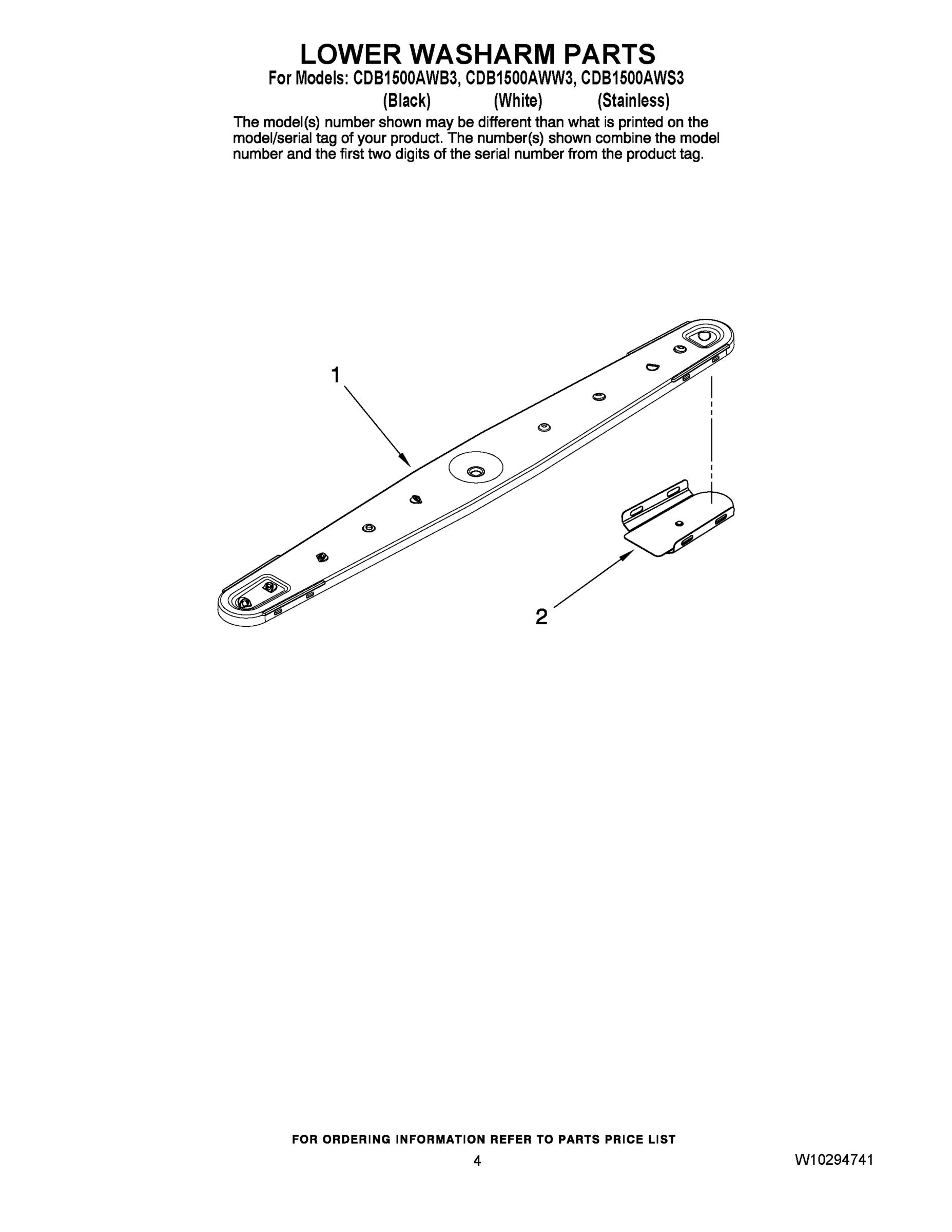

04 - LOWER WASHARM PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)

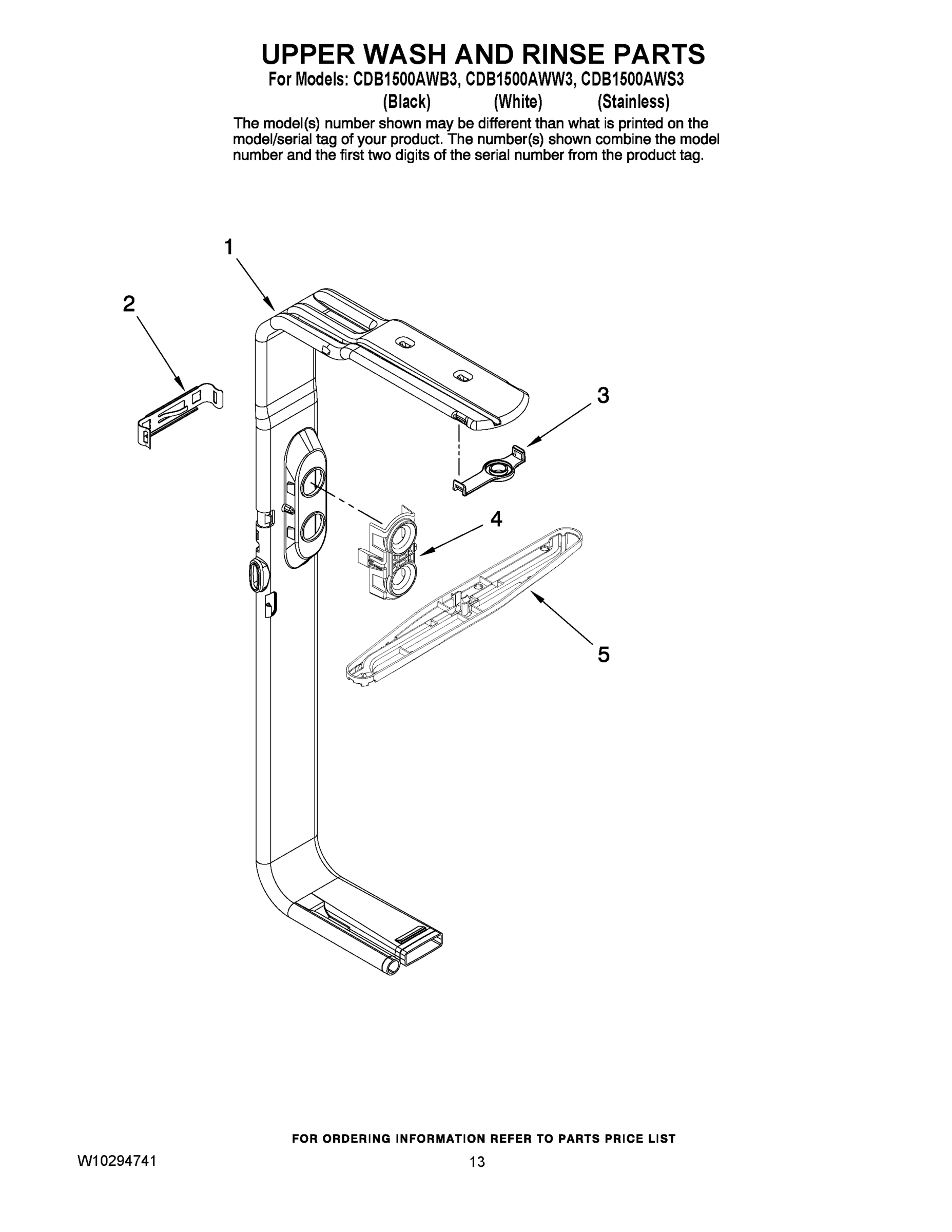

10 - UPPER WASH AND RINSE PARTS

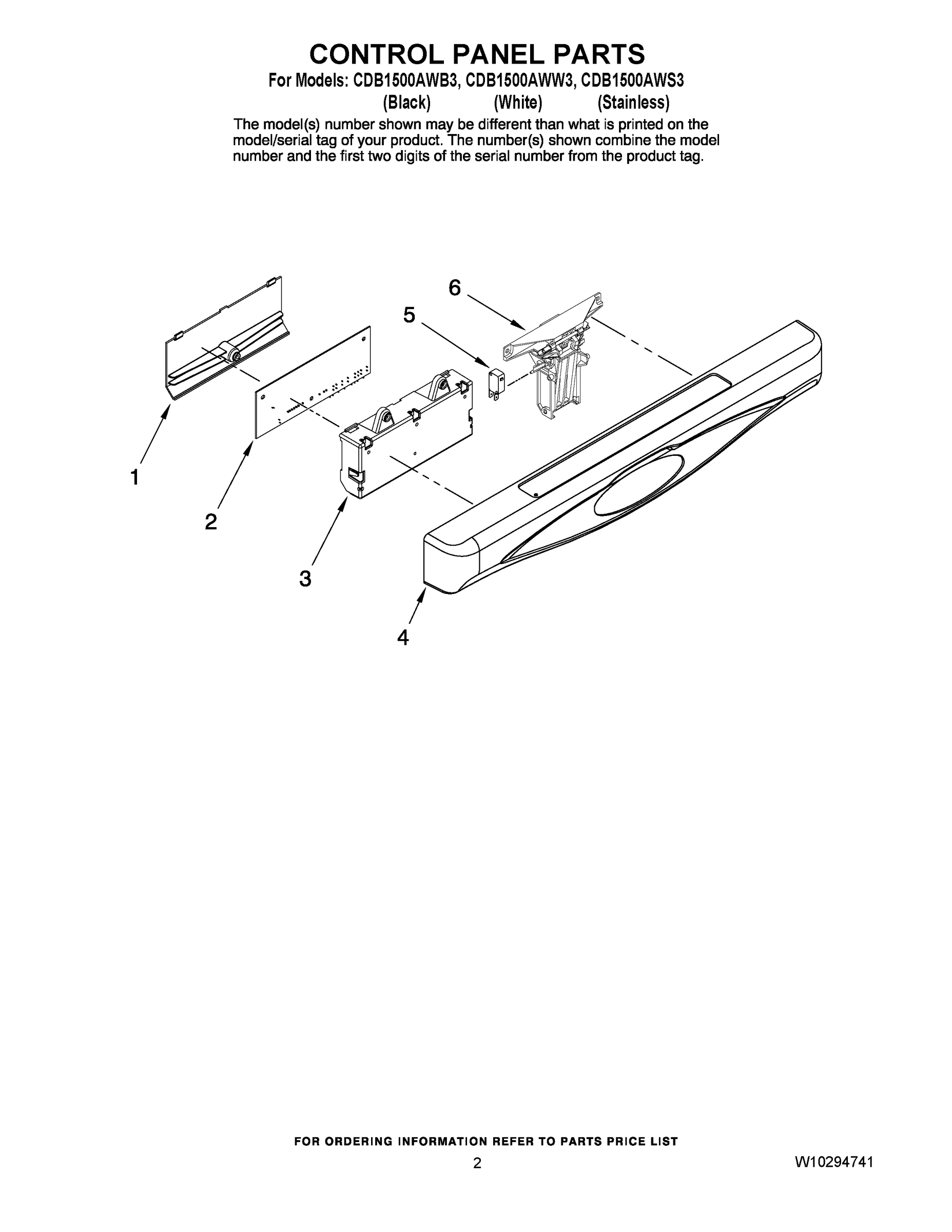

02 - CONTROL PANEL PARTS

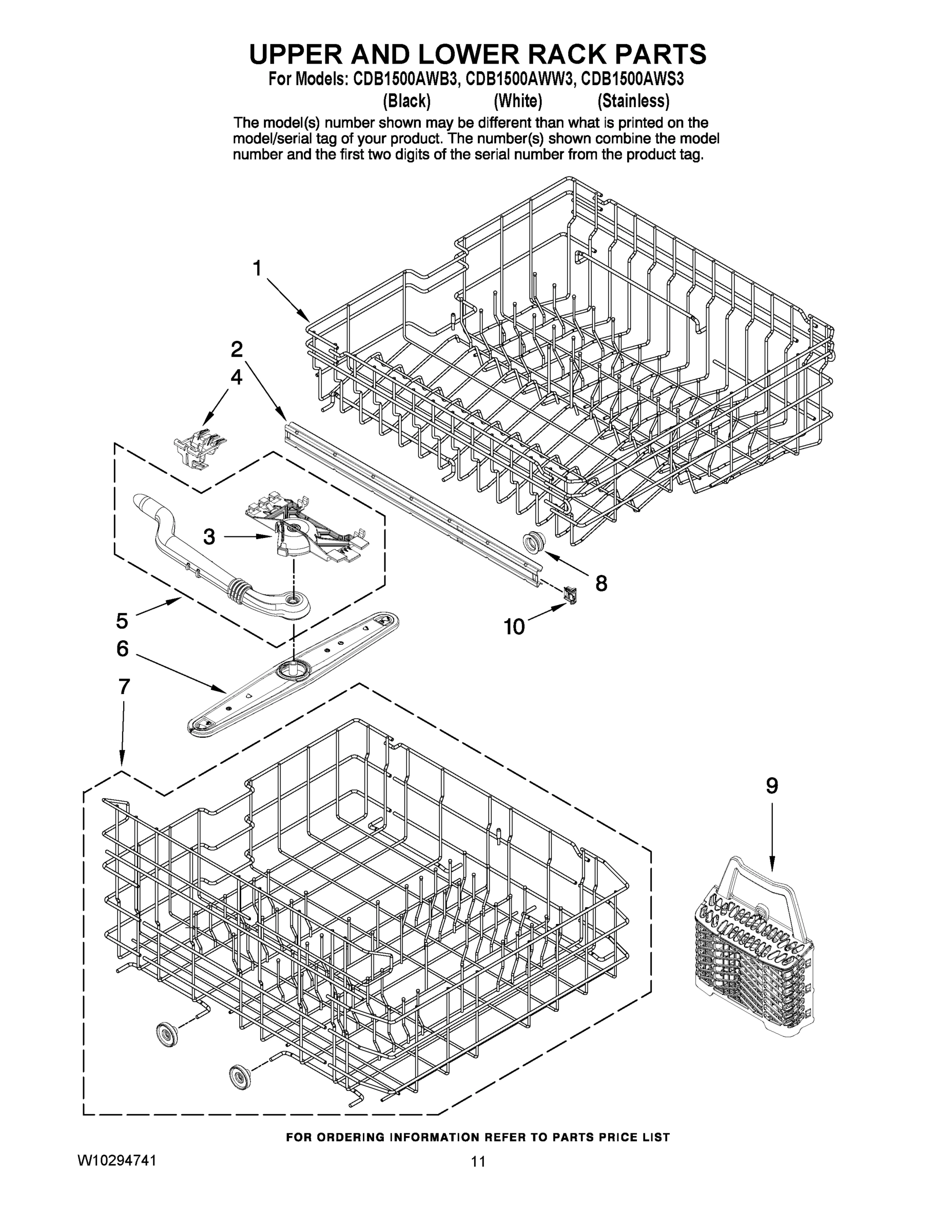

09 - UPPER AND LOWER RACK PARTS
Common parts from model Whirlpool CDB1500AWW3 DISHWASHER
1
Strike, Door WPL W10119337 Contact Us For Availability
1
GUIDE, USE & CARE (ENGLISH/FRENCH) WPL W10157795 Contact Us For Availability
1
GUIDE, USE & CARE (SPANISH) WPL W10157796 Contact Us For Availability
1
Instructions, Installation WPL W10212195 Contact Us For Availability
1
ENERGY GUIDE WPL W10260103 Contact Us For Availability
1
Harness, Wiring WPL W10237911 Contact Us For Availability
1
SCREW WPL 99002666 Contact Us For Availability
1
HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability
1
Dishrack, Upper WPL W10203876 Contact Us For Availability
2
Board, Control WPL W10218832 Contact Us For Availability
2
Guard, Filter WPL W10166788 Contact Us For Availability
2
Bracket, Hinge (Left) WPL W10202226 Contact Us For Availability
2
BEZEL, DOOR VENT WPL 99002590 Contact Us For Availability
2
Shield, Radiant WPL W10218606 Contact Us For Availability
2
Rail, Inner Slide WPL 99002621 Contact Us For Availability
3
SCREW WPL 99001075 Contact Us For Availability
3
SEAL, DOOR VENT WPL 99002186 Contact Us For Availability
3
SCREW WPL W10202904 Contact Us For Availability
3
Clip, Upper Wash Manifold (Front) WPL 99002669 Contact Us For Availability
4
Housing, Float Switch WPL W10205539 Contact Us For Availability
4
Pad, Foam WPL Y99002587 Contact Us For Availability
4
Cap, Rinse Aid WPL 99002992 Contact Us For Availability
4
Discharge, Housing Assembly WPL W10212440 Contact Us For Availability
4
Station, Docking (with Flapper) WPL 99002674 Contact Us For Availability
4
Panel, Control (Black) WPL 99003372 Contact Us For Availability
4
PANEL, CONTROL (WHITE) WPL 99003373 Contact Us For Availability
4
Clip, Upper Wash Manifold (Back) WPL 99002945 Contact Us For Availability
5
Panel, Front (Black) WPL 99002768 Contact Us For Availability
5
Panel, Front (White) WPL 99002770 Contact Us For Availability
5
Panel, Front (Stainless) WPL 99002771 Contact Us For Availability
5
Dispenser, Rinse Aid WPL 99003321 Contact Us For Availability
5
Wash Arm, Top (with Retainer) WPL 99002676 Contact Us For Availability
5
SWITCH, DOOR WPL 99002751 Contact Us For Availability
5
Wash Manifold Assy, (Upper) WPL 99002679 Contact Us For Availability
6
Housing, Vent Assy WPL W10190890 Contact Us For Availability
6
Screw (White) WPL 99001194 Contact Us For Availability
6
FLOAT WPL W10130095 Contact Us For Availability
6
Arm, Wash (Upper) WPL 99002624 Contact Us For Availability
7
Panel, Toe (Black) WPL 99002765 Contact Us For Availability
7
Panel, Toe (White) WPL 99002766 Contact Us For Availability
7
INLET, AIR/WATER WPL 99002645 Contact Us For Availability
7
Gasket, Motor Mount WPL 99002663 Contact Us For Availability
7
Dishrack, Lower WPL W10203921 Contact Us For Availability
8
Wheel Assembly WPL W10180776 Contact Us For Availability
8
Support, Front (Black) WPL 99002591 Contact Us For Availability
8
Support, Front (White) WPL 99002593 Contact Us For Availability
8
Inner Door W/ Damper WPL 99003424 Contact Us For Availability
9
Insulation, Door WPL W10117748 Contact Us For Availability
9
Basket, Silverware WPL 99003429 Contact Us For Availability
10
Liner, Door Secondary WPL W10185633 Contact Us For Availability
10
Screw WPL 99002601 Contact Us For Availability
11
Screw WPL 99002664 Contact Us For Availability
11
Foam Strip (Short) WPL 99003481 Contact Us For Availability
12
Foam Strip (Long) WPL 99003482 Contact Us For Availability
12
CHOPPER WPL 99003427 Contact Us For Availability
13
BRACKET, SECONDARY DOOR LINER WPL 99003541 Contact Us For Availability
13
WASH MOTOR WPL 6919922 Contact Us For Availability
14
FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability
15
O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability
16
Screw WPL 99002740 Contact Us For Availability
17
Drain Pump Assy. WPL W10200518 Contact Us For Availability
18
Shield, Capacitor WPL W10167912 Contact Us For Availability
19
Capacitor WPL 99002665 Contact Us For Availability
24
Grill,Air/Water Inlet WPL 99002948 Contact Us For Availability
× ![]()
