Model Electrolux CD302VP3D02 RANGE – Common Parts & Diagrams

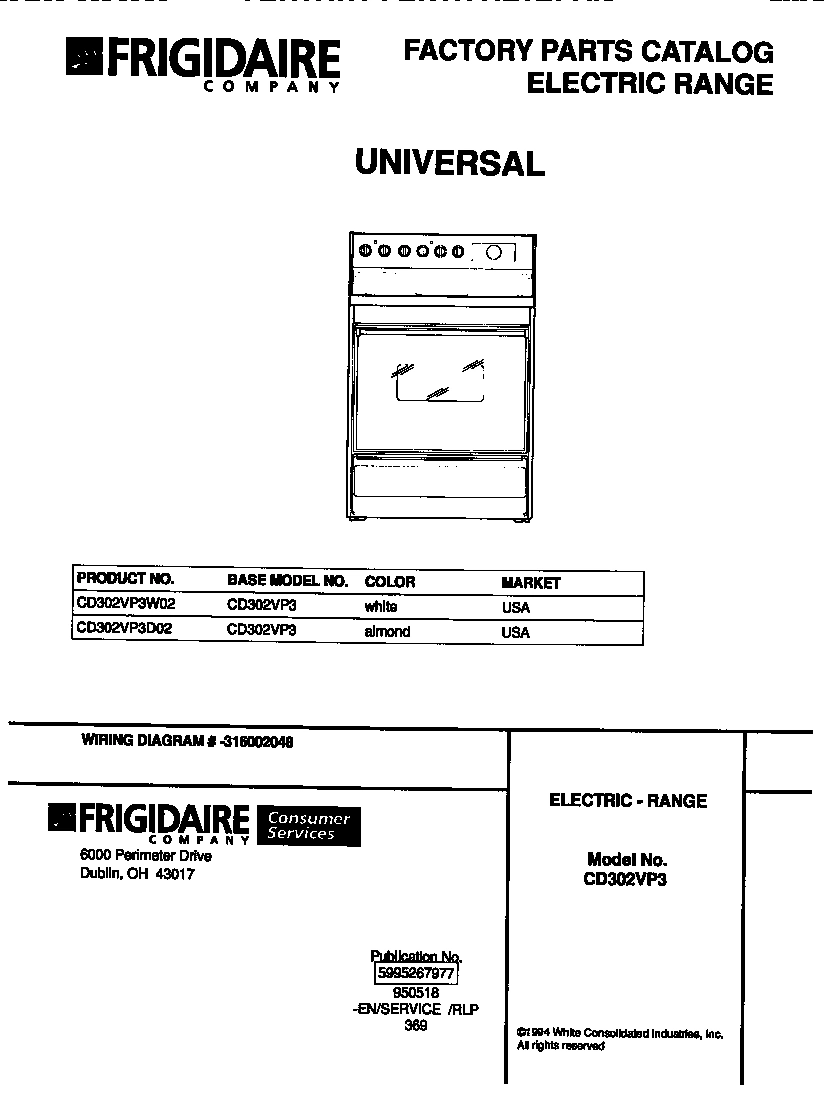

01 - COVER

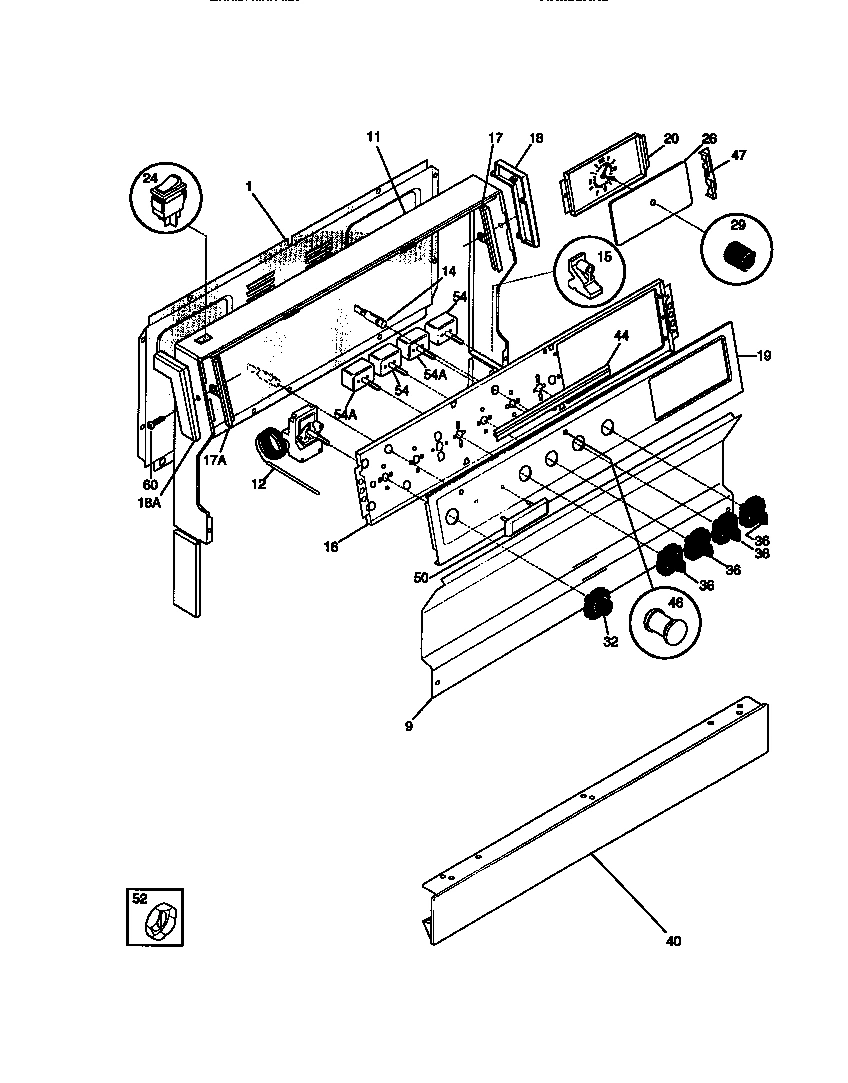

02 - BACKGUARD

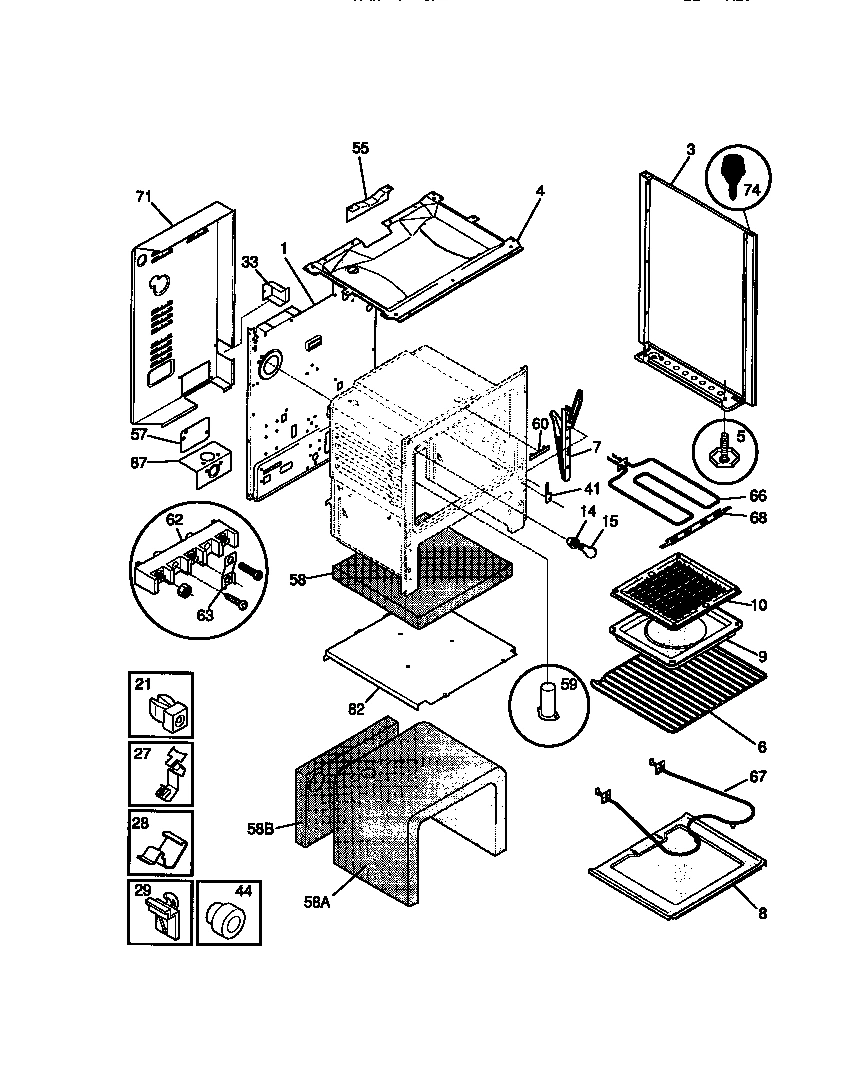

03 - BODY

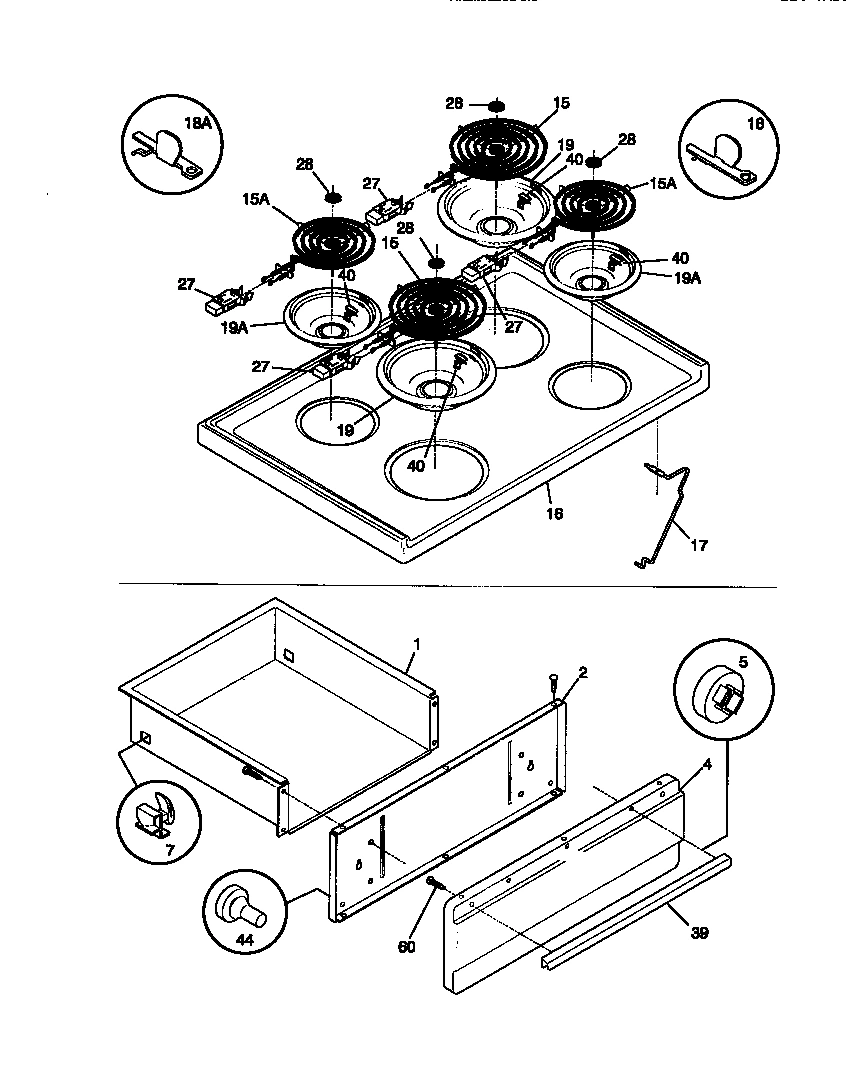

04 - TOP/DRAWER

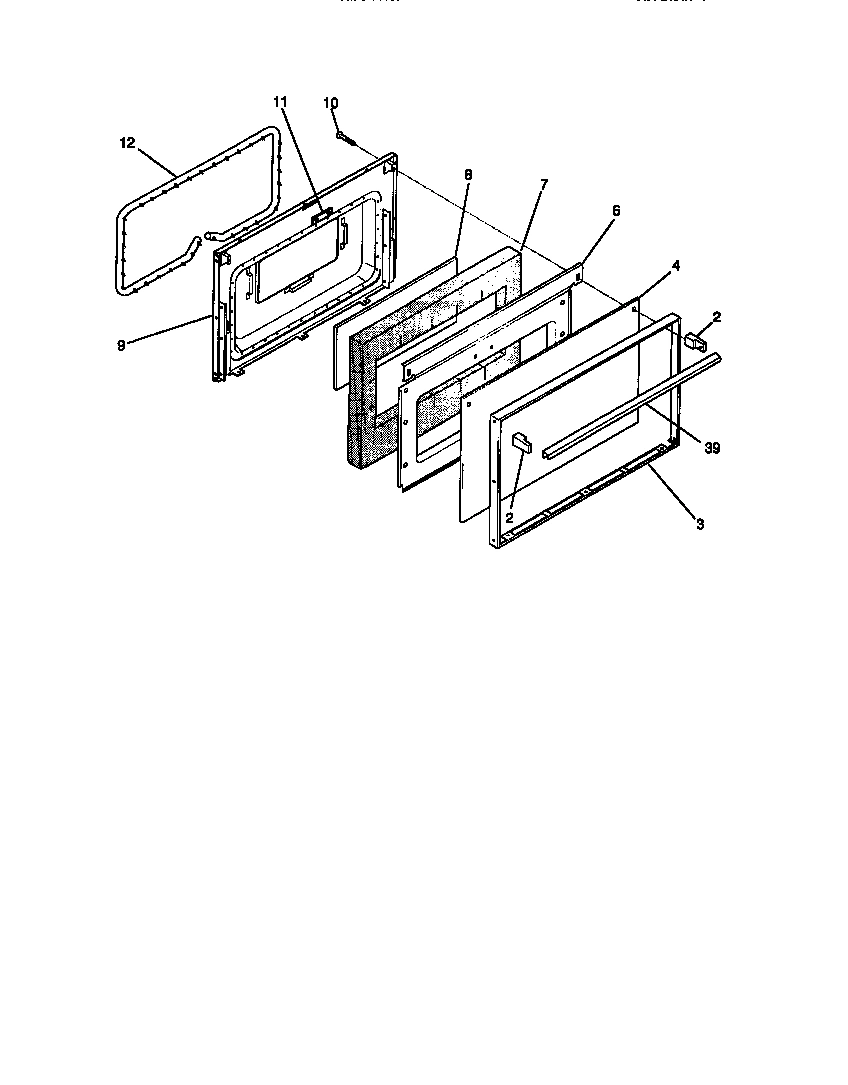

05 - DOOR

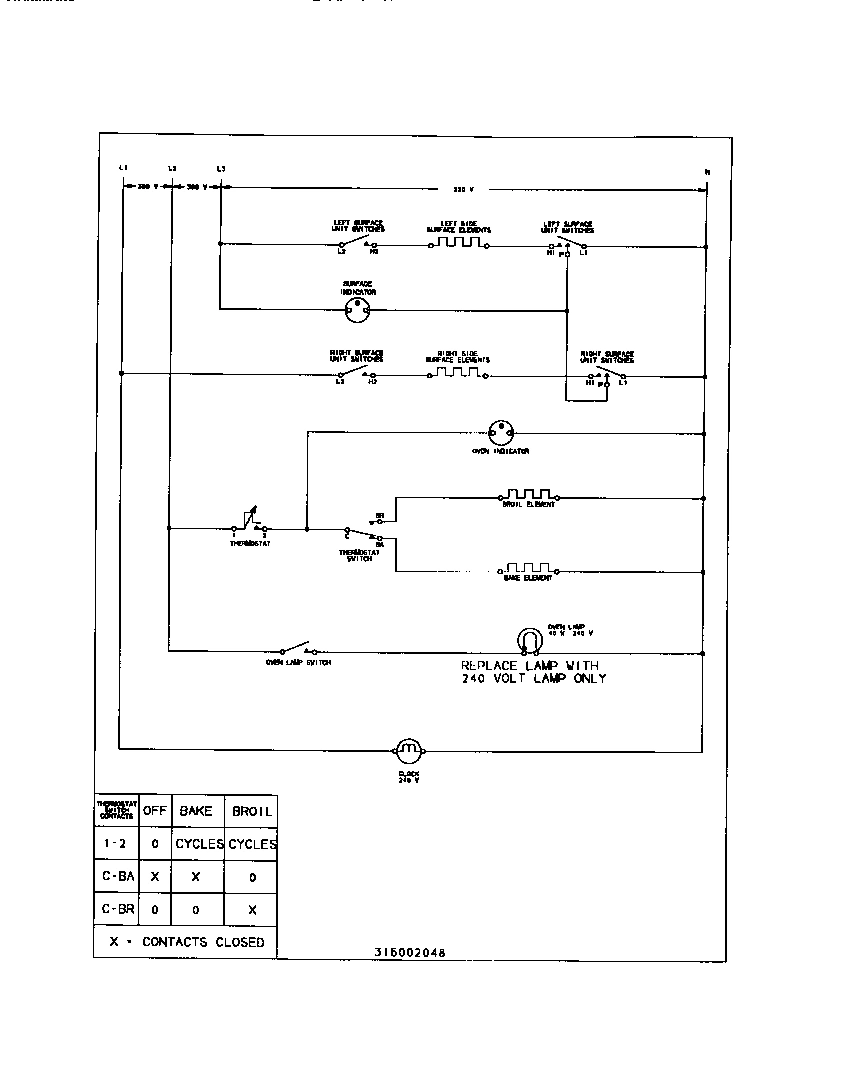

06 - WIRING DIAGRAM
Common parts from model Electrolux CD302VP3D02 RANGE
*94244
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*94245
WCI 3051363 WCI 3051363 Contact Us For Availability
*94246
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*94248
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 316063701 WCI 316063701 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316081006 WCI 316081006 Contact Us For Availability
3
WCI 316081007 WCI 316081007 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
SCREW-LEVELING WCI 3206285 Contact Us For Availability
5B
ANTI-TIP KIT (NOT ILLUSTRATED) WCI 3934056 Contact Us For Availability
5C
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303210608 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
8
WCI 316050303 WCI 316050303 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066603 WCI 316066603 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
12
WCI 5303212745 WCI 5303212745 Contact Us For Availability
15
LIGHT BULB/LAMP, INCAND, OVEN, 250 V WCI 5308017515 Contact Us For Availability
16
WCI 3013512 WCI 3013512 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
33
WCI 3203582 WCI 3203582 Contact Us For Availability
36
WCI 316016902 WCI 316016902 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
40
WCI 316009222 WCI 316009222 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
WCI 3131468 WCI 3131468 Contact Us For Availability
46
WCI 316065800 WCI 316065800 Contact Us For Availability
47
RETAINER, CLOCK GLASS, (2) WCI 3201700 Contact Us For Availability
50
WCI 316052100 WCI 316052100 Contact Us For Availability
52
NUT, TWIST WCI 5303131215 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
59
WCI 316073601 WCI 316073601 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
WCI 5303289970 WCI 5303289970 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 3203549 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
× ![]()
