Model Whirlpool CCW5264W2 COMMERCIAL WASHER – Common Parts & Diagrams
07 - WATER SYSTEM
01 - TOP AND CABINET

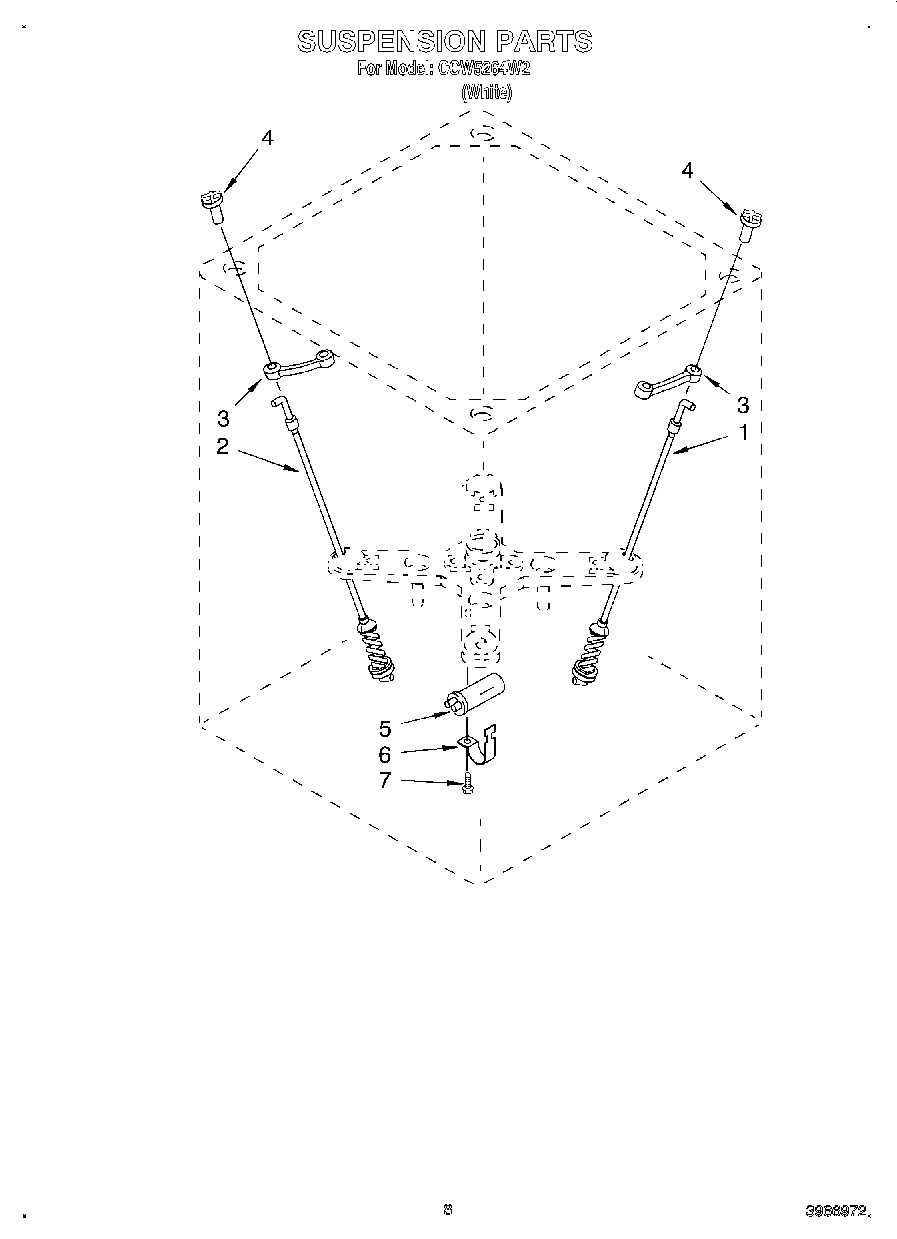

05 - SUSPENSION

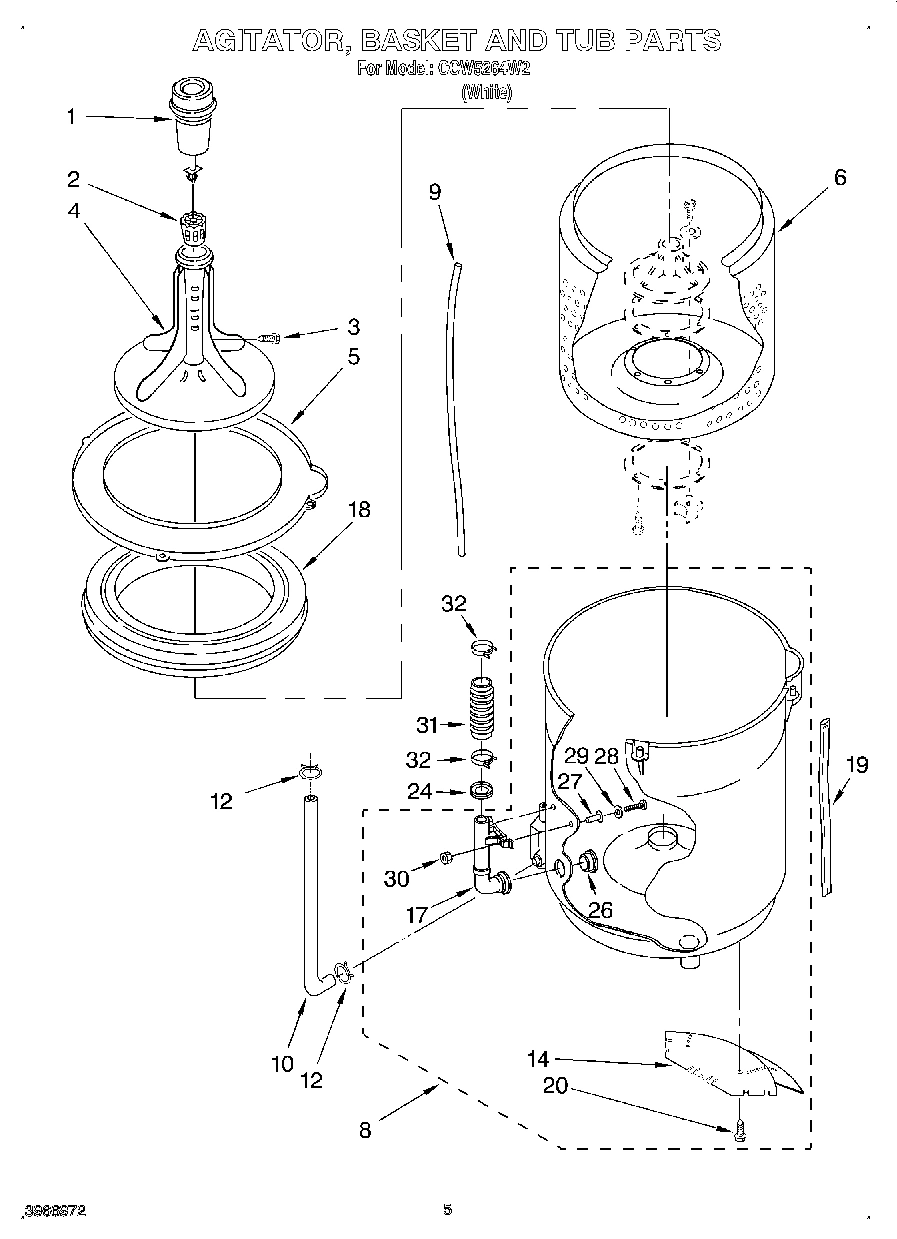

03 - AGITATOR, BASKET AND TUB

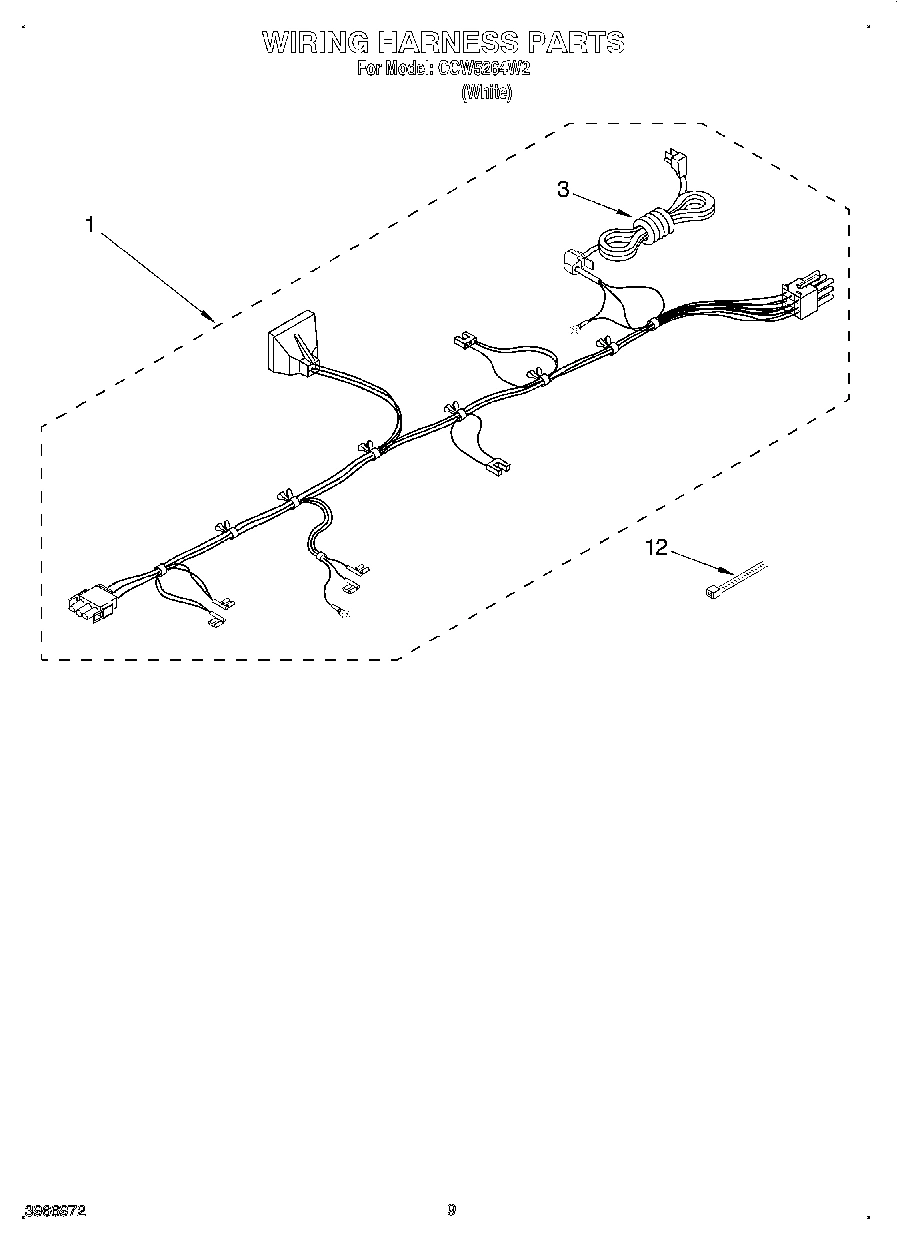

06 - WIRING HARNESS

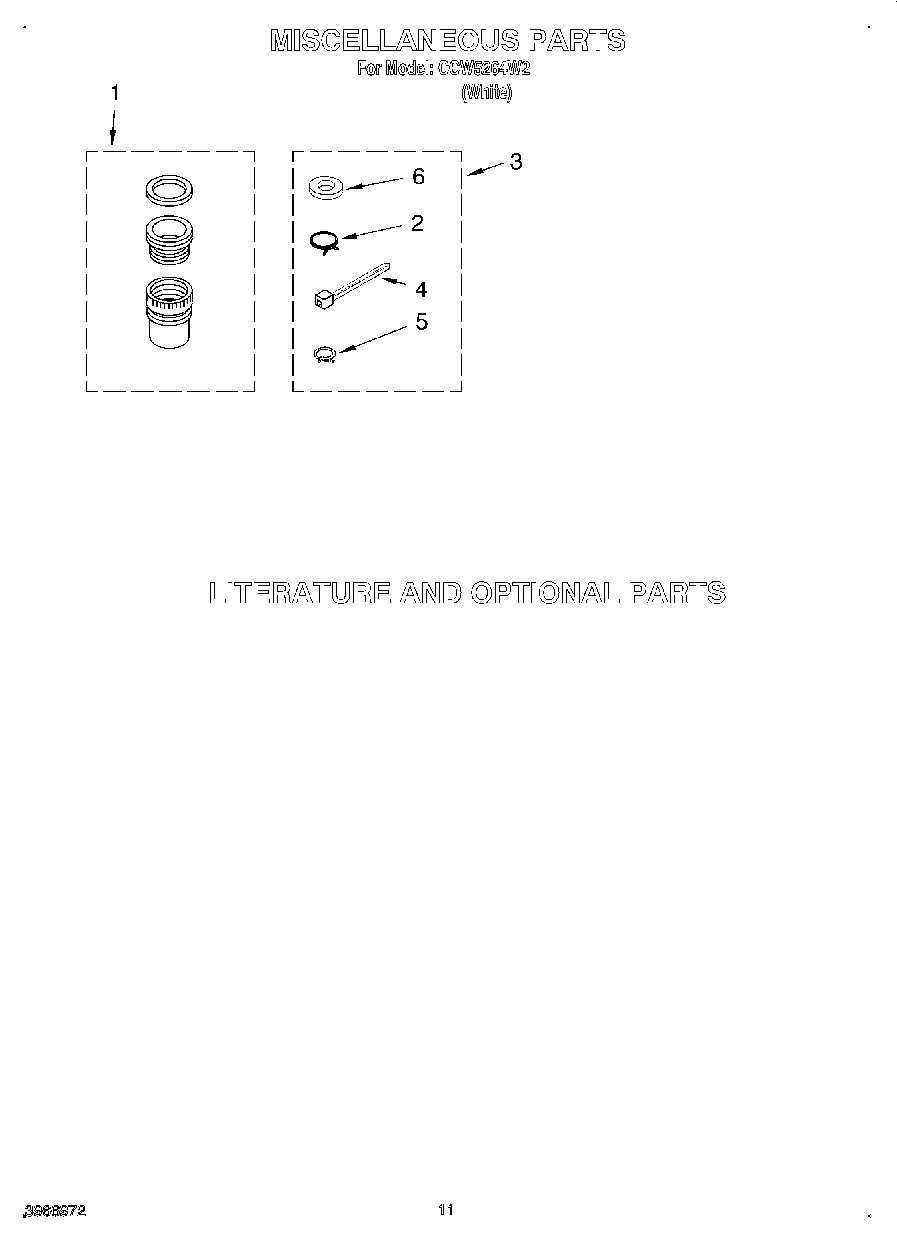

08 - MISCELLANEOUS, LIT/OPTIONAL

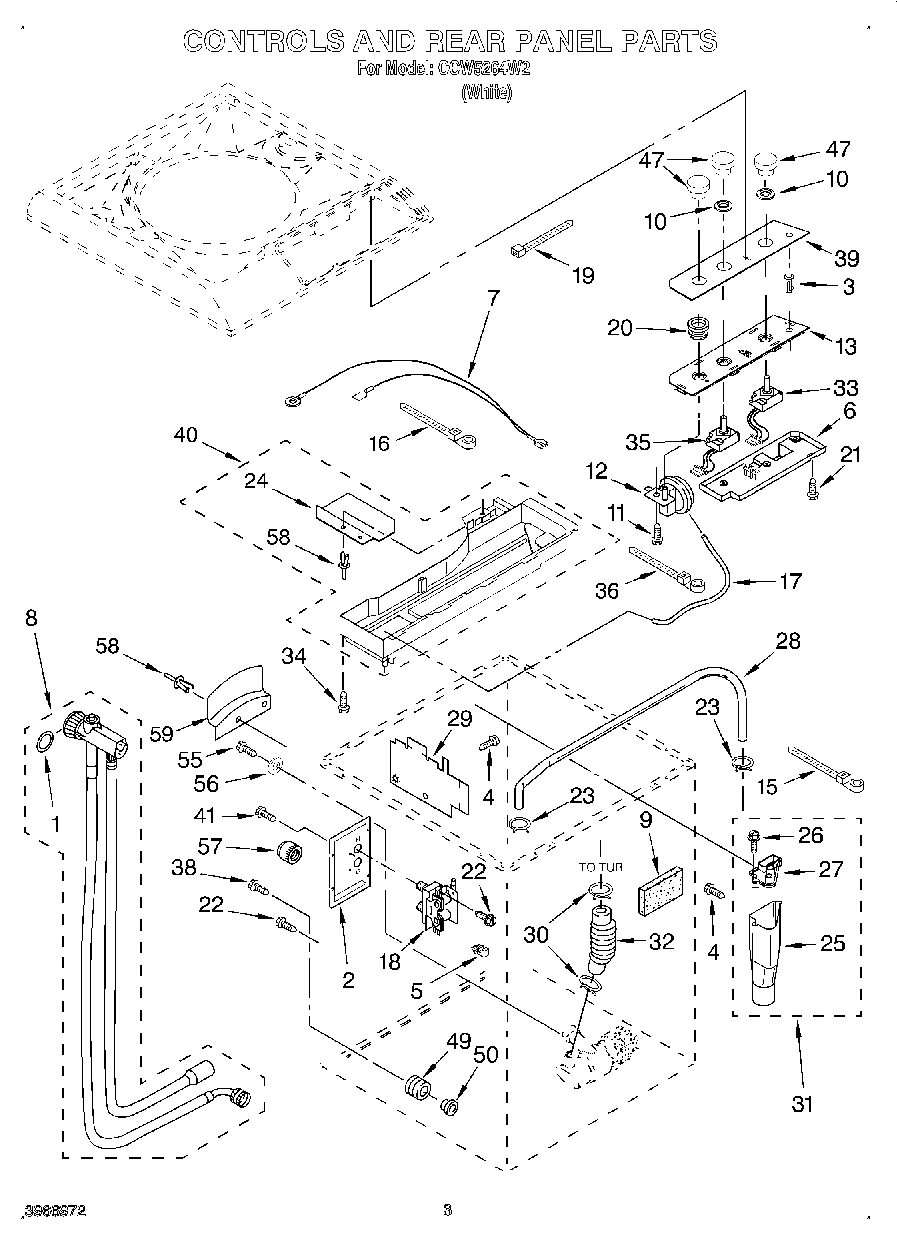

02 - CONTROLS AND REAR PANEL

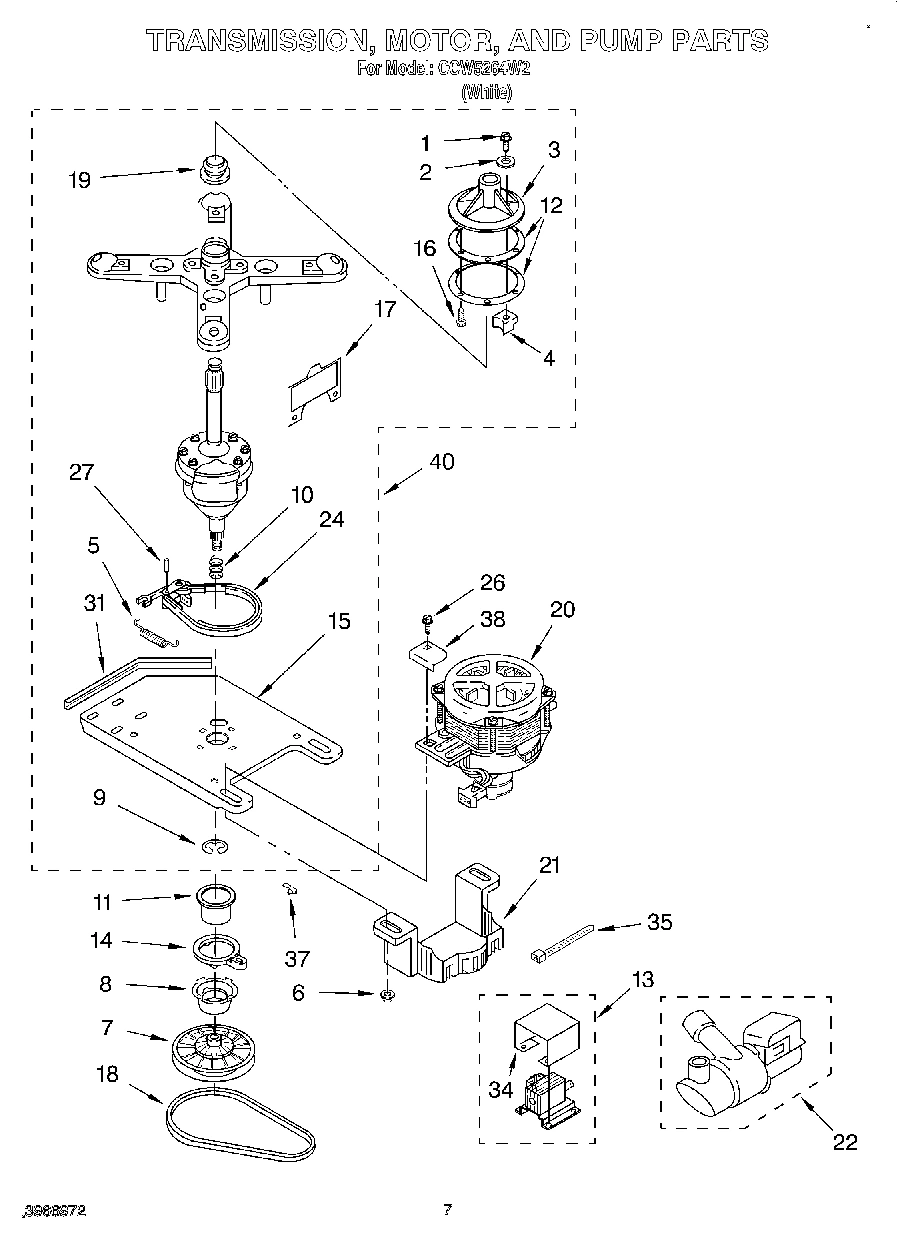

04 - TRANSMISSION, MOTOR AND PUMP
Common parts from model Whirlpool CCW5264W2 COMMERCIAL WASHER
Stationary To Portable WPL 3935674 Contact Us For Availability
Almond WPL 49978 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Use & Care Guide WPL LIT3935706 Contact Us For Availability
Installation Instructions WPL LIT3935938 Contact Us For Availability
Energy Guide WPL LIT3966740 Contact Us For Availability
Wiring Diagram WPL LIT3966815 Contact Us For Availability
Tech. Sheet WPL LIT3967786 Contact Us For Availability
1
Harns/Power-Cord (Includes Clip.) WPL 3967634 Contact Us For Availability
1
Screw WPL 3428430 Contact Us For Availability
2
Filter WPL 3428391 Contact Us For Availability
2
Bracket-Valve WPL 3935155 Contact Us For Availability
2
Washer WPL 3429750 Contact Us For Availability
3
Screw WPL 3428014 Contact Us For Availability
3
Kit, (Power Cord Only) WPL 3966718 Contact Us For Availability
3
Miscellaneous Parts Bag WPL 3428855 Contact Us For Availability
3
Extension, Start-Pause WPL 3935357 Contact Us For Availability
3
Hub, Drive WPL 3934735 Contact Us For Availability
4
Pin, Wheel WPL 3935130 Contact Us For Availability
4
Ball, Upper Suspension (4) WPL 3428423 Contact Us For Availability
4
Agitator WPL 3428392 Contact Us For Availability
4
Screw WPL 3429189 Contact Us For Availability
4
Saddle Block WPL 3428429 Contact Us For Availability
5
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
5
Capacitor WPL 3429938 Contact Us For Availability
5
Tub Ring WPL 3429902 Contact Us For Availability
5
Clip, Harness WPL 3935875 Contact Us For Availability
5
Spring, Brake WPL 3428342 Contact Us For Availability
6
Bracket, Capacitor WPL 3428343 Contact Us For Availability
6
Basket WPL 3428186 Contact Us For Availability
6
Timer/Control Board WPL 3966860 Contact Us For Availability
7
Pulley, Splutch WPL 3428359 Contact Us For Availability
7
Screw, Bracket WPL 3934040 Contact Us For Availability
7
Jumper-Wire WPL 3935929 Contact Us For Availability
8
Tub & Inlet Asy. WPL 3935537 Contact Us For Availability
8
Cam, Splutch WPL 3428378 Contact Us For Availability
9
Pad-Protector WPL 3935630 Contact Us For Availability
10
Hose, Bleach WPL 3430339 Contact Us For Availability
10
Seal WPL 3935353 Contact Us For Availability
10
Spring, Splutch WPL 3934212 Contact Us For Availability
11
Screw, Switch Mtg. WPL 3935602 Contact Us For Availability
11
Slider, Splutch WPL 3428380 Contact Us For Availability
12
Switch, Water Level WPL 3966789 Contact Us For Availability
12
Caster (4) WPL 3934872 Contact Us For Availability
12
Gasket, Hub (2) WPL 3428179 Contact Us For Availability
13
Screw WPL 3934148 Contact Us For Availability
13
Bracket, Control (Must Order No. 3 And No. 3 WPL 3966634 Contact Us For Availability
13
Solenoid WPL 3966774 Contact Us For Availability
14
Shield, Tub/Motor WPL 3428814 Contact Us For Availability
14
Cam Ring, Splutch WPL 3428379 Contact Us For Availability
15
Tie, Wire (2) (Push Mount) WPL 3429812 Contact Us For Availability
15
Plate, Bottom WPL 3430205 Contact Us For Availability
16
Clamp, Tie Wrap WPL 3935429 Contact Us For Availability
16
Screw (6) WPL 3934714 Contact Us For Availability
17
Inlet-Tube Assy. WPL 3935347 Contact Us For Availability
17
Hose, Pressure Switch. WPL 3935344 Contact Us For Availability
17
Shield, Motor Splash WPL 3967287 Contact Us For Availability
18
Drive Belt WPL 3934700 Contact Us For Availability
18
Valve, Water Mixing WPL 3967755 Contact Us For Availability
18
Balance Ring WPL 3934565 Contact Us For Availability
19
Hose, Tub Overflow WPL 3966238 Contact Us For Availability
20
Seal, Pressure Switch WPL 3935354 Contact Us For Availability
20
Motor, Main Drive (Includes Item 6) WPL 3934201 Contact Us For Availability
21
Screw, Control Board (3) WPL 3934036 Contact Us For Availability
21
Shield, Pully WPL 3935999 Contact Us For Availability
22
Pump (Complete) WPL 3967357 Contact Us For Availability
24
Ring-Protector WPL 3935678 Contact Us For Availability
24
Shield, Harness WPL 3935672 Contact Us For Availability
24
Brake Band Assy. WPL 3428323 Contact Us For Availability
25
Funnel-Inlet (Body) WPL 3935325 Contact Us For Availability
26
Seal WPL 3935332 Contact Us For Availability
26
Bolt, Motor Mounting (2) WPL 3934663 Contact Us For Availability
27
Well-Nut (2) WPL 3935431 Contact Us For Availability
27
Funnel-Inlet (Top) WPL 3966222 Contact Us For Availability
27
Pin, Brake Band WPL 3934183 Contact Us For Availability
28
Screw, Well Nut (2) WPL 3935432 Contact Us For Availability
28
Hose, Valve To Water Inlet WPL 3935330 Contact Us For Availability
29
Washer, Nut (2) WPL 3935786 Contact Us For Availability
29
Shield, Water Valve WPL 3967286 Contact Us For Availability
30
Hex-Nut (2) WPL 3935437 Contact Us For Availability
31
Funnel-Inlet Asy. WPL 3935327 Contact Us For Availability
31
Protector, Edge WPL 3429705 Contact Us For Availability
32
Hose, Pump To Tub WPL 3429900 Contact Us For Availability
32
Clamp-Hose WPL 3935874 Contact Us For Availability
33
Switch, Cycle Selection WPL 3966207 Contact Us For Availability
34
Screw, Top Shield (3) WPL 3935634 Contact Us For Availability
34
Shield, Top Solenoid WPL 3967288 Contact Us For Availability
35
Switch, Water Temperature WPL 3966208 Contact Us For Availability
37
Lock, Solenoid WPL 3429416 Contact Us For Availability
38
Screw, Pump Mtg. (2) WPL 3428934 Contact Us For Availability
38
Shield, Motor Connector WPL 3430197 Contact Us For Availability
39
Panel, Console (Includes Inlay) (White) WPL 3935519 Contact Us For Availability
40
Transmission Kit WPL 3966743 Contact Us For Availability
40
Top, Shield Assy. WPL 3935627 Contact Us For Availability
47
Knob, Temperature & Cycle Selection WPL 3352167 Contact Us For Availability
49
Grommet, Pump (3) WPL 3428526 Contact Us For Availability
50
Spacer, Pump (2) WPL 3428933 Contact Us For Availability
55
Screw WPL 3400038 Contact Us For Availability
56
Washer WPL 3429923 Contact Us For Availability
58
Rivet (2) WPL 3430186 Contact Us For Availability
59
Bracket, Hose Storage WPL 356499 Contact Us For Availability
× ![]()
