Model Electrolux CCRE3530LWG ELECTRIC RANGE, FREESTANDING – Common Parts & Diagrams

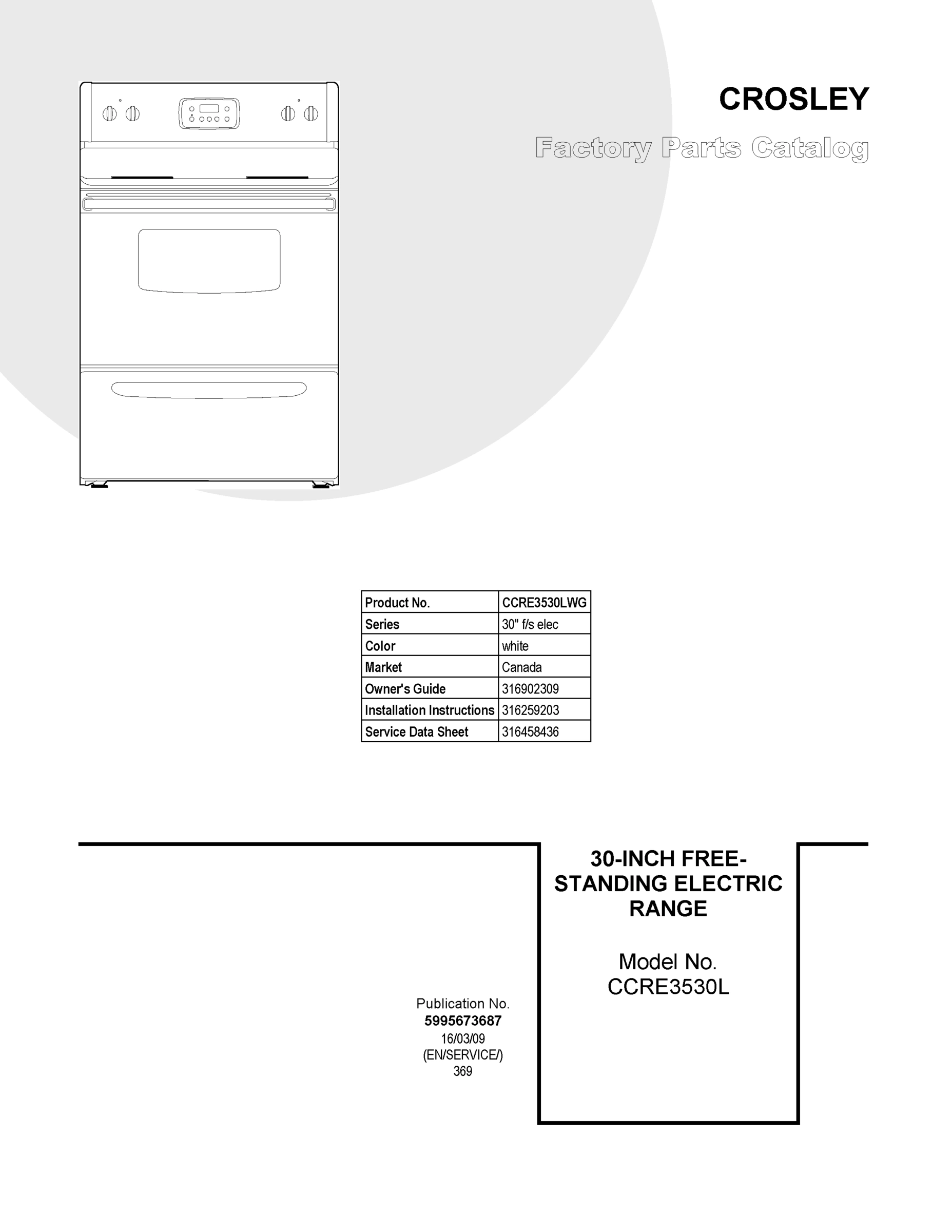

01 - COVER SHEET
02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux CCRE3530LWG ELECTRIC RANGE, FREESTANDING
4
PANEL, DRAWER, WHITE WCI 316231305 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5
GLASS, OVEN DOOR, CLEAR, OUTER WCI 316458300 Contact Us For Availability
6
RACK, OVEN, (2) WCI 316067902 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316236802 Contact Us For Availability
8
WCI 5304503233 WCI 5304503233 Contact Us For Availability
8
PANEL,, OVEN BOTTOM WCI 316495903 Contact Us For Availability
9
WCI 316230634 WCI 316230634 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
SCREW, WAF HD SQ, 10-24 X 1.6, HANDLE, (2) WCI 316001014 Contact Us For Availability
10
INSERT, BROILER PANOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10B
WASHER, 3/4 OD X 1/4 ID, STEEL WCI 316008401 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316239700 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 316202707 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
SUPPORT, BACKGUARD, WHITE, RH WCI 316411403 Contact Us For Availability
15A
ELEMENT, SURFACE, 6", SMALL WCI 318372211 Contact Us For Availability
15A
SUPPORT, BACKGUARD, WHITE, LH WCI 316411402 Contact Us For Availability
16
MAIN TOP, WHITE WCI 316202388 Contact Us For Availability
17
ROD, SUPPORT, MAIN TOP WCI 316057601 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
19
PAN-SURFACE ELEMENT, CHROME, LARGE/8 INCH WCI 316048413 Contact Us For Availability
19A
PAN-SURFACE ELEMENT, CHROME, SMALL/6 INCH WCI 316048414 Contact Us For Availability
21
SPACER, DOOR HANDLE, (2) WCI 316284101 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
RETAINER, GLASS, (2), ANGLE WCI 5303272476 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
WCI 316575921 WCI 316575921 Contact Us For Availability
26
SUPPORT, CHASSIS, (2) WCI 316206300 Contact Us For Availability
28A
MEDALLION, 1 1/2"DIA, BLACK, SURFACE ELEMENT WCI 5303017715 Contact Us For Availability
31
KNOB, CONTROL, WHITE WCI 316223030 Contact Us For Availability
37
WCI 316233903 WCI 316233903 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58A
INSULATION, 1", OVEN WRAPPER WCI 316047707 Contact Us For Availability
58B
INSULATION, 1", OVEN BACK WCI 316054202 Contact Us For Availability
59
TUBE, OVEN VENT WCI 316073605 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203200 Contact Us For Availability
68
SUPPORT, BROIL ELEMENT WCI 316203400 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
NI
HARNESS, WIRING, SURFACE UNITS WCI 316580400 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
NUT, HEX FLANGE, 3/8 10-32 WCI 316205500 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
SEAL, DOOR, AIR GAP WCI 316245600 Contact Us For Availability
NI
PLUG, HOLE, LIGHT SWITCH WCI 316210800 Contact Us For Availability
NI
SCREW, WAFER HD SQ DR, 8-18AB X 0.5 WCI 5303271648 Contact Us For Availability
× ![]()
