Model Whirlpool CC3531XUW ELECTRIC RANGE – Common Parts & Diagrams
05 - TOP ASSEMBLY

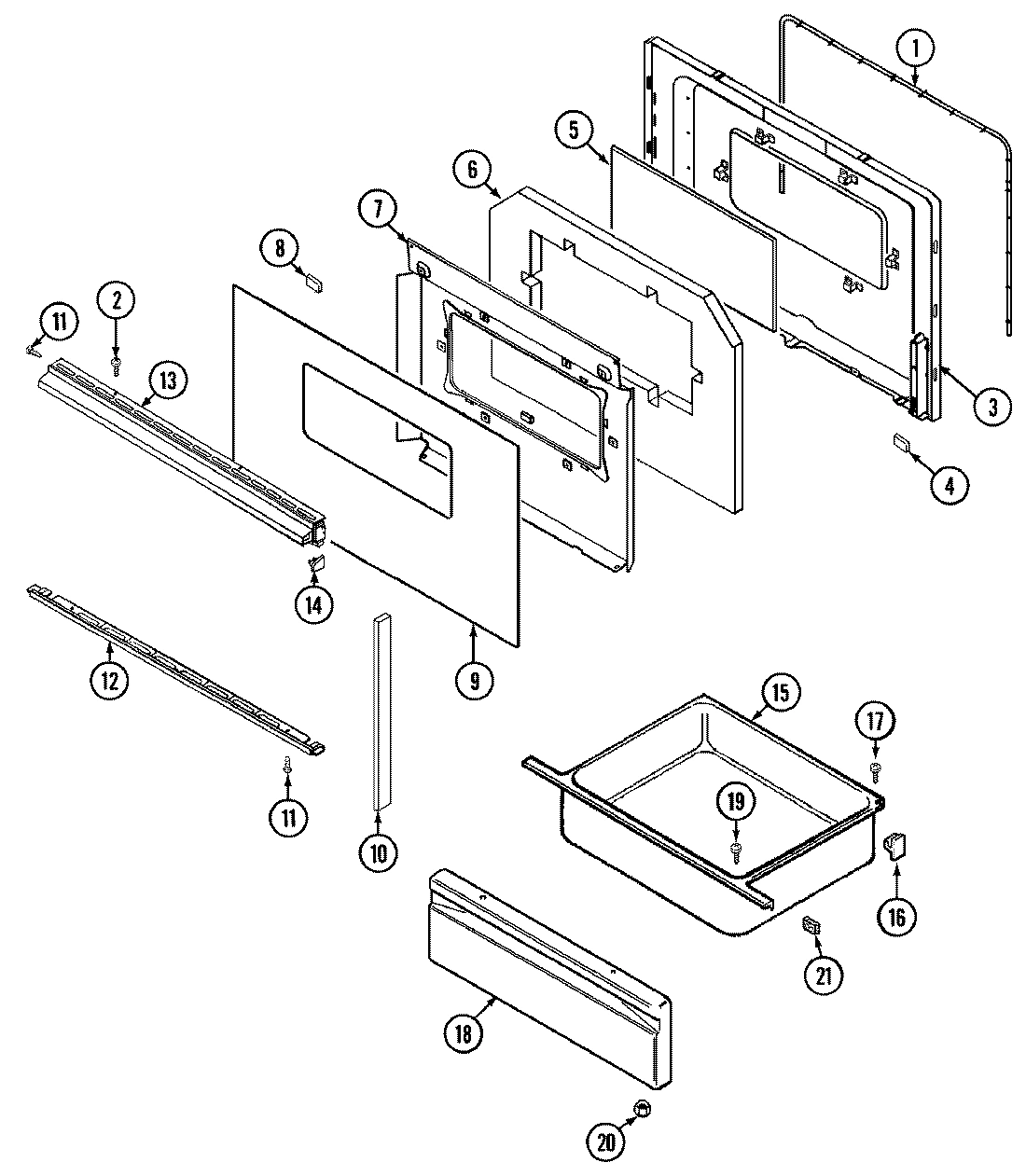

03 - DOOR/DRAWER (CC3531XUx)

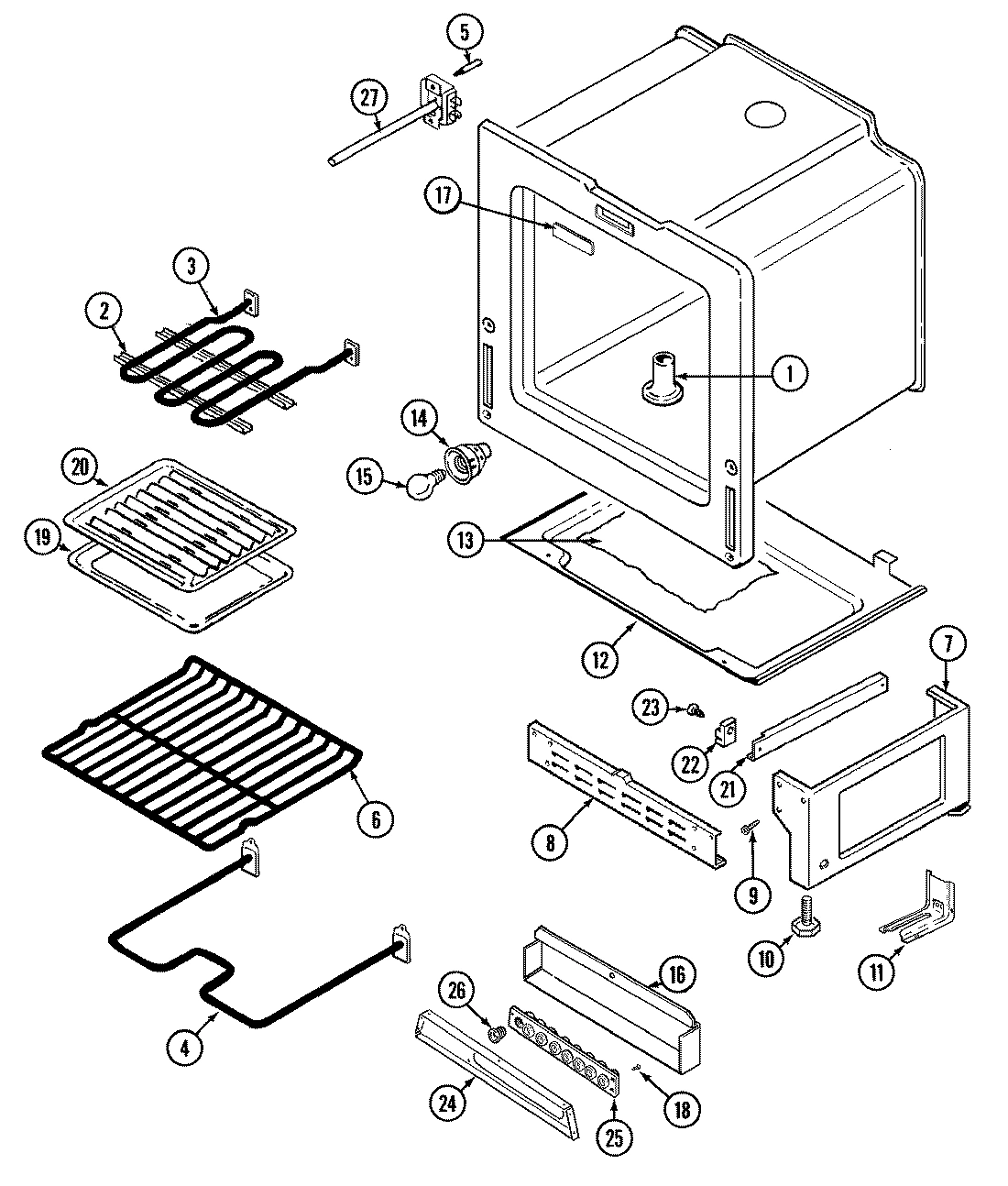

04 - OVEN/BASE

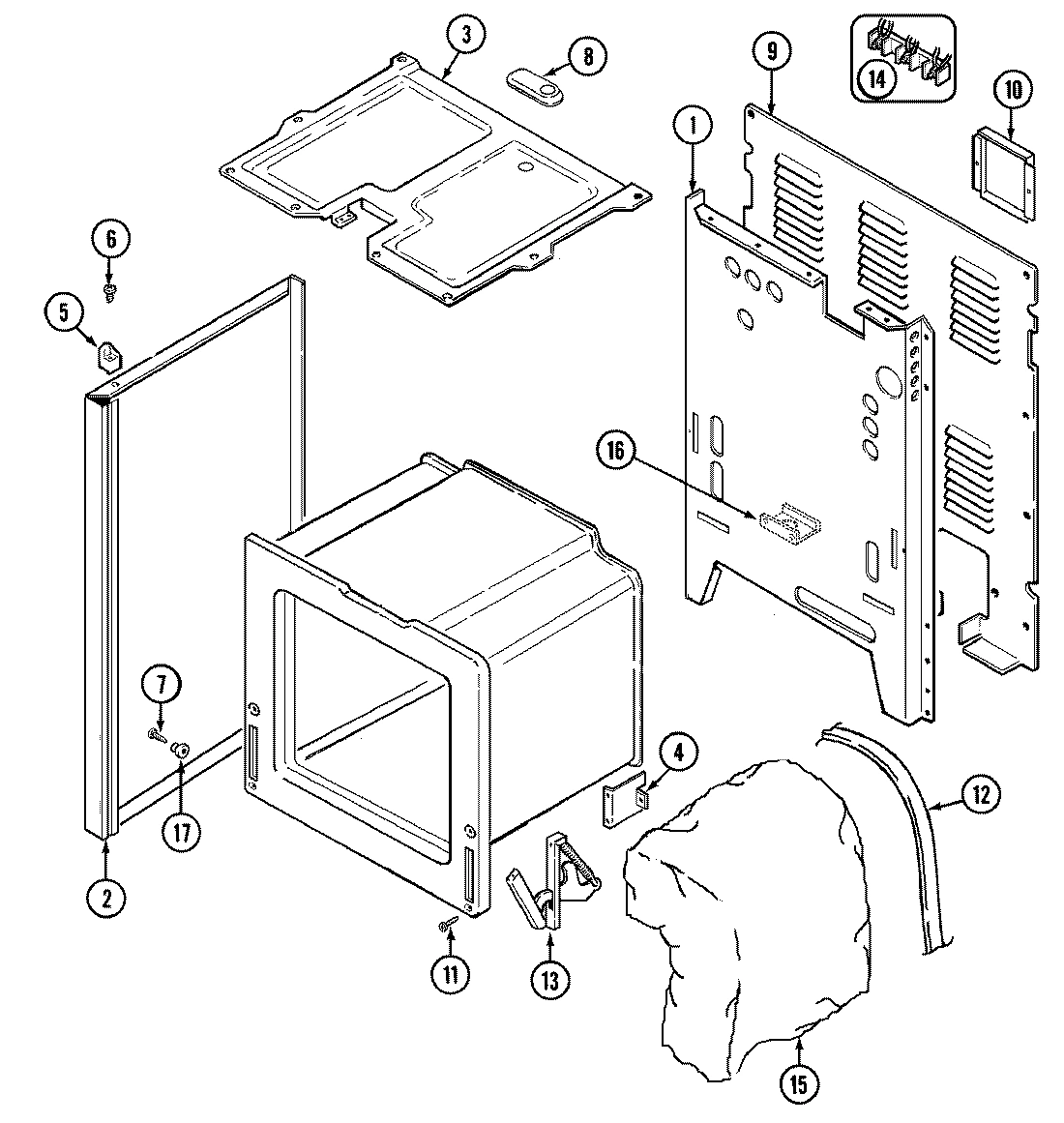

01 - BODY

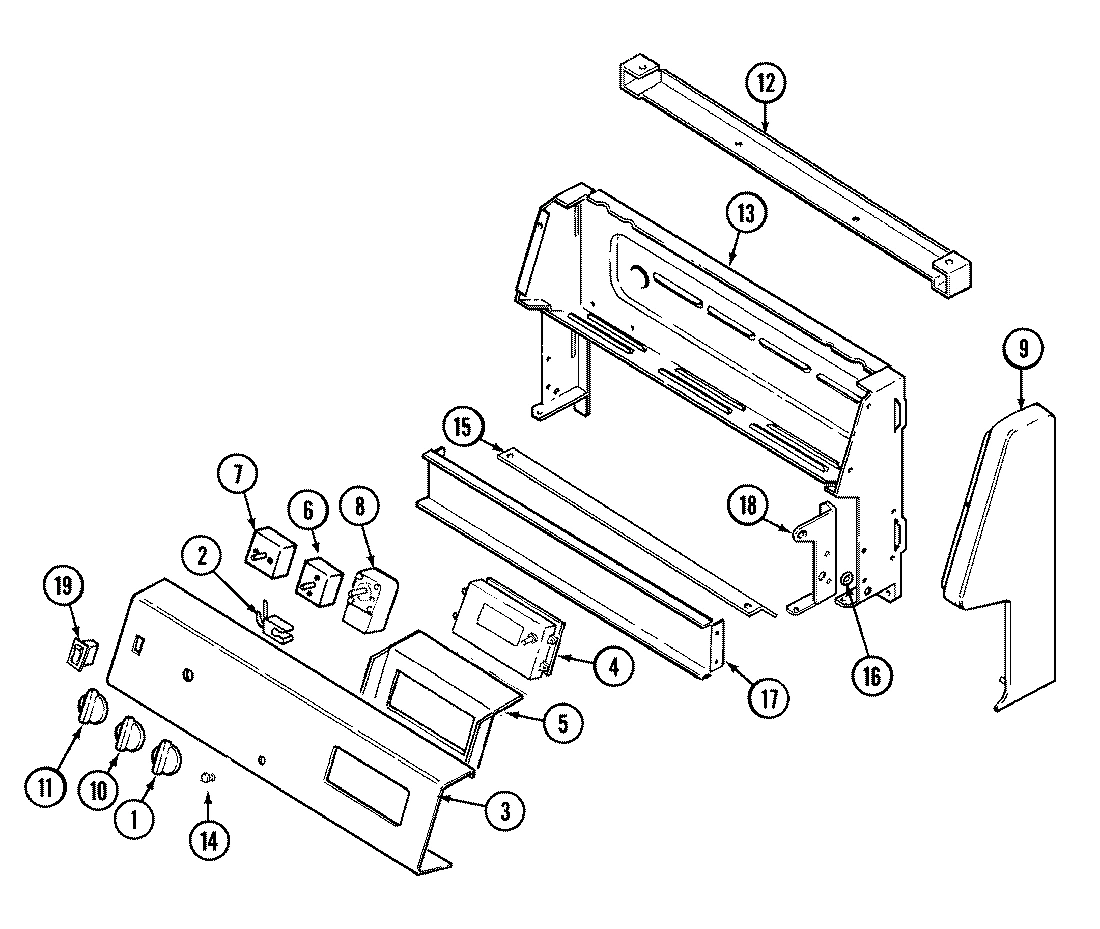

02 - CONTROL PANEL
Common parts from model Whirlpool CC3531XUW ELECTRIC RANGE
1
RING, TRIM 6`` CHR OTHER WPL 19950050 Contact Us For Availability
1
BOWL, DRIP (6``) (BLK) WPL 7725P03660 Contact Us For Availability
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
CORD, POWER WPL 7402P05060 Contact Us For Availability
2
BOWL, DRIP (8``-BLK) WPL 7725P03760 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
LINING, DOOR WPL 2402W21319 Contact Us For Availability
3
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P63960 Contact Us For Availability
4
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
4
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
5
SCREW WPL 7101P33760 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
5
BRACKET, CLOCK WPL 3801F34045 Contact Us For Availability
6
SUPPORT, TOP WPL 74001170 Contact Us For Availability
6
INSULATION, DOOR WPL 7002P15860 Contact Us For Availability
6
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability
7
BAFFLE, DOOR WPL 3601F24080 Contact Us For Availability
7
PEDESTAL (SIDES) WPL 4020W01380 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
COVER, VENT WPL 4005F43245 Contact Us For Availability
8
THERMOSTAT WPL 7404P10560 Contact Us For Availability
9
GLIDE WPL 8016P01560 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
10
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
11
SCREW WPL 7101P11560 Contact Us For Availability
11
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
11
SCREW WPL 7101P30960 Contact Us For Availability
12
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
12
RETAINER, INSULATION WPL 3804F11247 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
14
END CAP (RT) WPL 7744P07560 Contact Us For Availability
14
END CAP (LT) WPL 7744P07660 Contact Us For Availability
14
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
14
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
14
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
15
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
15
BULB, OVEN WPL 7407P09560 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
15
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
16
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
16
COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability
16
SCREW WPL 7101P26360 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
NUT, SPEED WPL 7103P12960 Contact Us For Availability
17
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
18
SCREW WPL 7101P06860 Contact Us For Availability
18
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
18
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
19
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
20
NUT, LOCK WPL 7103P13960 Contact Us For Availability
20
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
22
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
23
SCREW WPL 7101P34560 Contact Us For Availability
24
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
25
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
26
HARNESS, FUSE TO CONTROL PANEL WPL 5175D06060 Contact Us For Availability
26
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
26
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
27
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
27
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
WIRES, LOOSE WPL 5125A33860 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D11860 Contact Us For Availability
NI
HARNESS, WIRE CONTROL/TOP WPL 74001592 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
× ![]()
