Model Maytag CBR1420BGW GAS RANGE – Common Parts & Diagrams

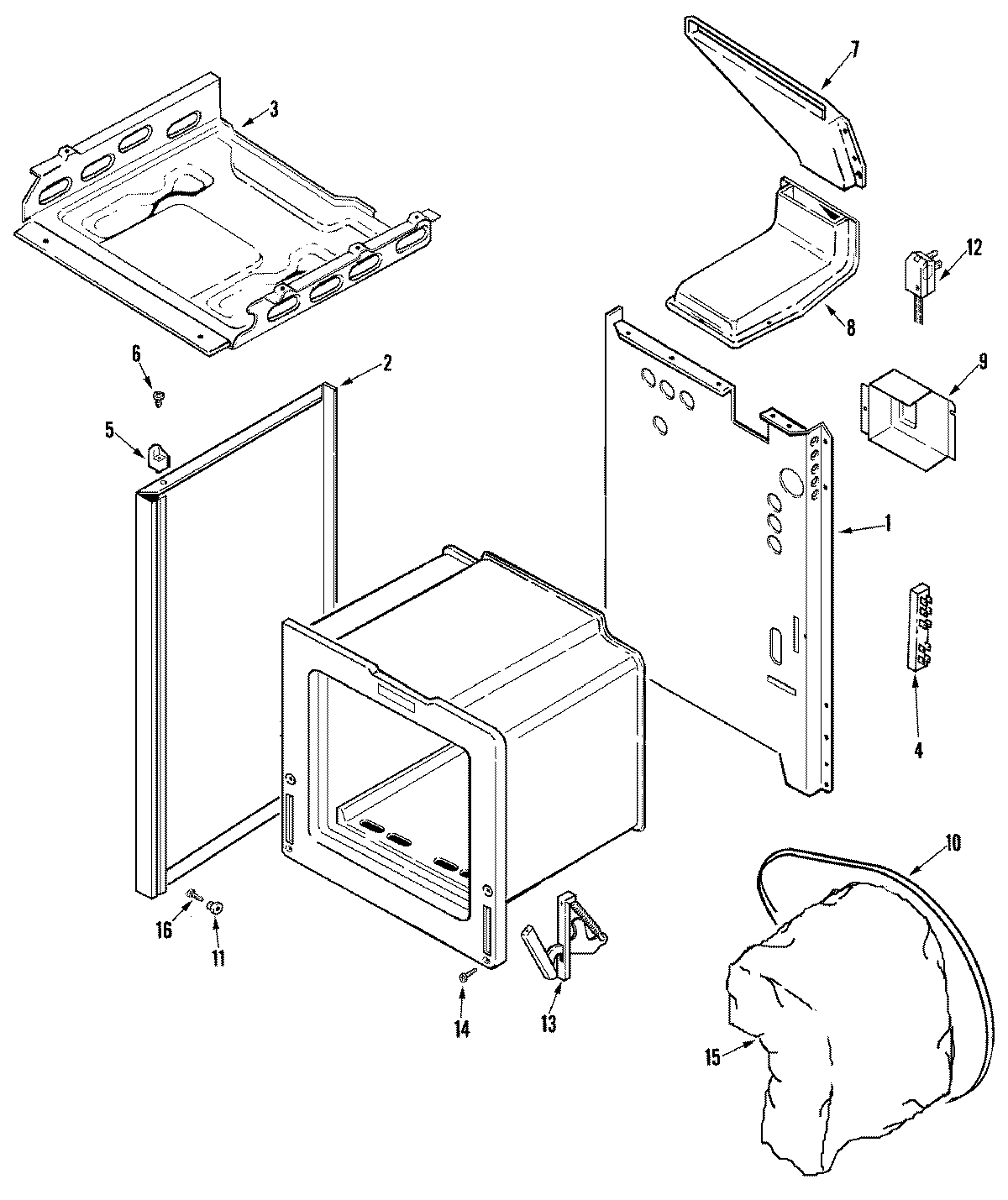

01 - BODY

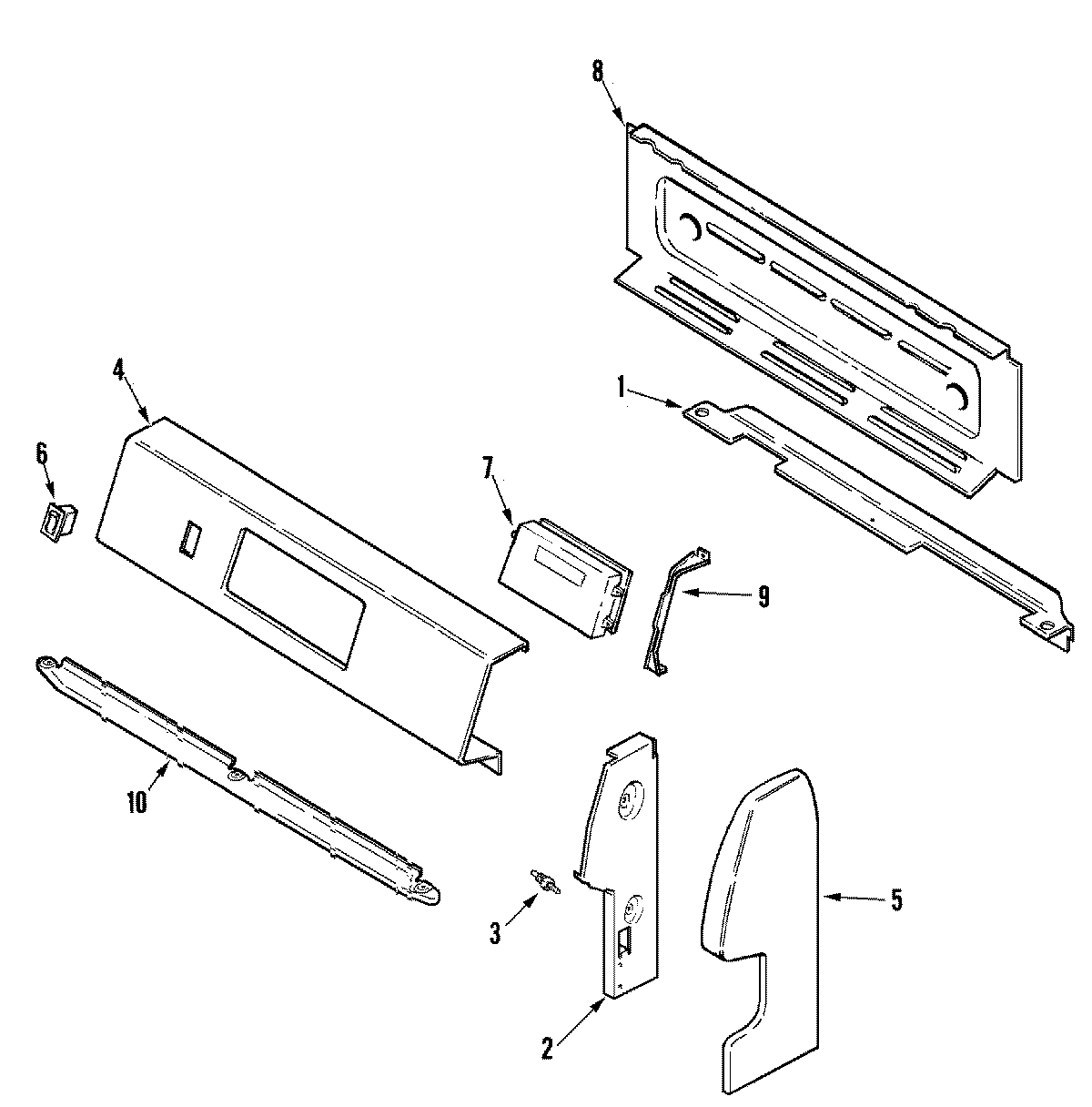

02 - CONTROL PANEL

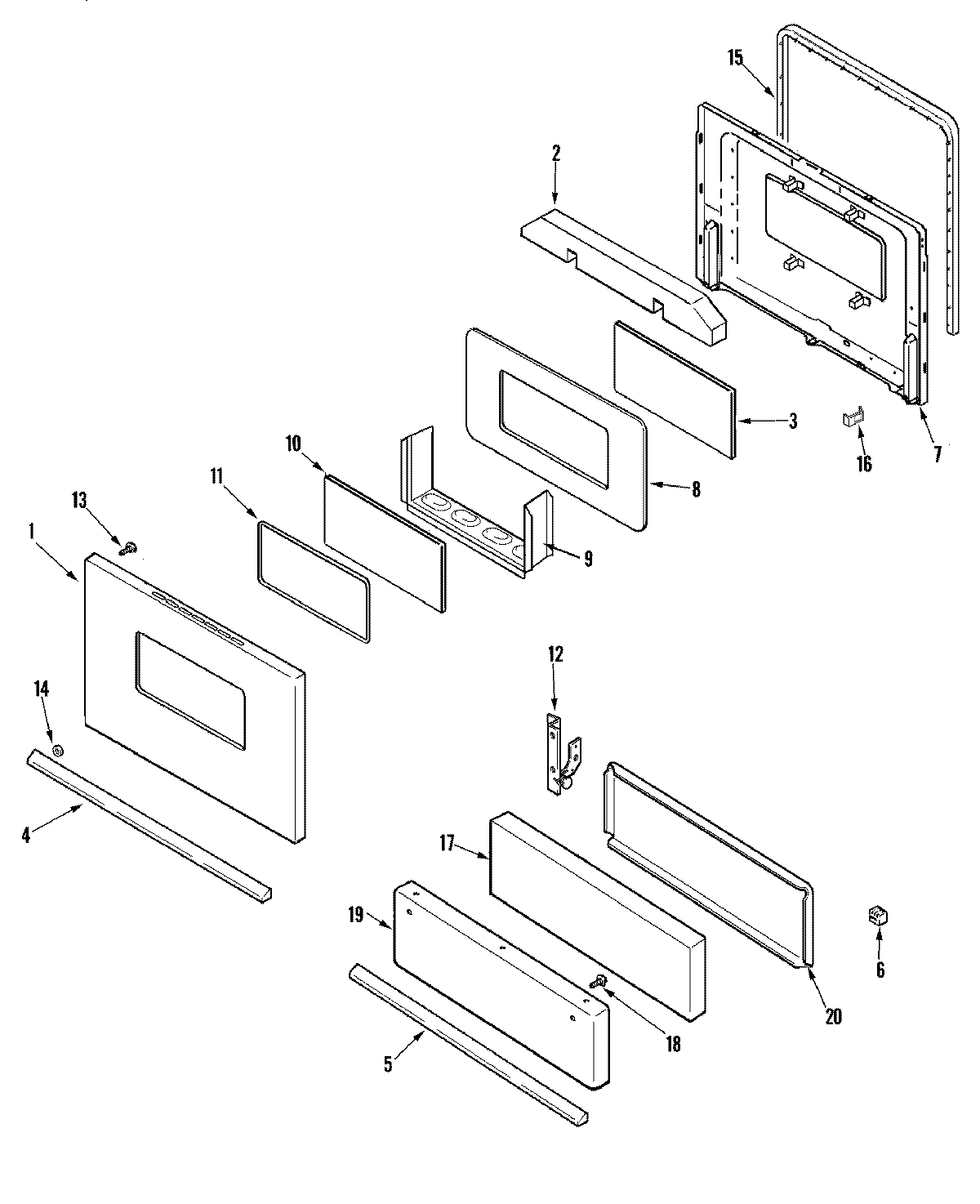

03 - DOOR/DRAWER

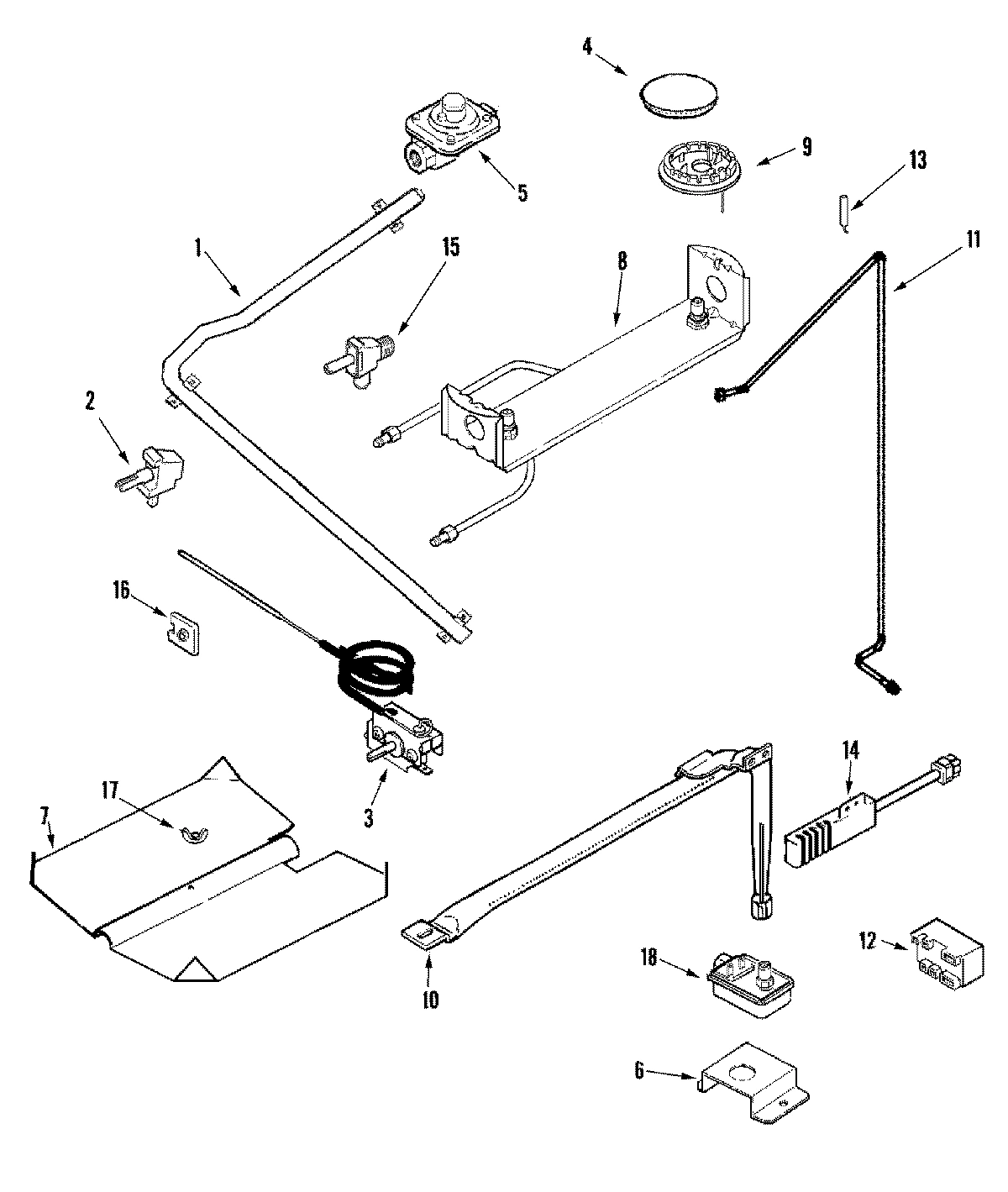

04 - GAS CONTROLS

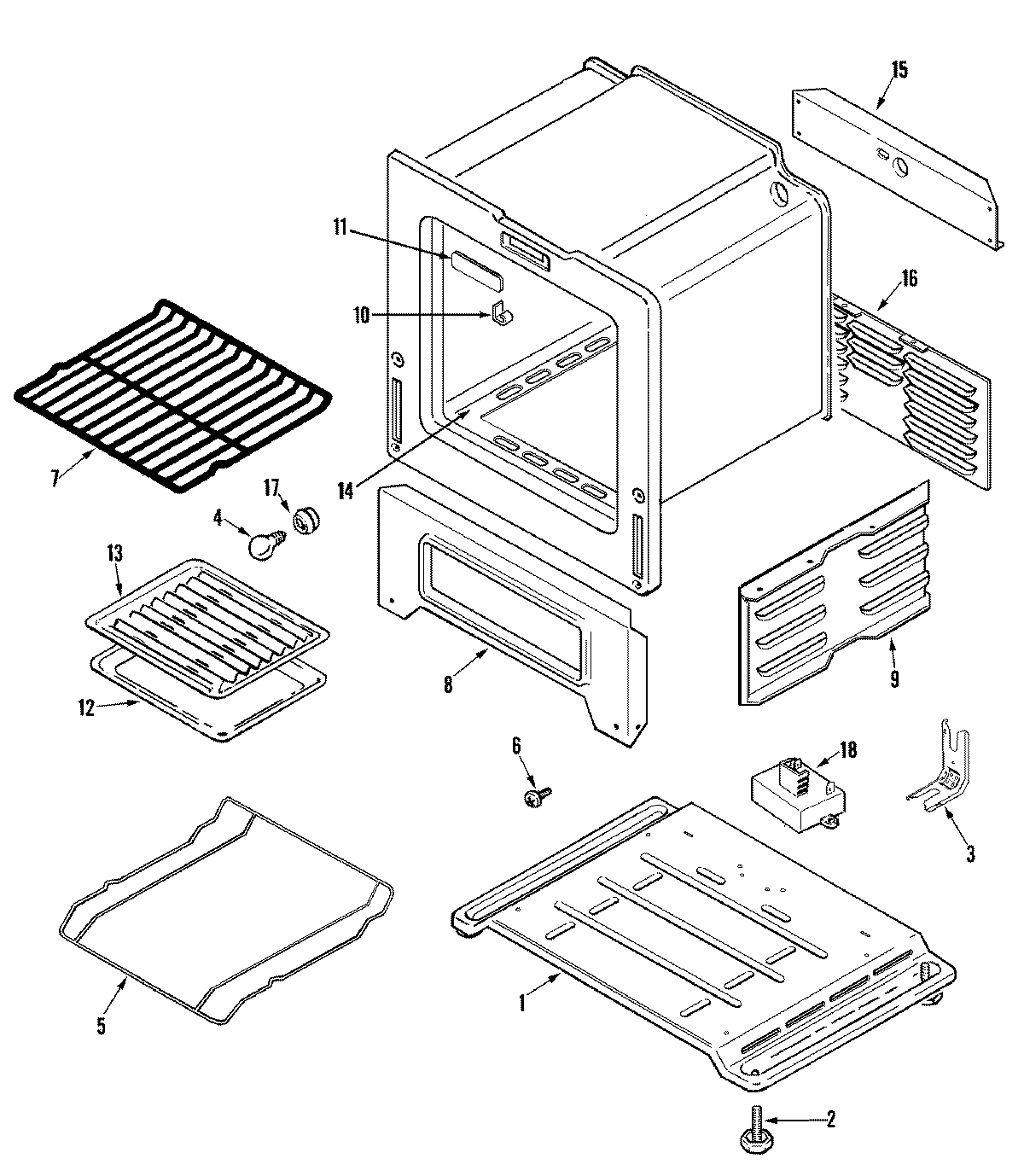

05 - OVEN/BASE
06 - SUPPLIMENTAL INFORMATION

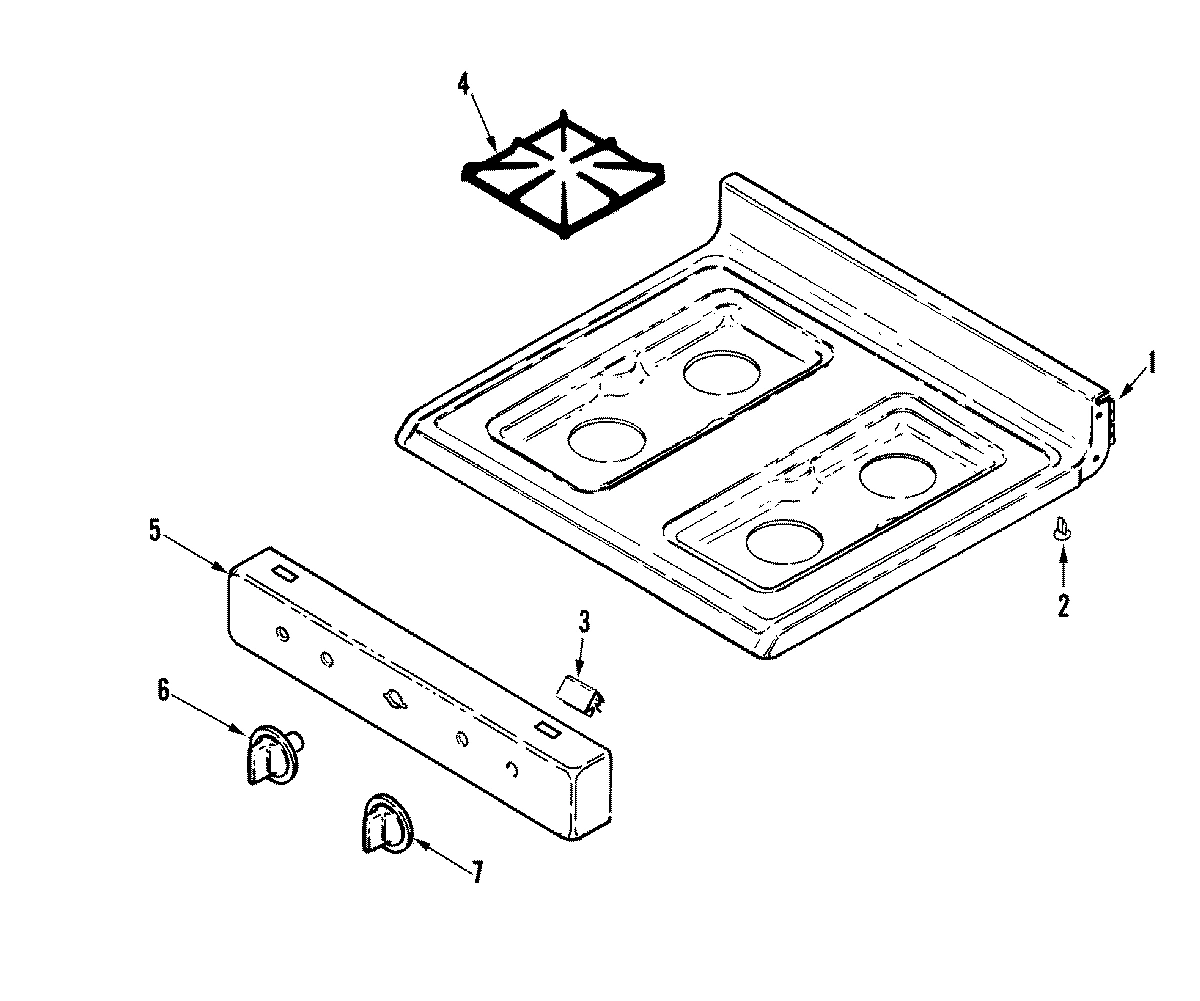

07 - TOP ASSEMBLY

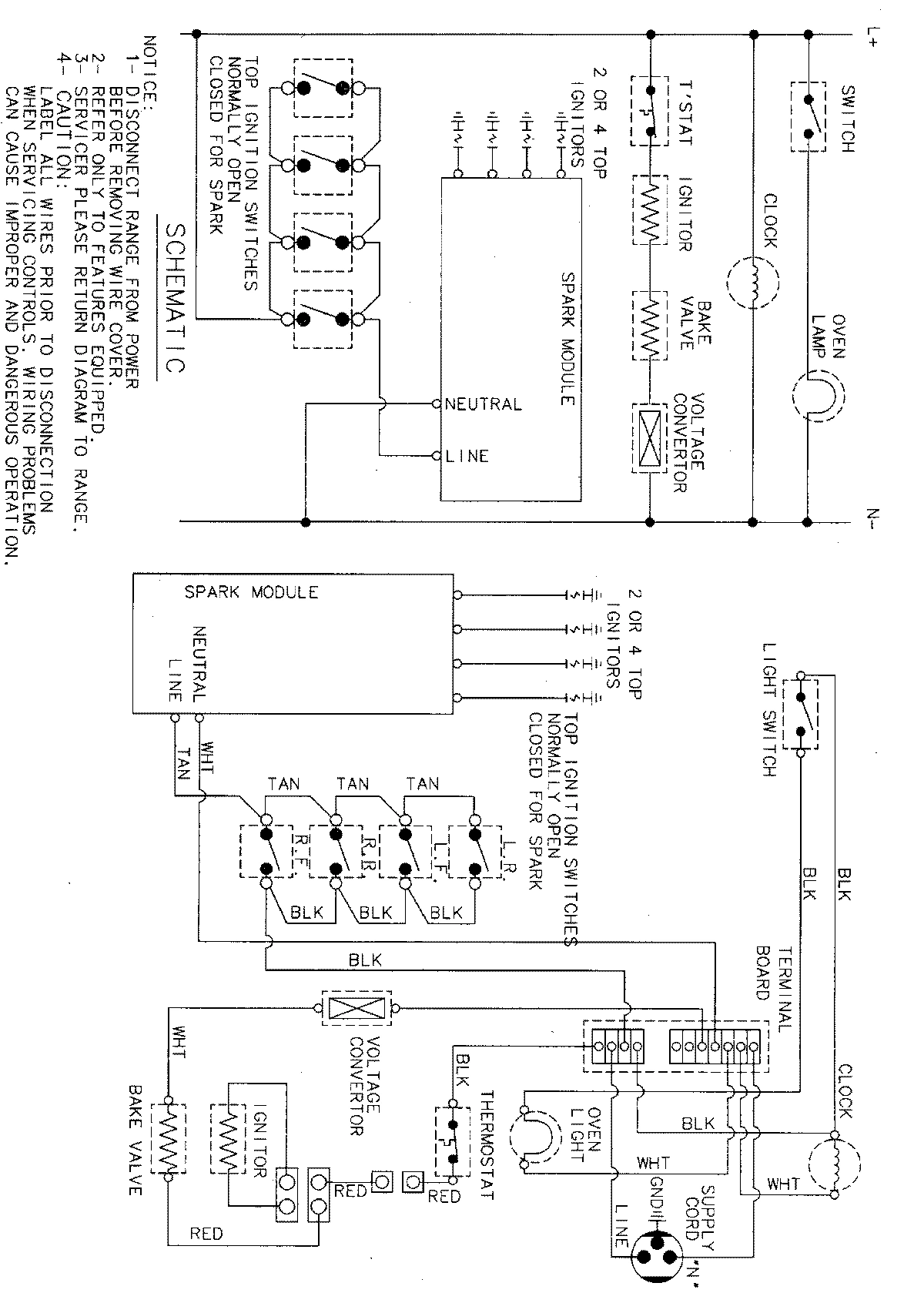

08 - WIRING INFORMATION
Common parts from model Maytag CBR1420BGW GAS RANGE
1
MAY 74005047 MAY 74005047 Contact Us For Availability
1
MAY 74005317 MAY 74005317 Contact Us For Availability
1
MAY 74002454 MAY 74002454 Contact Us For Availability
1
MAY 74005215 MAY 74005215 Contact Us For Availability
1
MAY 74007169 MAY 74007169 Contact Us For Availability
2
MAY 74002402 MAY 74002402 Contact Us For Availability
2
MAY 74002403 MAY 74002403 Contact Us For Availability
2
MAY 74002458 MAY 74002458 Contact Us For Availability
2
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
2
MAY 74002532 MAY 74002532 Contact Us For Availability
3
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
3
MAY 74002404 MAY 74002404 Contact Us For Availability
3
MAY 74002459 MAY 74002459 Contact Us For Availability
3
MAY 74004827 MAY 74004827 Contact Us For Availability
4
MAY 74005222 MAY 74005222 Contact Us For Availability
4
MAY 74007566 MAY 74007566 Contact Us For Availability
4
MAY 7407P027-60 MAY 7407P027-60 Contact Us For Availability
4
MAY 74001061 MAY 74001061 Contact Us For Availability
5
MAY 74002438 MAY 74002438 Contact Us For Availability
5
MAY 74002439 MAY 74002439 Contact Us For Availability
5
MAY 74002451 MAY 74002451 Contact Us For Availability
5
MAY 2411F003-71 MAY 2411F003-71 Contact Us For Availability
5
MAY 74007088 MAY 74007088 Contact Us For Availability
5
MAY 74007524 MAY 74007524 Contact Us For Availability
5
MAY 74002381 MAY 74002381 Contact Us For Availability
5
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
5
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
5
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
5
MAY 74002442 MAY 74002442 Contact Us For Availability
6
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
6
MAY 74005051 MAY 74005051 Contact Us For Availability
7
MAY 74006055 MAY 74006055 Contact Us For Availability
7
MAY 74005097 MAY 74005097 Contact Us For Availability
7
MAY 74002393 MAY 74002393 Contact Us For Availability
7
MAY 74002529 MAY 74002529 Contact Us For Availability
8
MAY 74005320 MAY 74005320 Contact Us For Availability
8
MAY 74006536 MAY 74006536 Contact Us For Availability
8
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
8
MAY 74002461 MAY 74002461 Contact Us For Availability
8
MAY 74007629 MAY 74007629 Contact Us For Availability
8
MAY 74007630 MAY 74007630 Contact Us For Availability
8
MAY 74002327 MAY 74002327 Contact Us For Availability
9
MAY 74002449 MAY 74002449 Contact Us For Availability
9
MAY 74002462 MAY 74002462 Contact Us For Availability
9
MAY 7101P343-60 MAY 7101P343-60 Contact Us For Availability
9
MAY 74007527 MAY 74007527 Contact Us For Availability
9
MAY 74007528 MAY 74007528 Contact Us For Availability
9
MAY 74002374 MAY 74002374 Contact Us For Availability
9
MAY 74002375 MAY 74002375 Contact Us For Availability
10
MAY 74002434 MAY 74002434 Contact Us For Availability
10
MAY 74002369 MAY 74002369 Contact Us For Availability
10
MAY 74003828 MAY 74003828 Contact Us For Availability
10
MAY 74002464 MAY 74002464 Contact Us For Availability
11
MAY 7201P017-60 MAY 7201P017-60 Contact Us For Availability
11
MAY 74006417 MAY 74006417 Contact Us For Availability
11
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
11
PLUG, LOCK SLOT MAY 74003406 Contact Us For Availability
12
MAY 7402P045-60 MAY 7402P045-60 Contact Us For Availability
12
MAY 74002398 MAY 74002398 Contact Us For Availability
12
MAY 74004285 MAY 74004285 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
14
MAY 74002376 MAY 74002376 Contact Us For Availability
14
MAY 74002377 MAY 74002377 Contact Us For Availability
15
MAY 74002370 MAY 74002370 Contact Us For Availability
15
MAY 74002634 MAY 74002634 Contact Us For Availability
15
MAY 71003231 MAY 71003231 Contact Us For Availability
15
MAY 74002378 MAY 74002378 Contact Us For Availability
16
MAY 74007095 MAY 74007095 Contact Us For Availability
16
MAY 74001449 MAY 74001449 Contact Us For Availability
16
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
16
MAY 74002379 MAY 74002379 Contact Us For Availability
17
MAY 74003387 MAY 74003387 Contact Us For Availability
17
MAY 74001814 MAY 74001814 Contact Us For Availability
17
NUT, WING MAY 7103P030-60 Contact Us For Availability
18
MAY 74006353 MAY 74006353 Contact Us For Availability
18
MAY 74002758 MAY 74002758 Contact Us For Availability
18
MAY 74004074 MAY 74004074 Contact Us For Availability
19
MAY 74001729 MAY 74001729 Contact Us For Availability
20
MAY 74002397 MAY 74002397 Contact Us For Availability
20
MAY 74007553 MAY 74007553 Contact Us For Availability
NI
MAY 16010161 MAY 16010161 Contact Us For Availability
NI
MAY 71002782 MAY 71002782 Contact Us For Availability
NI
MAY 74005147 MAY 74005147 Contact Us For Availability
NI
MAY 74006296 MAY 74006296 Contact Us For Availability
NI
MAY 74006297 MAY 74006297 Contact Us For Availability
NI
MAY 74006298 MAY 74006298 Contact Us For Availability
NI
MAY 74006615 MAY 74006615 Contact Us For Availability
NI
MAY 74006775 MAY 74006775 Contact Us For Availability
NI
MAY 74007262 MAY 74007262 Contact Us For Availability
NI
MAY 74007394 MAY 74007394 Contact Us For Availability
NI
MAY 74007522 MAY 74007522 Contact Us For Availability
NI
MAY 74007563 MAY 74007563 Contact Us For Availability
NI
MAY 15001914 MAY 15001914 Contact Us For Availability
× ![]()
