Model Whirlpool CARR630W ELECTRIC RANGE – Common Parts & Diagrams

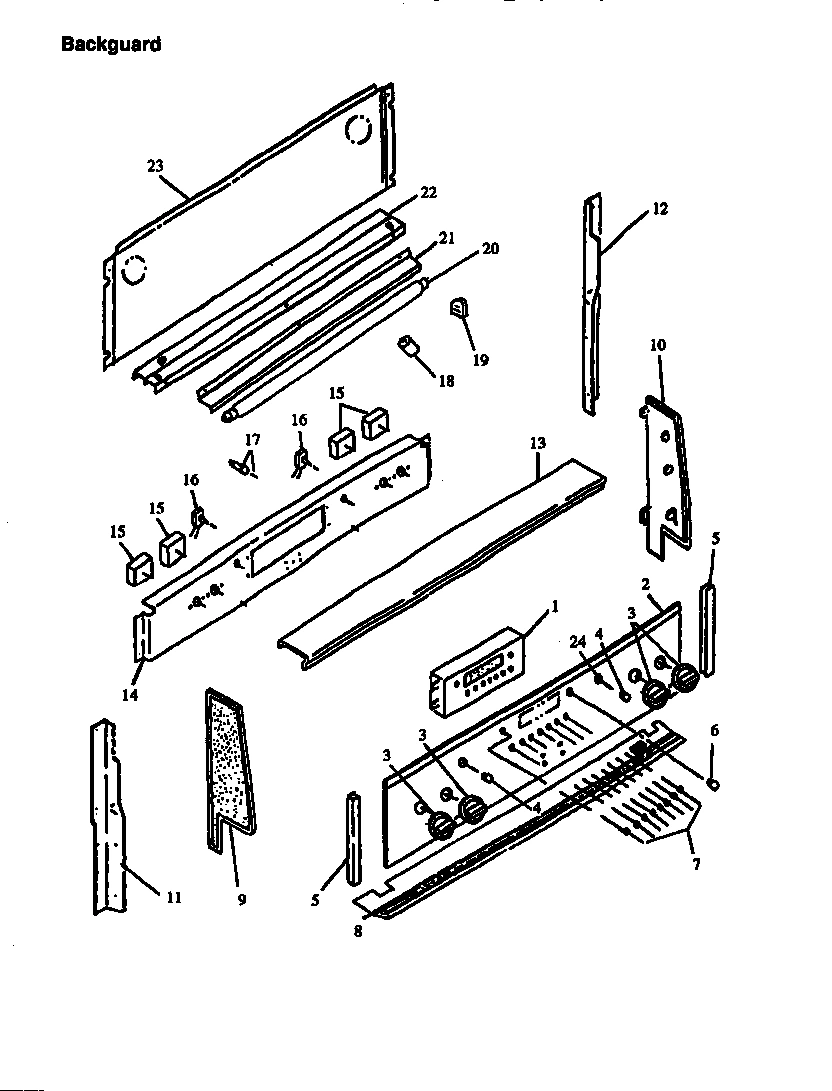

01 - BACKGUARD

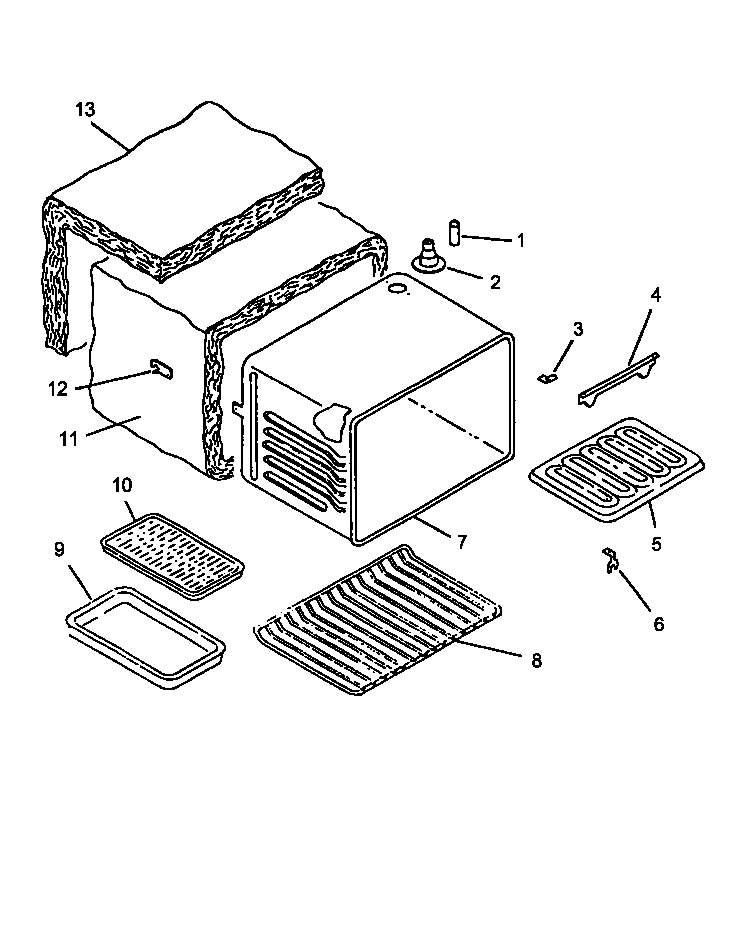

03 - CAVITY

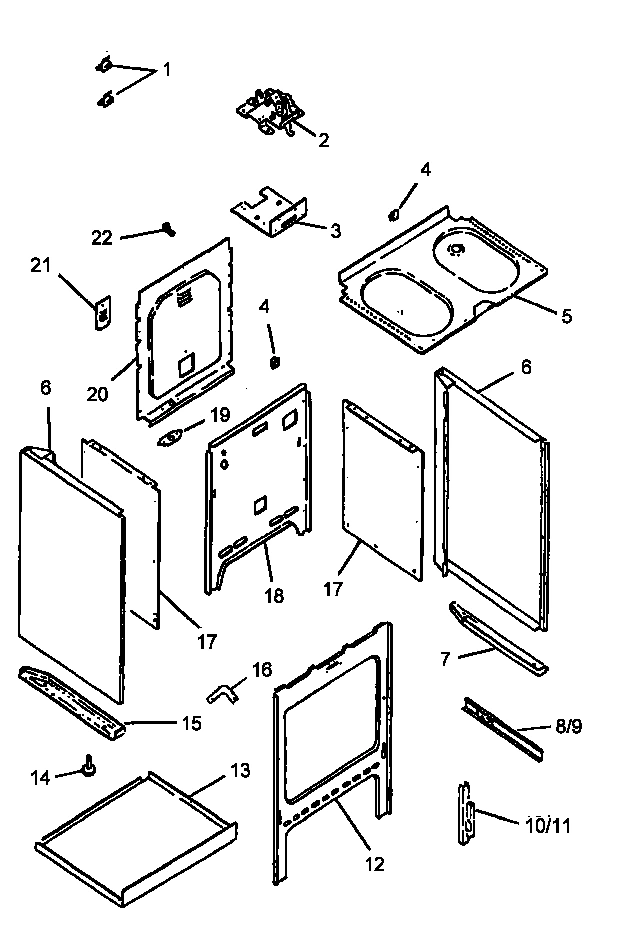

02 - CABINET

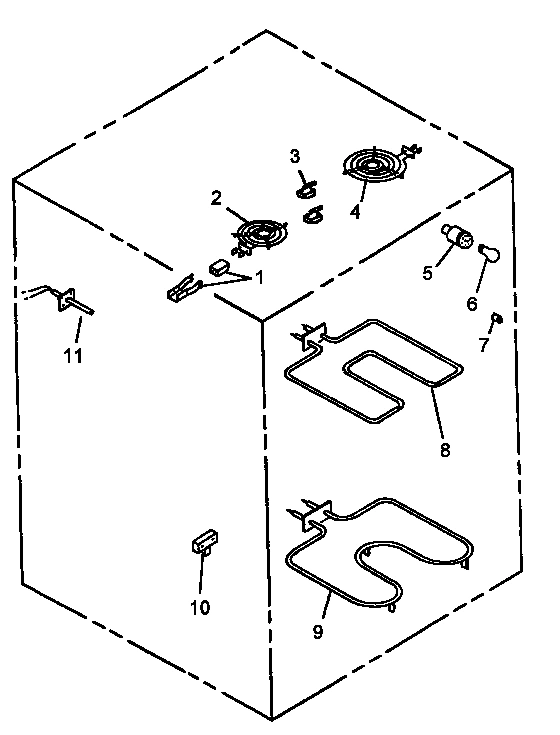

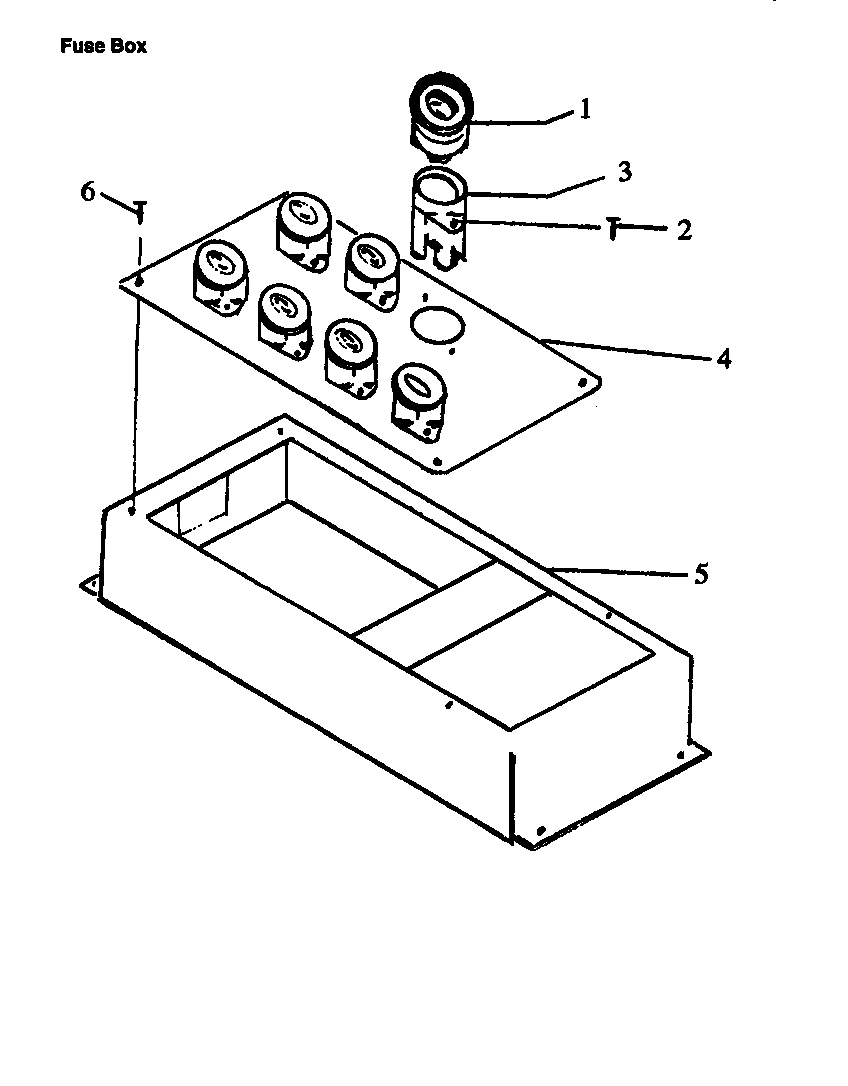

04 - ELECTRICAL COMPONENTS

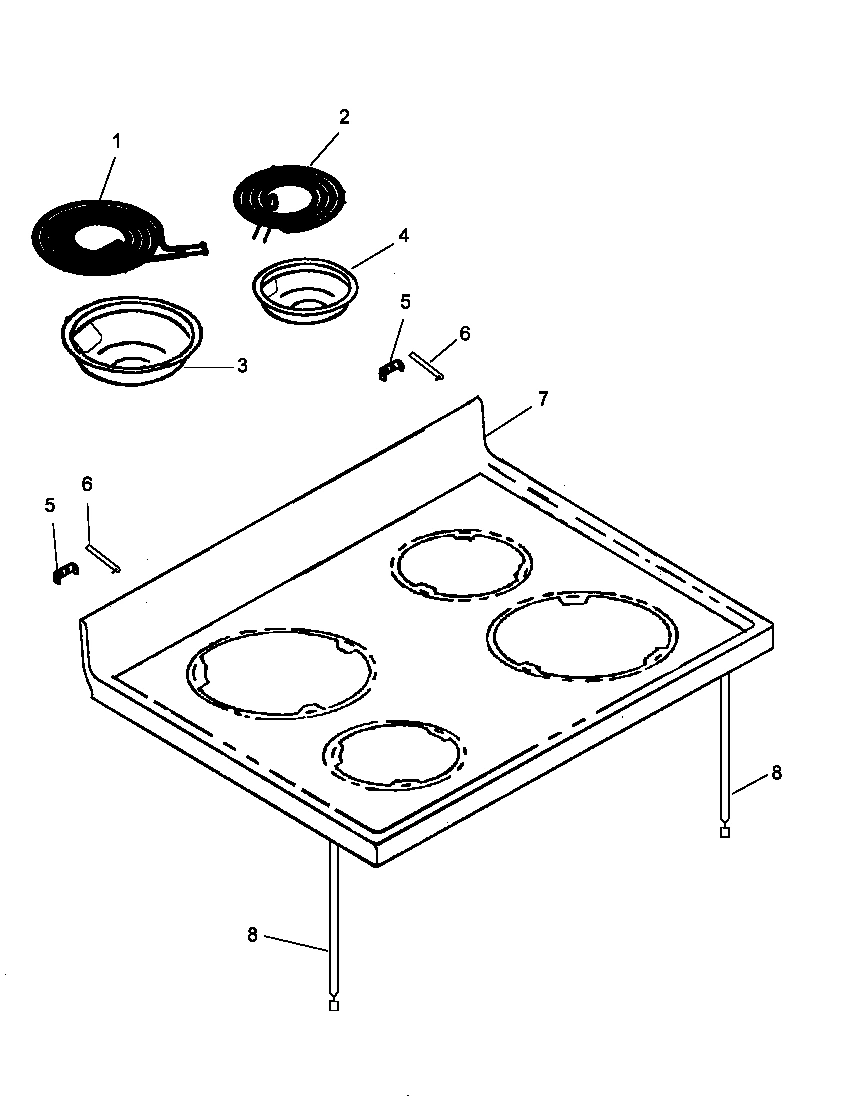

05 - MAIN TOP

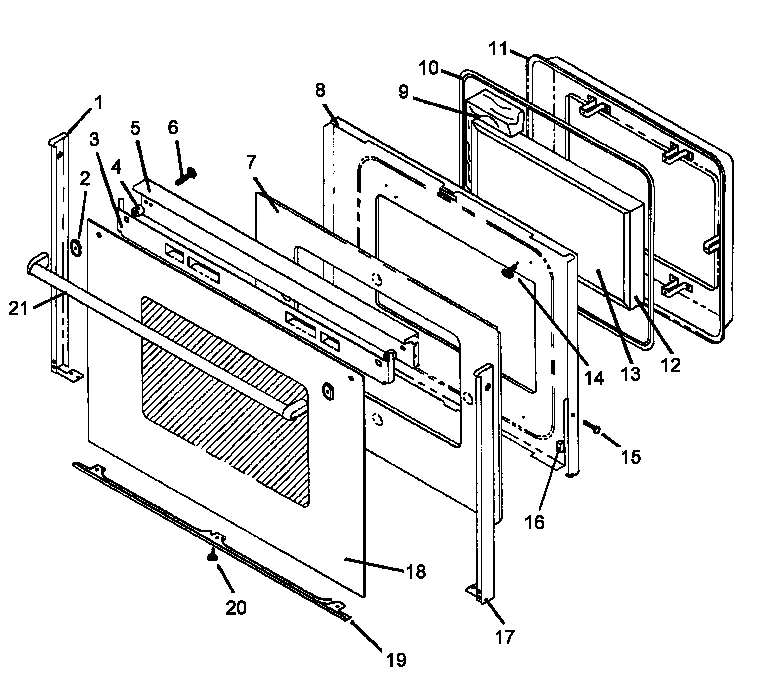

06 - OVEN DOOR

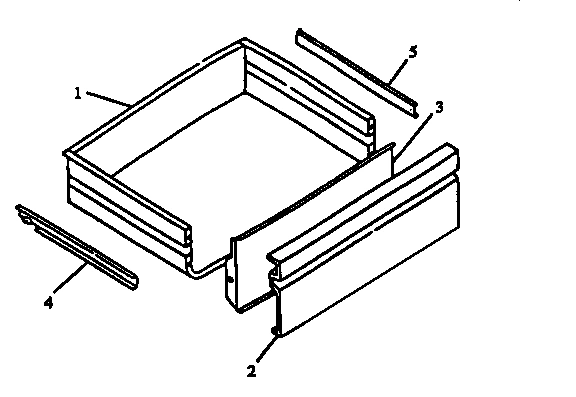

07 - STORAGE DRAWER
Common parts from model Whirlpool CARR630W ELECTRIC RANGE
1
TUBE, VENT EXT. WPL 0063336 Contact Us For Availability
1
END CAP, LT (BLK) WPL 309458B Contact Us For Availability
1
WRAPPER, STOR DRAWER WPL 306519W Contact Us For Availability
2
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
2
LATCH, OVEN DOOR WPL Y0309430 Contact Us For Availability
2
SPACER, HANDLE (BLK) WPL 309882B Contact Us For Availability
2
PANEL, DRAWER (WHT) WPL 309177W Contact Us For Availability
3
COVER, CHIP WPL Y0315022 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL Y0314277 Contact Us For Availability
3
BRKT, LATCH MTG WPL Y0316243 Contact Us For Availability
3
ASSY, GLASS HEAT SHIELD WPL 317079B Contact Us For Availability
3
LINER, DRAWER PANEL (BLK) WPL 309179B Contact Us For Availability
4
KNOB, LIGHT SWITCH (BLK) WPL 306674B Contact Us For Availability
4
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
4
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
4
RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability
5
CHANNEL GLASS (BLK) WPL 0305309 Contact Us For Availability
5
REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability
5
BAFFLE, DRIP (ENAMEL) WPL 309429CG Contact Us For Availability
5
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
5
TRIM, UPPER DOOR WPL 31782202B Contact Us For Availability
5
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
6
KNOB, CLOCK (BLACK) WPL 308385B Contact Us For Availability
6
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
6
PANEL, SIDE (WHT) WPL 317036W Contact Us For Availability
6
BULB, LIGHT WPL Y0042175 Contact Us For Availability
6
HINGE, STRAP WPL 0314373 Contact Us For Availability
6
SCREW, No.10-24X11/4 (TRS PH HD) WPL 31750516 Contact Us For Availability
7
BUTTON, ERC (BLK) WPL 309887B Contact Us For Availability
7
OVEN SHELL (EL. W/LT) WPL 58788CG Contact Us For Availability
7
BRACE, LEVELING LEG (RT) WPL 314885B Contact Us For Availability
7
SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability
7
MAIN TOP-ELECTRIC UPSWEPT WPL 306899W Contact Us For Availability
7
SHIELD, HEAT WPL Y0309068 Contact Us For Availability
8
TRIM, LOWER BKGD (BLK) WPL 314603B Contact Us For Availability
8
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
8
SUPPORT, MAINTOP WPL Y0315430 Contact Us For Availability
8
BACKER, OVEN DOOR (ELEC) WPL 317028CG Contact Us For Availability
9
END CAPS, BKGD LH WPL 306396B Contact Us For Availability
9
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
9
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
10
END CAPS, BKGD RH WPL 306397B Contact Us For Availability
10
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
10
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
11
SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability
11
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
11
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
11
PAD, OVEN DOOR WPL 317021CG Contact Us For Availability
12
SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability
12
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
12
FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability
13
TRIM, TOP BACKGUARD (BLK) WPL 304955B Contact Us For Availability
13
INSULATION, REAR WPL Y0300974 Contact Us For Availability
13
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
13
GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability
14
PANEL, CONTROL WPL Y0309723 Contact Us For Availability
14
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
14
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
15
BRACE, LEVELING LEG (LT) WPL 314884B Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
16
SWITCH, OVEN LIGHT, ROTARY WPL Y0306673 Contact Us For Availability
16
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
17
LIGHT, INDICATOR (RED) WPL Y0305660 Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
17
END CAP, RT (BLK) WPL 309457B Contact Us For Availability
18
RETAINER, REAR (ELEC) WPL Y0316960 Contact Us For Availability
18
PANEL, GLASS OVEN DOOR (BLK) WPL 314818B Contact Us For Availability
19
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
19
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
20
COVER, REAR WPL Y0307342 Contact Us For Availability
20
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
21
SHIELD, LIGHT (BLK) WPL 314934B Contact Us For Availability
21
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
21
HANDLE, OVEN DOOR (BLK) WPL 309624B Contact Us For Availability
22
BRACKET, LIGHT WPL 307211B Contact Us For Availability
22
WIRE CLIP WPL Y0041875 Contact Us For Availability
23
COVER, BACKGUARD WPL 0309137 Contact Us For Availability
NI
PIN, ACTUATOR WPL 0309888 Contact Us For Availability
NI
NUT, HEX 3/8-27 WPL 31750111 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD WPL 31750309 Contact Us For Availability
NI
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
NI
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
NI
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
NI
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
NI
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
NI
CORD, POWER WPL Y0308896 Contact Us For Availability
NI
CONNECTOR, CONDUIT WPL Y0309078 Contact Us For Availability
NI
SUB 71668 PIN WPL 0091607 Contact Us For Availability
NI
CLIP, ELEMENT RETAINER WPL Y0307930 Contact Us For Availability
NI
CHANNEL, DOOR SUPPORT WPL 0065790 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
RIVET, POP WPL Y0097822 Contact Us For Availability
× ![]()
