Model Whirlpool CARR589L ELECTRIC RANGE – Common Parts & Diagrams

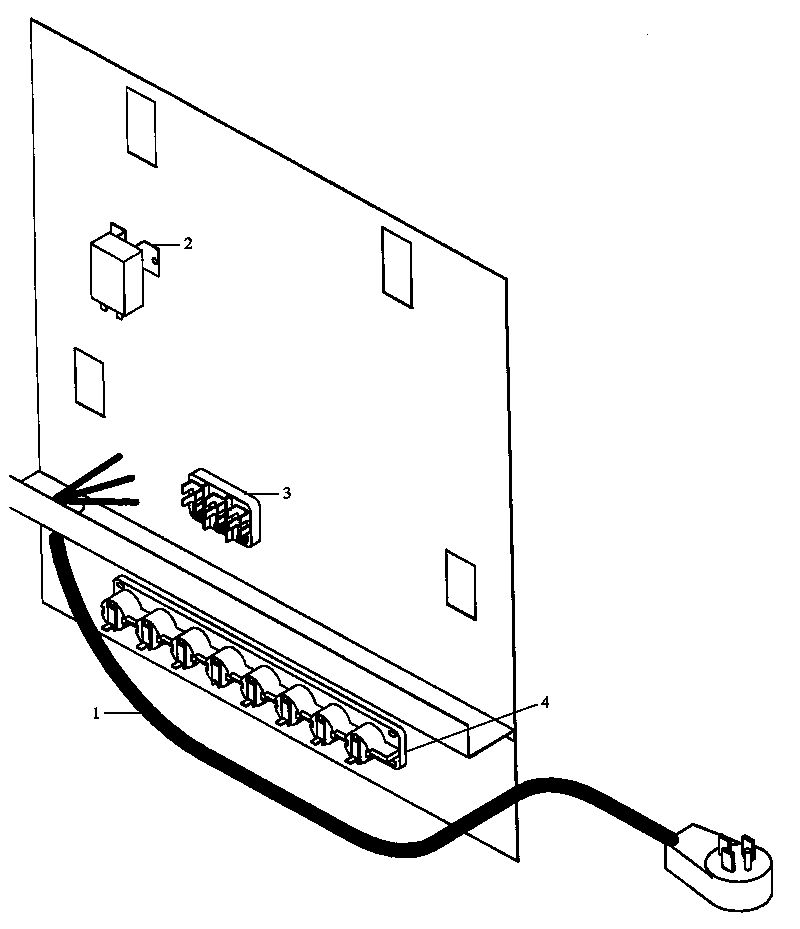

04 - FUSE BOX

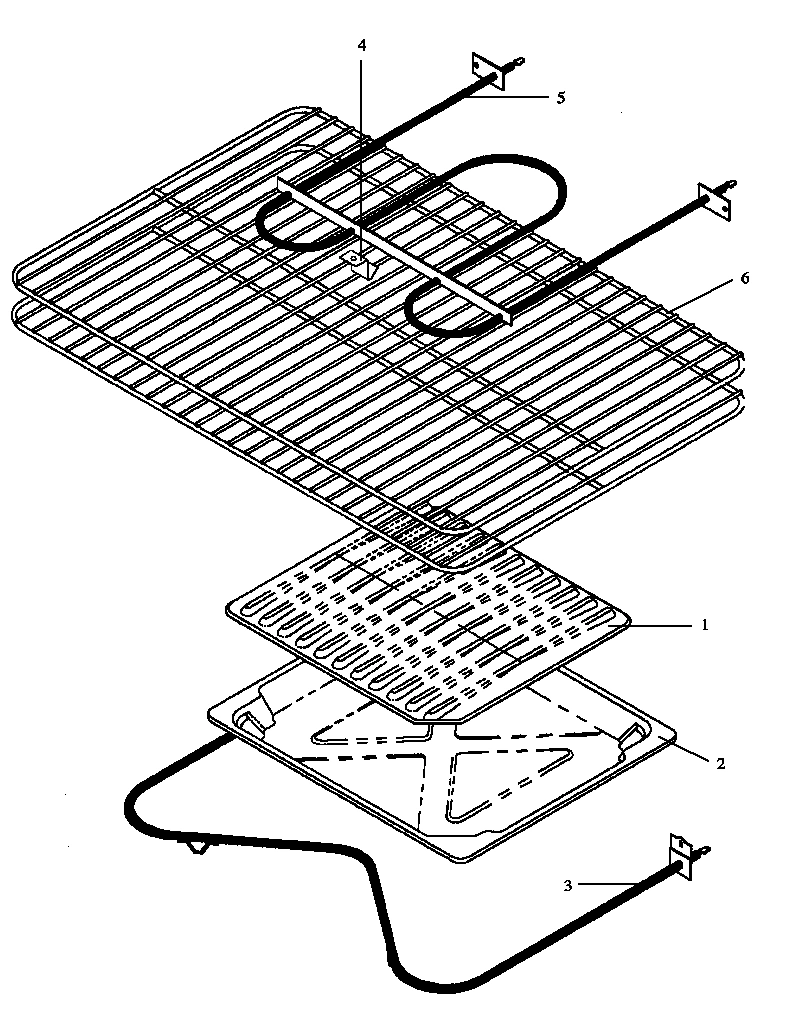

06 - OVEN COMPONENTS
05 - MAIN TOP ASSY

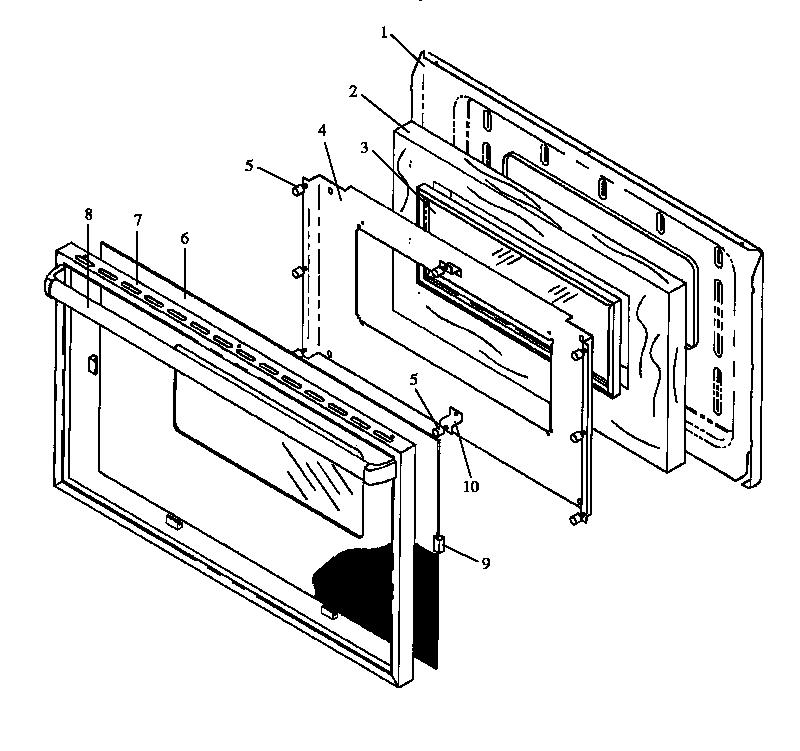

07 - OVEN DOOR ASSY
01 - BACKGUARD ASSY
03 - FIXED PANEL & STORAGE DRAWER ASSY
02 - CABINET SECTION
Common parts from model Whirlpool CARR589L ELECTRIC RANGE
1
SUPPLY CORD WPL 0310685 Contact Us For Availability
1
MAIN TOP-ELECTRIC UPSWEPT WPL 306899L Contact Us For Availability
1
DOOR, OVEN WPL Y06565300E Contact Us For Availability
1
CLOCK (BLACK) WPL Y07707900 Contact Us For Availability
1
STORAGE DRAWER WPL Y0310537 Contact Us For Availability
1
SIDE, BODY (ALMOND) WPL 06559000L Contact Us For Availability
2
THERMOSTAT, FIXED WPL Y07627601 Contact Us For Availability
2
PAN, BROILER WPL 87722CG Contact Us For Availability
2
INSULATION WPL Y07667000 Contact Us For Availability
2
LIGHT, INDICATOR (OVEN) WPL Y07606700 Contact Us For Availability
2
DRAWER, STORAGE (ALMOND) WPL Y06564700L Contact Us For Availability
3
WINDOW, OV.DR.(2)PANE WPL Y0088647 Contact Us For Availability
3
THERMOSTAT WPL 07705800 Contact Us For Availability
3
HANDLE (ALMOND) WPL 07707201 Contact Us For Availability
3
HANDLE- DR, INSERT (WHITE) WPL Y07707200 Contact Us For Availability
3
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
4
FUSE BLOCK, 7 BANK WPL 0310666 Contact Us For Availability
4
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
4
ELEMENT, 6``1250W. 4 TURN WPL Y07683200 Contact Us For Availability
4
BAFFLE, OVEN DOOR WPL 06511800 Contact Us For Availability
4
SWITCH, INFINITE WPL 0057312 Contact Us For Availability
4
TRACK, UPPER L.H. (ELEC) WPL 0310518 Contact Us For Availability
4
TRACK, UPPER R.H. (ELEC) WPL 0310519 Contact Us For Availability
4
RAIL, BASE WPL 06555001 Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
5
LIGHT, INDICATOR WPL Y07606704 Contact Us For Availability
5
TRACK, LOWER L.H. WPL 0310522 Contact Us For Availability
5
TRACK, LOWER R.H. WPL Y0310523 Contact Us For Availability
5
KIT, ANTI-TIP WPL 07687600 Contact Us For Availability
6
RACK, OVEN, 30`` WPL Y0312237 Contact Us For Availability
6
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
6
GLASS, DOOR (BLACK) WPL Y07707600 Contact Us For Availability
6
GLIDE, DRAWER (WHT) WPL Y07674900 Contact Us For Availability
6
SUPPORT, OVEN BOTTOM INSUL. WPL Y0088820 Contact Us For Availability
7
HINGE ARM, LH WPL 07712800 Contact Us For Availability
7
HINGE ARM, LEFT HAND WPL 07712801 Contact Us For Availability
7
FRAME, DOOR (BLACK) WPL 07708000 Contact Us For Availability
7
PANEL, BKGD-AMANA WPL 07708903 Contact Us For Availability
7
SEE NOTE ROLLER AND RIVET - PART OF REF. NO. WPL Y00000000 Contact Us For Availability
7
HINGE, OVEN DOOR WPL 0311802 Contact Us For Availability
8
BRACKET, HINGE WPL 06565500 Contact Us For Availability
8
HANDLE, DOOR (BLACK) WPL Y07708100 Contact Us For Availability
8
END CAP, L H (BLACK) WPL Y07709101 Contact Us For Availability
8
SHIELD, INSULATION {J} WPL 0310053 Contact Us For Availability
9
BUMPER ``L`` SHAPED WPL Y0312836 Contact Us For Availability
9
END CAP, R H (BLACK) WPL Y07709100 Contact Us For Availability
9
FRAME, FRONT, BLACK WPL Y0770800 Contact Us For Availability
10
SCREW, STUD WPL Y0310036 Contact Us For Availability
10
BRACKET, BUMPER MOUNT {J} WPL Y0311752 Contact Us For Availability
10
KNOB, INFINITE SWITCH WPL Y07714701 Contact Us For Availability
10
TOE PANEL (J) WPL 0052744 Contact Us For Availability
11
KNOB THERMOSTAT WPL Y07714700 Contact Us For Availability
11
SEAL, OVEN DOOR WPL Y0311770 Contact Us For Availability
12
SWITCH, ROCKER WPL Y07634800 Contact Us For Availability
12
TOP, OVEN LINER WPL Y06470002E Contact Us For Availability
13
TIM, LOWER BKGD (BLACK) WPL Y06559100B Contact Us For Availability
13
LINER,OVEN SIDE WPL 0311807 Contact Us For Availability
14
LINER, OVEN BOTTOM WPL 88898CG Contact Us For Availability
15
CLIP, SPEED (DOZ) {J} WPL 0310033 Contact Us For Availability
16
CAGE, OVEN LIGHT WPL Y0088635 Contact Us For Availability
17
BULB, LIGHT WPL Y0042175 Contact Us For Availability
18
SOCKET, OVEN LIGHT WPL Y0310813 Contact Us For Availability
19
LINER, OVEN BACK WPL 88893CG Contact Us For Availability
20
BACK, MAIN WPL Y06478802 Contact Us For Availability
21
EXTENSION, MAIN BACK WPL 0311757 Contact Us For Availability
22
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
23
BOX, BURNER ELEC WPL 06559700 Contact Us For Availability
24
SUPPORT ROD WPL 07712200 Contact Us For Availability
25
SUPPORT ROD WPL 07712100 Contact Us For Availability
26
SHOULDER SCREW WPL 0088779 Contact Us For Availability
27
EXTENSION, BURNER BOX WPL Y0312152 Contact Us For Availability
28
TUBE, VENT WPL Y0311771 Contact Us For Availability
29
COVER, BKGD REAR 11`` WPL Y06559601 Contact Us For Availability
30
SUPT. MAIN BACK (VERT) WPL Y06565600 Contact Us For Availability
31
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
32
COVER, WIRE WPL Y06434908 Contact Us For Availability
33
TERM BLK 1M-MIN WPL 0310665 Contact Us For Availability
NI
FUSE 30 AMP WPL 0310669 Contact Us For Availability
NI
FUSE 15 AMP WPL Y0310667 Contact Us For Availability
NI
FUSE 20 AMP WPL Y0310668 Contact Us For Availability
NI
SCR- WPL 0310820 Contact Us For Availability
NI
SCREW No.10X1/2 BLUNT WPL Y0310363 Contact Us For Availability
NI
SCREW CAD PLATE No.6 X 3/8`` WPL Y0310409 Contact Us For Availability
NI
SCREW, No.10-12 X 50 WPL Y0311900 Contact Us For Availability
NI
SCREW No.10 X 1/2`` WPL Y07691400 Contact Us For Availability
NI
SCREW WPL 0055047 Contact Us For Availability
NI
SCREW, INFINITE, SWITCH MTG. WPL 0311874 Contact Us For Availability
NI
SCREW, No.10 X 3/8`` WPL Y07712300 Contact Us For Availability
NI
SCREW, No.10 X3/8`` (BLACK) WPL Y07712301 Contact Us For Availability
NI
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
NI
GLIDE, DRAWER (WHT) WPL Y0311078 Contact Us For Availability
NI
SCREW (J) WPL 0310233 Contact Us For Availability
NI
SCREW {J} WPL Y0056088 Contact Us For Availability
NI
SUPPORT GLASS WPL Y0310407 Contact Us For Availability
× ![]()
