Model Whirlpool CARC700WW ELECTRIC RANGE – Common Parts & Diagrams

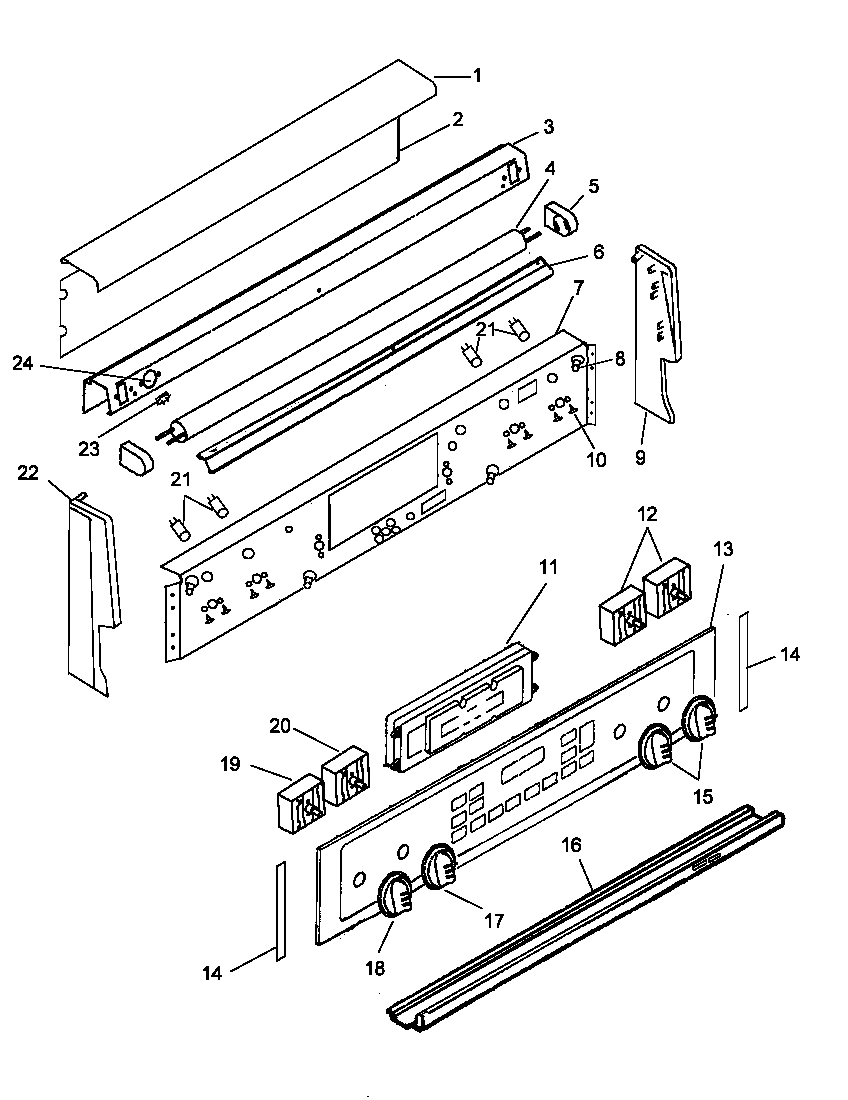

01 - BACKGUARD ASSY

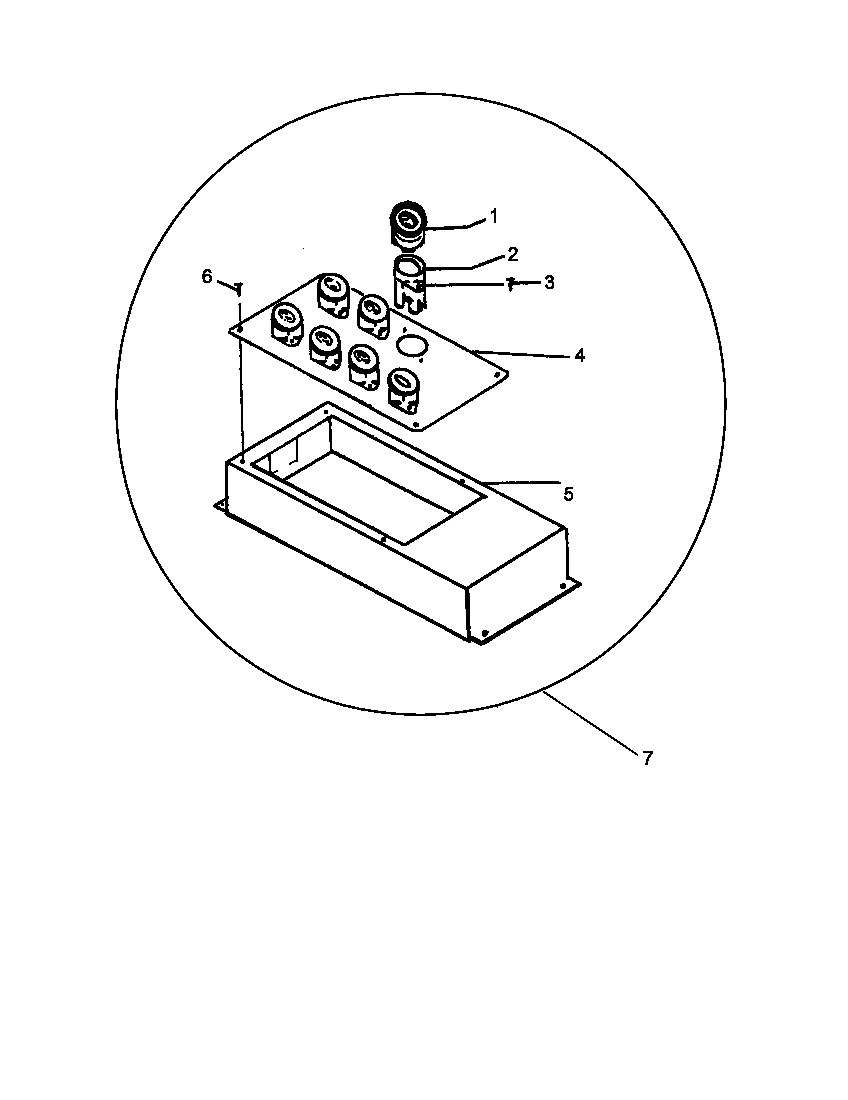

04 - FUSE BOX ASSY

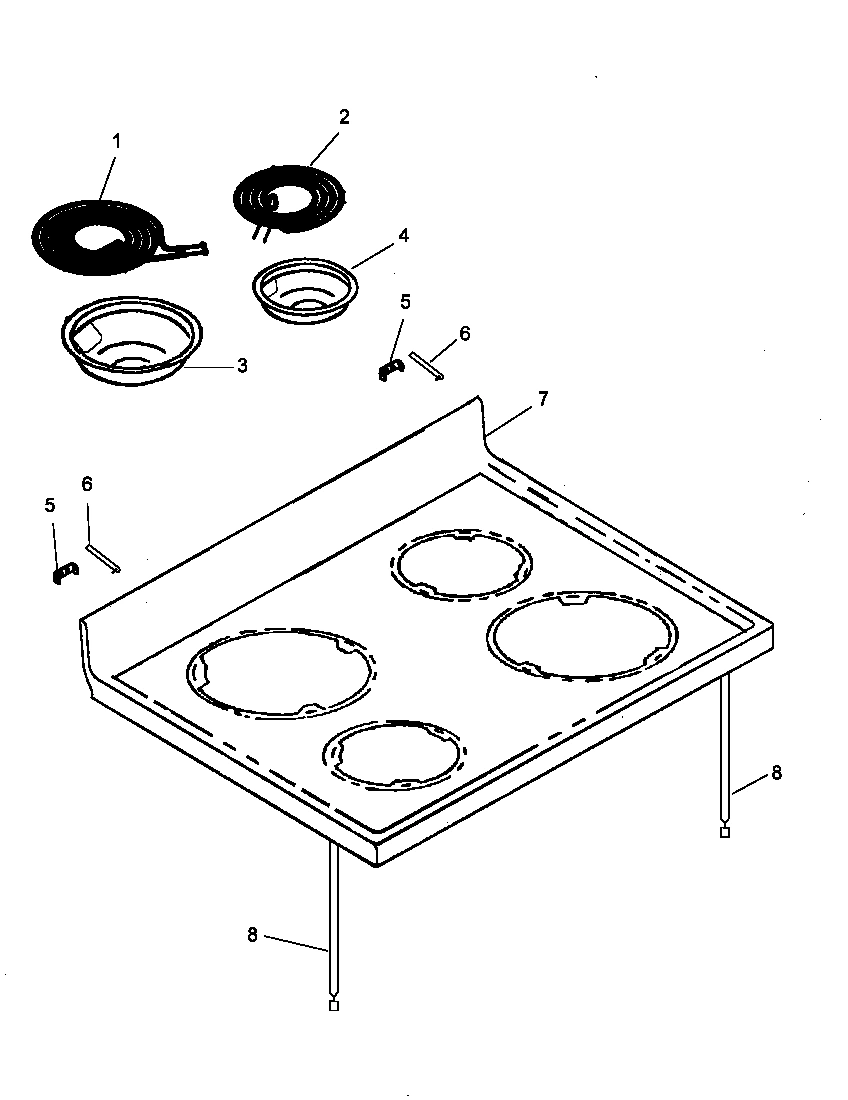

05 - MAIN TOP ASSY (ROUGHTOP, SEE NOTE)

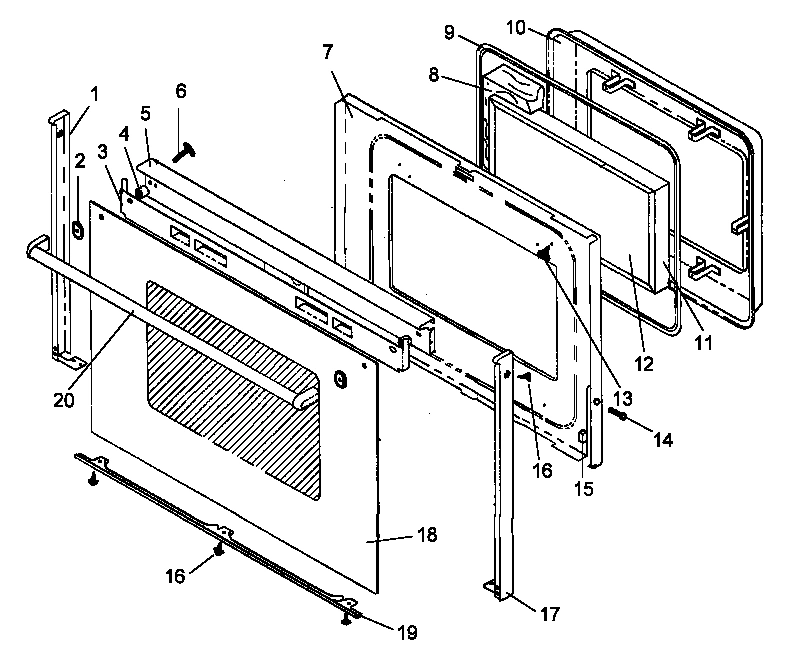

07 - OVEN DOOR ASSY

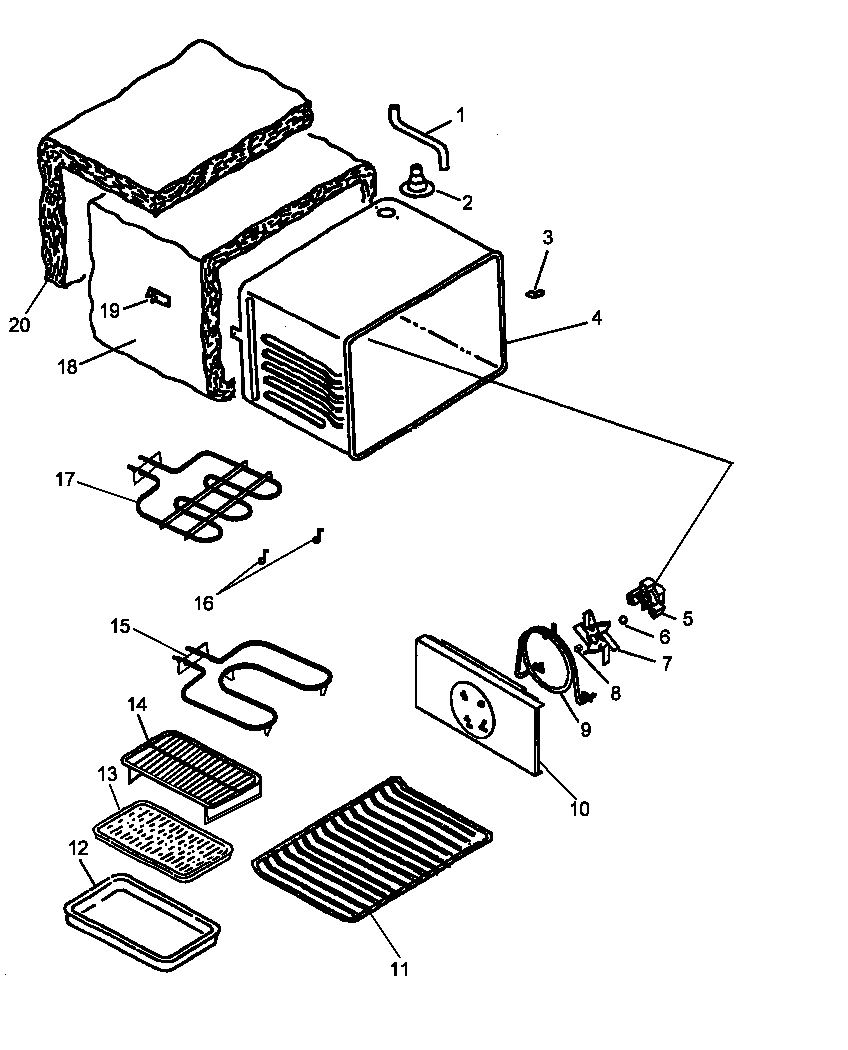

02 - CABINET ASSY

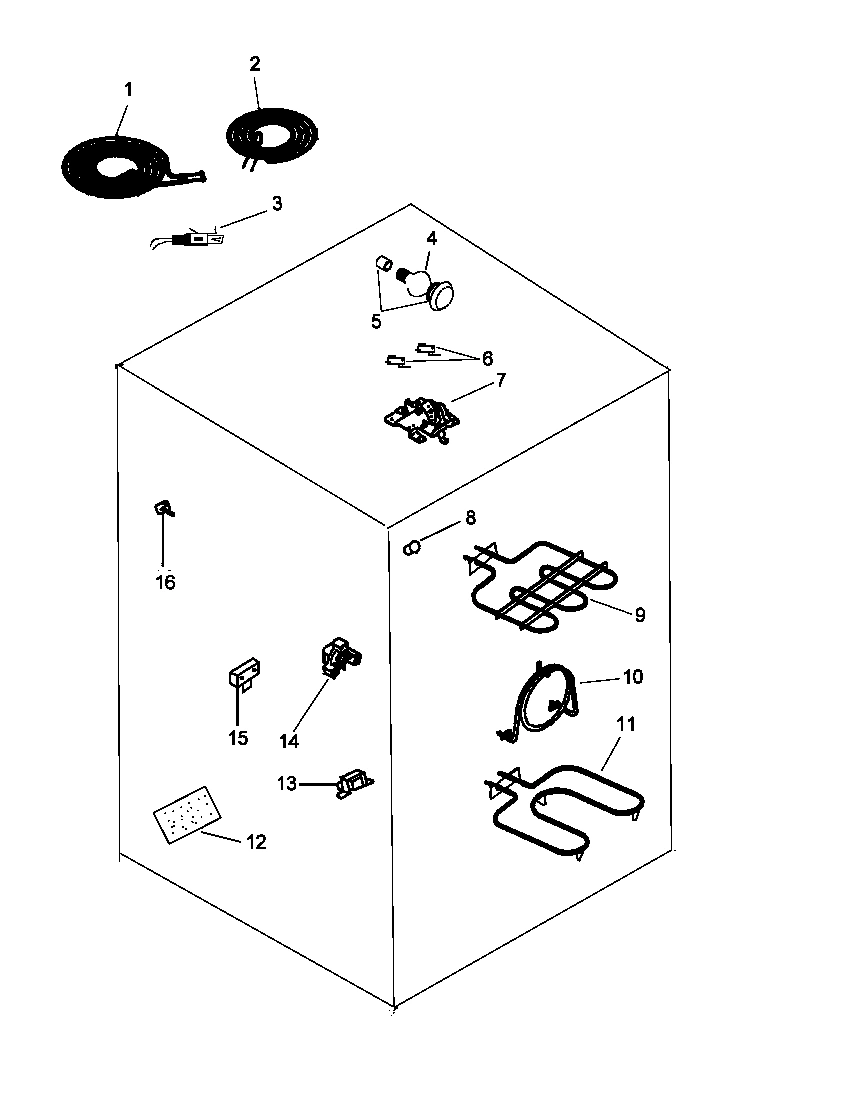

03 - ELECTRICAL COMPONENTS

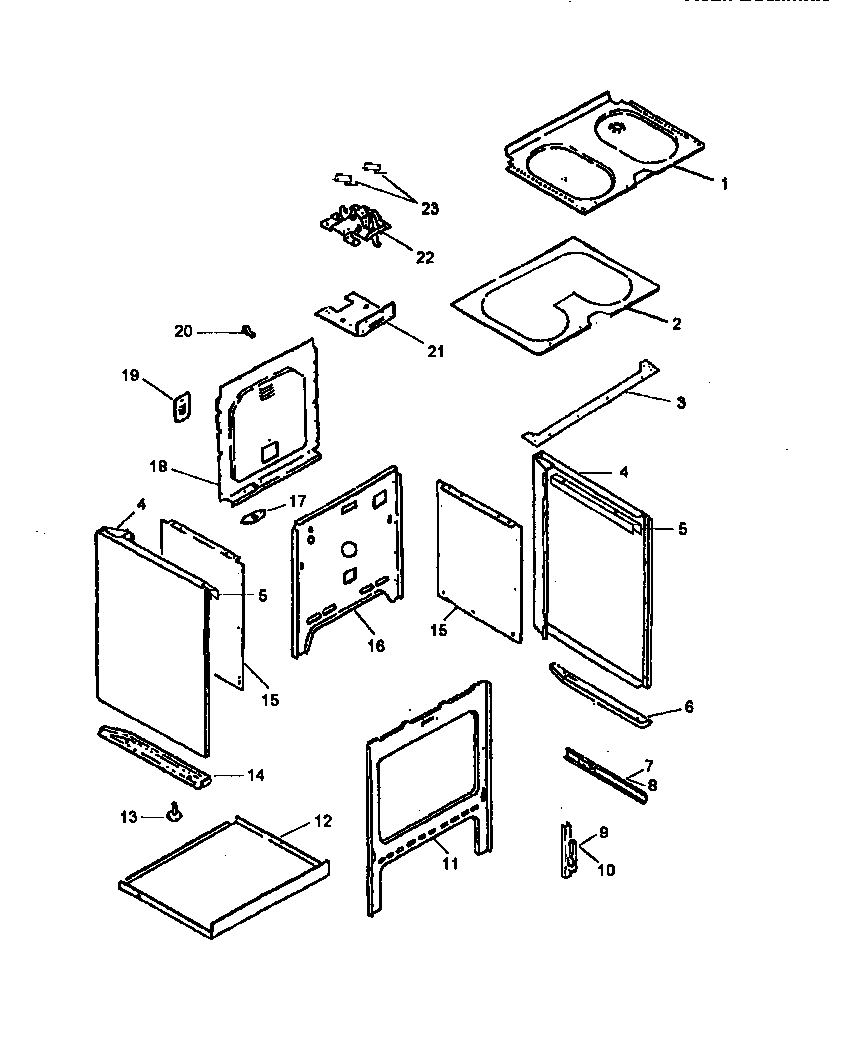

06 - OVEN ASSY

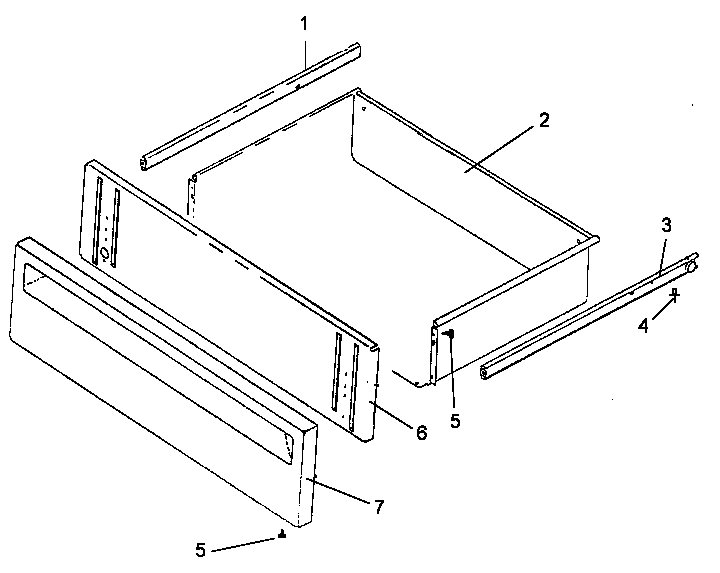

08 - STORAGE DRAWER ASSY
Common parts from model Whirlpool CARC700WW ELECTRIC RANGE
1
FUSE 30 AMP WPL 0042188 Contact Us For Availability
1
FUSE 15 AMP WPL Y0042177 Contact Us For Availability
1
FUSE 20 AMP WPL Y0042189 Contact Us For Availability
1
END CAP, LT (WHT) WPL 309458W Contact Us For Availability
1
TUBE, VENT EXT. WPL 0063336 Contact Us For Availability
1
BAFFLE, DRIP (ENAMEL) WPL 309429CG Contact Us For Availability
1
RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability
2
COVER, BACKGUARD WPL 0309137 Contact Us For Availability
2
FUSE HOLDER STD BASE WPL Y0042187 Contact Us For Availability
2
SPACER, HANDLE (WHT) WPL 309882W Contact Us For Availability
2
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
2
RETAINER, TOP INSULATION WPL Y0309773 Contact Us For Availability
2
WRAPPER, STOR DRAWER WPL 306519W Contact Us For Availability
3
BRACKET, LIGHT WPL 307211B Contact Us For Availability
3
TAPNG SCREW 6 32X1/2 PH P HD WPL 0041786 Contact Us For Availability
3
ASSY, GLASS HEAT SHIELD (WHT) WPL 309642W Contact Us For Availability
3
COVER, CHIP WPL Y0315022 Contact Us For Availability
3
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
4
PLATE, FUSE WPL 0053569 Contact Us For Availability
4
BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability
4
OVEN, CAVITY (ENAMELLED) WPL 309775CG Contact Us For Availability
4
BULB, LIGHT WPL Y0042175 Contact Us For Availability
4
PANEL, SIDE (WHT) WPL 306081W Contact Us For Availability
4
RIVET, POP WPL Y0097822 Contact Us For Availability
5
LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability
5
BOX, FUSE WPL Y0308744 Contact Us For Availability
5
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
5
TRIM, DOOR TOP (WHT) WPL 309456W Contact Us For Availability
6
LIGHT DIFFUSER BACKGUARD-CLEAR WPL 0304977 Contact Us For Availability
6
LIGHT SHIELD, WHITE WPL Y314934W Contact Us For Availability
6
SCREW, No.8-32 X 5/16 PPH (BLK) WPL Y0041789 Contact Us For Availability
6
HINGE, STRAP WPL 0314373 Contact Us For Availability
6
SCREW, No.10-24X11/4 (TRS PH HD) WPL Y0309973 Contact Us For Availability
6
WASHER (ZN) WPL 0307038 Contact Us For Availability
6
BRACE, LEVELING LEG (RT) WPL 314885B Contact Us For Availability
6
LINER, DRAWER PANEL (WHT) WPL 309179W Contact Us For Availability
7
PANEL, BKGD CONTROL WPL 0314556 Contact Us For Availability
7
ASS`Y, FUSE BOX WPL Y0308745 Contact Us For Availability
7
MAIN TOP-ELECTRIC UPSWEPT WPL 306899W Contact Us For Availability
7
LINER, OVEN DOOR (ELEC) WPL 314563CG Contact Us For Availability
7
BLADE, FAN WPL Y0307036 Contact Us For Availability
7
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
7
PANEL, DRAWER (WHT) WPL 309177W Contact Us For Availability
8
BUMPER, RUBBER WPL Y0314643 Contact Us For Availability
8
SUPPORT, MAINTOP WPL Y0304115 Contact Us For Availability
8
INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability
8
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
8
SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability
8
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
9
END CAP-BKGD LT/RT (WHT) WPL 304930W Contact Us For Availability
9
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
9
ELEMENT, BROIL (240V-3000W) WPL Y0060241 Contact Us For Availability
9
KIT, DOOR HINGE(LH-HS) WPL Y0314572 Contact Us For Availability
10
PAD, OVEN DOOR WPL 309781CG Contact Us For Availability
10
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
10
COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability
10
KIT, DOOR HINGE(RH-SS) WPL Y0314575 Contact Us For Availability
11
ERC CONV, MEMBRANE WPL Y0315087 Contact Us For Availability
11
FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability
11
RACK, OVEN WPL 309988J Contact Us For Availability
11
SEE NOTE FRONT FRAME-S/C W/LIGHT SWITCH, NOT WPL Y00000000 Contact Us For Availability
12
GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability
12
CIRCUIT BOARD, ERC WPL Y0309305 Contact Us For Availability
12
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
13
CONT.,MYLAR TOUCH (WHITE) WPL 314476W Contact Us For Availability
13
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
13
RACK, BROILER WPL Y0306531 Contact Us For Availability
13
BALLAST WPL Y0071869 Contact Us For Availability
13
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
14
CHANNEL, GLASS MYLAR WPL 314636W Contact Us For Availability
14
RIVET, POP WPL Y0302648 Contact Us For Availability
14
ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability
14
BRACE, LEVELING LEG (LT) WPL 314884B Contact Us For Availability
15
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
15
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
16
TRIM, LWR BKGD WPL 315313W Contact Us For Availability
16
SUPPORT WPL Y0091546 Contact Us For Availability
16
RETAINER, REAR INSUL. WPL 0309081 Contact Us For Availability
17
END CAP, RT (WHT) WPL 309457W Contact Us For Availability
17
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
18
KNOB, INF. SWITCH WPL 315122W Contact Us For Availability
18
GLASS, OUTER OVEN DOOR (WHT) WPL 309641W Contact Us For Availability
18
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
18
COVER, REAR WPL Y0307342 Contact Us For Availability
19
SUPPORT, GLASS (WHT) WPL 309460W Contact Us For Availability
19
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
19
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
20
HANDLE, OVEN DOOR (WHT) WPL 309624W Contact Us For Availability
20
INSULATION, REAR WPL Y0300974 Contact Us For Availability
20
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
21
INDICATOR LIGHT WPL Y0071820 Contact Us For Availability
21
BRACKET, LATCH MTG. WPL Y0309428 Contact Us For Availability
22
END CAP-BKGD LT/RT (WHT) WPL 304929W Contact Us For Availability
22
LATCH, OVEN DOOR WPL Y0309430 Contact Us For Availability
23
STARTER, FLOURESCENT WPL 0071920 Contact Us For Availability
23
SWITCH, DOOR LATCH WPL Y0314277 Contact Us For Availability
24
START HOLDR-FLOUR.LMP WPL Y0304560 Contact Us For Availability
NI
SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability
NI
SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability
NI
SCREW 23 6X5/16 PH HD WPL Y0075316 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PANHD(BLK) WPL Y0092373 Contact Us For Availability
NI
COLLAR, STARTER SOCKET WPL Y0305391 Contact Us For Availability
NI
FUSE PLUG, RESTRICTER WPL Y0042224 Contact Us For Availability
NI
CORD, POWER WPL Y0308896 Contact Us For Availability
NI
CONNECTOR, CONDUIT WPL Y0309078 Contact Us For Availability
NI
SUB 71668 PIN WPL 0091607 Contact Us For Availability
NI
SCREW, No.8-18 X 7/8 PPH WPL Y0076035 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
LABEL, CLEANING WPL Y0308806 Contact Us For Availability
NI
HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability
NI
SCREW, GROUNDING WPL Y0072270 Contact Us For Availability
NI
SUPPORT-CIRCUIT BOARD WPL Y0306900 Contact Us For Availability
NI
HARNESS, WIRING WPL Y0314520 Contact Us For Availability
NI
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
NI
BRACKET WPL Y0301028 Contact Us For Availability
NI
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
× ![]()
