Model Whirlpool CAH12WRK0 AIR CONDITIONER – Common Parts & Diagrams
04 - OPTIONAL
02 - AIR FLOW AND CONTROL

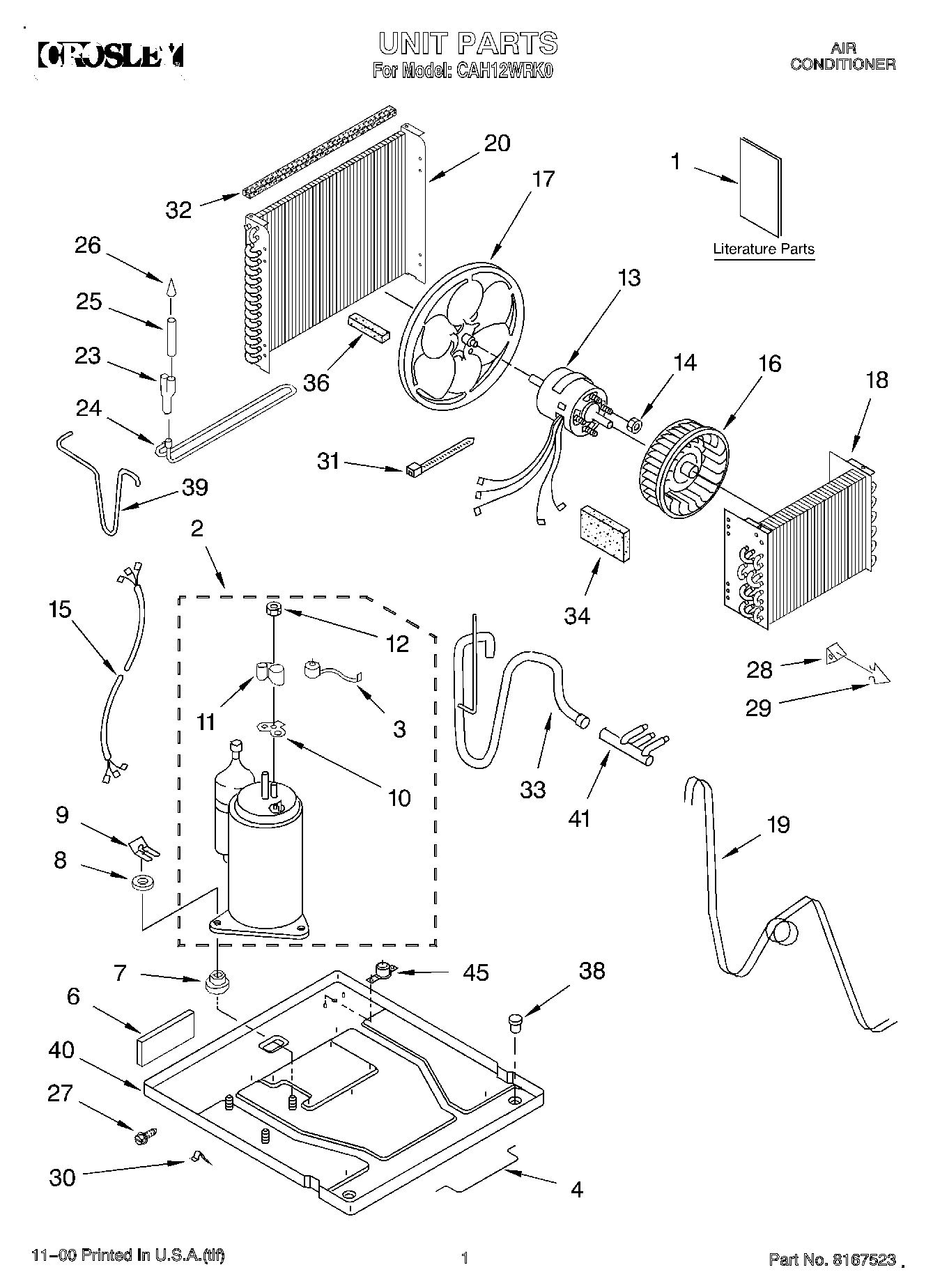

01 - UNIT, LITERATURE

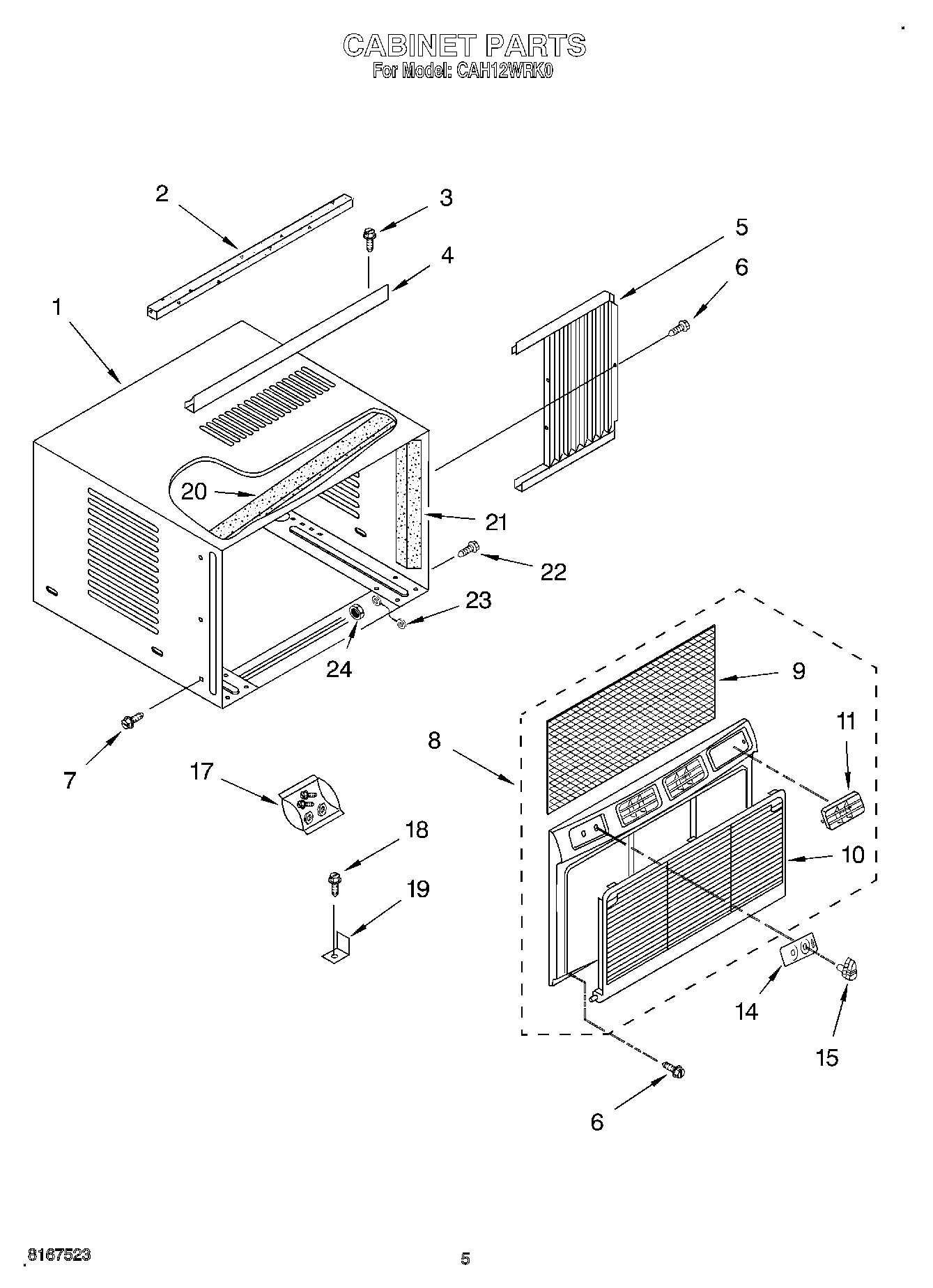

03 - CABINET
Common parts from model Whirlpool CAH12WRK0 AIR CONDITIONER
1
Use & Care Guide WPL LIT1184506 Contact Us For Availability
1
Energy Guide WPL LIT1184798 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT8011286 Contact Us For Availability
1
Cabinet WPL 8031388 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
2
Compressor WPL 1184477 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 1162590 Contact Us For Availability
3
Overload WPL 1184622 Contact Us For Availability
4
Bracket, Running Capacitor WPL 1167611 Contact Us For Availability
4
Handle, Base WPL 8031320 Contact Us For Availability
4
Channel, Top WPL 8031401 Contact Us For Availability
5
Curtain ((Right Side)) WPL 8031397 Contact Us For Availability
5
Curtain ((Left Side)) WPL 8031399 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Screw 8-18 x .375 WPL 1161561 Contact Us For Availability
6
Seal WPL 1162616 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
7
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
8
Washer, Nylon WPL 8011418 Contact Us For Availability
8
Front WPL 8031420 Contact Us For Availability
9
Housing, Air WPL 8031587 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Filter WPL 8031125 Contact Us For Availability
10
Shroud, Evaporator WPL 8031413 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1168449 Contact Us For Availability
10
Grille, Front WPL 8031297 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Door, Exhaust WPL 8011139 Contact Us For Availability
11
Cover, Terminal WPL 1182200 Contact Us For Availability
12
Screw, 8-18 x .437 WPL 8031309 Contact Us For Availability
12
Nut, Hex WPL 1168451 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
13
Motor, Fan WPL 1184497 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
14
Escutcheon WPL 1184592 Contact Us For Availability
15
Cover, Unit WPL 8031112 Contact Us For Availability
15
Wiring Harness, Compressor WPL 8031581 Contact Us For Availability
16
Wheel, Blower WPL 1163783 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Box, Control WPL 8031200 Contact Us For Availability
17
Accessory, Bag WPL 1157654 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
19
Panel, Control WPL 8031311 Contact Us For Availability
19
Tube, Restrictor WPL 1184498 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
20
Condenser WPL 1185015 Contact Us For Availability
20
Seal, Top Cover WPL 8031322 Contact Us For Availability
21
Harness, Heater Plug WPL 8031407 Contact Us For Availability
21
Seal, Cabinet Side (2) WPL 8031519 Contact Us For Availability
22
Switch, Rotary WPL 8031416 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Wire, Ground WPL 856094 Contact Us For Availability
24
Thermostat WPL 8011237 Contact Us For Availability
24
Tube, Wet Loop WPL 1185062 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950816 Contact Us For Availability
26
Cable, Appliance WPL 8031423 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
28
Anticipator, Temperature WPL 1166782 Contact Us For Availability
29
Fuse, Link WPL 4388359 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 642080 Contact Us For Availability
30
Limit, Switch WPL 4388361 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
31
Element, Heating WPL 8031410 Contact Us For Availability
32
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
32
Seal WPL 1181735 Contact Us For Availability
33
Heater, Harness Receptacle WPL 8031408 Contact Us For Availability
33
Tube, Suction WPL 1185169 Contact Us For Availability
34
Insulation, Suction Tube WPL 1165440 Contact Us For Availability
38
Cup, Condensate WPL 1184776 Contact Us For Availability
39
Tube, Discharge WPL 8031522 Contact Us For Availability
40
Base WPL 1185018 Contact Us For Availability
41
Tube, Flow Divider WPL 8031259 Contact Us For Availability
45
Valve, Condensate WPL 998612 Contact Us For Availability
× ![]()
