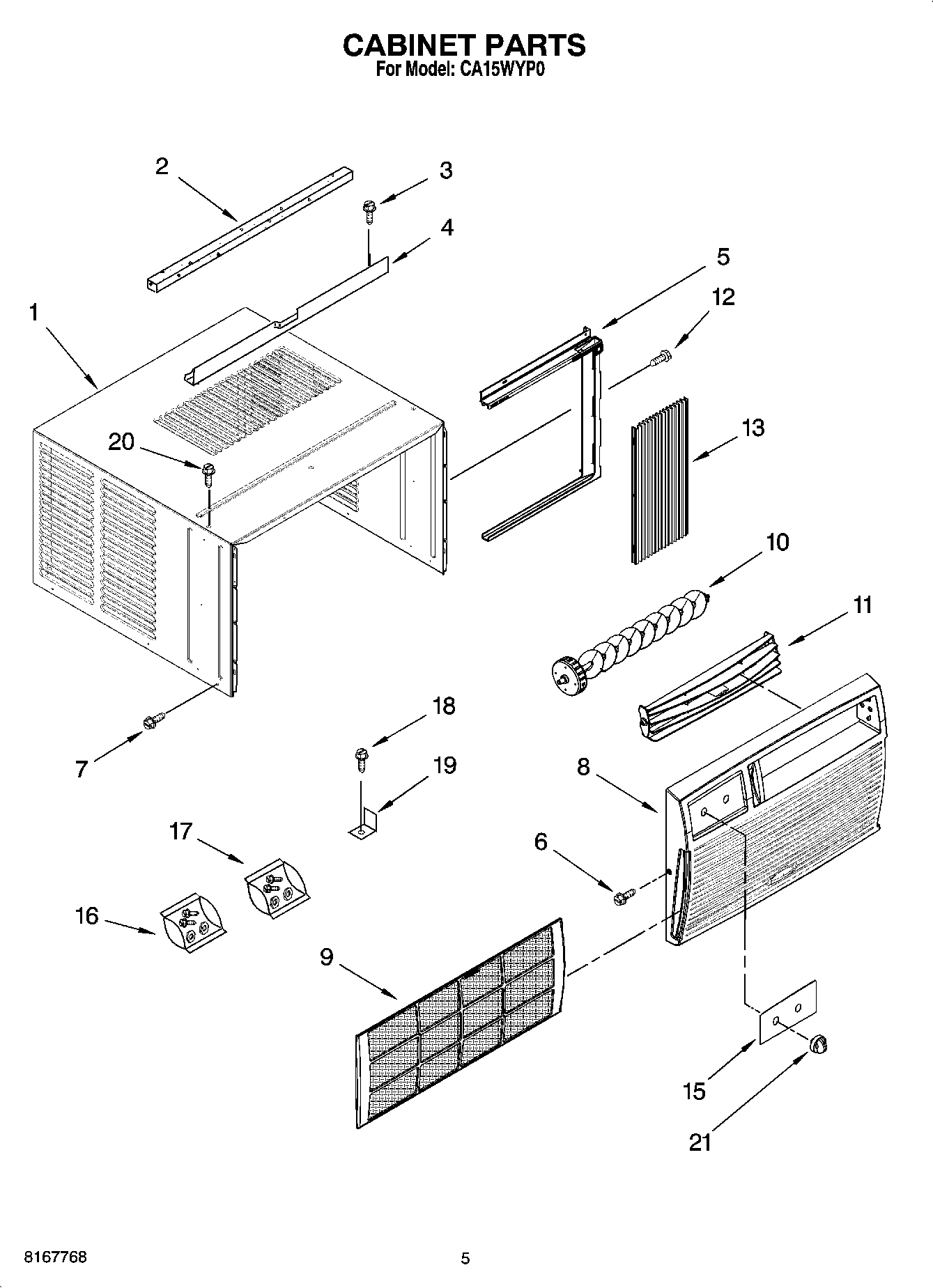

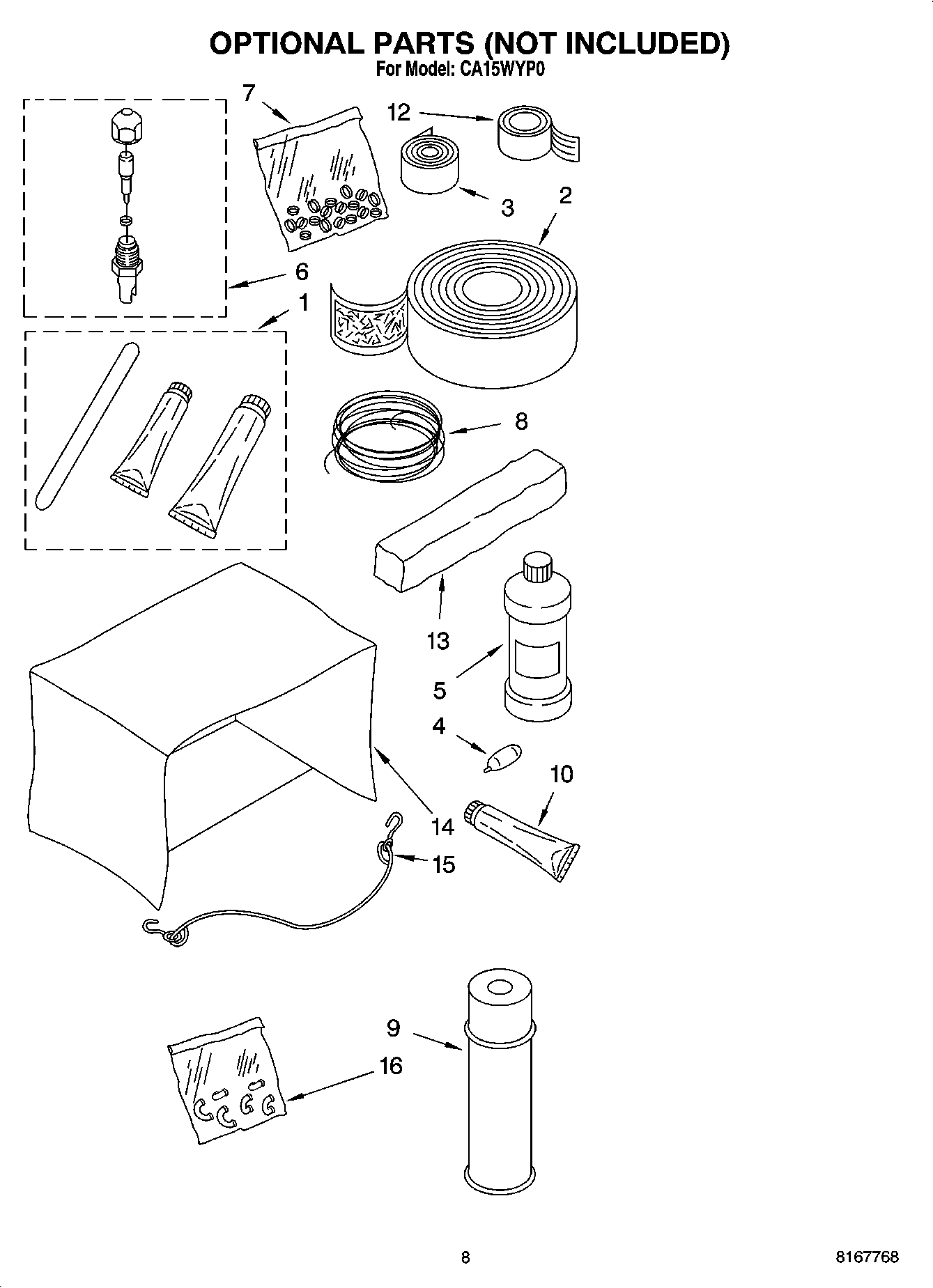

Model Whirlpool CA15WYP0 AIR CONDITIONER – Common Parts &amp; Diagrams

1

Literature Parts (Use & Care Guide) WPL LIT1187361 Contact Us For Availability

1

Energy Guide WPL LIT1187468 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8031276 Contact Us For Availability

1

Bag, Mounting Hardware WPL 1187201 Contact Us For Availability

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Tape, No Drip 30` WPL 505168 Contact Us For Availability

2

Compressor WPL 1187687 Contact Us For Availability

2

Support, Center WPL 1187285 Contact Us For Availability

3

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

3

Tape, Vinyl 36` WPL 479502 Contact Us For Availability

3

Overload WPL 1186662 Contact Us For Availability

3

Capacitor, Running WPL 1187472 Contact Us For Availability

3

Strap, Vertical (2) WPL 1187286 Contact Us For Availability

4

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

4

Channel, Top WPL 1187203 Contact Us For Availability

4

Anticipator WPL 996773 Contact Us For Availability

4

Support, Vertical (2) WPL 1187202 Contact Us For Availability

5

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

5

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

5

Frame, Curtain (Right Side) WPL 1187530 Contact Us For Availability

5

Frame, Curtain (Left Side) WPL 1187531 Contact Us For Availability

6

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

6

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

6

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

6

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

6

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

6

Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability

6

Gasket WPL 1182120 Contact Us For Availability

6

Seal, Control Box WPL 1187690 Contact Us For Availability

6

Support, Side (2) WPL 1187283 Contact Us For Availability

7

WP950021 Whirlpool Grommet Backorder WPL WP950021 $26.21

7

Hood, Air Housing WPL 1187193 Contact Us For Availability

7

Support, Back WPL 1187284 Contact Us For Availability

8

Front WPL 1187457 Contact Us For Availability

8

Wiring Harness, Compressor WPL 1187592 Contact Us For Availability

8

Screw, WPL 488734 Contact Us For Availability

9

Filter WPL 1187197 Contact Us For Availability

9

Clip, Compressor WPL 8011446 Contact Us For Availability

9

Housing, Top WPL 1187628 Contact Us For Availability

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

Louver, Vertical WPL 1187260 Contact Us For Availability

Gasket, Terminal Cover WPL 1182118 Contact Us For Availability

Door, Exhaust WPL 1187136 Contact Us For Availability

11

Louver Horizontal WPL 1187259 Contact Us For Availability

11

Cover, Terminal WPL 1184748 Contact Us For Availability

12

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

12

W10833054 Whirlpool Air Conditioner Mounting Backorder WPL W10833054 $2.87

12

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

13

Motor, Fan WPL 1187470 Contact Us For Availability

13

CURTAIN WPL 1187532 Contact Us For Availability

484184 Whirlpool Air Conditioner Winter Cover Backorder WPL 484184 $38.05

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability

Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability

Shroud, Condenser WPL 1187176 Contact Us For Availability

15

Escutcheon WPL 1187657 Contact Us For Availability

15

Tube, Feeder WPL 1187650 Contact Us For Availability

15

Switch, Rotary WPL 1186502 Contact Us For Availability

16

Thermostat WPL 1185752 Contact Us For Availability

16

Bag, Accessory WPL 476180 Contact Us For Availability

16

Wheel, Blower WPL 1187186 Contact Us For Availability

17

Blade, Fan WPL 1187178 Contact Us For Availability

17

Bag, Accessory (for Curtains) WPL 1185948 Contact Us For Availability

17

Box, Control WPL 1187147 Contact Us For Availability

18

Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability

18

Evaporator WPL 1187327 Contact Us For Availability

19

Bracket, Window Lock WPL 644228 Contact Us For Availability

19

Tube, Restrictor WPL 1187649 Contact Us For Availability

19

Panel, Control WPL 1187149 Contact Us For Availability

20

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

20

Condenser WPL 1187439 Contact Us For Availability

20

Housing, Air- Bottom WPL 1187185 Contact Us For Availability

21

Knob, Control WPL 1187163 Contact Us For Availability

21

Bend, Return WPL 1187604 Contact Us For Availability

24

Tube, Connecting WPL 1187660 Contact Us For Availability

25

Screw WPL 1159222 Contact Us For Availability

26

Cable, Appliance WPL 1187350 Contact Us For Availability

27

Sleeve, Insulator WPL 1185784 Contact Us For Availability

27

Grommet, Screw WPL 1187495 Contact Us For Availability

28

Screw WPL 488624 Contact Us For Availability

29

Clip, Temperature Anticipator WPL 475577 Contact Us For Availability

31

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

33

Tube, Suction (Includes Item 34) WPL 1187528 Contact Us For Availability

34

Seal, Suction Tube WPL 1187638 Contact Us For Availability

35

Tube, Flow Divider WPL 947364 Contact Us For Availability

36

Tube, Outlet (Includes Item 37) WPL 950825 Contact Us For Availability

37

Strainer WPL 49599 Contact Us For Availability

38

Bend, Returm WPL 855199 Contact Us For Availability

39

Tube, Discharge WPL 1187527 Contact Us For Availability

40

Base WPL 1187184 Contact Us For Availability

41

Bend, Return WPL 855644 Contact Us For Availability

42

Manifold, Suction WPL 1187454 Contact Us For Availability

42

REFRIGERANT CHARGE 20.00 oz. WPL ARI144207A Contact Us For Availability
