Model Kenmore C970-658043 RANGE – Common Parts & Diagrams

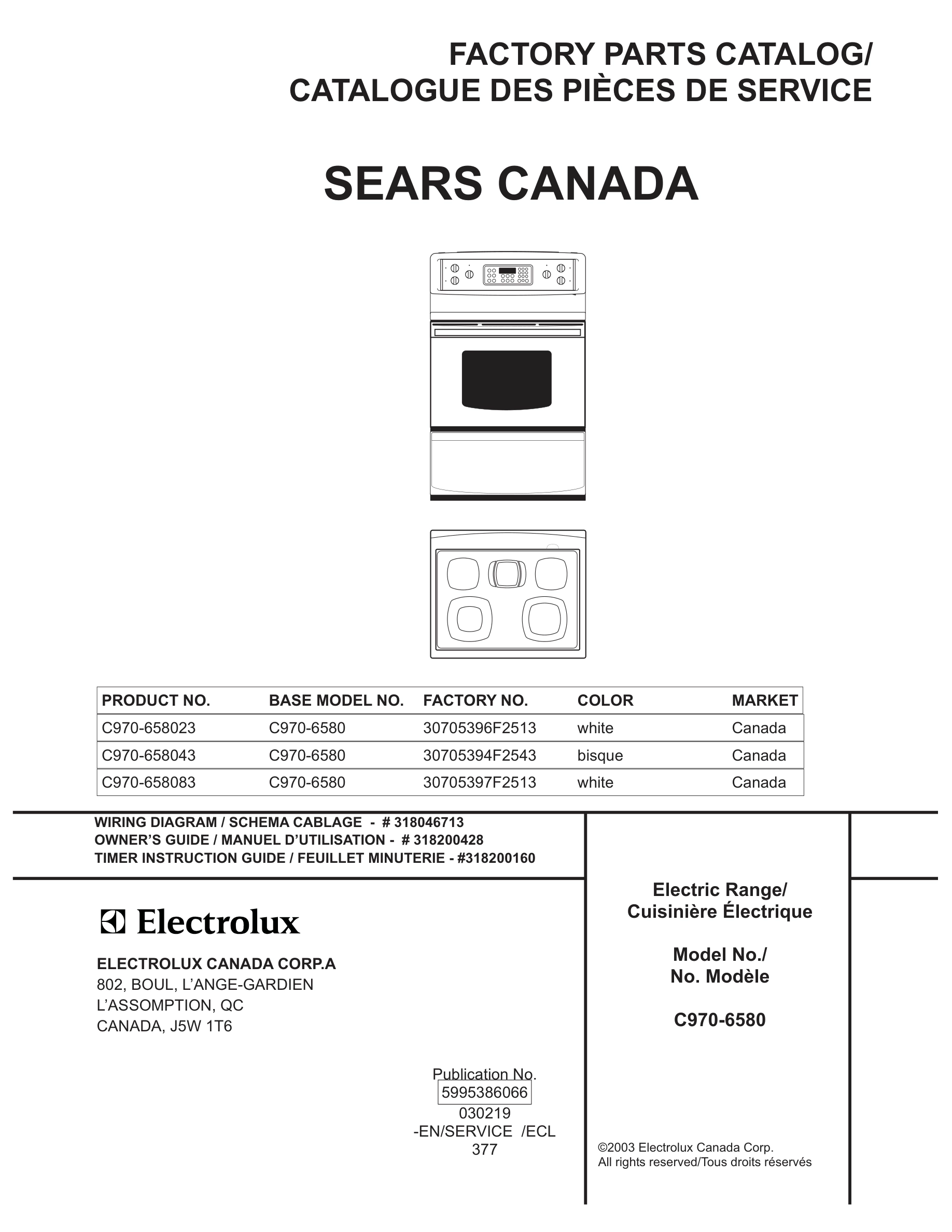

01 - COVER

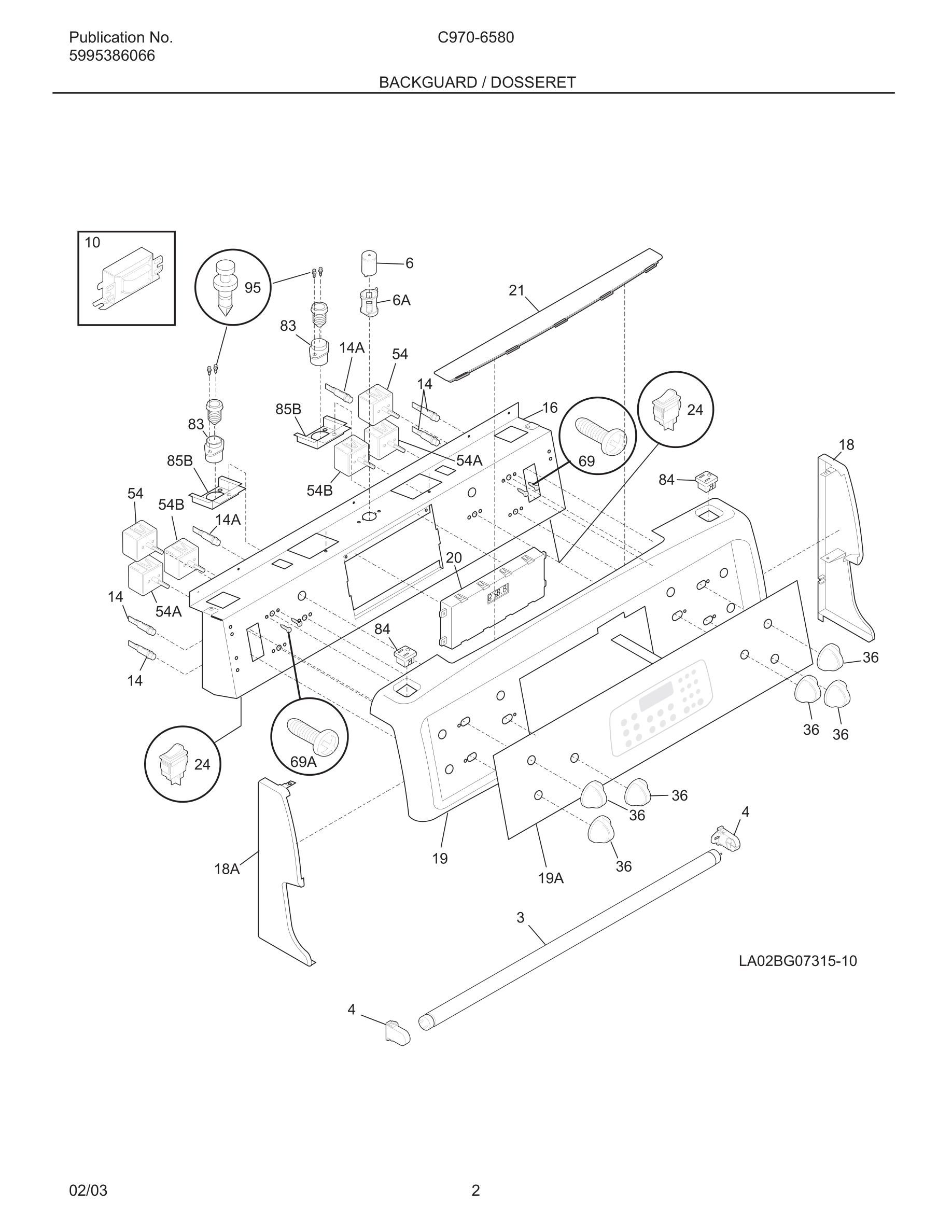

03 - BACKGUARD / DOSSERET

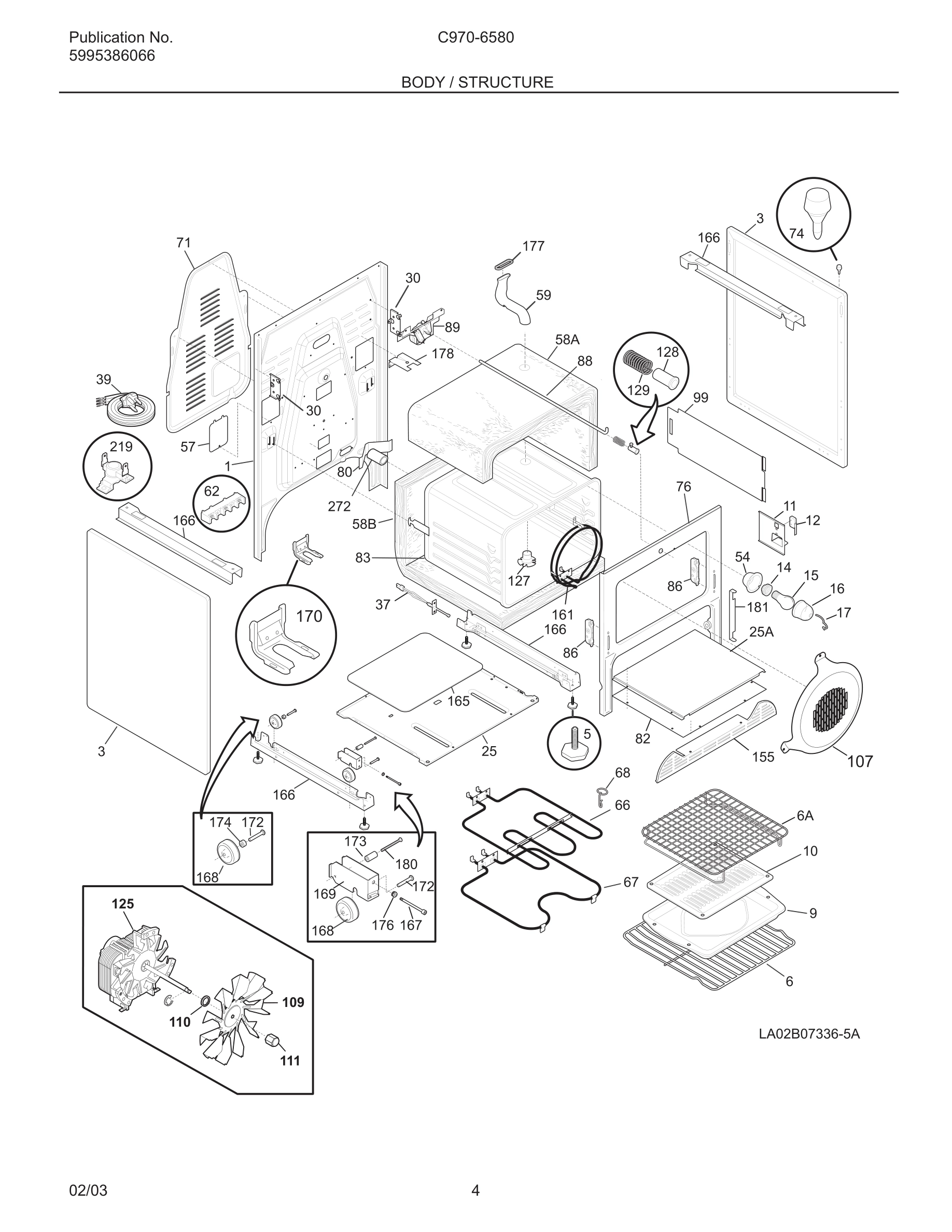

05 - BODY / STRUCTURE

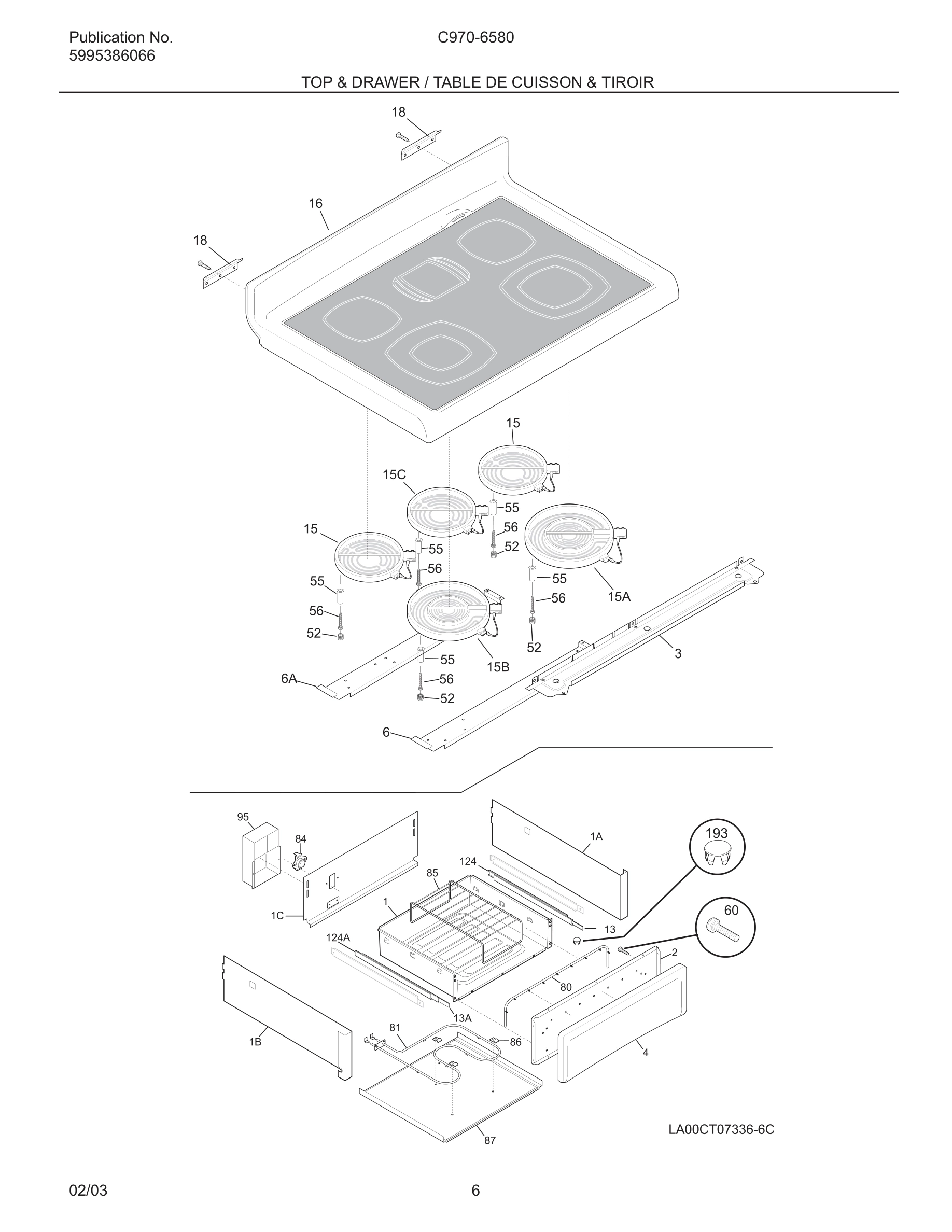

07 - TOP & DRAWER / TABLE DE CUISSON & TIROIR

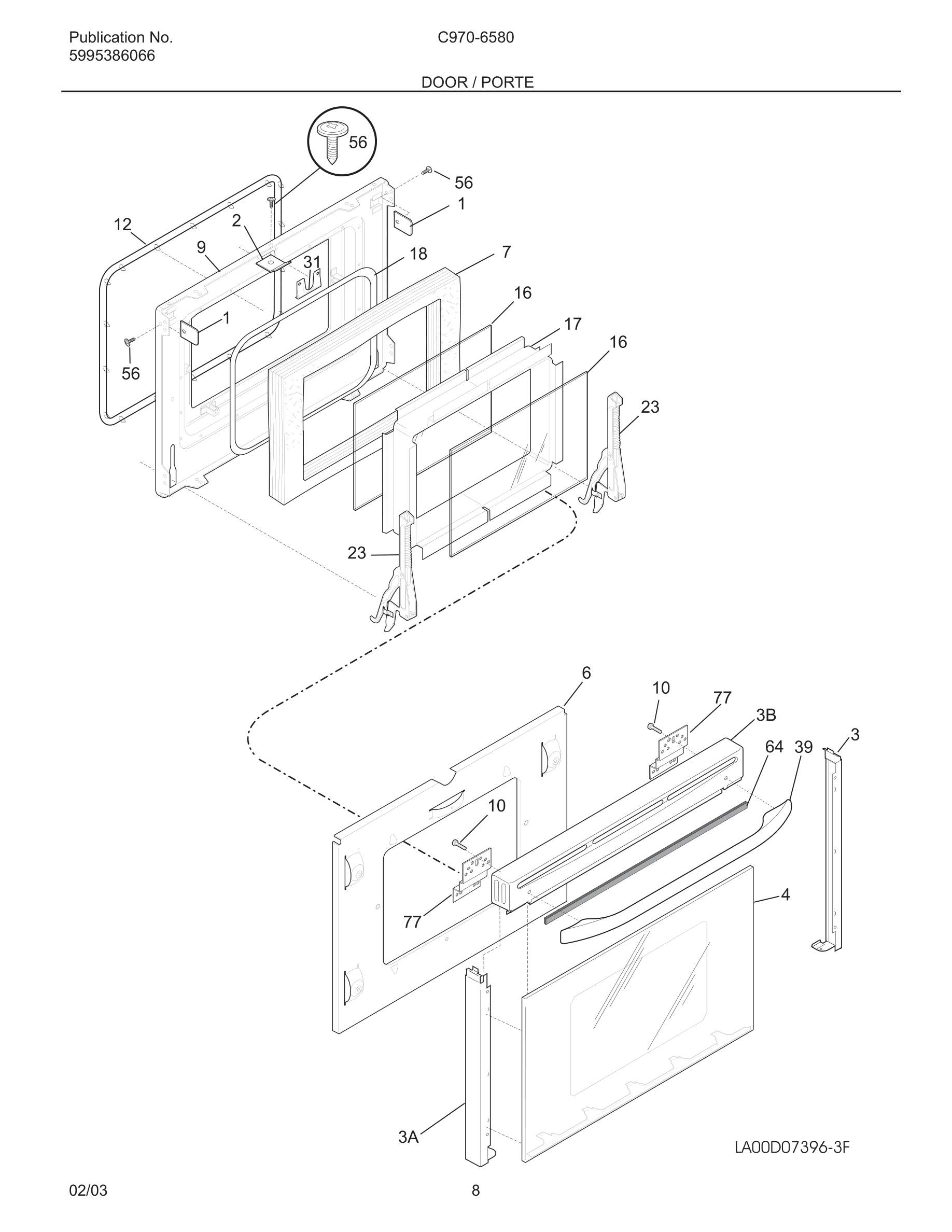

09 - DOOR / PORTE

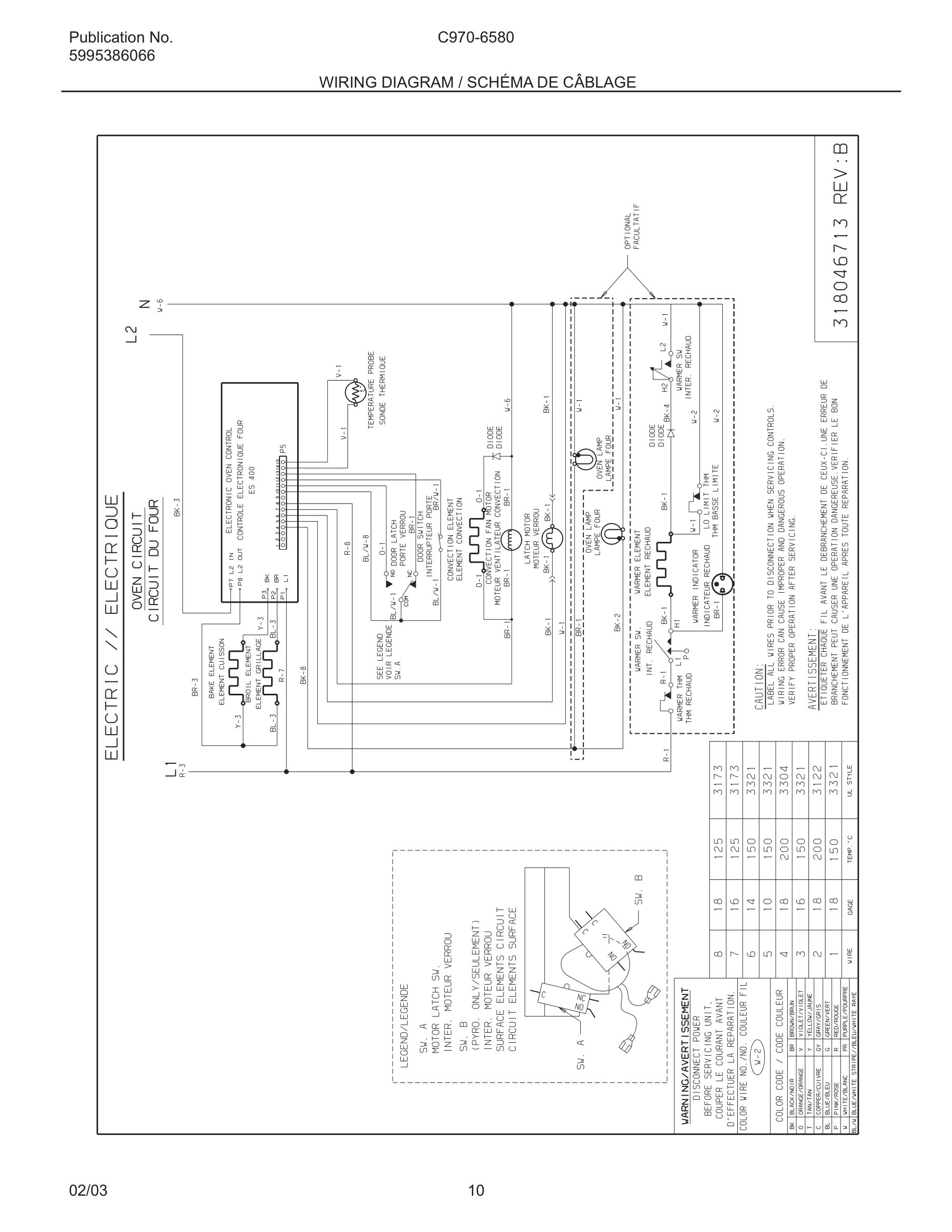

10 - WIRING DIAGRAM
Common parts from model Kenmore C970-658043 RANGE
*
Support,glass ,bisque ,(4) WCI 318183102 Contact Us For Availability
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
1
Drawer,warmer WCI 318142500 Contact Us For Availability
1
Bracket,trim mtg WCI 318180310 Contact Us For Availability
1A
Deflector,warmer ,right side WCI 318143508 Contact Us For Availability
1B
Deflector,warmer ,left side WCI 318143509 Contact Us For Availability
1C
Deflector,warmer ,rear WCI 318143101 Contact Us For Availability
2
Liner,warmer door WCI 318108202 Contact Us For Availability
2
Bracket,upper trim mtg WCI 318180312 Contact Us For Availability
3
Support,main top WCI 318144321 Contact Us For Availability
3
Trim,door ,bisque ,RH side WCI 318187812 Contact Us For Availability
3A
Trim,door ,bisque ,LH side WCI 318187813 Contact Us For Availability
3B
Trim,door ,bisque ,top WCI 318176648 Contact Us For Availability
4
Panel,drawer ,bisque WCI 318044305 Contact Us For Availability
4
Panel,door front assy ,glass ,bisque ,with lo WCI 318187716 Contact Us For Availability
5
Screw,leveling WCI 318175503 Contact Us For Availability
6
Rack,oven WCI 318025308 Contact Us For Availability
6
Bracket,element WCI 318180702 Contact Us For Availability
6
Shield,insulation WCI 318056802 Contact Us For Availability
6#
Starter,lamp WCI 5308068062 Contact Us For Availability
6A
Rack,broiler pan WCI 318219500 Contact Us For Availability
6A
Bracket,element WCI 318180712 Contact Us For Availability
7
Insulation,oven door WCI 318133754 Contact Us For Availability
9
Pan,broiler WCI 5303317977 Contact Us For Availability
9
Liner,door WCI 318157011 Contact Us For Availability
10
Insert,broiler pan WCI 5303317976 Contact Us For Availability
11
Bracket,light switch WCI 318086100 Contact Us For Availability
12#
Switch,door ,oven light WCI 318089801 Contact Us For Availability
13
Channel,drawer ,rh,inner WCI 316096500 Contact Us For Availability
13A
Channel,drawer ,lh,inner WCI 316096501 Contact Us For Availability
15A#
Element,surface ,6/9 ,700/2100W ,dual radiant WCI 318198910 Contact Us For Availability
15C#
Element,warmer zone ,100W WCI 316098202 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
16
Panel,main top ,glass ,bisque ,assembly WCI 318154527 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Hinge,main top panel ,(2) WCI 318074400 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
25
Shield,heat ,lower WCI 318108702 Contact Us For Availability
25A
Panel,warmer ,top WCI 318145201 Contact Us For Availability
30
Bracket,hinge ,main top ,(2) WCI 318110800 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
39
Handle,door ,bisque WCI 316235503 Contact Us For Availability
39#
Cord,electric WCI 318113106 Contact Us For Availability
54
Housing,oven light WCI 318222400 Contact Us For Availability
55
Spacer,element WCI 5303317178 Contact Us For Availability
56
Screw,element ,6 x 3/4 WCI 5303317179 Contact Us For Availability
57
Cover,access WCI 318036500 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
59
Tube,oven vent WCI 318072522 Contact Us For Availability
64
Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability
71
Cover,wire WCI 318086600 Contact Us For Availability
74
Bumper,bodyside WCI 318141900 Contact Us For Availability
76
Frame,front WCI 318056301 Contact Us For Availability
77
Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability
80
Plate,oven mtg WCI 5303320846 Contact Us For Availability
80
Seal,door ,warmer drawer WCI 318052700 Contact Us For Availability
82
Deflector,top WCI 318145301 Contact Us For Availability
83
Liner,oven WCI 318109416 Contact Us For Availability
84#
Thermostat,safety WCI 318005103 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
86
Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability
87
Base,warmer WCI 318121503 Contact Us For Availability
88
Rod,latch WCI 318118902 Contact Us For Availability
89#
Motor,latch assy ,w/brkt & switch WCI 318095938 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
89*
Switch,latch WCI 318120704 Contact Us For Availability
95
Cover,wire ,warmer drawer WCI 318143901 Contact Us For Availability
99
Deflector,heat ,side WCI 318126101 Contact Us For Availability
107
Cover,fan WCI 318219401 Contact Us For Availability
124
Rail,drawer ,RH outer WCI 316094900 Contact Us For Availability
124A
Rail,drawer ,LH outer WCI 316094901 Contact Us For Availability
125#
Motor,fan WCI 316234601 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
155
Panel,drawer ,decorative WCI 318145401 Contact Us For Availability
161#
Element,convection ,2500 W WCI 318050710 Contact Us For Availability
165
Plate,heat shield WCI 318003100 Contact Us For Availability
166
Bracket,base support WCI 318111000 Contact Us For Availability
167
Screw,socket head cap ,lock WCI 318147800 Contact Us For Availability
168
Roller WCI 08011155 Contact Us For Availability
169
Bracket,roller housing WCI 318147700 Contact Us For Availability
170
Anti-tip accessories WCI 5304405205 Contact Us For Availability
172
Rivet,roller shaft ,0.250 x 1.500 WCI 08011131 Contact Us For Availability
173
Spacer,lock ,nylon WCI 5304400434 Contact Us For Availability
174
Spacer,roller WCI 5303324511 Contact Us For Availability
177
Gasket,vent WCI 5303324040 Contact Us For Availability
178
Bracket,vent WCI 318125702 Contact Us For Availability
180
Screw,lock bracket ,10-24 x 2.00 WCI 5303285443 Contact Us For Availability
181
Retainer,bracket ,side panel ,(2) WCI 318162700 Contact Us For Availability
193
Plug WCI 5304400796 Contact Us For Availability
272
Tube,protector WCI 5303311207 Contact Us For Availability
× ![]()
