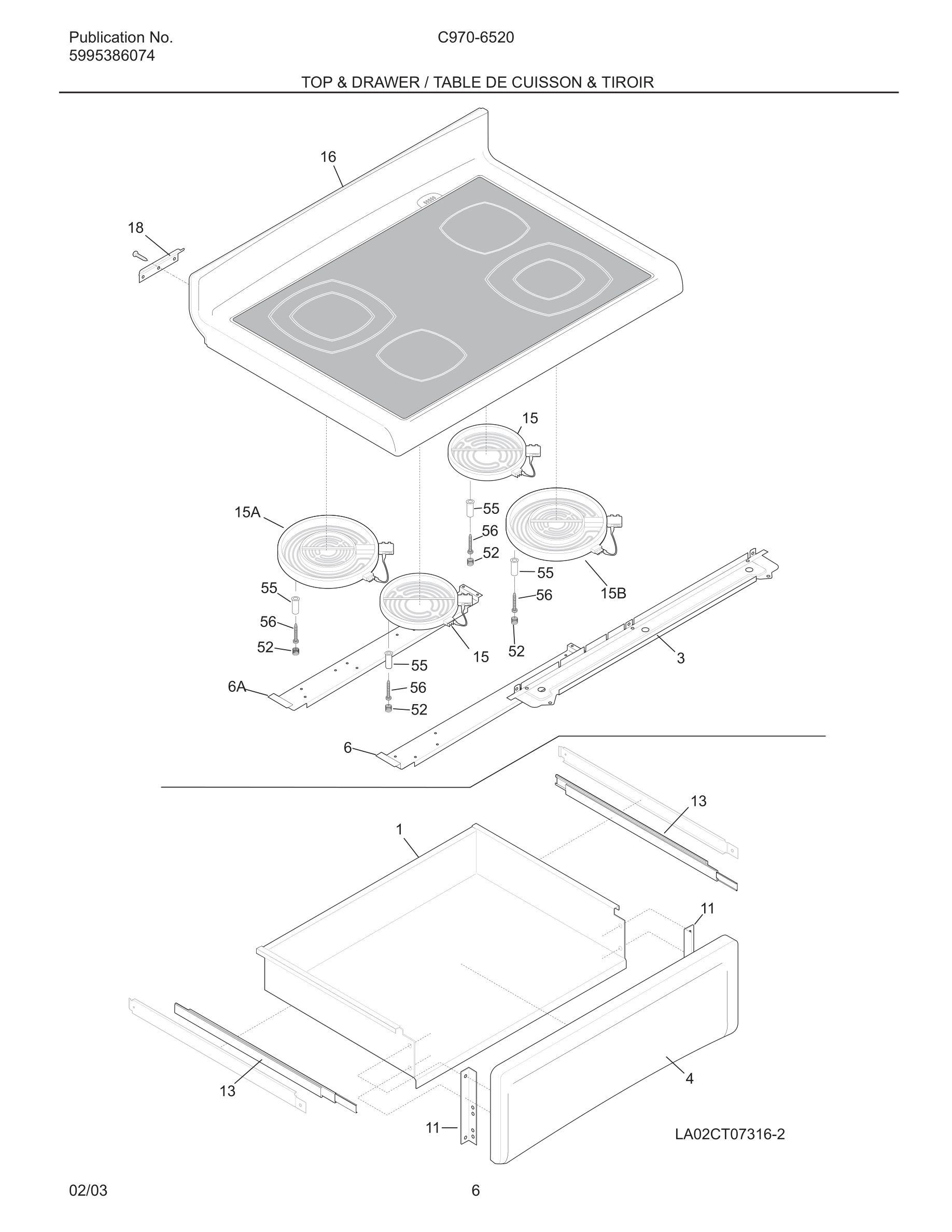

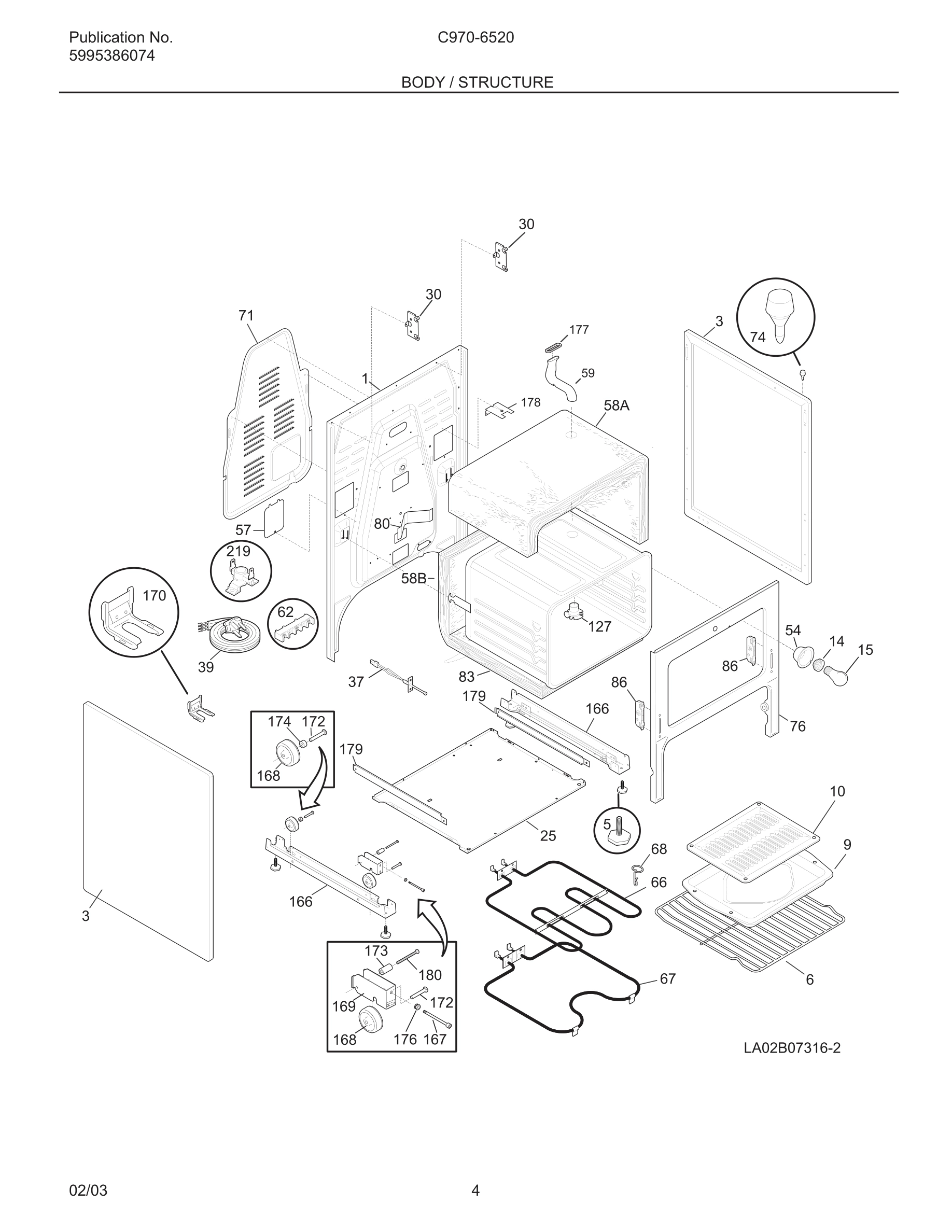

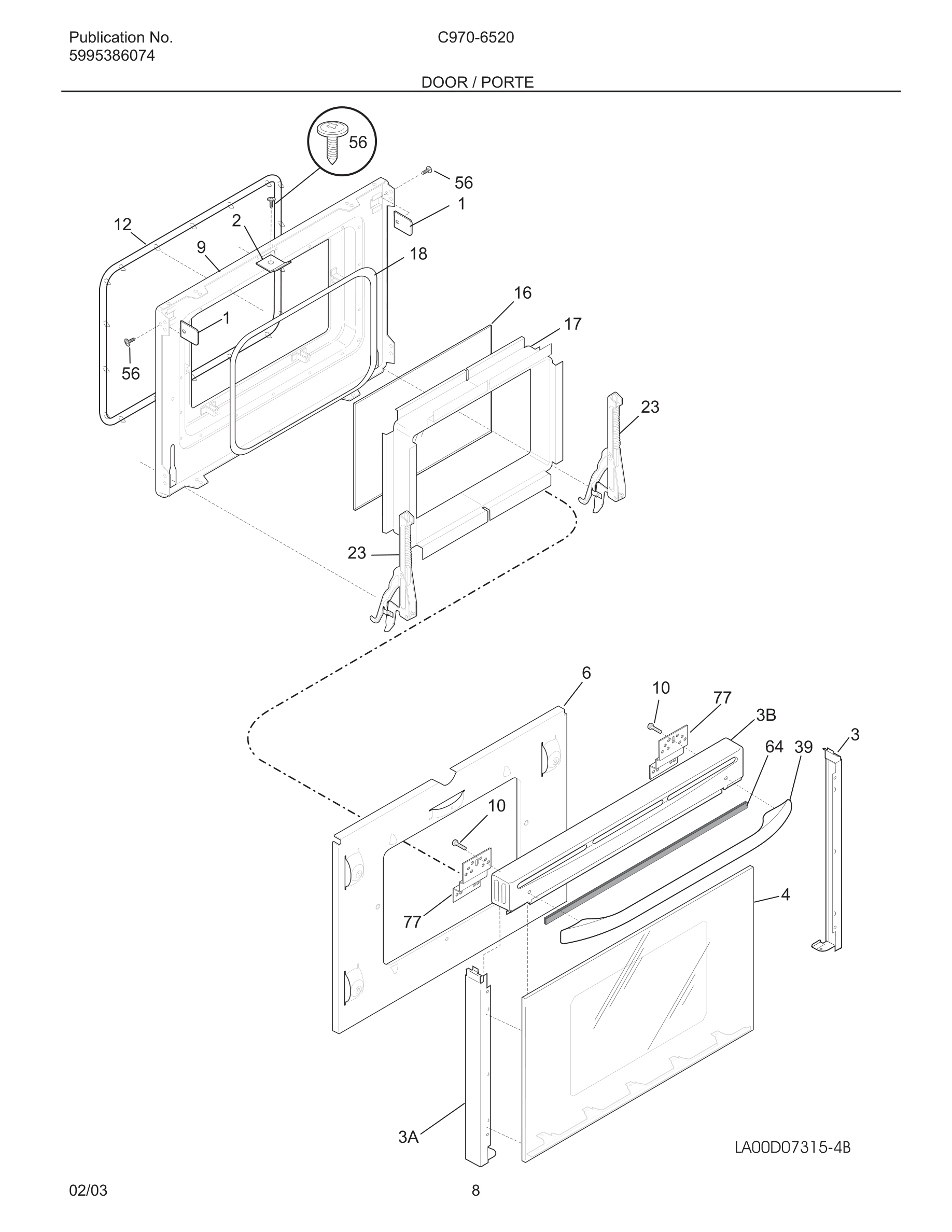

Model Kenmore C970-652083 RANGE – Common Parts & Diagrams

*
Support,glass ,white ,(4)
Support,glass ,white ,(4) WCI 318183101 Contact Us For Availability
View on Model
*
Screw,truss head ,8-18 x 0.375
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
View on Model
1
Panel,main back
Panel,main back WCI 318108101 Contact Us For Availability
View on Model
1
Drawer,utility
Drawer,utility WCI 318107304 Contact Us For Availability
View on Model
1
Bracket,trim mtg
Bracket,trim mtg WCI 318180310 Contact Us For Availability
View on Model
2
Bracket,upper trim mtg
Bracket,upper trim mtg WCI 318180312 Contact Us For Availability
View on Model
3
Panel,bodyside ,white ,(2)
Panel,bodyside ,white ,(2) WCI 318025611 Contact Us For Availability
View on Model
3
Support,main top
Support,main top WCI 318144321 Contact Us For Availability
View on Model
3
Trim,door ,white ,RH side
Trim,door ,white ,RH side WCI 318178322 Contact Us For Availability
View on Model
3A
Trim,door ,white ,LH side
Trim,door ,white ,LH side WCI 318178323 Contact Us For Availability
View on Model
3B
Trim,door ,white ,top
Trim,door ,white ,top WCI 318176646 Contact Us For Availability
View on Model
4
Panel,door front assy ,glass ,white ,with low
Panel,door front assy ,glass ,white ,with low WCI 318187715 Contact Us For Availability
View on Model
4
Panel,drawer ,white ,front
Panel,drawer ,white ,front WCI 318044301 Contact Us For Availability
View on Model
5
Screw,leveling
Screw,leveling WCI 318175503 Contact Us For Availability
View on Model
6
Rack,oven
Rack,oven WCI 318025308 Contact Us For Availability
View on Model
6
Bracket,element
Bracket,element WCI 318180702 Contact Us For Availability
View on Model
6
Shield,insulation
Shield,insulation WCI 318056802 Contact Us For Availability
View on Model
6#
Starter,lamp
Starter,lamp WCI 5308068062 Contact Us For Availability
View on Model
6A
Bracket,element
Bracket,element WCI 318180712 Contact Us For Availability
View on Model
9
Pan,broiler
Pan,broiler WCI 5303317977 Contact Us For Availability
View on Model
9
Liner,inner door assy
Liner,inner door assy WCI 318157015 Contact Us For Availability
View on Model
10
Insert,broiler pan
Insert,broiler pan WCI 5303317976 Contact Us For Availability
View on Model
11
Bracket,drawer support ,(2)
Bracket,drawer support ,(2) WCI 318107500 Contact Us For Availability
View on Model
12
Seal,oven door
Seal,oven door WCI 318053320 Contact Us For Availability
View on Model
13
Track,drawer ,(2)
Track,drawer ,(2) WCI 318018300 Contact Us For Availability
View on Model
15A#
Element,surface ,6/9 ,700/2100W ,dual radiant
Element,surface ,6/9 ,700/2100W ,dual radiant WCI 318198910 Contact Us For Availability
View on Model
16
Panel,glass ,inner oven door
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
View on Model
16
Panel,main top ,glass ,white ,assembly
Panel,main top ,glass ,white ,assembly WCI 318154522 Contact Us For Availability
View on Model
17
Spacer,glass
Spacer,glass WCI 318042102 Contact Us For Availability
View on Model
18
Hinge,main top panel ,(2)
Hinge,main top panel ,(2) WCI 318074400 Contact Us For Availability
View on Model
18
Seal,window
Seal,window WCI 318053001 Contact Us For Availability
View on Model
23
Hinge,oven door
Hinge,oven door WCI 5303320452 Contact Us For Availability
View on Model
25
Shield,heat ,lower
Shield,heat ,lower WCI 318108702 Contact Us For Availability
View on Model
30
Bracket,hinge ,main top ,(2)
Bracket,hinge ,main top ,(2) WCI 318110800 Contact Us For Availability
View on Model
36
Knob,control ,white
Knob,control ,white WCI 316109106 Contact Us For Availability
View on Model
39#
Cord,electric
Cord,electric WCI 318113106 Contact Us For Availability
View on Model
54
Housing,oven light
Housing,oven light WCI 5303310514 Contact Us For Availability
View on Model
55
Spacer,element
Spacer,element WCI 5303317178 Contact Us For Availability
View on Model
56
Screw,element ,6 x ¾
Screw,element ,6 x ¾ WCI 5303317179 Contact Us For Availability
View on Model
57
Cover,access
Cover,access WCI 318036500 Contact Us For Availability
View on Model
58A
Insulation,oven wrapper
Insulation,oven wrapper WCI 318133700 Contact Us For Availability
View on Model
58B
Insulation,oven back
Insulation,oven back WCI 318133747 Contact Us For Availability
View on Model
59
Tube,oven vent
Tube,oven vent WCI 318072522 Contact Us For Availability
View on Model
64
Tape,0.762 m ,Neoprene
Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability
View on Model
71
Cover,wire
Cover,wire WCI 318086600 Contact Us For Availability
View on Model
74
Bumper,bodyside
Bumper,bodyside WCI 318141900 Contact Us For Availability
View on Model
76
Frame,front ,wheels incl
Frame,front ,wheels incl WCI 318108501 Contact Us For Availability
View on Model
77
Bracket,trim ,handle ,(2)
Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability
View on Model
83
Liner,oven
Liner,oven WCI 318109411 Contact Us For Availability
View on Model
86
Receptacle,hinge
Receptacle,hinge WCI 5303310524 Contact Us For Availability
View on Model
166
Bracket,base support
Bracket,base support WCI 318111000 Contact Us For Availability
View on Model
167
Screw,socket head cap ,lock
Screw,socket head cap ,lock WCI 318147800 Contact Us For Availability
View on Model
168
Roller
Roller WCI 08011155 Contact Us For Availability
View on Model
169
Bracket,roller housing
Bracket,roller housing WCI 318147700 Contact Us For Availability
View on Model
170
Anti-tip accessories
Anti-tip accessories WCI 5304405205 Contact Us For Availability
View on Model
172
Rivet,roller shaft ,0.250 x 1.500
Rivet,roller shaft ,0.250 x 1.500 WCI 08011131 Contact Us For Availability
View on Model
173
Spacer,lock ,nylon
Spacer,lock ,nylon WCI 5304400434 Contact Us For Availability
View on Model
174
Spacer,roller
Spacer,roller WCI 5303324511 Contact Us For Availability
View on Model
177
Gasket,vent
Gasket,vent WCI 5303324040 Contact Us For Availability
View on Model
178
Bracket,vent
Bracket,vent WCI 318125702 Contact Us For Availability
View on Model
179
Bracket,external slide
Bracket,external slide WCI 318144220 Contact Us For Availability
View on Model
180
Screw,lock bracket ,10-24 x 2.00
Screw,lock bracket ,10-24 x 2.00 WCI 5303285443 Contact Us For Availability
View on Model
219#
Thermostat,safety
Thermostat,safety WCI 318003602 Contact Us For Availability
